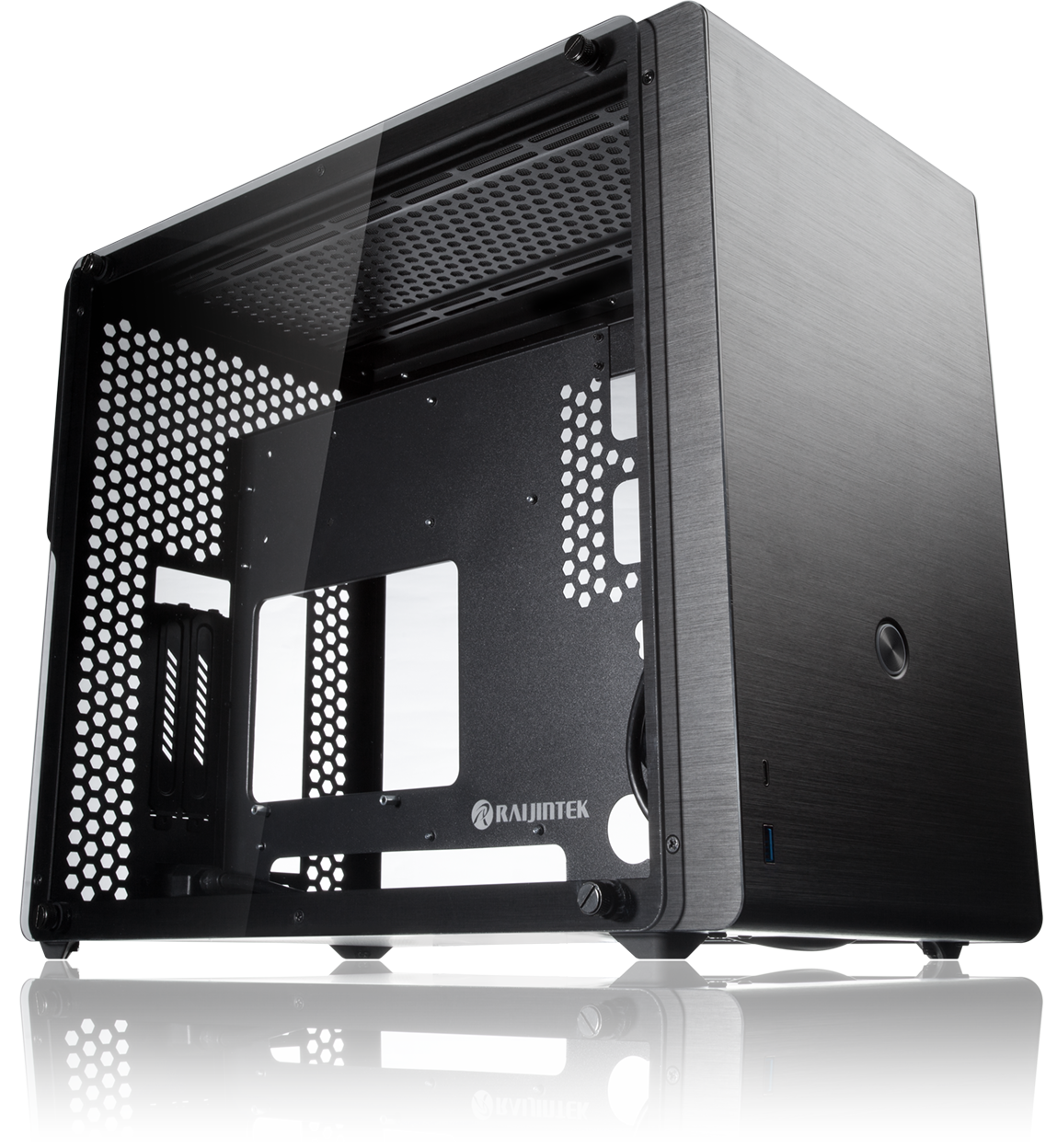

OPHION M EVO
Design Art in its best by RAIJINTEK – New SFF chassis of OPHION series. The OPHION series case is designed to fulfil a smallest case built with max. Possibility high-end, gaming and standard components, such as Intel i9/i7, AMD AM4/TR4 CPU, and especially powerful full –length VGA card, RTX2080. OPHION M EVO case supports up to M-ATX motherboard, Amazing compatibility of maximum three fans including 2*12025 or 2*14025 or 2*20030 fans on top, 1*12015 fan or 1*14025 or 1*20030 fans at bottom. Not only cooling from fans, it also support DIY component such as 120/140/240/280/360 28mm thickness radiator and also enough space for pump and reservoir as well. OPHION M EVO Superior features includes elegant Alu. Hair-silk front panel, 3.5”*3 HDD or 2.5”*5 HDD/SSD, full-length VGA card compatibility, tool-free for the easy installation, ATX / EPS PSU compatibility. Looking for a best of best? OPHION M EVO is the one for Gamers and SFF DIY water cooling enthusiasts.
OPHION M EVO

















  •
  • Support Micro-ATX / Mini ITX
  • 2mm aluminum & 0.8mm SPCC solid iron
  • Matte full black coating
  • 3.0mm tempered glass side panel
  • Water radiator support up to 120/240/280/360, 28mm thick water radiator
  • Super air flow, support up to 3×200mm fans in total (2×20030 fans at top, 1×20030 fan in bottom)
  • Support up to 410mm full-length graphic cad
  • Maximum CPU cooler height up to 82mm
  • Capable of install motor/water tank to achieve real /DIY water loop system
  • Magnetic dust filter for both top & bottom
SPECIFICATION
Product Name OPHION M EVO TGS OPHION M EVO ALS
Product Number 0R20B00135 0R20B00138
Dimension [W×D×H] 231×453×365 mm 214×453×365 mm
Weight 5.89 kg [N.W.] 6.37 kg [G.W.] 4.96 kg [N.W.] 5.44 kg [G.W.]
Material Aluminum 2.0mm; SPCC 0.8mm Aluminum 2.0mm; SPCC 0.8mm
Color Coating Black Coating Black
M/B Support Micro-ATX/MINI-ITX Micro-ATX/MINI-ITX
Drive Bay Internal 3.5"HDD×3 or 2.5"SSD×5 Internal 3.5"HDD×3 or 2.5"SSD×5
Expansion Slot PCI Slots ×2 PCI Slots ×2
I/O Panel USB3.0×1, C-TYPE×1 USB3.0×1, C-TYPE×1
Power Supply PS/2 [Internal Bottom-mount] PS/2 [Internal Bottom-mount]
Fan Q’ty Top: 120mm×3 or 140mm×2 or 200mm×2 [option]
Bottom: 120 or 140mm×1 or 200mm×1 [option]
Top: 120mm×3 or 140mm×2 or 200mm×2 [option]
Bottom: 120 or 140mm×1 or 200mm×1 [option]
Radiator Q’ty 1×120/140/240/280/360mm 28mm thick [option] 1×120/140/240/280/360mm 28mm thick [option]
Pump/water tank 1 [option] 1 [option]
CPU Cooler Height 82mm [Max.] 82mm [Max.]
Graphic Card Length 410mm [Max.] 410mm [Max.]
Side Panel Style 3.0mm Tempered Glass Aluminum
Riser Card Adapter PCI Express 16X Gen3.0 PCI Express 16X Gen3.0

OPHION M EVO × 1

PCI Express 16X Gen3 riser card adapter × 1

Screw #6-32 L6 × 20
Motherboard/PSU/PCI Card/3.5"HDD/Radiator

Screw M3 L9.5 × 12
2.5"SSD/HDD


Screw #6-32 L8.5 × 4
3.5"HDD

Screw M3 L6 × 8
2.5"SSD

Screw 6-32 L6 × 2
VGA Card

Cable Tie × 10


Installation Guide × 1

OPHION M EVO TGS

OPHION M EVO ALS
