PONOS TG/MS

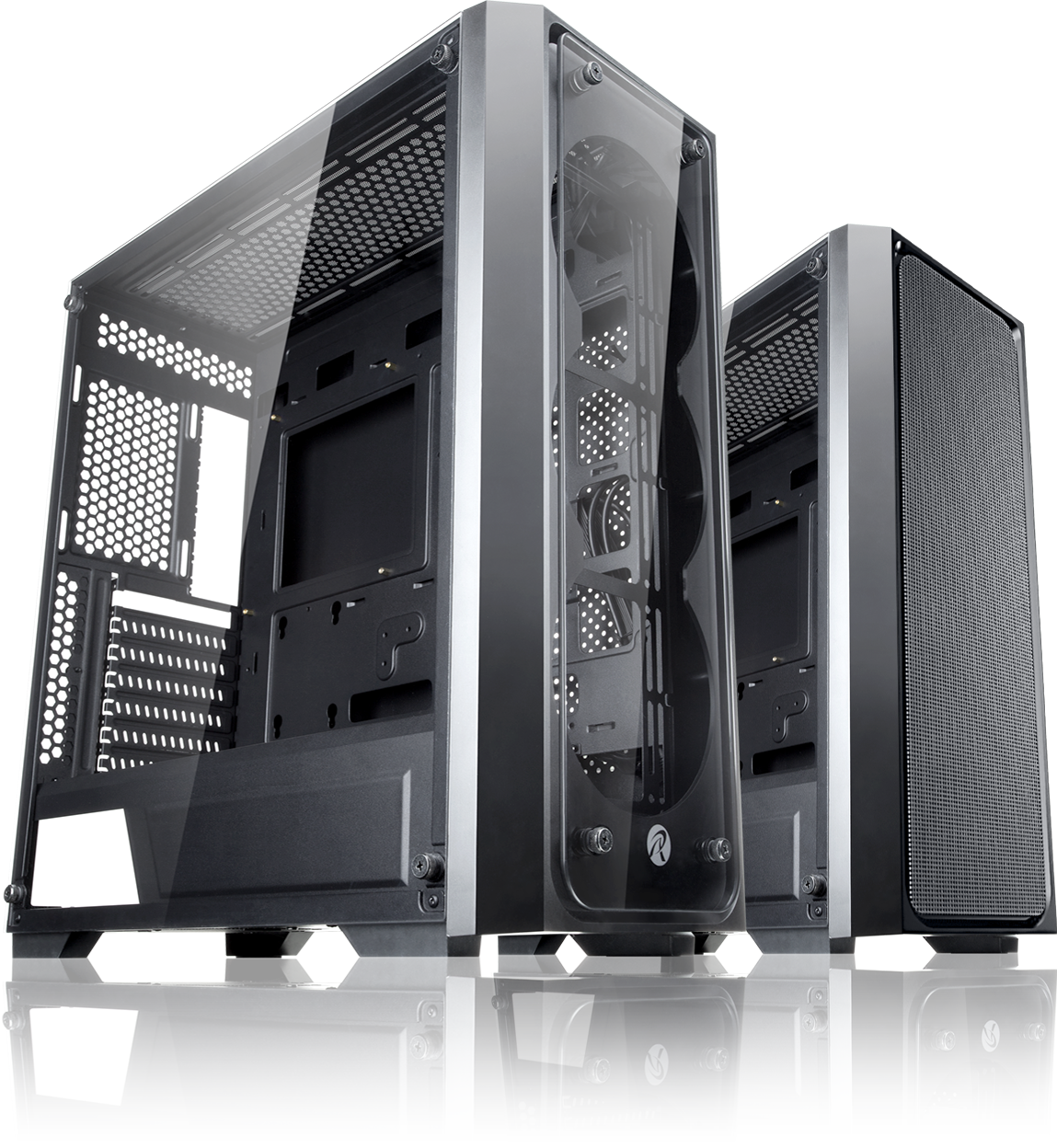

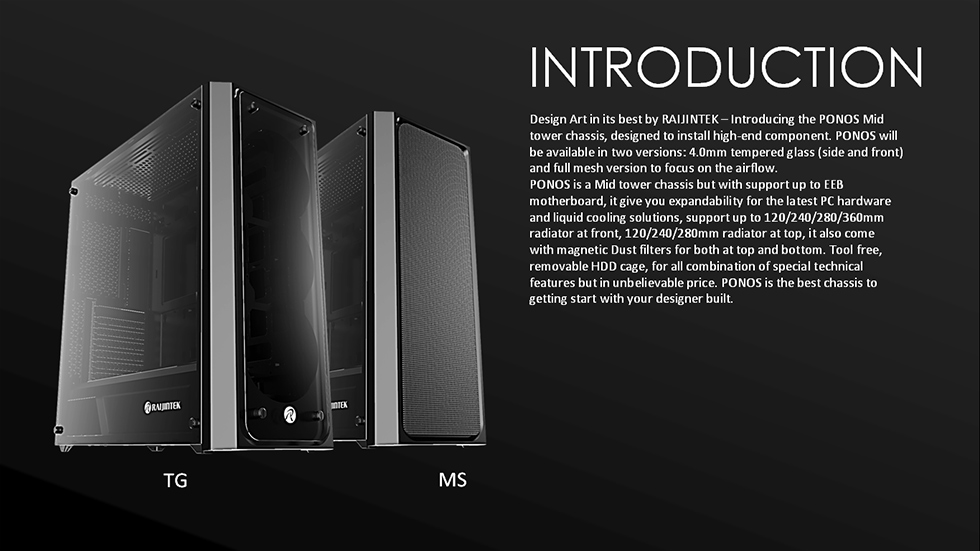

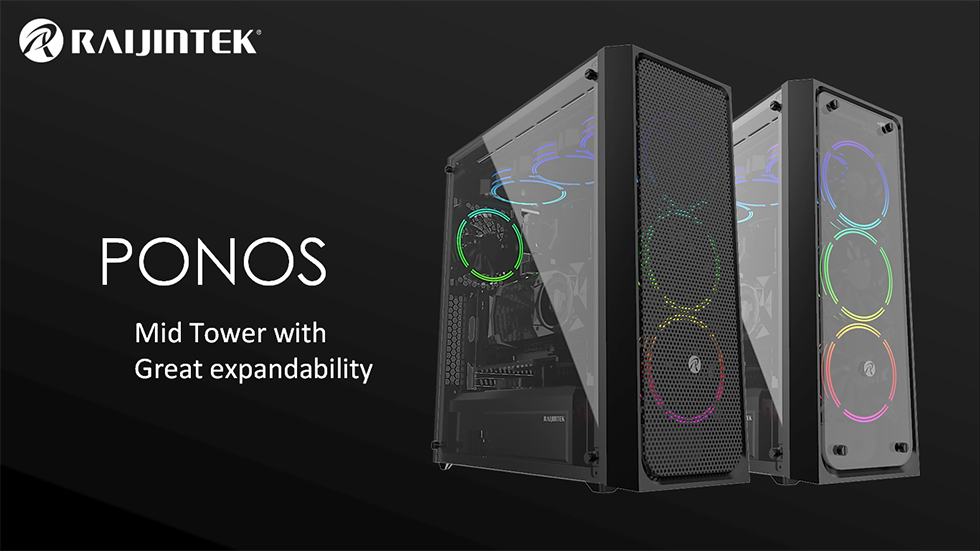

Design Art in its best by RAIJINTEK – Introducing the PONOS Mid tower chassis, designed to install high-end component. PONOS will be available in two versions: 4.0mm tempered glass (side and front) and full mesh version to focus on the airflow. PONOS is a Mid tower chassis but with support up to EEB motherboard, it give you expandability for the latest PC hardware and liquid cooling solutions, support up to 120/240/280/360mm radiator at front, 120/240/280mm radiator at top, it also come with magnetic Dust filters for both at top and bottom. Tool free, removable HDD cage, for all combination of special technical features but in unbelievable price. PONOS is the best chassis to getting start with your designer built.
PONOS TG/MS












  •
  • Tempered glass appearance design
  • Entire Coating black internally design
  • Support up to EEB/E-ATX/ATX/M-ATX/Mini-ITX
  • Compatible with ATX POWER SUPPLY

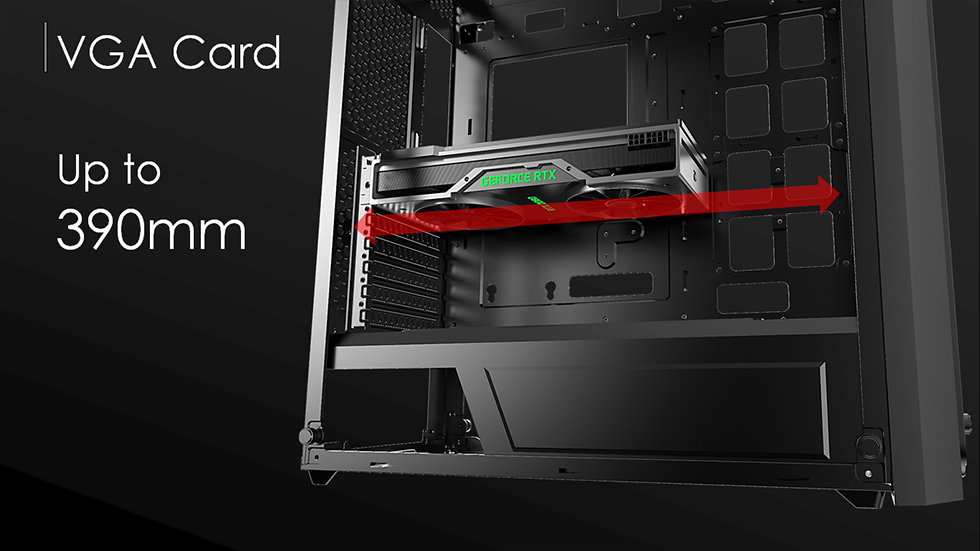

  • Compatible with 390mm VGA card
  • Supports to max. 165mm height CPU cooler

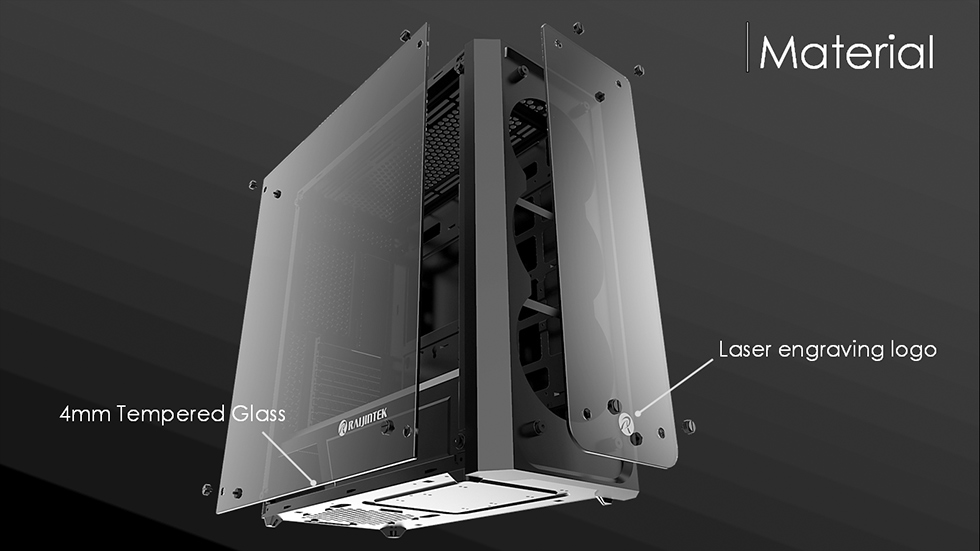

  • 4mm Tempered Glass

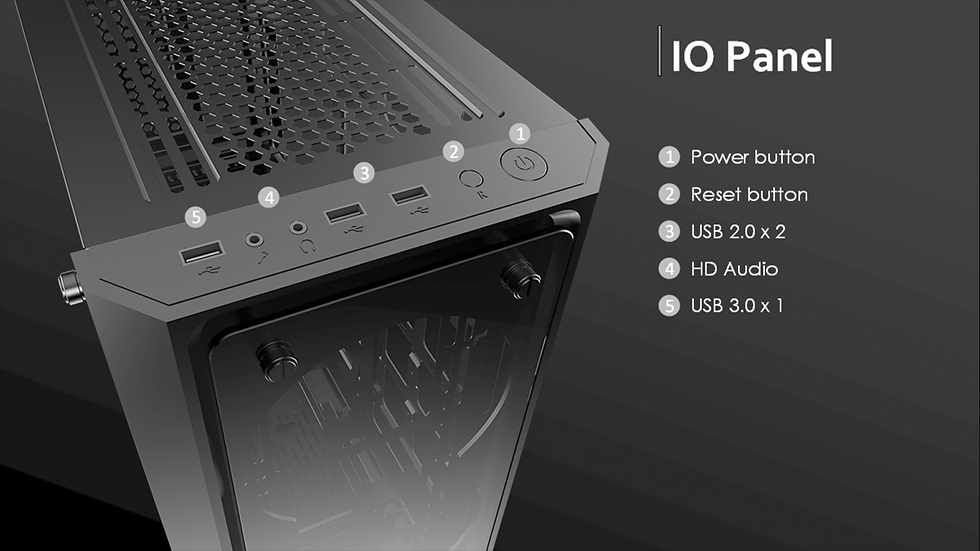

  • USB3.0×1 + USB2.0×2 +HD AUDIO
  • All Magnetic dust filters

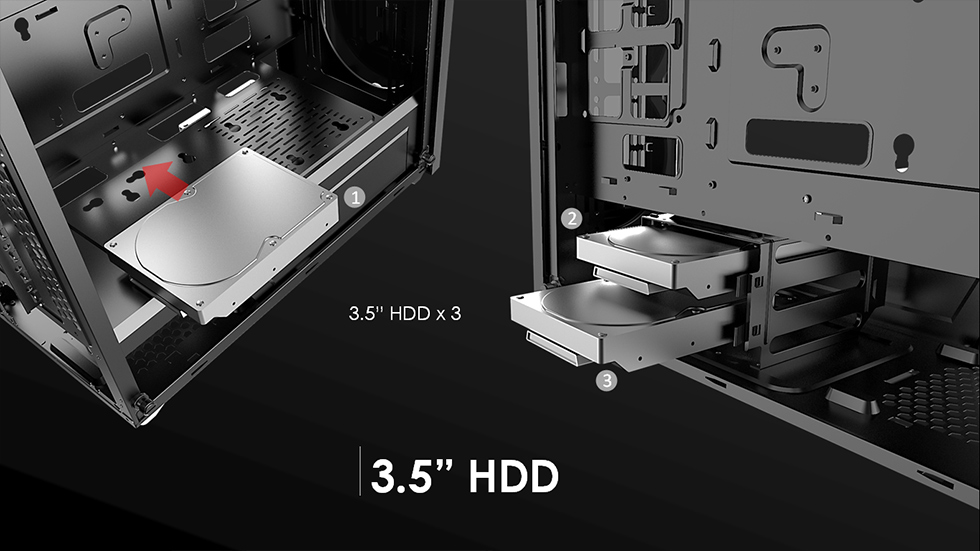

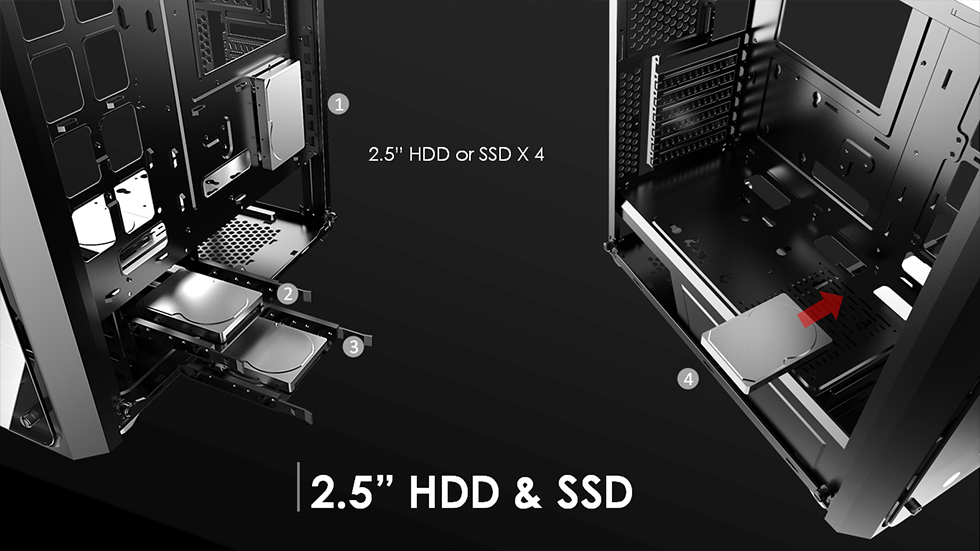

  • Supports up to 5×2.5"HDD or 3×3.5"HDD + 2×2.5"HDD
  • Option to install 3*12025 or 2×14025 fans on top; 3×12025 or 2×14025 fans at front

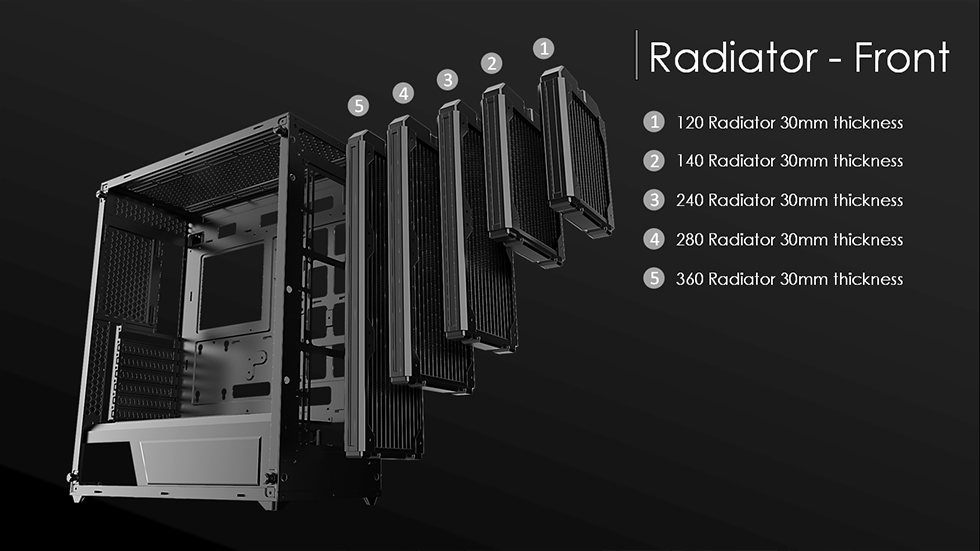

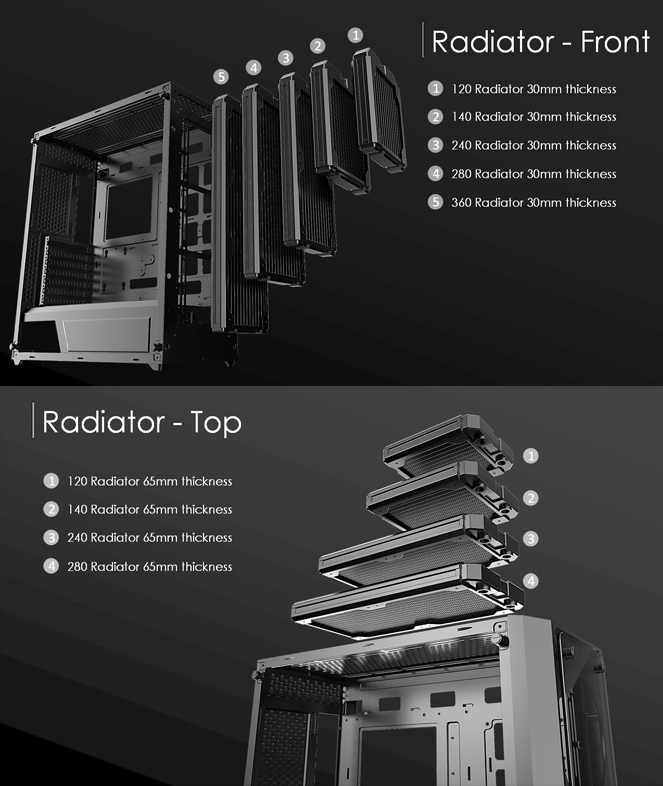

  • Support up to 120/240/280/360mm radiator at front; 120/240/280 mm radiator on the top
SPECIFICATION
Product Name PONOS TG PONOS MS
Product Number 0R20B00153 0R20B00154
Dimension [W×D×H] 210×442×485 mm 210×442×485 mm
Weight 6.7 kg [N.W.] 8 kg [G.W.] 6.7 kg [N.W.] 8 kg [G.W.]
Material SPCC 0.6mm SPCC 0.6mm
Color Coating Black Coating Black

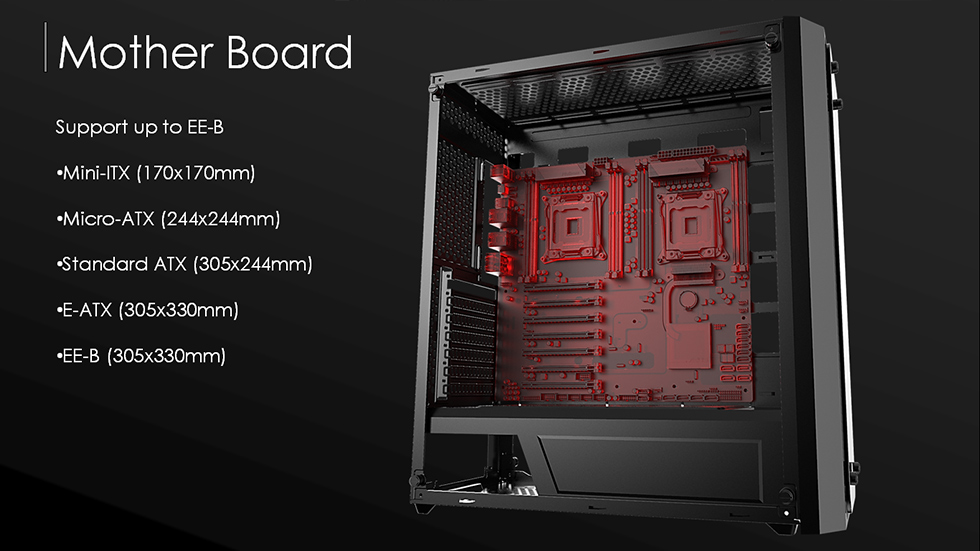

M/B Support EEB; E-ATX; ATX; M-ATX; Mini-ITX EEB; E-ATX; ATX; M-ATX; Mini-ITX
Drive Bay 3.5"×3 + 2.5"×2 or 2.5"×5 3.5"×3 + 2.5"×2 or 2.5"×5
Expansion Slot PCI Slots ×7 PCI Slots ×7
I/O Panel USB3.0×1, USB2.0×2, HD Audio×1 USB3.0×1, USB2.0×2, HD Audio×1
Power Supply PS/2 [Internal Bottom-mount] PS/2 [Internal Bottom-mount]

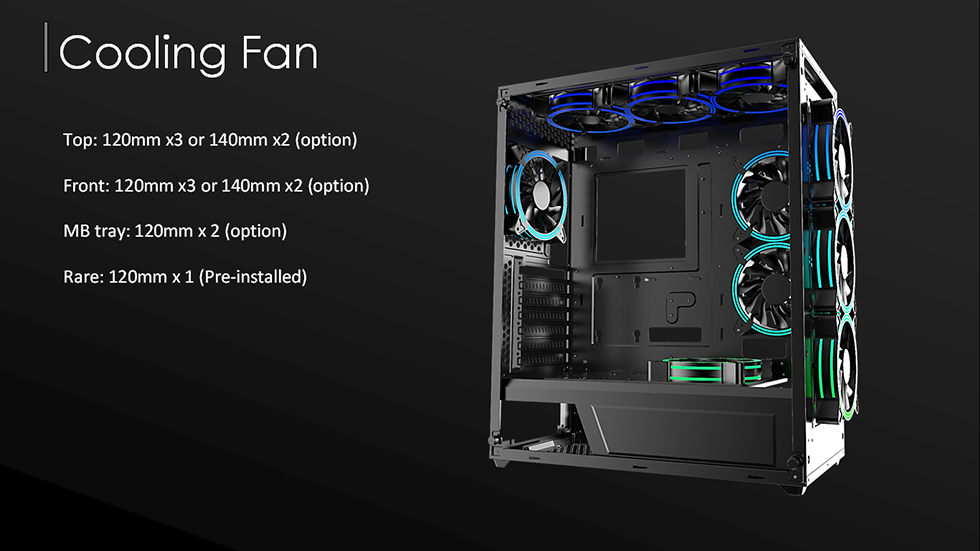

Fan Q’ty Top: 120mm×3 or 140mm×2 [option]
Front: 120mm×3 or 140mm×2 [option]
MB tray: 120mm×2 [option]
Rare: 120mm×1 [Pre-installed]
Top: 120mm×3 or 140mm×2 [option]
Front: 120mm×3 or 140mm×2 [option]
MB tray: 120mm×2 [option]
Rare: 120mm×1 [Pre-installed]

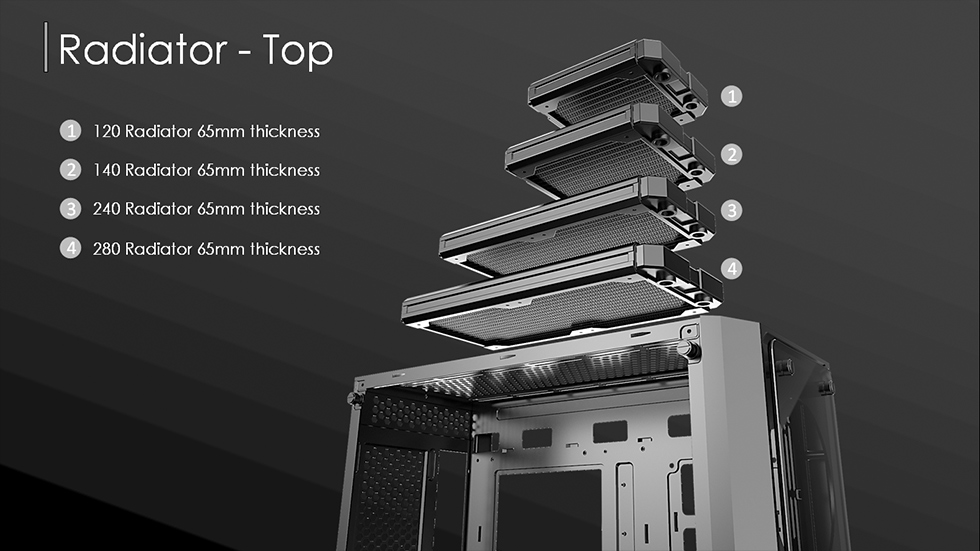

Radiator Q’ty Top: 120/140/280mm [option]
Front: 120/140/280/360mm [option]
MB tray: 120/240mm [option]
Rare: 120mm [option]
Top: 120/140/280mm [option]
Front: 120/140/280/360mm [option]
MB tray: 120/240mm [option]
Rare: 120mm [option]
CPU Cooler Height 165mm [Max.] 165mm [Max.]
Graphic Card Length 390mm [Max.] 390mm [Max.]
Side Panel 4.0mm Tempered Glass 4.0mm Tempered Glass
Front Panel Glass Mesh

PONOS TG or MS × 1

Screw #6-32 L6 × 17
MB/PCI Card/3.5"HDD

Screw M3 L9.5 × 12
2.5"SSD/HDD

Screw #6-32 L8.5 × 4
3.5"HDD

Screw M3 L5 × 8
2.5"SSD

Screw 6-32 L27.5 × 8
FAN

Stand-off × 3
MB

Cable Tie × 10


Installation Guide × 1
