ANTILA D5 EVO RBW

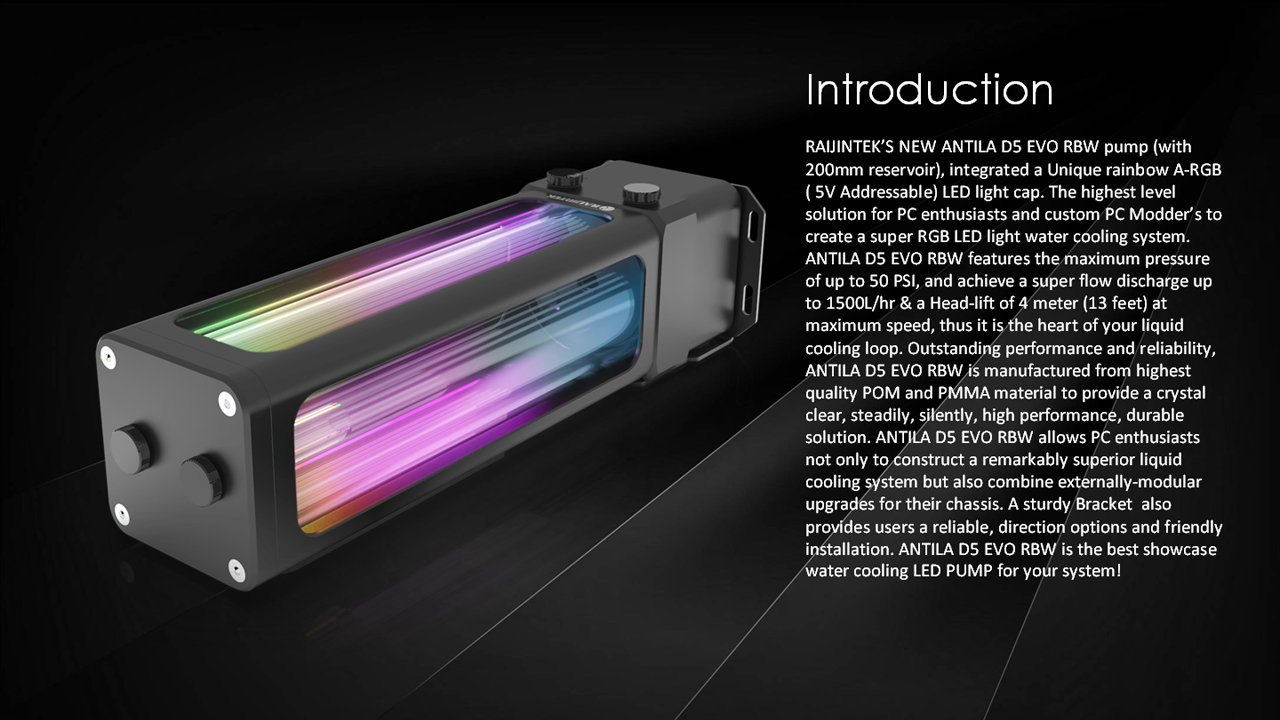

RAIJINTEK’S NEW ANTILA D5 EVO RBW pump (with 200mm reservoir), integrated a Unique rainbow A-RGB ( 5V Addressable) LED light cap. The highest level solution for PC enthusiasts and custom PC Modder’s to create a super RGB LED light water cooling system. ANTILA D5 EVO RBW features the maximum pressure of up to 50 PSI, and achieve a super flow discharge up to 1500L/hr & a Head-lift of 4 meter (13 feet) at maximum speed, thus it is the heart of your liquid cooling loop. Outstanding performance and reliability, ANTILA D5 EVO RBW is manufactured from highest quality POM and PMMA material to provide a crystal clear, steadily, silently, high performance, durable solution. ANTILA D5 EVO RBW allows PC enthusiasts not only to construct a remarkably superior liquid cooling system but also combine externally-modular upgrades for their chassis. A sturdy Bracket also provides users a reliable, direction options and friendly installation. ANTILA D5 EVO RBW is the best showcase water cooling LED PUMP for your system!

ANTILA D5 EVO RBW








  •

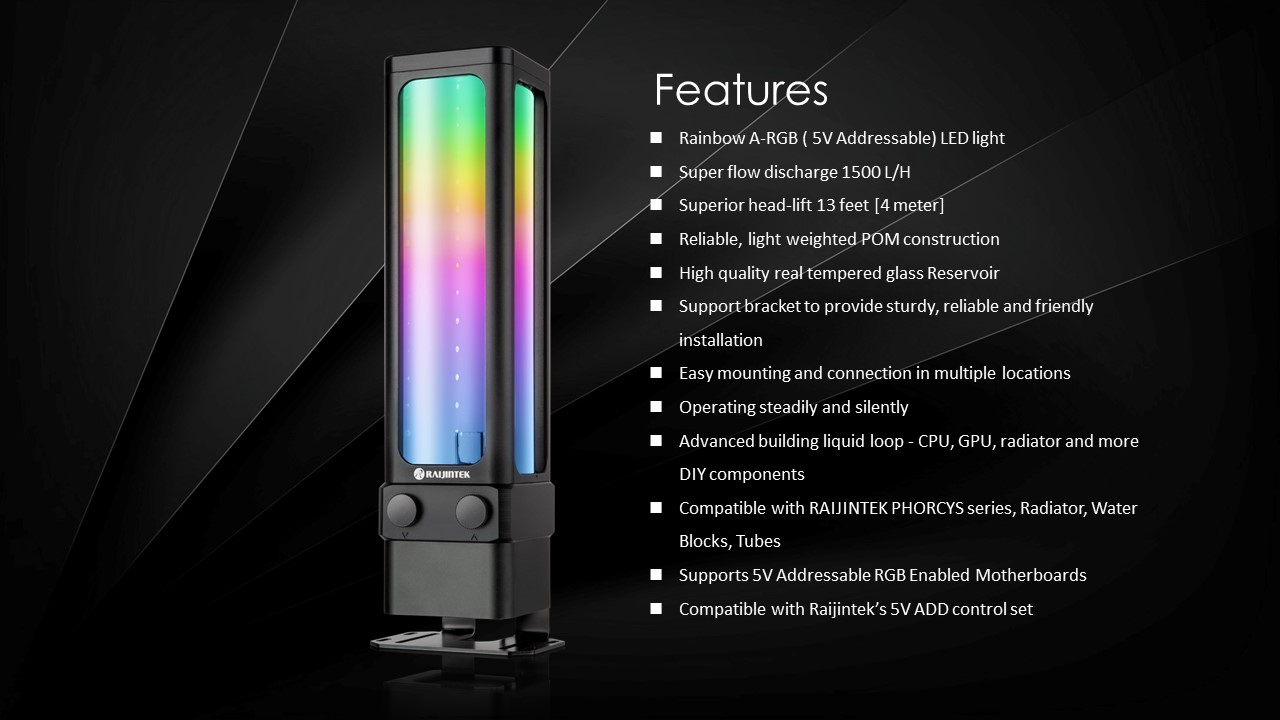

  • Rainbow A-RGB [5V Addressable] LED light
  • Super flow discharge 1500 L/H
  • Superior head-lift 13 feet [4 meter]
  • Reliable, light weighted POM construction
  • High quality real tempered glass Reservoir

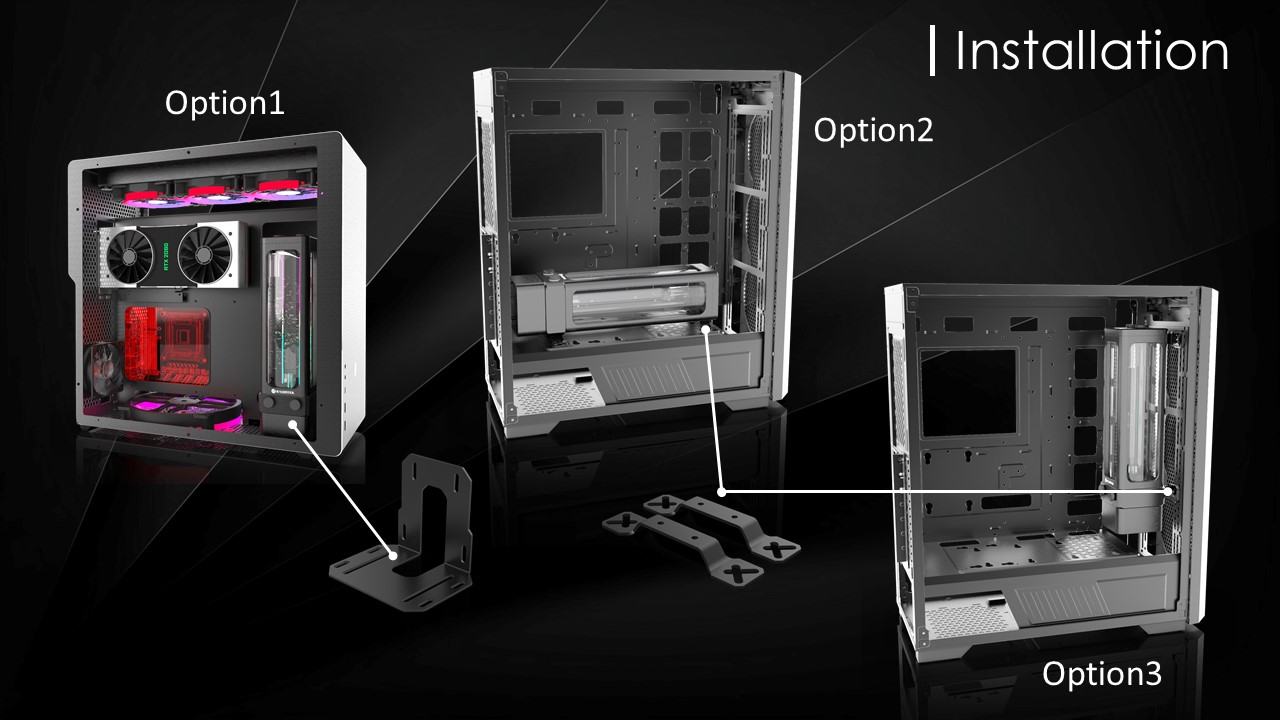

  • Support bracket to provide sturdy, reliable and friendly installation
  • Easy mounting and connection in multiple locations
  • Operating steadily and silently
  • Advanced building liquid loop - CPU, GPU, radiator and more DIY components
  • Compatible with RAIJINTEK PHORCYS series, Radiator, Water Blocks, Tubes
  • Supports 5V Addressable RGB Enabled Motherboards
  • Compatible with Raijintek’s 5V ADD control set
SPECIFICATION

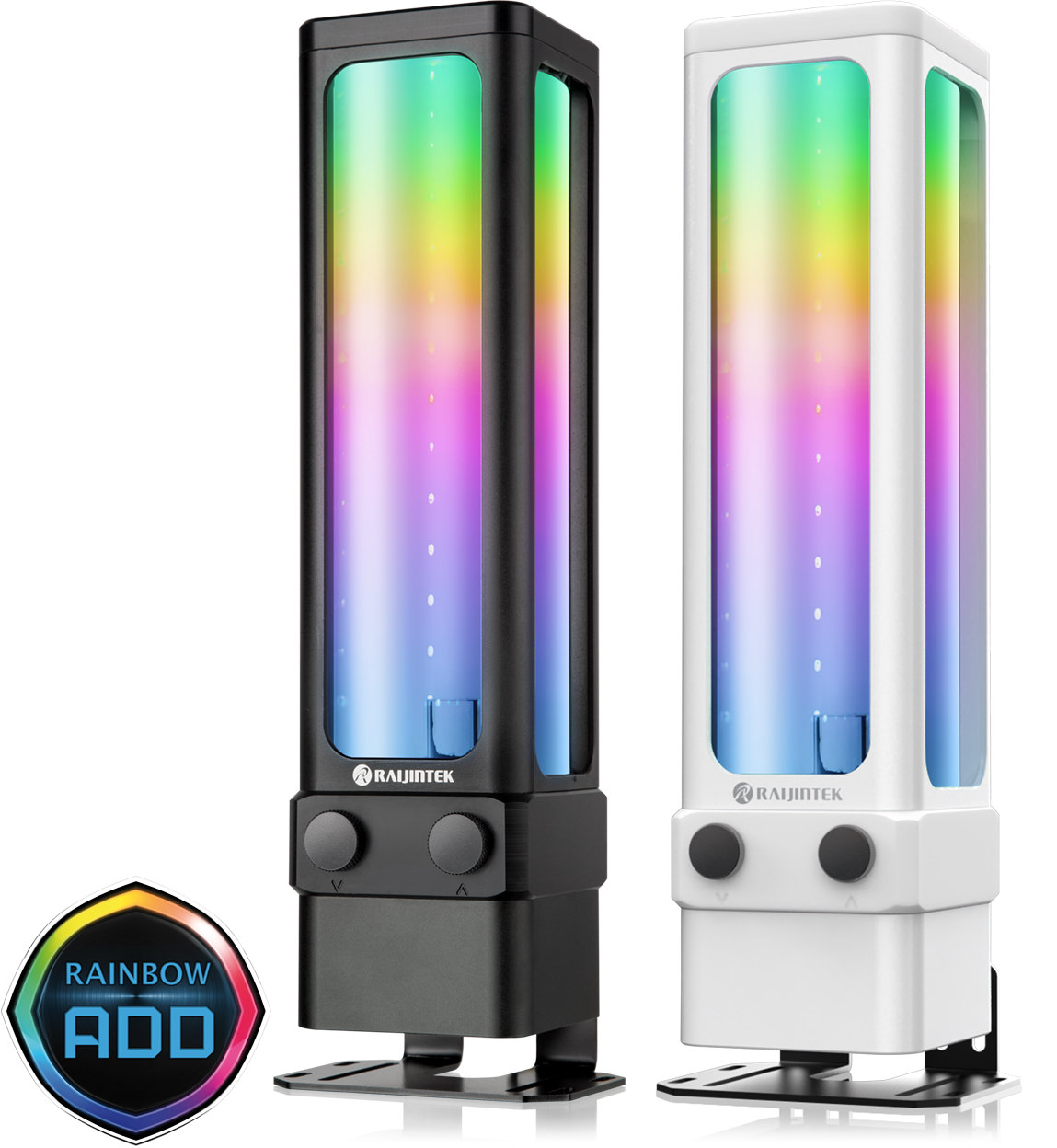

Product Name ANTILA D5 EVO RBW ANTILA D5 EVO RBW WHITE
Product Number 0R40B00188 0R40B00254
Q'ty 1 pcs 1 pcs

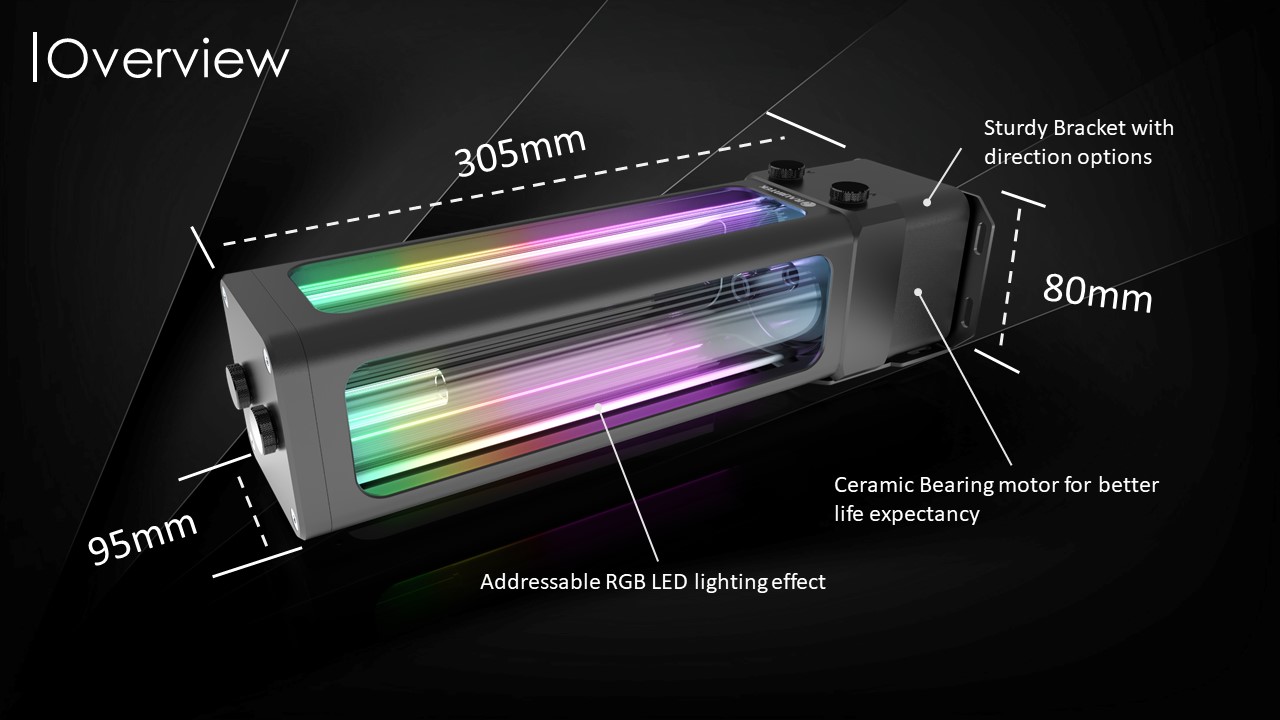

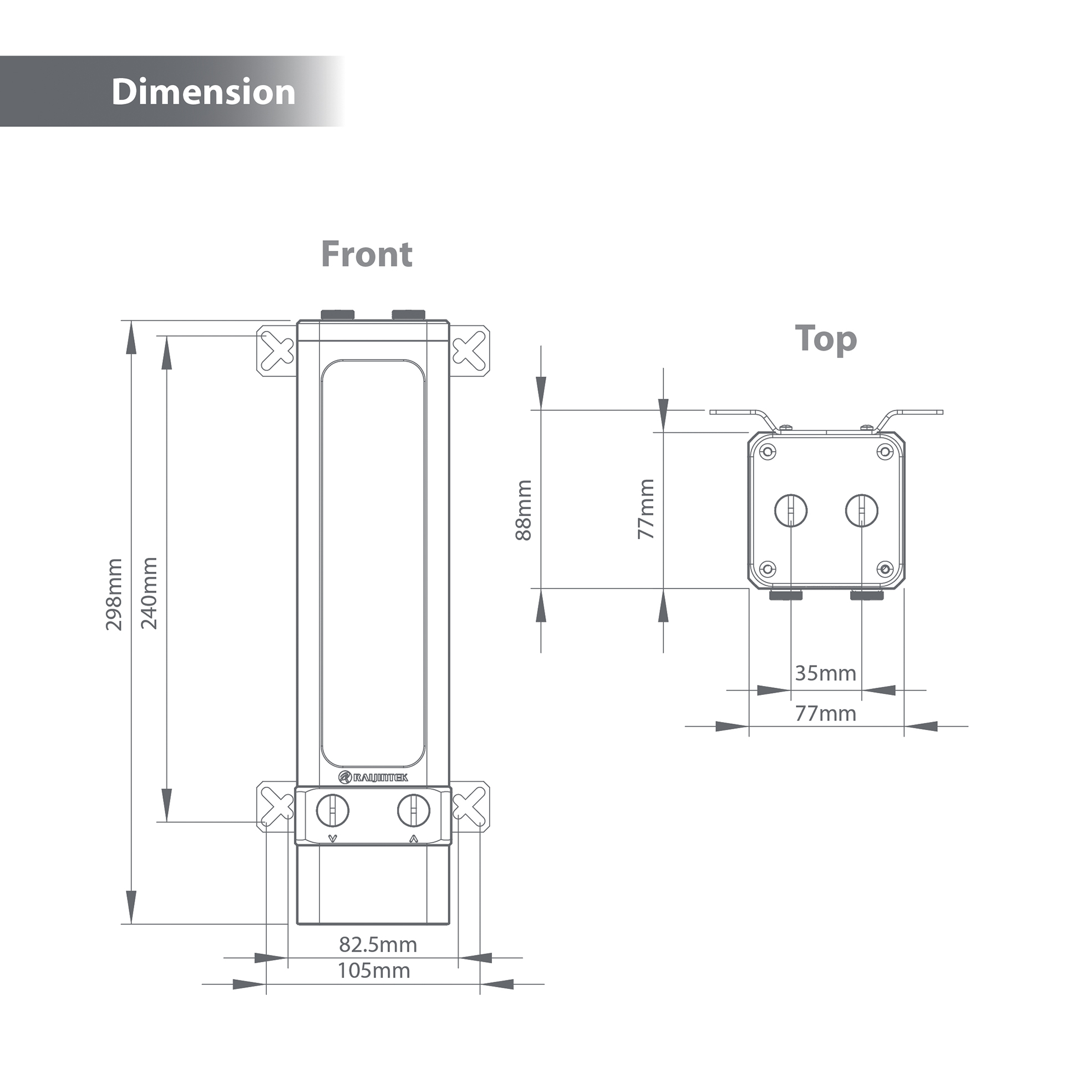

Dimension [W×D×H] 80×95×305 mm [with Bracket] 80×95×305 mm [with Bracket]
Reservoir Dimension 60×60×220 mm 60×60×220 mm
Coolant Capacity 750 ml 750 ml

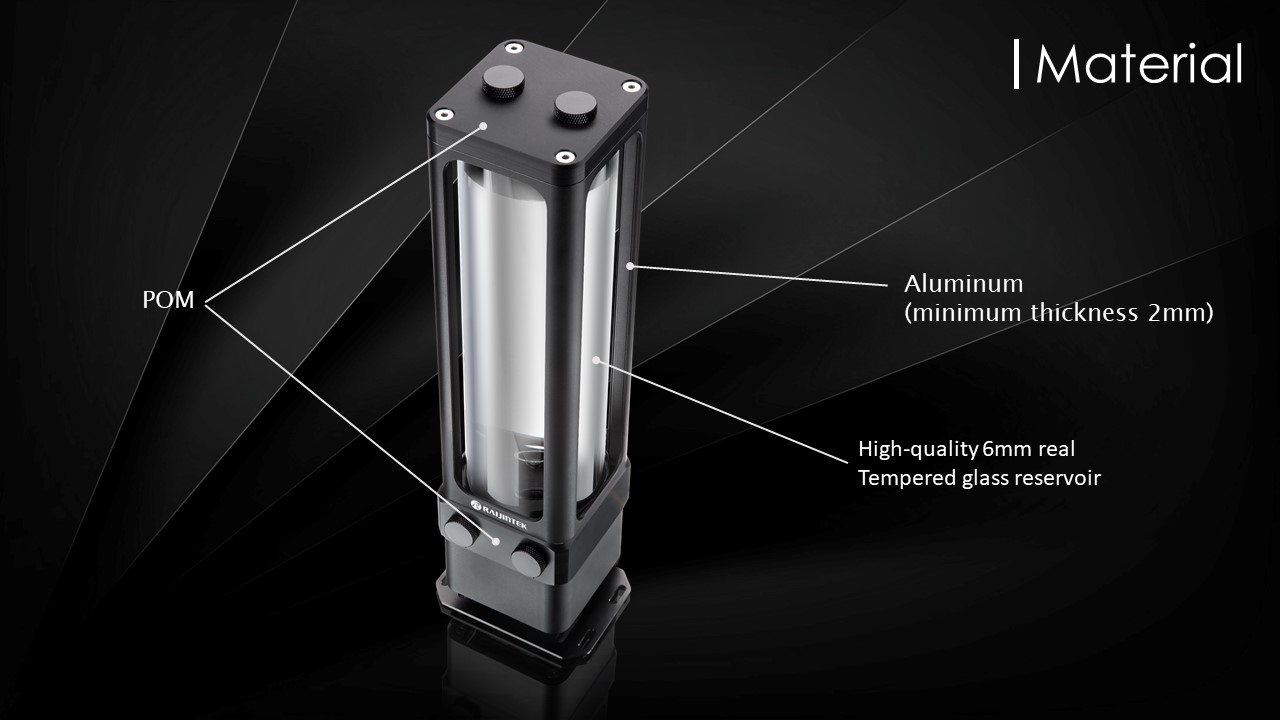

Material POM + Glass + Aluminum + Steel POM + Glass + Aluminum + Steel
Weight 1260 g 1260 g

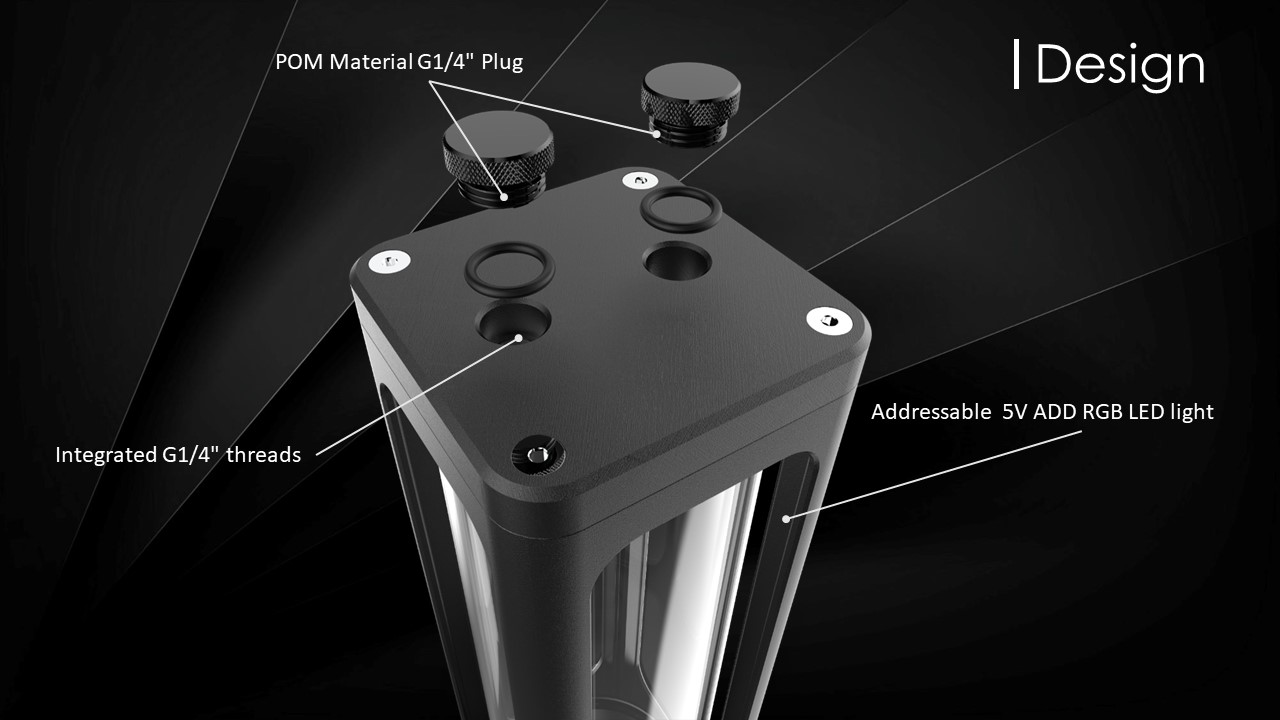

Screw Threads G 1/4" G 1/4"
Bearing type Ceramic Bearing Ceramic Bearing
Maximum Head 4 meter 4 meter
Maximum Discharge 1500 L/H 1500 L/H
Maximum Pressure 50 PSI 50 PSI
Life Expectance 50,000 hrs 50,000 hrs
Noise Level 40 dBA [Max.] 40 dBA [Max.]
Speed P1 : 1,800 RPM
P2 : 2,500 RPM
P3 : 3,300 RPM
P4 : 4,000 RPM
P5 : 4,800 RPM
P1 : 1,800 RPM
P2 : 2,500 RPM
P3 : 3,300 RPM
P4 : 4,000 RPM
P5 : 4,800 RPM
Voltage Rating DC12V DC12V
Input Current 2.5A ±10% 2.5A ±10%
Connector SATA
2510-3P [NA / NA / Fg ]
SATA
2510-3P [NA / NA / Fg ]
Addressable LED 12 LED Rainbow (4pin header, 2510 spec) – Addressable LED 12 LED Rainbow (4pin header, 2510 spec) – Addressable LED
LED Control Method Motherboard control / Remote control (by using Raijintek control hub) Motherboard control / Remote control (by using Raijintek control hub)
LED Input Connector 4-PIN header (2.5 Crimp) 4-PIN header (2.5 Crimp)
LED Voltage Rating 5V 5V
Lighting Mode By MB software or 20 Lighting MODE & 7 different static color choices by Raijintek's 5V ADD control hub By MB software or 20 Lighting MODE & 7 different static color choices by Raijintek's 5V ADD control hub

ANTILA D5 EVO RBW × 1

Mounting Clip × 2

M4 Metal nut × 4

#6-32 L31.75mm Screw × 4

#6-32 L6mm Screw × 4

M4 L8mm Screw × 8

Package × 1
