TRITON / TRITON CORE

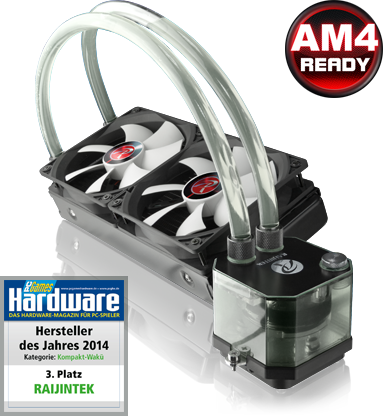

TRITON, RAIJINTEK’s first Liquid Cooling System in the well known All-In-One design, designed in Germany and made in Taiwan. With several years of experience in Liquid cooling products and the cooperation with German Engineers, RAIJINTEK’s RD team developed the concepts of most performing DIY liquid cooling components and spent years to design one of the best performing and expandable All-In-One Liquid CPU cooler for enthusiasts. TRITON’s copper water block is a new concept design of micro channels, extra large contact fin area with 2 flow channels for the best direct flow of liquid. More than this, TRITON’s Pump, also new and exclusive, designed for high Q-Max, low dBA, and contains a reliable Bearing type. Not only a new design pump and water block are used, TRITON’s radiator is also using high density design fin radiator. TRITON is not only one of the best performing All-In-One liquid cooling at the market but it is the most user friendly AIO cooler in the world by the pre-filled liquid, providing 3 small bottles of different color for your scheme and by your convenience, a fan controller with wide RPM adjustable range of 2*12025 fans, a solid mounting kit, is compatible with all modern sockets of Intel & AMD at market and an easy installation. TRITON, already breaking the boundary line between DIY & All-In-One, brought to you for the joy of friendly design and the surprisingly efficient performance.
TRITON / TRITON CORE
  • Best performing, expandable and most user friendly AIO liquid cooling system at market
  • All-In-One liquid CPU cooler with new PUMP, Water block and Tank design
  • New design and exclusive PUMP with high Q-max (120 L/H) and Low noise level (20 dBA)
  • Durable and reliable PUMP Bearing type - Graphite Pipe and Ceramic axis and 50K hours life expectancy
  • New design of Copper water block by micro channel, extra large contact fin area with 2 channels to provide best flow of liquid
  • 3 solo parts but best combined together to one set:  PUMP,  Water block & Tank
  • High density fin radiator (240mm)
  • 2pcs performing 12025 wide PWM RPM range fans with fan controller
  • 350ml high capacity coolants pre-filled and re-fill design
  • 3 bottles of different color coolant attached for user choosing
  • 2pcs LED lights inside the tank
  • Solid mounting kits to provide sturdy installation
  • Multiple mounting kits for modern sockets of INTEL & AMD CPU
SPECIFICATION
Product Name TRITON / TRITON CORE
Product Number 0R100018 / 0R100023
Radiator Dimension [W×D×H] 275×120×32 mm
Tubing Dimension ID - 9.5 mm – / OD – 12.5mm
Thermal Resistance 0.1 °C/W
Weight 1500 g
Fan
Dimension [W×H×D] 120×120×25 mm
Speed 1000±200~2600±10% R.P.M.
Bearing Type Sleeve Bearing
Air Flow 38.889 ~ 100.455 CFM
Air Pressure 0.744 ~ 4.819 mm H2O
Rated Current 0.08 ~ 0.48 A
Power Consumption 0.96 ~ 5.76 W
Noise Level 21.6 ~ 36.6 dBA
Connector 3 pin
Q'ty 2 pcs
Liquid capacity 350ml ±5%
Material Alu. Radiator / Copper Water Block
PUMP
Dimension [W×H×D] 38×56×39 mm
Bearing Type Graphite Pipe and Ceramic Axis
Q-max 120 L/Hour
Noise Level 20 dBA
Life Expectancy 50,000 hrs
Speed 3000 R.P.M. at 12VDC
Voltage Rating 12 V
Power Consumption 4 W
APPLICATION
Intel® All Socket LGA 775/115x/1366/201x CPU (Core™ i3 / i5 / i7 CPU)
AMD® All FM2+/FM2/FM1/AM3+/AM3/AM2+/AM2 CPU
  • TRITON Installation Guide  [ 5 MB ]
    This version includes English, German, French, Spanish, Italian, Japanese, Chinese, Russian and Turkish.

AIO device × 1

Fan × 2 [Only for TRITON]

Back plate × 1

Bracket × 1
Intel Mounting Clips
Plastic myla × 4

Plastic brush × 1

M3x6mm Screw × 8

Color coolant × 3

M3x30mm Fan screw × 8

Thermal grease × 1

Connector cable × 2

Metal nut × 4

M4x6mm Screw × 4

M4x13mm Screw × 4

Installation Guide × 1

Package × 1

TRITON

TRITON RED

TRITON BLUE

TRITON GREEN

TRITON

TRITON RED

TRITON BLUE

TRITON GREEN

TRITON

TRITON RED

TRITON BLUE

TRITON GREEN

TRITON

TRITON RED

TRITON BLUE

TRITON GREEN

PUMP

Copper Water Block

Fan Controller

TRITON CORE
