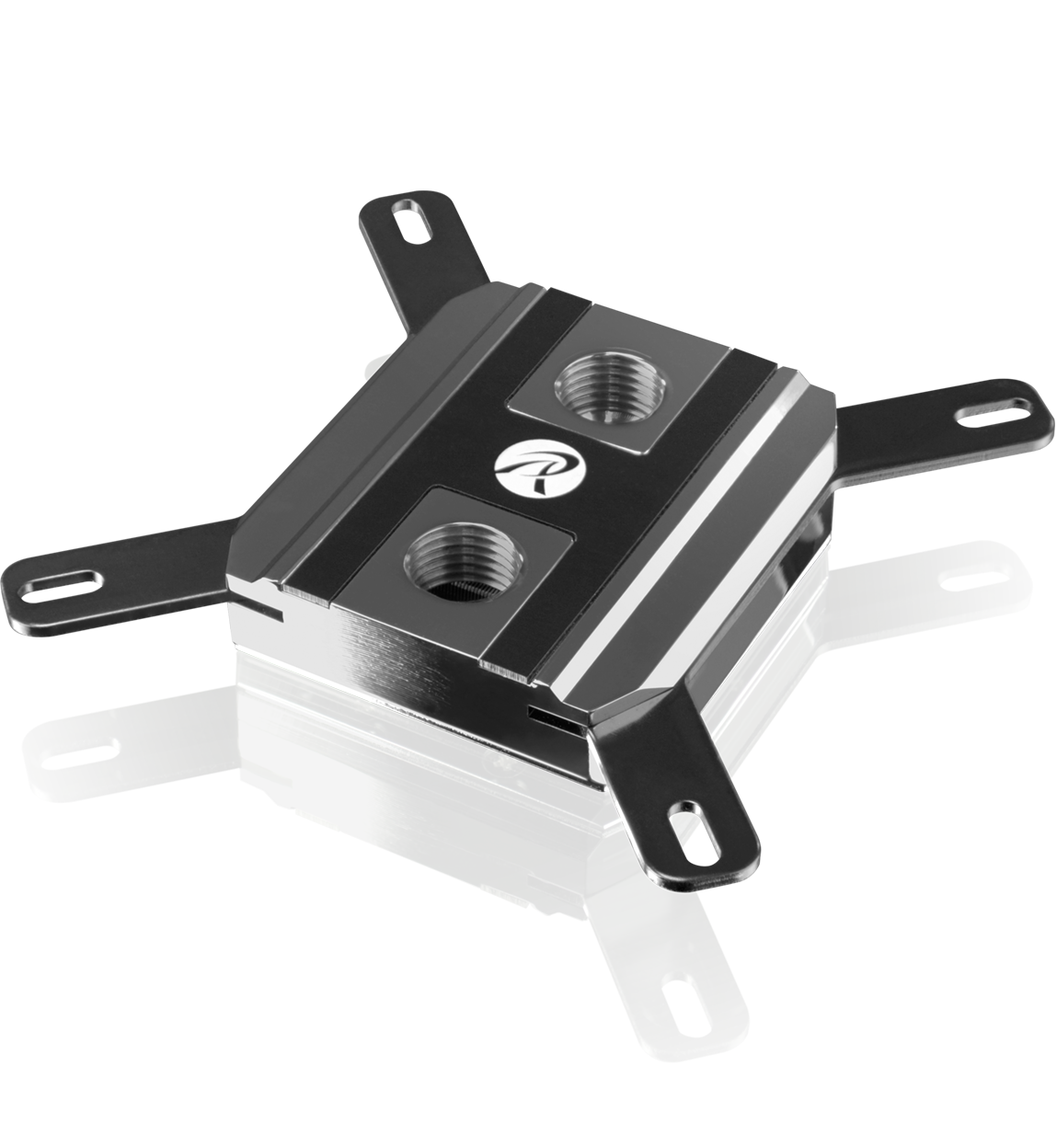

CWB-C1

RAIJINTEK's CPU water block, CWB-C1, made of full copper material which was melted by alloying brazing (different from competitors water block locked by screw and plastic rings). With adapting 3D micro-fin structure and alloying brazing, CWB-C1 provides outstanding heat transfer efficiency and enhances thermal performance. Not only whole product was nickel-plated, but the high quality polished mirror base ensures excellent surface contact with the heat source. The solid universal back-plate not only prevents M/B distortion, but also has high compatible installation for all present modern CPU. User friendly installation, outstanding thermal performance, high compatibility with modern CPU, unique design and nickel-plated, CWB-C1 is your best partner and solution for water cooling.

CWB-C1
  • Easy installation for Intel & AMD socket compatibility
  • 3D micro-structure flow tunnel inside
  • Nickel-plated & mirror polishing treatment
  • Best Cost-performance value of PC cooling
  • Operating steady & silent
  • 1/4" thread able to upgrade water cooling system easily connected to all components
  • High compatible universal solid backplate to prevent M/B distortion
  • User friendly installation
  • High compatible installation for all present modern CPU
SPECIFICATION
Product Name CWB-C1
Product Number 0R400018
Dimension [W×D×H] 54×60×14 mm
Screw Threads G 1/4"
Weight 325g [without clips]
Material Copper
APPLICATION
Intel® All Socket LGA 775/115x/1200/1366/201x CPU (Core™ i3 / i5 / i7 CPU)
AMD® All FM2+/FM2/FM1/AM3+/AM3/AM2+/AM2 CPU
  • CWB-C1 Installation Guide  [ 9.53 MB ]
    This version includes English, German, French, Spanish, Italian, Japanese, Chinese, Russian, Turkish and Portuguese.

CPU Water Block × 1

Back Plate × 1

AMD Mounting Clip × 2

Metal Nut × 4

LGA201x Screw × 4

Metal Nut × 4

Knurled Threaded Screws × 4

Wrench × 1

Allen Key × 1

Plastic myla × 4

Plastic brush × 1

Thermal Grease × 1

Installation Guide × 1

Package × 1
