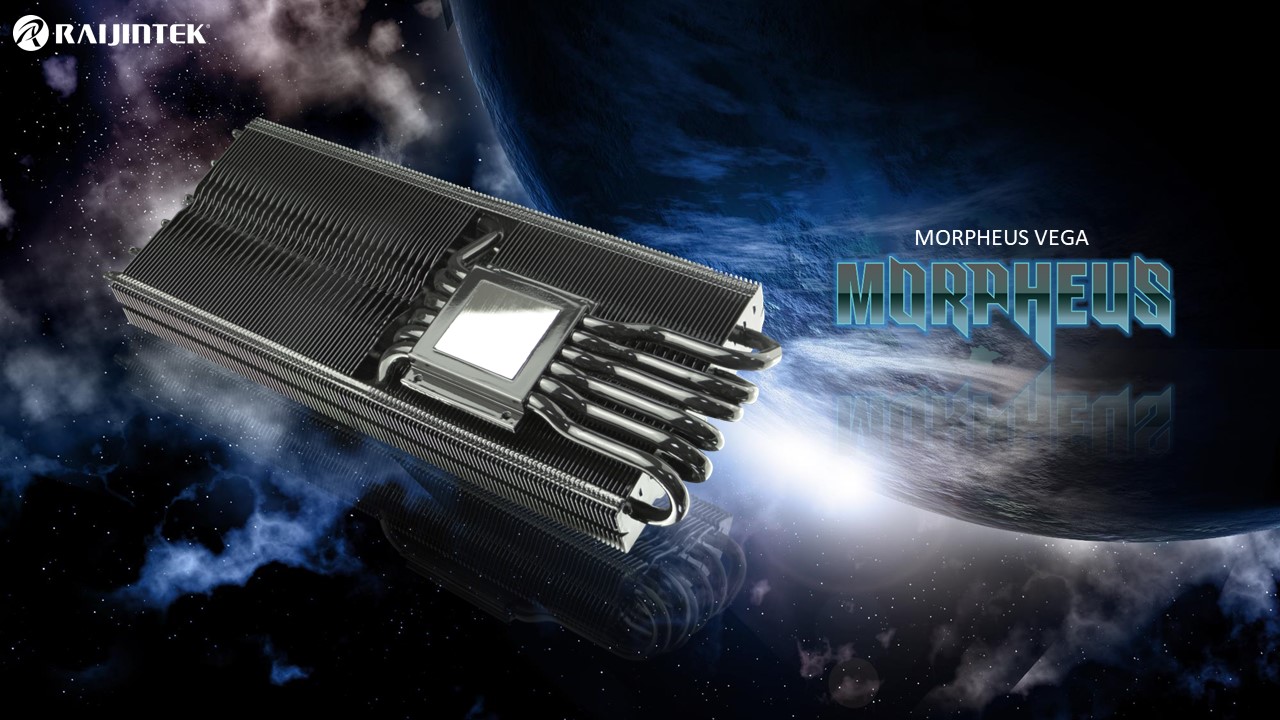

MORPHEUS VEGA

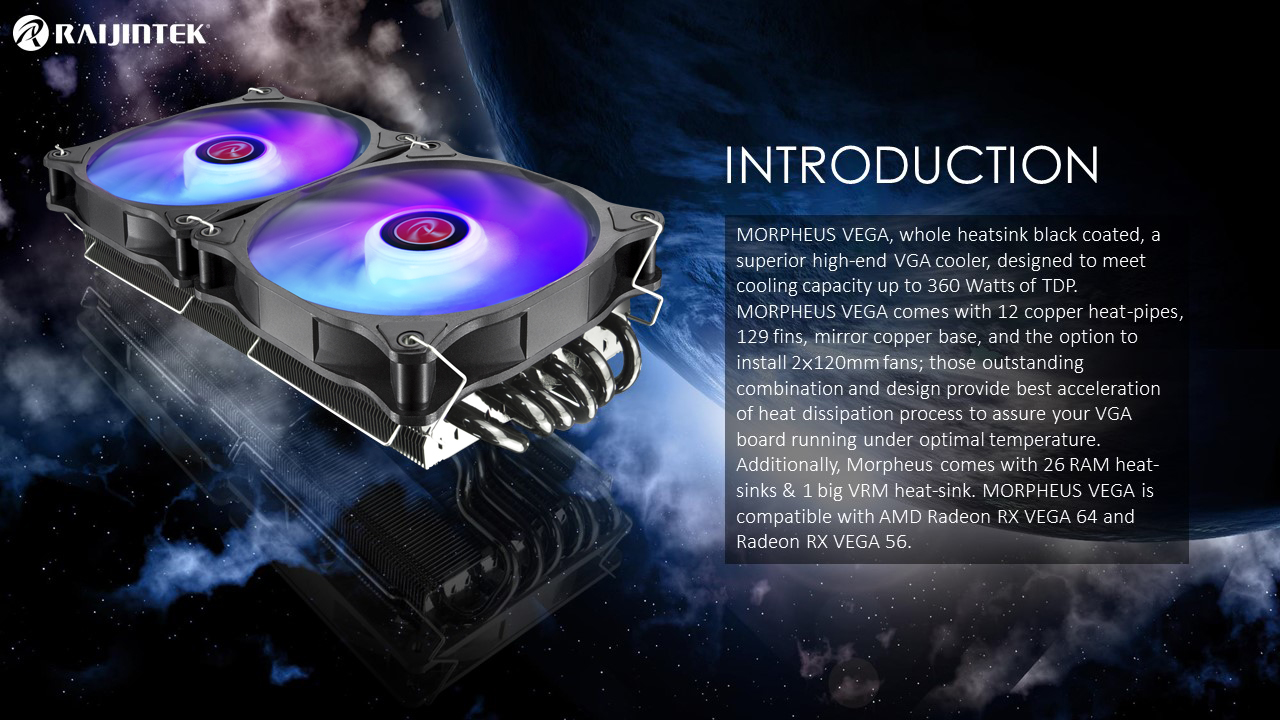

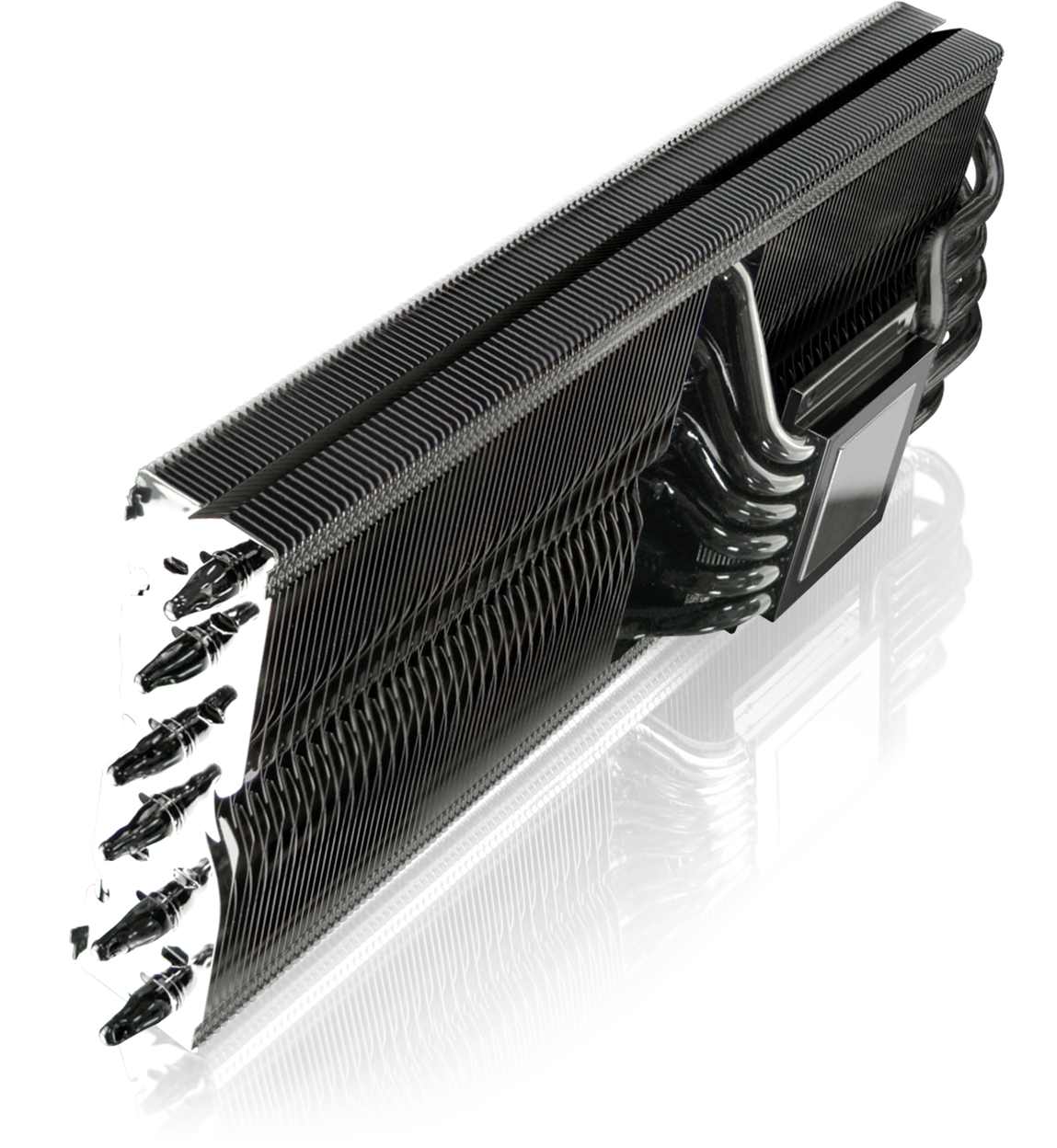

MORPHEUS VEGA, whole heatsink black coated, a superior high-end VGA cooler, designed to meet cooling capacity up to 360 Watts of TDP. MORPHEUS VEGA comes with 12 copper heat-pipes, 129 fins, mirror copper base, and the option to install 2×120mm fans; those outstanding combination and design provide best acceleration of heat dissipation process to assure your VGA board running under optimal temperature. Additionally, Morpheus comes with 26 RAM heat-sinks & 1 big VRM heat-sink. MORPHEUS VEGA is compatible with AMD Radeon RX VEGA 64 and Radeon RX VEGA 56.

MORPHEUS VEGA






  •
  • Cooling capacity up to 360 watts TDP

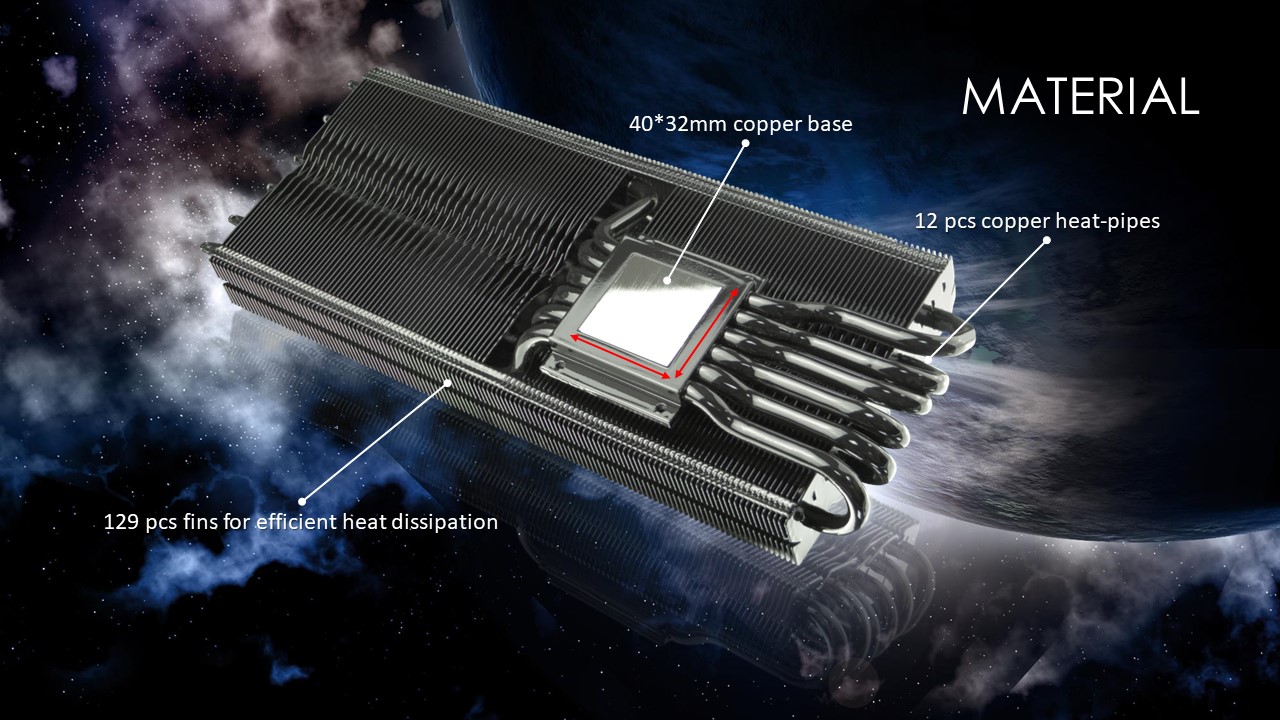

  • 12 pcs copper heat-pipes and 129 pcs fins for efficient heat dissipation
  • 24pcs heat-sink for RAM & 1 big heat-sink for VRM
  • Thermal adhesive to lower RAM and VRM temperature significantly and assure proper bond
  • Compatible with AMD Radeon RX VEGA 64 and Radeon RX VEGA 56
  • Supports two 120mm fans (8 fan clips: 4pcs for 12025, 4pcs for 12013)
  • Whole heatsink black coated
SPECIFICATION
Product Name MORPHEUS VEGA
Product Number 0R10B00083
Dimension [W×D×H] 254×98×44 mm
Weight 515 g [Heat Sink Only]
Thermal Resistance
0.135 °C/W [With Raijintek 12025 fan×2]
0.143 °C/W [With Raijintek 12013 fan×2]
Heat Sink
Base Material Mirror copper base
Fin Material Aluminum Alloy; Solder assembly
Heat-pipe
SPEC Φ6mm
Q'ty 12 pcs
Heat-sink for RAM & VRM
A type: 9pcs 13.4(W) × 11(H) × 15(D) mm
B type: 9pcs 13.4(W) × 5(H) × 15(D) mm
C type: 5pcs 5.9(W) × 11(H) × 20(D) mm
E type: 3pcs 5.9(W) × 11(H) × 6(D) mm
VRM type 28(W) × 18.5(H) × 94(D) mm
est. TDP 250W
APPLICATION
AMD® Radeon RX VEGA 64, Radeon RX VEGA 56
  • MORPHEUS VEGA Installation Guide  [ 7.2 MB ]
    This version includes English, German, French, Spanish, Italian, Japanese, Chinese, Russian, Turkish and Portuguese.

Heat-Sink X 1

VRM Heat-sink × 1

Mounting Clip × 2

Back Plate × 1

Chip Heat-sink A × 9
Intel Mounting Clips
Chip Heat-sink B × 9

Chip Heat-sink C × 5

Chip Heat-sink E × 3

Fan Rubber Pad × 2

M3 Screw × 4

Hexagonal Screw × 4

Spring Screw × 4

Plastic Myla × 4

Thermal Pad × 3

Thermal Twin Adhesive A × 40

Thermal Twin Adhesive C × 20

12025 Fan Clip × 4

12013 Fan Clip × 4

Thermal Grease × 1

Installation Guide × 1

Package × 1
