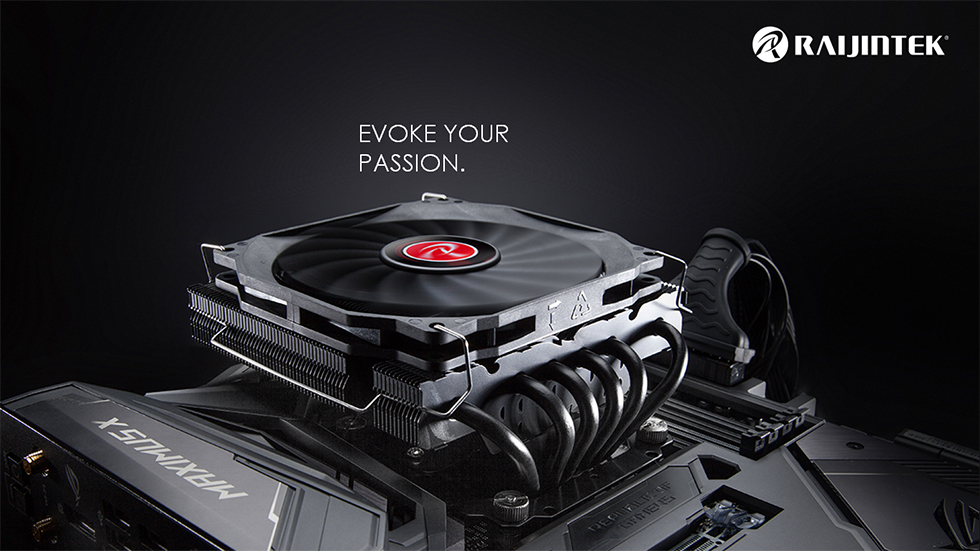

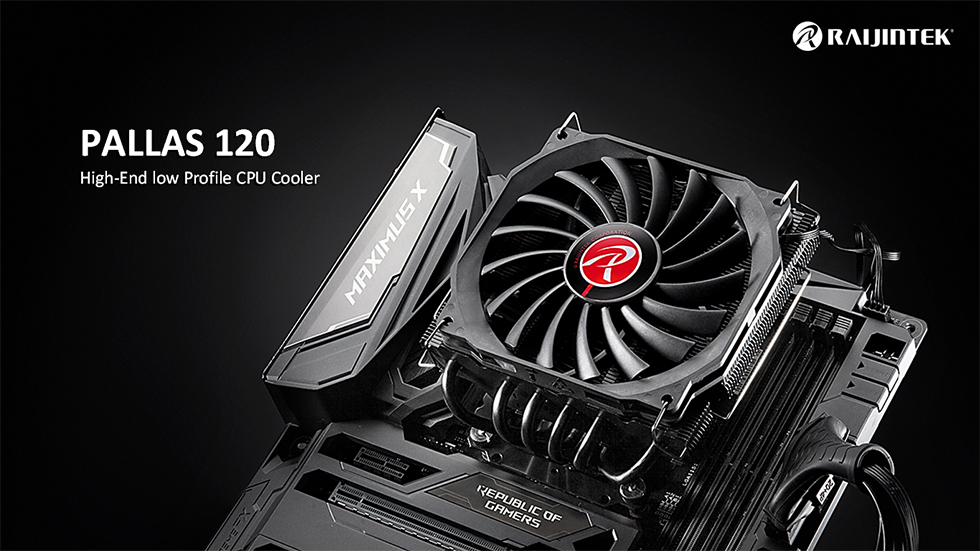

PALLAS 120 SERIES

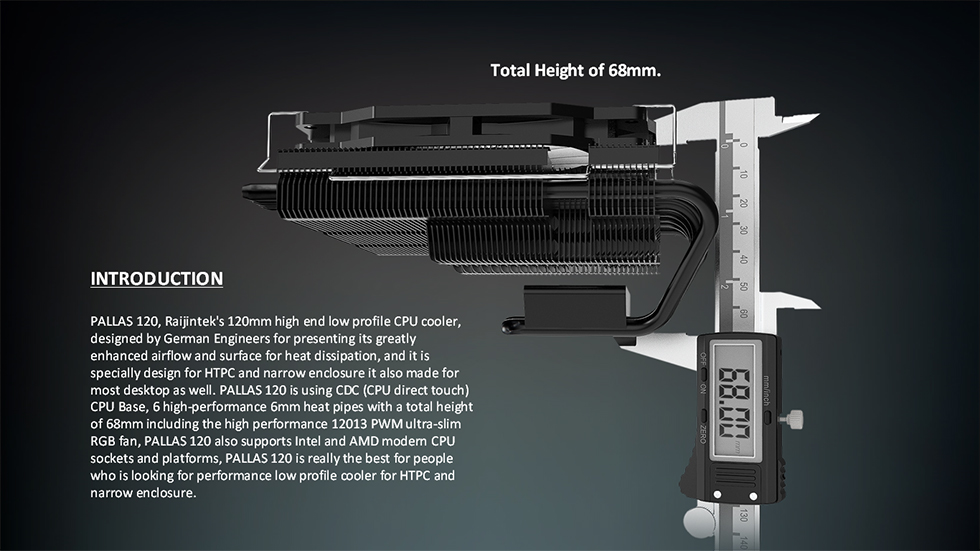

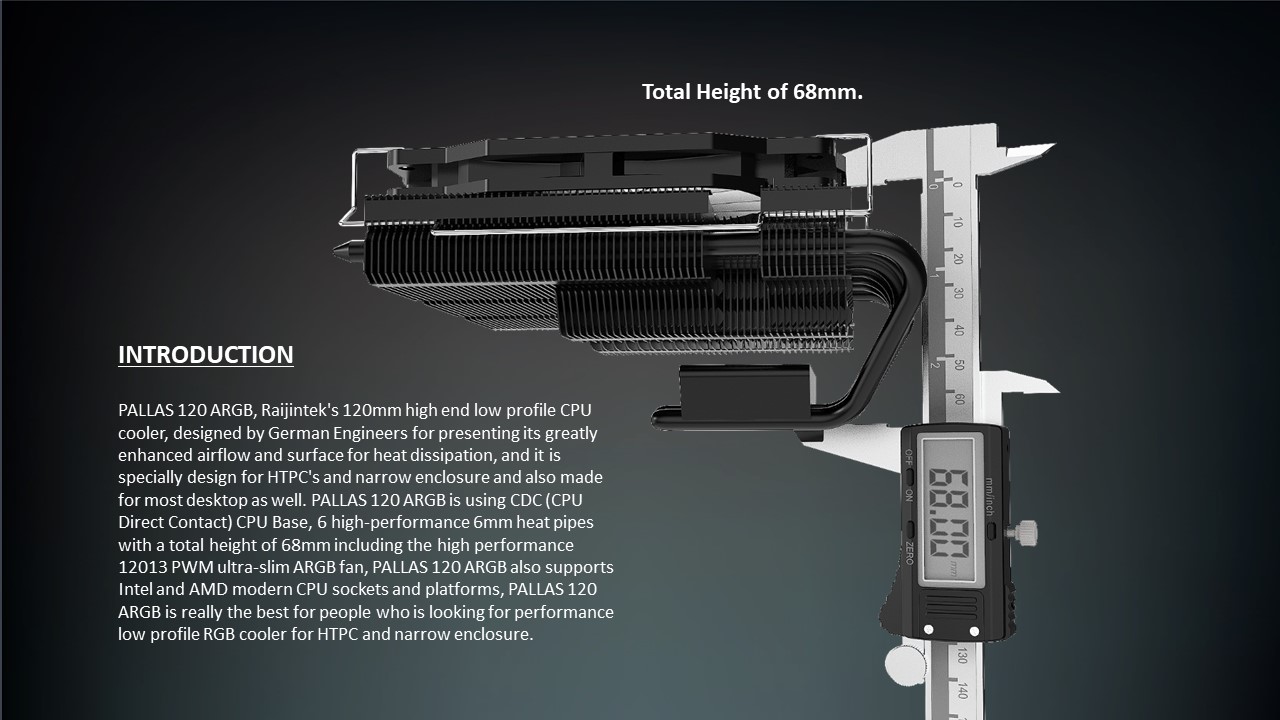

PALLAS 120 SERIES, Raijintek's 120mm high end low profile CPU cooler, designed by German Engineers for presenting its greatly enhanced airflow and surface for heat dissipation, and it is specially design for HTPC's and narrow enclosure and also made for most desktop as well. PALLAS 120 SERIES is using CDC (CPU Direct Contact) CPU Base, 6 high-performance 6mm heat pipes with a total height of 68mm including the high performance 12013 PWM ultra-slim / ARGB fan, PALLAS 120 SERIES also supports Intel and AMD modern CPU sockets and platforms, PALLAS 120 SERIES is really the best for people who is looking for performance low profile cooler for HTPC and narrow enclosure.

PALLAS 120 SERIES













  •

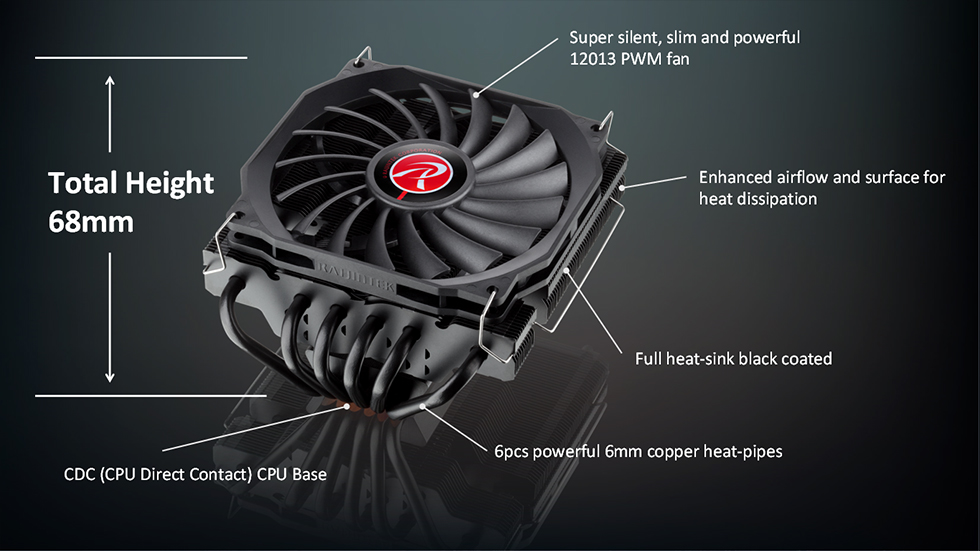

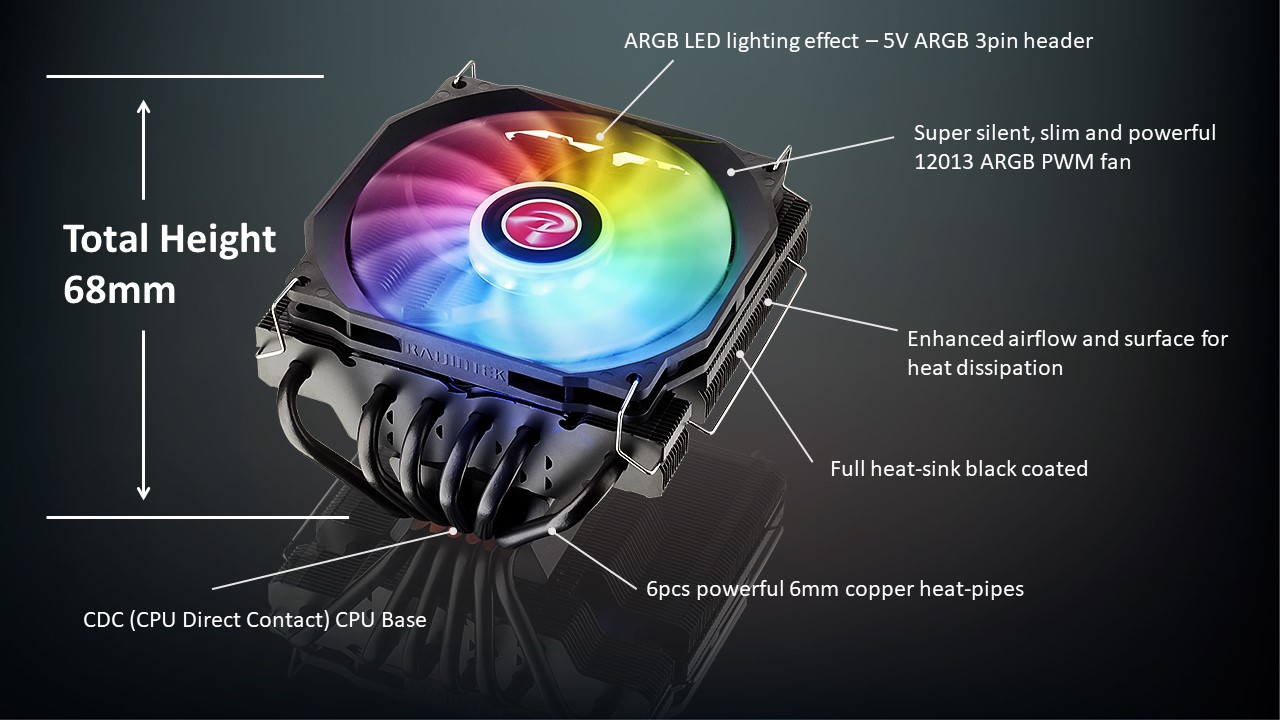

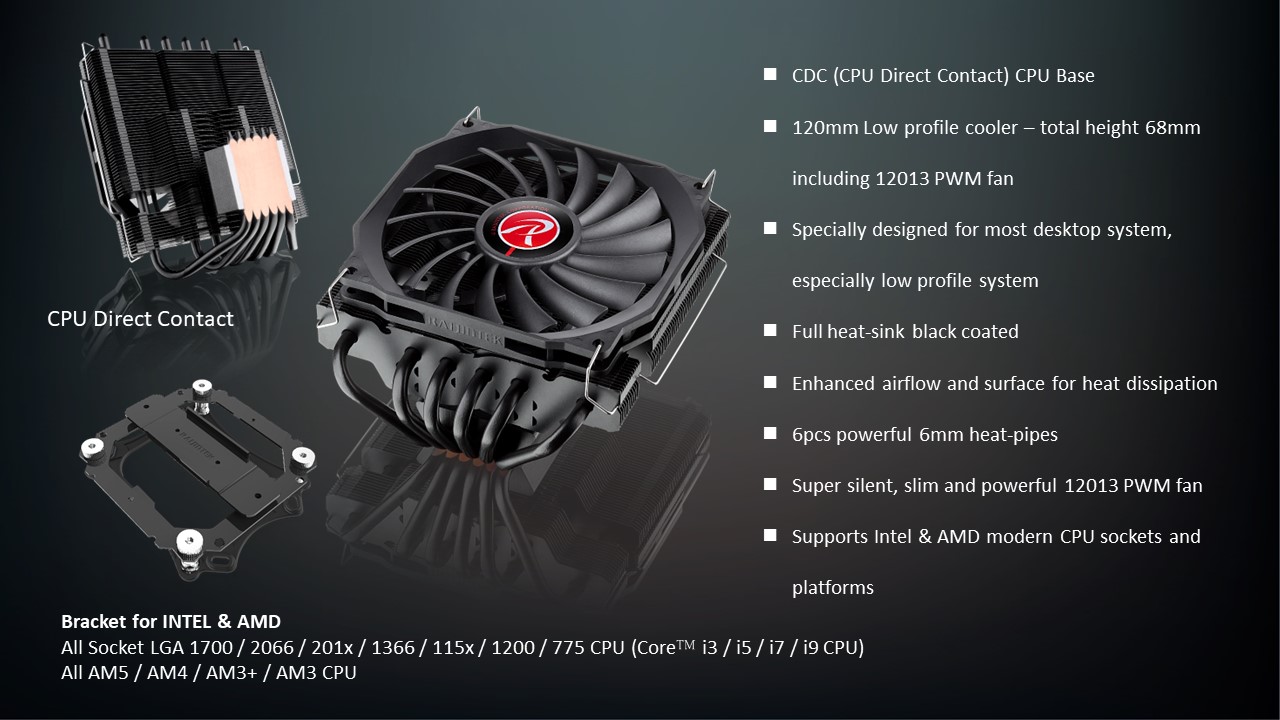

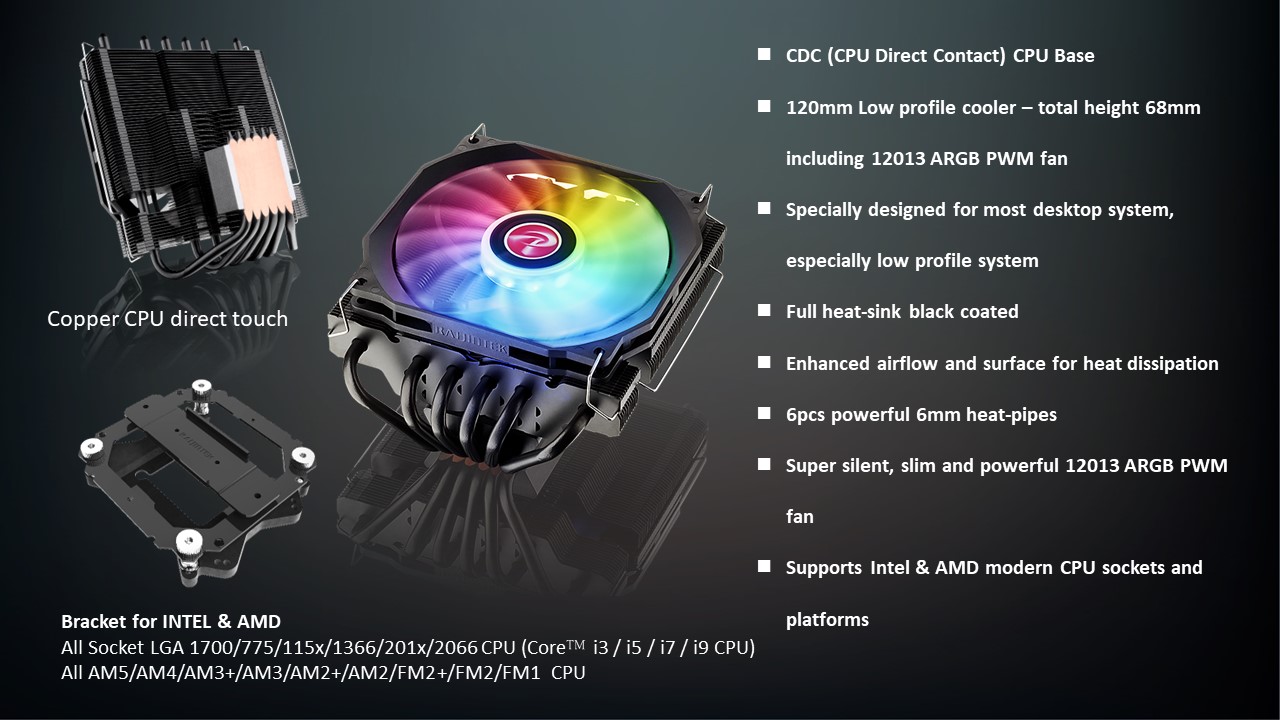

  • CDC (CPU Direct Contact) CPU Base
  • 120mm Low profile cooler – total height 68mm including 12013 PWM fan
  • Specially designed for most desktop system, especially low profile system
  • Full heat-sink black coated
  • Enhanced airflow and surface for heat dissipation
  • 6pcs powerful 6mm heat-pipes
  • Super silent, slim and powerful 12013 PWM fan
  • Supports Intel & AMD modern CPU sockets and platforms

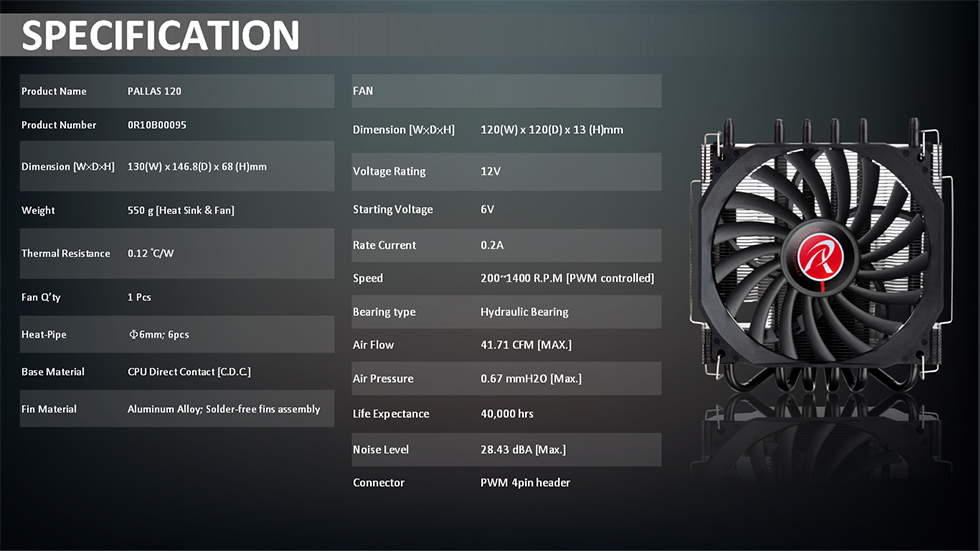

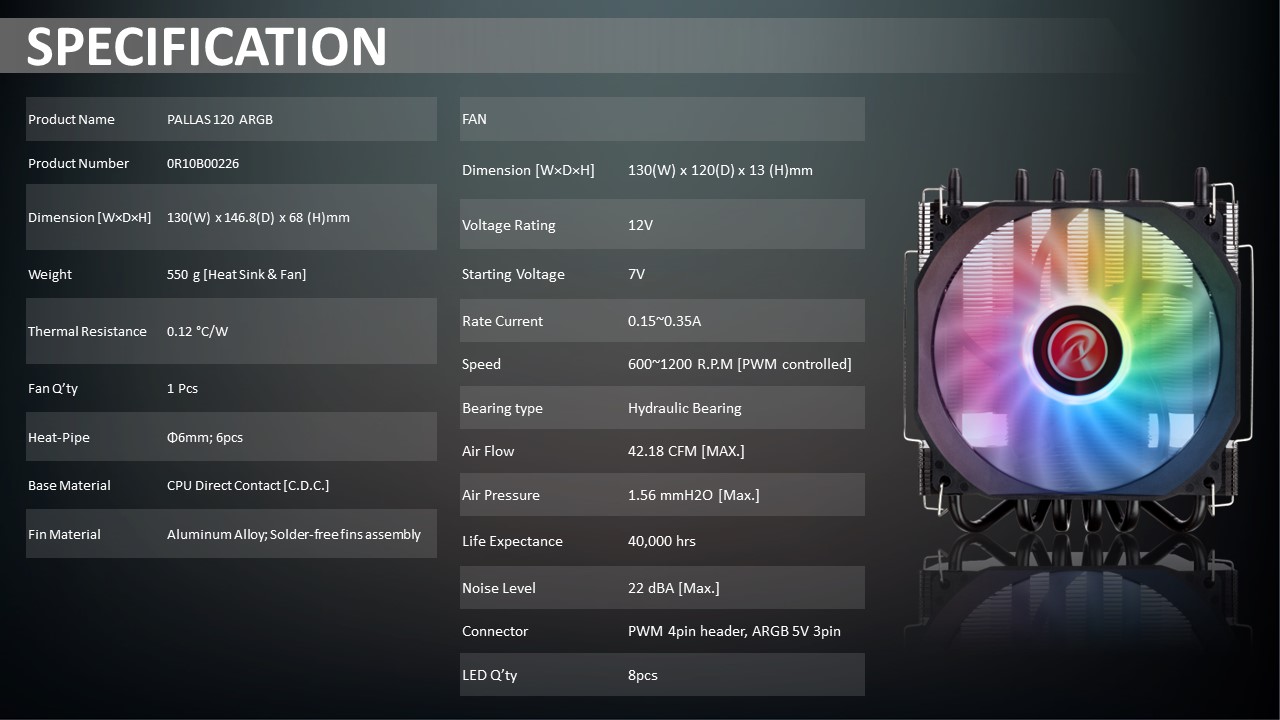

SPECIFICATION
Product Name PALLAS 120 PALLAS 120 ARGB
Product Number 0R10B00095 0R10B00226
Dimension [W×D×H] 130×146.8×68 mm 130×146.8×68 mm
Weight 550 g [Heat Sink & Fan] 550 g [Heat Sink & Fan]
Thermal Resistance 0.12 °C/W 0.12 °C/W
Fan Q'ty 1 pcs 1 pcs
Base Material CPU Direct Contact [C.D.C.] CPU Direct Contact [C.D.C.]
Fin Material Aluminum Alloy; Solder-free fins assembly Aluminum Alloy; Solder-free fins assembly
Heat-pipe SPEC Φ6mm Φ6mm
Heat-pipe Q'ty 6 pcs 6 pcs
est. TDP 180W 180W
FAN
Dimension [W×H×D] 120×120×13 mm 120×120×13 mm
Voltage Rating 12V 12V
Starting Voltage 6V 7V
Speed 200~1400 R.P.M. 600~1200 R.P.M.
Bearing Type Hydraulic Bearing Hydraulic Bearing
Air Flow 41.71 CFM [Max.] 42.18 CFM [Max.]
Air Pressure 0.67 mmH2O [Max.] 1.56 mmH2O [Max.]
Life Expectance 40,000 hrs 40,000 hrs
Noise Level 28.43 dBA [Max.] 22 dBA [Max.]
Connector PWM 4pin header PWM 4pin header, ARGB 5V 3pin
Rated Current 0.2A 0.15~0.35A
LED Q'ty N/A 8pcs
APPLICATION
Intel® All Socket LGA 1700 / 2066 / 201x / 1366 / 115x / 1200 / 775 CPU (Core™ i3 / i5 / i7 / i9 CPU)
AMD® All AM5 / AM4 / AM3+ / AM3 CPU
  • PALLAS 120 Installation Guide  [ 6.59 MB ]
    This version includes English, German, French, Spanish, Italian, Japanese, Chinese, Russian, Turkish and Portuguese.
  •

Heat-Sink × 1

12013 ARGB Fan × 1 [PALLAS 120 ARGB]

12013 PWM Fan × 1 [PALLAS 120]
Back Plate

Back Plate × 1

Crossbar
Crossbar × 1
Back Plate

Mounting Clip × 1

Fan Clip × 2
LGA2011 Screws
LGA2011 Screw × 4
Knurled Threaded Screws
Knurled Threaded Screw × 4
M3 Screws
M3 Screw × 2
Metal Nuts
Metal Nut × 4
Plastic Nuts
Metal Nut × 4
Thermal Grease
Thermal Grease × 1

Plastic Myla × 4

Stand-off × 2

Installation Guide × 1
Package

Package × 1

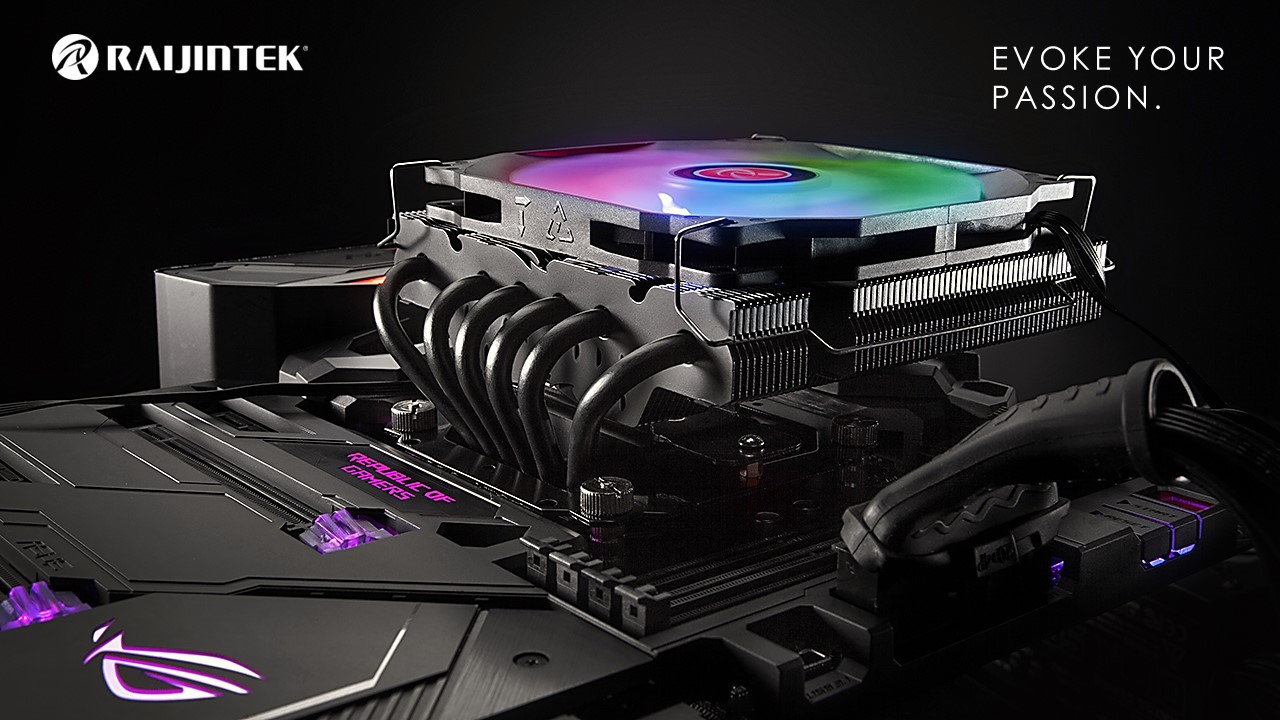

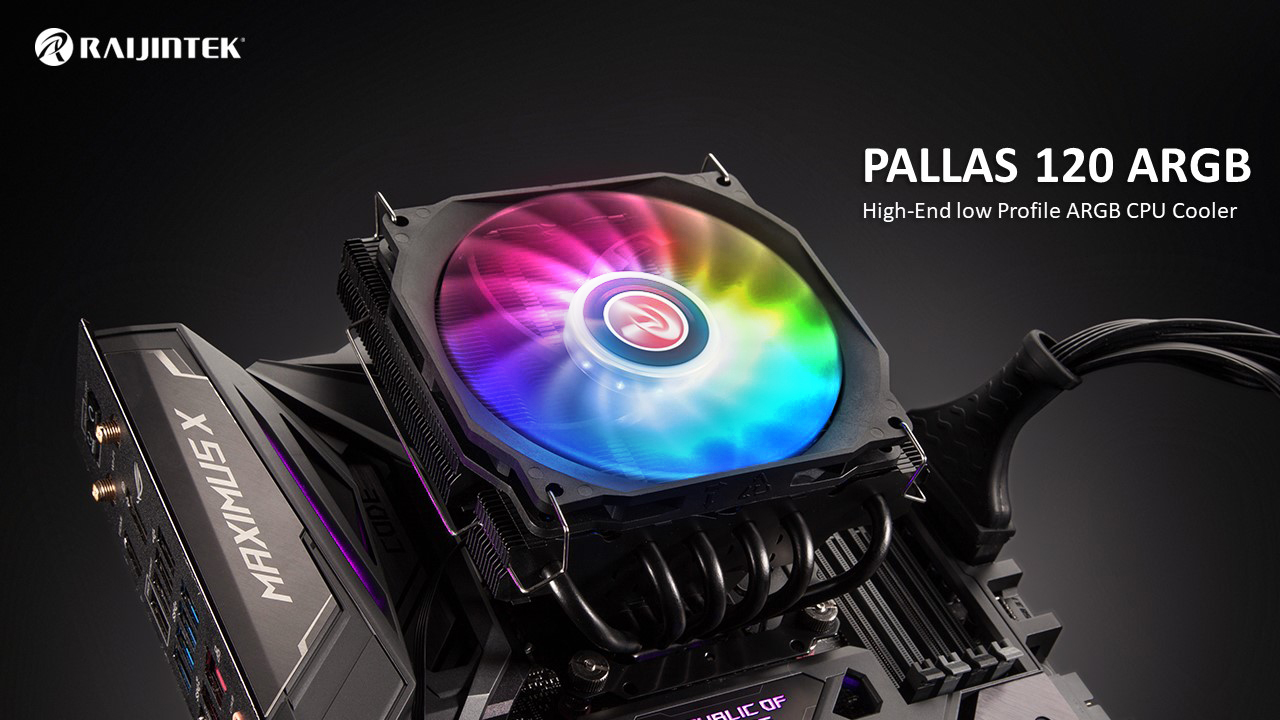

PALLAS 120 ARGB
