ENYO

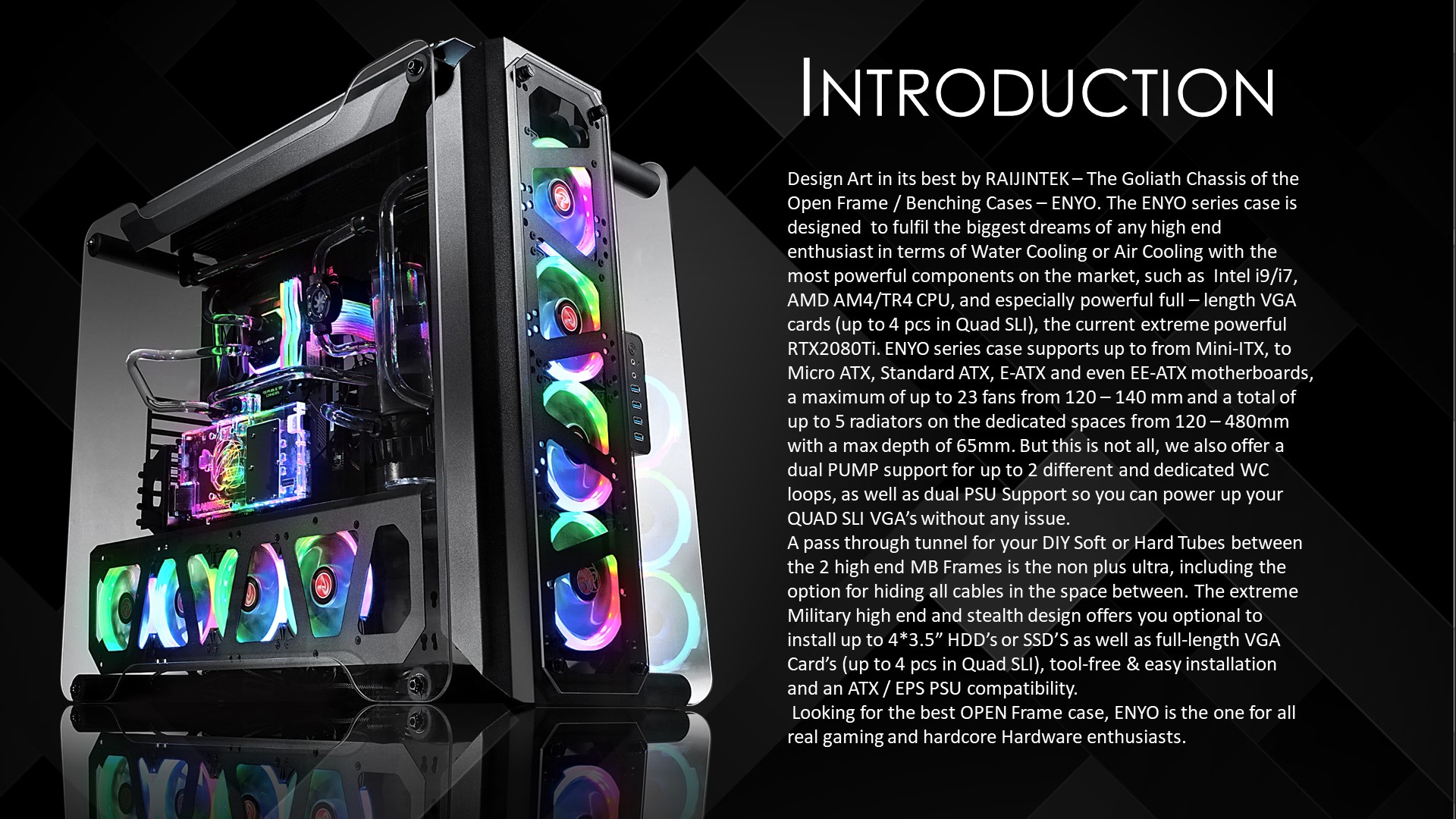

Design Art in its best by RAIJINTEK – The Goliath Chassis of the Open Frame / Benching Cases – ENYO. The Enyo series case is designed to fulfil the biggest dreams of any high end enthusiast in terms of Water Cooling or Air Cooling with the most powerful components on the market, such as Intel i9/i7, AMD AM4 / TR4 CPU, and especially powerful full – length VGA cards (up to 4 pcs in Quad SLI), the current extreme powerful RTX2080Ti. ENYO series case supports up to from Mini-ITX, to Micro ATX, Standard ATX, E-ATX and even EEB motherboards, a maximum of up to 23 fans from 120 – 140 mm and a total of up to 5 radiators on the dedicated spaces from 120 – 480mm with a max depth of 65mm. But this is not all, we also offer a dual PUMP support for up to 2 different and dedicated WC loops, as well as dual PSU Support so you can power up your QUAD SLI VGA’s without any issue. A pass through tunnel for your DIY Soft or Hard Tubes between the 2 high end MB Frames is the non plus ultra, including the option for hiding all cables in the space between. The extreme Military high end and stealth design offers you optional to install up to 4×3.5” HDD’s or SSD’S as well as full-length VGA Card’s (up to 4 pcs in Quad SLI), tool-free & easy installation and an ATX / EPS PSU compatibility. Looking for the best OPEN Frame case, ENYO is the one for all real gaming and hardcore Hardware enthusiasts.

ENYO

























  •

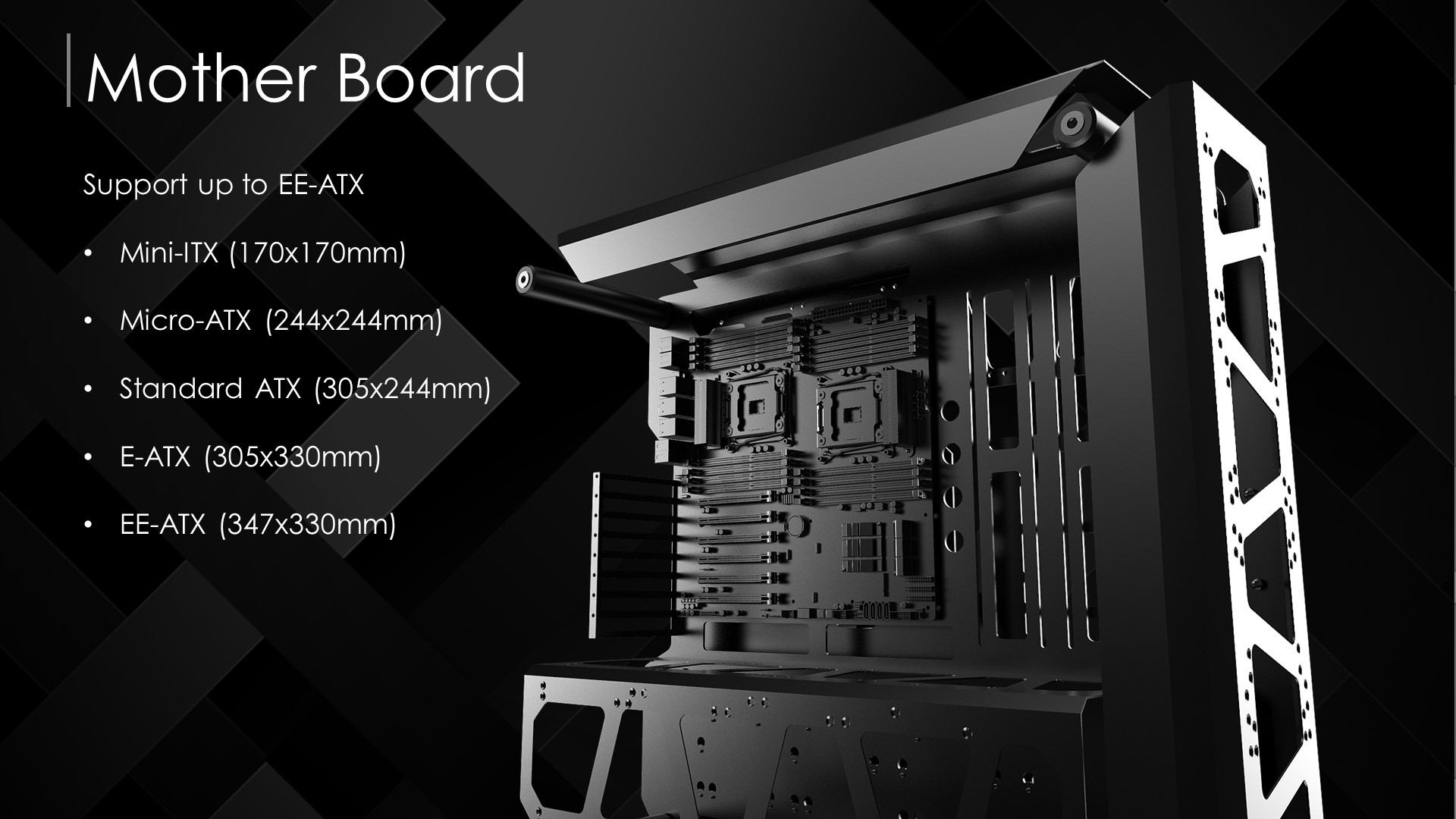

  • Support up to EEB / E-ATX / ATX / Micro-ATX / Mini ITX

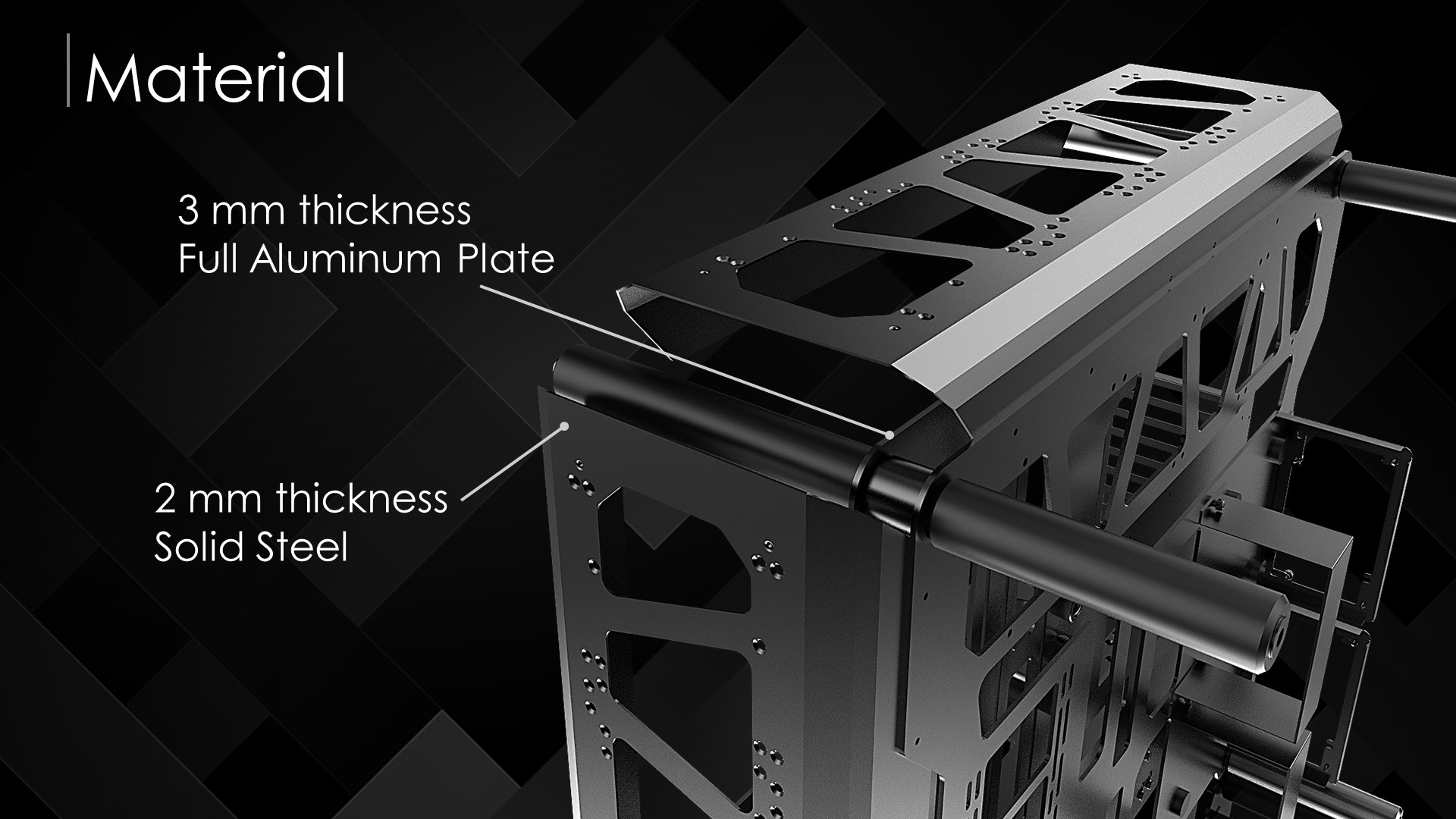

  • Ultra-thick 3mm aluminum & 2mm SPCC Extreme solid iron
  • Matte full black coating on whole body

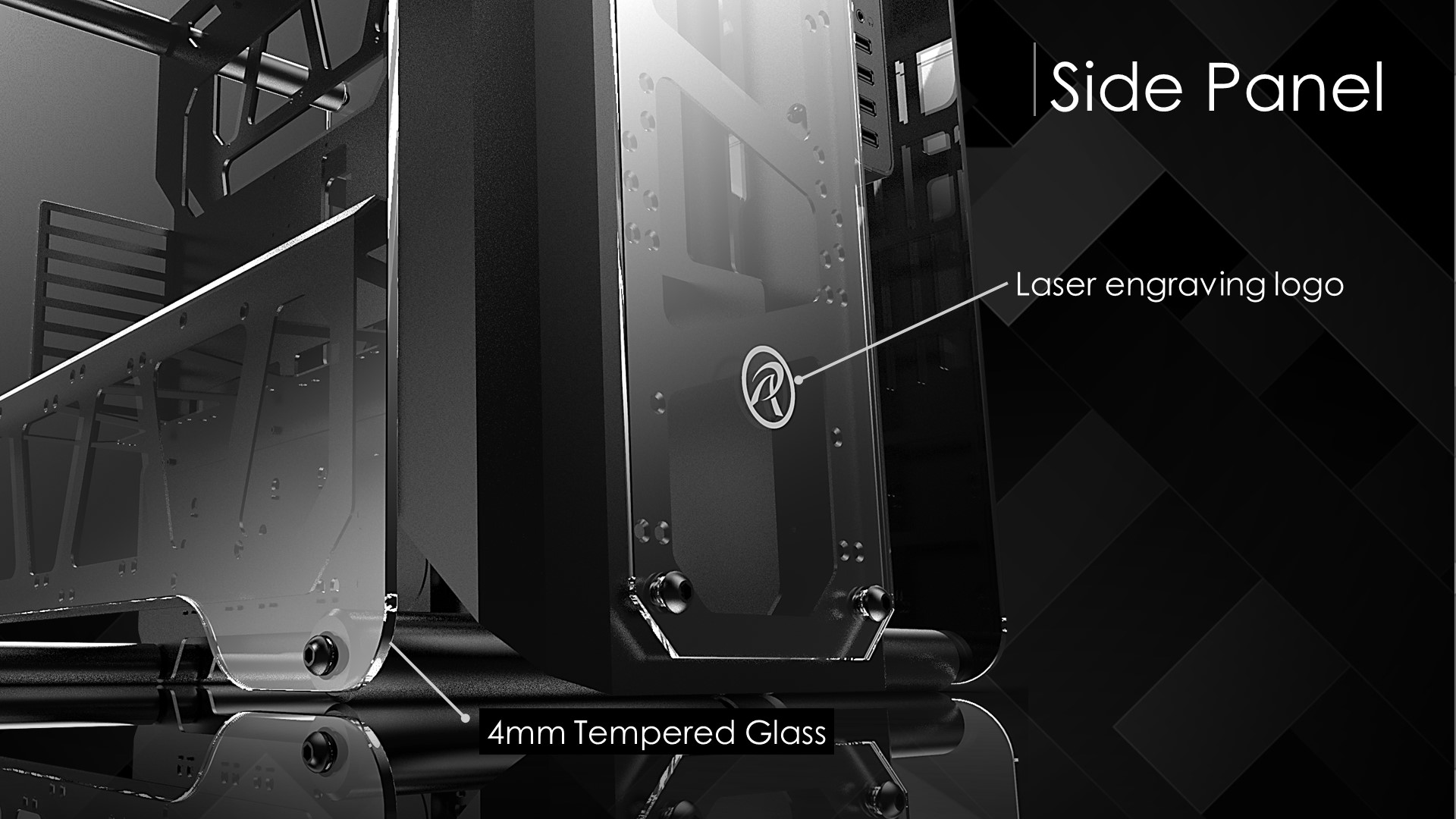

  • 4.0mm tempered glass side panel

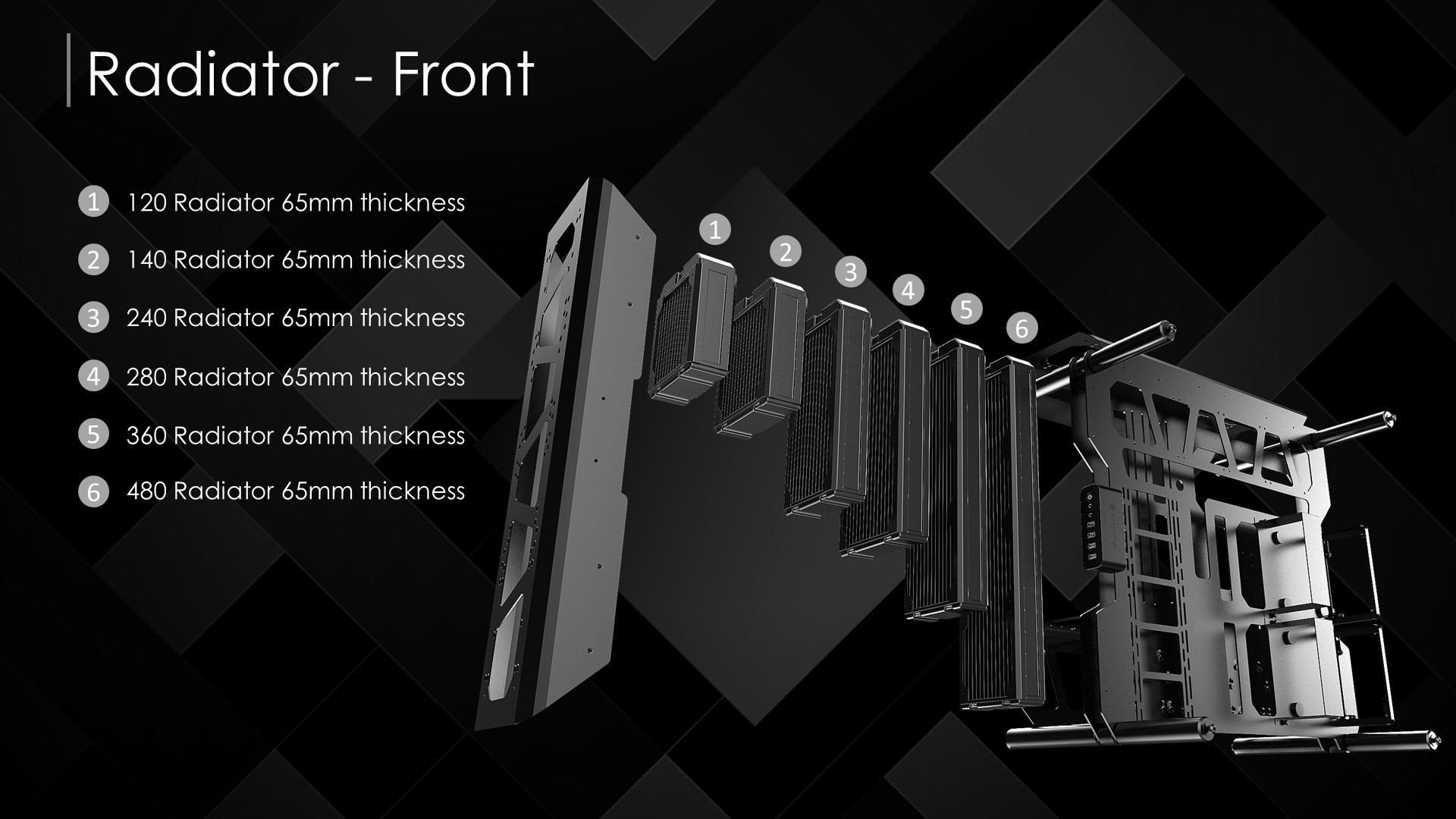

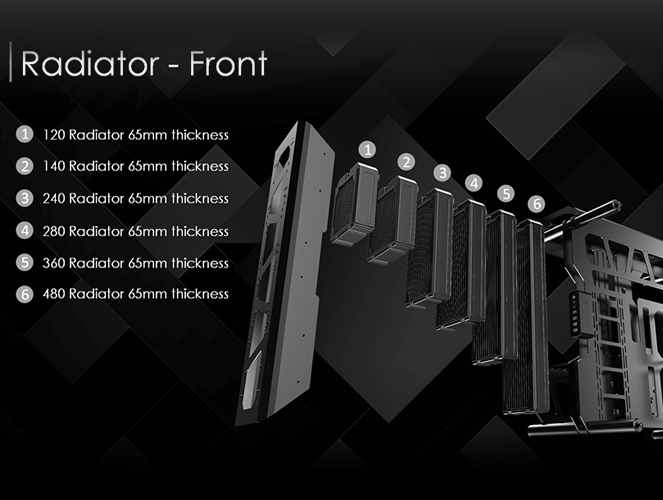

  • front panel support up to 120/240/280/360/480, 65mm thick water radiator

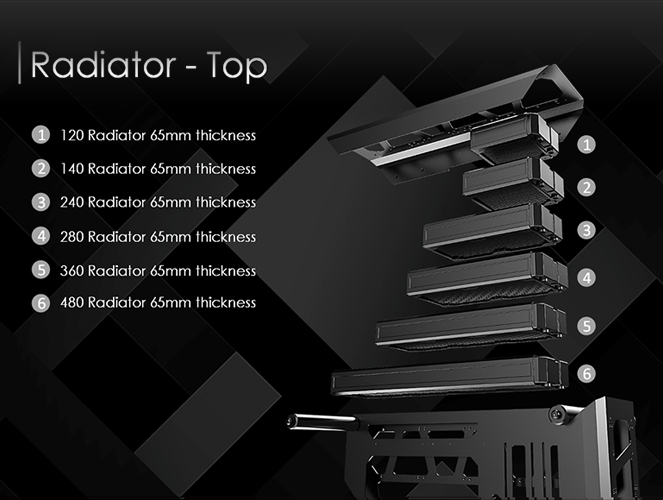

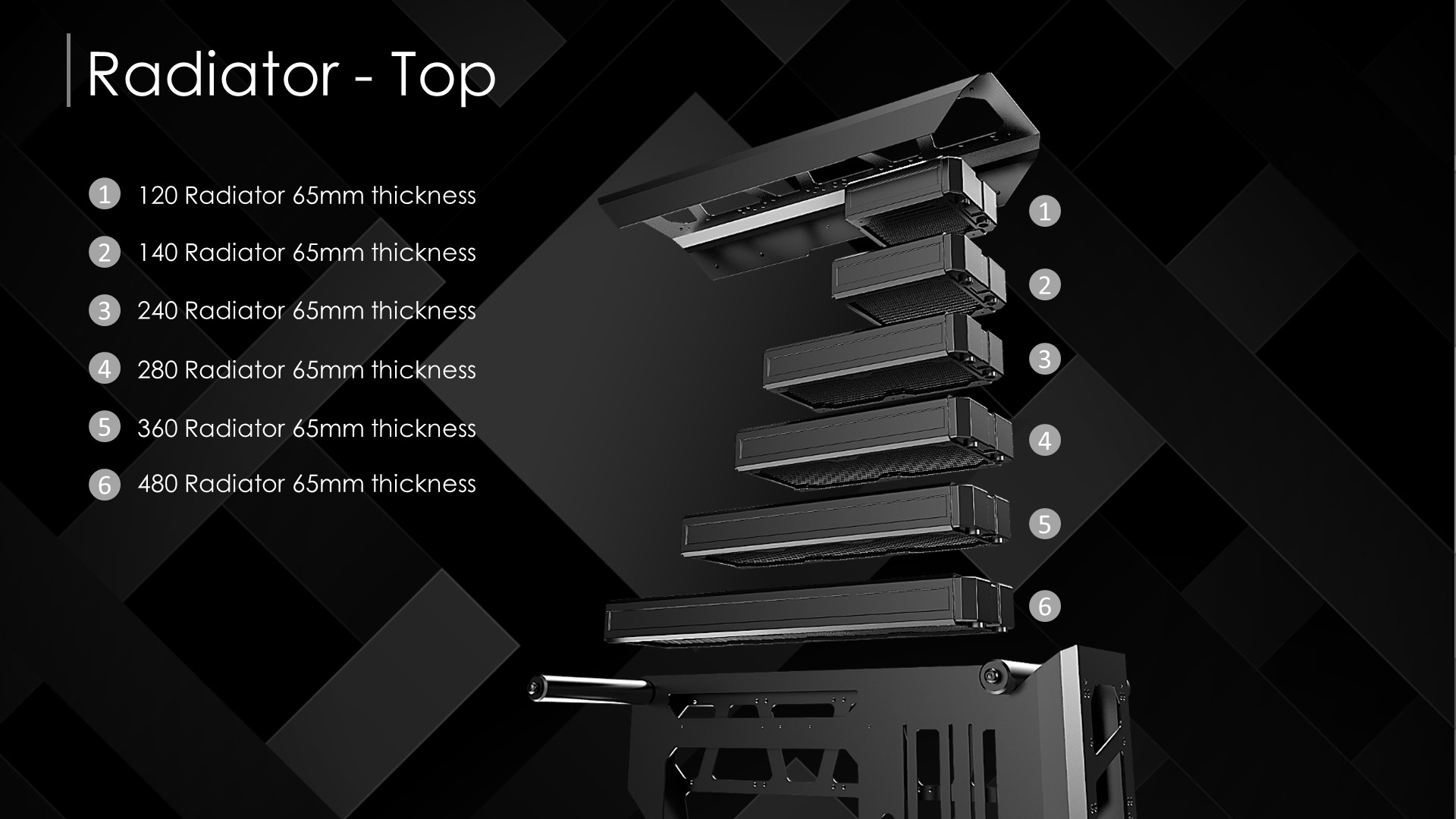

  • Top panel support up to 120/240/280/360/480, 65mm thick water radiator

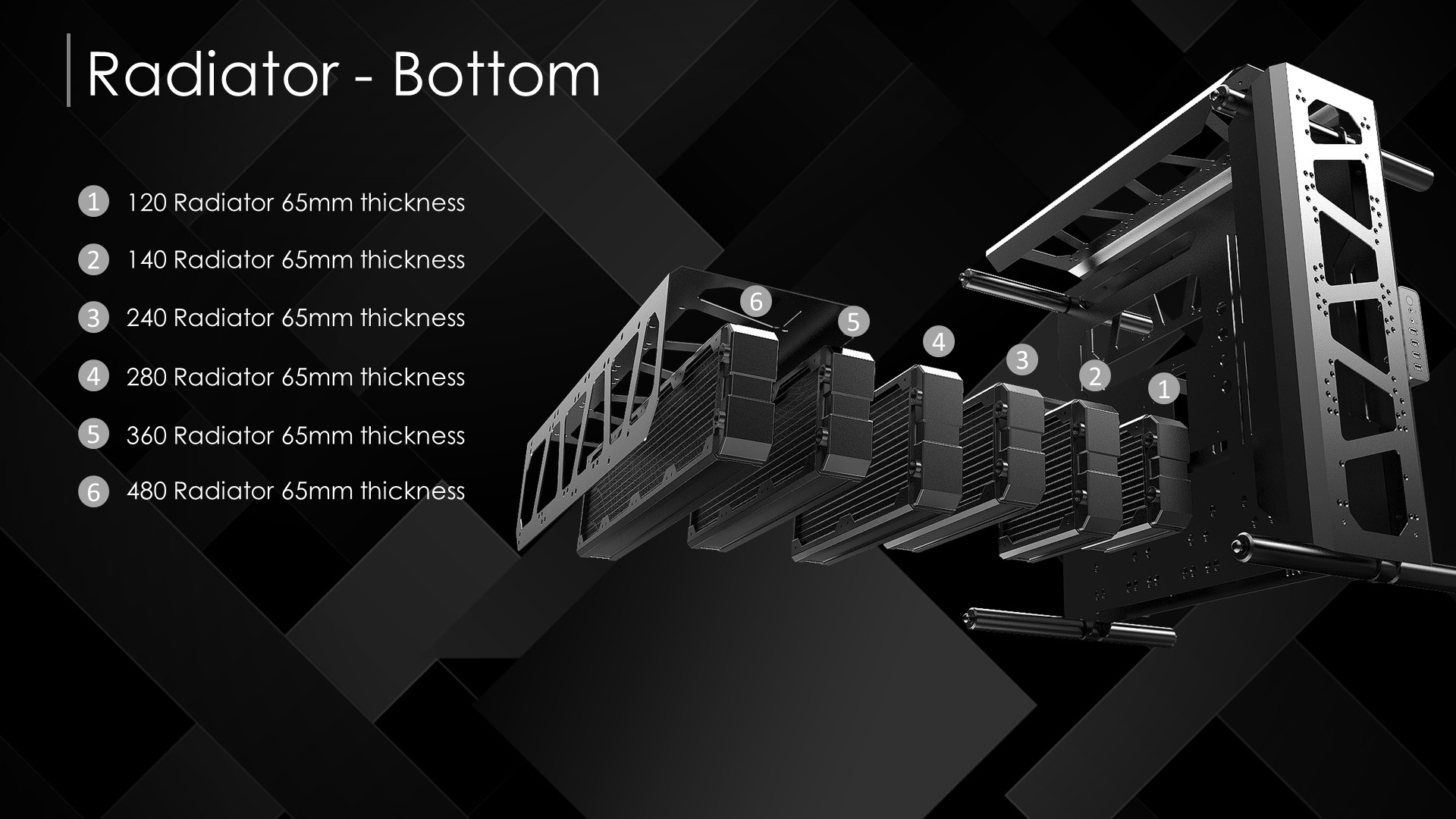

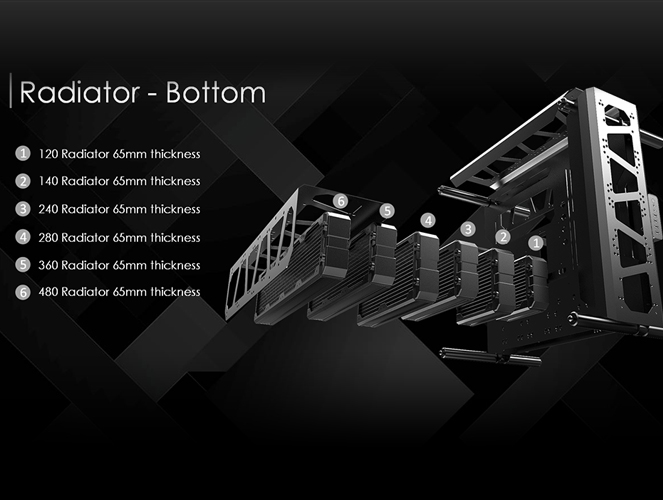

  • Bottom panel support up to 2 × 120/240/280/360/480, 65mm thick water radiator

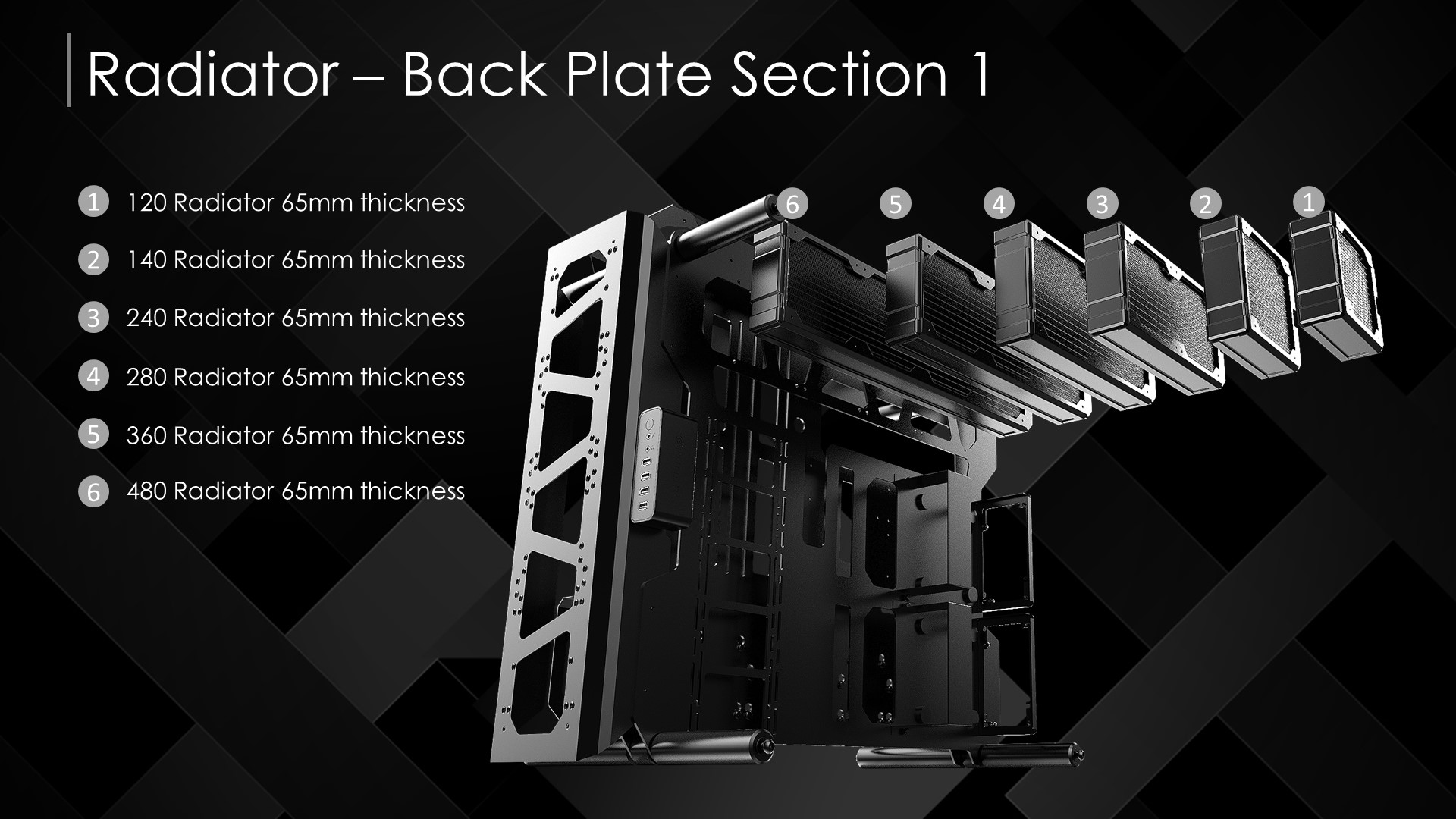

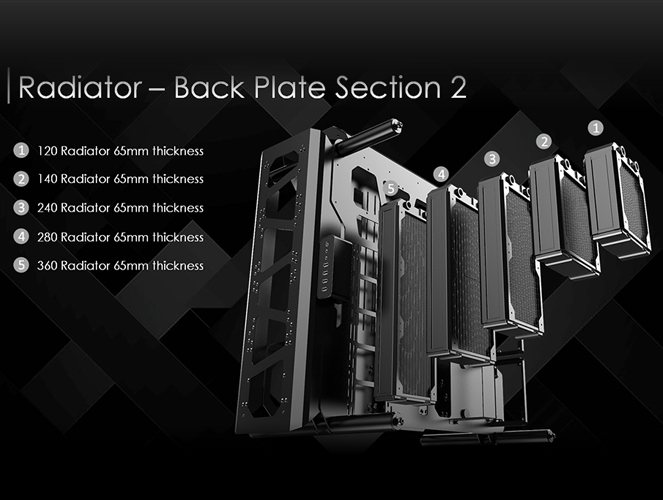

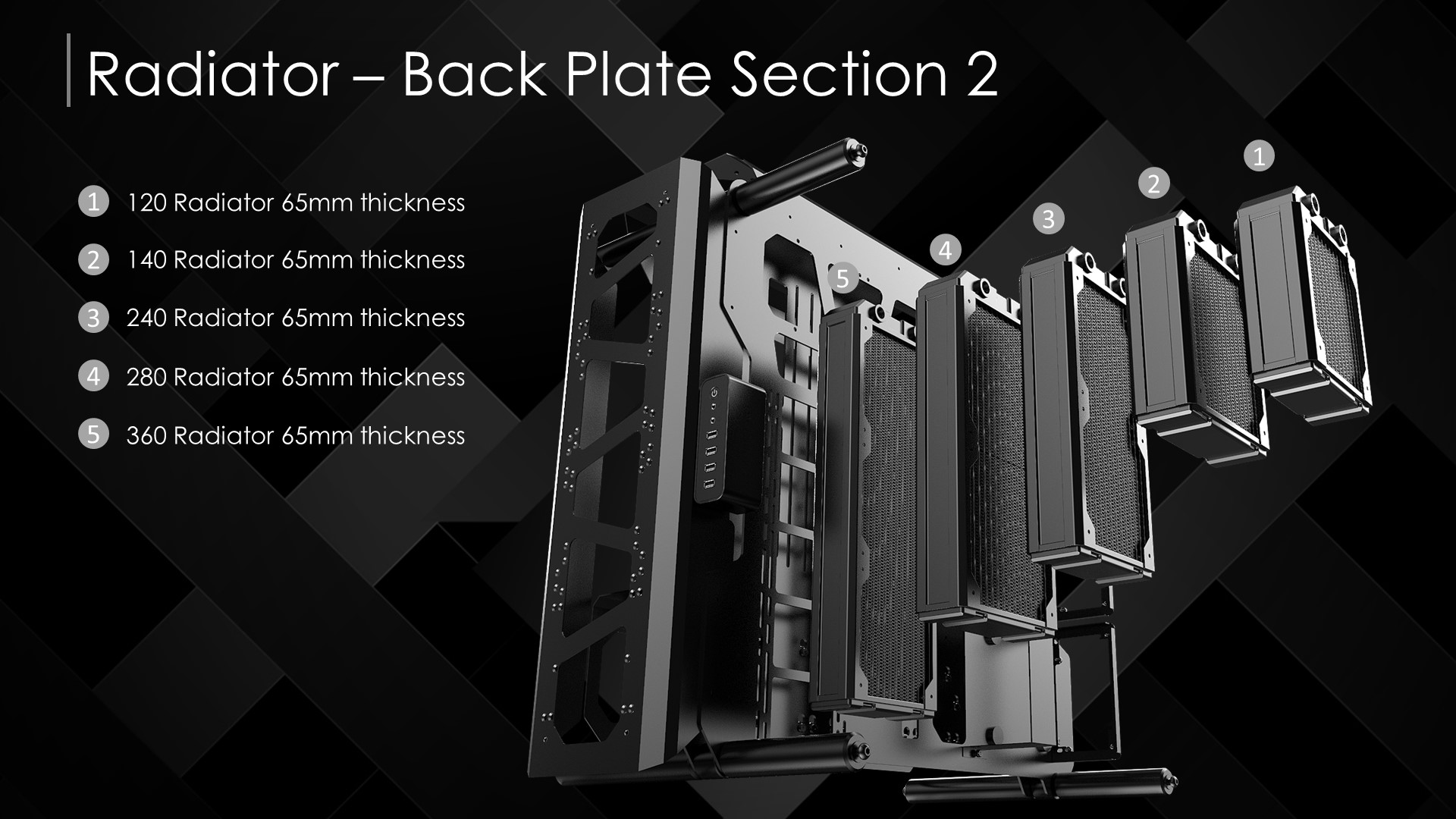

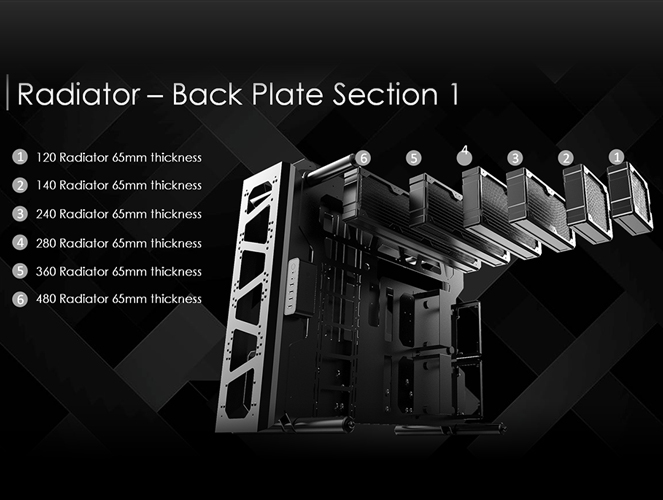

  • Back panel support up to one 120/240/280/360/480, 65mm thick water radiator & one 120/240/280/360, 65mm thick water radiator
  • Total support up to 4×480mm, 65mm thick water radiator plus one 360mm, 65mm thick water radiator
  • Support up to 700mm full-length graphic card

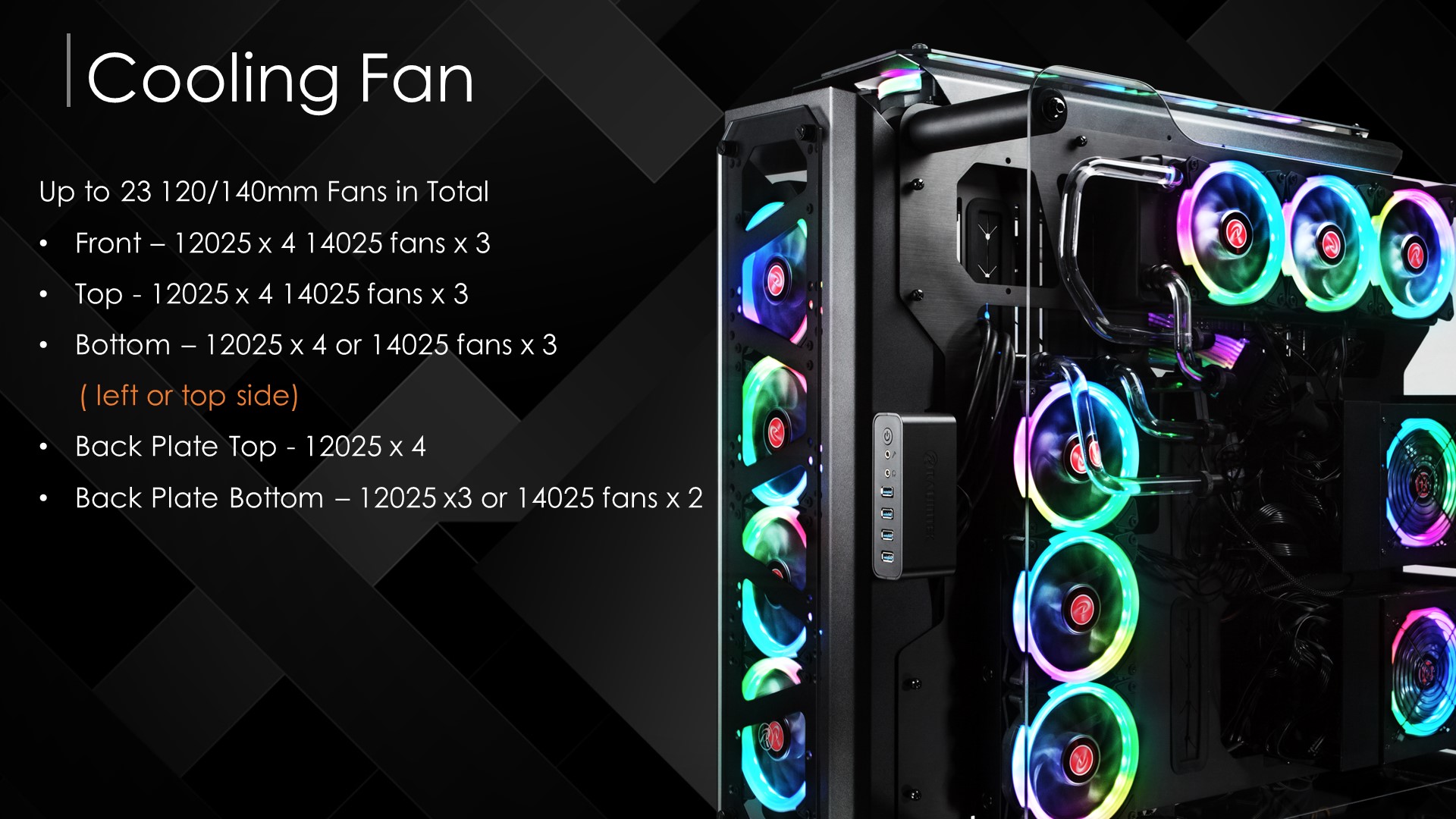

  • Support up to 23 fans of 120-140 mm
  • Maximum CPU cooler height up to 190 mm

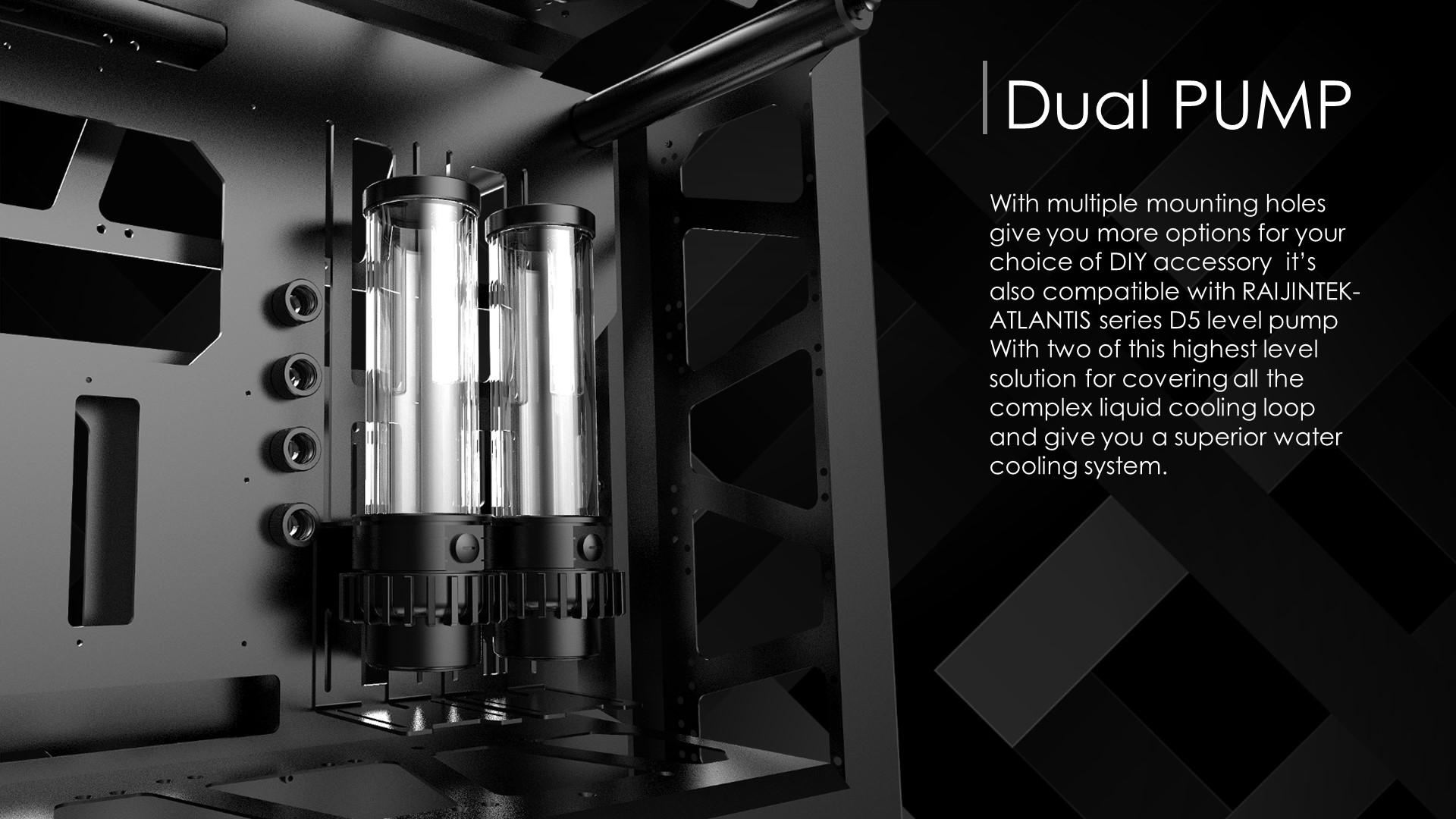

  • Capable of install two motor/water tank to achieve two water circulation in a system

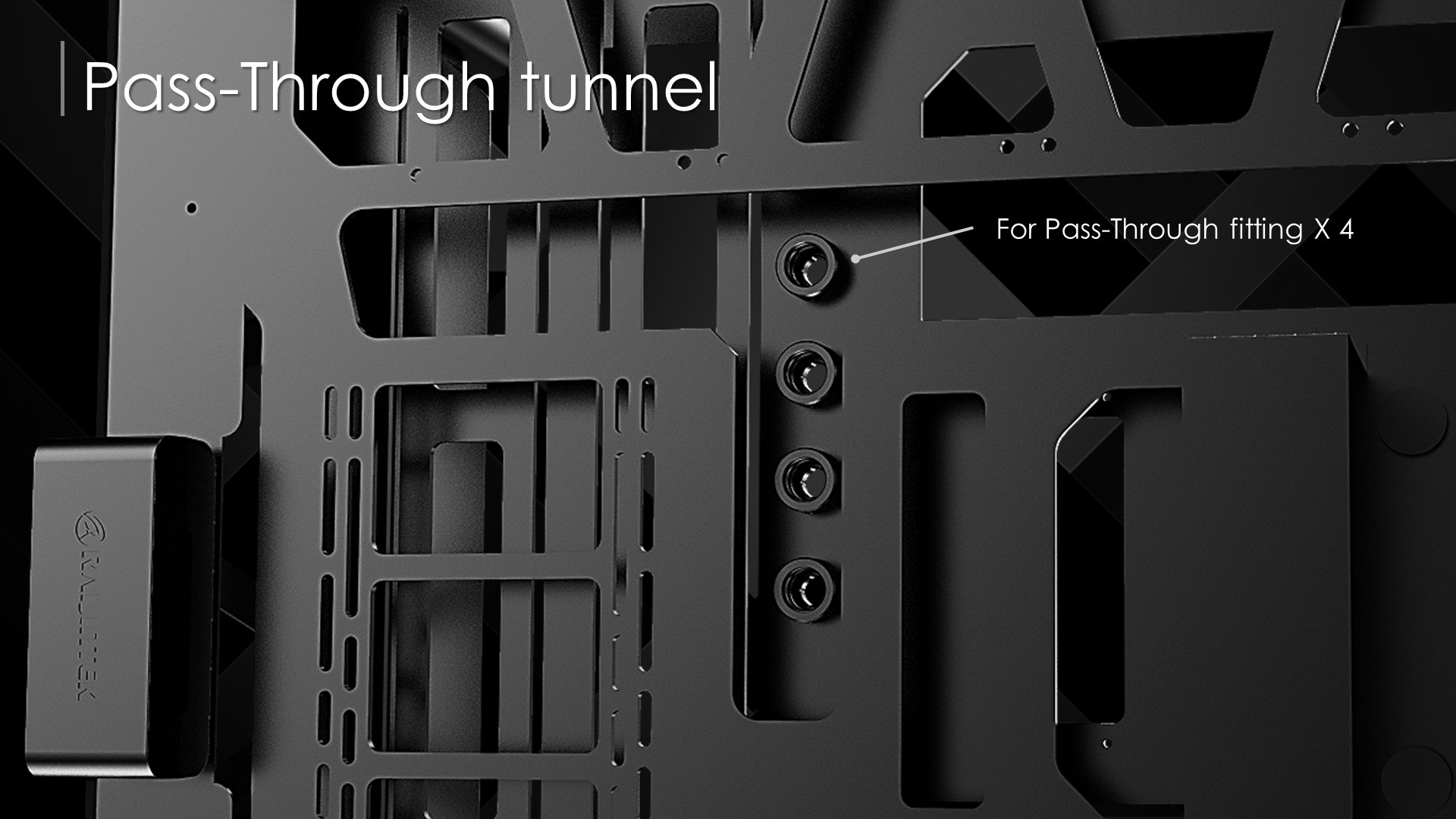

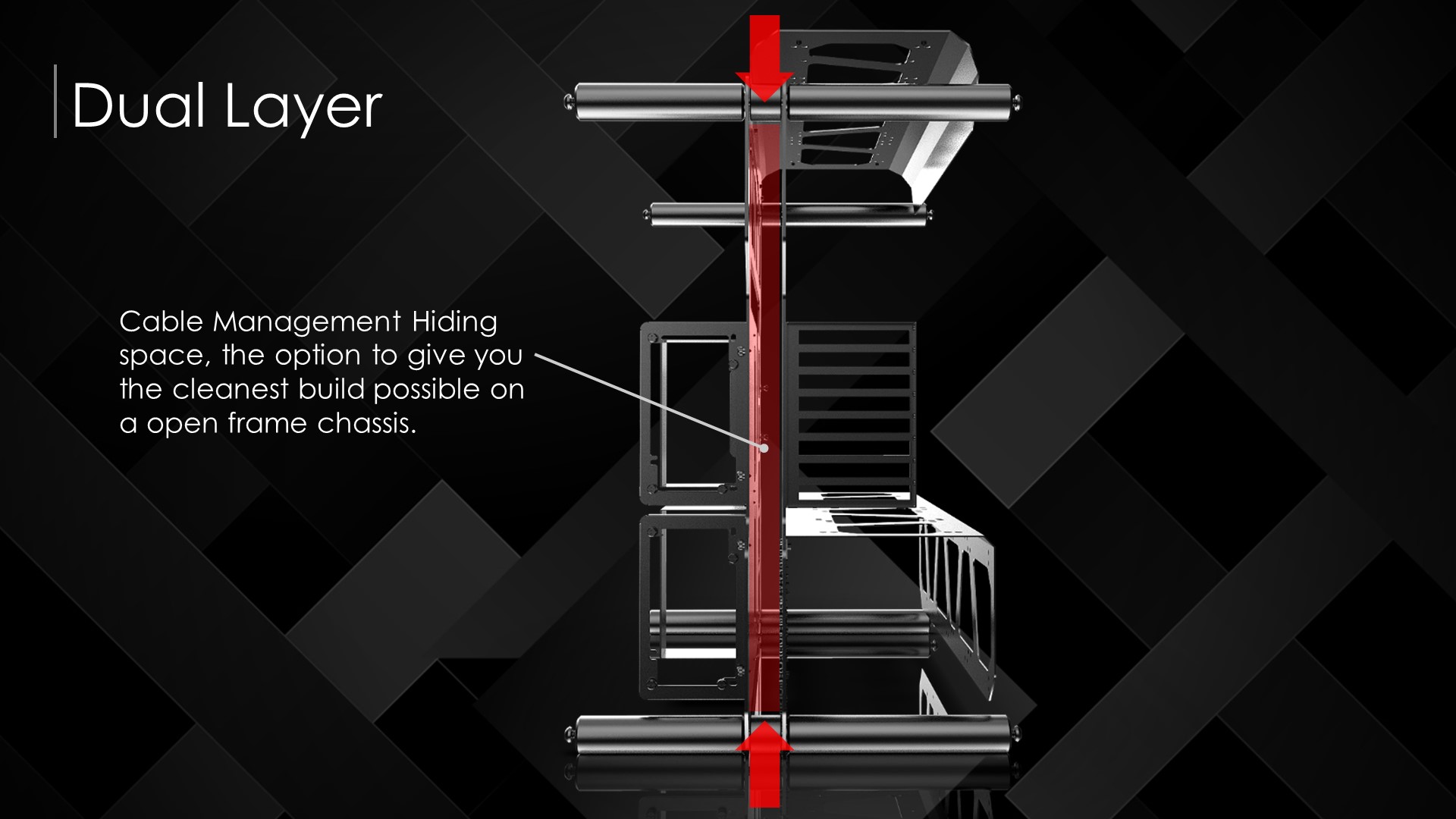

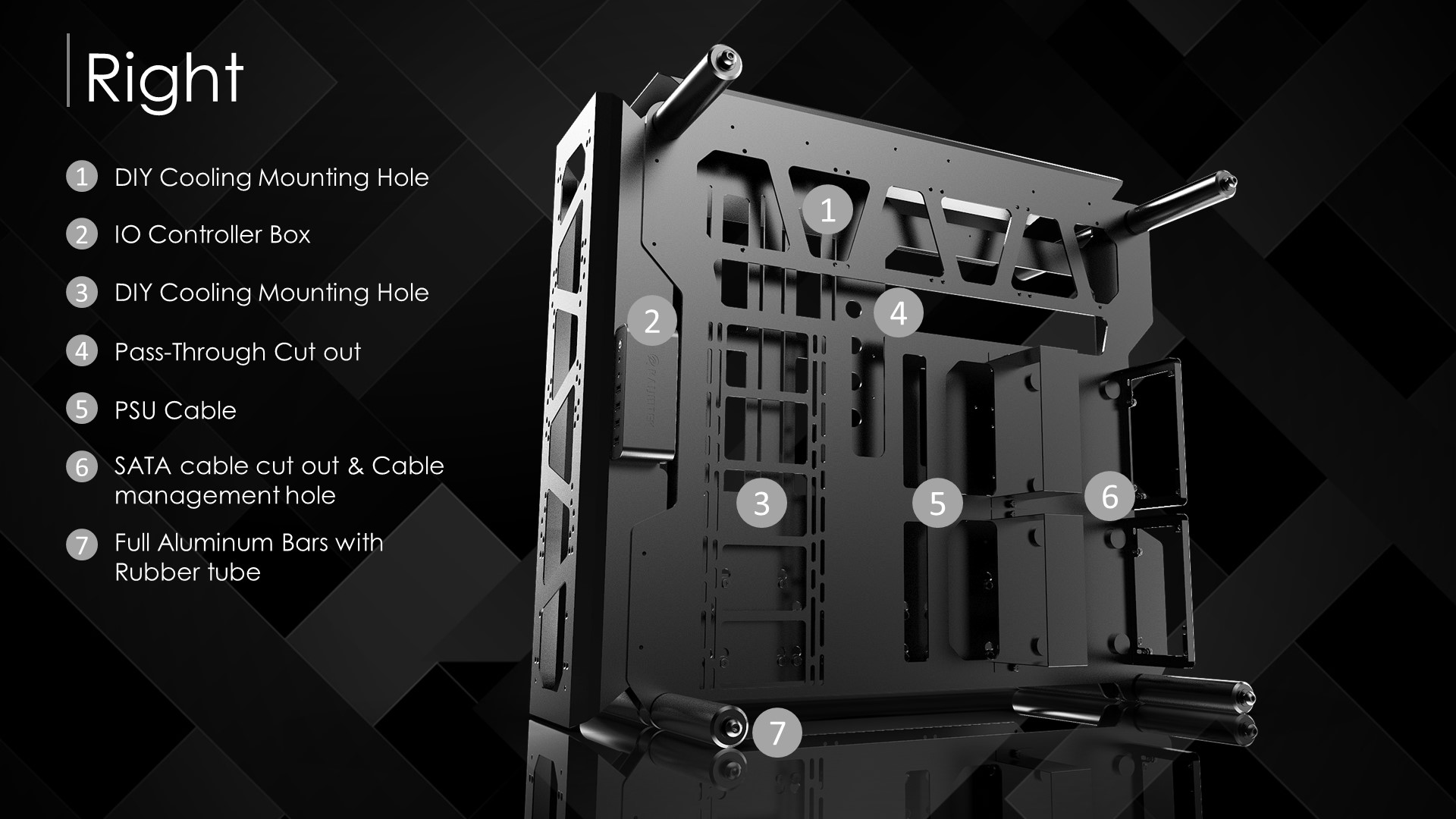

  • Reserved pass-through tunnel for your hard/soft DIY water tube

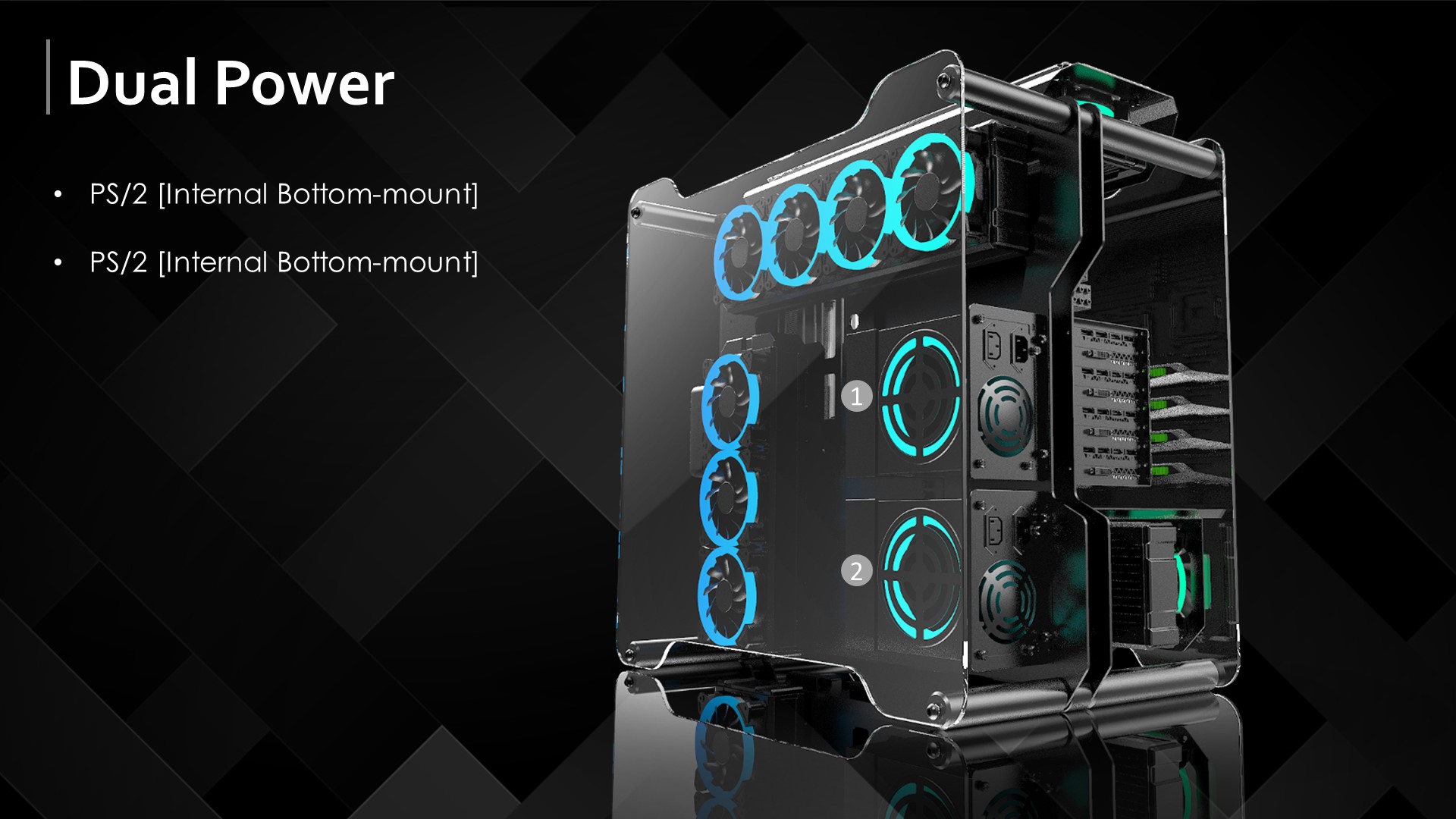

  • Dual power supply support to achieve dual system or multiple high-end graphics card installation
  • Can be installed with dual power supply / can realize dual system or multiple high-end graphics card power supply
SPECIFICATION
Product Name ENYO
Product Number 0R20B00119
Dimension [W×D×H] 707×398×659 mm
Weight 21.5 kg [N.W.] 24.8 kg [G.W.]
Material Aluminum 3.0mm; SPCC 2.0mm
Color Matt Black
M/B Support EEB; E-ATX; ATX; M-ATX; Mini-ITX

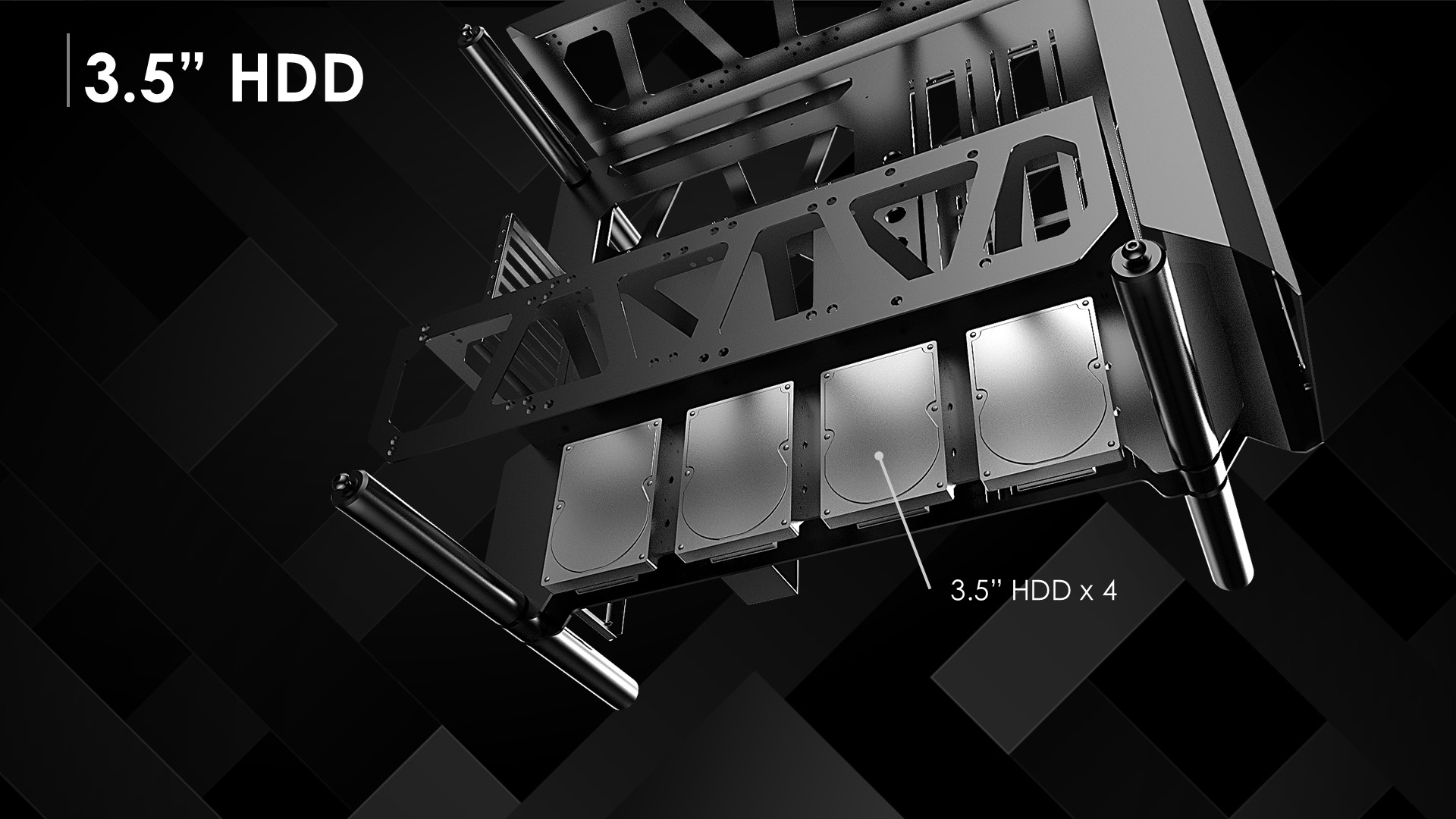

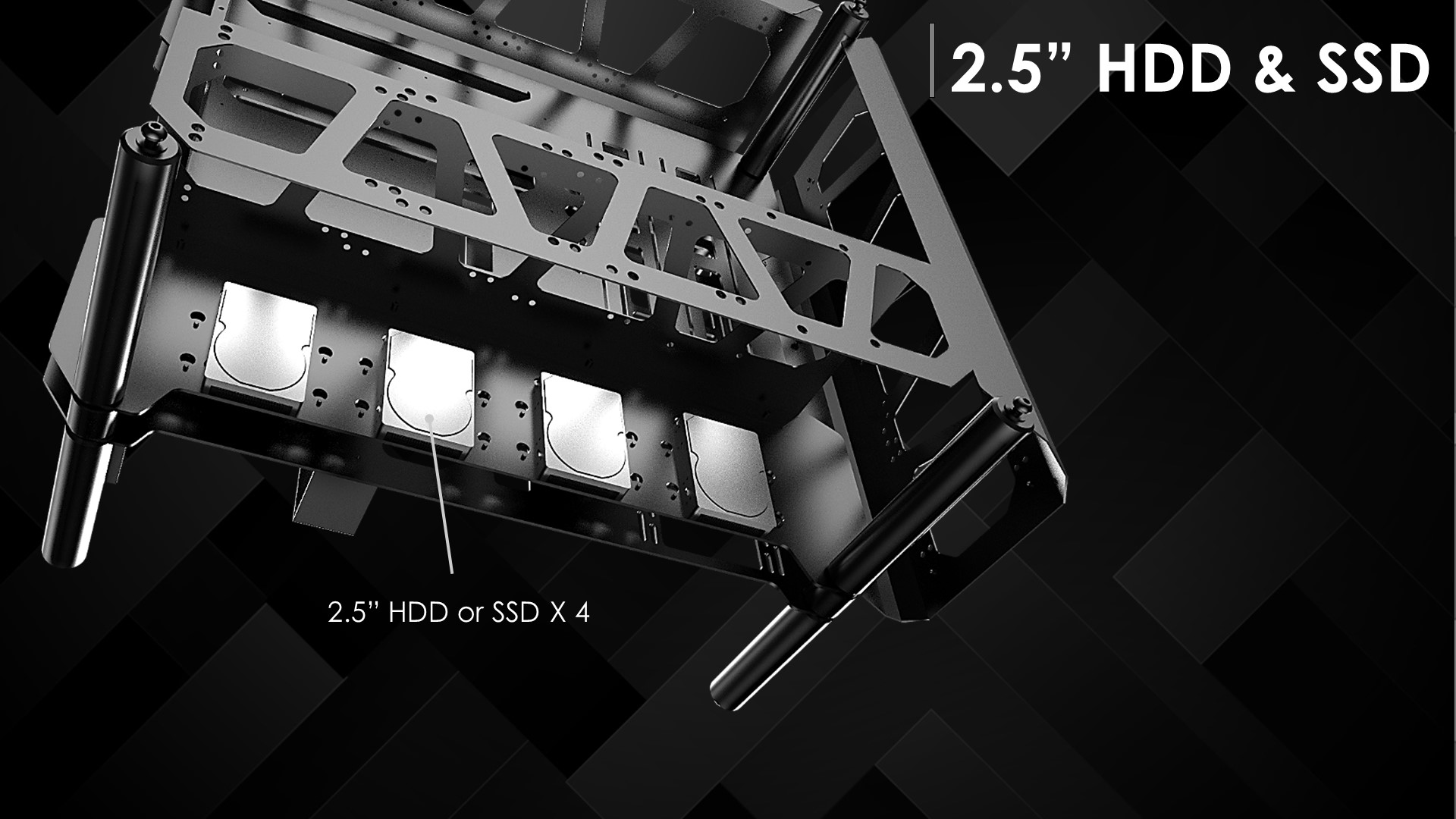

Drive Bay Internal 3.5"×4 or 2.5"×4 [Tool-Free]
Expansion Slot PCI Slots × 8

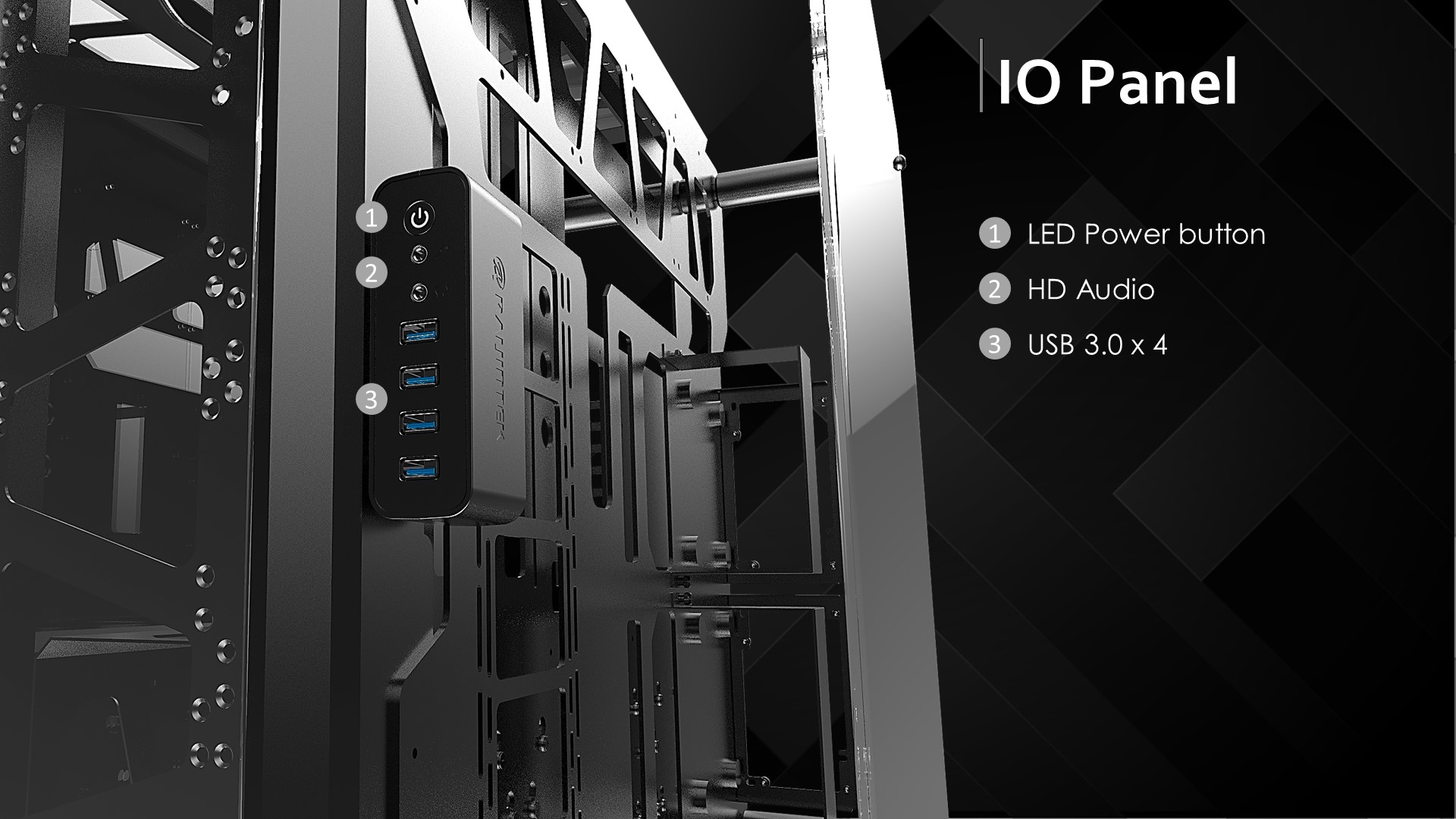

I/O Panel USB3.0×4, HD Audio×1
Power Supply Dual PS/2 [Bottom]

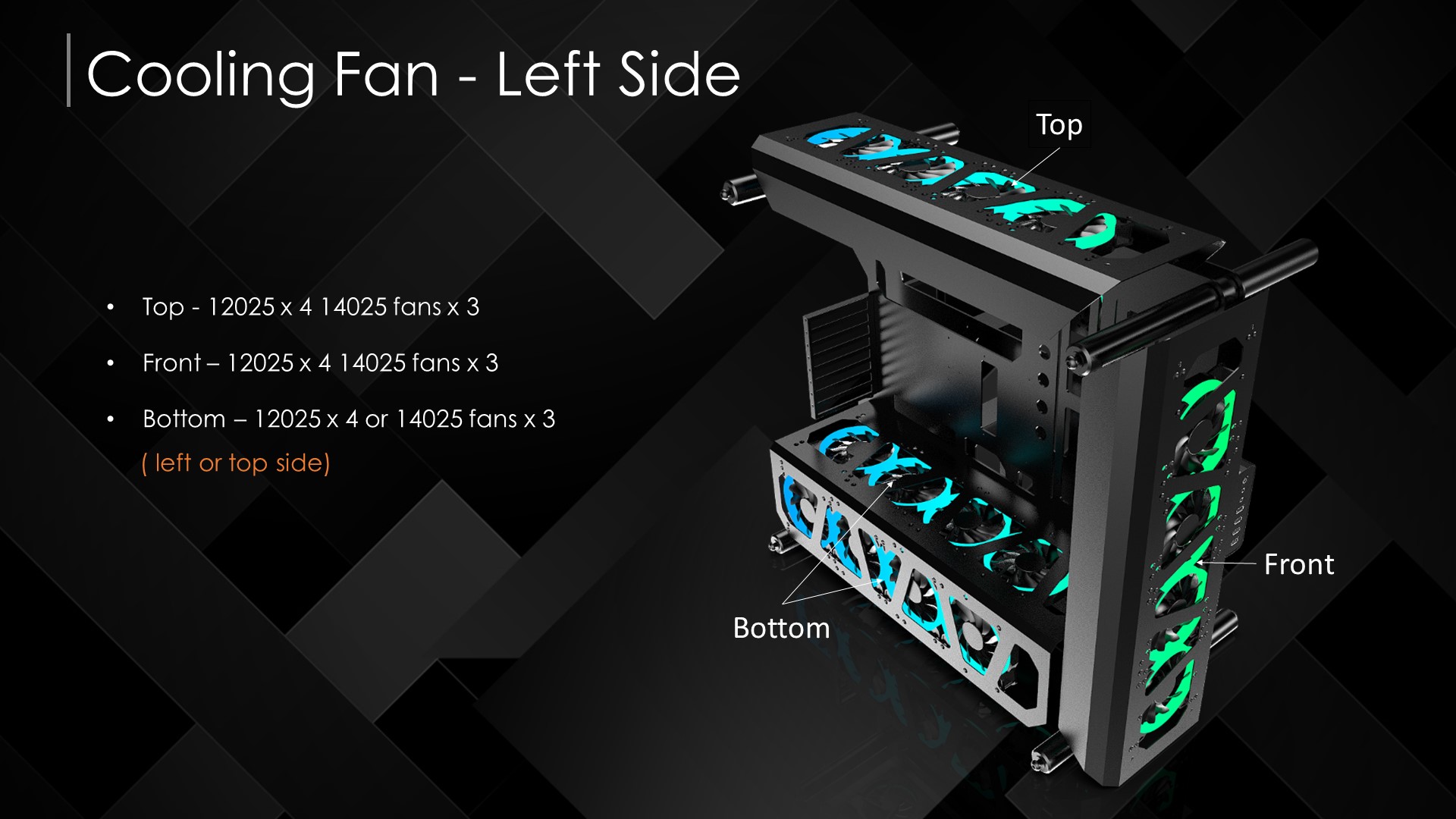

Fan Q'ty Top: 120 × 4 /140mm × 3 [option]
Front: 120 × 4 /140mm × 3 [option]
Front Bottom: 120 × 4 /140mm × 3 [option]

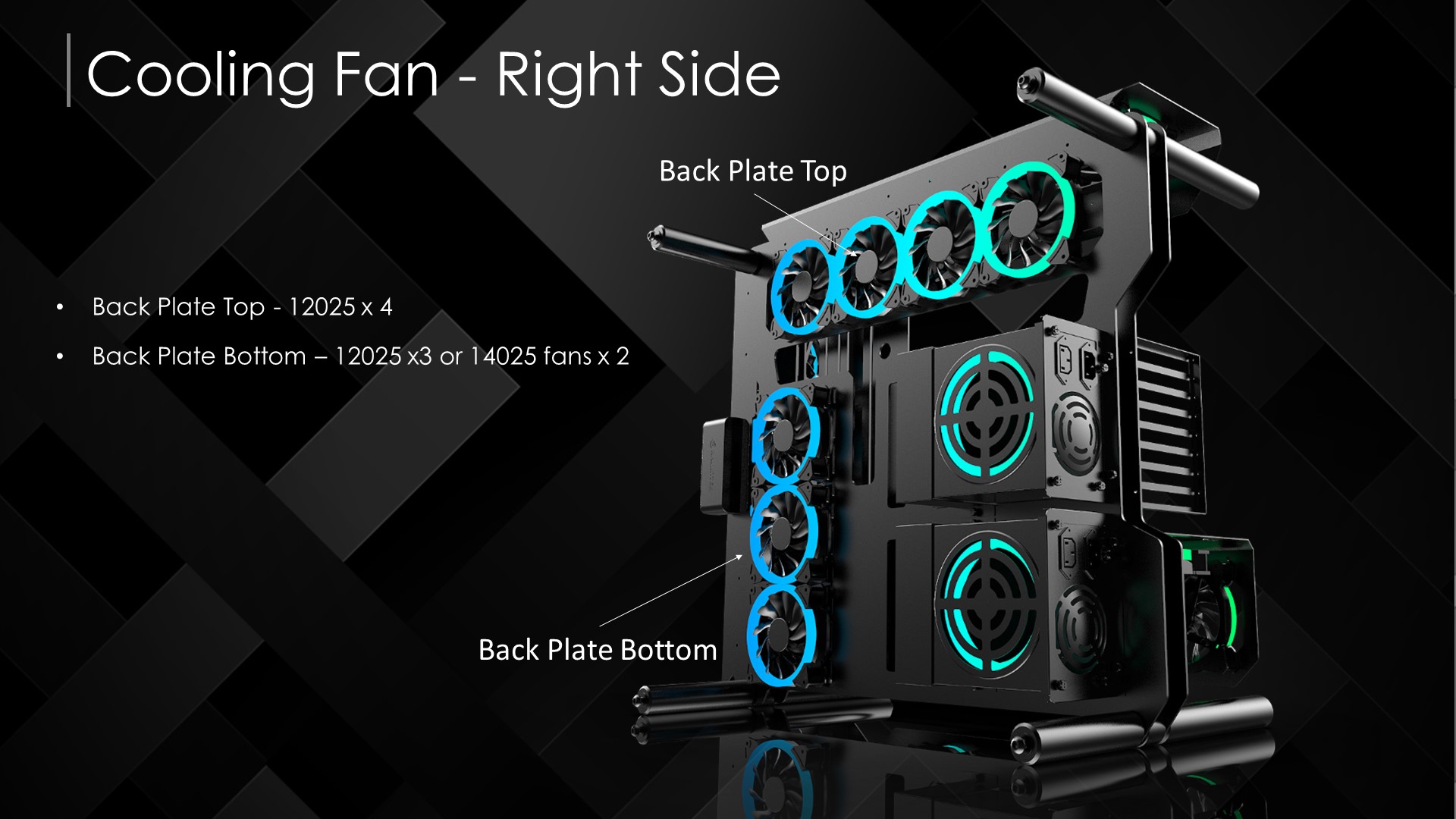

Back TOP: 120 × 4 /140mm × 3 [option]
Back Bottom: 120 × 3 /140mm × 2 [option]
CPU Cooler Height 188mm [Max.]

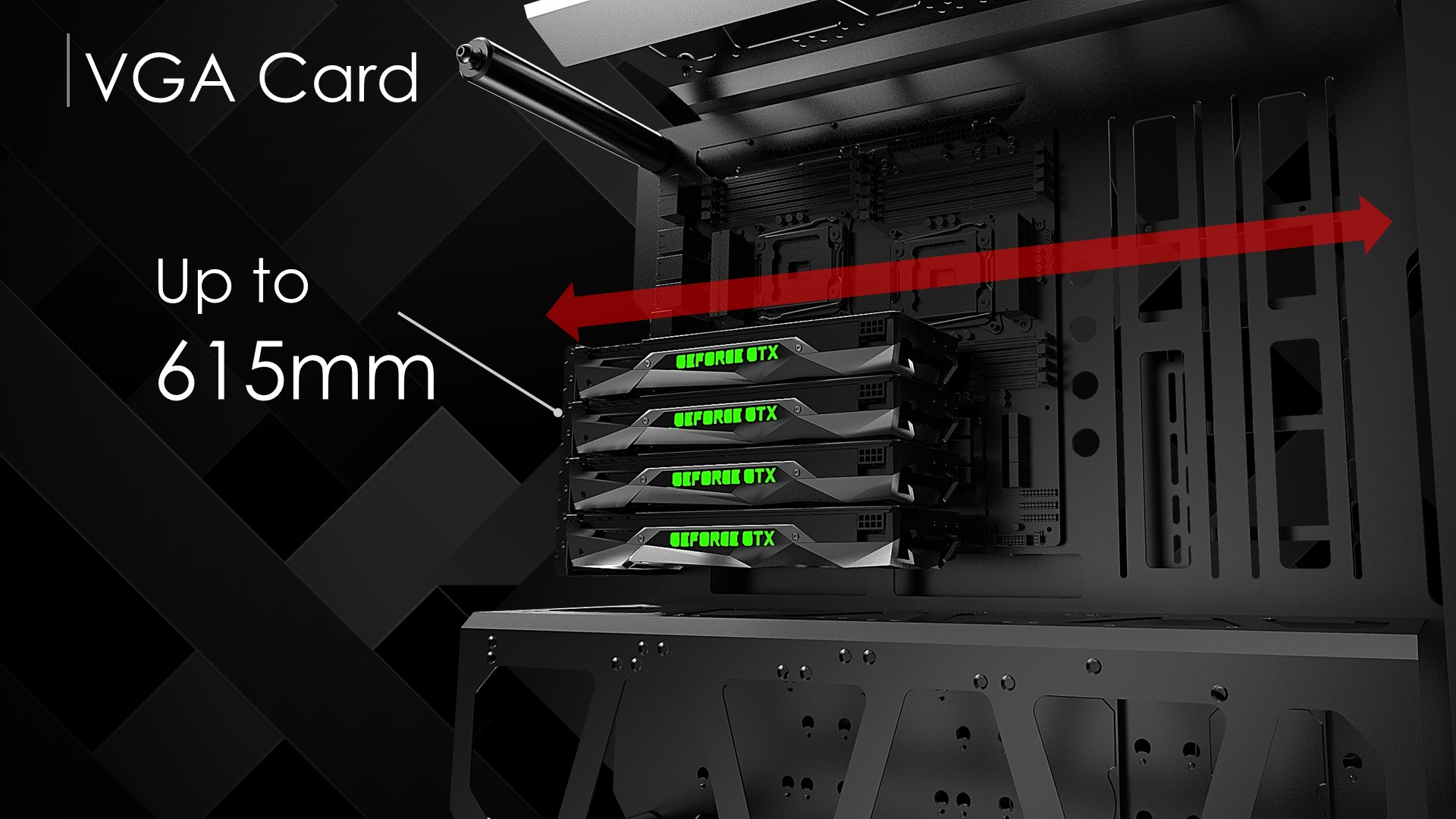

Graphic Card Length 615mm [Max.]
Side Panel Style 4mm Tempered Glass
Pump/Reservoir Q'ty 2 pcs [option]
Radiator Q'ty 4 × 120/240/280/360/480mm 65mm thick radiator [option]
1 × 120/240/280/360mm 65mm thick radiator [option]





ENYO × 1

Screw #6-32 L6 × 12
Motherboard

Screw #6-32 L6 × 30

Screw M3 L9.5 × 16
2.5"HDD

Screw #6-32 L8.5 × 16
3.5"HDD

Stand-off L6.5 × 12
Motherboard

Screw M3 L10 × 2
Fasten I/O module

Screw M8 L16 × 8
Side Panel

Cable Tie × 10
Settle Cable

PSU Rubber × 8
PSU Anti-vibration

Allen Key × 1
Install side panel

Screw L13.6 × 8
Top/Front panel

Stand-off L9 × 8
Top/Front panel

Rubber Pad × 8
Top/Front panel

Installation Guide × 1
