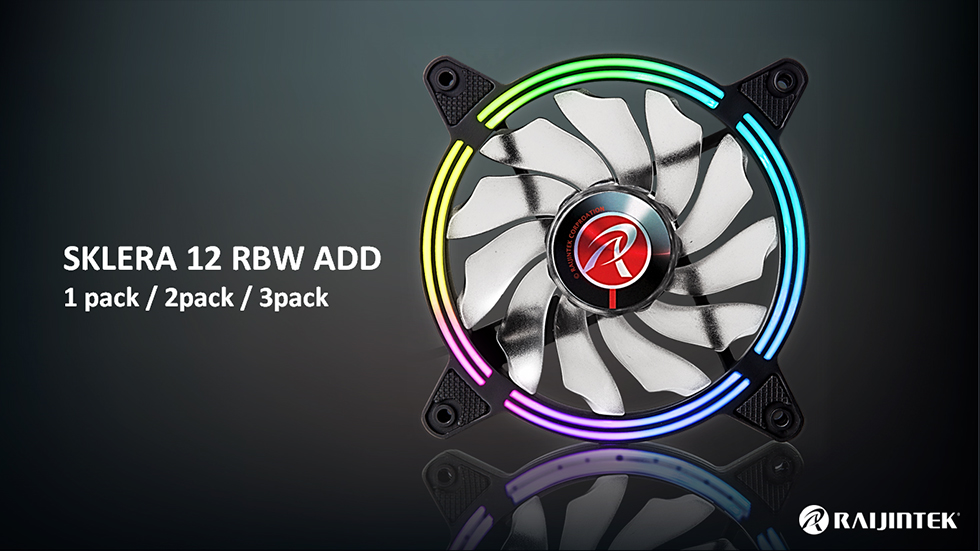

SKLERA 12 RBW ADD

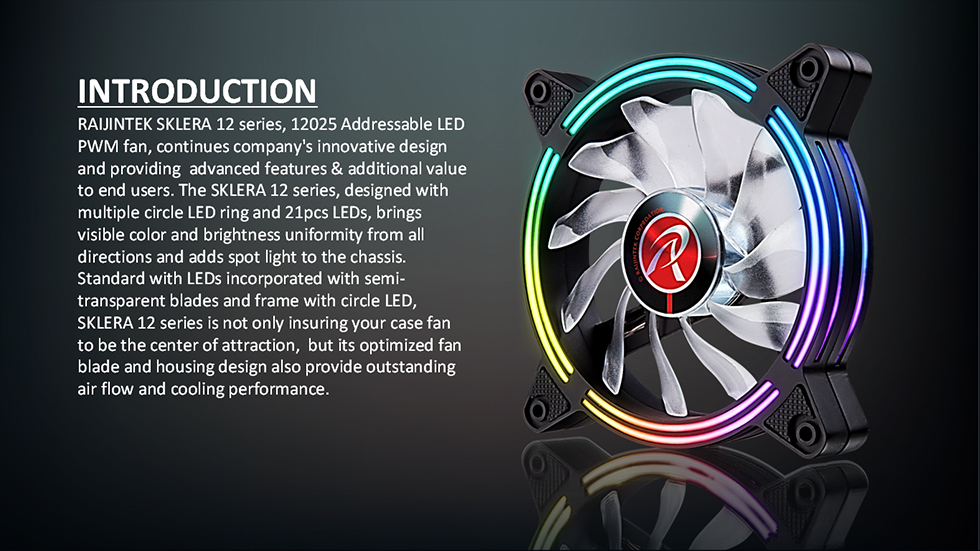

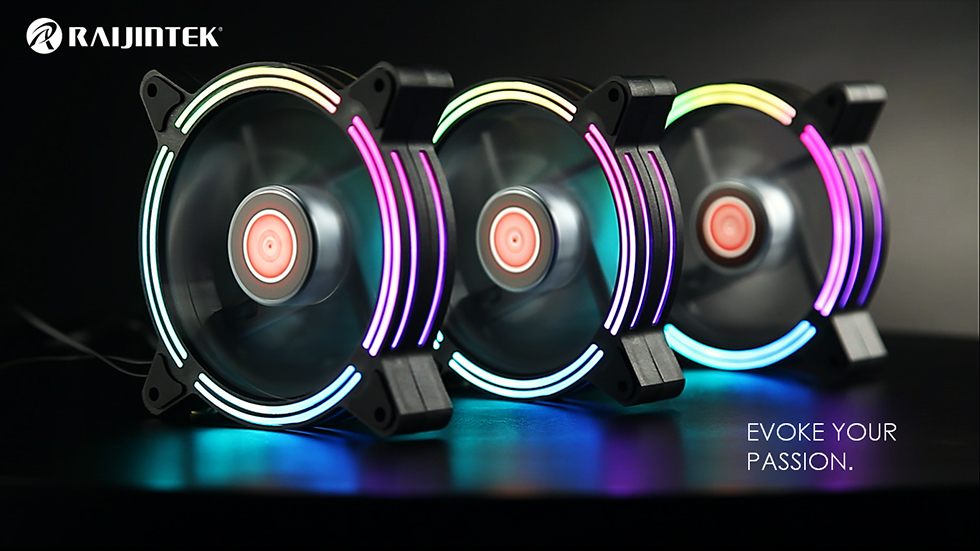

RAIJINTEK SKLERA 12 series, 12025 Addressable LED PWM fan, continues company's innovative design and providing advanced features & additional value to end users. The SKLERA 12 series, designed with multiple circle LED ring and 21pcs LEDs, brings visible color and brightness uniformity from all directions and adds spot light to the chassis. Standard with LEDs incorporated with semi-transparent blades and frame with circle LED, SKLERA 12 series is not only insuring your case fan to be the center of attraction, but its optimized fan blade and housing design also provide outstanding air flow and cooling performance.

Feature
Specification
Support
Unboxed
Gallery

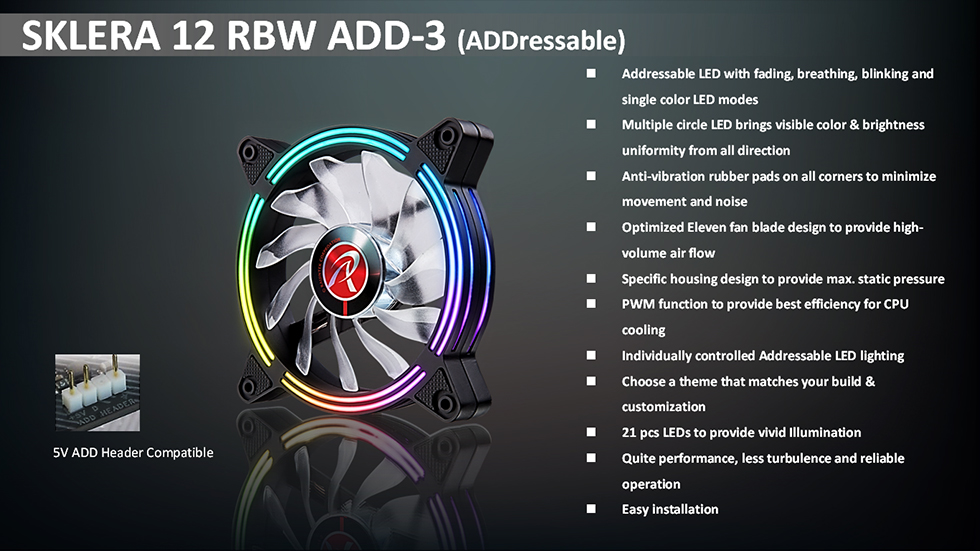

Addressable LED with fading, breathing, blinking and single color LED modes

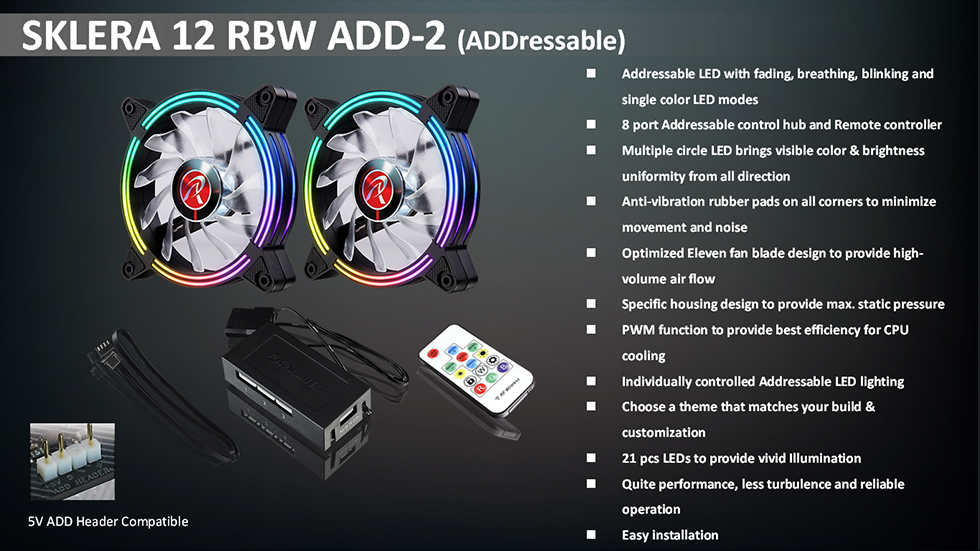

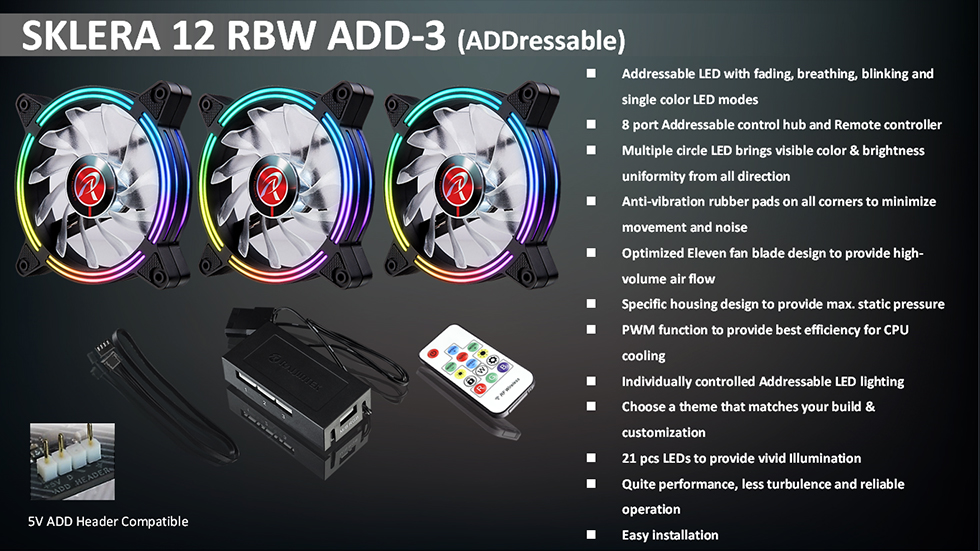

8 port Addressable control hub and Remote controller (for 2 & 3 pack)

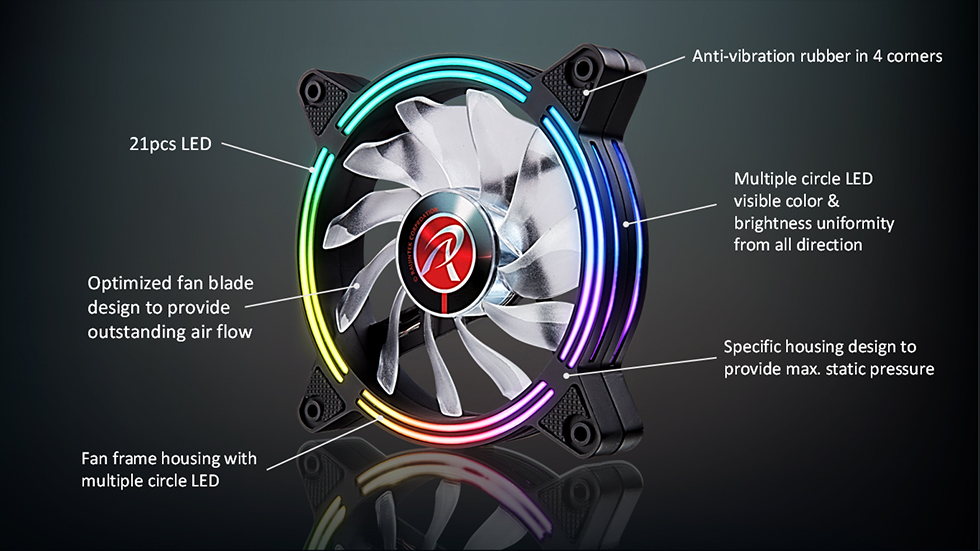

Multiple circle LED brings visible color & brightness uniformity from all direction
Anti-vibration rubber pads on all corners to minimize movement and noise
Optimized Eleven fan blade design to provide high-volume air flow
Specific housing design to provide max. static pressure
PWM function to provide best efficiency for CPU cooling
Individually controlled Addressable LED lighting
Choose a theme that matches your build & customization
21 pcs LEDs to provide vivid Illumination
Quite performance, less turbulence and reliable operation
Easy installation

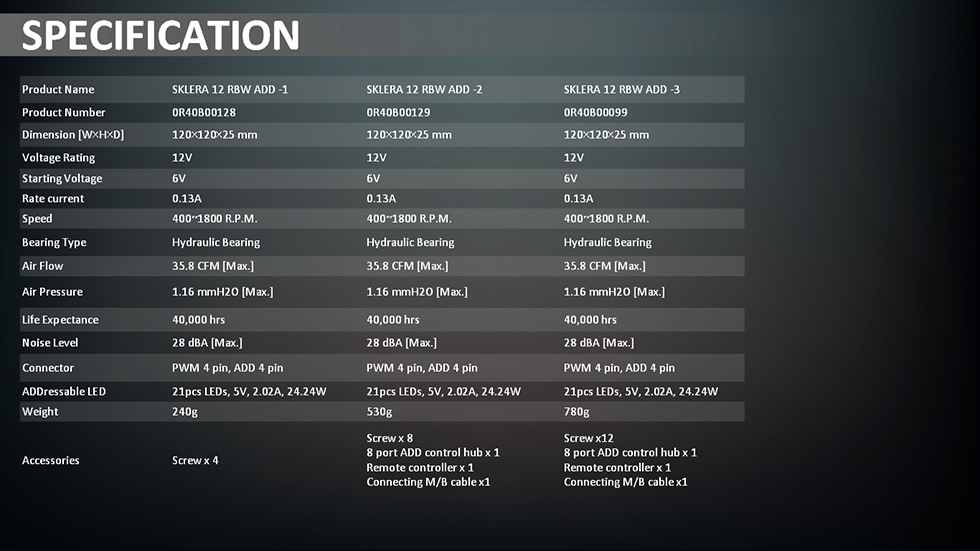

SPECIFICATION
Product Name	SKLERA 12 RBW ADD-1	SKLERA 12 RBW ADD-2	SKLERA 12 RBW ADD-3
Product Number	0R40B00128	0R40B00129	0R40B00099
Dimension [W×H×D]	120×120×25 mm	120×120×25 mm	120×120×25 mm
Voltage Rating	12V	12V	12V
Starting Voltage	6 V	6 V	6 V
Rated Current	0.13A ±10%	0.13A ±10%	0.13A ±10%
Power consumption	1.56W ±10%	1.56W ±10%	1.56W ±10%
Speed	400~1800 R.P.M.	400~1800 R.P.M.	400~1800 R.P.M.
Bearing Type	Hydraulic Bearing	Hydraulic Bearing	Hydraulic Bearing
Air Flow	35.8 CFM [Max.]	35.8 CFM [Max.]	35.8 CFM [Max.]
Air Pressure	1.16 mmH2O [Max.]	1.16 mmH2O [Max.]	1.16 mmH2O [Max.]
Life Expectance	40,000 hrs	40,000 hrs	40,000 hrs
Noise Level	28 dBA [Max.]	28 dBA [Max.]	28 dBA [Max.]
Connector	5V ADD Header PWM 4 pin Header	5V ADD Header PWM 4 pin Header	5V ADD Header PWM 4 pin Header
Weight	240g	530g	780g
Accessories	Screw × 4	Screw × 8 ARGB-PWM control hub × 1 Remote controller × 1 Connect cable × 1	Screw × 12 ARGB-PWM control hub × 1 Remote controller × 1 Connect cable × 1
Fan Q'ty	1 pcs	2 pcs	3 pcs

Remote controller function
1.On/off: Power on/off
2.SPEED (+): While Dynamic color mode, increase the speed of color change; Not for Static mode
3.SPEED (-): While Dynamic color mode, decrease the speed of color change; Not for Static mode
4.MODE (+): Forward to next mode
5.MODE (-): Backward to previous mode
6.AUTO: Automatically cycles all modes, 10 seconds for each mode
7.W: Single White LED
8.R: Single Red LED
9.G: Single Green LED
10.B: Single Blue LED

Rainbow RGB
20 modes: 13 Dynamic color modes & 7 Static color modes
Memory function: While power on, the mode and speed are at previous status
Voltage rating: 12V
Connecting 6 fans will get best effect for Dynamic modes

Color Modes
Mode 1: Dynamic 6 colors rotating with transition effect
Mode 2: Dynamic lighting rotation to each other with transition effect
Mode 3: Dynamic 6 colors rotating without transition effect
Mode 4: Dynamic 7 colors switch by water-flow rotating with low brightness effect on background color
Mode 5: Dynamic 7 single colors switch by water-flow effect
Mode 6: Dynamic 7 shinning colors switch by water-flow effect
Mode 7: Dynamic 7 colors switch by water-flow rotating with covering background color effect
Mode 8-13: Dynamic 7 colors by water-flow rotating
Mode 14-20: Static single LED color

SKLERA 12 RBW ADD ×1 ×2 ×3

ARGB-PWM control hub × 1
[for 2 & 3 pack]

Remote controller × 1
[for 2 & 3 pack]

Connect cable × 1
[for 2 & 3 pack]

Screw ×4 ×8 ×12

Package × 1
