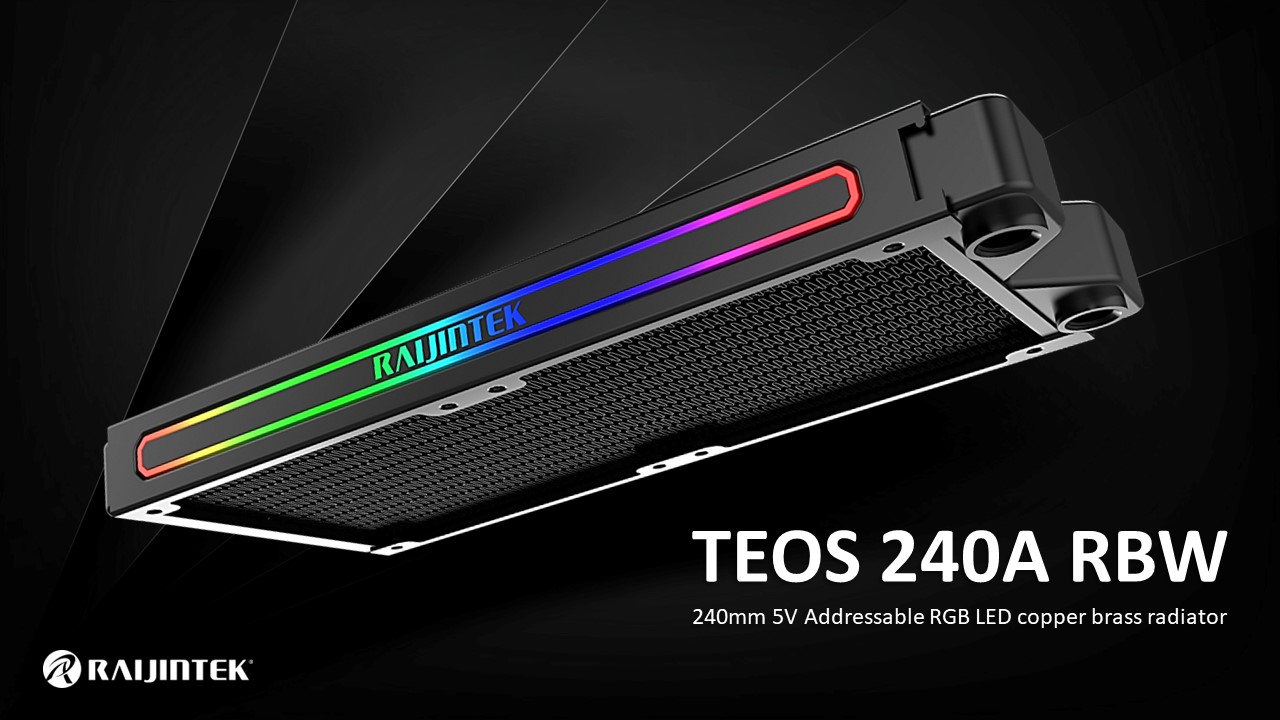

TEOS 240A RBW

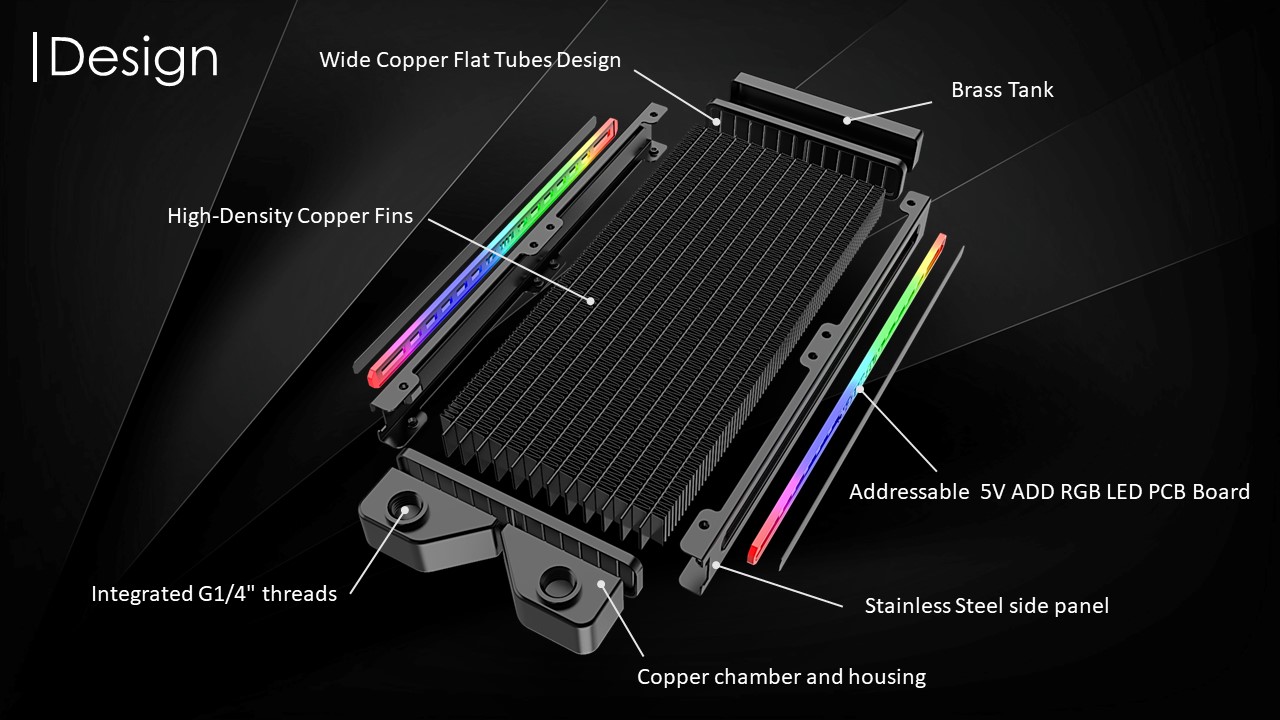

RAIJINTEK Copper radiator - 27mm thickness with all-black coated and cool 5V Addressable RGB LED lighting effects, TEOS 240 RBW is made of copper using reflow soldering, high-density copper fin design and brass tank to attain better heat evacuation. Radiator is engineered with a 27mm thickness along with wide 14-set flat copper tube design. (FPI: 14) 1 inch = 14 copper Fins design is to optimized for superior cooling efficiency during operation and to achieving maximum heat dissipation at both low and high airflow . With Integrated G1/4" threads make it easy to install, and the stainless steel side panels is to guarantee the durability. Square Fan anti-vibration rubber is also provided to eliminate most vibration from fan, In addition on this, two extra nameplate are included for you so that you can customize your own design to make your system more stylized. The TEOS is truly manufactured from premium-quality materials that provide exceptional performance & reliability.

TEOS 240A RBW









  •

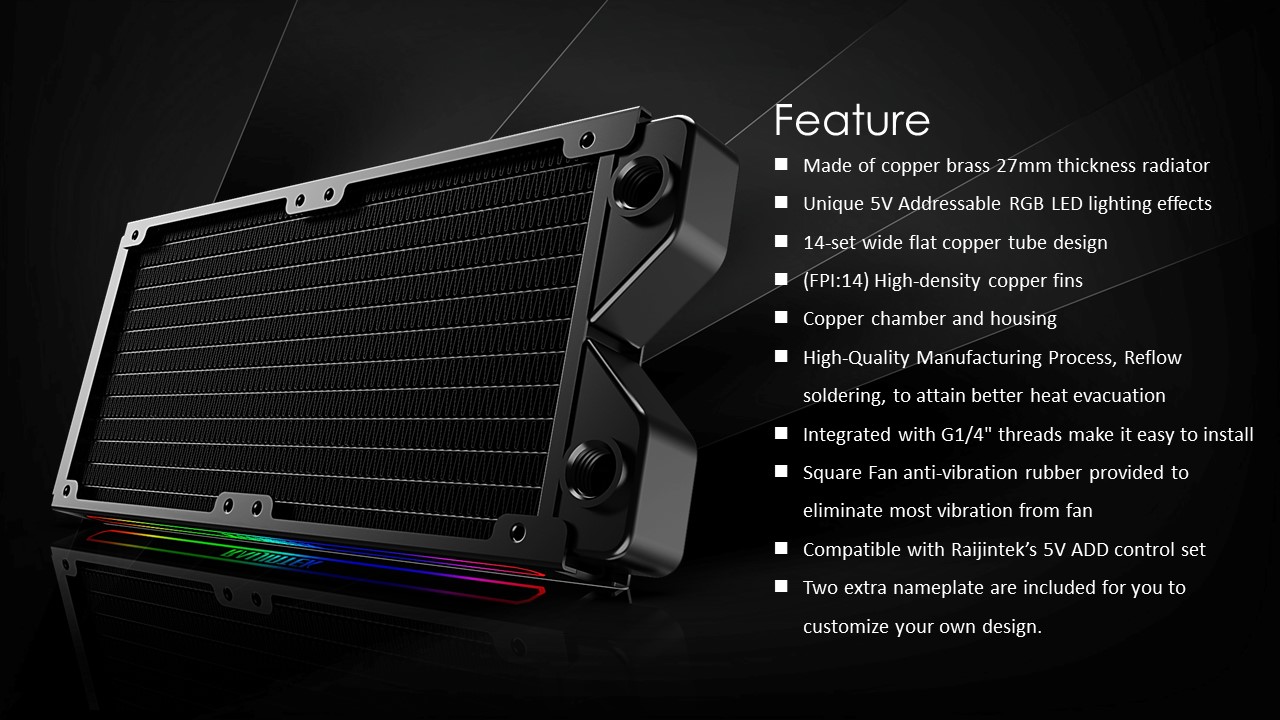

  • Made of Copper 27mm thickness radiator

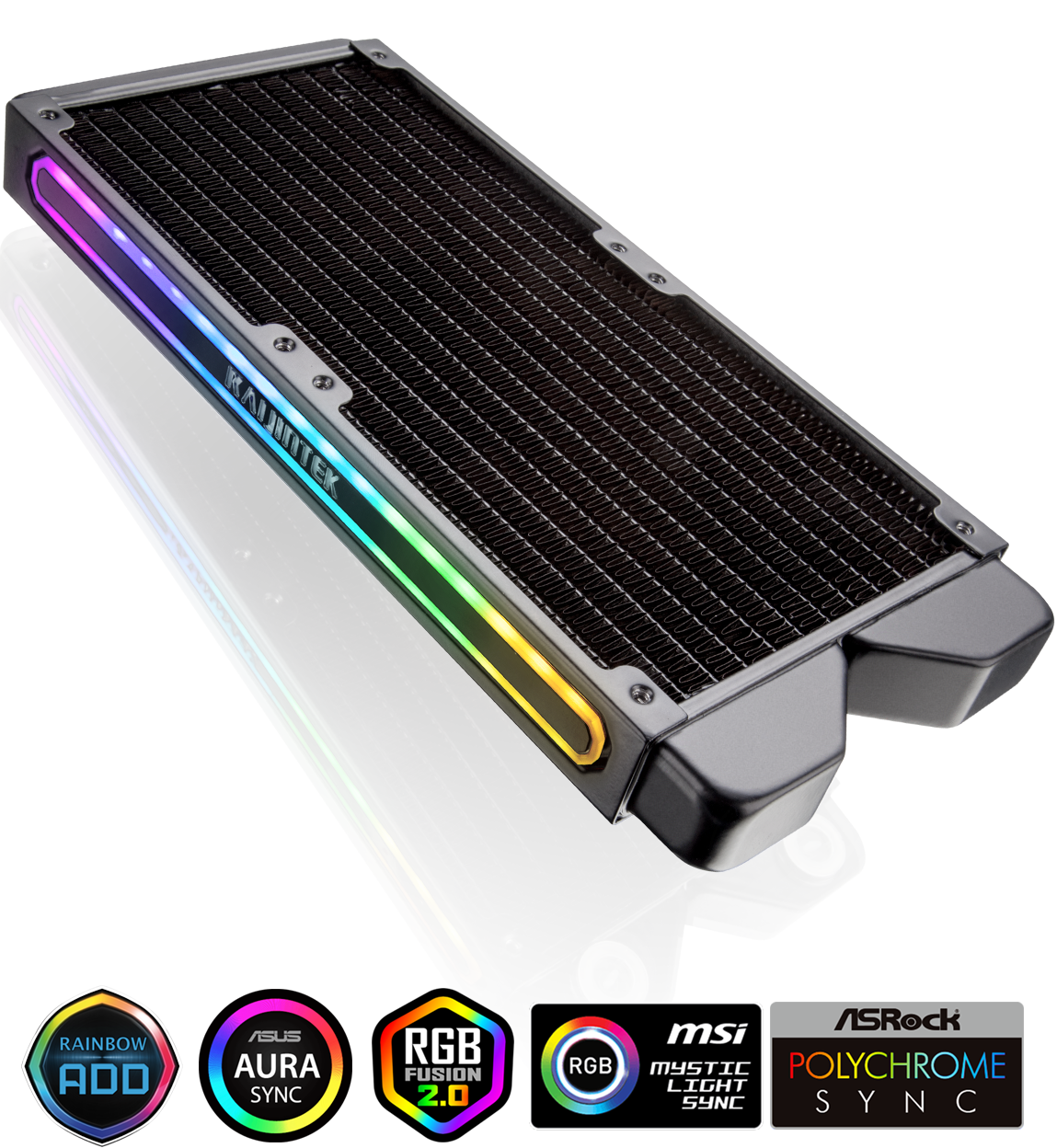

  • Supports 5V Addressable RGB Enabled Motherboards
  • 14-set wide flat copper tube design

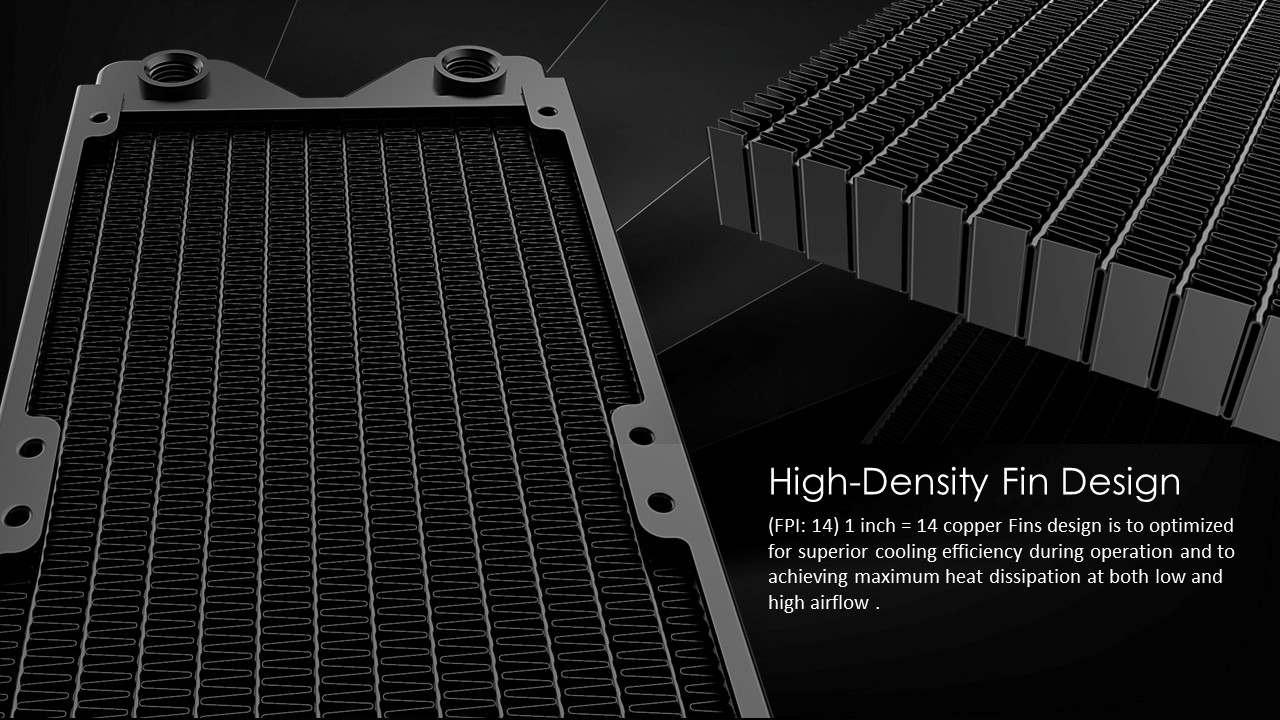

  • (FPI:14) High-density copper fins
  • Copper chamber and housing
  • High-Quality Manufacturing Process, Reflow soldering, to attain better heat evacuation
  • Integrated with G1/4" threads make it easy to install
  • Square Fan anti-vibration rubber provided to eliminate most vibration from fan
  • Compatible with Raijintek’s 5V ADD control set

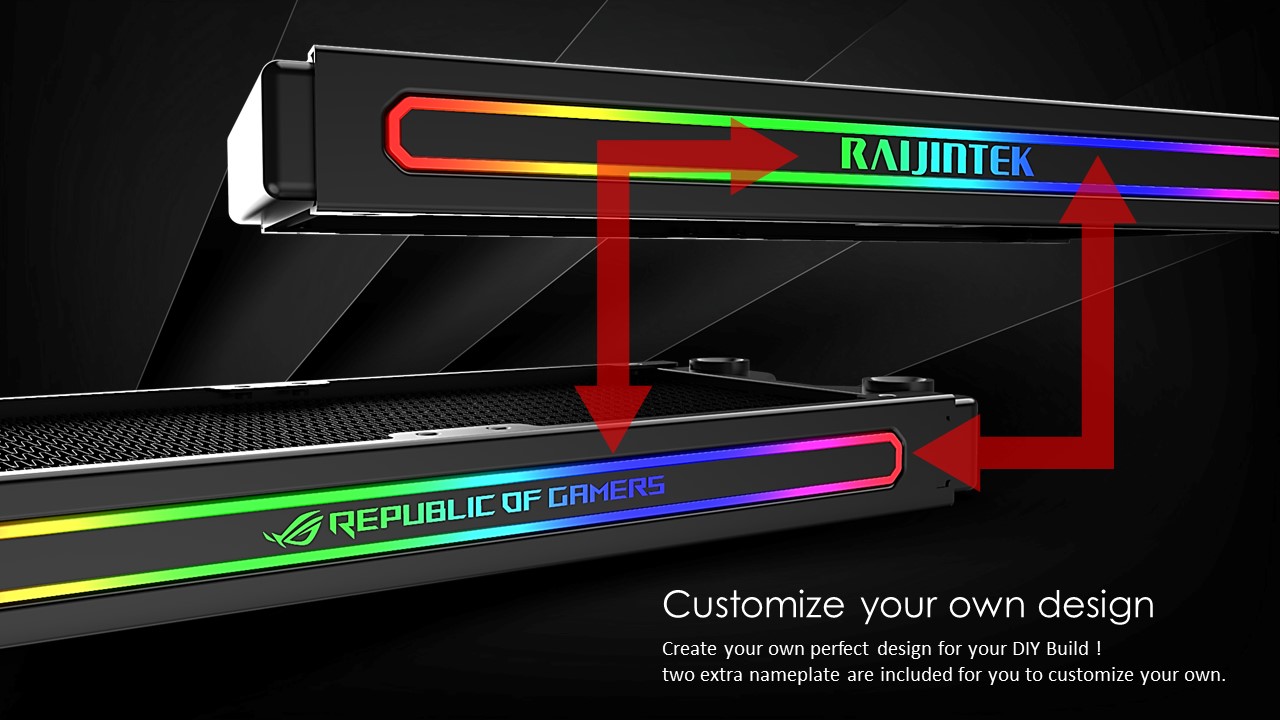

  • Two extra nameplate are included for you to customize your own design
SPECIFICATION
Product Name TEOS 240A RBW
Product Number 0R40A00061

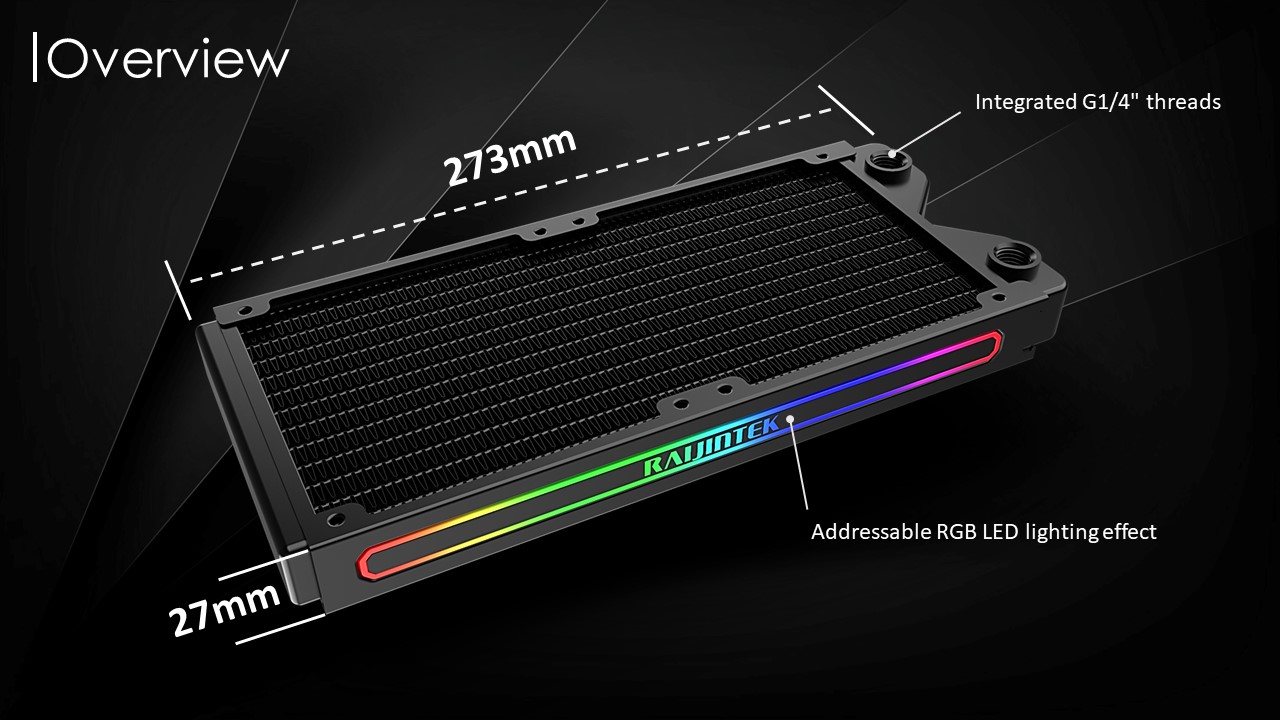

Dimension [W×D×H] 273×120×27 mm
Material Copper, Steel, Plastic, PCB
Color Black coated
Flat Tube 14 sets ; 245×16×1.5mm
FPI (Fin per inch) 14
Tube row 1
Screw Threads G 1/4"
Control Method Motherboard control / Remote control (by using RJK control hub)
Input Connector 4-PIN header (2.5 Crimp)
Voltage Rating 5V
Lighting Mode By MB software or 20 Lighting MODE & 7 different static color choices by Raijintek's 5V ADD control hub
Weight 571g

TEOS 240A RBW × 1

Package × 1
