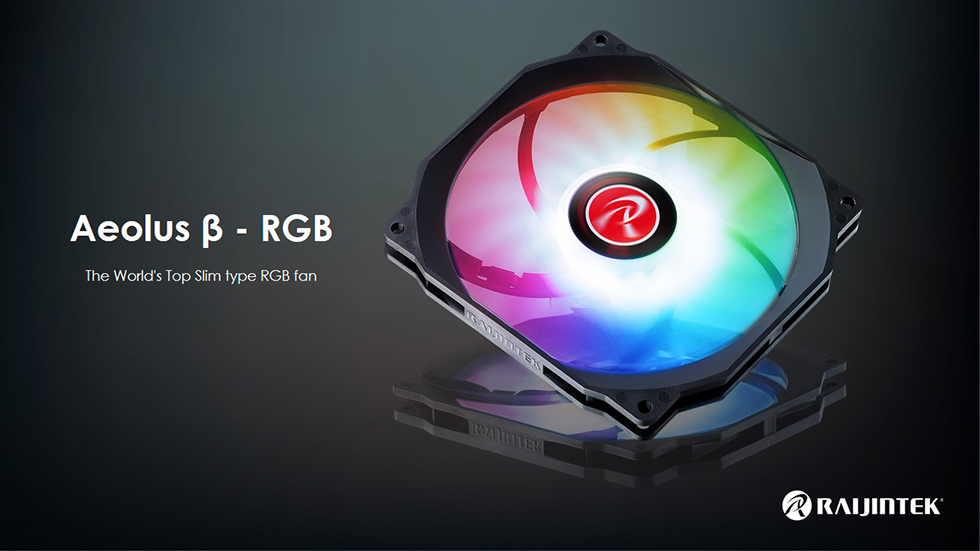

| Aeolus β - RGB |
|
Aeolus β, world's top slim high performance RGB fan, it is a new technology fan, not only of 13mm height, 17 fan blade design, but also extremely performing. Aeolus β is developed by latest technology with outstanding airflow, excellent static pressure, and super silence with RGB color light effects. Due to the great combination of technology and elegant design, Aeolus is your best choice and saves space usage in your device. |
      |
|
|
|

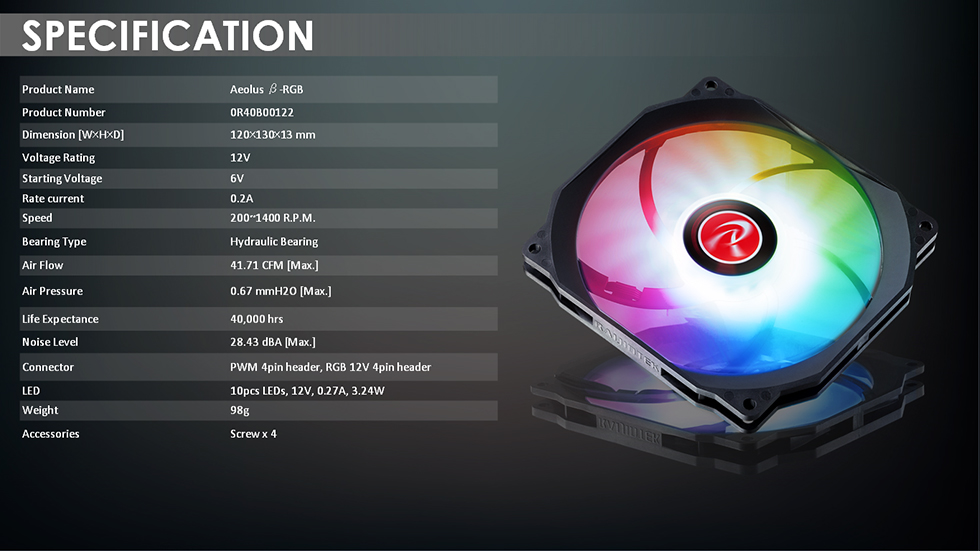

SPECIFICATION |
|
| Product Name | Aeolus β-RGB |
| Product Number | 0R40B00122 |
| Dimension [W×D×H] | 120×130×13 mm |
| Weight | 98 g |
| Voltage Rating | 12V |
| Starting Voltage | 6V |
| Speed | 200~1400 R.P.M. |
| Bearing Type | Hydraulic Bearing |
| Air Flow | 41.71 CFM [Max.] |
| Air Pressure | 0.67 mmH2O [Max.] |
| Life Expectance | 40,000 hrs |
| Noise Level | 28.43 dBA [Max.] |

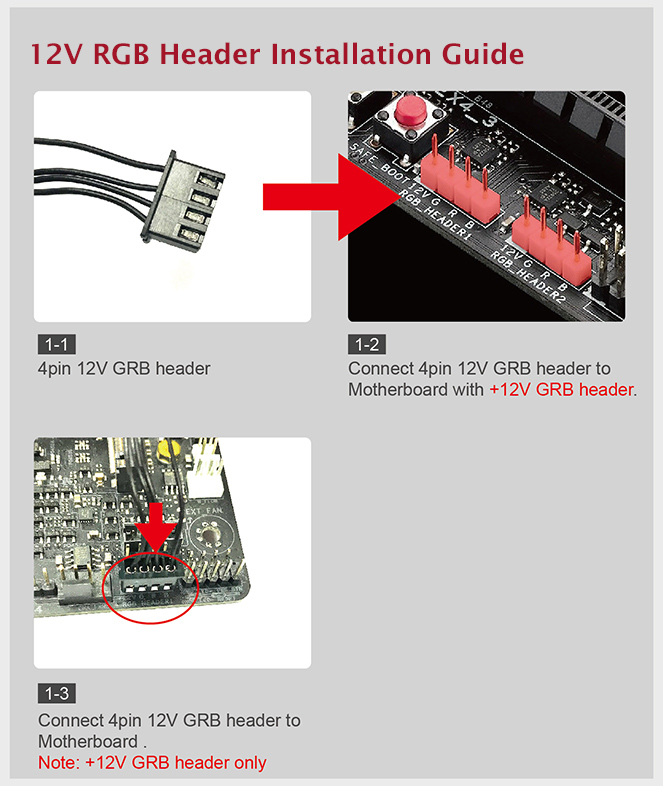

| Connector | PWM 4pin header, RGB 12V 4pin header |
| Rated Current | 0.2A |
| LED Q'ty | 10pcs, 12V, 0.27A, 3.24W |
 |
)
)
)
)
)
)
)
)

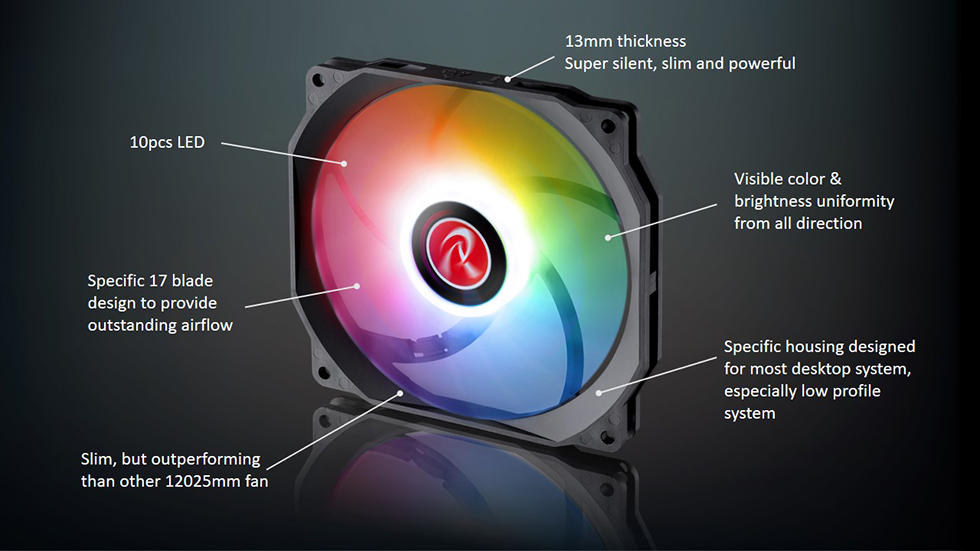

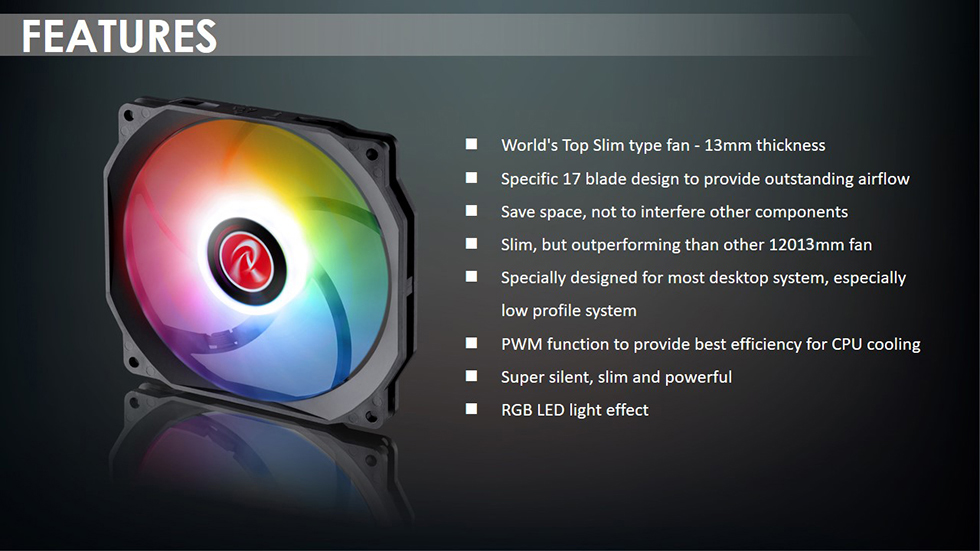

World's Top Slim type fan - 13mm thickness
