RAIJINTEK

ANEMI 20 RBW

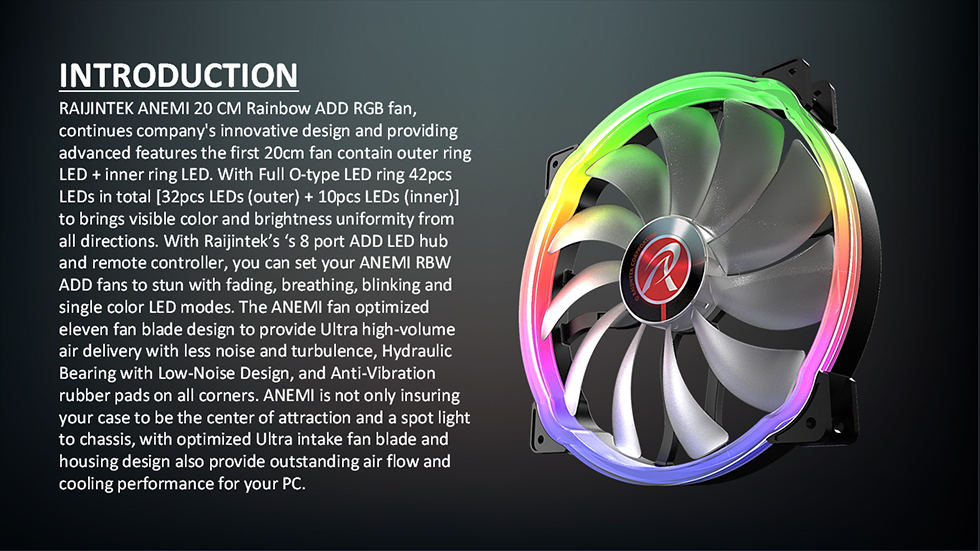

RAIJINTEK ANEMI 20cm Rainbow ADD RGB fan, continues company's innovative design and providing advanced features the first 20cm fan contain outer ring LED + inner ring LED. With Full O-type LED ring 42pcs LEDs in total [32pcs LEDs (outer) + 10pcs LEDs (inner)], ANEMI 20 RBW brings visible color and brightness uniformity from all directions. With Raijintek’s 8 port ADD LED hub and remote controller, you can set your ANEMI RBW ADD fans to stun with fading, breathing, blinking and single color LED modes. The ANEMI fan optimized eleven fan blade is design to provide Ultra high-volume air delivery with less noise and turbulence, Hydraulic Bearing with Low-Noise Design, and Anti-Vibration rubber pads on all corners. ANEMI is not only insuring your case to be the center of attraction and a spot light to chassis, with optimized Ultra intake fan blade and housing design also provide outstanding air flow and cooling performance for your PC.

Feature
Specification
Support
Unboxed
Gallery

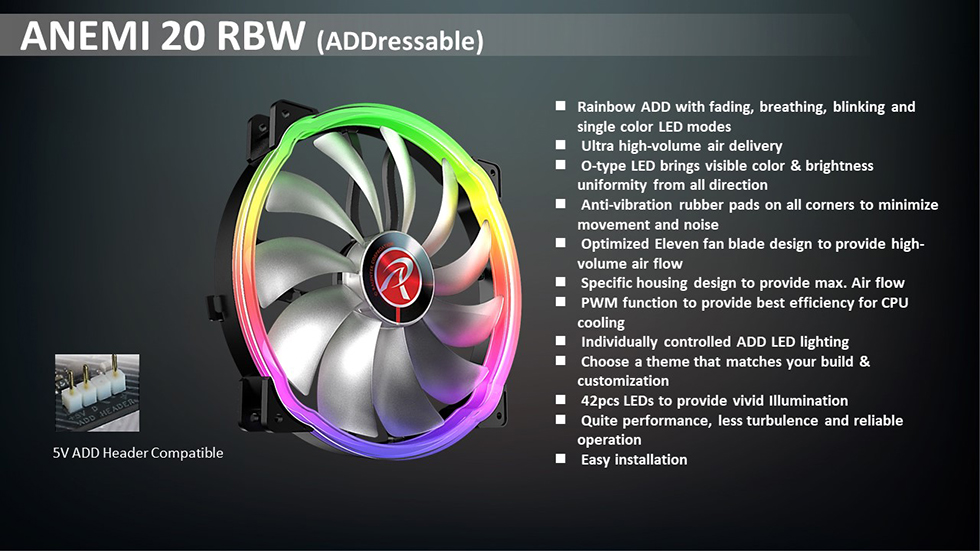

Rainbow ADD with fading, breathing, blinking and single color LED modes
Ultra high volume air delivery

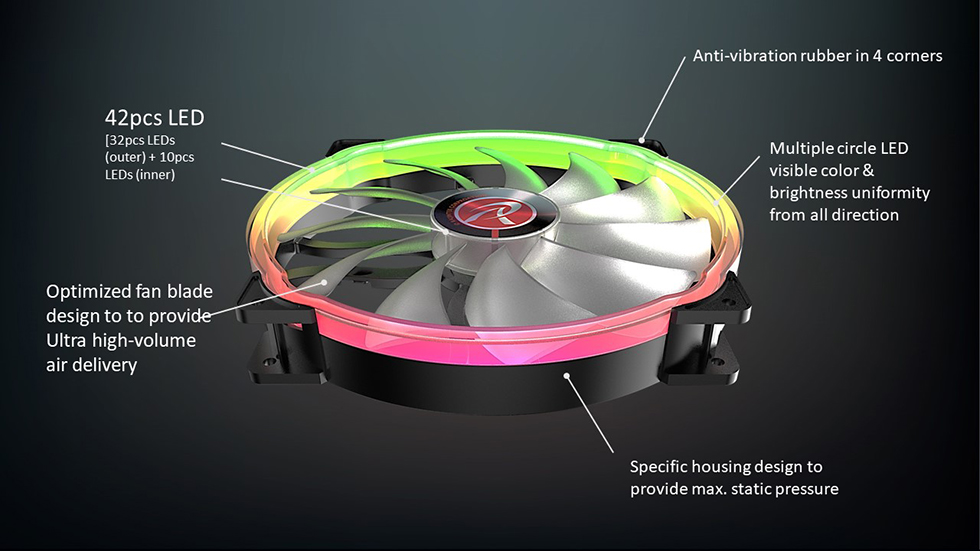

O-type LED brings visible color & brightness uniformity from all direction
Anti-vibration rubber pads on all corners to minimize movement and noise
Optimized Eleven fan blade design to provide high-volume air flow
Specific housing design to provide max. Air flow
Individually controlled ADD LED lighting
Choose a theme that matches your build & customization
42pcs LEDs to provide vivid Illumination
Quite performance, less turbulence and reliable operation
Easy installation

SPECIFICATION
Product Name	ANEMI 20 RBW
Product Number	0R40B00173
Dimension [W×H×D]	200×200×30 mm
Weight	290 g
Voltage Rating	12V
Starting Voltage	5V
Speed	1000±10% R.P.M.
Bearing Type	Sleeve Bearing
Air Flow	110.38 CFM [Max.]
Air Pressure	1.13 mmH2O [Max.]
Life Expectance	40,000 hrs
Noise Level	32.32 dBA [Max.]
Connector	PWM 4 pin; 5V ADD 4 pin
Rated Current	0.12A ±10%
Power consumption	1.44W ±10%
ADDressable LED	42pcs LEDs, 5V
Fan Q'ty	1 pcs

Remote controller function
1.On/off: Power on/off
2.SPEED (+): While Dynamic color mode, increase the speed of color change; Not for Static mode
3.SPEED (-): While Dynamic color mode, decrease the speed of color change; Not for Static mode
4.MODE (+): Forward to next mode
5.MODE (-): Backward to previous mode
6.AUTO: Automatically cycles all modes, 10 seconds for each mode
7.W: Single White LED
8.R: Single Red LED
9.G: Single Green LED
10.B: Single Blue LED

Rainbow RGB
20 modes: 13 Dynamic color modes & 7 Static color modes
Memory function: While power on, the mode and speed are at previous status
Voltage rating: 12V
Connecting 6 fans will get best effect for Dynamic modes

Color Modes
Mode 1: Dynamic 6 colors rotating with transition effect
Mode 2: Dynamic lighting rotation to each other with transition effect
Mode 3: Dynamic 6 colors rotating without transition effect
Mode 4: Dynamic 7 colors switch by water-flow rotating with low brightness effect on background color
Mode 5: Dynamic 7 single colors switch by water-flow effect
Mode 6: Dynamic 7 shinning colors switch by water-flow effect
Mode 7: Dynamic 7 colors switch by water-flow rotating with covering background color effect
Mode 8-13: Dynamic 7 colors by water-flow rotating
Mode 14-20: Static single LED color

ANEMI 20 RBW × 1

Screw × 4

Package × 1

ANEMI 20 RBW
