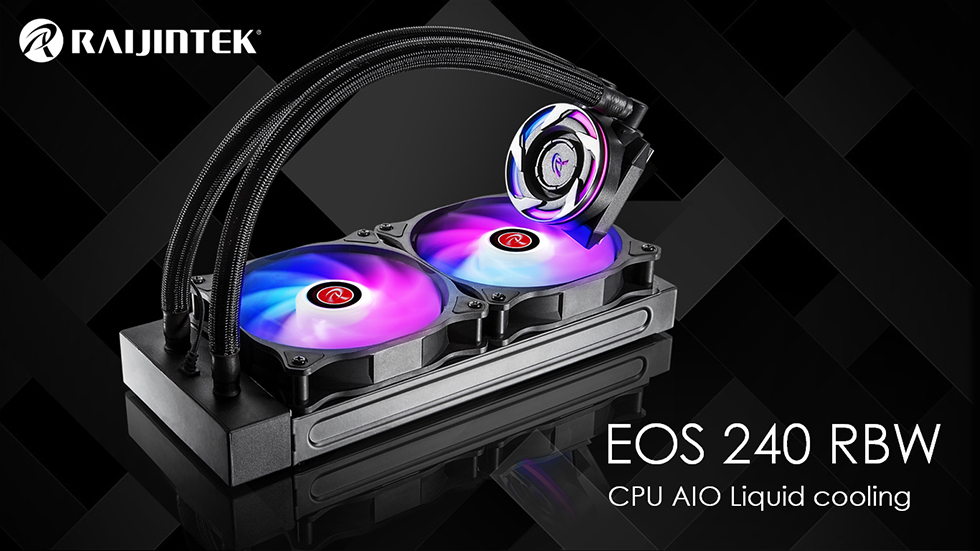

EOS 240 RBW

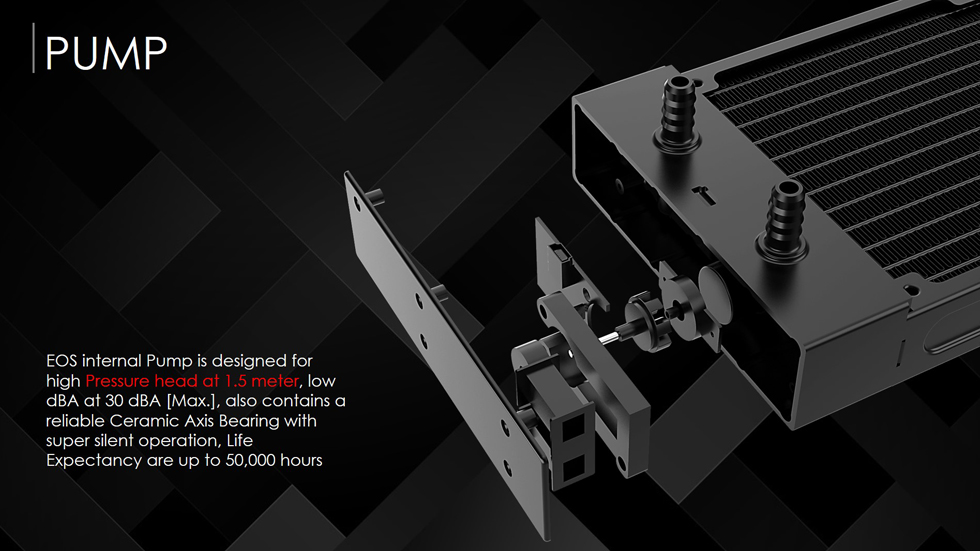

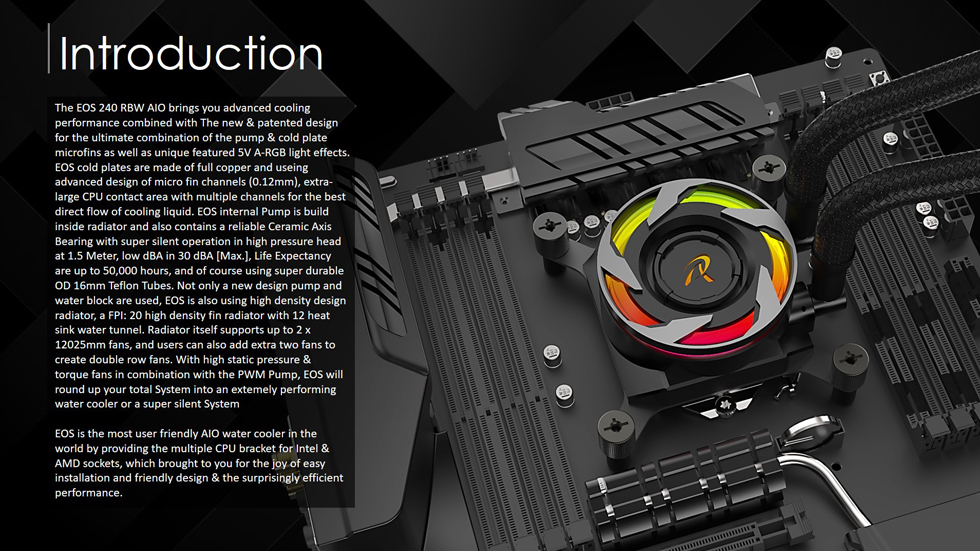

The EOS 240 RBW AIO brings you advanced cooling performance combined with The new & patented design for the ultimate combination of the pump & cold plate microfins as well as unique featured 5V A-RGB light effects. EOS cold plates are made of full copper and useing advanced design of micro fin channels (0.12mm), extra-large CPU contact area with multiple channels for the best direct flow of cooling liquid. EOS internal Pump is build inside radiator and also contains a reliable Ceramic Axis Bearing with super silent operation in high pressure head at 1.5 Meter, low dBA in 30 dBA [Max.], Life Expectancy are up to 50,000 hours, and of course using super durable OD 16mm Teflon Tubes. Not only a new design pump and water block are used, EOS is also using high density design radiator, a FPI: 20 high density fin radiator with 12 heat sink water tunnel. Radiator itself supports up to 2 x 12025mm fans, and users can also add extra two fans to create double row fans. With high static pressure & torque fans in combination with the PWM Pump, EOS will round up your total System into an extemely performing water cooler or a super silent System EOS is the most user friendly AIO water cooler in the world by providing the multiple CPU bracket for Intel & AMD sockets, which brought to you for the joy of easy installation and friendly design & the surprisingly efficient performance.

EOS 240 RBW













  • The new & patented design of the pump & cold plate

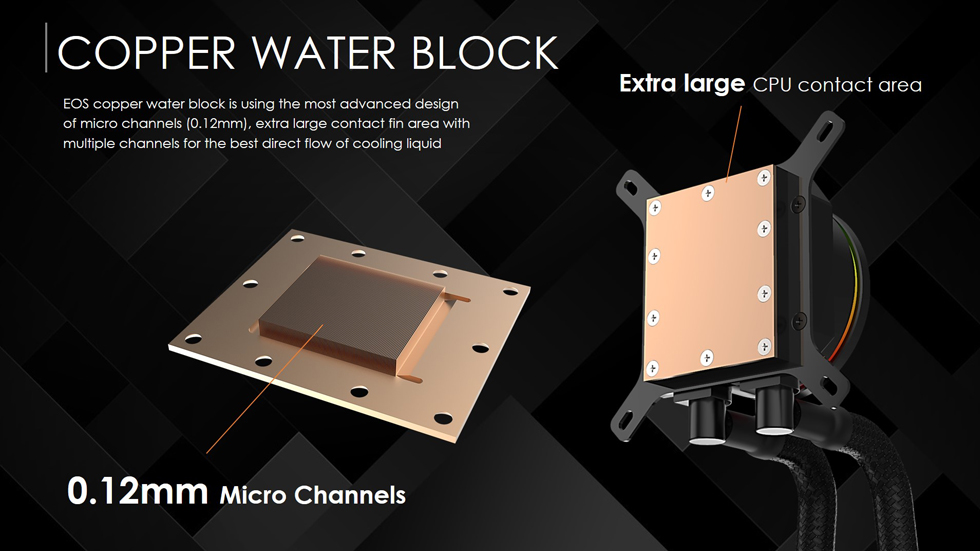

  • Full copper water block by 0.12mm micro-fin channel, extra-large CPU contact area
  • High pressure head at 1.5 meter
  • Durable and reliable PUMP Bearing type - Ceramic axis
  • Low noise / silent pump
  • Full controllable 5V ADD RGB LED light effects

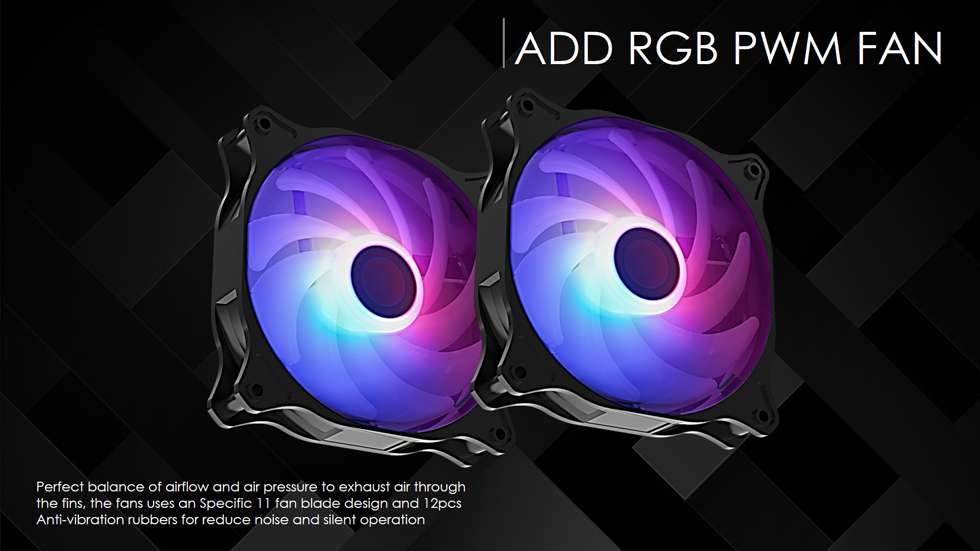

  • Specific 11 fan blade design and 8pcs Anti-vibration rubbers

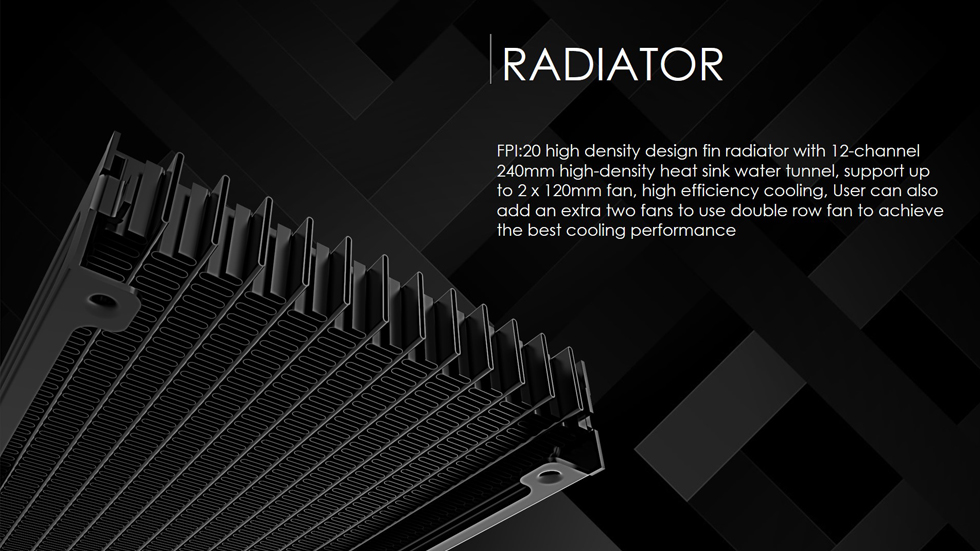

  • 20: FPI high density fin radiator with 12 channels
  • Solid mounting kits to provide sturdy and easy installation

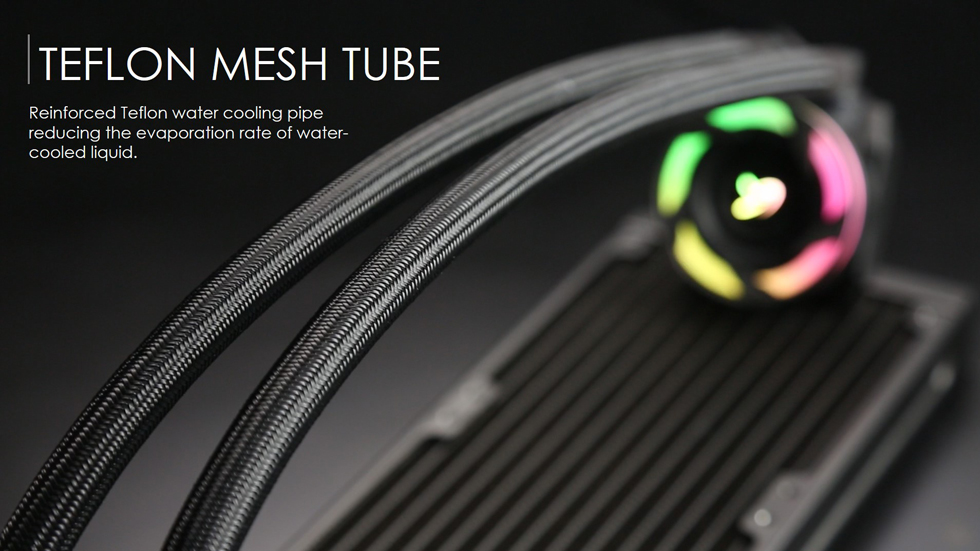

  • Durable Teflon Mesh tube with low evaporation rate
  • 50,000 hours Life Expectancy
  • Multiple mounting kits for modern sockets of Intel socket LGA 775/115x/1366/201x/2066/1700 CPU (Core™ i3/i5/i7/i9 CPU) and AMD Socket AM4/AM3+/AM3/AM2+/AM2/FM2+/FM2/FM1 CPU

SPECIFICATION
Product Name EOS 240 RBW
Product Number 0R10B00174
Radiator Dimension [W×H×D] 287×120×29 mm
Weight [Block+Pump+Radiator] 790g
Thermal Resistance 0.12 °C/W
Liquid Capacity 150ml ±10%
Fan Q'ty 2 pcs
Tubing Dimension ID 8mm / OD 16mm ; 375mm Length
Material Aluminum
est. TDP 250W
PUMP
Dimension [W×D×H] 120×32×32 mm
Bearing type Ceramic Axis
Q-max 40 L/H
Pressure Head 1.5 Meter ±10%
Noise level 30 dBA [Max.]
Life Expectancy 50,000 hours
Speed 4500±10% R.P.M. at 12VDC
Rated Current 300mA
Voltage Rating 12 V
Power consumption 3.6 W

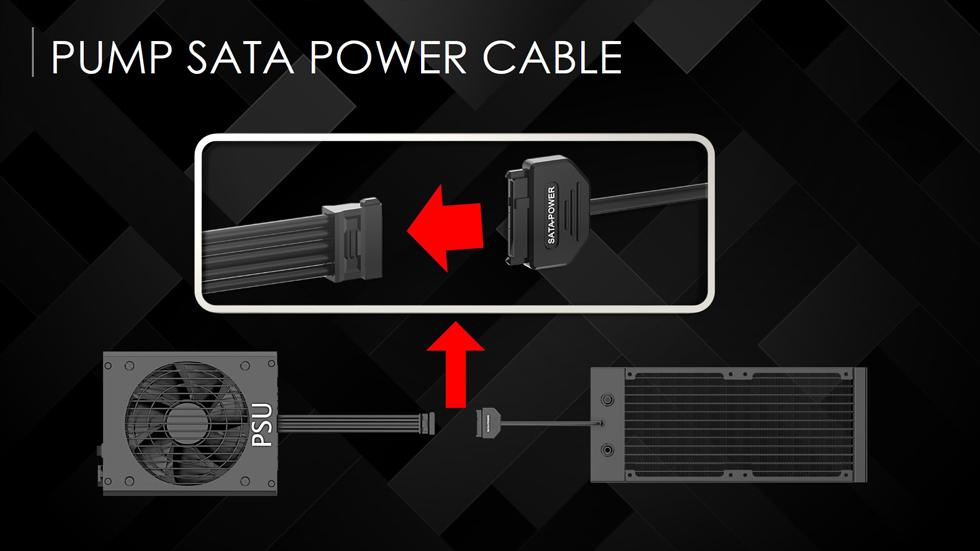

Power Cable & Length SATA header ; 500mm
FAN
Dimension [W×H×D] 120×120×25 mm
Voltage Rating 12V
Starting Voltage 7V
Speed 800~1800 R.P.M.
Bearing Type Hydraulic Bearing
Air Flow 75 CFM [Max.]
Air Pressure 2.3 mmH2O [Max.]
Life Expectance 40,000 hrs
Noise Level 28 dBA [Max.]

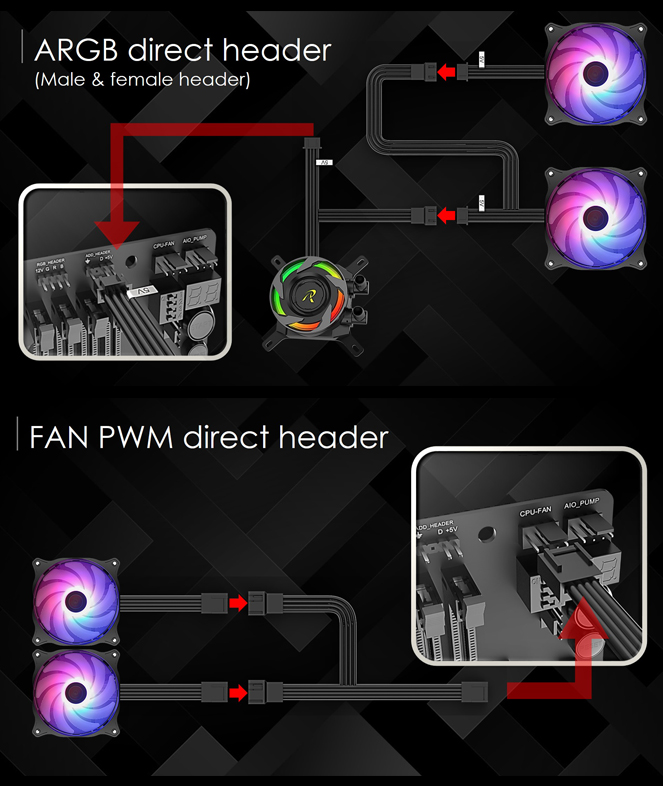

Connector 5V ADD Male/Female Header, PWM 4pin Header
Rated Current 0.17A±20%
Power consumption 2.1W±20%
LED Rated Current 0.35A [Max.]
LED Power consumption 1.8W [Max.]

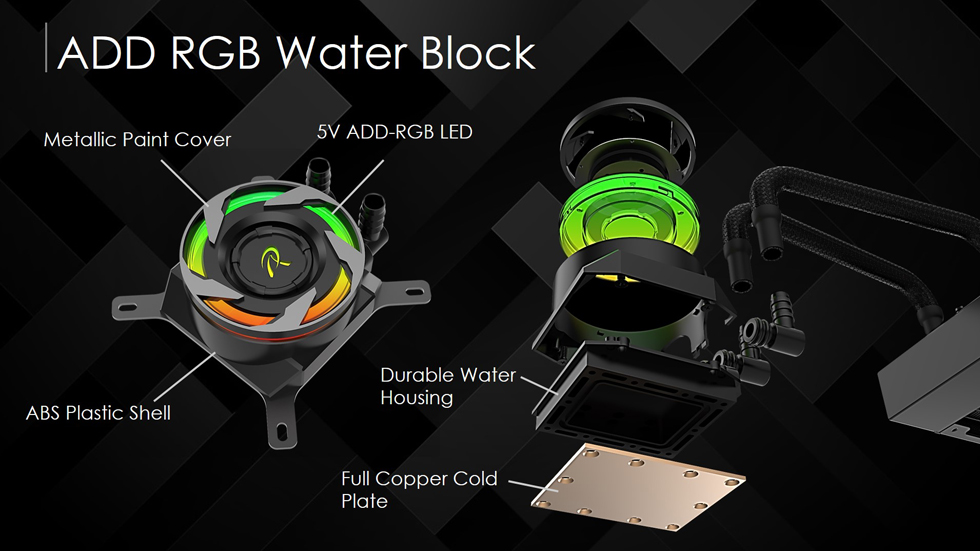

COLD PLATE & ARGB LED
Cold Plate Dimension 68×65×40 mm
Cold Plate Material Copper

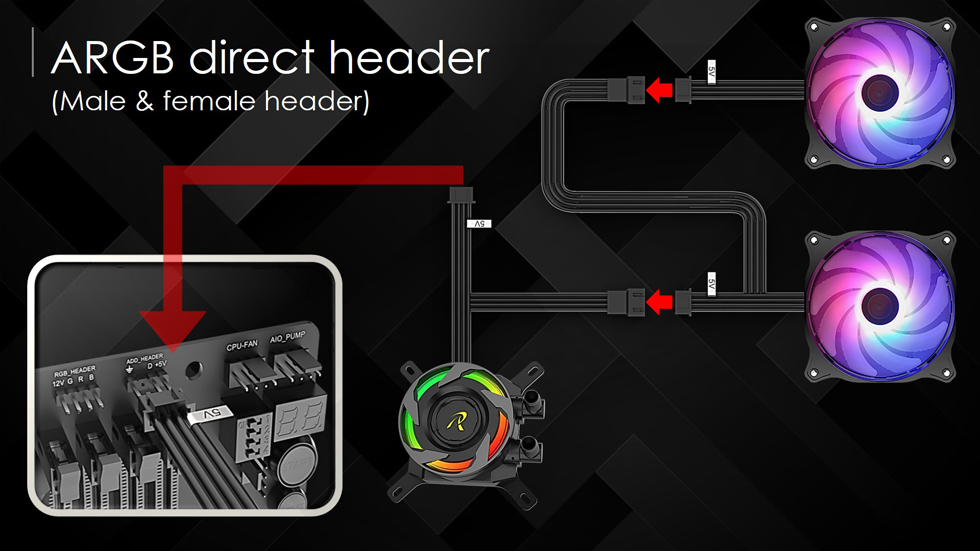

ARGB Cable/Header 5V ADD Male/Female Header
ARGB Cable Length 500mm
ARGB Voltage Rating DC 5V
APPLICATION
Intel® All Socket LGA 775 / 115x / 1200 / 1366 / 201x / 2066 / 1700 CPU (Core™ i3 / i5 / i7 / i9 CPU)
AMD® All AM4 / AM3+ / AM3 / AM2+ / AM2 / FM2+ / FM2 CPU
  • Precautions
  • 1.Keep and store the product away from the reach of children.
    2.Check the component list and condition of the product before installation. If there is any problem, contact the shop where you purchased to get a replacement or refund.
    3.RAIJINTEK Co., Ltd. is not responsible for any damages due to external causes, including but not limited to, improper use, problems with electrical power, accident, neglect, alteration, repair, improper installation, and improper testing.
    4.CPU and motherboard are subject to damage if the product in incorrectly installed.
    5.Breaking the tank seal on the product might cause warranty loss.
    6.This product is an All-in-One Water Cooling Solution, once taken apart or any use of non RAIJINTEK's accessories, will lead to a warranty loss.

EOS 240 RBW × 1

Intel Bracket × 1

AMD Bracket × 1

Intel & AMD Backplate × 1

AM4 Backplate × 1

Hexagon Screw L30 × 4

Metal Nut × 4

Cross Metal Cap × 4

Stand-off Screw × 4

M3 L8 Screw × 4

Screw #6-32 L6 ×8

Platic Myla ×8

Fan Screw ×8

PWM Fan Y Cable × 1

Installation Guide × 1

Package × 1
