RAIJINTEK

SILENOS

Design Art in its best by RAIJINTEK, the SILENOS / SILENOS PRO Midi tower chassis is designed to install high air flow 20cm fans and a clean transparent front glass design, SILENOS series is available in two versions: SILENOS Standard with 4.0mm tempered glass (side and front) and without any fans; SILENOS PRO with 2pcs ARGB 20025mm fans at front and 1pcs 12025 ARGB fan at rear.

SILENOS series, a midi-tower chassis, supports ATX/M-ATX/Mini-itx motherboards and provide you the expandability for the latest PC hardware and liquid cooling solutions, VGA length up to 320mm, CPU cooler height up to 166mm, Fan capacities of 2×20030/2×14025/3×12025mm fans at front, 2×12025/14025mm fans at top, 1×12025mm at rear. Water radiators these dimensions are installable as following, 120/240/280/360mm at the front, 120/240/280mm water radiator at the top. SILENOS PRO comes with an ARGB controller, thus you can change all the light effect as you wish by the Reset button on panel or via bridging to your mainboard. For all combination of special technical features, 2×3.5HDDs plus 6×2.5HDD/SSDs Tool free & removable HDD/SSD cages, magnetic Dust filters for both bottom and top, but in unbelievable price, SILENOS is simple and beautiful, with high airflow design and transparent tempered glass. No doubt, you will easily love it.

Feature
Specification
Support
Unboxed
Review
Gallery

Two 20cm Fans at front design to provide High airflow
With all tempered glass
Entire Coating black internally design

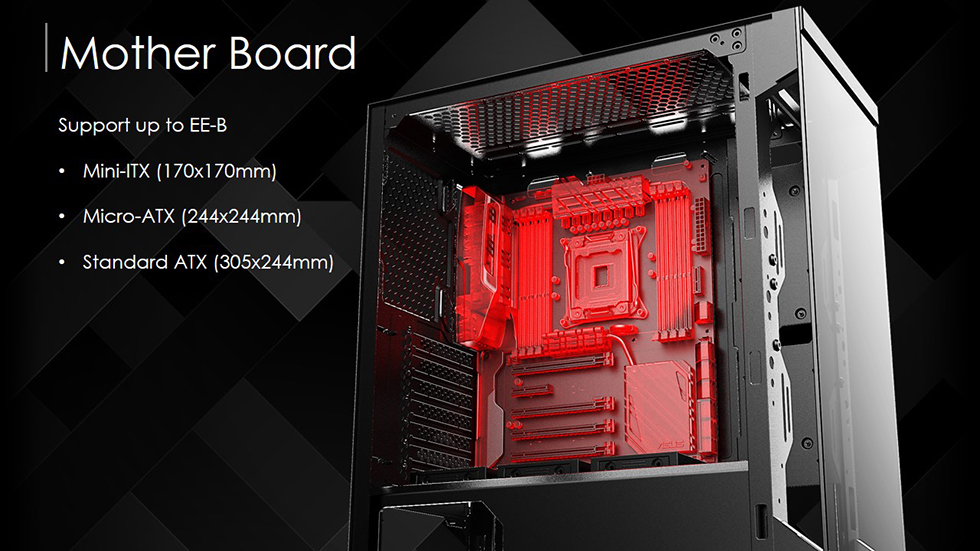

Support up to ATX/M-ATX/Mini-ITX
Compatible with ATX POWER SUPPLY

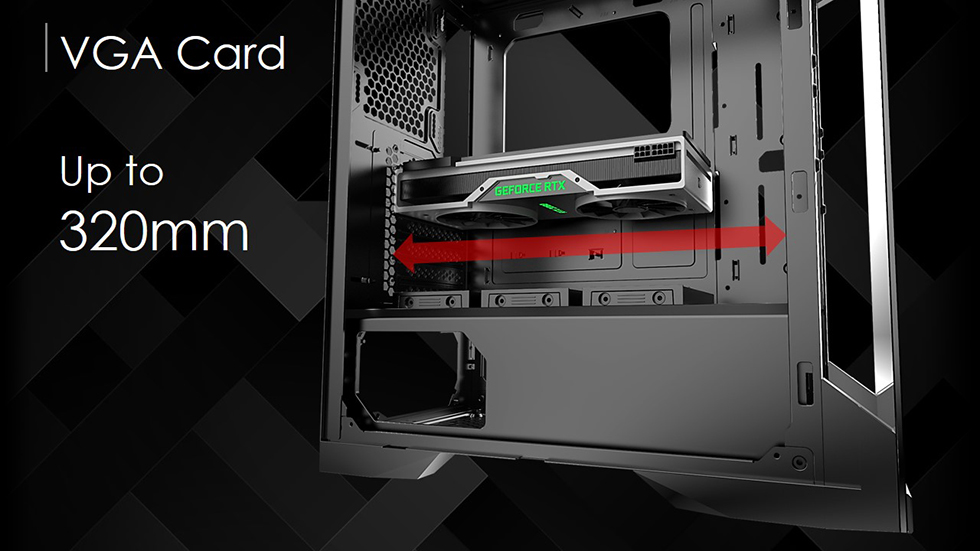

Support up to 320mm length VGA card
Supports to max. 166mm height CPU cooler

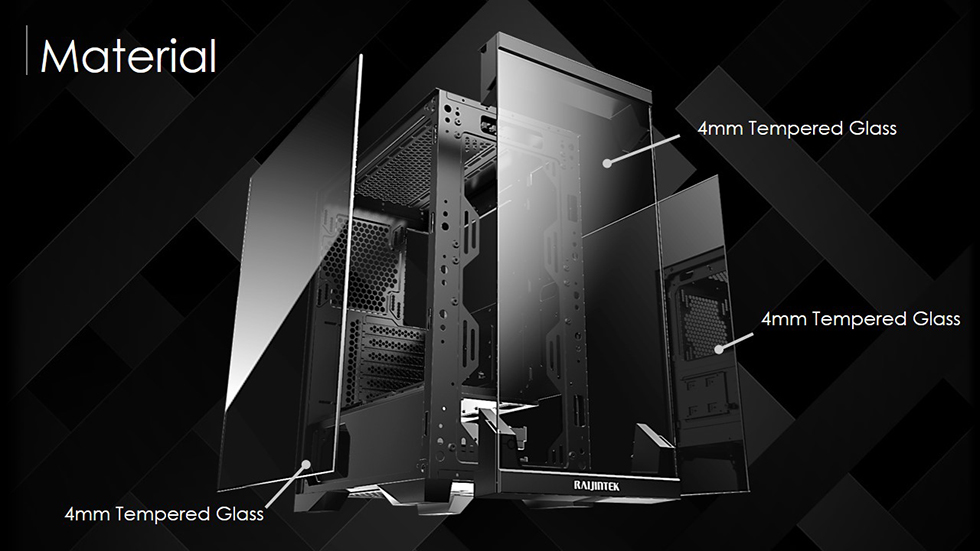

4mm Tempered Glass

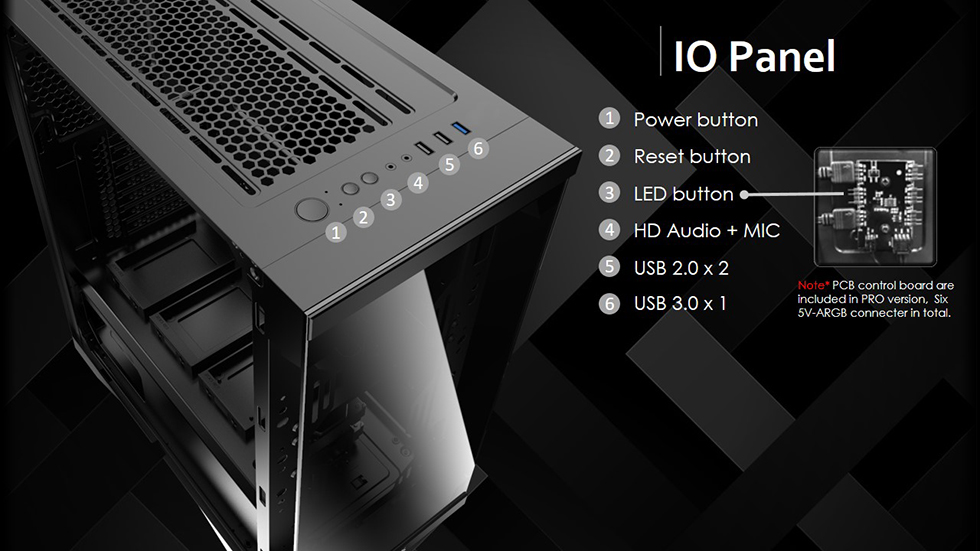

USB3.0×1 + USB2.0×2 +HD AUDIO
Top & bottom magnetic dust filters

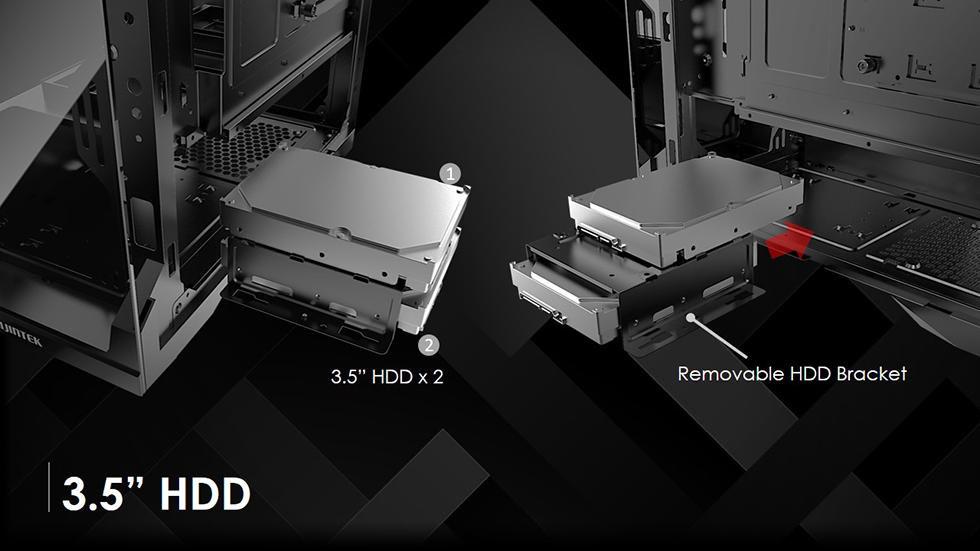

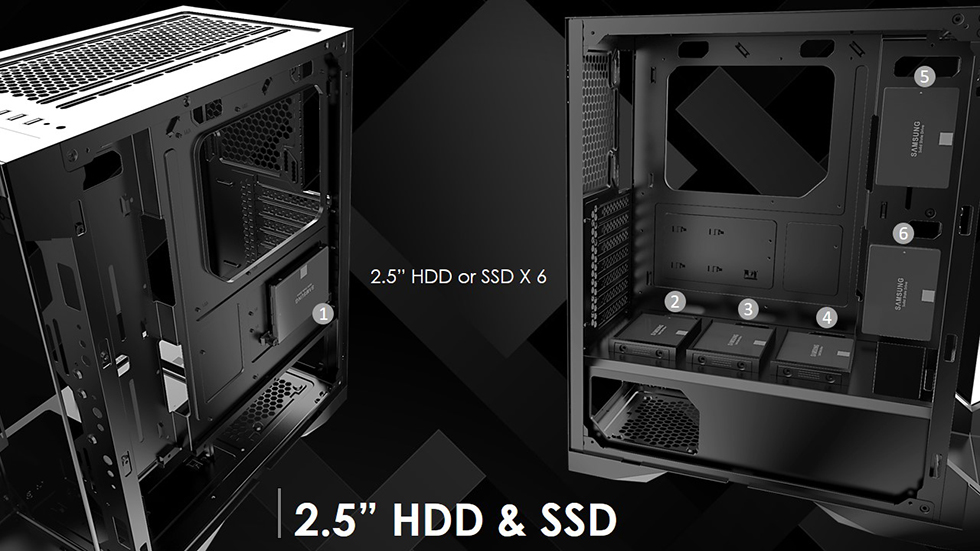

Supports up to 6×2.5"HDD + 2×3.5"HDD
Option to install 2×12025 or 2×14025 fans on top 2×20030/2×14025/3×12025mm at front

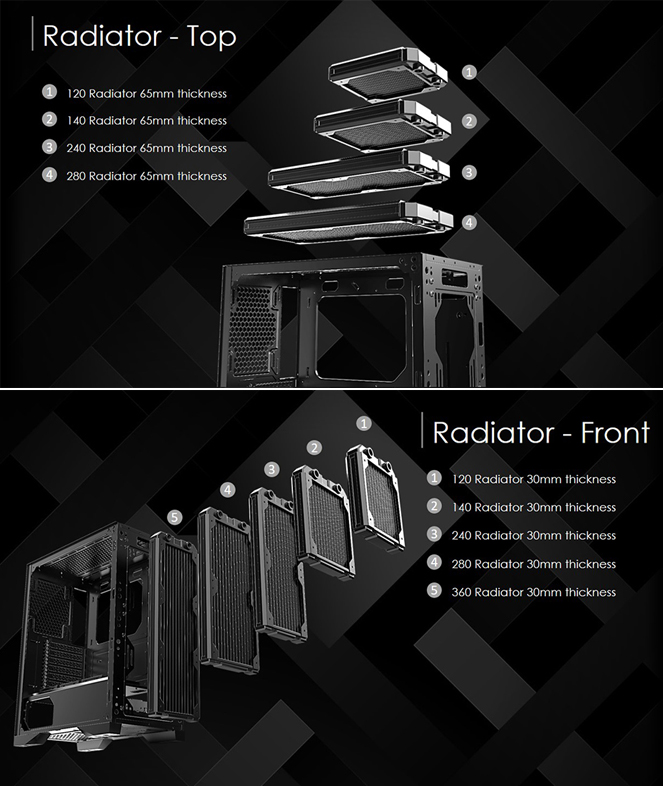

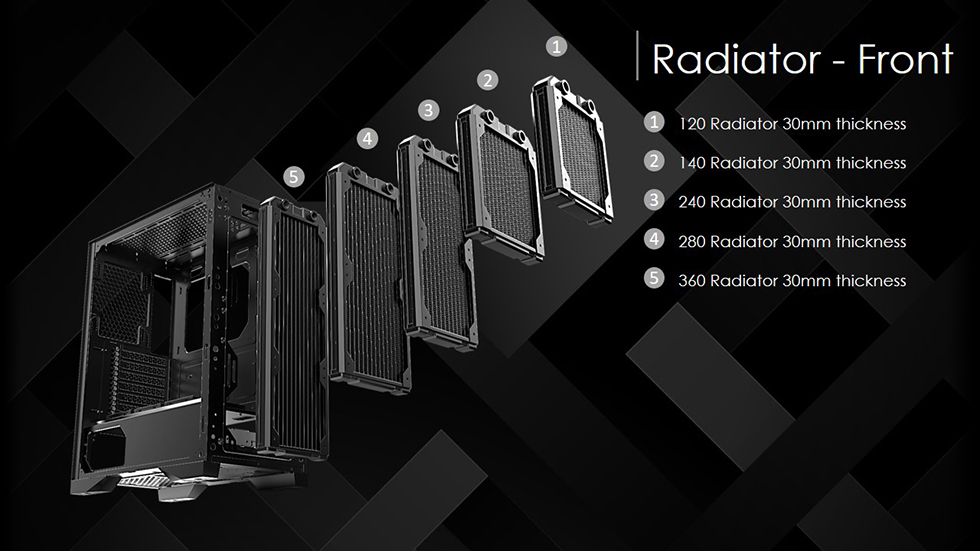

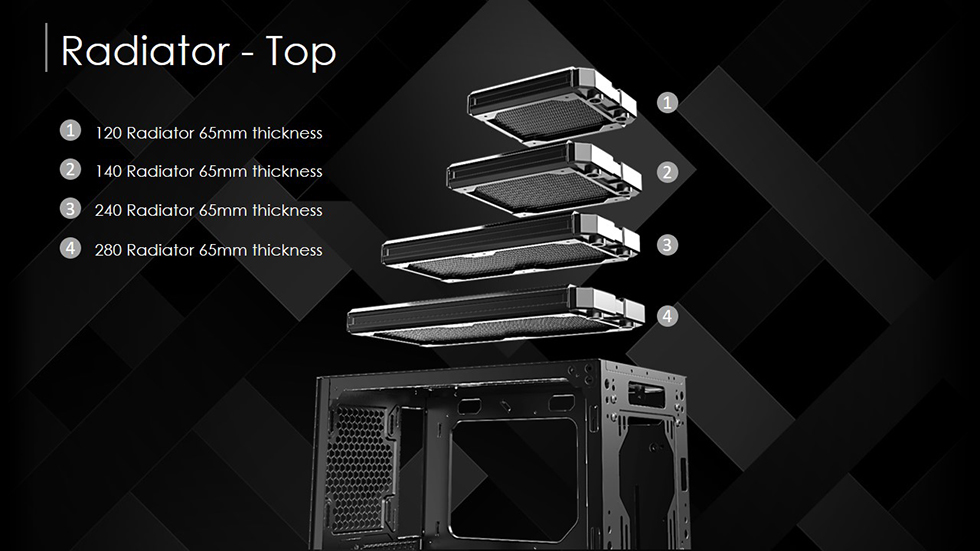

Support up to 120/240/280/360mm radiator at front; 120/240/280 mm radiator on the top

SPECIFICATION
Product Name	SILENOS	SILENOS PRO
Product Number	0R20B00179	0R20B00180
Dimension [W×D×H]	215×402.5×459.5 mm	215×402.5×459.5 mm
Weight	5.5 kg [N.W.] 6.5 kg [G.W.]	5.5 kg [N.W.] 6.5 kg [G.W.]
Material	SPCC 0.6mm	SPCC 0.6mm
Color	Coating Black	Coating Black
M/B Support	ATX; M-ATX; Mini-ITX	ATX; M-ATX; Mini-ITX
Drive Bay	3.5" × 2 + 2.5" × 6 or 3.5" × 1 + 2.5" × 7	3.5" × 2 + 2.5" × 6 or 3.5" × 1 + 2.5" × 7
Expansion Slot	PCI Slots ×7	PCI Slots ×7
I/O Panel	USB3.0×1, USB2.0×2, HD Audio×1	USB3.0×1, USB2.0×2, HD Audio×1
Power Supply	PS/2 [Internal Bottom-mount]	PS/2 [Internal Bottom-mount]
Cooling System	Top: 120mm×2 or 140mm×2 [option] Front: 200mm×2 or 140mm×2 or 120mm×3 [option] Rear: 120mm×1 or 140mm×1 [option]	Top: 120mm×2 or 140mm×2 [option] Front: 20025mm ARGB fan × 2 [Pre-installed] Rear: 12025mm ARGB fan × 1 [Pre-installed]
Radiator Q’ty	Top: 120/140/240/280mm [option] Front: 120/140/240/280/360mm [option] Rear: 120/140mm [option]	Top: 120/140/240/280mm [option] Front: 120/140/240/280/360mm [option] Rear: 120/140mm [option]
CPU Cooler Height	166mm [Max.]	166mm [Max.]
Graphic Card Length	320mm [Max.]	320mm [Max.]
Side Panel	4.0mm Tempered Glass	4.0mm Tempered Glass
Pre-installed Fan Q'ty	N/A	20025mm ARGB fan × 2, 12025mm ARGB fan × 1

SILENOS PRO 20025 FAN
Dimension [W×H×D]	200×200×25 mm
Voltage Rating	12V
Starting Voltage	7V
Speed	750 R.P.M.±10%
Bearing Type	Hydraulic Bearing
Air Flow	38 CFM [ft /min]
Air Pressure	1.75 mmH2O [Max.]
Life Expectance	25,000 hrs
Noise Level	18 dBA [Max.]
Connector	5V ADD 4 pin header
LED Rated Current	1.49A ±10%
Power Consumption	9.6W ±10%
Fan Q'ty	2 pcs

SILENOS PRO 12025 FAN
Dimension [W×H×D]	120×120×25 mm
Voltage Rating	12V
Starting Voltage	6V
Speed	1200 ±10% R.P.M.
Bearing Type	Hydraulic Bearing
Air Flow	41.3 CFM [Max.]
Air Pressure	0.98 mmH2O [Max.]
Life Expectance	40,000 hrs
Noise Level	18.5 dBA [Max.]
Connector	3 pin; 5V ADD 4 pin header
LED Rated Current	0.12A ±0.02A
Power Consumption	1.44W
Fan Q'ty	1 pcs
