NYX PRO

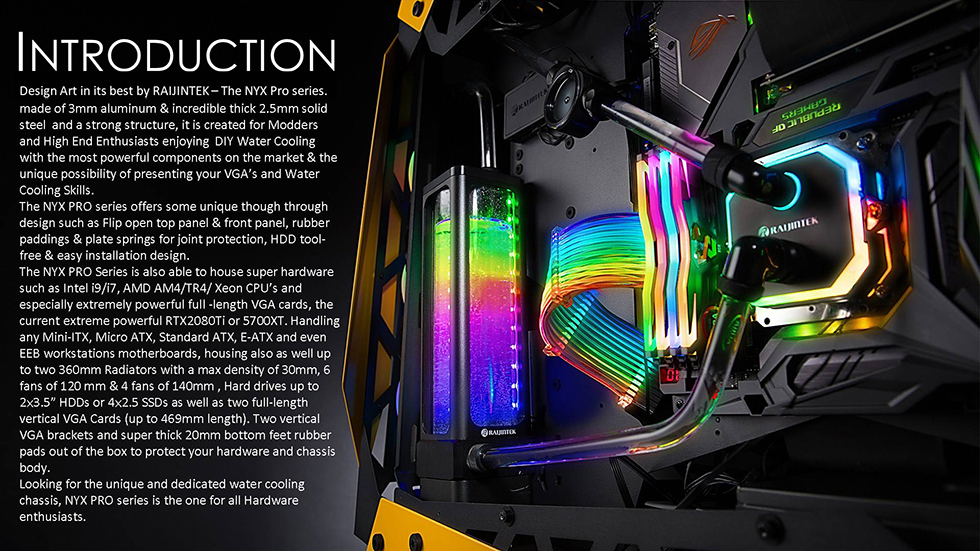

Design Art in its best by RAIJINTEK – The NYX PRO series. made of 3mm aluminum & incredible thick 2.5mm solid steel and a strong structure, it is created for Modders and High End Enthusiasts enjoying DIY Water Cooling with the most powerful components on the market & the unique possibility of presenting your VGA’s and Water Cooling Skills. The NYX PRO series offers some unique though through design such as Flip open top panel & front panel, rubber paddings & plate springs for joint protection, HDD tool-free & easy installation design. The NYX PRO Series is also able to house super hardware such as Intel i9/i7, AMD AM4/TR4/ Xeon CPU’s and especially extremely powerful full -length VGA cards, the current extreme powerful RTX2080Ti or 5700XT. Handling any Mini-ITX, Micro ATX, Standard ATX, E-ATX and even EEB workstations motherboards, housing also as well up to two 360mm Radiators with a max density of 30mm, 6 fans of 120 mm & 4 fans of 140mm , Hard drives up to 2×3.5” HDDs or 4×2.5 SSDs as well as two full-length vertical VGA Cards (up to 469mm length). Two vertical VGA brackets and super thick 20mm bottom feet rubber pads out of the box to protect your hardware and chassis body. Looking for the unique and dedicated water cooling chassis, NYX PRO series is the one for all Hardware enthusiasts.
NYX PRO
















  •
  • Support up to EE-B / E-ATX / ATX / Micro-ATX / Mini ITX
  • Unique open frame design

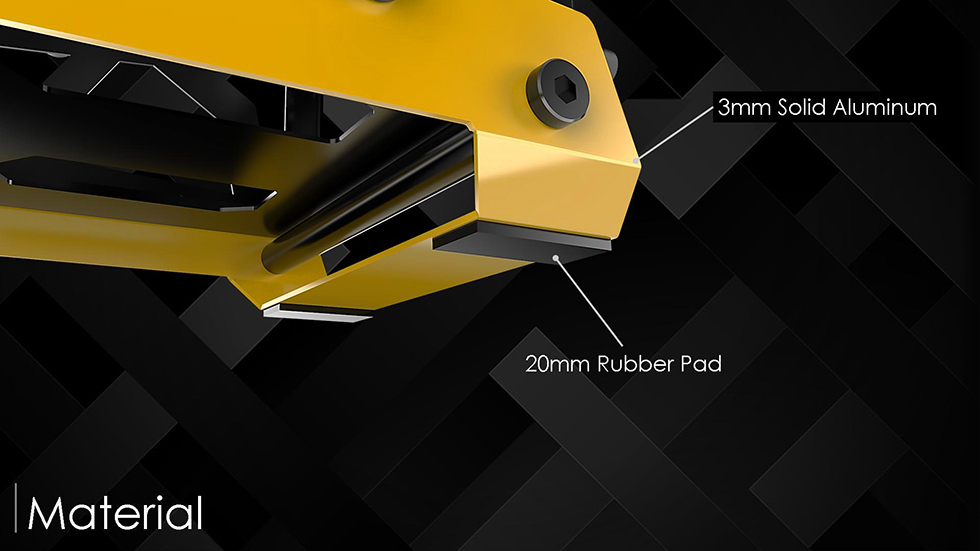

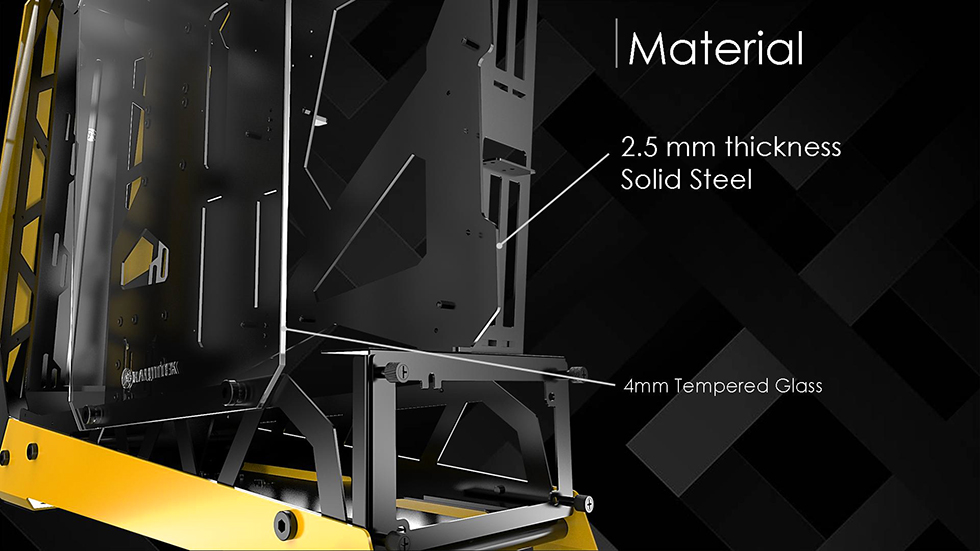

  • Ultra-thick 3mm aluminum & 2.5 mm SPCC Extreme solid iron
  • Multiple colors to choices, matte internal black coating
  • 4.0mm tempered glass side panel

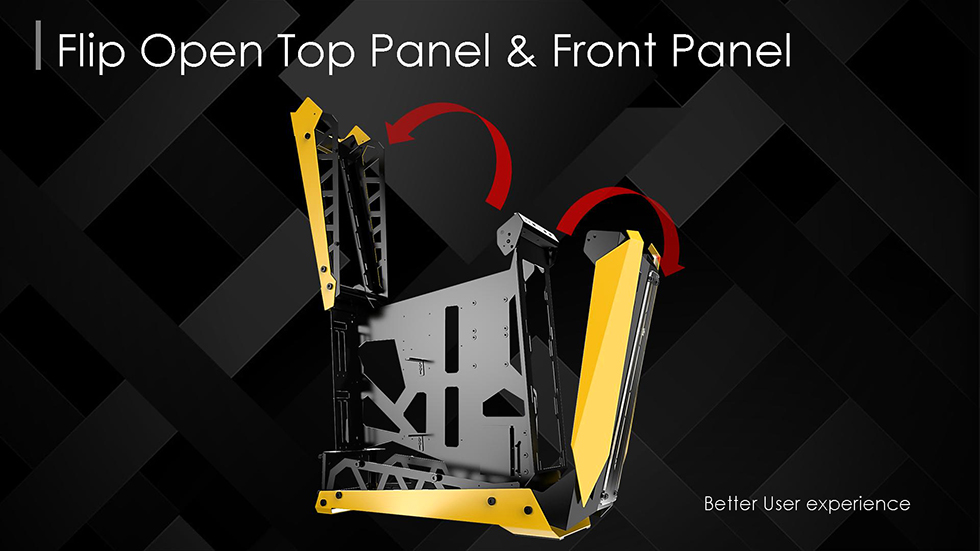

  • Flip open top panel & front panel

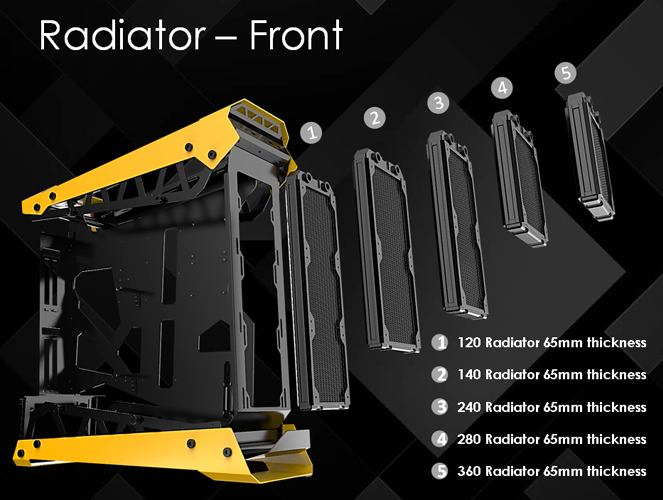

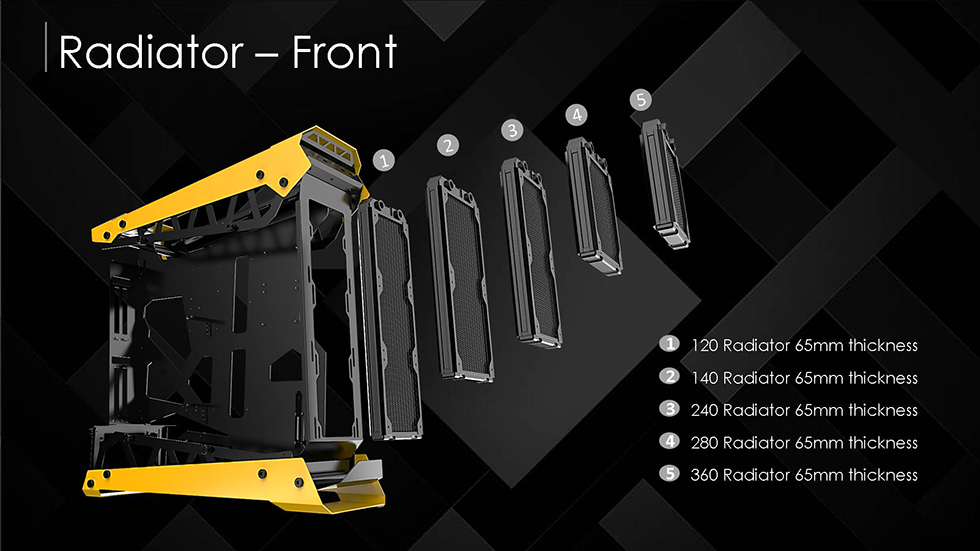

  • Front panel support up to 120/240/280/360, 30mm thick water radiator

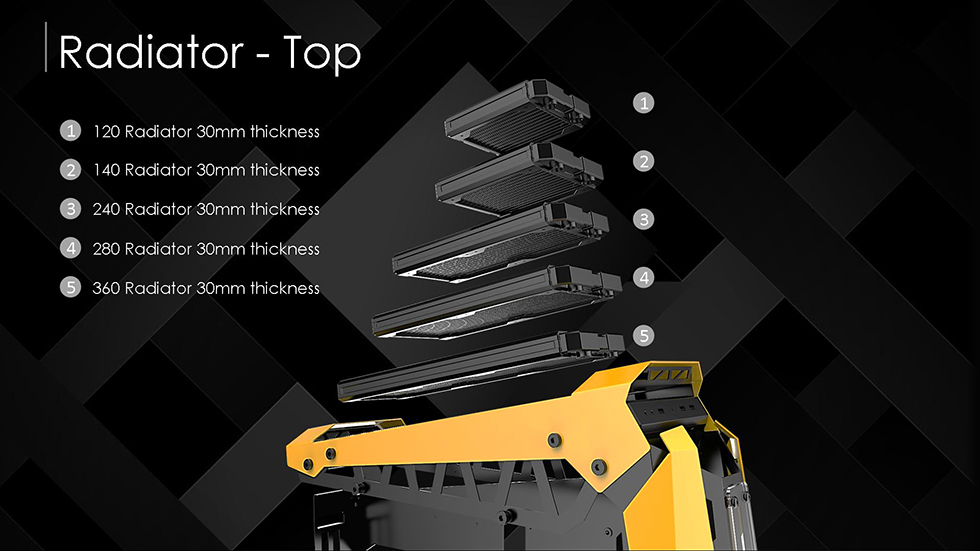

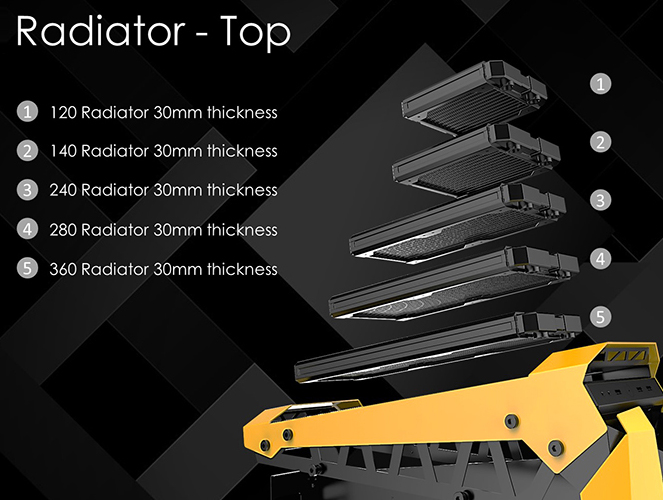

  • Top panel support up to 120/240/280/360, 30mm thick water radiator
  • Total support up to 2*360mm, 30mm thick water radiator
  • Support up to 496mm full-length graphic cad
  • Maximum CPU cooler height up to 75 mm

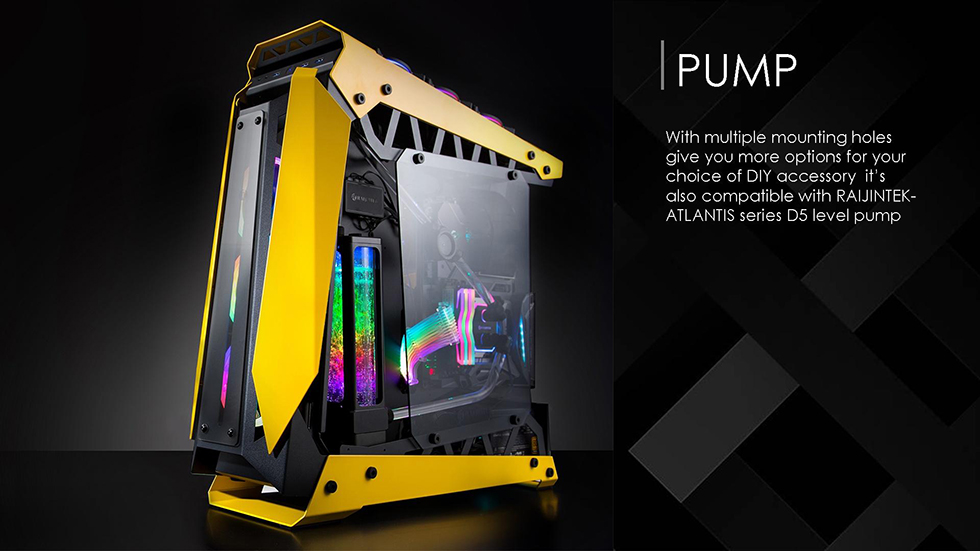

  • Capable of install Pump /water tank combo to achieve real /DIY water loop system
SPECIFICATION

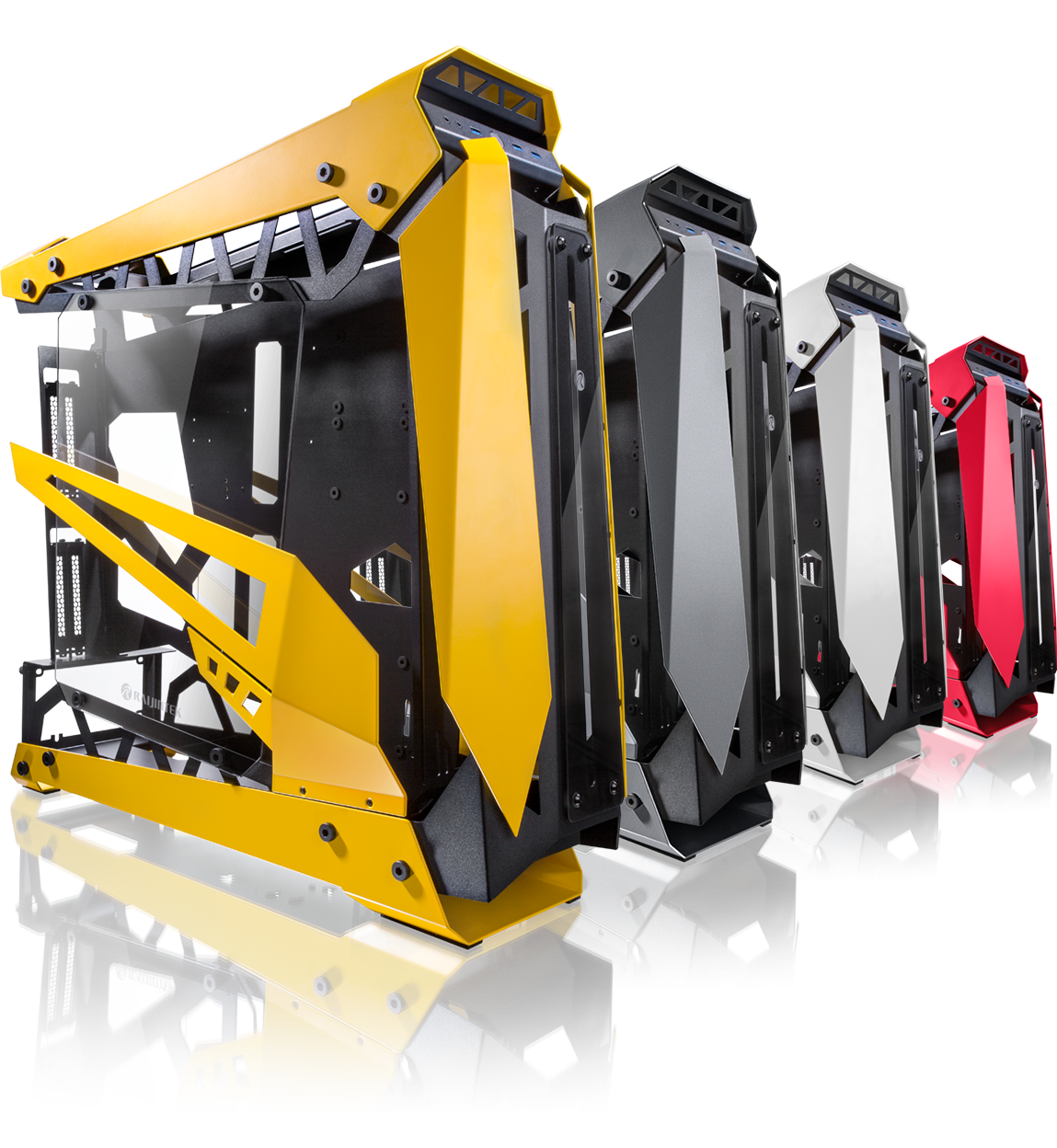

Product Name NYX PRO Titan | White | Yellow | Red
Product Number 0R20B00182[Titan] | 0R20B00183[White] | 0R20B00184[Yellow] | 0R20B00185[Red]
Dimension [W×D×H] 265×595×658 mm
Weight 13.75 kg [N.W.] 18.5 kg [G.W.]
Material Aluminum 3.0mm; SPCC 2.5mm
Color TITAN | WHITE | YELLOW | RED

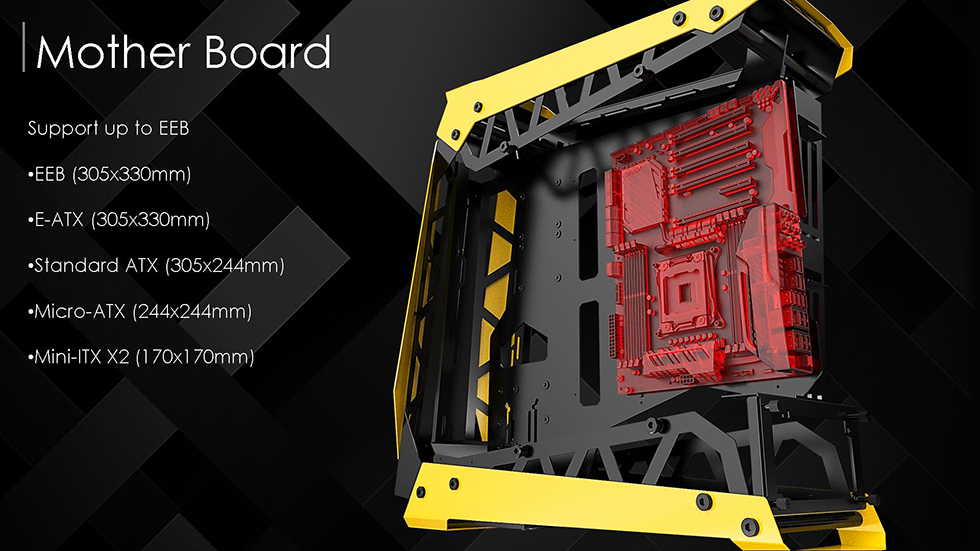

M/B Support EEB/E-ATX/ATX/MICRO ATX/MINI-ITX

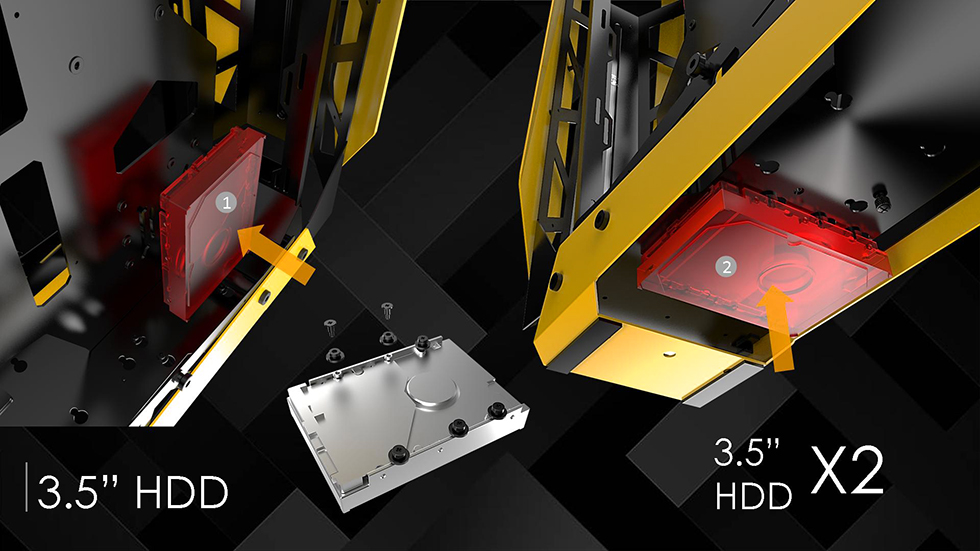

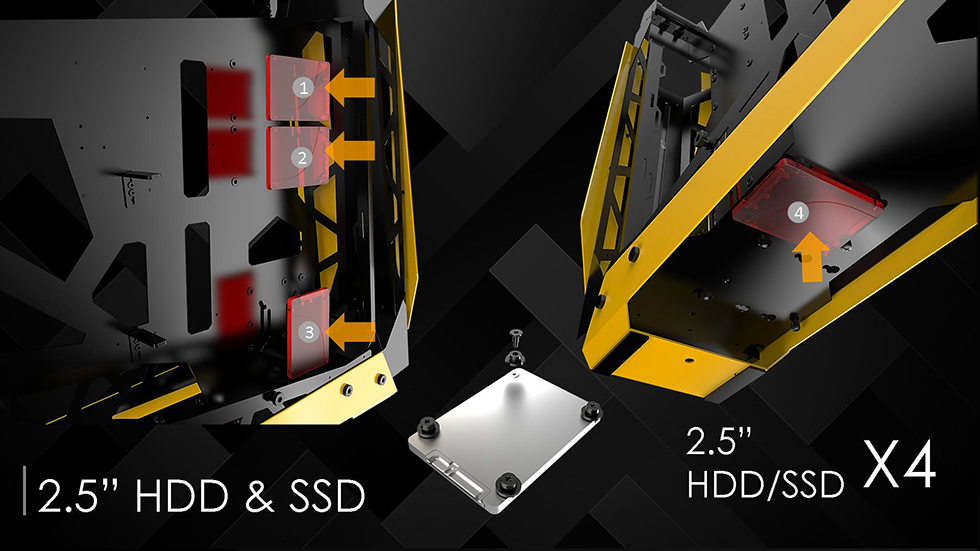

Drive Bay 3.5"HDD×2 + 2.5"SSD×3
Expansion Slot PCI Slots × 4

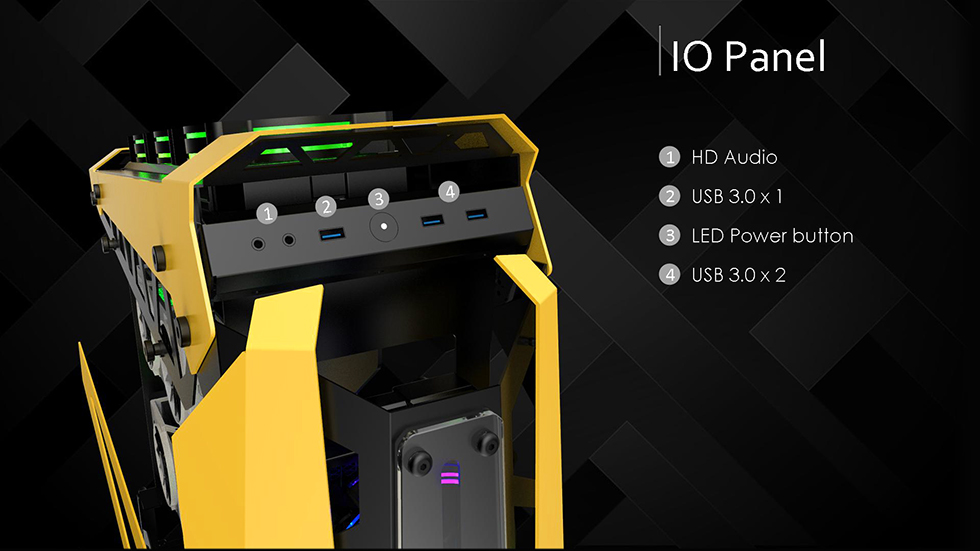

I/O Panel USB3.0×3, HD Audio×1
Power Supply PS/2 [Bottom]

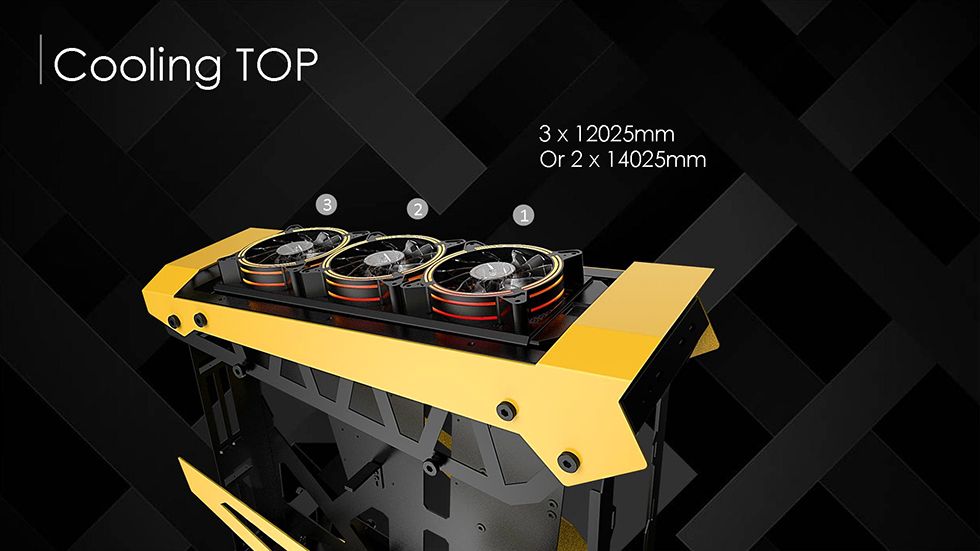

Fan Q'ty Top: 120mm×3 or 140mm×2 [option]

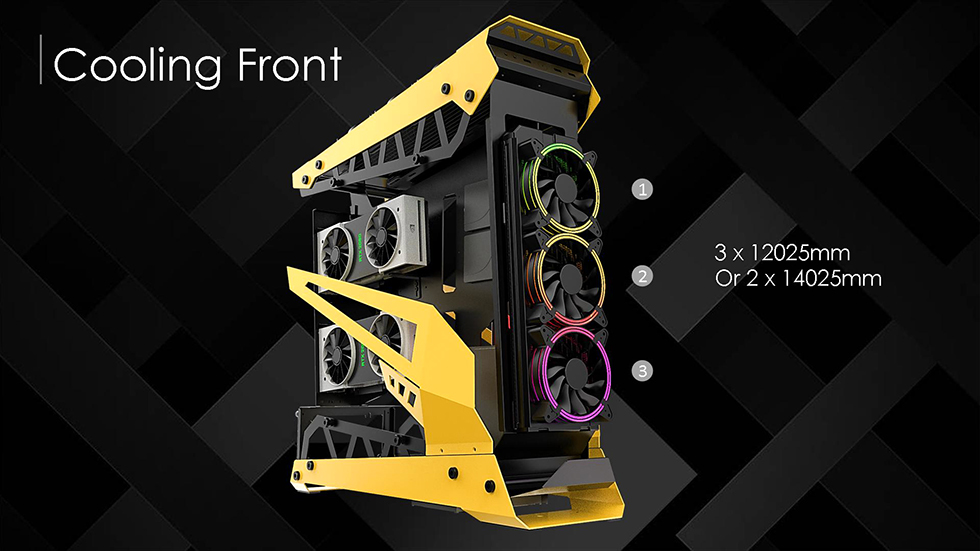

Front: 120mm×3 or 140mm×2 [option]
Radiator Q'ty Top: 120/140/240/280/360mm 30mm thick radiator [option]
Front: 120/140/240/280/360mm 30mm thick radiator [option]
CPU Cooler Height 75mm [Max.]

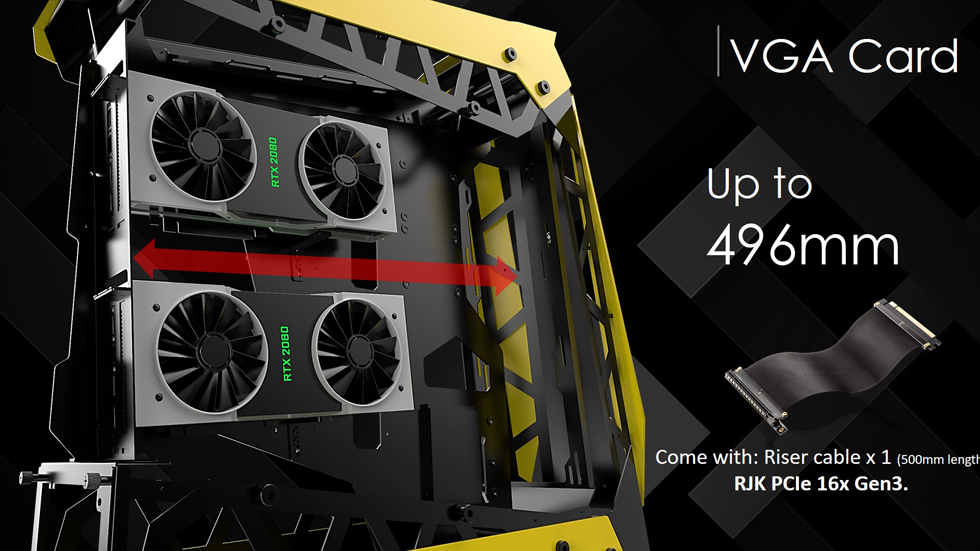

Graphic Card Length 496mm [Max.]
Side Panel Style 4mm Tempered Glass
Riser Card Adapter PCI Express 16X Gen3.0 500mm

NYX PRO × 1

Screw #6-32 L6 × 4
For PSU

Screw #6-32 L5 × 8
For VGA Holder

Stand-off L6 × 3
For Motherboard Tray

Screw M3 L10 × 4
For SSD at Bottom

Screw #6-32 L10 × 6
For HDD at Bottom

Fan Screw × 4
For Fan

Screw M3 L5 × 17
For MB Stand-off

Screw L3.5 × 2
To Lock the Bottom of HDD & SSD

Screw #6-32 L4 × 6
For Side Wing

HDD/SSD Rubber Pad × 10
For the Bottom of the HDD & SSD

Allen Key × 1
For Screws with Hexagonal Sockets

Velcro × 4
For Cable Tie

Holder × 2
To Hold VGA Cards

Screw M3 L8 × 12
For SSD on MB Tray

Screw #6-32 L8 × 6
For HDD on MB Tray

Mounting Tool × 1
For MB Stand-off

PCIe - Riser Cable 500mm × 1
For VGA Card

Installation Guide × 1
