RJK ARGB-PWM CONTROL SET

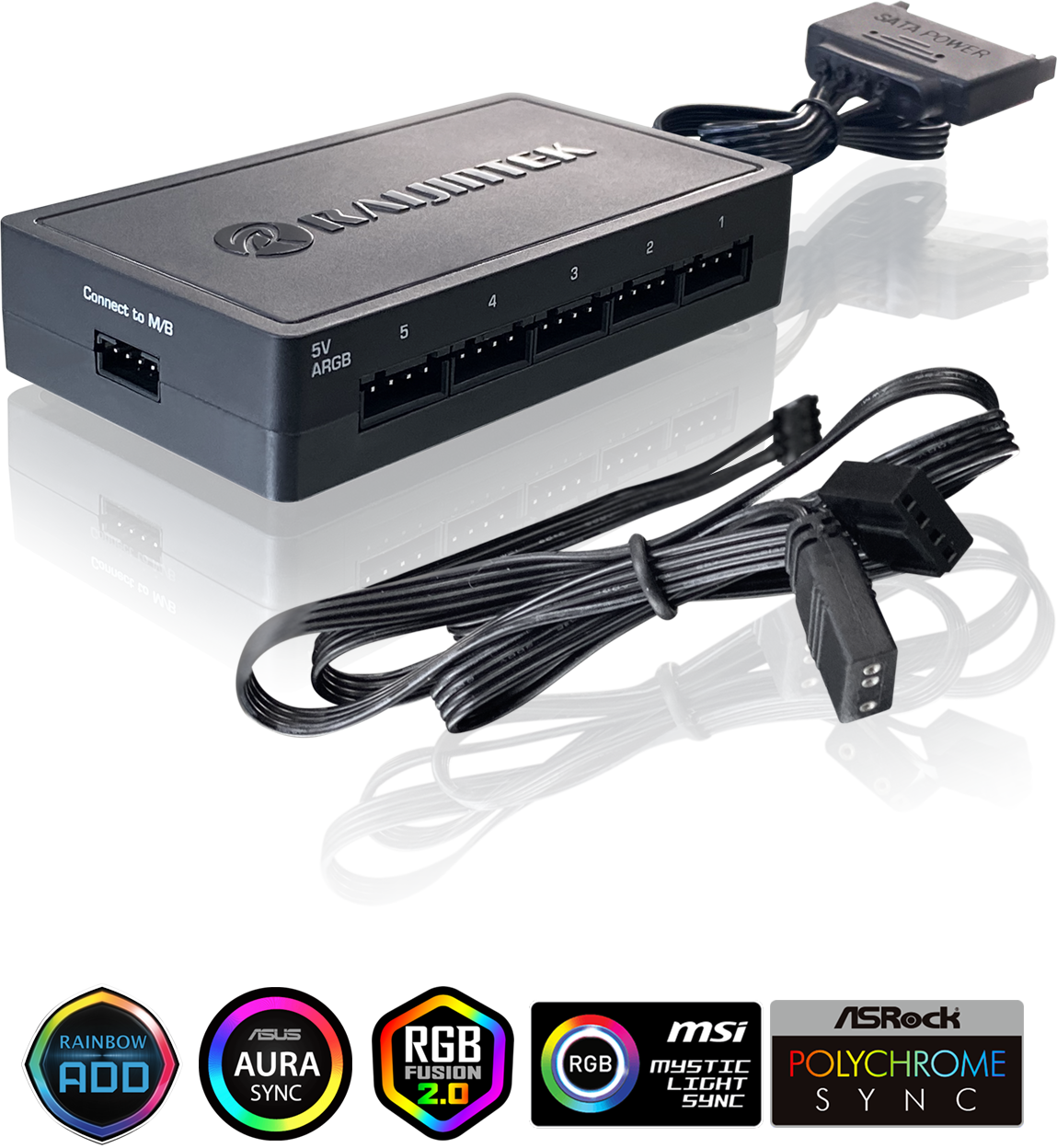

RAIJINTEK’s ARGB-PWM CONTROL SET, a control hub of 5V ARGB & PWM function, it provides you to take full control of your system’s ARGB light effect and PWM function. ARGB-PWM control set comes with a connecting cable to M/B (connecting to 5V ARGB header and 4pin PWM header, synchronized with M/B software, and a remote controller with 20 pre-set color modes and 7 different static colors option, for those who doesn't have an Addressable RGB motherboard in hand. You can control ARGB function either by Remote controller or by motherboard Sync mode (connecting to 5V ARGB header & PWM 4pin header on MB) ARGB-PWM Control set is the best and user friendly control hub at market. Total package come with a Control hub, a remote controller, a 500mm connecting cable and Super Magnetic pad.









SPECIFICATION
Product Name RJK ARGB-PWM CONTROL SET
Product Number 0R40B00186
Dimension [W×D×H] 84.5×46.5×17.5 mm
Weight 110 g
Material Plastic, PCB, Magnetic pad
Control Method Remote control / Motherboard sync
Power Connector SATA
Voltage Rating 12V

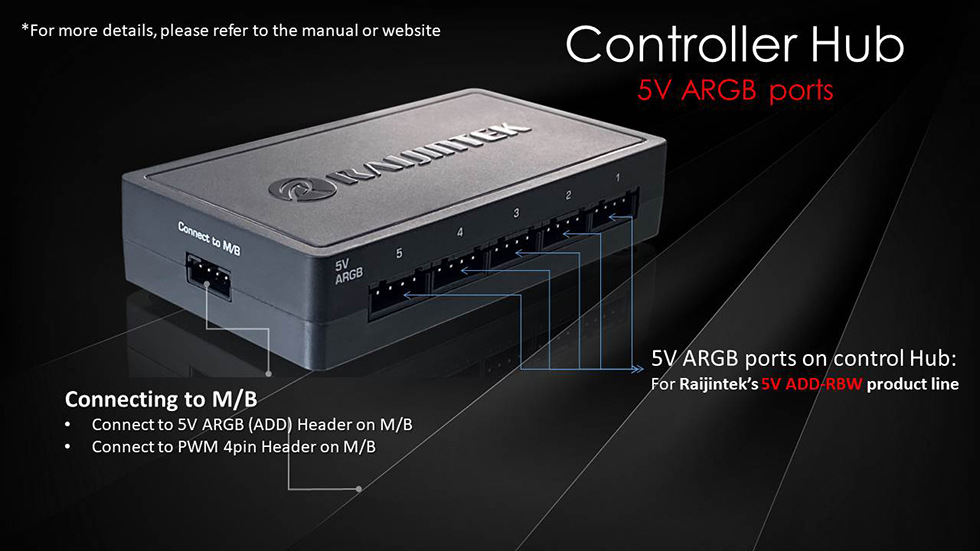

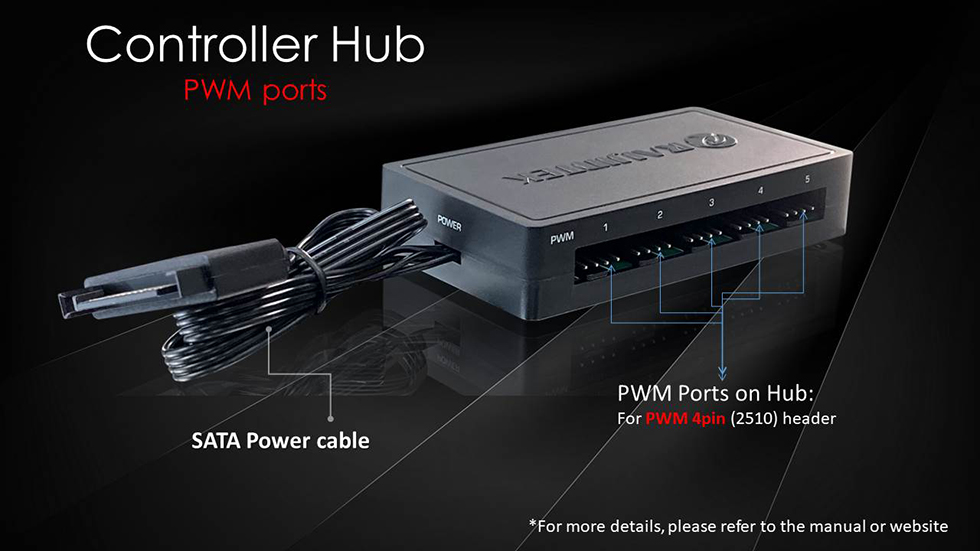

Output Channels 10 ports (ARGB×5 + PWM×5) for RAIJINTEK RBW line
Lighting Mode 20 Lighting MODE & 7 different static color choices

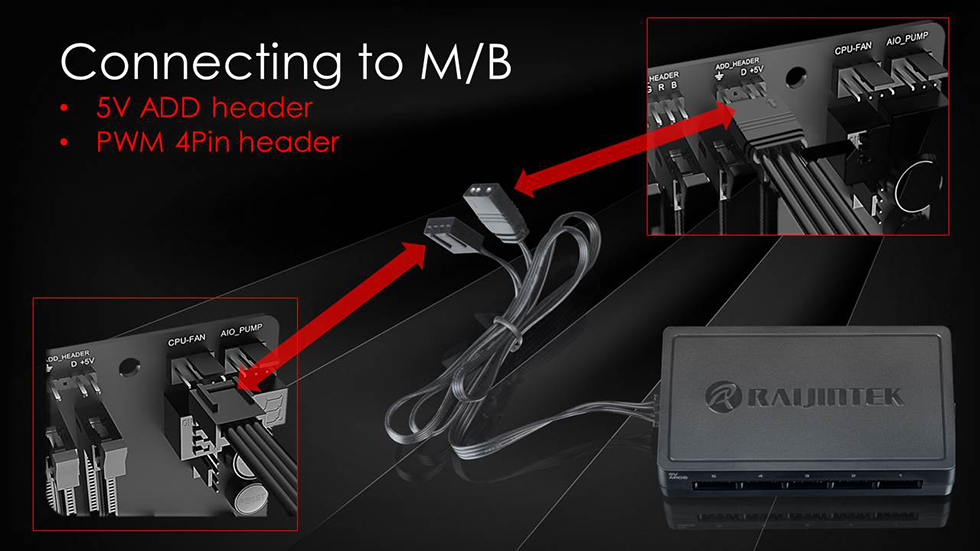

Accessories 300mm M/B connecting Cable × 1 (ARGB header + PWM header)
Remote controller × 1
Magnetic pad
RAIJINTEK'S COMPATIBLE PRODUCT LIST
Fan IRIS 12 RBW ADD; SKLERA 12 RBW ADD; IRIS 14 RBW ADD; ANEMI 20 RBW
CPU Cooler Delos RBW; MYA RBW; JUNO PRO ADD
AIO EOS 240/360 RBW; ORCUS 120/140/240/280/360 RBW
Liquid DIY ANTILA D5 EVO RBW; ANTILA D5 RBW; GYGES 240 RBW; TEOS 240A RBW
Liquid DIY kit PHORCYS EVO CD240/CD360 ; PHORCYS PRO CA240/CA360
Cable FOS ADD Cable -24P ; FOS ADD Cable - 8+8P
  •

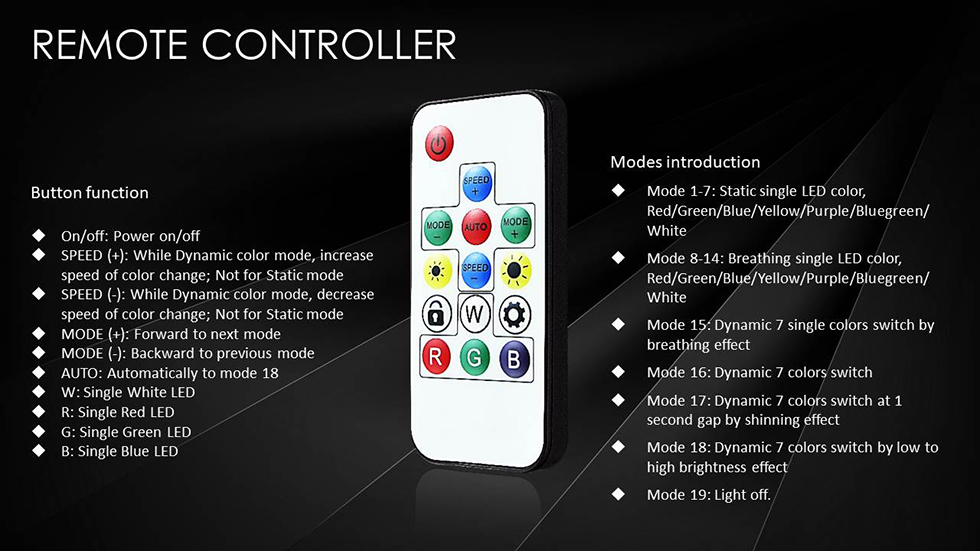

  • Remote controller function

  • 1.On/off: Power on/off
    2.SPEED (+): While Dynamic color mode, increase the speed of color change; Not for Static mode
    3.SPEED (-): While Dynamic color mode, decrease the speed of color change; Not for Static mode
    4.MODE (+): Forward to next mode
    5.MODE (-): Backward to previous mode
    6.AUTO: Automatically cycles all modes, 10 seconds for each mode
    7.W: Single White LED
    8.R: Single Red LED
    9.G: Single Green LED
    10.B: Single Blue LED
  • Rainbow RGB

  • 20 modes: 13 Dynamic color modes & 7 Static color modes
    Memory function: While power on, the mode and speed are at previous status
    Voltage rating: 12V
    Connecting 6 fans will get best effect for Dynamic modes
  • Color Modes

  • Mode 1: Dynamic 6 colors rotating with transition effect
    Mode 2: Dynamic lighting rotation to each other with transition effect
    Mode 3: Dynamic 6 colors rotating without transition effect
    Mode 4: Dynamic 7 colors switch by water-flow rotating with low brightness effect on background color
    Mode 5: Dynamic 7 single colors switch by water-flow effect
    Mode 6: Dynamic 7 shinning colors switch by water-flow effect
    Mode 7: Dynamic 7 colors switch by water-flow rotating with covering background color effect
    Mode 8-13: Dynamic 7 colors by water-flow rotating
    Mode 14-20: Static single LED color

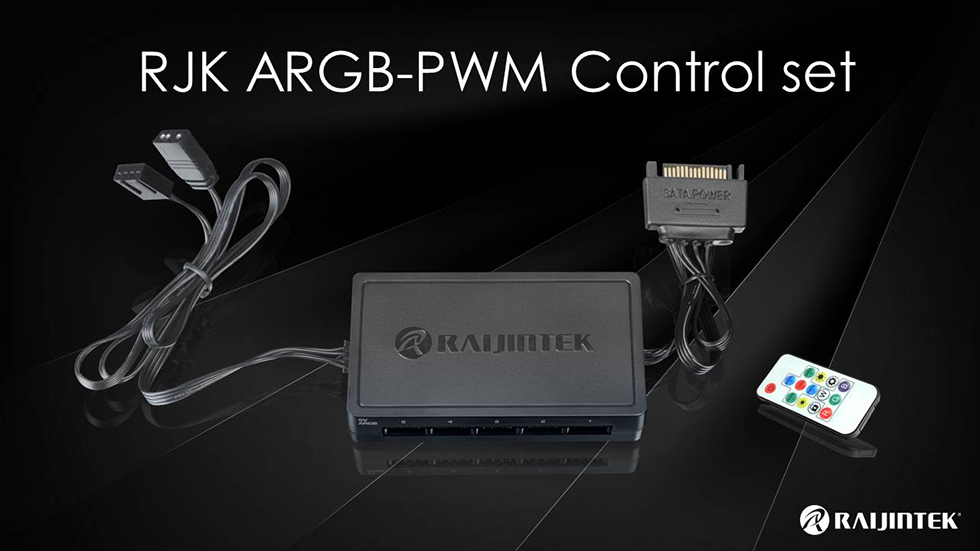

ARGB-PWM control hub × 1

Remote controller × 1

Connect cable × 1

Magnetic pad × 1

Package × 1
