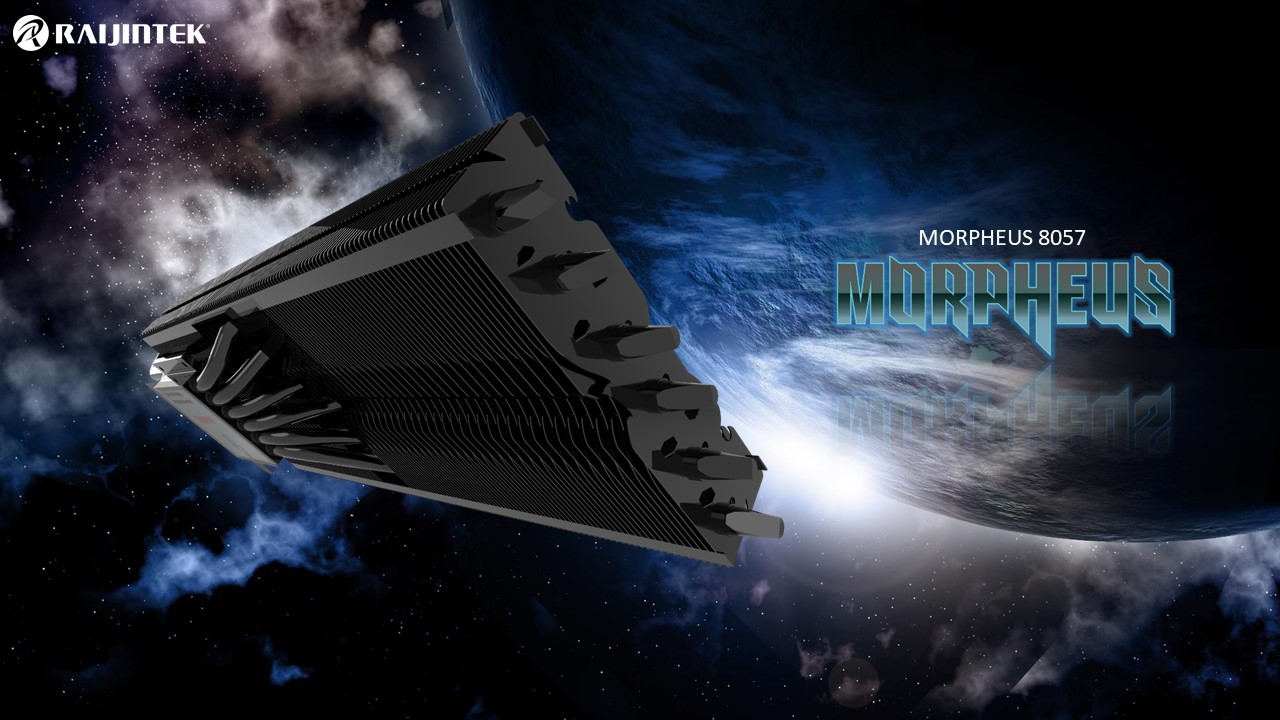

MORPHEUS 8057
MORPHEUS 8057, whole heatsink black coated, a superior high-end VGA cooler, designed to meet cooling capacity up to 360 Watts of TDP. Morpheus 8057 comes with 12 copper heat-pipes, 129 fins, mirror copper base, and the option to install 2×120mm fans; those outstanding combination and design provide best acceleration of heat dissipation process to assure your VGA board running under optimal temperature. Additionally, Morpheus comes with 3pcs copper & 8pcs aluminum heat-sink for cooling chips efficiently. Moreover, Morpheus 8057 is multi-compatible with most modern nVIDIA & AMD GPU's.
MORPHEUS 8057






  •

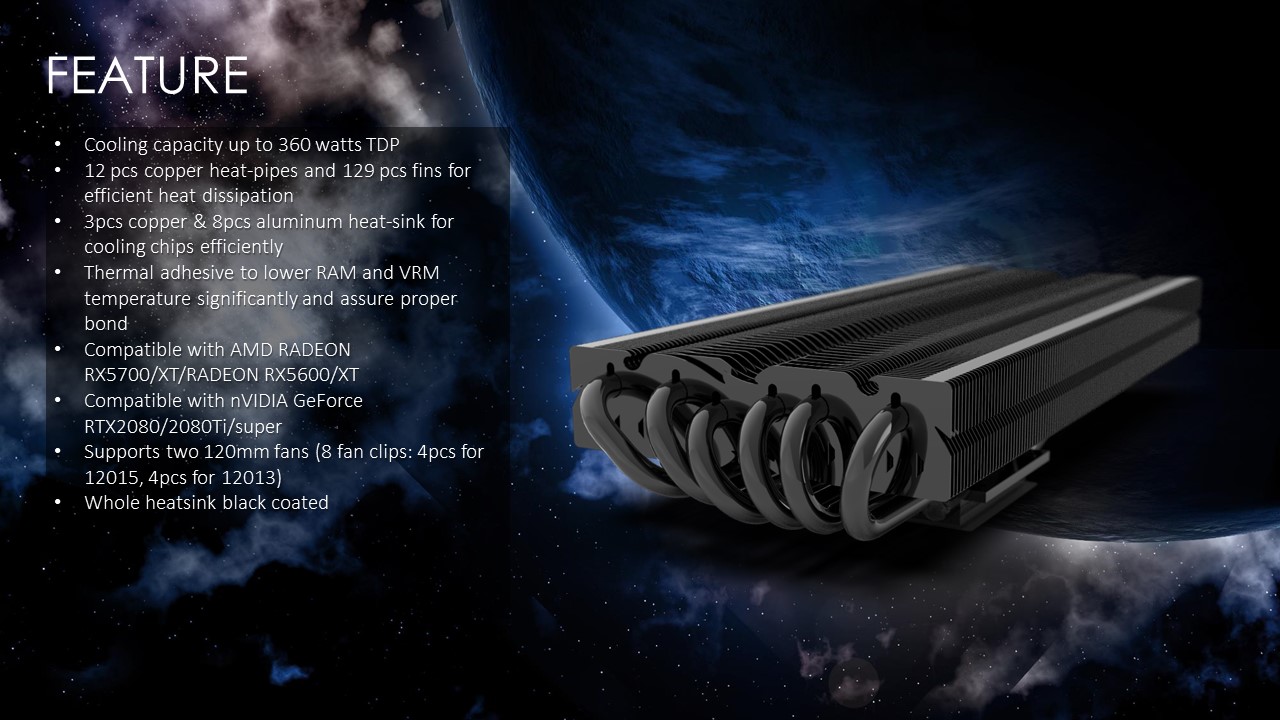

  • Cooling capacity up to 360 watts TDP
  • 12 pcs copper heat-pipes and 129 pcs fins for efficient heat dissipation
  • 3pcs copper & 8pcs aluminum heat-sink for cooling chips efficiently
  • Thermal adhesive to lower RAM and VRM temperature significantly and assure proper bond

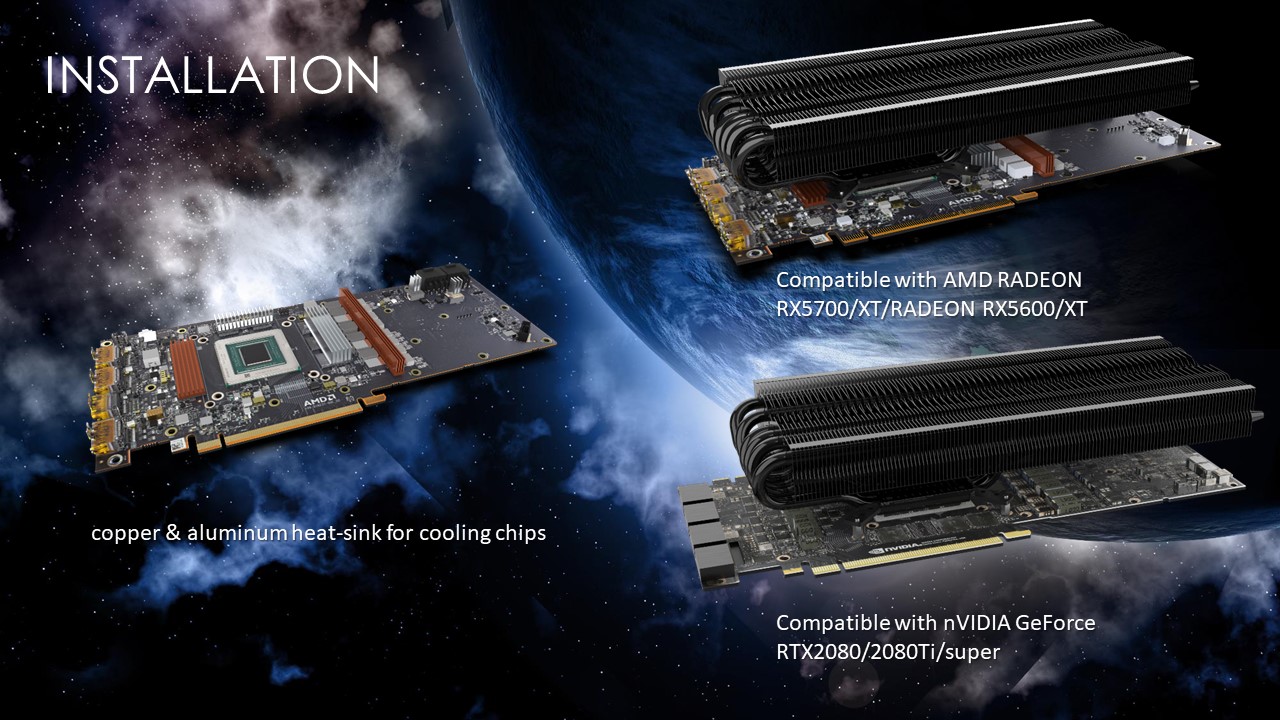

  • Compatible with AMD RADEON RX5700/XT/RADEON RX5600/XT
  • Compatible with nVIDIA GeForce RTX2080/2080Ti/super/GeForce RTX2070/Super/RTX2060/super
  • Supports two 120mm fans (8 fan clips: 4pcs for 12025, 4pcs for 12013)
  • Whole heatsink black coated
SPECIFICATION
Product Name MORPHEUS 8057
Product Number 0R10B00176
Dimension [W×D×H] 254×100×44 mm
Weight 515 g [Heat Sink Only]
Thermal Resistance
0.135 °C/W [With Raijintek 12025 fan×2]
0.143 °C/W [With Raijintek 12013 fan×2]
Heat Sink
Base Material Mirror copper base
Fin Material Aluminum Alloy; Solder assembly
Heat-pipe
SPEC Φ6mm
Q'ty 12 pcs
Heat-sink for RAM
Copper A type: 2 pcs 85(W) × 11(H) × 6.2(D) mm
Copper B type: 1 pcs 50(W) × 11(H) × 4(D) mm
C type: 1 pcs 50(W) × 14.1(H) × 10(D) mm
D type: 1 pcs 37(W) × 7(H) × 10(D) mm
E type: 6 pcs 5.9(W) × 6(H) × 11(D) mm
APPLICATION
AMD® RADEON RX 5700 / XT
RADEON RX 5600 / XT
nVIDIA® GeForce RTX 2080 / 2080ti / SUPER
GeForce RTX 2070 / Super
GeForce RTX 2060 / Super
  • MORPHEUS 8057 Installation Guide  [ 6.87 MB ]
    This version includes English, German, French, Spanish, Italian, Japanese, Chinese, Russian, Turkish and Portuguese.

Heat-Sink X 1

Mounting Clip × 2

Back Plate × 1

Copper Chip Heat-sink A × 2
Intel Mounting Clips
Copper Chip Heat-sink B × 1

Chip Heat-sink C × 1

Chip Heat-sink D × 1

Chip Heat-sink E × 6

Fan Rubber Pad × 2

M3 Screw × 4

Hexagonal Screw × 4

Spring Screw × 4

Plastic Myla × 4

Thermal Pad × 3

Thermal Pad B × 2

12025 Fan Clip × 4

12013 Fan Clip × 4

Thermal Grease × 1

Installation Guide × 1

Package × 1
