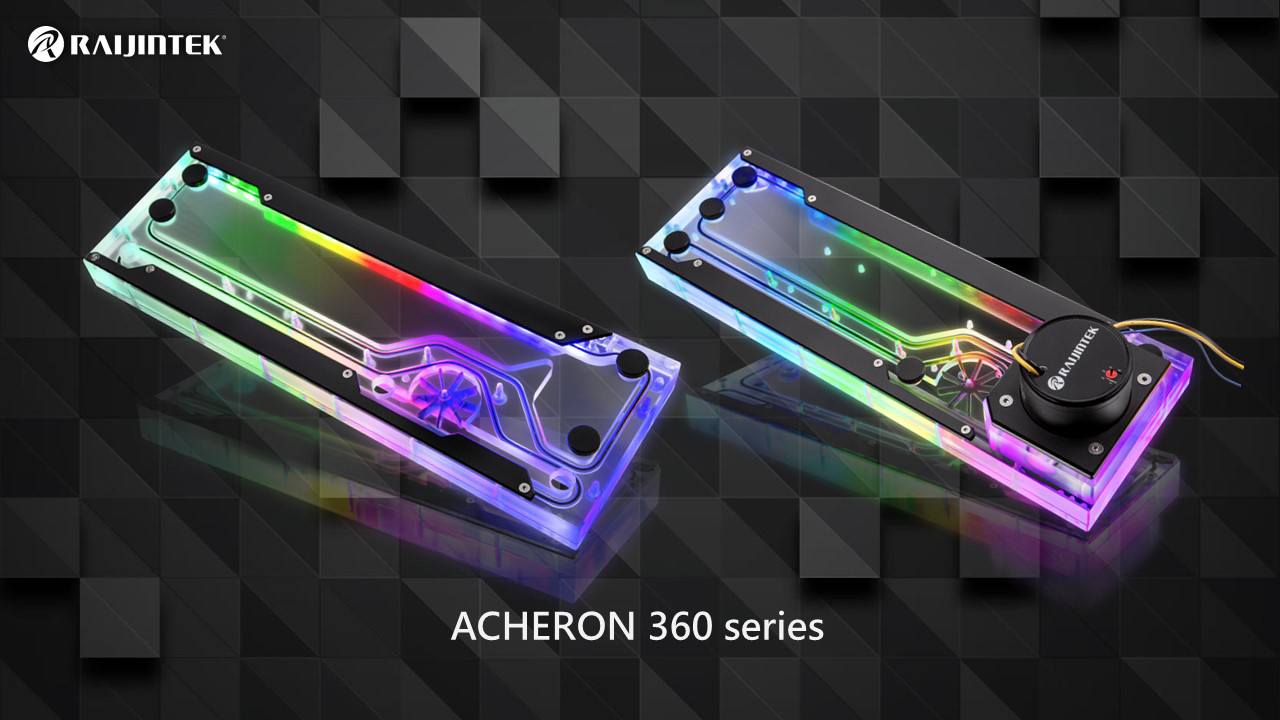

ACHERON 360 SERIES

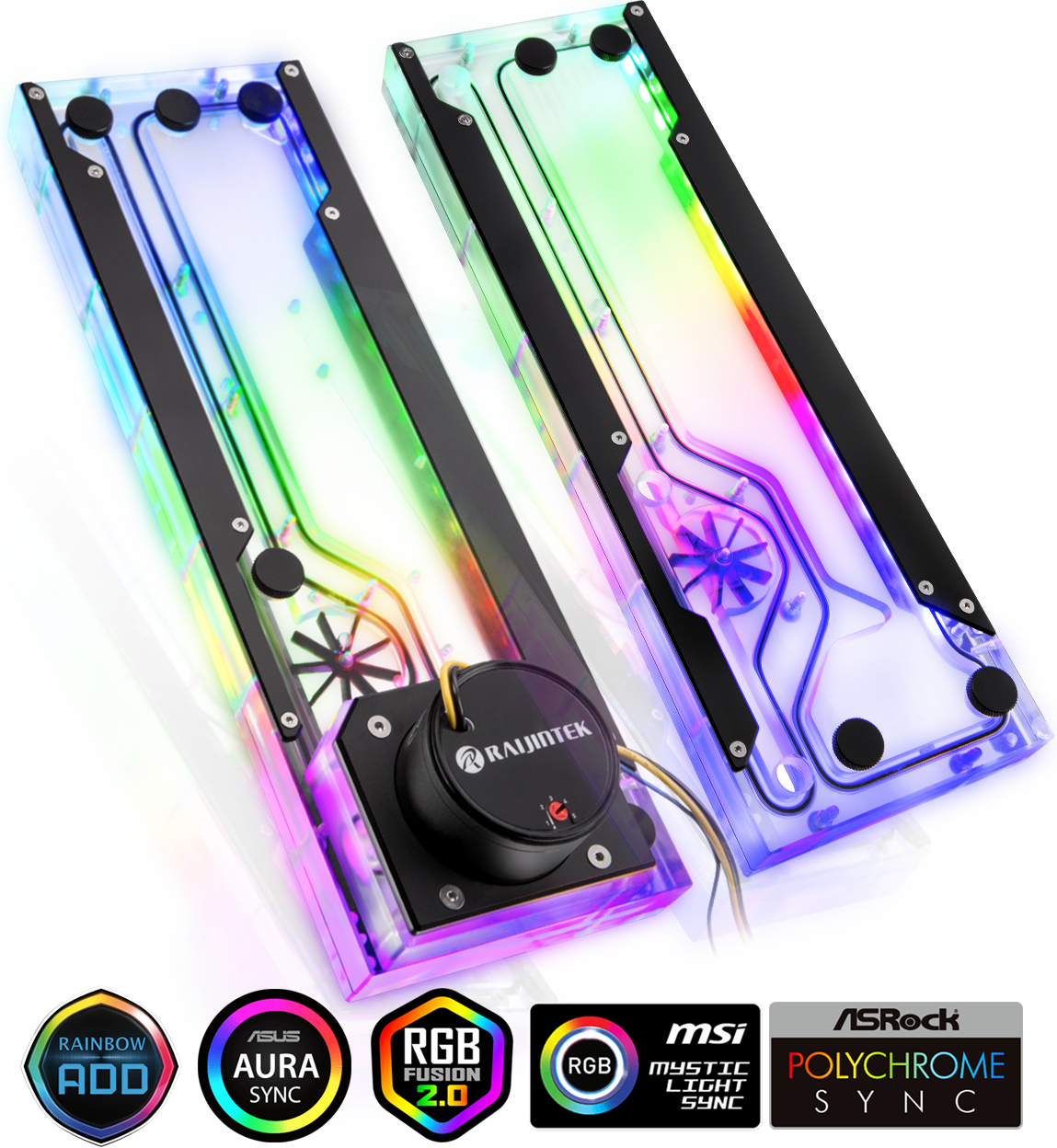

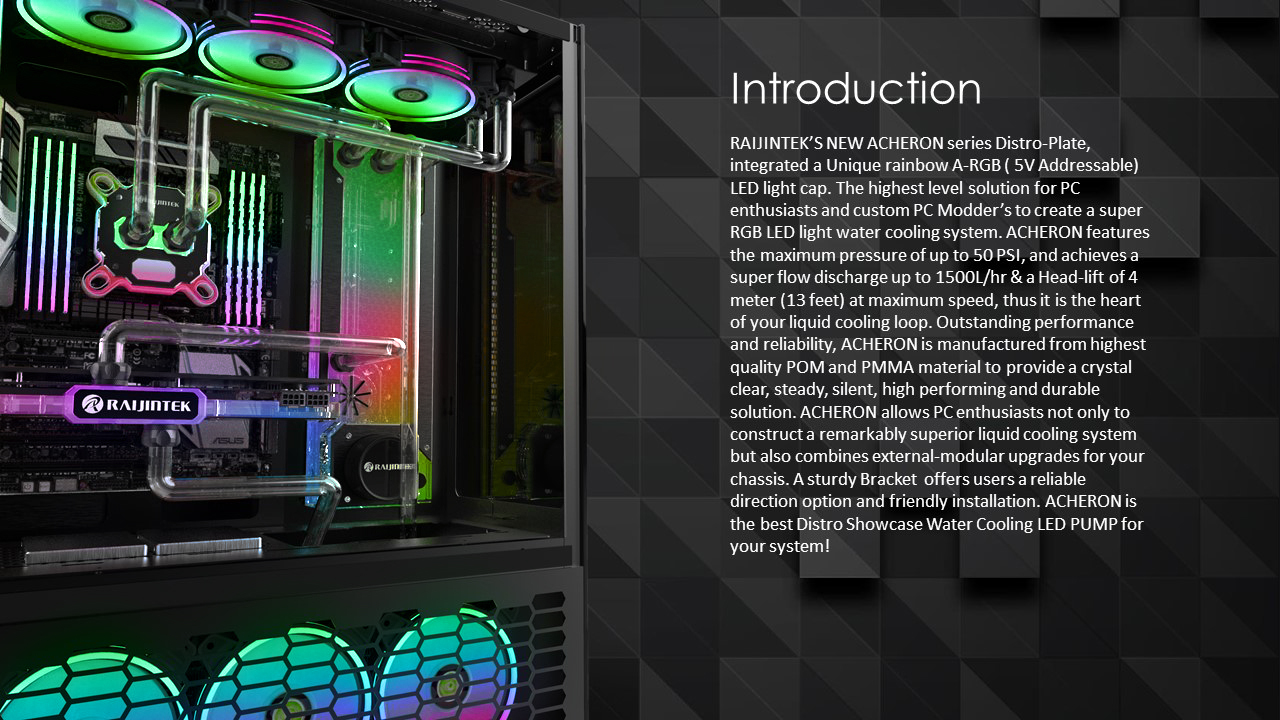

RAIJINTEK’S NEW ACHERON series Distro-Plate, integrated a Unique rainbow A-RGB ( 5V Addressable) LED light cap. The highest level solution for PC enthusiasts and custom PC Modder’s to create a super RGB LED light water cooling system. ACHERON features the maximum pressure of up to 50 PSI, and achieves a super flow discharge up to 1500L/hr & a Head-lift of 4 meter (13 feet) at maximum speed, thus it is the heart of your liquid cooling loop. Outstanding performance and reliability, ACHERON is manufactured from highest quality POM and PMMA material to provide a crystal clear, steady, silent, high performing and durable solution. ACHERON allows PC enthusiasts not only to construct a remarkably superior liquid cooling system but also combines external-modular upgrades for your chassis. A sturdy Bracket offers users a reliable direction option and friendly installation. ACHERON is the best Distro Showcase Water Cooling LED PUMP for your system!

ACHERON 360 SERIES












  •

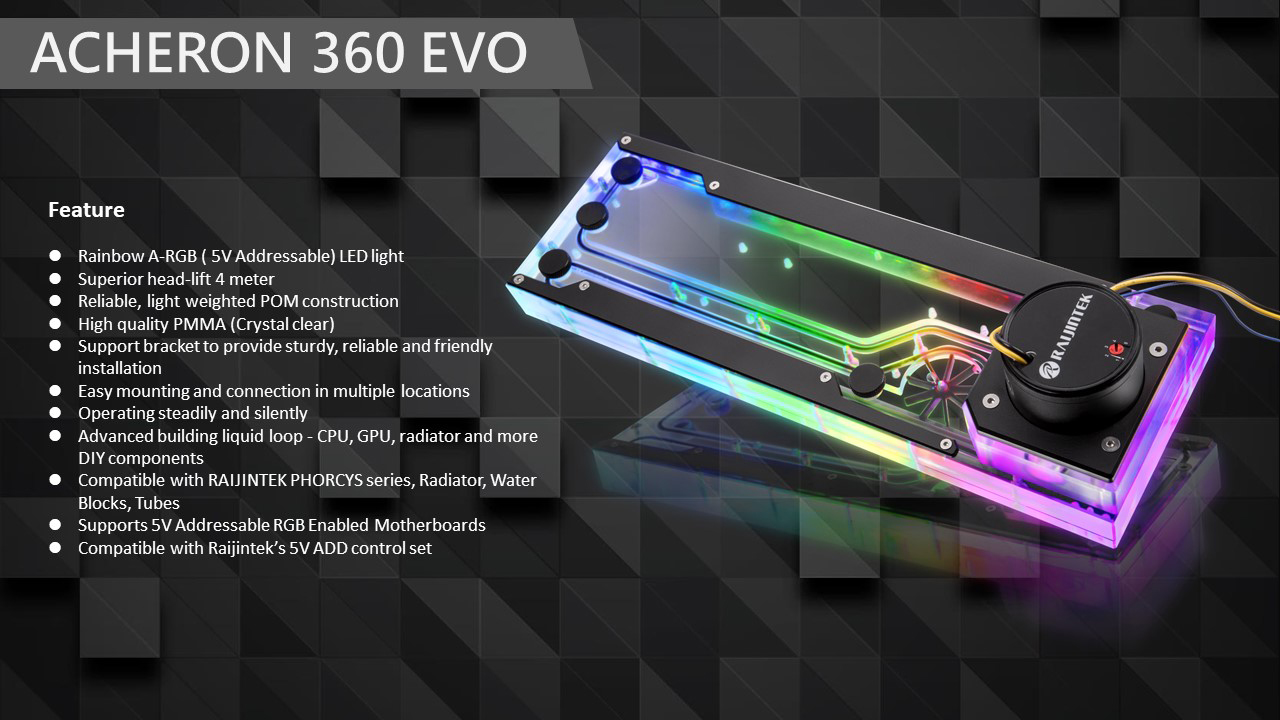

  • ACHERON 360 D5 EVO RBW
  • Rainbow A-RGB ( 5V Addressable) LED light
  • Superior head-lift 4 meter
  • Reliable, light weighted POM construction
  • High quality PMMA (Crystal clear)

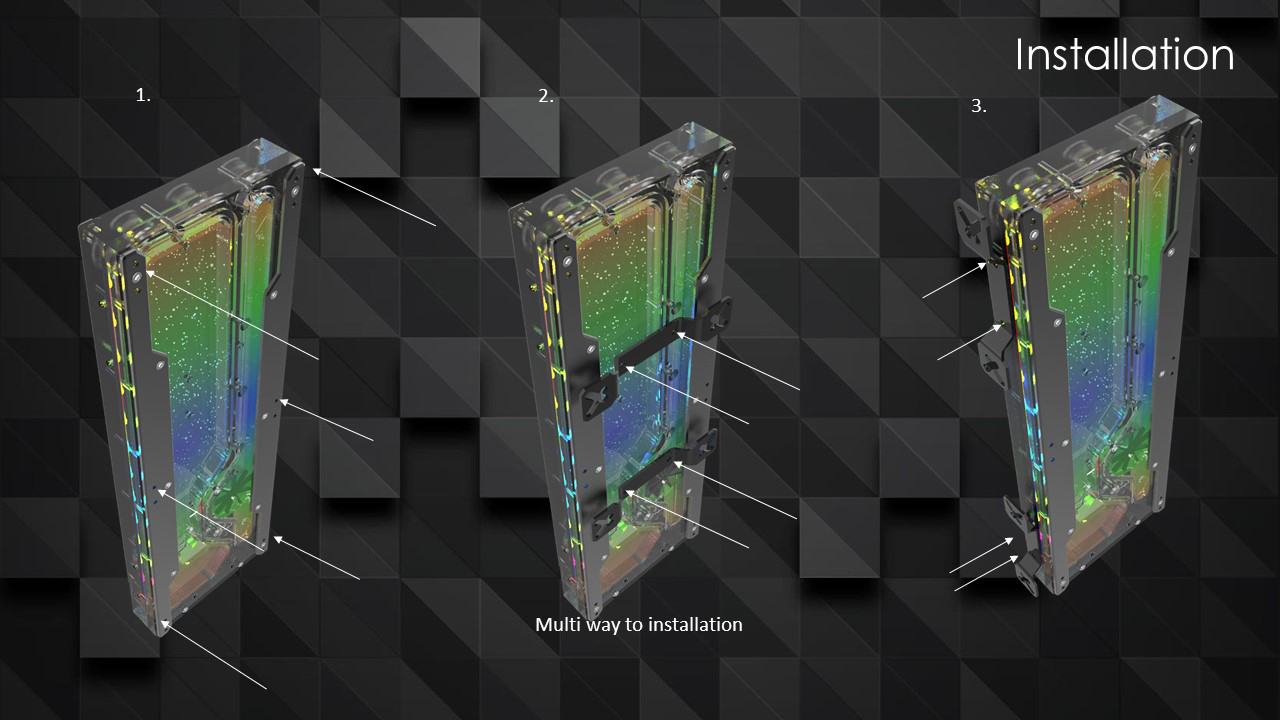

  • Support bracket to provide sturdy, reliable and friendly installation

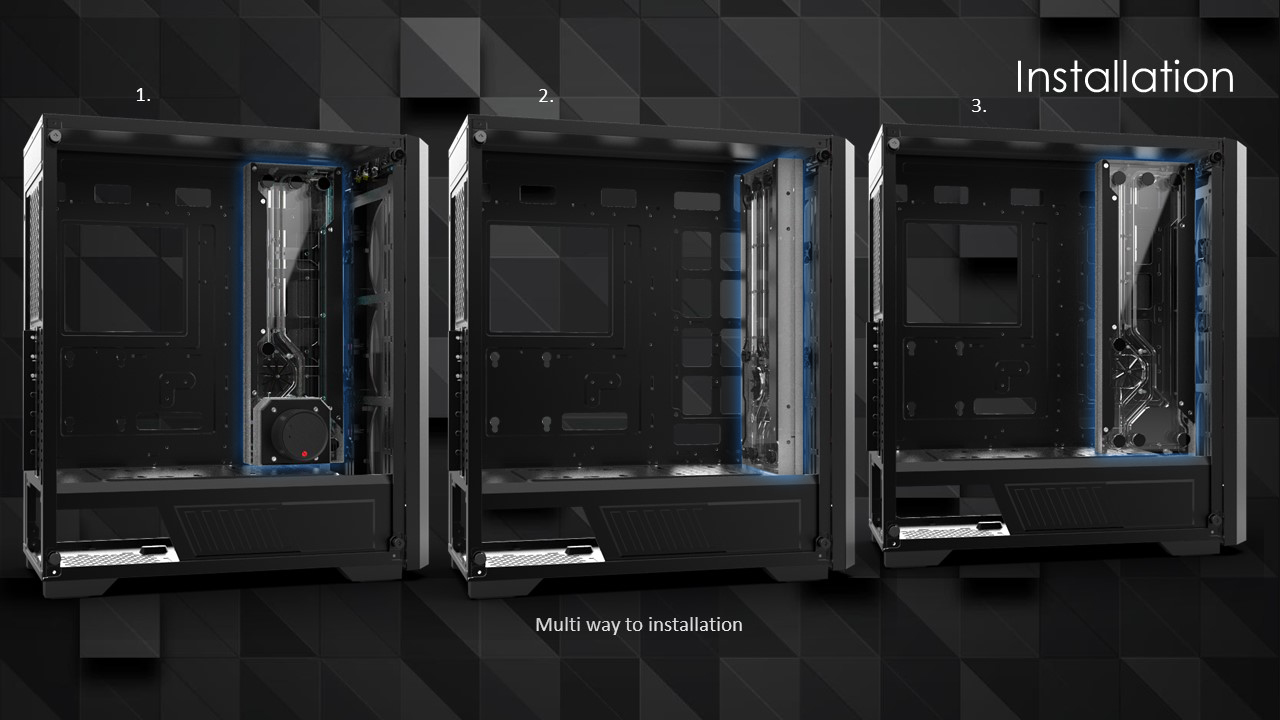

  • Easy mounting and connection in multiple locations
  • Operating steadily and silently

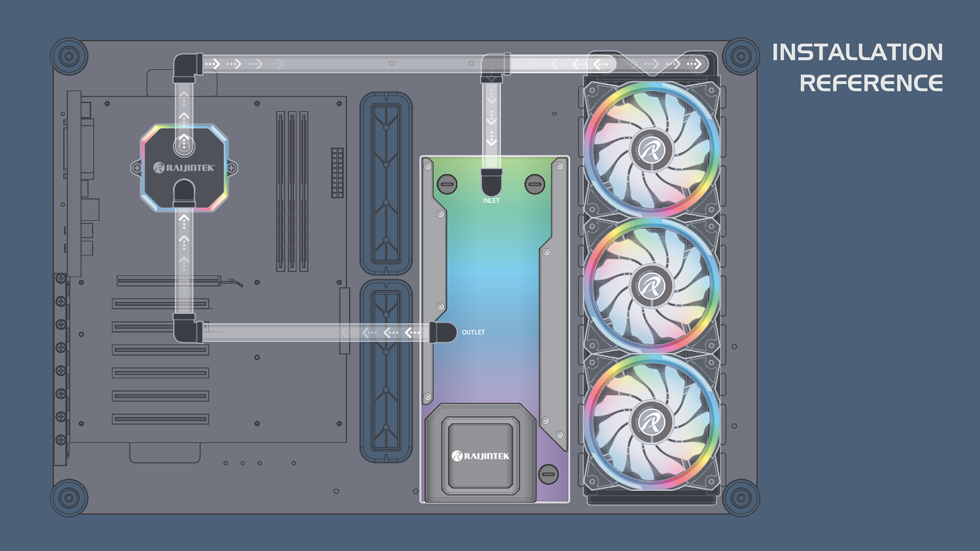

  • Advanced building liquid loop - CPU, GPU, radiator and more DIY components
  • Compatible with RAIJINTEK PHORCYS series, Radiator, Water Blocks, Tubes
  • Supports 5V Addressable RGB Enabled Motherboards
  • Compatible with Raijintek’s 5V ADD control set

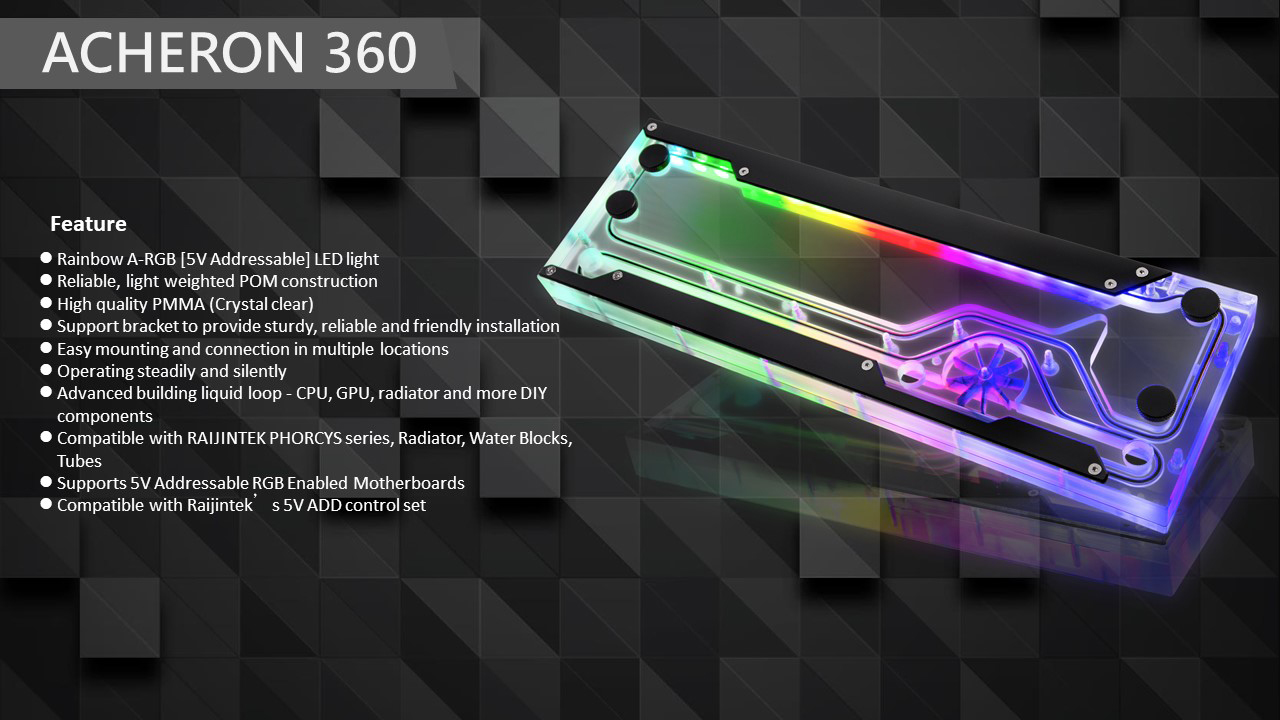

  • ACHERON 360 RBW
  • Rainbow A-RGB [5V Addressable] LED light
  • Reliable, light weighted POM construction
  • High quality PMMA (Crystal clear)
  • Support bracket to provide sturdy, reliable and friendly installation
  • Easy mounting and connection in multiple locations
  • Operating steadily and silently
  • Advanced building liquid loop - CPU, GPU, radiator and more DIY components
  • Compatible with RAIJINTEK PHORCYS series, Radiator, Water Blocks, Tubes
  • Supports 5V Addressable RGB Enabled Motherboards
  • Compatible with Raijintek’s 5V ADD control set

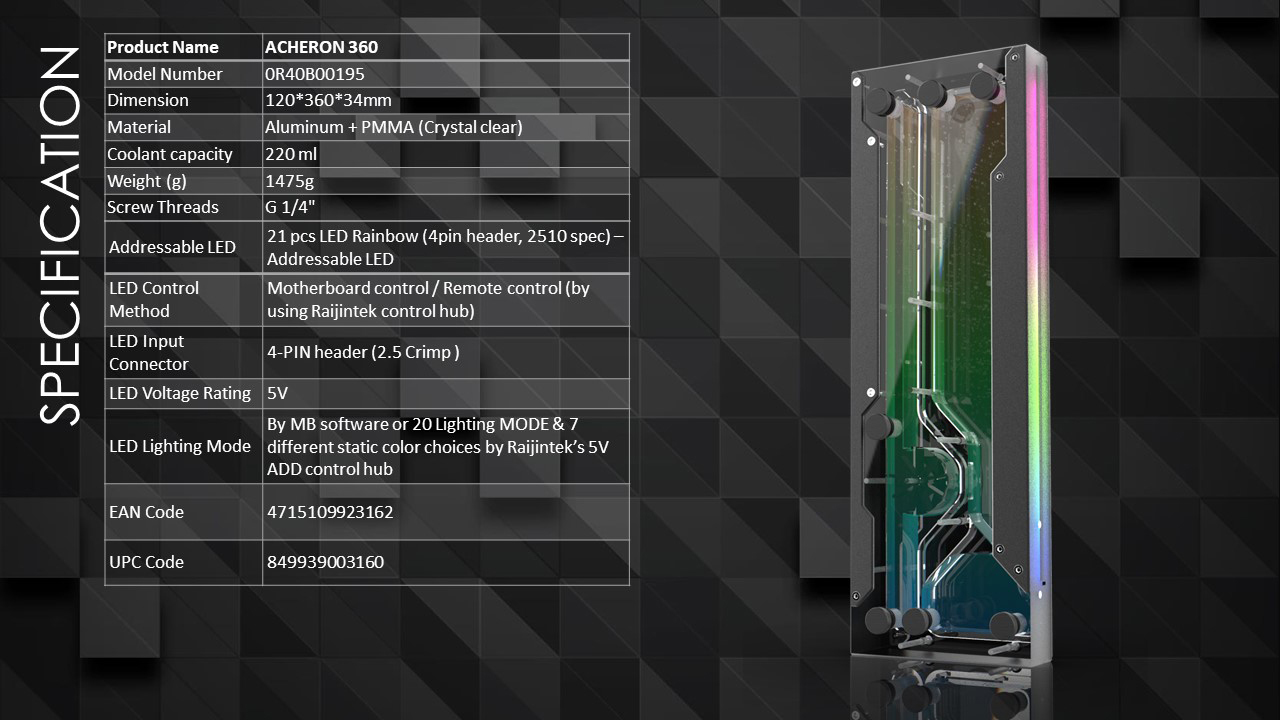

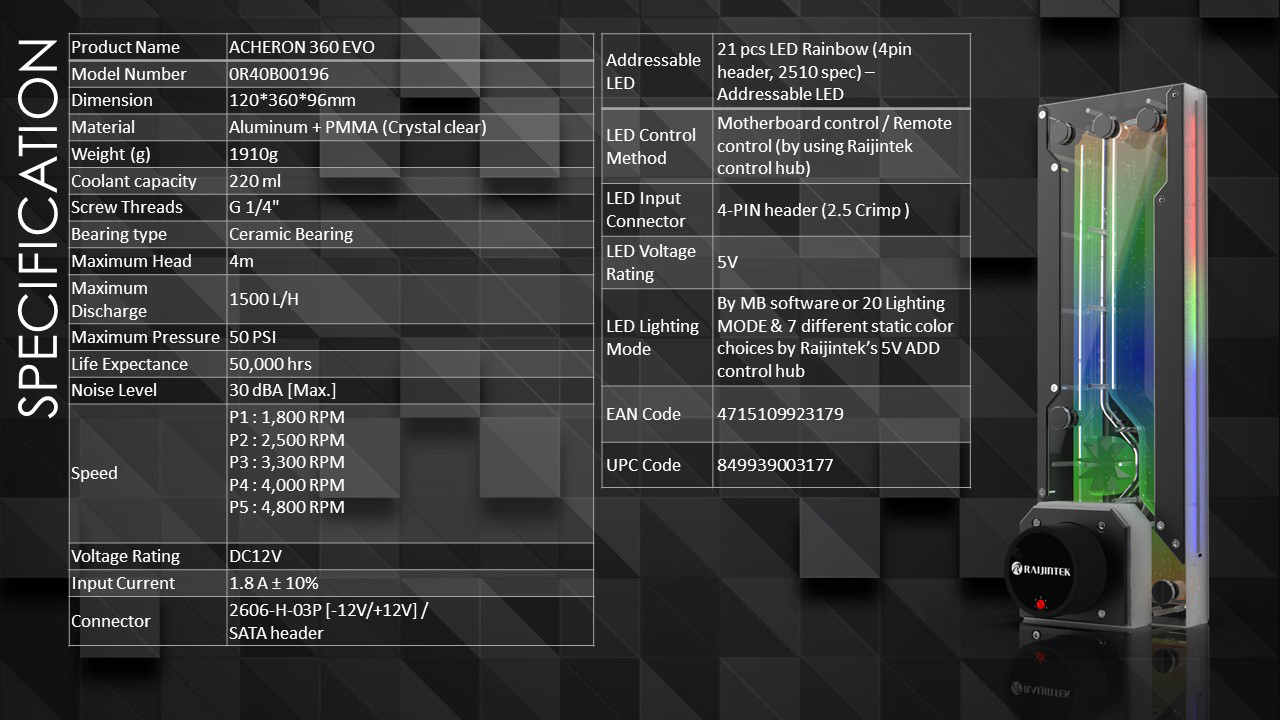

SPECIFICATION
Product Name ACHERON 360 RBW ACHERON 360 D5 EVO RBW
Product Number 0R40B00195 0R40B00196

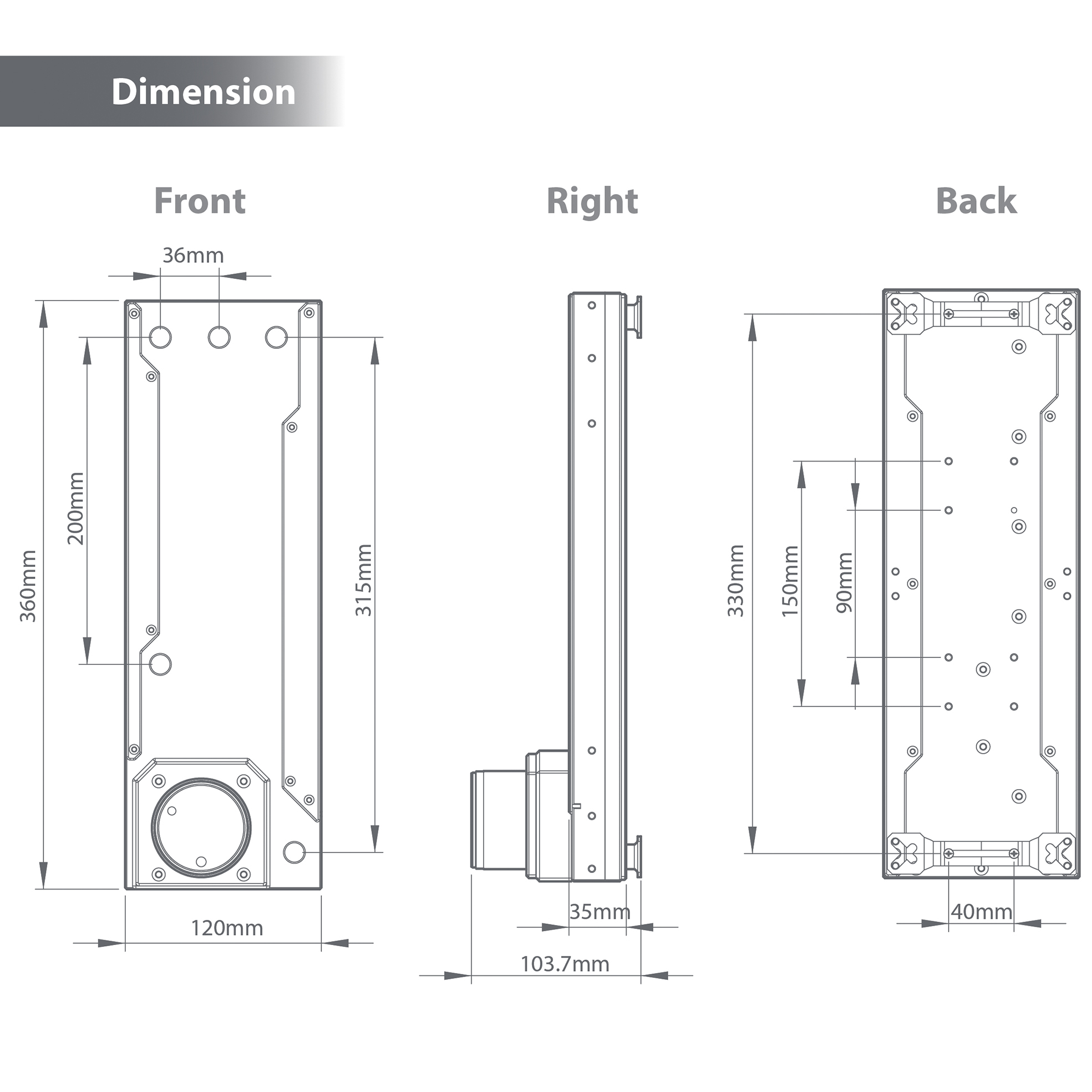

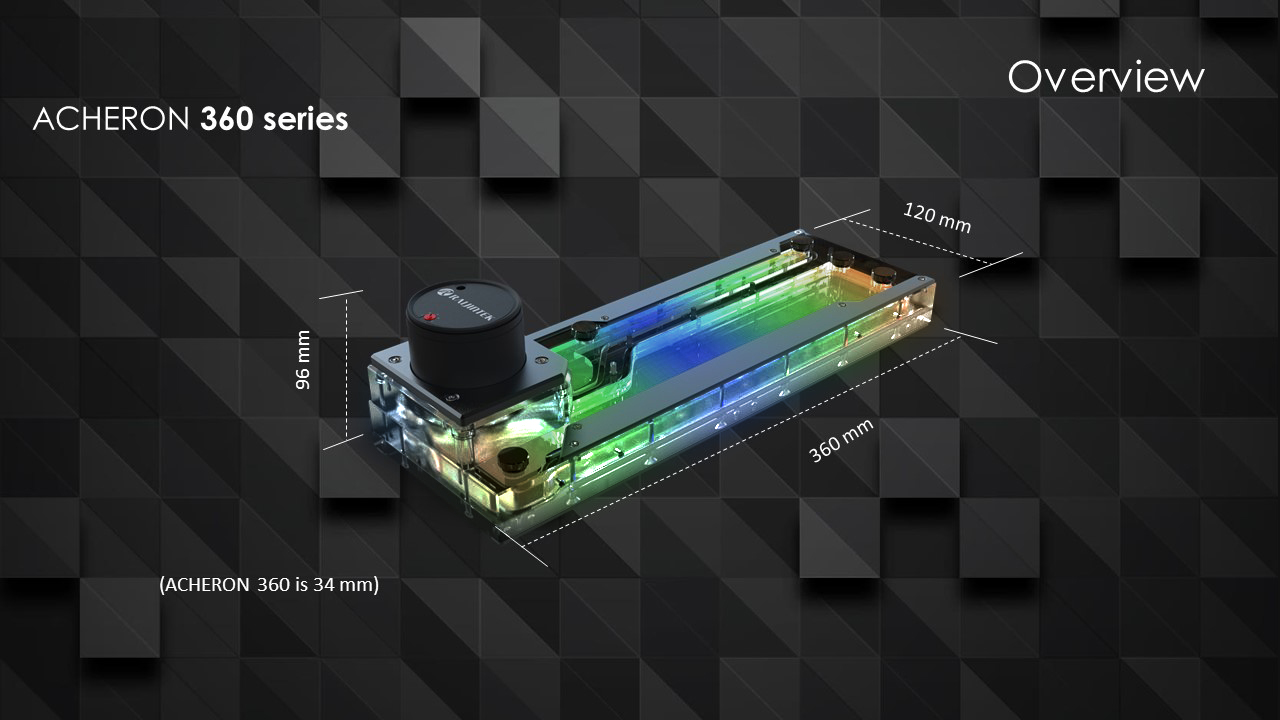

Dimension [W×H×D] 120×360×34 mm 120×360×96 mm
Weight [Block+Pump+Radiator] 1475g 1910g

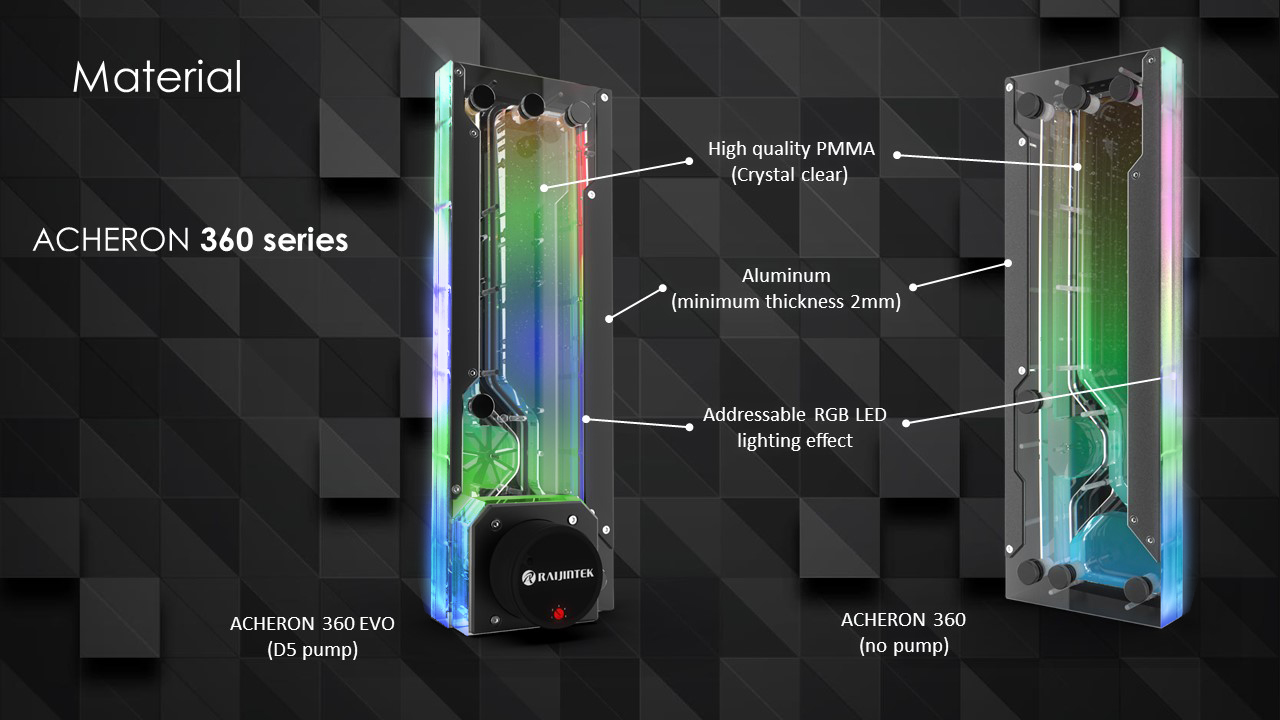

Material Aluminum + PMMA (Crystal clear) Aluminum + PMMA (Crystal clear)
Coolant Capacity 220ml 220ml
Screw Threads G 1/4" G 1/4"
LED
Addressable LED 21 pcs LED Rainbow (4pin header, 2510 spec) – Addressable LED
Control Method Motherboard control / Remote control (by using Raijintek control hub)
Input Connector 4-PIN header (2.5 Crimp)
Voltage Rating 5V
Lighting Mode By MB software or 20 Lighting MODE & 7 different static color choices by Raijintek's 5V ADD control hub

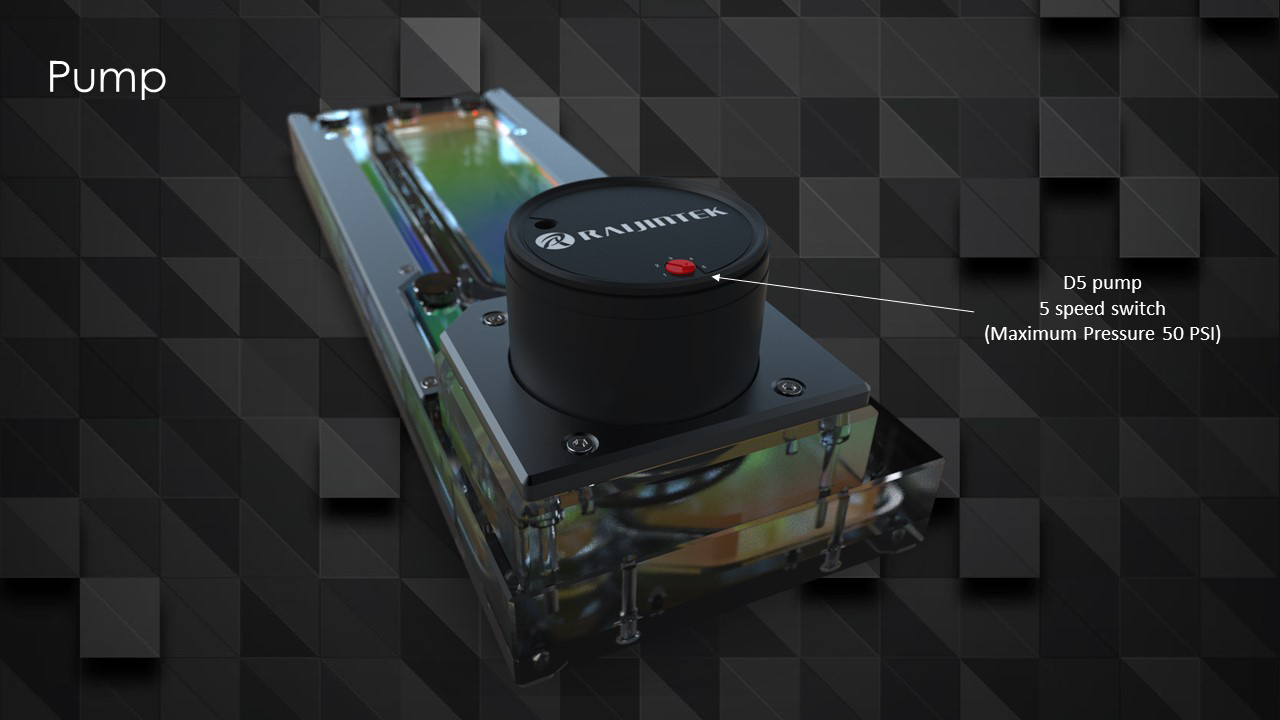

PUMP
Bearing type Ceramic Bearing
Maximum Head 4 meter
Maximum Discharge 1500 L/H
Maximum Pressure 50 PSI
Life Expectance 50,000 hrs
Noise Level 30 dBA [Max.]
Speed P1 : 1,800 RPM
P2 : 2,500 RPM
P3 : 3,300 RPM
P4 : 4,000 RPM
P5 : 4,800 RPM
Voltage Rating DC12V
Input Current 1.8A ±10%
Connector 2606-H-03P [-12V/+12V] / SATA header
  •

ACHERON 360 × 1

Mounting Clip × 2

M4 Metal nut × 4

#6-32 L31.75mm Screw × 4

#6-32 L6mm Screw × 4

M4 L8mm Screw × 8
