Aeolus β

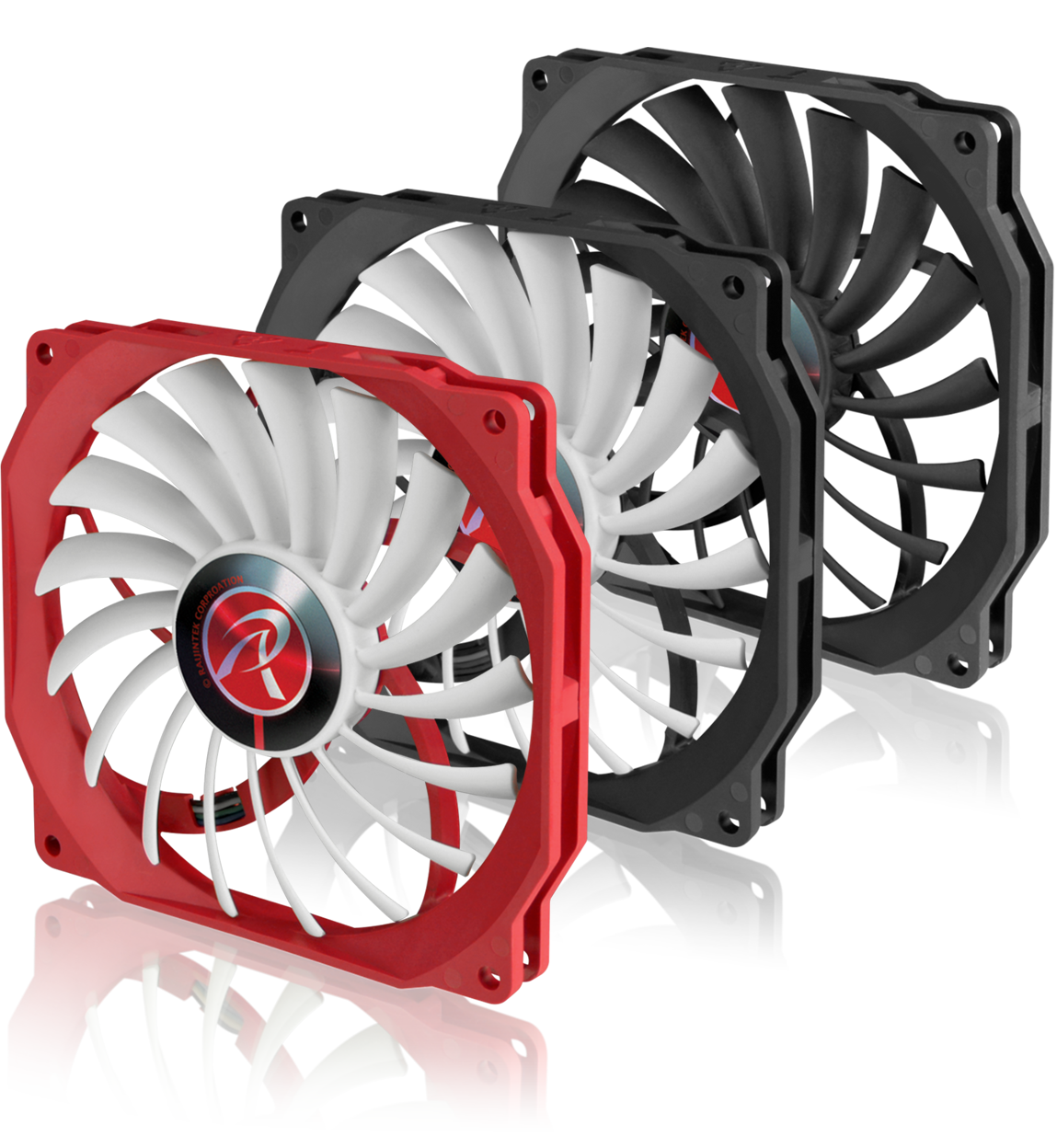

Aeolus β, world's top slim high performance fan series, is a new technology fan, not only of 13mm height, 17 fan blade design, but also extremely performing. Aeolus β is developed by latest technology with outstanding airflow, excellent static pressure, super silence and elegant. Due to the great combination of technology and elegant design, Aeolus is your best choice and saves space usage in your device.

Aeolus β
  • World's Top Slim type fan - 13mm thickness
  • Specific 17 blade design to provide outstanding airflow
  • Save space, not to interfere other components
  • Slim, but outperforming than other 12025mm fan
  • Black mesh cable and black connector
  • PWM function
  • Super silent
  • Easy installation
SPECIFICATION
Product Name Aeolus β RW / BW / BB
Product Number 0R40B00123 / 0R40B00124 / 0R40B00125
Dimension [WxHxD] 120x130x13 mm
Voltage Rating 12V
Starting Voltage 7 V
Speed 800~1300 R.P.M. [PWM controlled]
Bearing Type Hydraulic Bearing
Air Flow 48 CFM [Max.]
Air Pressure 1.3 mmH2O [Max.]
Life Expectance 40,000 hrs
Noise Level 22 dBA [Max.]
Connector 4 pin with PWM
Weight 89 g
APPLICATION
All Chassis
All 120mm Coolers

12013 PWM Fan X 1

Anti-vibration Rubber X 4

Screw X 4

Package X 1
