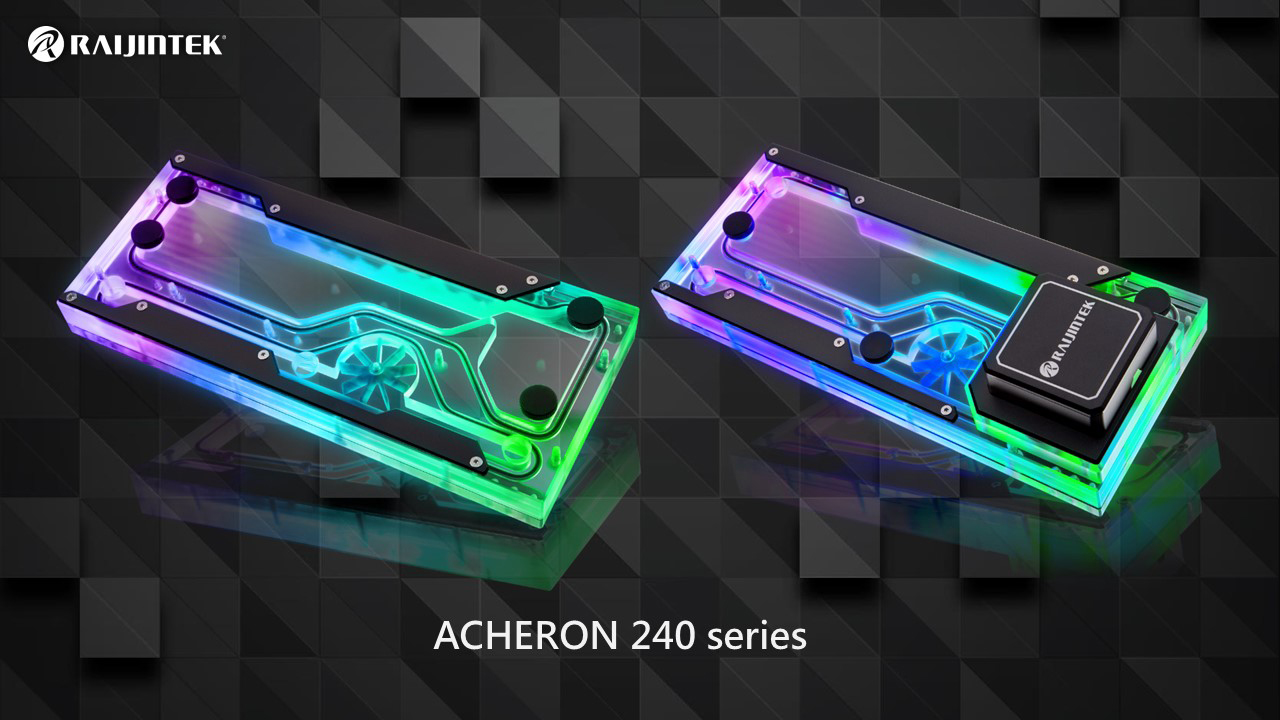

ACHERON 240 SERIES

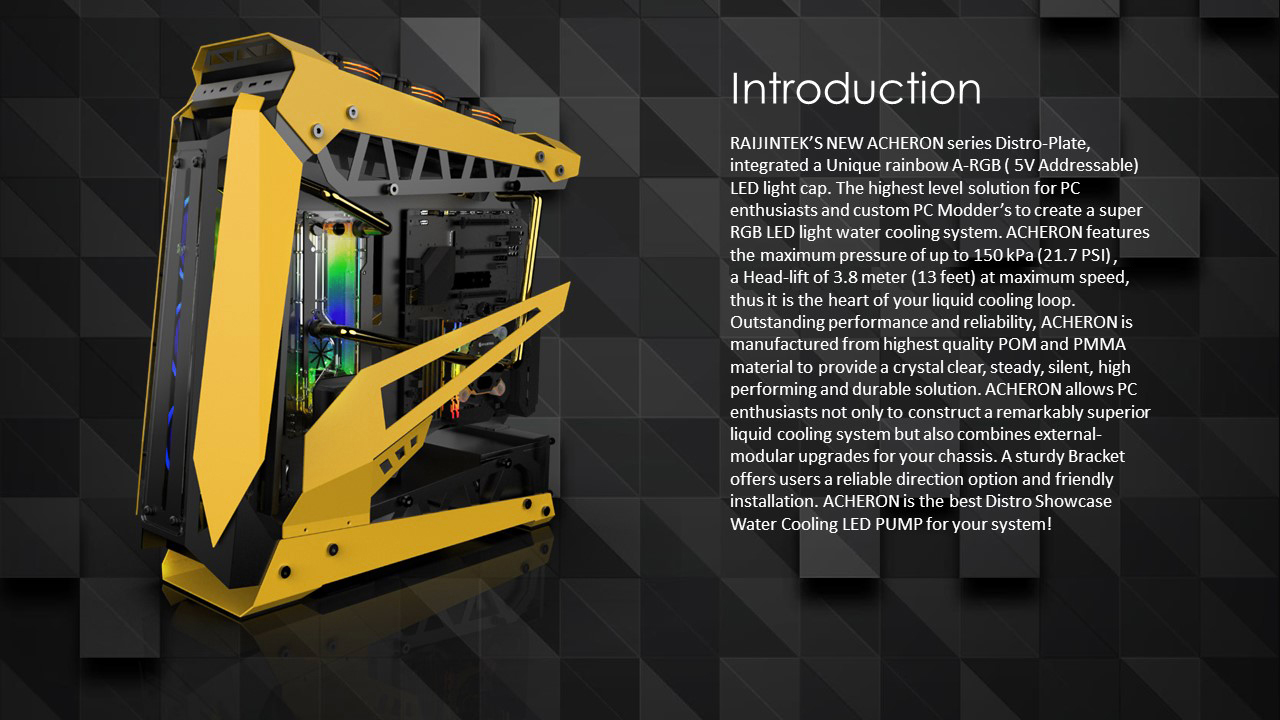

RAIJINTEK’S NEW ACHERON series Distro-Plate, integrated a Unique rainbow A-RGB ( 5V Addressable) LED light cap. The highest level solution for PC enthusiasts and custom PC Modder’s to create a super RGB LED light water cooling system. ACHERON features the maximum pressure of up to 150 kPa (21.7 PSI) , a Head-lift of 3.8 meter (13 feet) at maximum speed, thus it is the heart of your liquid cooling loop. Outstanding performance and reliability, ACHERON is manufactured from highest quality POM and PMMA material to provide a crystal clear, steady, silent, high performing and durable solution. ACHERON allows PC enthusiasts not only to construct a remarkably superior liquid cooling system but also combines external-modular upgrades for your chassis. A sturdy Bracket offers users a reliable direction option and friendly installation. ACHERON is the best Distro Showcase Water Cooling LED PUMP for your system!

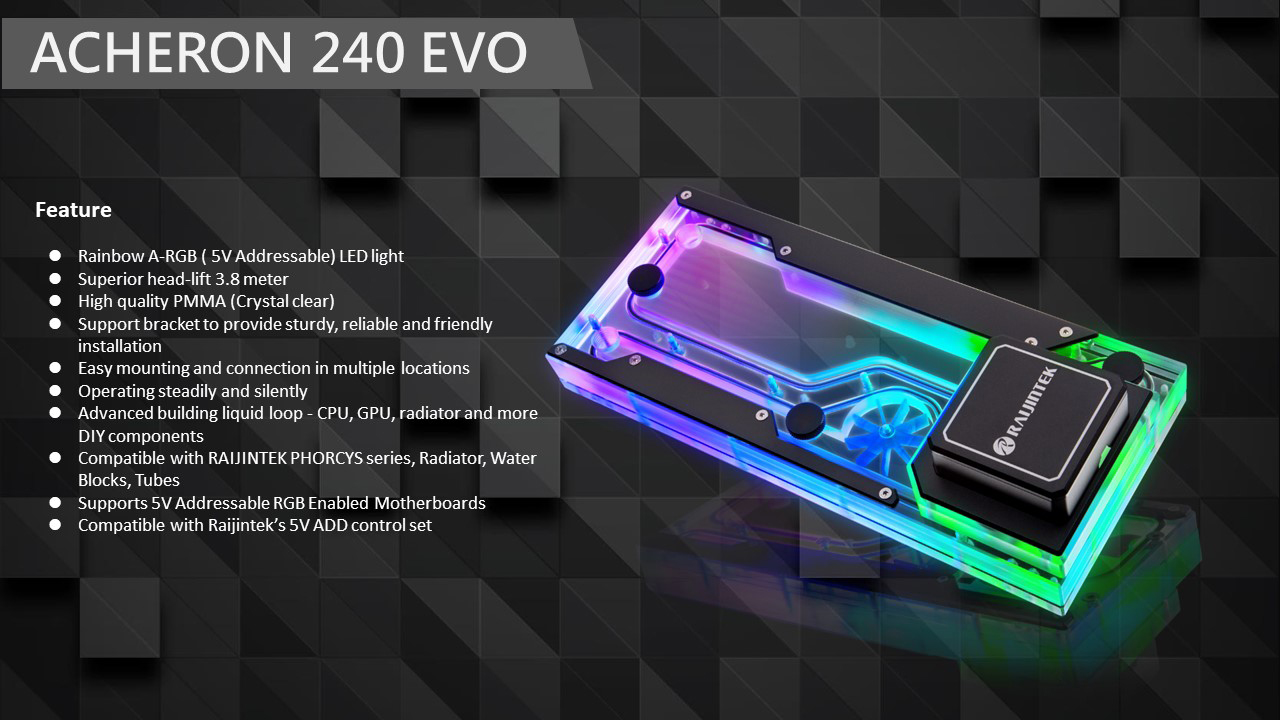

ACHERON 240 SERIES











  •
  • ACHERON 240 DDC RBW
  • Rainbow A-RGB ( 5V Addressable) LED light
  • Superior head-lift 3.8 meter
  • High quality PMMA (Crystal clear)
  • Support bracket to provide sturdy, reliable and friendly installation

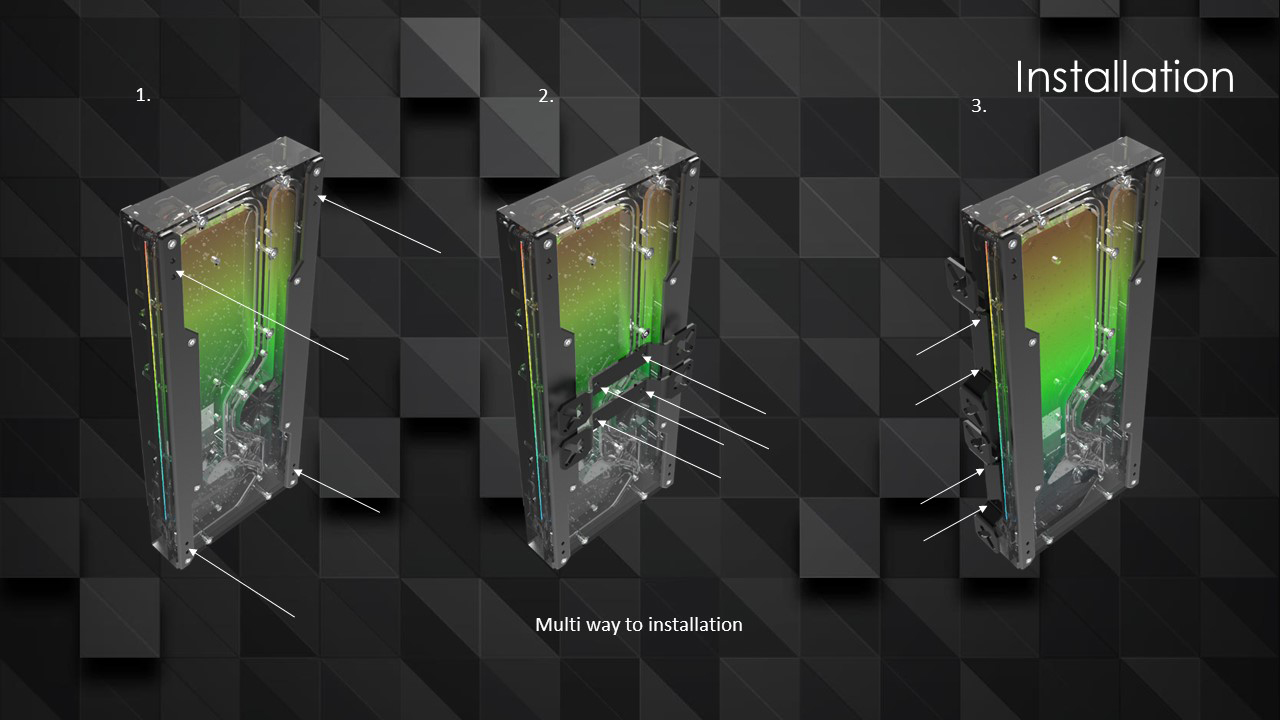

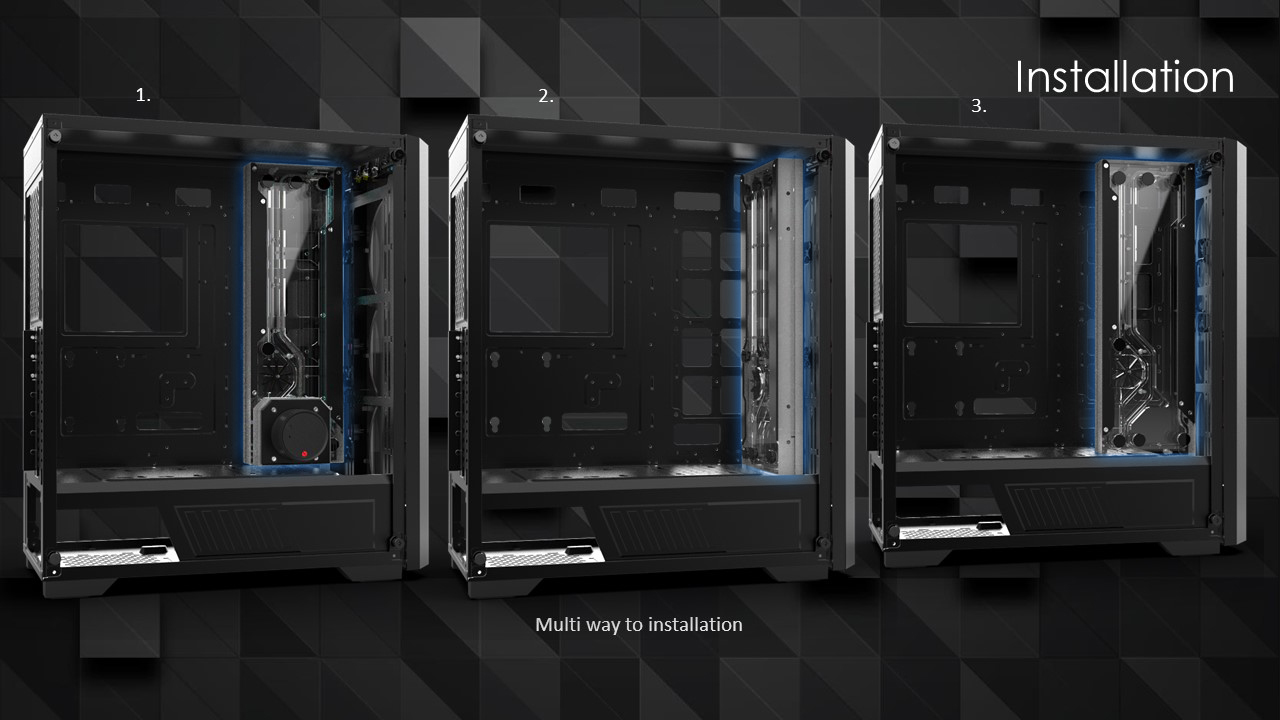

  • Easy mounting and connection in multiple locations
  • Operating steadily and silently
  • Advanced building liquid loop - CPU, GPU, radiator and more DIY components
  • Compatible with RAIJINTEK PHORCYS series, Radiator, Water Blocks, Tubes
  • Supports 5V Addressable RGB Enabled Motherboards
  • Compatible with Raijintek’s 5V ADD control set

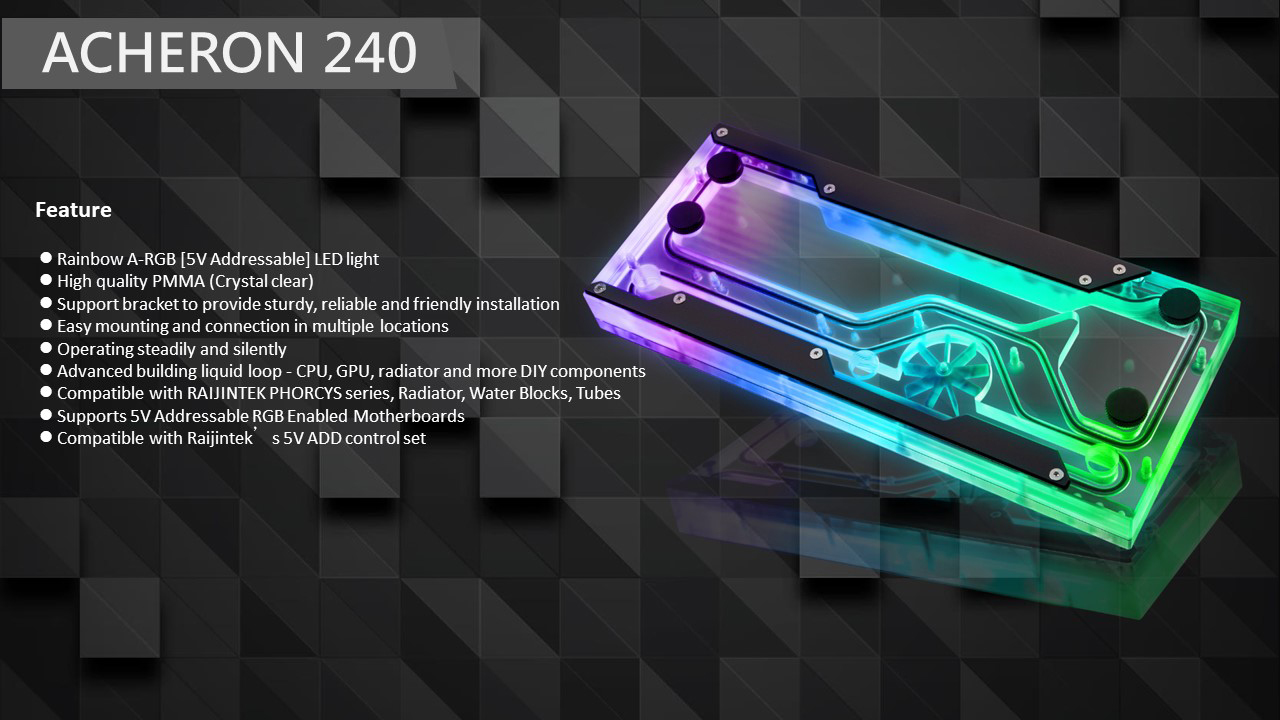

  • ACHERON 240 RBW
  • Rainbow A-RGB [5V Addressable] LED light
  • High quality PMMA (Crystal clear)
  • Support bracket to provide sturdy, reliable and friendly installation
  • Easy mounting and connection in multiple locations
  • Operating steadily and silently
  • Advanced building liquid loop - CPU, GPU, radiator and more DIY components
  • Compatible with RAIJINTEK PHORCYS series, Radiator, Water Blocks, Tubes
  • Supports 5V Addressable RGB Enabled Motherboards
  • Compatible with Raijintek’s 5V ADD control set

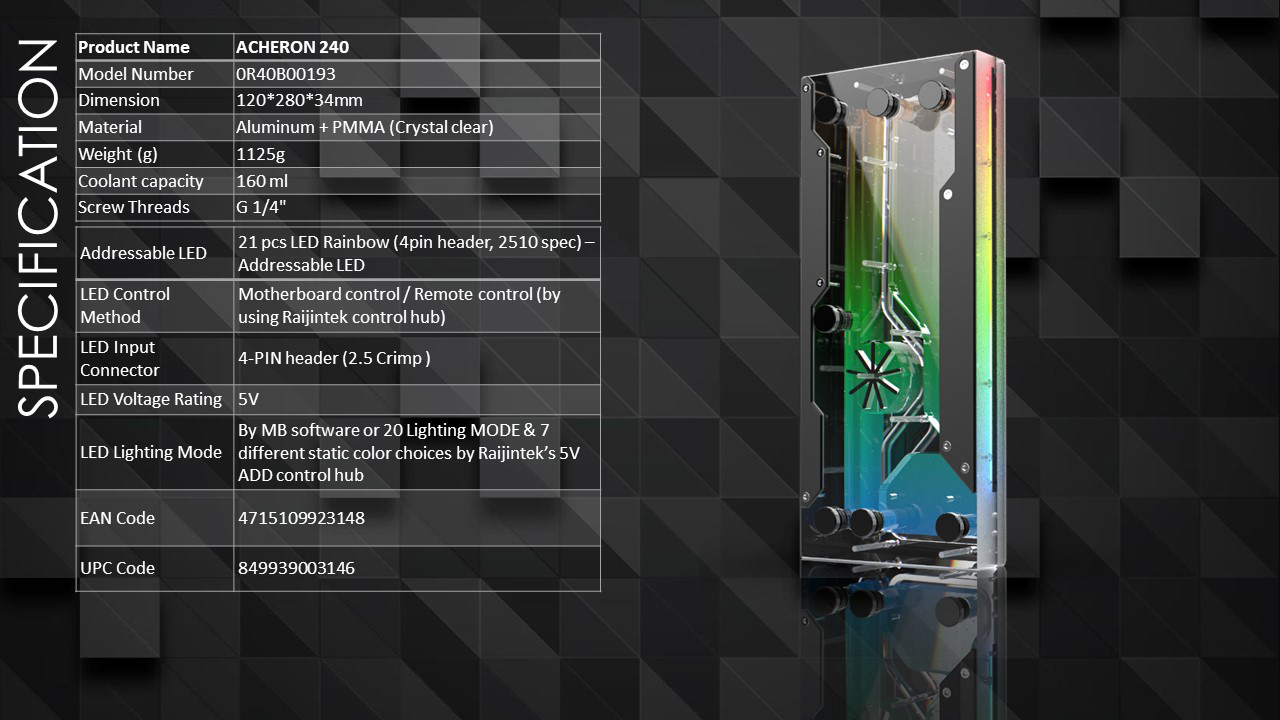

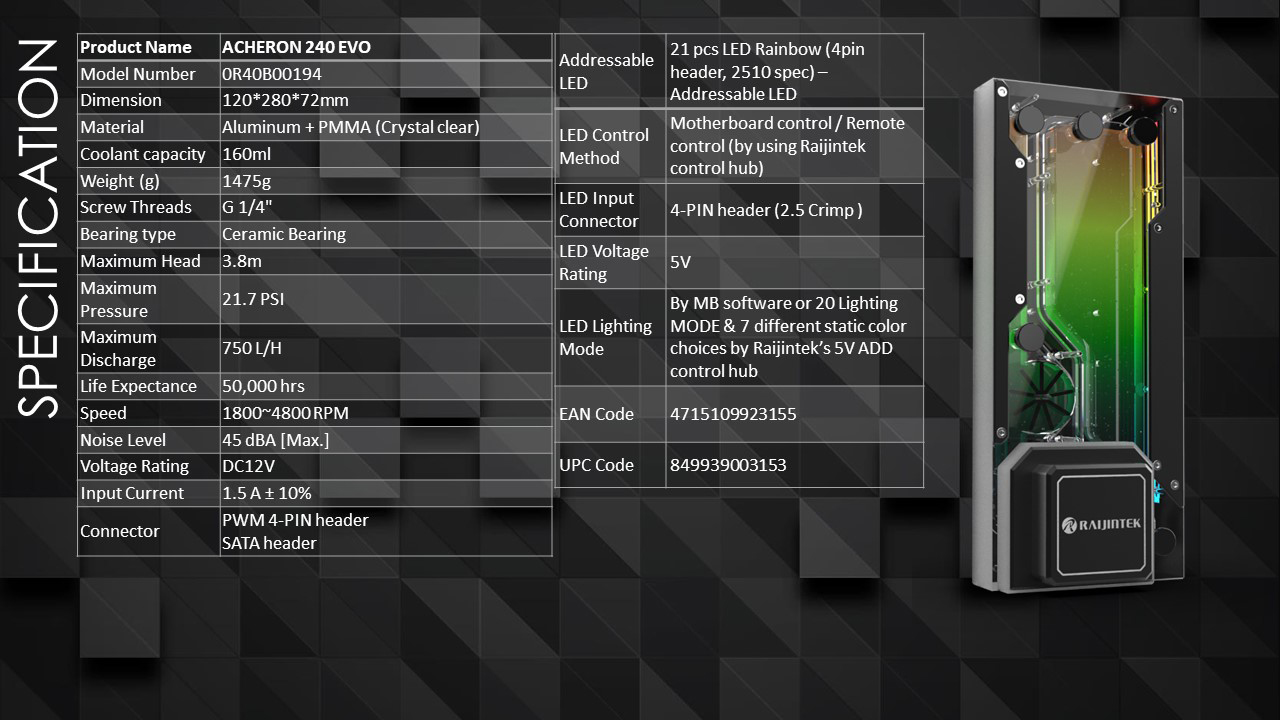

SPECIFICATION
Product Name ACHERON 240 RBW ACHERON 240 DDC RBW
Product Number 0R40B00193 0R40B00194

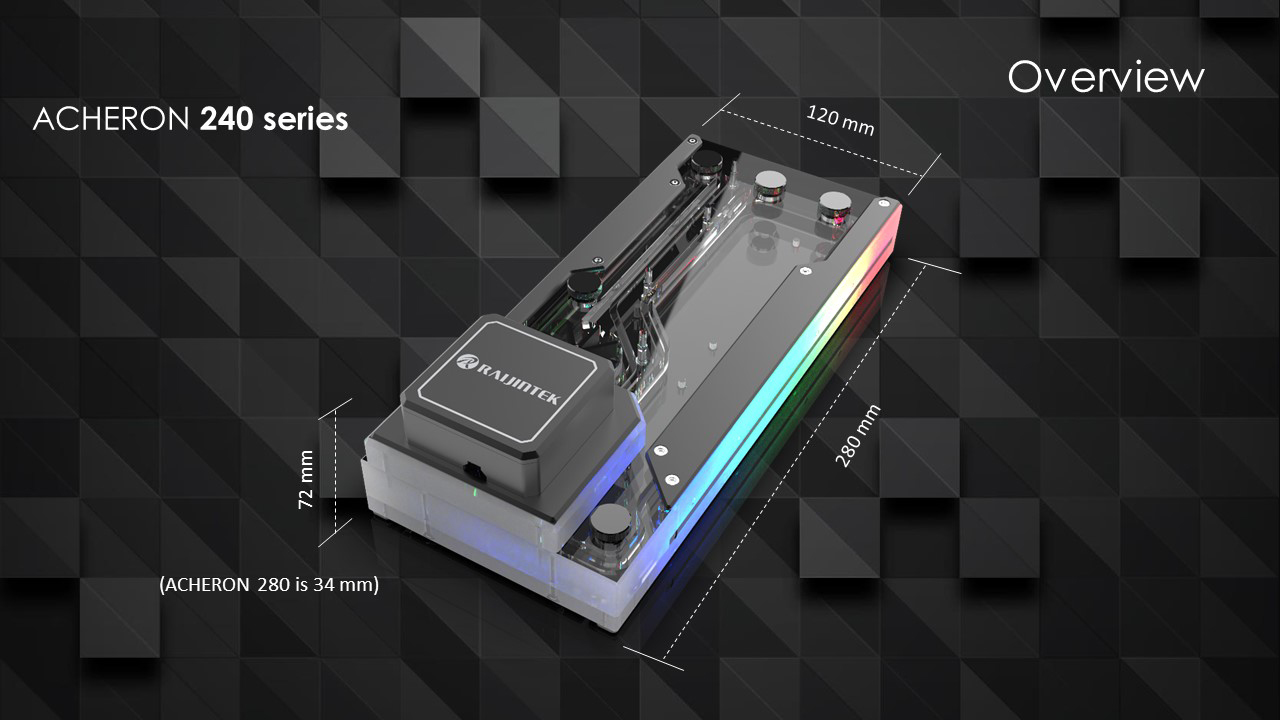

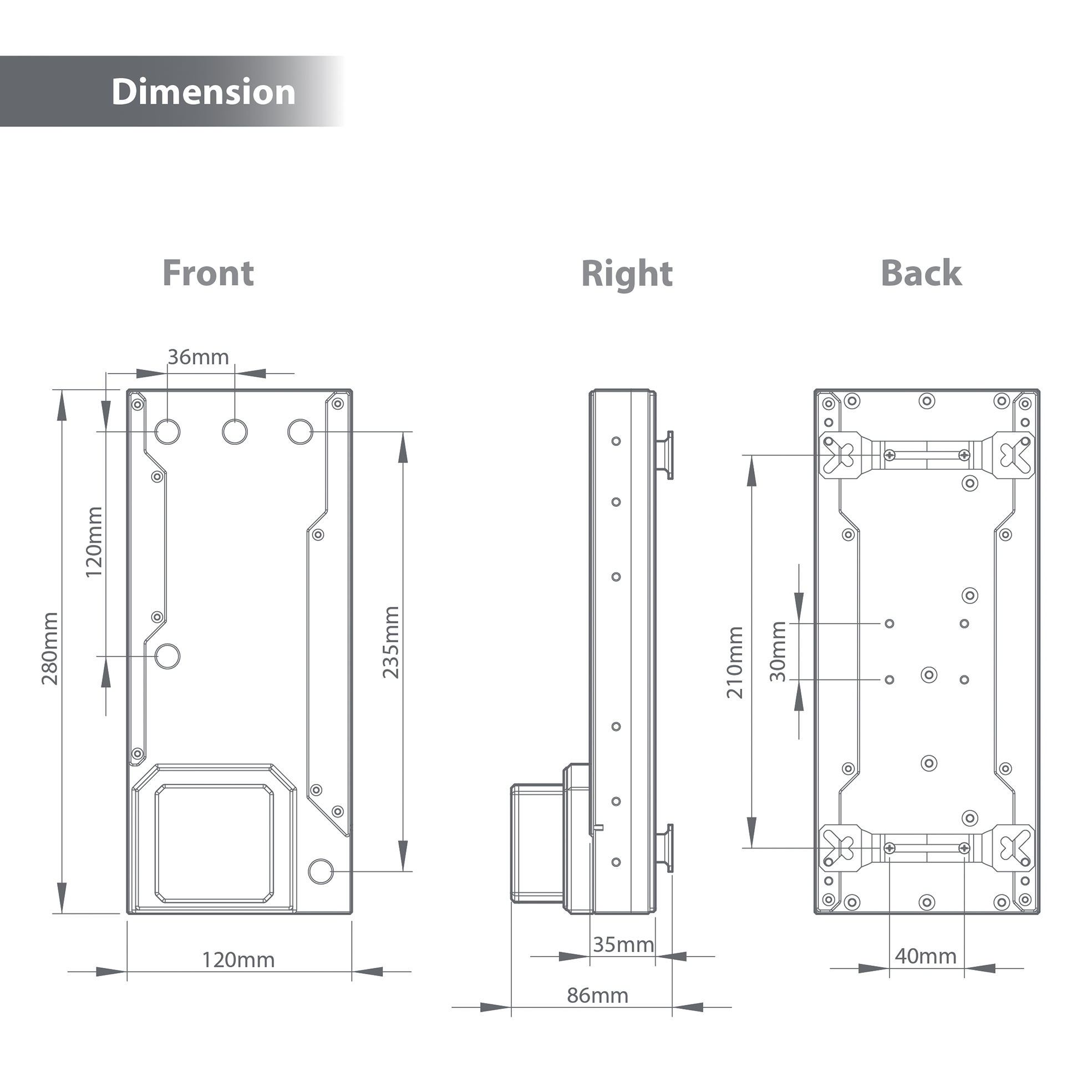

Dimension [W×H×D] 120×280×34 mm 120×280×72 mm
Weight [Block+Pump+Radiator] 1125g 1475g

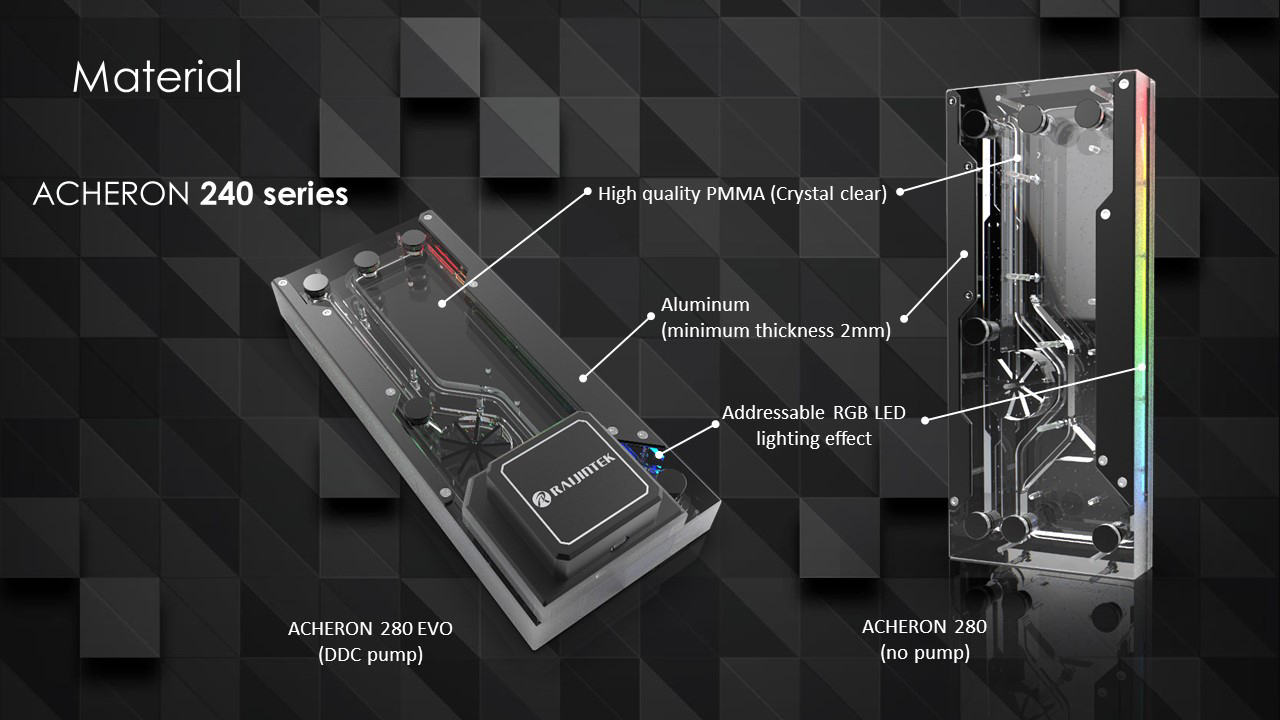

Material Aluminum + PMMA (Crystal clear) Aluminum + PMMA (Crystal clear)
Coolant Capacity 160ml 160ml
Screw Threads G 1/4" G 1/4"
LED
Addressable LED 21 pcs LED Rainbow (4pin header, 2510 spec) – Addressable LED
Control Method Motherboard control / Remote control (by using Raijintek control hub)
Input Connector 4-PIN header (2.5 Crimp)
Voltage Rating 5V
Lighting Mode By MB software or 20 Lighting MODE & 7 different static color choices by Raijintek's 5V ADD control hub
PUMP
Bearing type Ceramic Bearing
Maximum Head 3.8 meter
Maximum Discharge 750 L/H
Maximum Pressure 21.7 PSI
Life Expectance 50,000 hrs
Noise Level 45 dBA [Max.]
Speed 1800~4800 RPM
Voltage Rating DC12V
Input Current 1.5A ±10%
Connector PWM 4-PIN header / SATA header
  •

ACHERON 360 × 1

Mounting Clip × 2

M4 Metal nut × 4

#6-32 L31.75mm Screw × 4

#6-32 L6mm Screw × 4

M4 L8mm Screw × 8
