EOS 9 RBW ADD

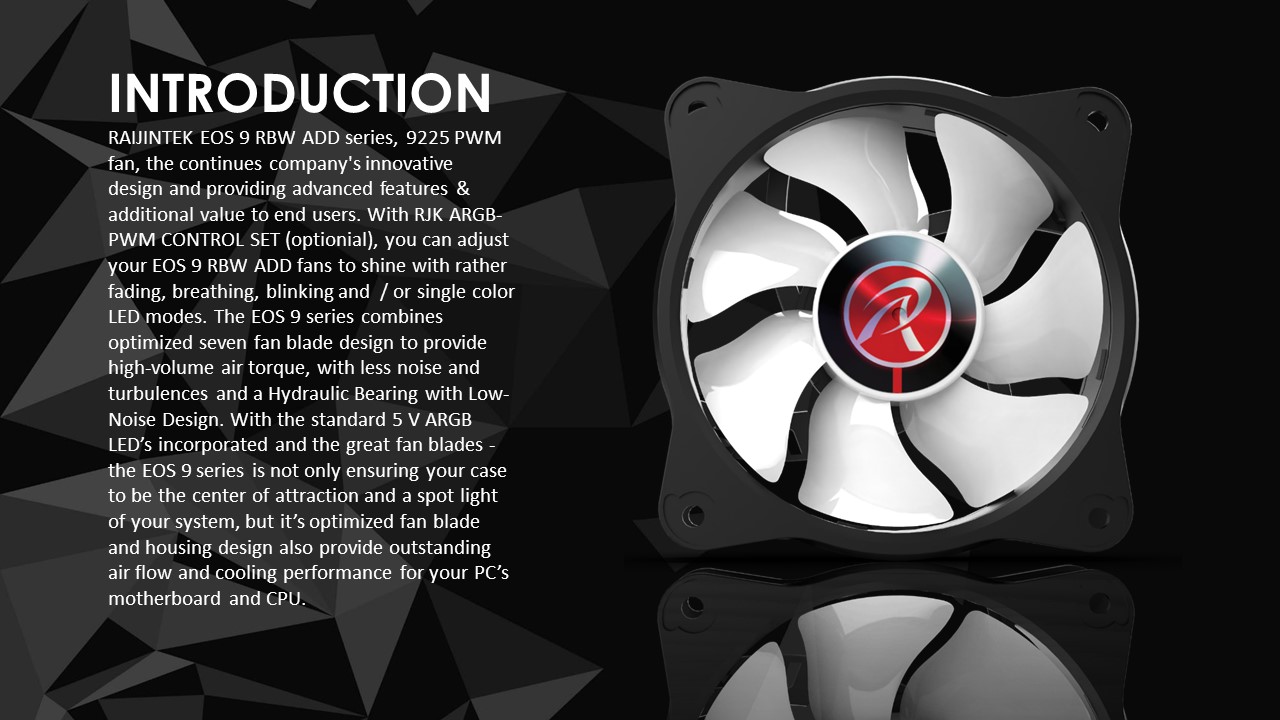

RAIJINTEK EOS 9 RBW ADD series, 9225 PWM fan, the continues company's innovative design and providing advanced features & additional value to end users. With RJK ARGB-PWM CONTROL SET (optionial), you can adjust your EOS 9 RBW ADD fans to shine with rather fading, breathing, blinking and / or single color LED modes. The EOS 9 series combines optimized seven fan blade design to provide high-volume air torque, with less noise and turbulences and a Hydraulic Bearing with Low-Noise Design. With the standard 5 V ARGB LED’s incorporated and the great fan blades - the EOS 9 series is not only ensuring your case to be the center of attraction and a spot light of your system, but it’s optimized fan blade and housing design also provide outstanding air flow and cooling performance for your PC’s motherboard and CPU.

EOS 9 RBW ADD





  •

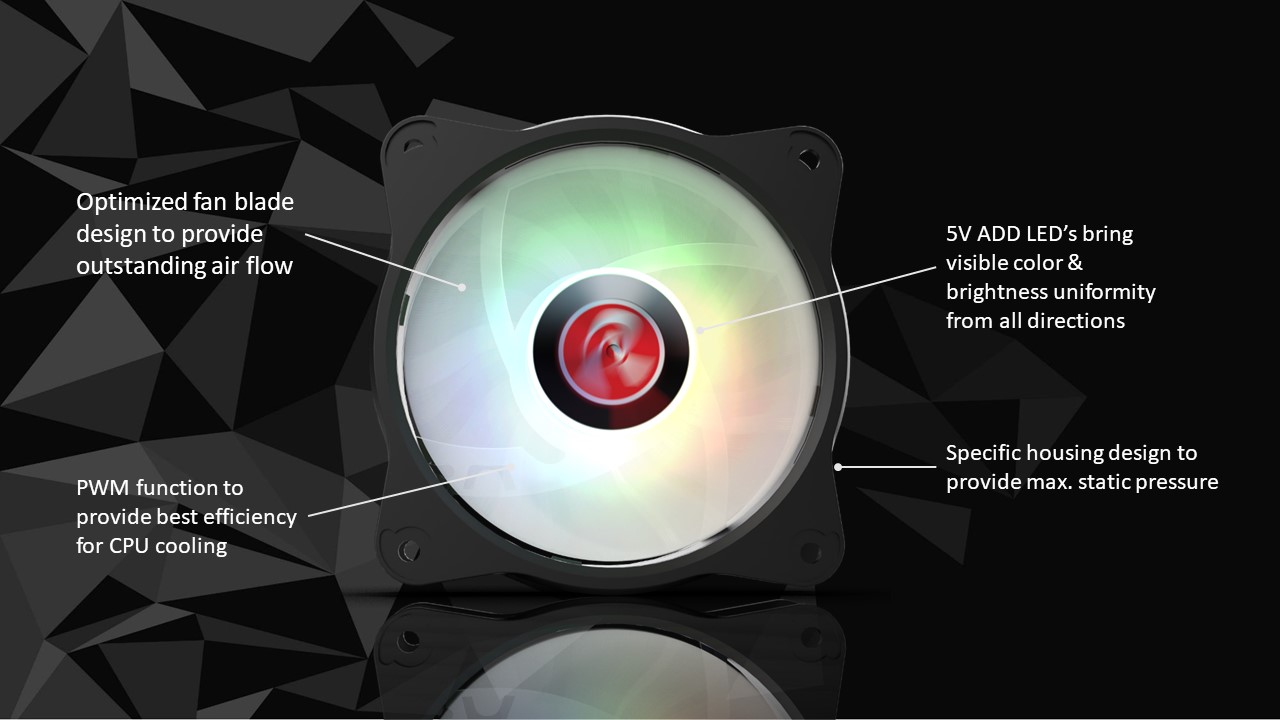

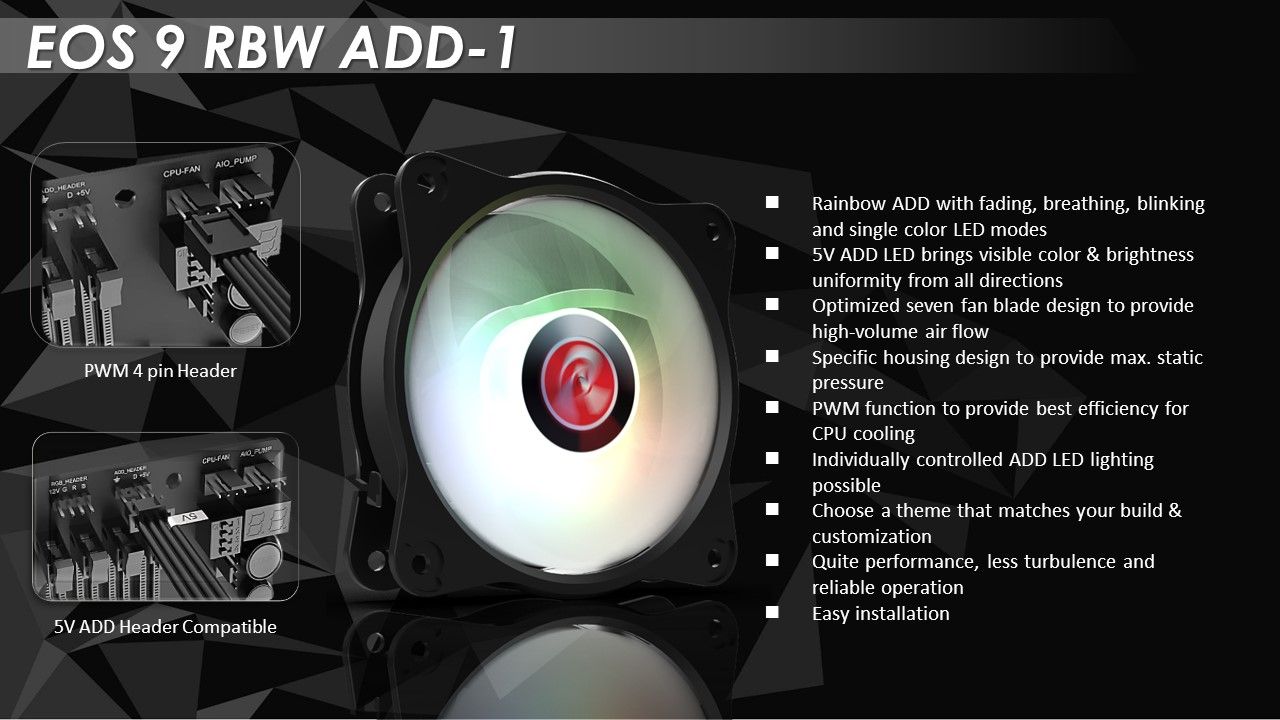

  • Rainbow ADD with fading, breathing, blinking and single color LED modes
  • 5V ADD LED brings visible color & brightness uniformity from all directions
  • Optimized seven fan blade design to provide high-volume air flow
  • Specific housing design to provide max. static pressure
  • PWM function to provide best efficiency for CPU cooling
  • Individually controlled ADD LED lighting possible
  • Choose a theme that matches your build & customization
  • Quite performance, less turbulence and reliable operation
  • Easy installation
SPECIFICATION
Product Name EOS 9 RBW ADD-1
Product Number 0R40B00214
Dimension [W×H×D] 100×100×25 mm
Voltage Rating 12V
Starting Voltage 5V
Speed 800~2000 R.P.M.
Bearing Type Hydraulic Bearing
Air Flow 52 CFM [Max.]
Air Pressure 1.9 mmH2O [Max.]
Life Expectance 40,000 hrs
Noise Level 22.95 dBA [Max.]
Connector 5V ADD Header, PWM 4pin Header
Rated Current 0.26A±10%
Power consumption 2.1W±20%
LED Rated Current 0.6A [Max.]
LED Power consumption 3W [Max.]
Fan Q'ty 1 pcs
  •
  • Remote controller function

  • 1.On/off: Power on/off
    2.SPEED (+): While Dynamic color mode, increase the speed of color change; Not for Static mode
    3.SPEED (-): While Dynamic color mode, decrease the speed of color change; Not for Static mode
    4.MODE (+): Forward to next mode
    5.MODE (-): Backward to previous mode
    6.AUTO: Automatically cycles all modes, 10 seconds for each mode
    7.W: Single White LED
    8.R: Single Red LED
    9.G: Single Green LED
    10.B: Single Blue LED
  • Rainbow RGB

  • 20 modes: 13 Dynamic color modes & 7 Static color modes
    Memory function: While power on, the mode and speed are at previous status
    Voltage rating: 12V
    Connecting 6 fans will get best effect for Dynamic modes
  • Color Modes

  • Mode 1: Dynamic 6 colors rotating with transition effect
    Mode 2: Dynamic lighting rotation to each other with transition effect
    Mode 3: Dynamic 6 colors rotating without transition effect
    Mode 4: Dynamic 7 colors switch by water-flow rotating with low brightness effect on background color
    Mode 5: Dynamic 7 single colors switch by water-flow effect
    Mode 6: Dynamic 7 shinning colors switch by water-flow effect
    Mode 7: Dynamic 7 colors switch by water-flow rotating with covering background color effect
    Mode 8-13: Dynamic 7 colors by water-flow rotating
    Mode 14-20: Static single LED color

EOS 9 RBW ADD ×1

Screw ×4
