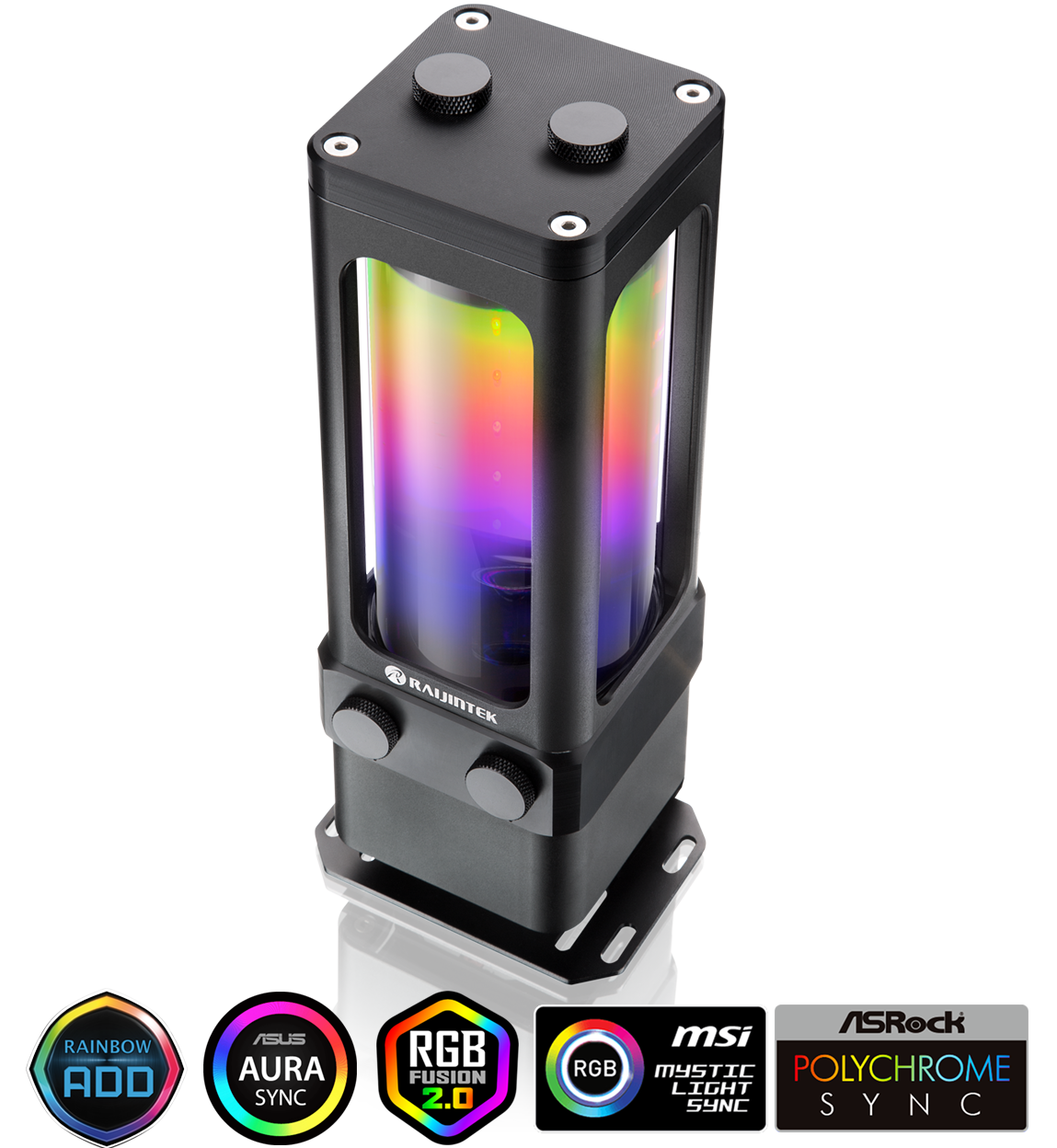

ANTILA D5 EVO RBW-15

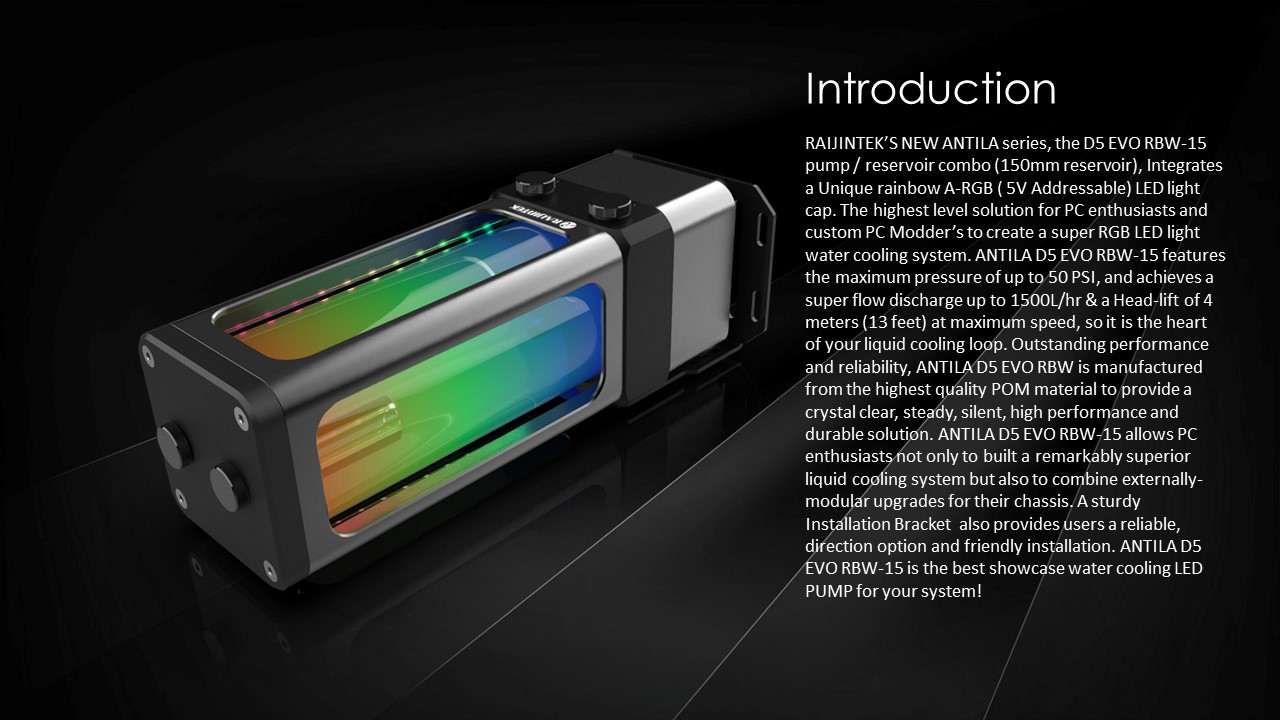

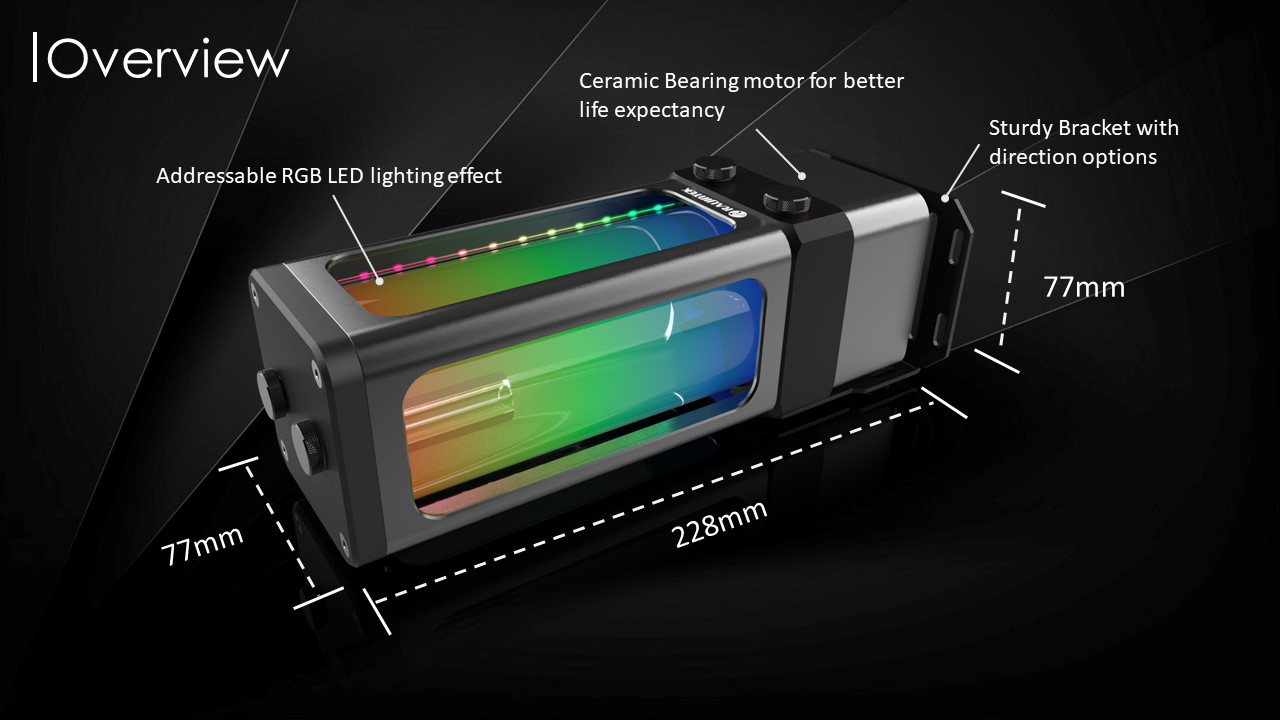

RAIJINTEK’S NEW ANTILA D5 EVO RBW-15 pump (with 200mm reservoir), integrated a Unique rainbow A-RGB ( 5V Addressable) LED light cap. The highest level solution for PC enthusiasts and custom PC Modder’s to create a super RGB LED light water cooling system. ANTILA D5 EVO RBW-15 features the maximum pressure of up to 50 PSI, and achieve a super flow discharge up to 1500L/hr & a Head-lift of 4 meter (13 feet) at maximum speed, thus it is the heart of your liquid cooling loop. Outstanding performance and reliability, ANTILA D5 EVO RBW-15 is manufactured from highest quality POM and PMMA material to provide a crystal clear, steadily, silently, high performance, durable solution. ANTILA D5 EVO RBW-15 allows PC enthusiasts not only to construct a remarkably superior liquid cooling system but also combine externally-modular upgrades for their chassis. A sturdy Bracket also provides users a reliable, direction options and friendly installation. ANTILA D5 EVO RBW-15 is the best showcase water cooling LED PUMP for your system!

ANTILA D5 EVO RBW-15







  •

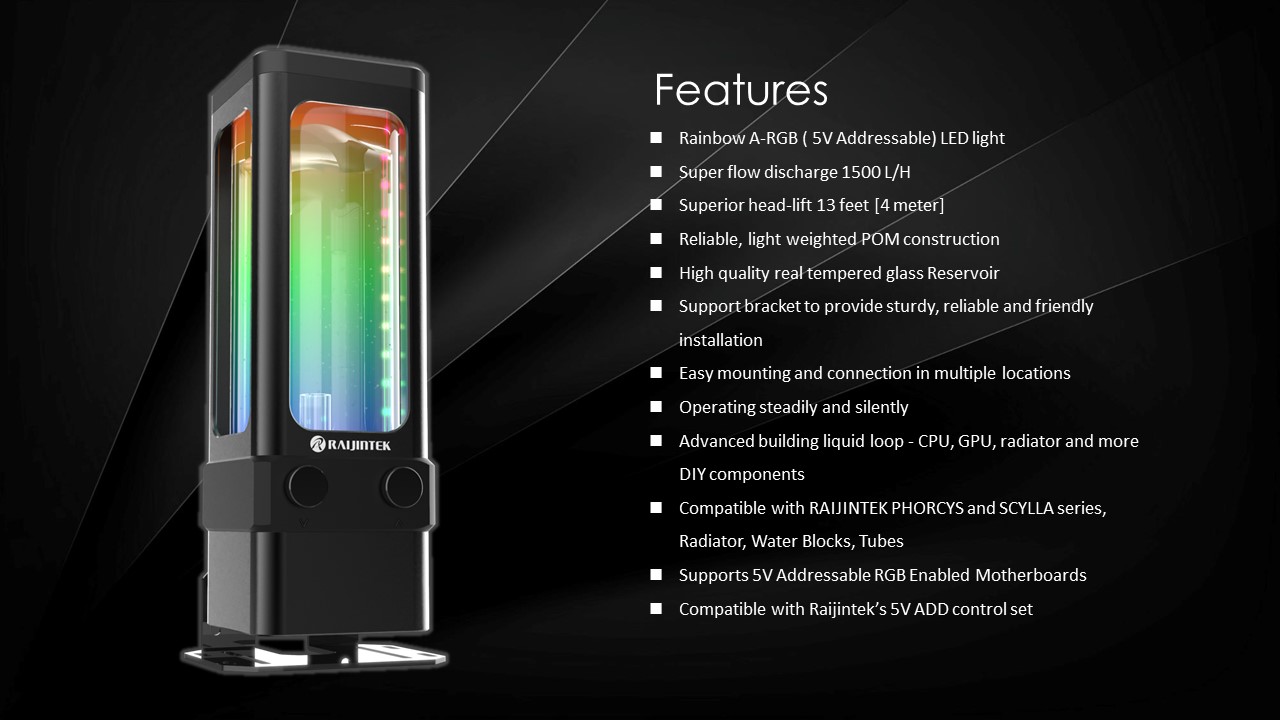

  • Rainbow A-RGB [5V Addressable] LED light
  • Super flow discharge 1500 L/H
  • Superior head-lift 13 feet [4 meter]
  • Reliable, light weighted POM construction
  • High quality real tempered glass Reservoir

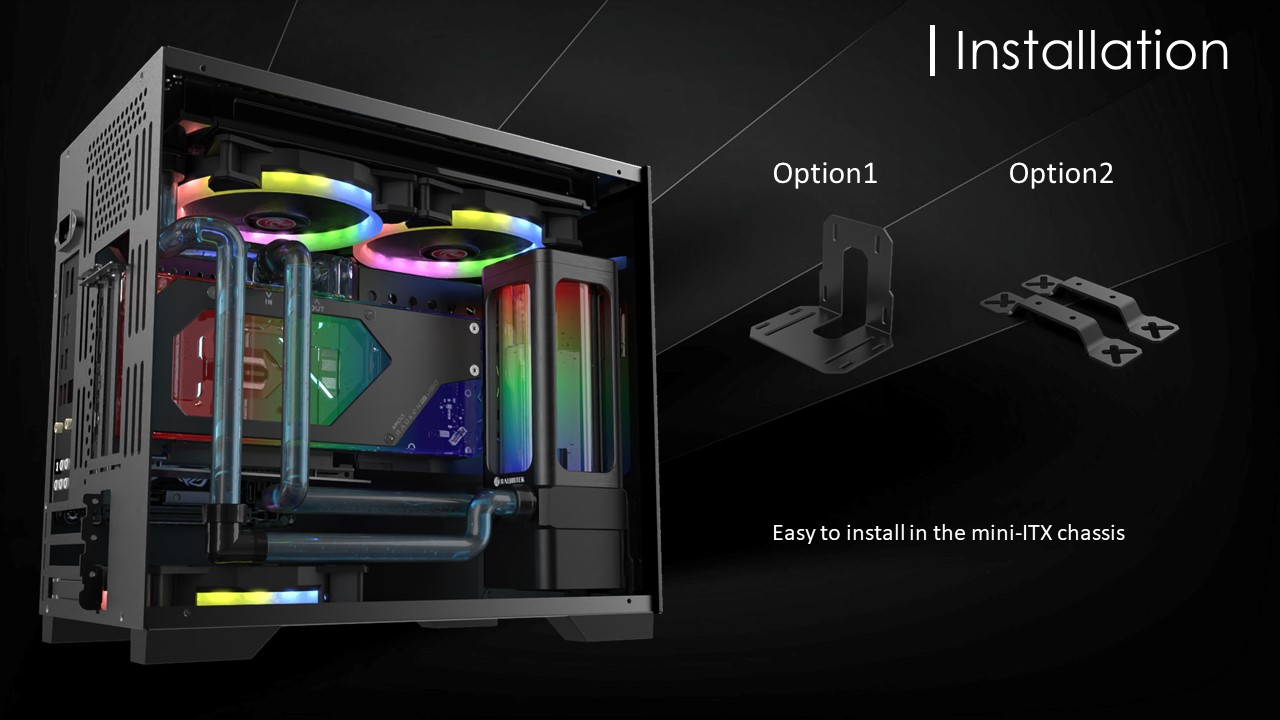

  • Support bracket to provide sturdy, reliable and friendly installation
  • Easy mounting and connection in multiple locations
  • Operating steadily and silently

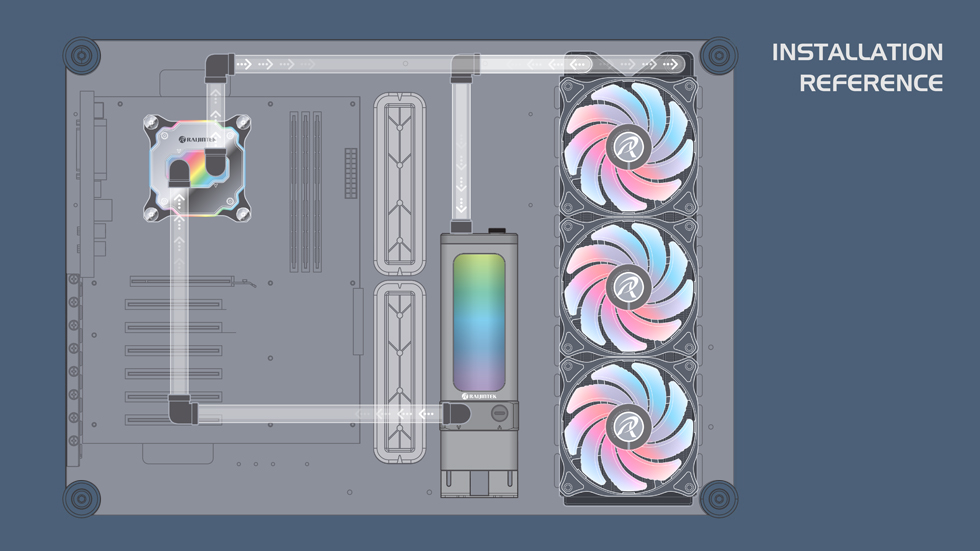

  • Advanced building liquid loop - CPU, GPU, radiator and more DIY components
  • Compatible with RAIJINTEK PHORCYS and SCYLLA series, Radiator, Water Blocks, Tubes
  • Supports 5V Addressable RGB Enabled Motherboards
  • Compatible with Raijintek’s 5V ADD control set
SPECIFICATION
Product Name ANTILA D5 EVO RBW-15
Product Number 0R40B00216
Q'ty 1 pcs

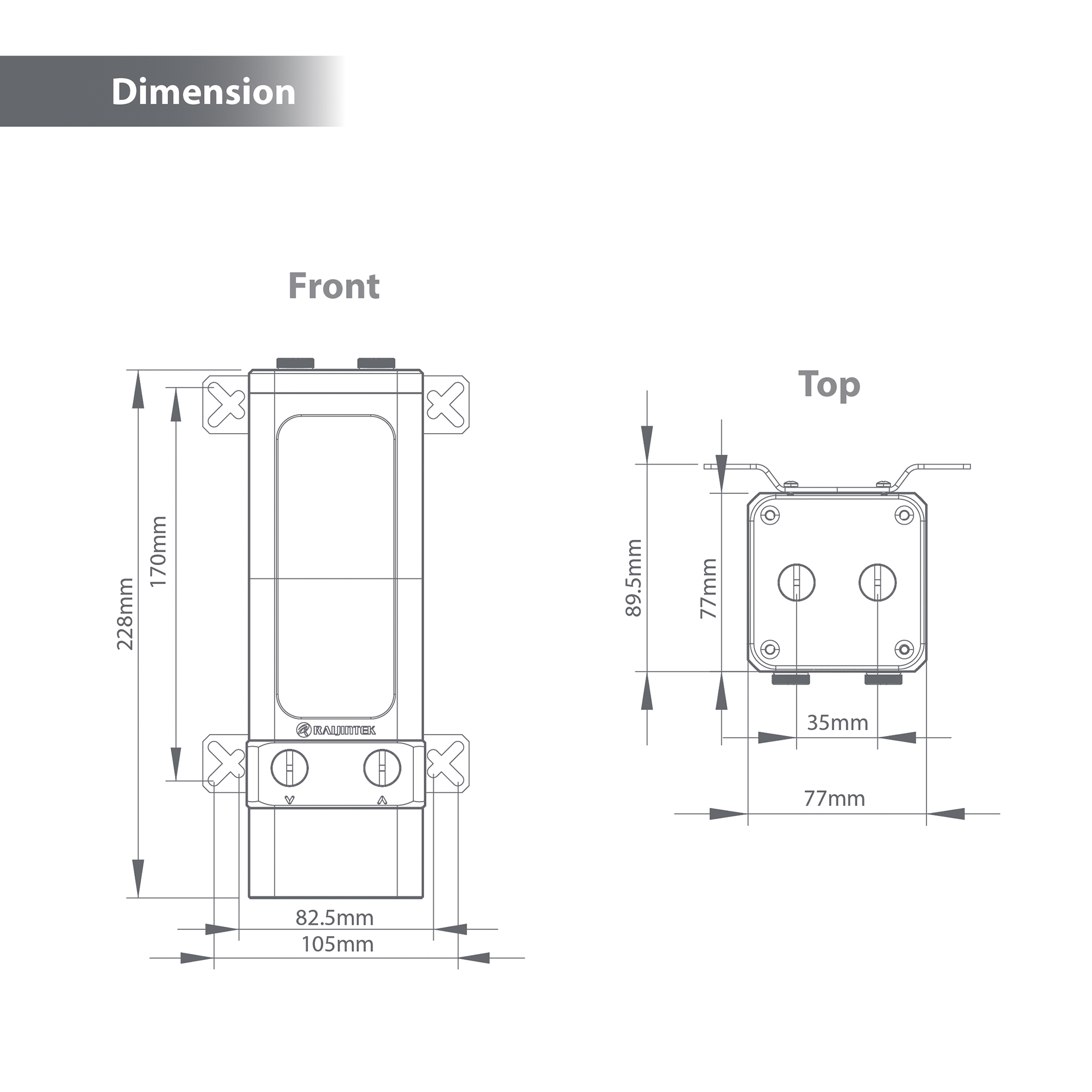

Dimension [W×D×H] 80×95×242 mm [with Bracket]
Reservoir Dimension 60×60×156 mm
Coolant Capacity 500 ml

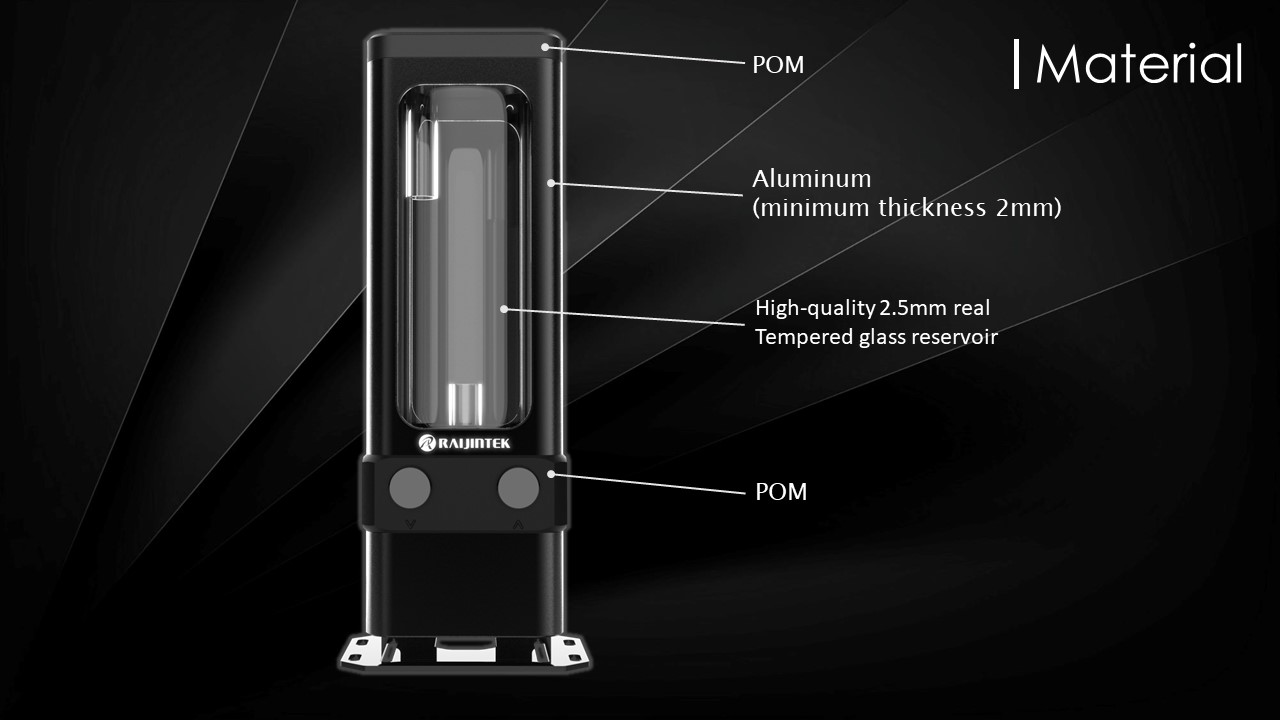

Material POM + Glass + Aluminum + Steel
Weight 1170 g

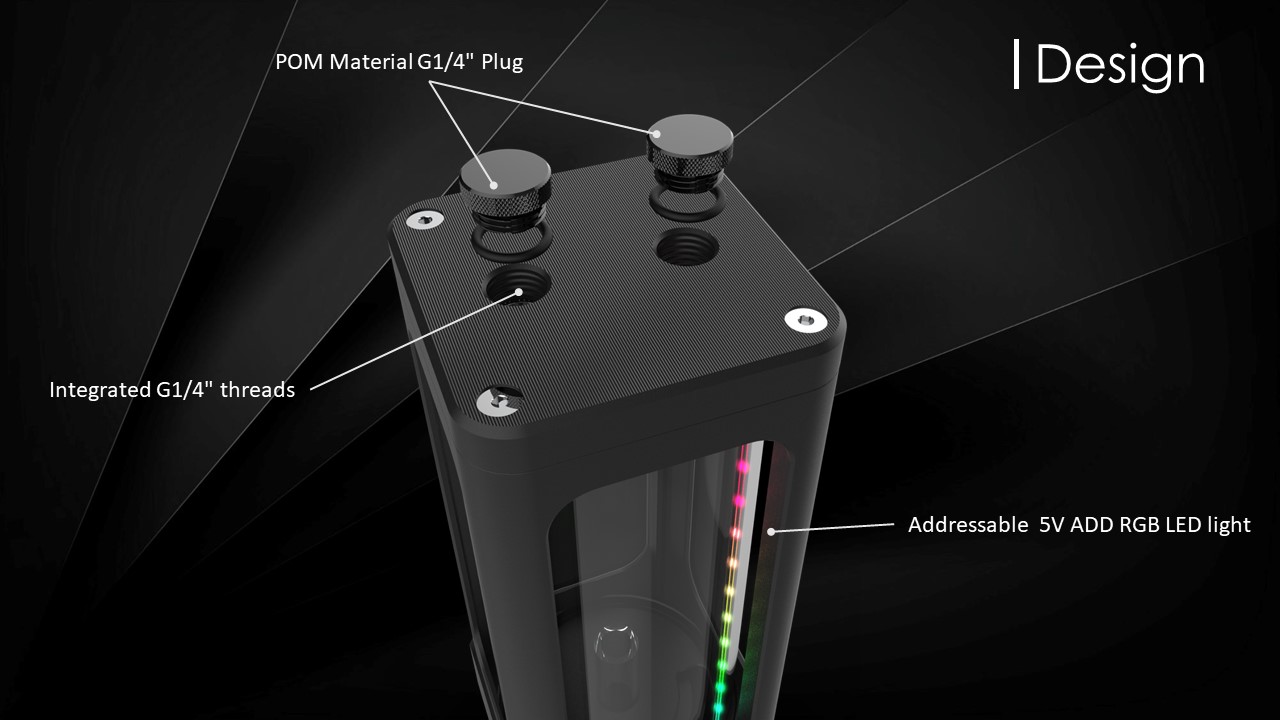

Screw Threads G 1/4"
Bearing type Ceramic Bearing
Maximum Head 4 meter
Maximum Discharge 1500 L/H
Maximum Pressure 50 PSI
Life Expectance 50,000 hrs
Noise Level 40 dBA [Max.]
Speed P1 : 1,800 RPM
P2 : 2,500 RPM
P3 : 3,300 RPM
P4 : 4,000 RPM
P5 : 4,800 RPM
Voltage Rating DC12V
Input Current 2.5A ±10%
Connector SATA
2510-3P [NA / NA / Fg ]
Addressable LED 8 LED Rainbow (4pin header, 2510 spec) – Addressable LED
LED Control Method Motherboard control / Remote control (by using Raijintek control hub)
LED Input Connector 4-PIN header (2.5 Crimp)
LED Voltage Rating 5V
Lighting Mode By MB software or 20 Lighting MODE & 7 different static color choices by Raijintek's 5V ADD control hub

ANTILA D5 EVO RBW-15 × 1

Mounting Clip × 2

M4 Metal nut × 4

#6-32 L31.75mm Screw × 4

#6-32 L6mm Screw × 4

M4 L8mm Screw × 8

Installation Guide × 1

Package × 1
