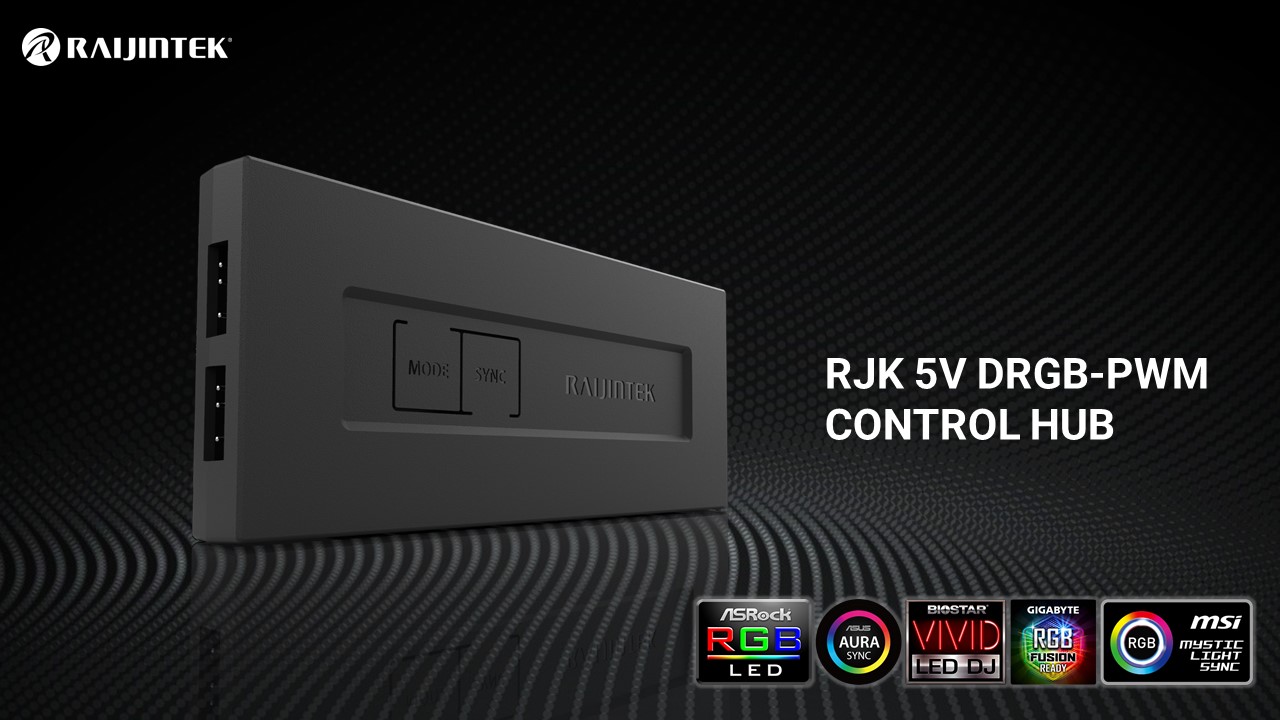

RJK 5V DRGB-PWM Control Hub

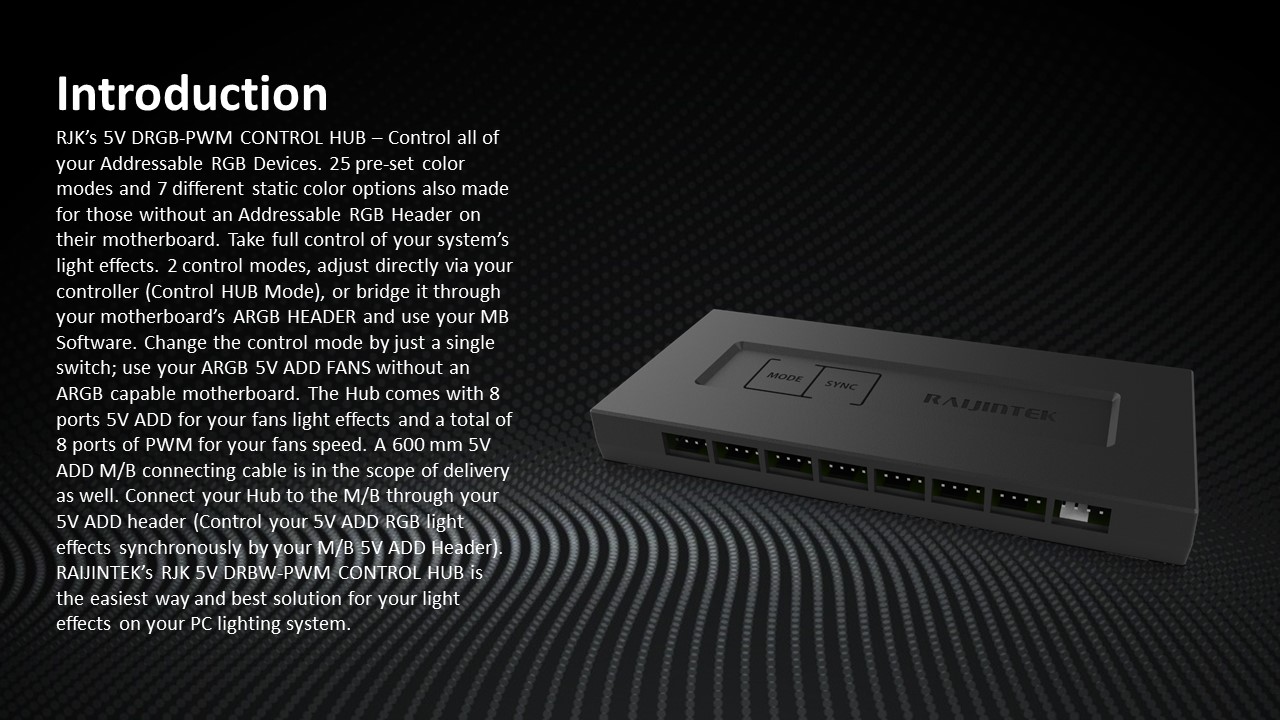

RJK’s 5V DRGB-PWM CONTROL HUB – Control all of your Addressable RGB Devices. 25 pre-set color modes and 7 different static color options also made for those without an Addressable RGB Header on their motherboard. Take full control of your system’s light effects. 2 control modes, adjust directly via your controller (Control HUB Mode), or bridge it through your motherboard’s ARGB HEADER and use your MB Software. Change the control mode by just a single switch; use your ARGB 5V ADD FANS without an ARGB capable motherboard. The Hub comes with 8 ports 5V ADD for your fans light effects and a total of 8 ports of PWM for your fans speed. A 600 mm 5V ADD M/B connecting cable is in the scope of delivery as well. Connect your Hub to the M/B through your 5V ADD header (Control your 5V ADD RGB light effects synchronously by your M/B 5V ADD Header). RAIJINTEK’s RJK 5V DRBW-PWM CONTROL HUB is the easiest way and best solution for your light effects on your PC lighting system.

RJK 5V DRGB-PWM Control Hub







SPECIFICATION
Product Name RJK 5V DRGB-PWM Control hub
Product Number 0R40B00225
Dimension [W×D×H] 57.5×133.5×13.5 mm
Weight 85 g

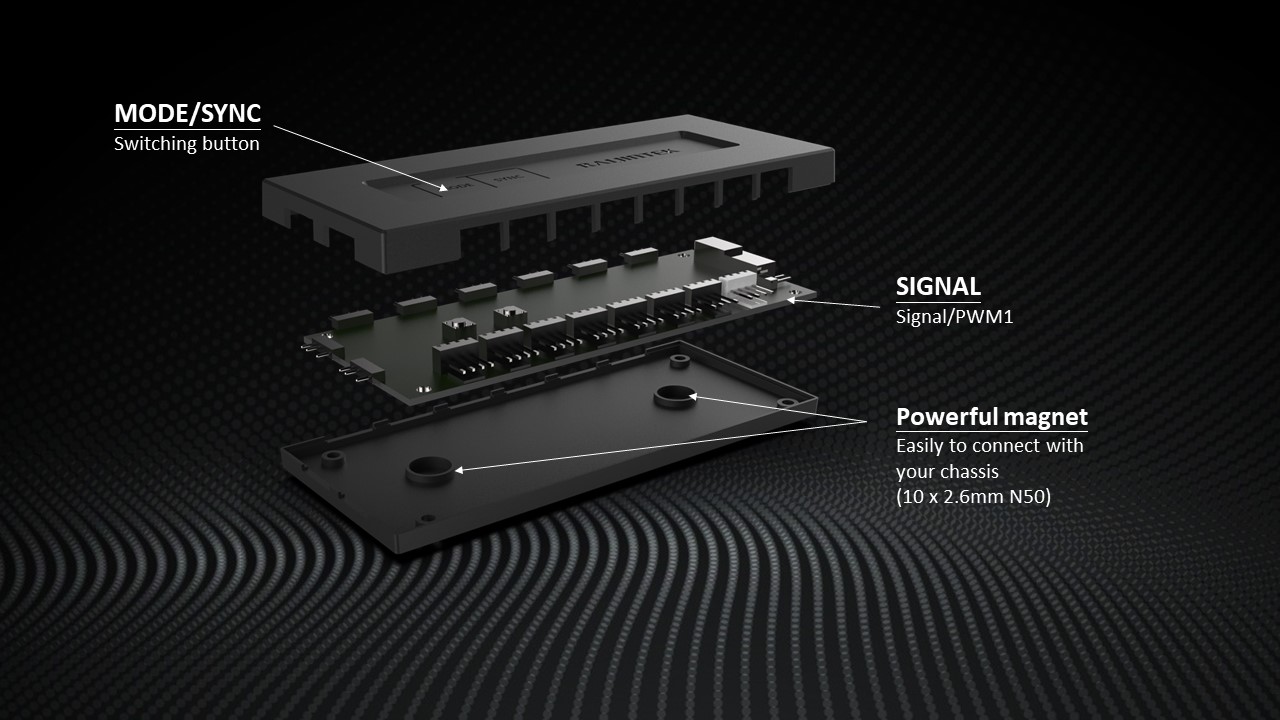

Material Plastic, PCB, Magnetic pad

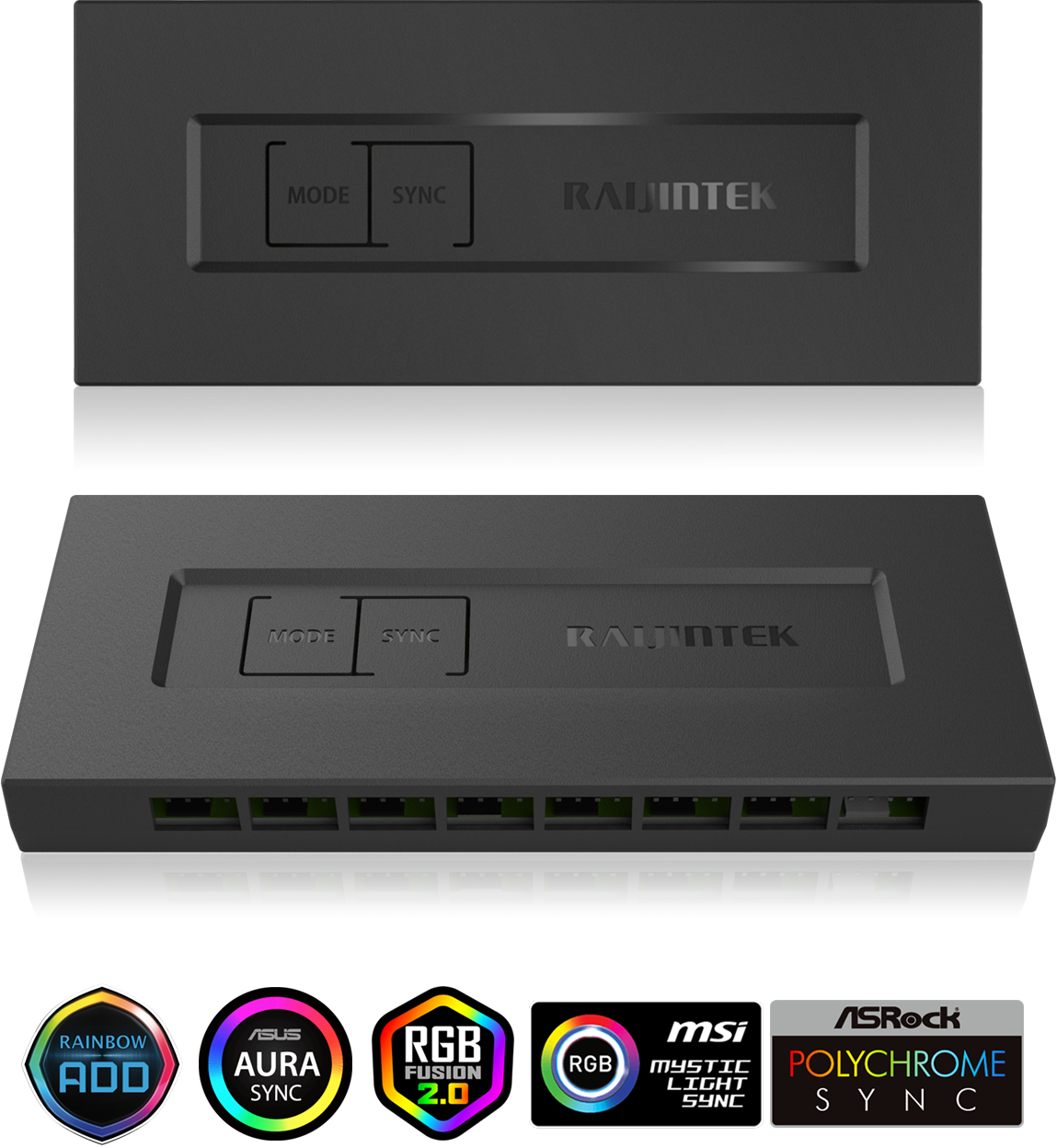

Control Method Button control / Motherboard sync

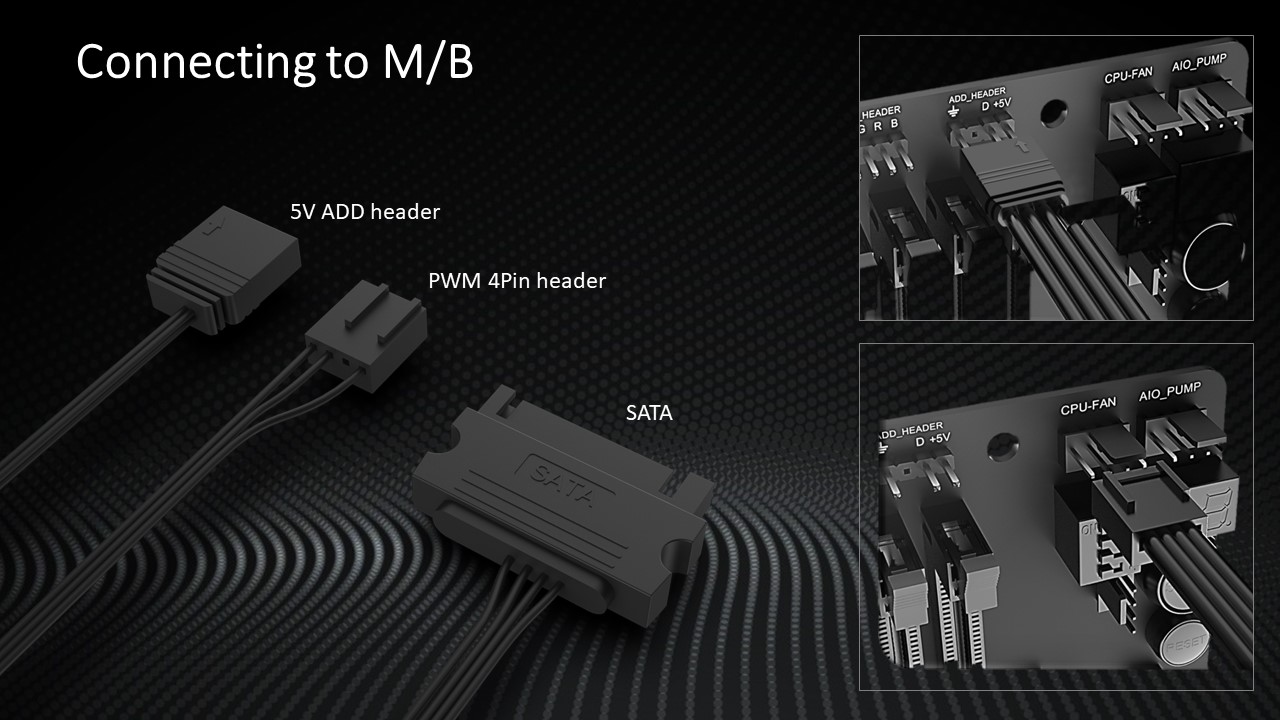

Power Connector SATA
Voltage Rating 12V

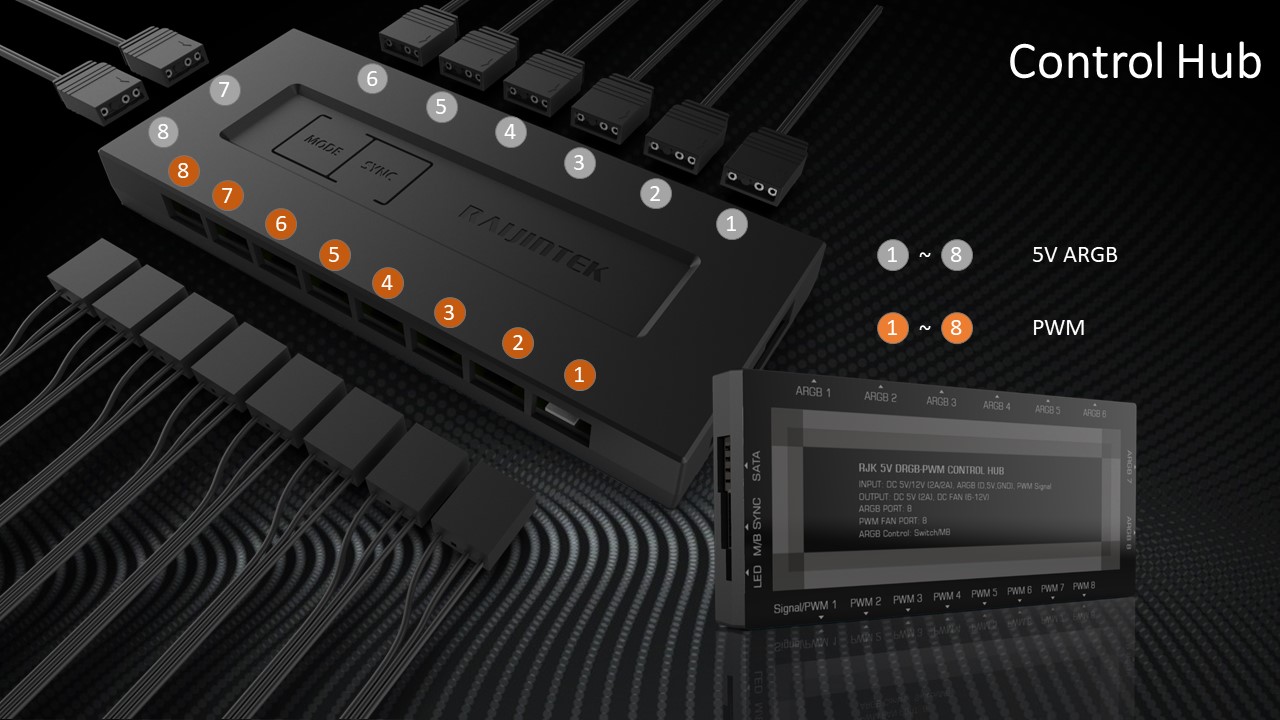

Output Channels 16 ports (ARGB×8 + PWM×8)
Lighting Mode 25 Lighting MODE & 7 different static color choices
  •

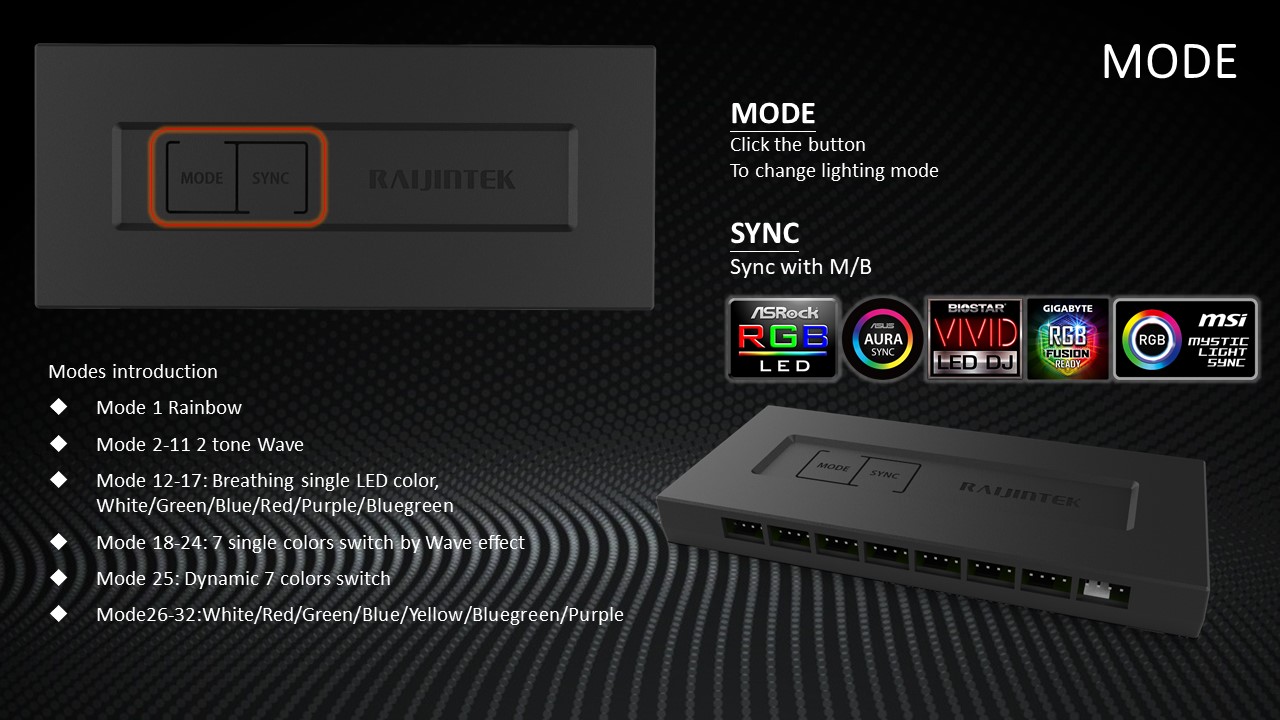

  • MODE Function

  • Mode 1: Rainbow
    Mode 2-11: 2 tone Wave
    Mode 12-17: Breathing single LED color, White/Green/Blue/Red/Purple/Bluegreen
    Mode 18-24: 7 single colors switch by Wave effect
    Mode 25: Dynamic 7 colors switch
    Mode 26-32: White/Red/Green/Blue/Yellow/Bluegreen/Purple

RJK 5V DRGB-PWM Control hub × 1

Package × 1
