PCIE G4 Riser Card - 200

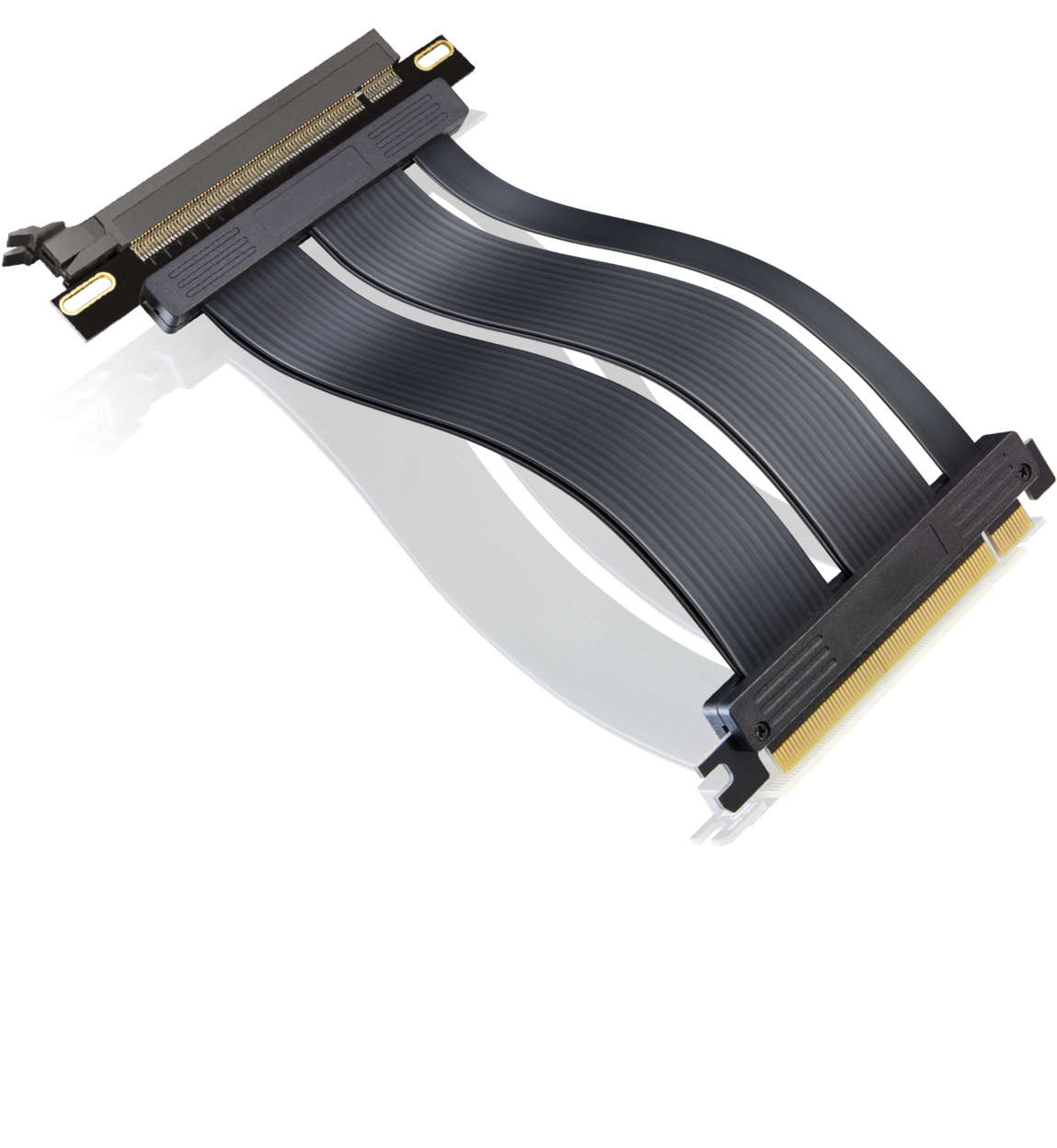

RJK’s PCIE G4 Riser Card 16× Gen4 riser cable. A practical extender cable, that allows you the installation of a PCI Slot with a 16× direct speed from the motherboard on any kind of chassis and any mounting installation. No loss of Speed due to high shielding and a length of 200mm combined with super data transmission, reliable and sturdy. Great modding projects and the capability of installation in different cases are the advantage for the global users, so they can design and install their dream systems, as they desire.

PCIE G4 Riser Card - 200






  •
  • PCI-E 16× Gen4.0 Riser Cable
  • Support’s PCIe 4.0, PCIe 3.0, PCIe 2.0
  • Coaxial cable technology
  • Data rates up to 25 Gbps
  • High stability and high bandwidth
  • Cable Impedance 90Ω
SPECIFICATION
Product Name PCIE G4 Riser Card - 200
Product Number 0R40B00190
Dimension [W×H×D] 263×140×10 mm
Cable Length 200mm
Cable Type Flexible Flat-ribbon Cable
Interface PCI Express 16× Gen4.0
Weight 65 g [N.W.] 180 g [G.W.]

PCIE G4 Riser Card-200 × 1

Package × 1
