ELEOS 12 DUO RBW

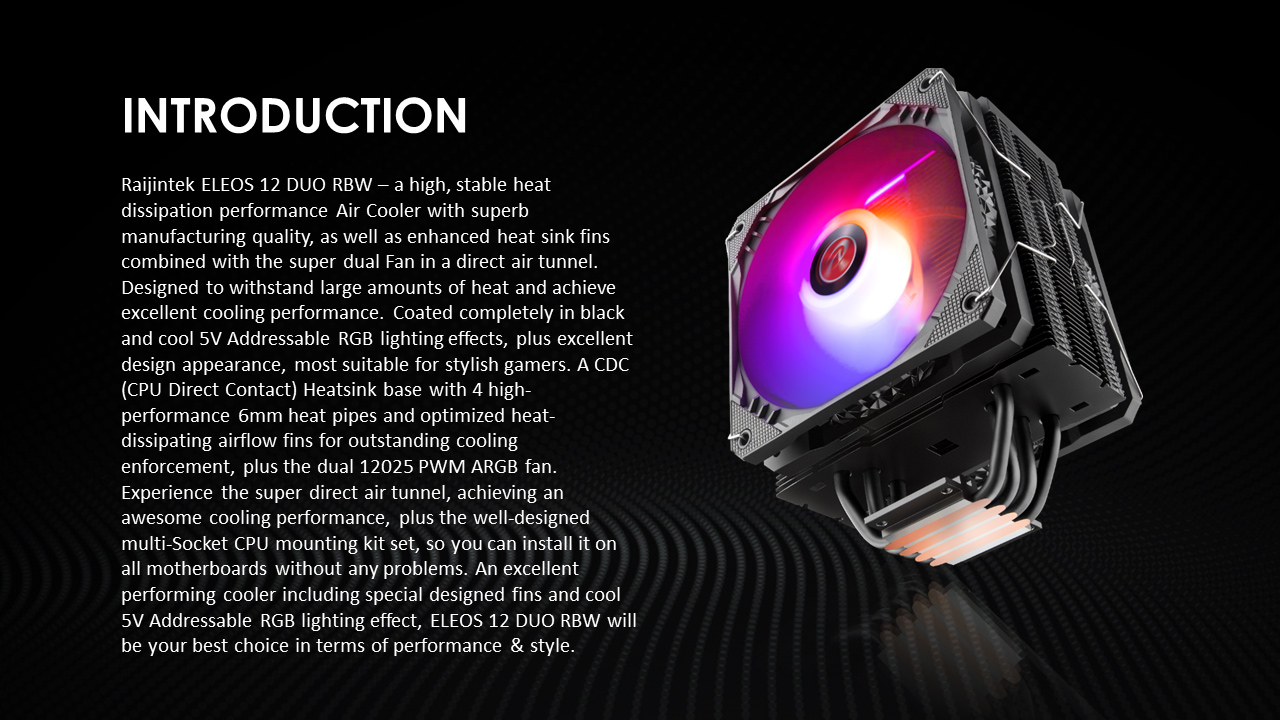

Raijintek ELEOS 12 DUO RBW – a high, stable heat dissipation performance Air Cooler with superb manufacturing quality, as well as enhanced heat sink fins combined with the super dual Fan in a direct air tunnel. Designed to withstand large amounts of heat and achieve excellent cooling performance. Coated completely in black and cool 5V Addressable RGB lighting effects, plus excellent design appearance, most suitable for stylish gamers. A CDC (CPU Direct Contact) Heatsink base with 4 high-performance 6mm heat pipes and optimized heat-dissipating airflow fins for outstanding cooling enforcement, plus the dual 12025 PWM ARGB fan. Experience the super direct air tunnel, achieving an awesome cooling performance, plus the well-designed multi-Socket CPU mounting kit set, so you can install it on all motherboards without any problems. An excellent performing cooler including special designed fins and cool 5V Addressable RGB lighting effect, ELEOS 12 DUO RBW will be your best choice in terms of performance & style.

ELEOS 12 DUO RBW








  •

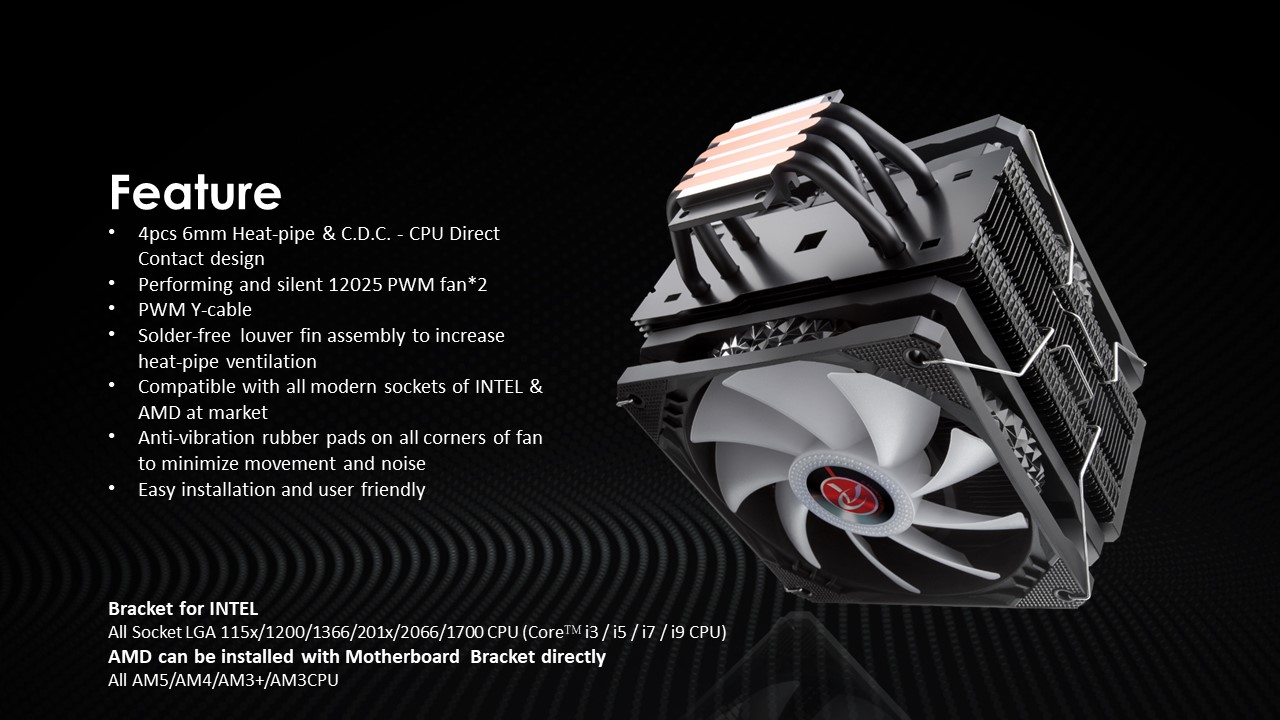

  • 4pcs 6mm Heat-pipe & C.D.C. - CPU Direct Contact design

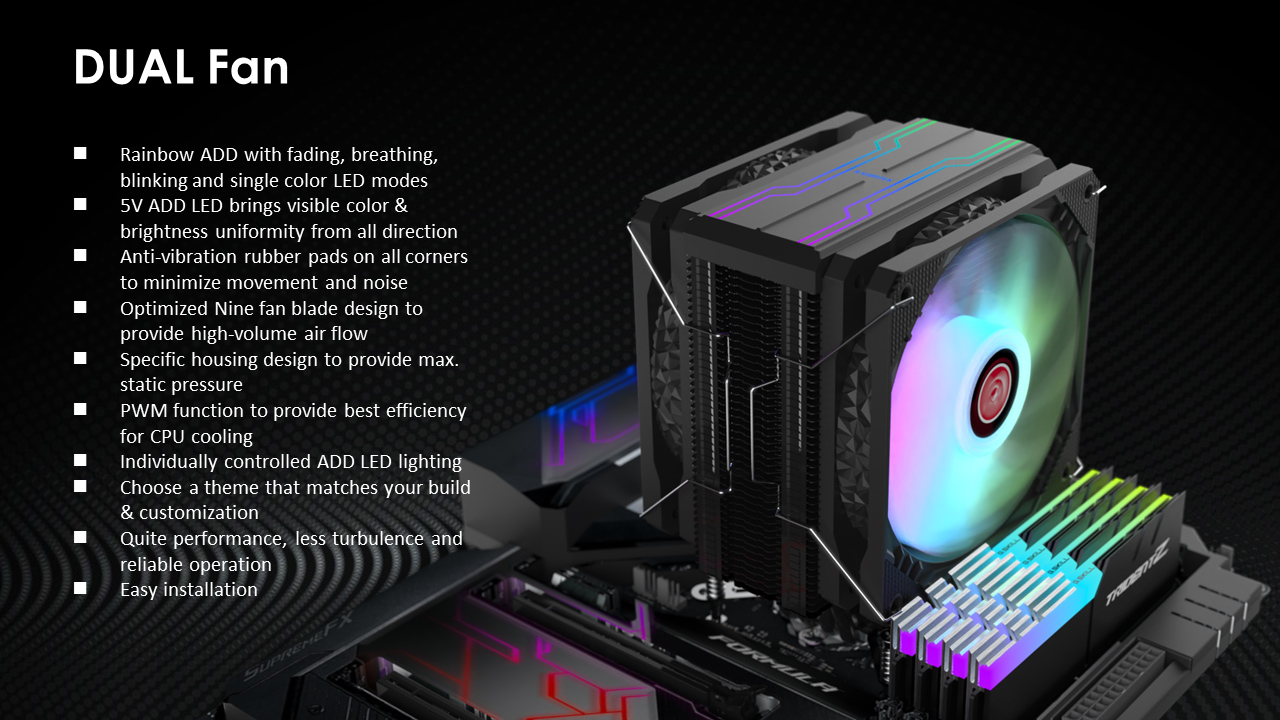

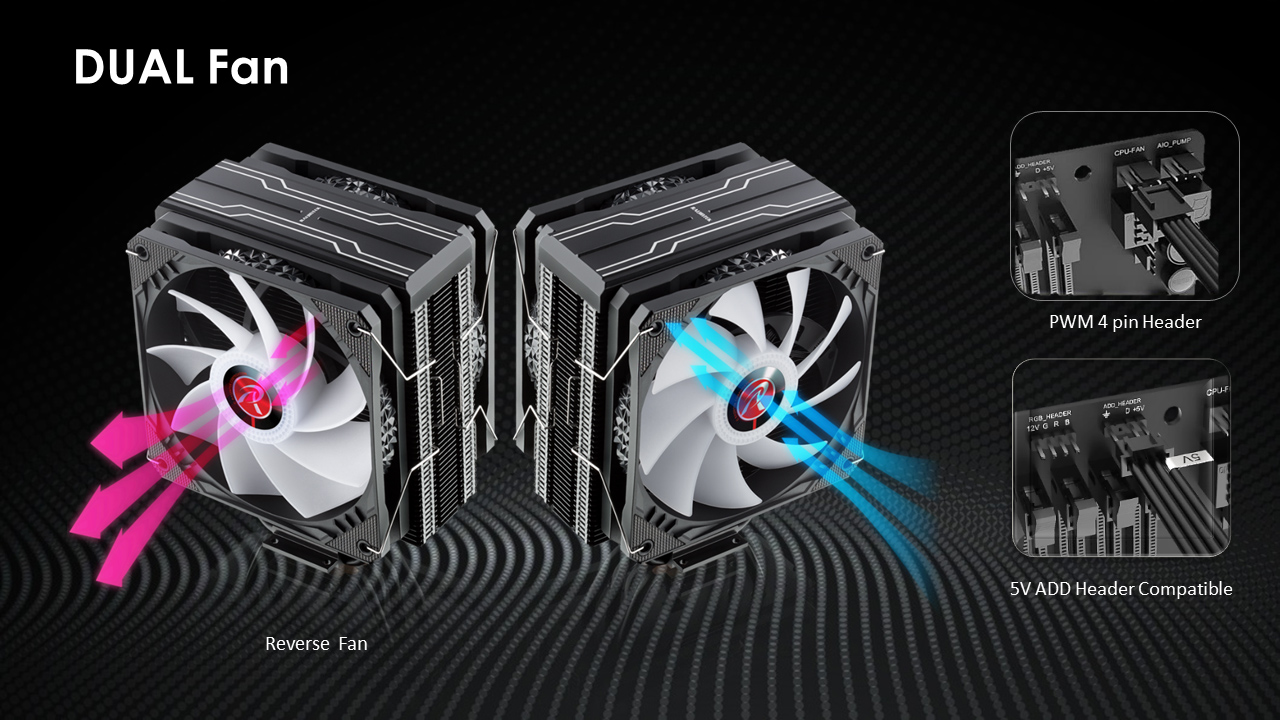

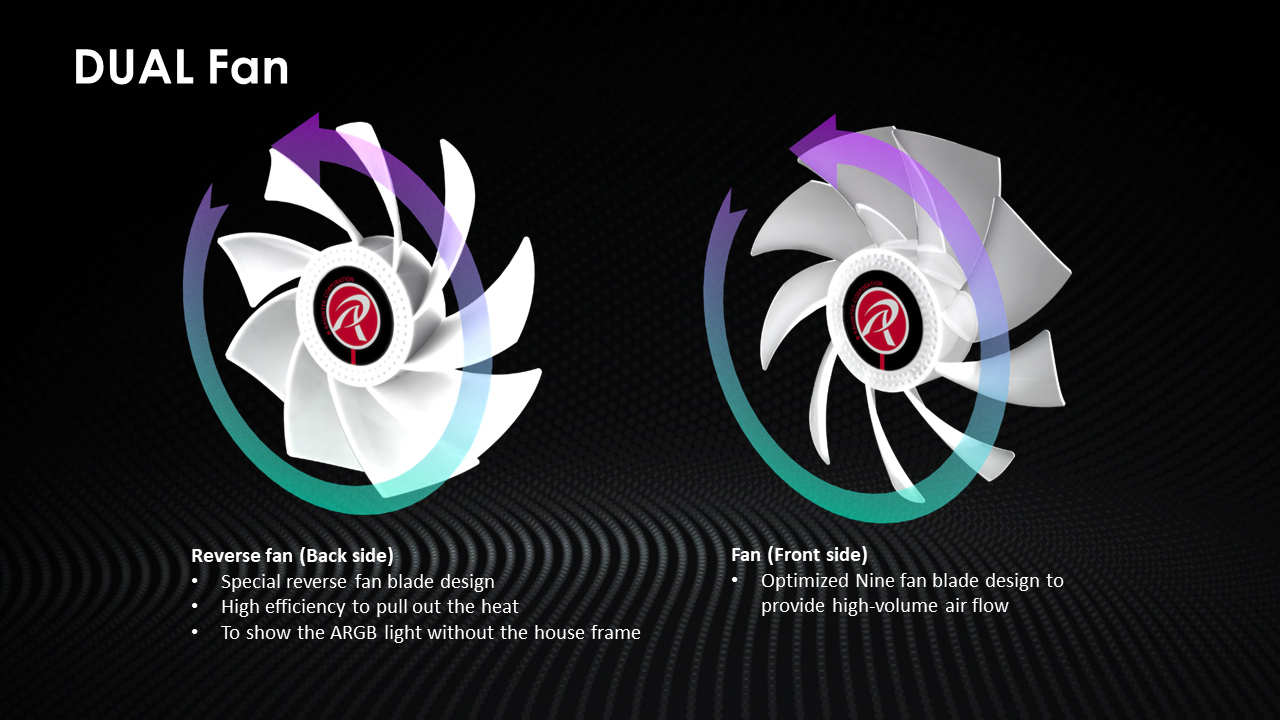

  • Performing and silent 12025 PWM fan × 2
  • PWM Y-cable
  • Solder-free louver fin assembly to increase heat-pipe ventilation
  • Compatible with all modern sockets of INTEL & AMD at the market
  • Easy installation and user friendly
SPECIFICATION
Product Name ELEOS 12 DUO RBW
Product Number 0R10B00221

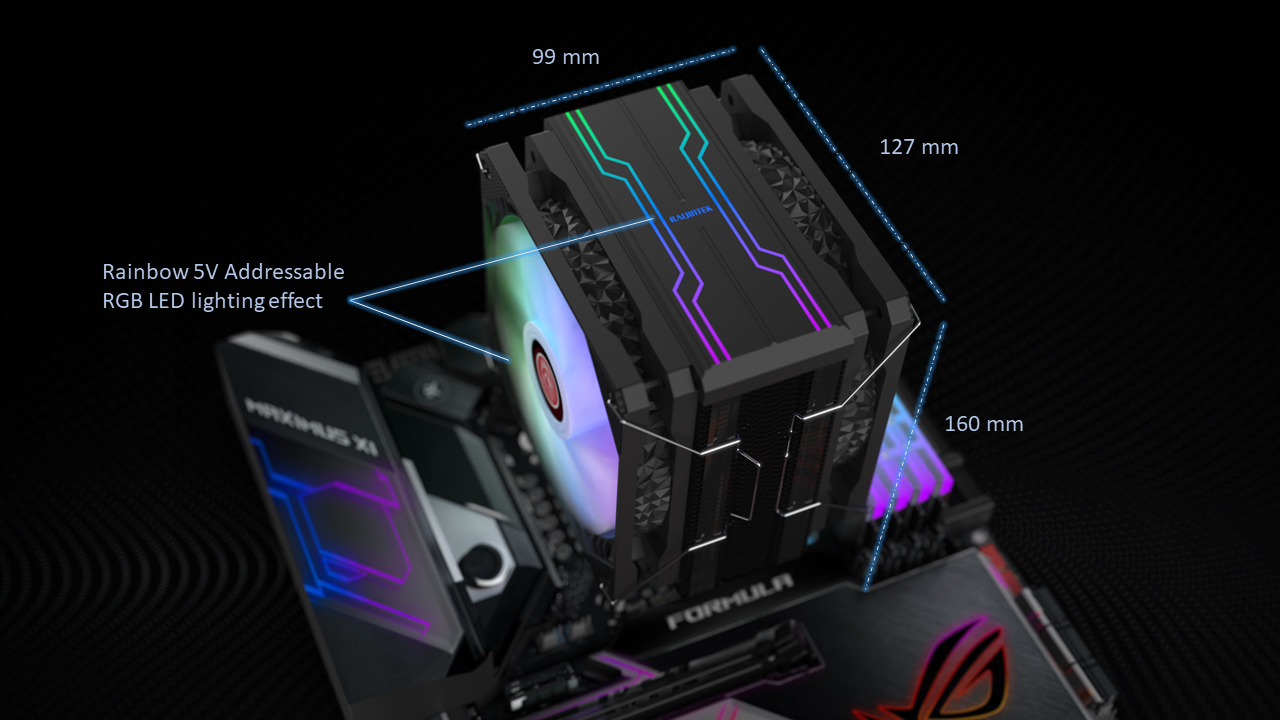

Dimension [W×D×H] 127×99×160 mm
Weight 690 g [Heat Sink & Fan]
Thermal Resistance 0.11 °C/W
Fan Q'ty 2 pcs
Base Material CPU Direct Contact [C.D.C.]
Fin Material Aluminum Alloy Black; Solder-free fins assembly
Heat-pipe SPEC Φ6mm
Heat-pipe Q'ty 4 pcs
Addressable LED ADD header [Gnd/NA/D/+5V], 2.5 Crimp
LED Q'ty 26 pcs ARGB LED, 5V, 0.6A, 3W
est. TDP 200W
FAN
Dimension [W×H×D] 120×120×25 mm
Voltage Rating 12V
Starting Voltage 5V [Max.]
Speed 800~1600 R.P.M.
Bearing Type Hydraulic Bearing
Air Flow 72 CFM [Max.]
Air Pressure 2.16 mmH2O [Max.]
Life Expectance 40,000 hrs
Noise Level 22 dBA [Max.]
Connector PWM 4 pin header
LED Rated Current 0.25A±0.03
APPLICATION
Intel® All Socket LGA 115x / 1200 / 17xx CPU (Core™ i3 / i5 / i7 / i9 CPU)
AMD® All AM5 / AM4 / AM3+ / AM3 CPU

ELEOS 12 DUO RBW × 1

LGA 1700 Back plate × 1

Intel Back plate × 1

Intel Mounting Clip × 2

AMD Mounting Clip × 2
Crossbar
Screw M3 L5 × 8

Thermal grease × 1

Plastic brush × 1

Installation Guide × 1
Package

Package × 1
