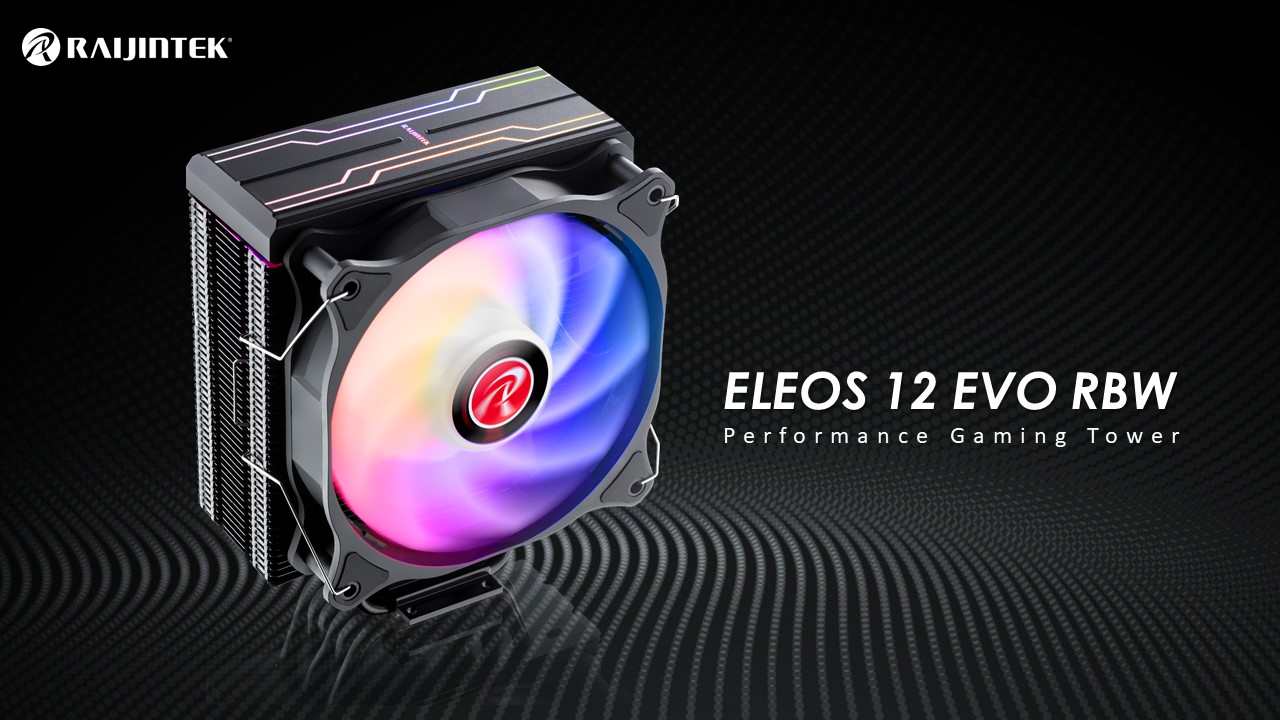

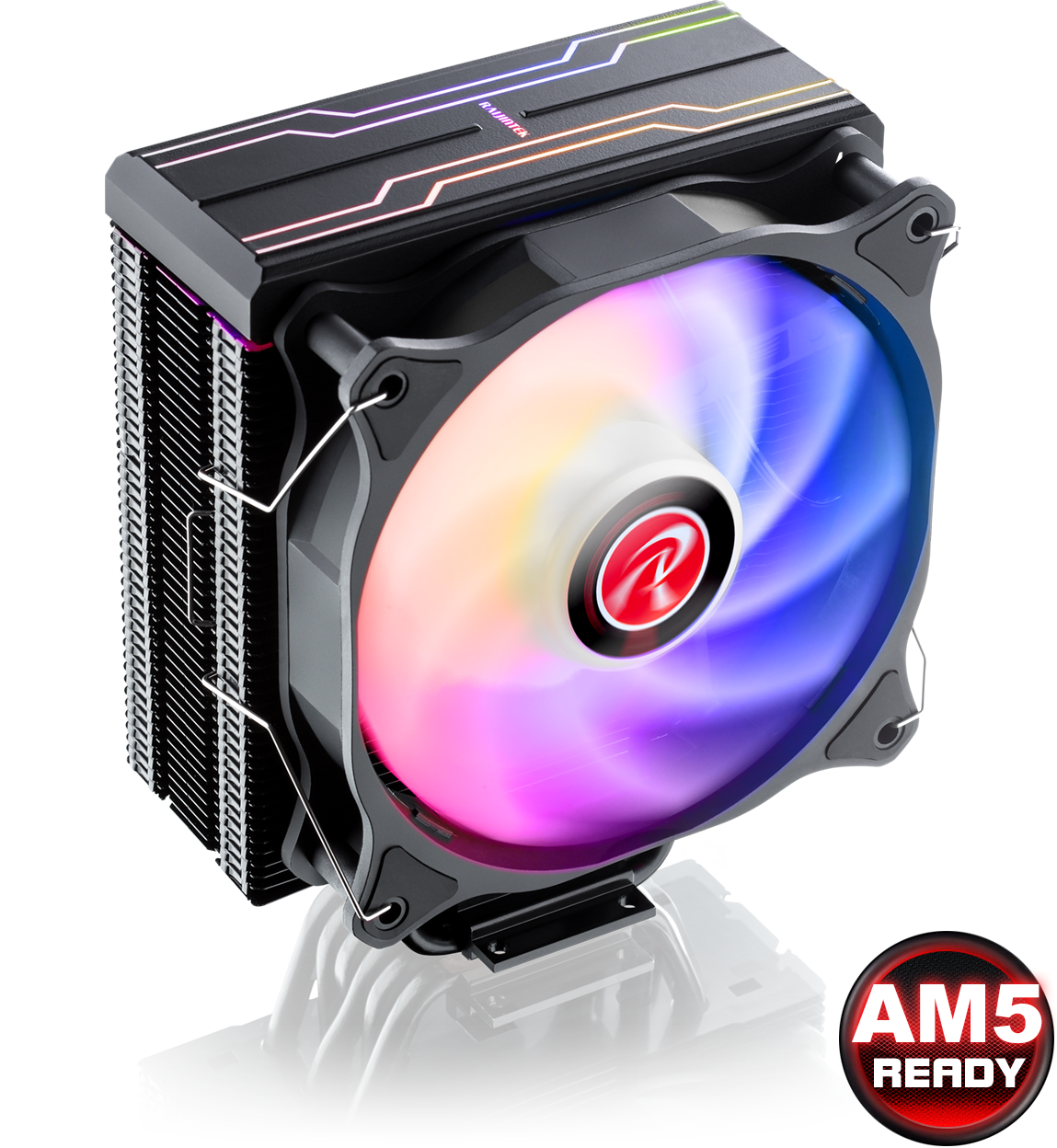

ELEOS 12 EVO RBW

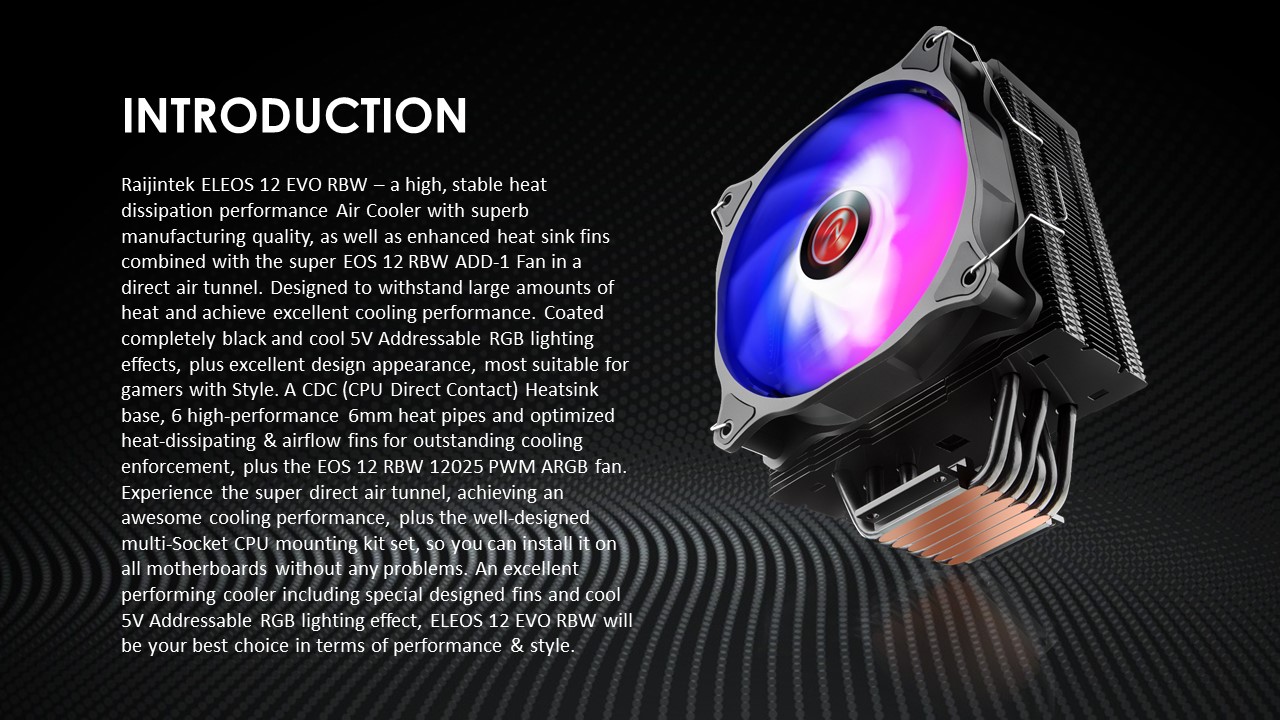

Raijintek ELEOS 12 EVO RBW – a high, stable heat dissipation performance Air Cooler with superb manufacturing quality, as well as enhanced heat sink fins combined with the super EOS 12 RBW ADD-1 Fan in a direct air tunnel. Designed to withstand large amounts of heat and achieve excellent cooling performance. Coated completely black and cool 5V Addressable RGB lighting effects, plus excellent design appearance, most suitable for gamers with Style. A CDC (CPU Direct Contact) Heatsink base, 6 high-performance 6mm heat pipes and optimized heat-dissipating & airflow fins for outstanding cooling enforcement, plus the EOS 12 RBW 12025 PWM ARGB fan. Experience the super direct air tunnel, achieving an awesome cooling performance, plus the well-designed multi-Socket CPU mounting kit set, so you can install it on all motherboards without any problems. An excellent performing cooler including special designed fins and cool 5V Addressable RGB lighting effect, ELEOS 12 EVO RBW will be your best choice in terms of performance & style.

ELEOS 12 EVO RBW






  •

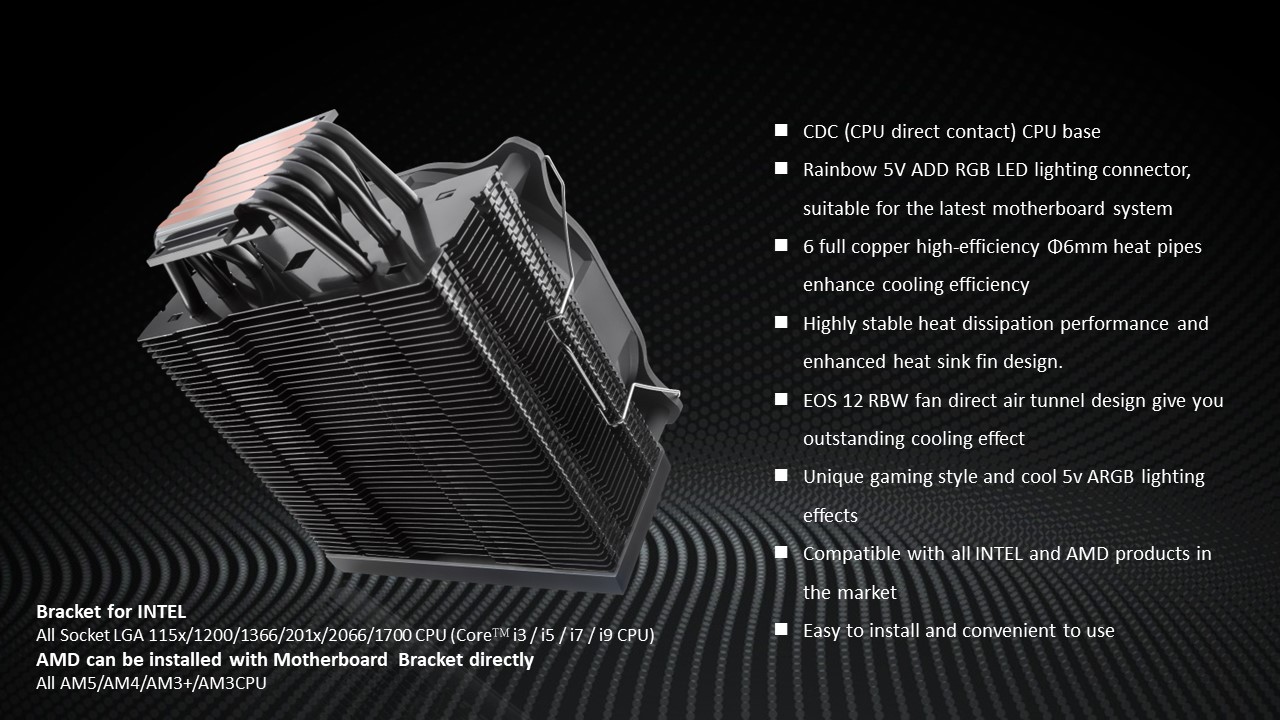

  • CDC (CPU direct contact) CPU base
  • Rainbow 5V ADD RGB LED lighting connector, suitable for the latest motherboard system
  • 6 full copper high-efficiency Φ6mm heat pipes enhance cooling efficiency
  • Highly stable heat dissipation performance and enhanced heat sink fin design

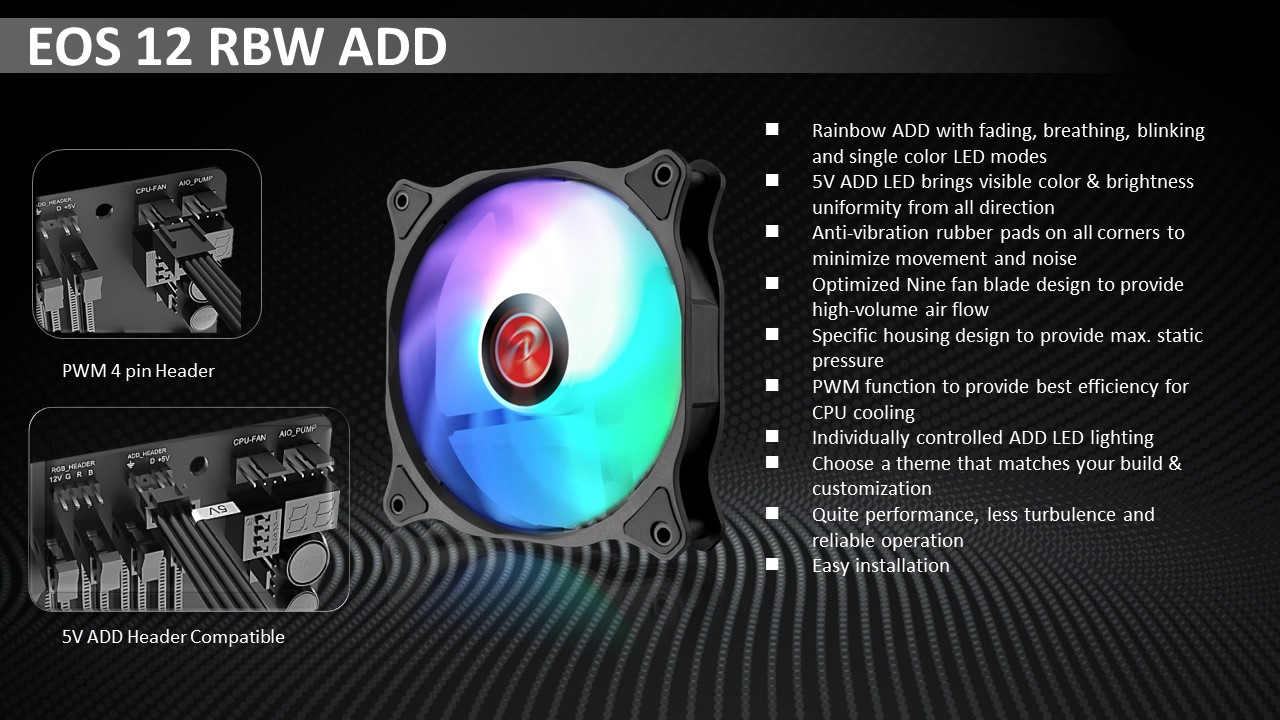

  • EOS 12 RBW fan direct air tunnel design give you outstanding cooling effect
  • Unique gaming style and cool 5v ARGB lighting effects
  • Compatible with all INTEL and AMD products in the market
  • Easy to install and convenient to use
SPECIFICATION
Product Name ELEOS 12 EVO RBW
Product Number 0R10B00222

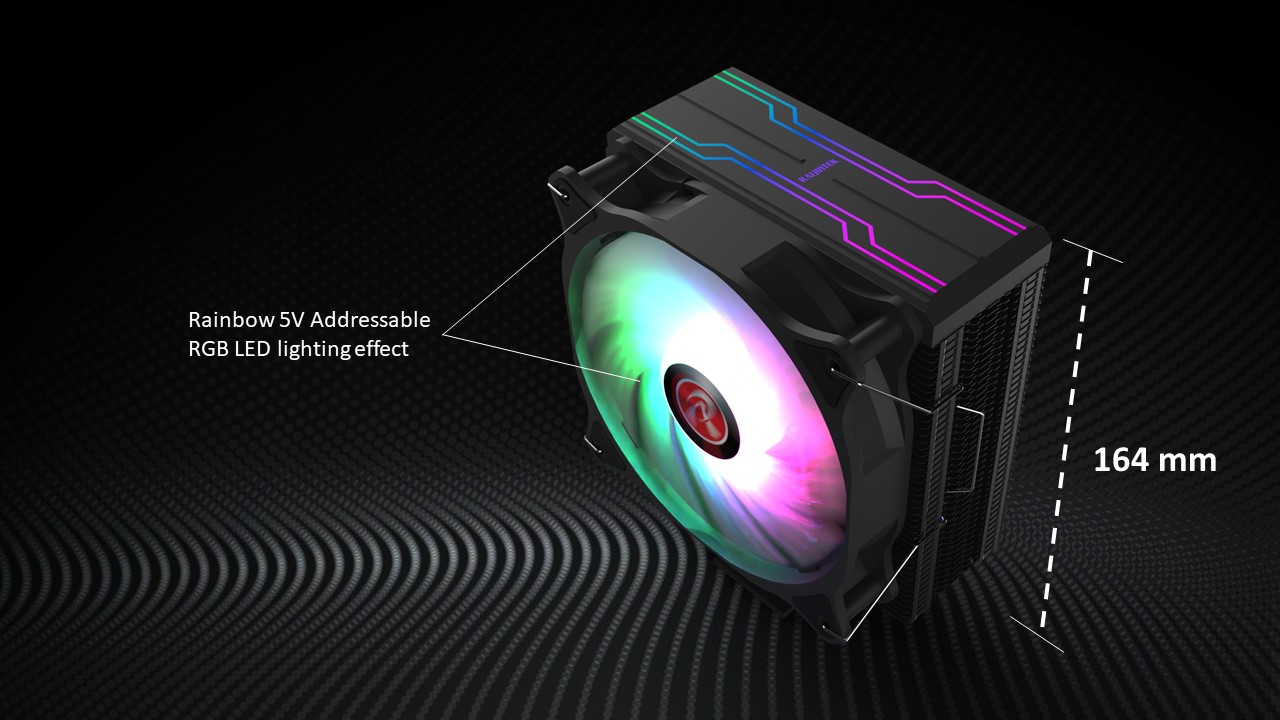

Dimension [W×D×H] 127×75×164 mm
Weight 610 g [Heat Sink & Fan]
Thermal Resistance 0.11 °C/W
Fan Q'ty 1 pcs
Base Material CPU Direct Contact [C.D.C.]
Fin Material Aluminum Alloy Black; Solder-free fins assembly
Heat-pipe SPEC Φ6mm
Heat-pipe Q'ty 6 pcs
Addressable LED ADD header [Gnd/NA/D/+5V], 2.5 Crimp
LED Q'ty 16 pcs ARGB LED, 5V, 0.6A, 3W
est. TDP 200W
FAN
Dimension [W×H×D] 120×120×25 mm
Voltage Rating 12V
Starting Voltage 7V
Speed 800~1800 R.P.M.
Bearing Type Hydraulic Bearing
Air Flow 75 CFM [Max.]
Air Pressure 2.3 mmH2O [Max.]
Life Expectance 40,000 hrs
Noise Level 28 dBA [Max.]
Connector PWM 4 pin header
LED Rated Current 0.17A ±20%
APPLICATION
Intel® All Socket LGA 115x / 1200 / 17xx CPU (Core™ i3 / i5 / i7 / i9 CPU)
AMD® All AM5 / AM4 / AM3+ / AM3 CPU

ELEOS 12 DUO RBW × 1

LGA 1700 Back plate × 1

Intel Back plate × 1

Intel Mounting Clip × 2

AMD Mounting Clip × 2
Crossbar
Screw M3 L5 × 8

Thermal grease × 1

Plastic brush × 1

Installation Guide × 1
Package

Package × 1
