RAIJINTEK

80 PLUS PLATINUM

ERMIS 550B/450B

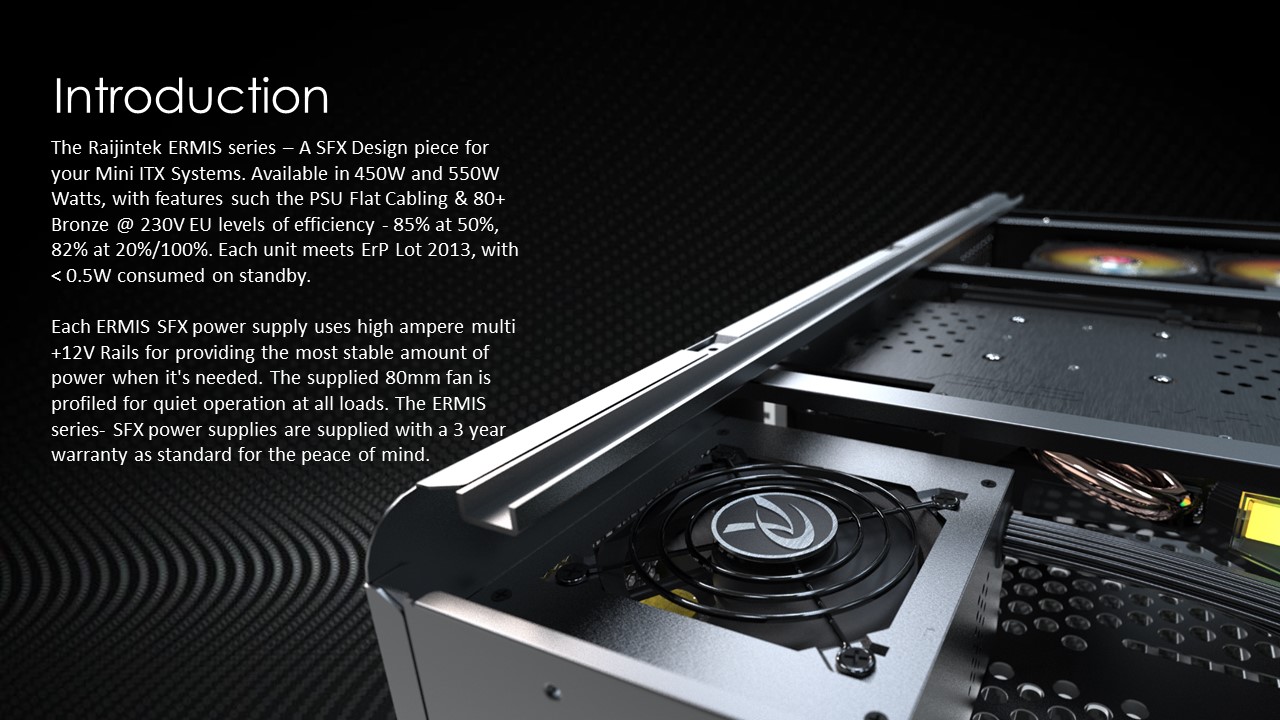

The Raijintek ERMIS series – A SFX Design piece for your Mini ITX Systems. Available in 450W and 550W Watts, with features such the PSU Flat Cabling & 80+ Bronze @ 230V EU levels of efficiency - 85% at 50%, 82% at 20%/100%. Each unit meets ErP Lot 2013, with < 0.5W consumed on standby. Each ERMIS SFX power supply uses high ampere multi +12V Rails for providing the most stable amount of power when it's needed. The supplied 80mm fan is profiled for quiet operation at all loads. The ERMIS series- SFX power supplies are supplied with a 3 year warranty as standard for the peace of mind.

Feature
Specification
Support
Unboxed
Gallery

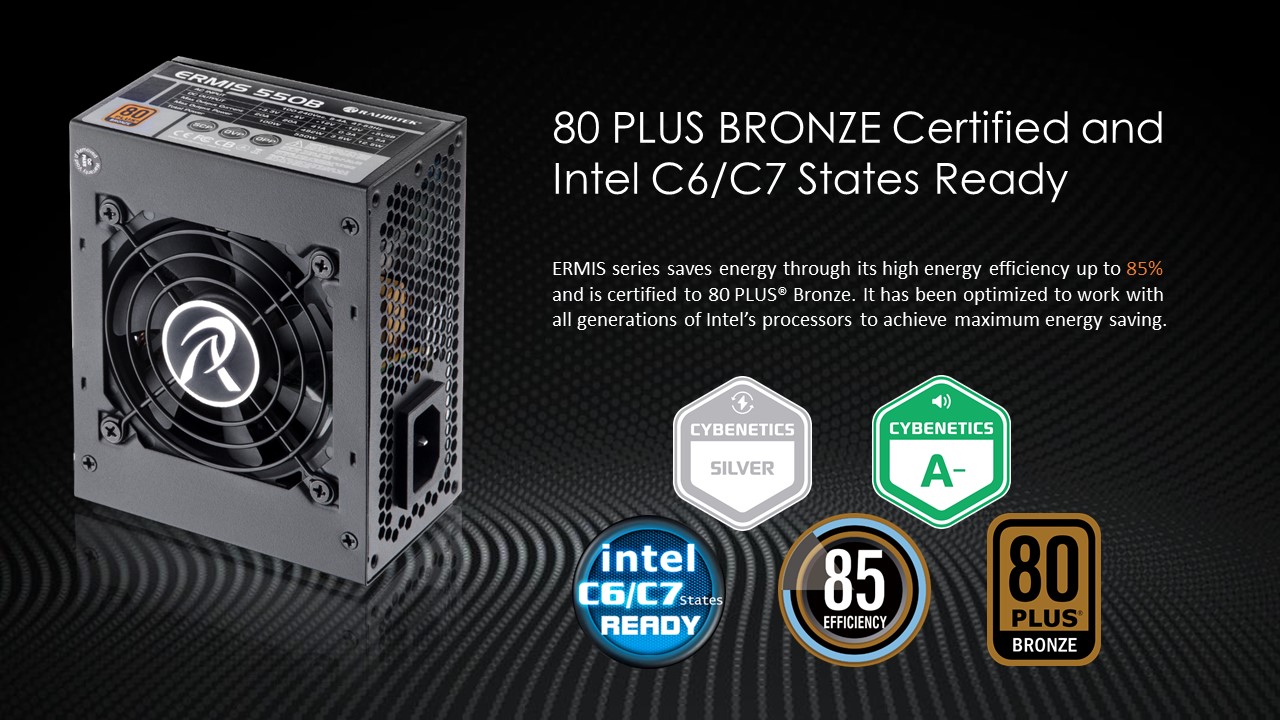

80 PLUS BRONZE Certified and Intel C6/C7 States Ready
High efficiency over 85%

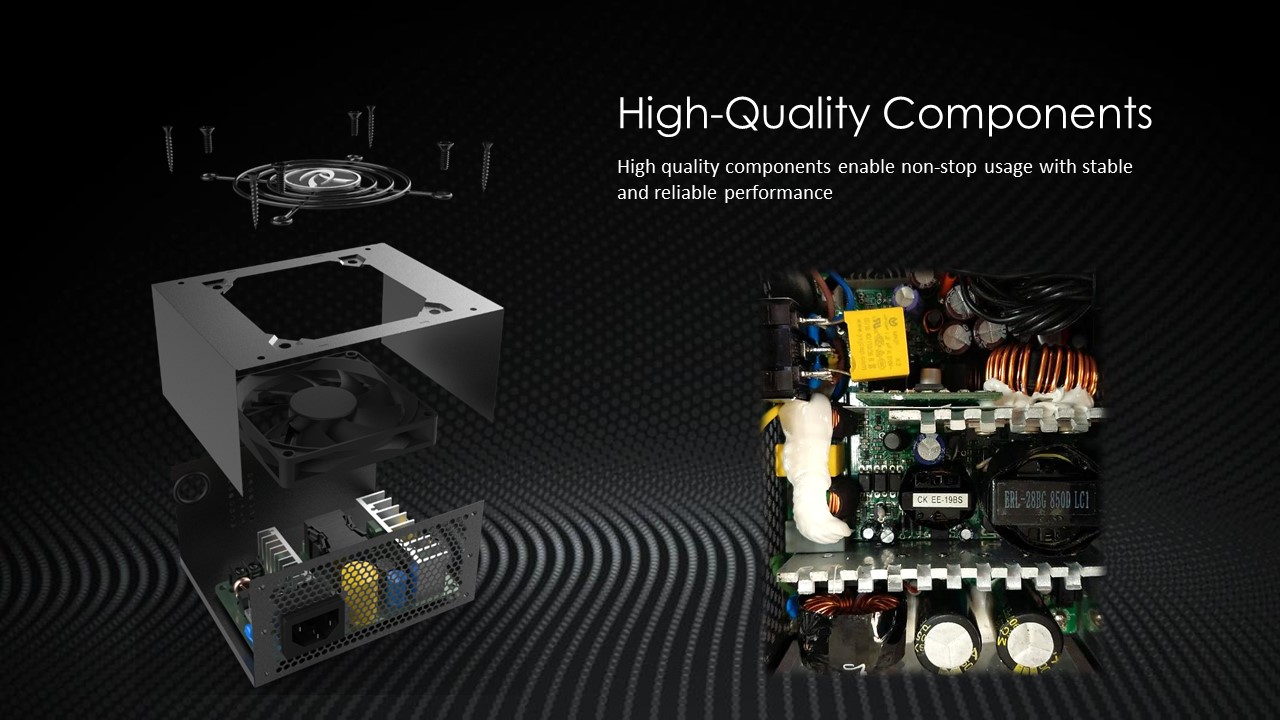

High-Quality Components
Over power protection
Over voltage protection
Short circuit protection

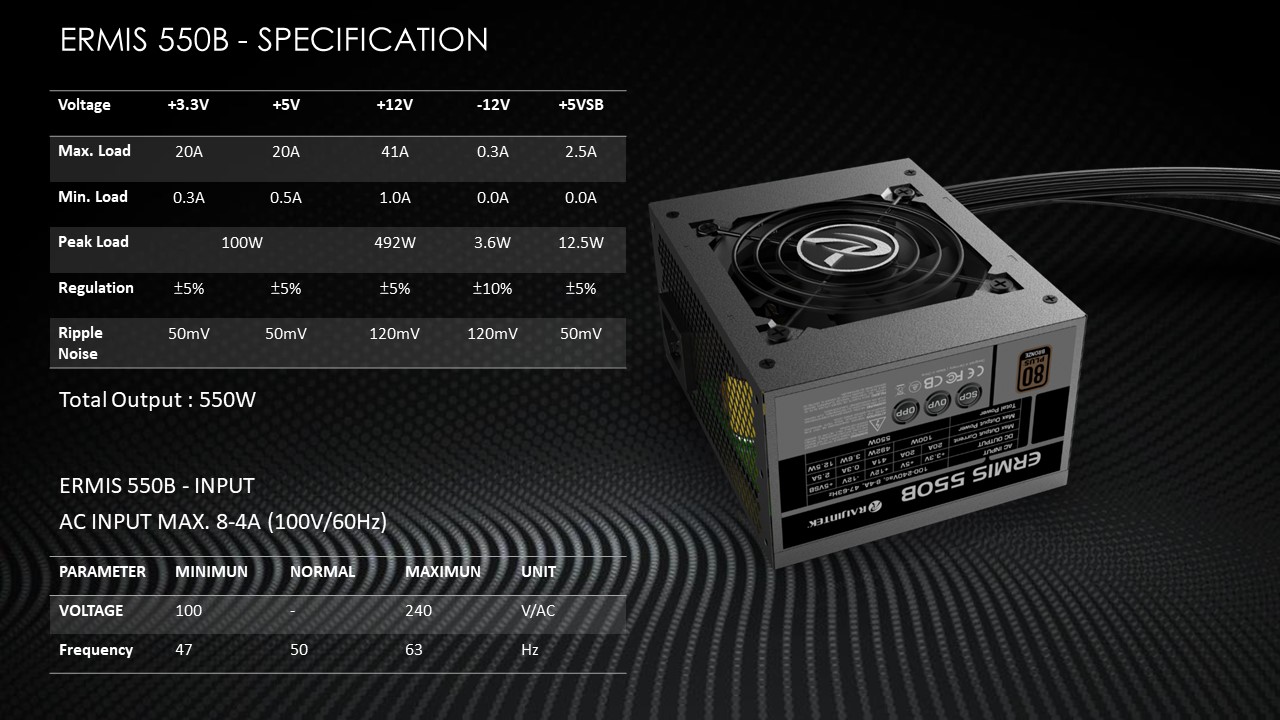

SPECIFICATION

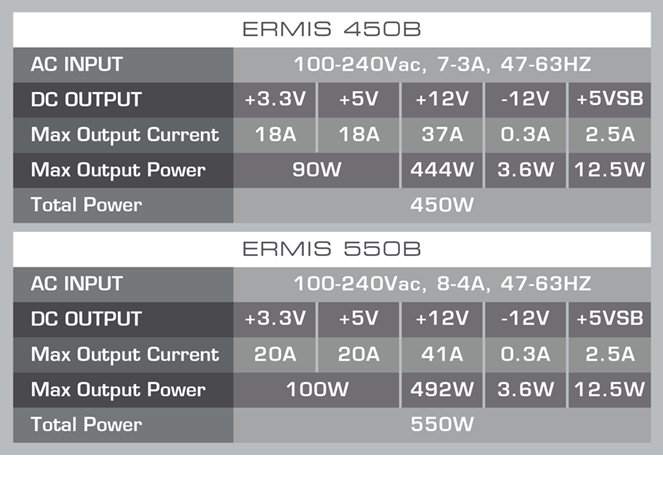

Product Name	ERMIS 550B	ERMIS 450B
Product Number	0R30B00002	0R30B00001
Type	SFX	SFX
Max. Output Capacity	550W	450W

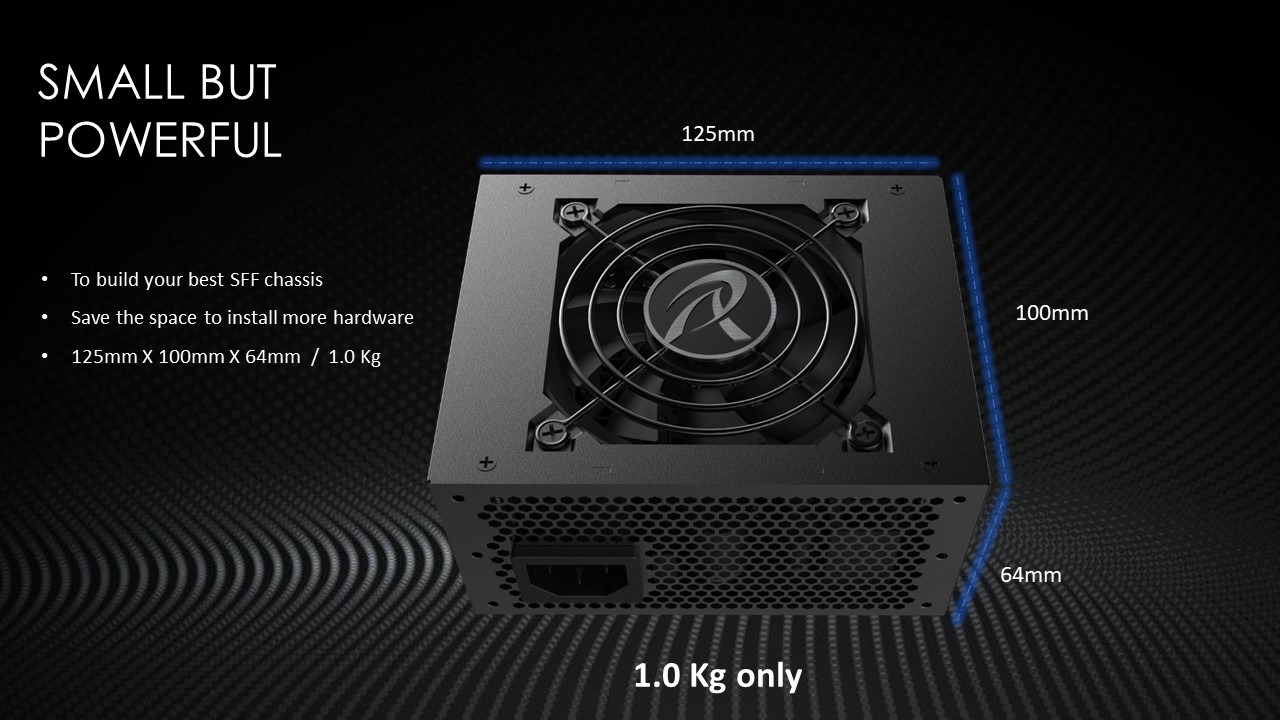

Dimension [W×H×D]	125×100×64 mm	125×100×64 mm
Color	Black	Black
Input Current	8-4A	7-3A
Input Frequency Range	47-63Hz	47-63Hz
Input Voltage	100-240V	100-240V
Operating Temperature	0°C to +40°C	0°C to +40°C
Operating Humidity	20% to 90%, non-condensing	20% to 90%, non-condensing
Storage Temperature	-20 °C to +70 °C	-20 °C to +70 °C
Storage Humidity	5% to 95%, non-condensing	5% to 95%, non-condensing

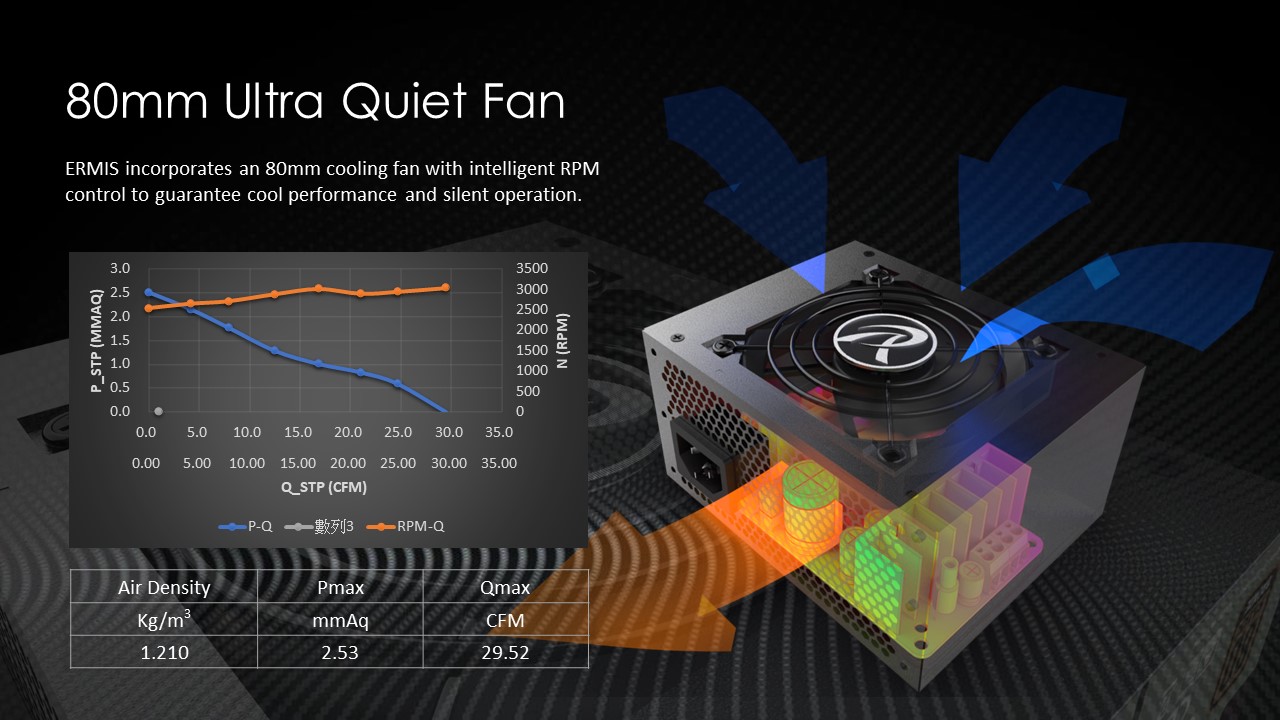

Cooling System	80mm Fan: 3000 R.P.M. ± 10%	80mm Fan: 3000 R.P.M. ± 10%
Efficiency	Meet 80 PLUS® Bronze	Meet 80 PLUS® Bronze
MTBF	100,000 hrs minimum	100,000 hrs minimum

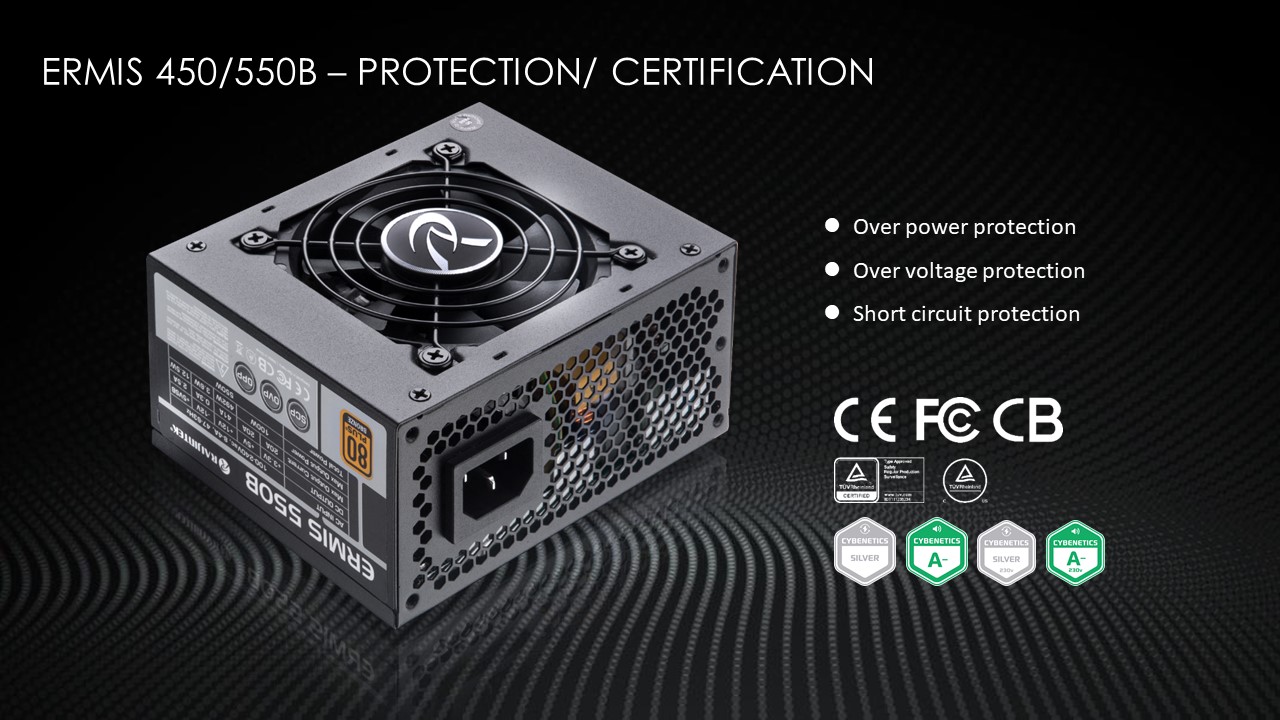

Protection	Over power protection, Over voltage protection, Short circuit protection	Over power protection, Over voltage protection, Short circuit protection

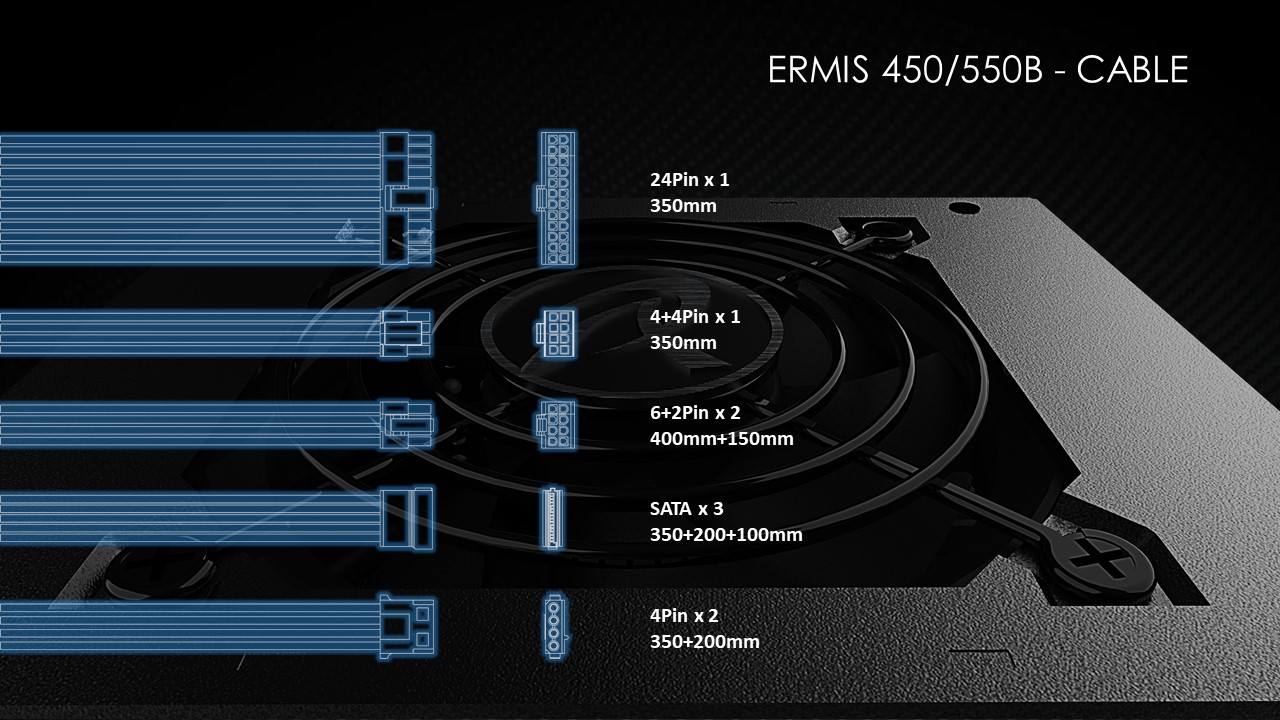

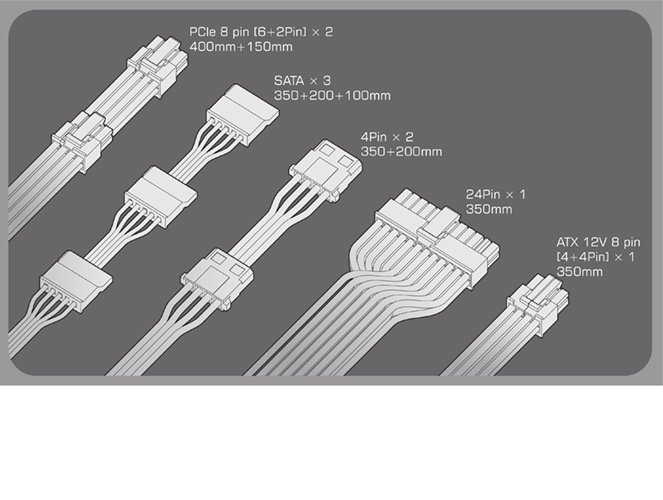

PCI-E 6+2pin	2	2
Safety Approval	cTUVus / TUV / CE / FCC / CB	cTUVus / TUV / CE / FCC / CB
Certificates
