RAIJINTEK

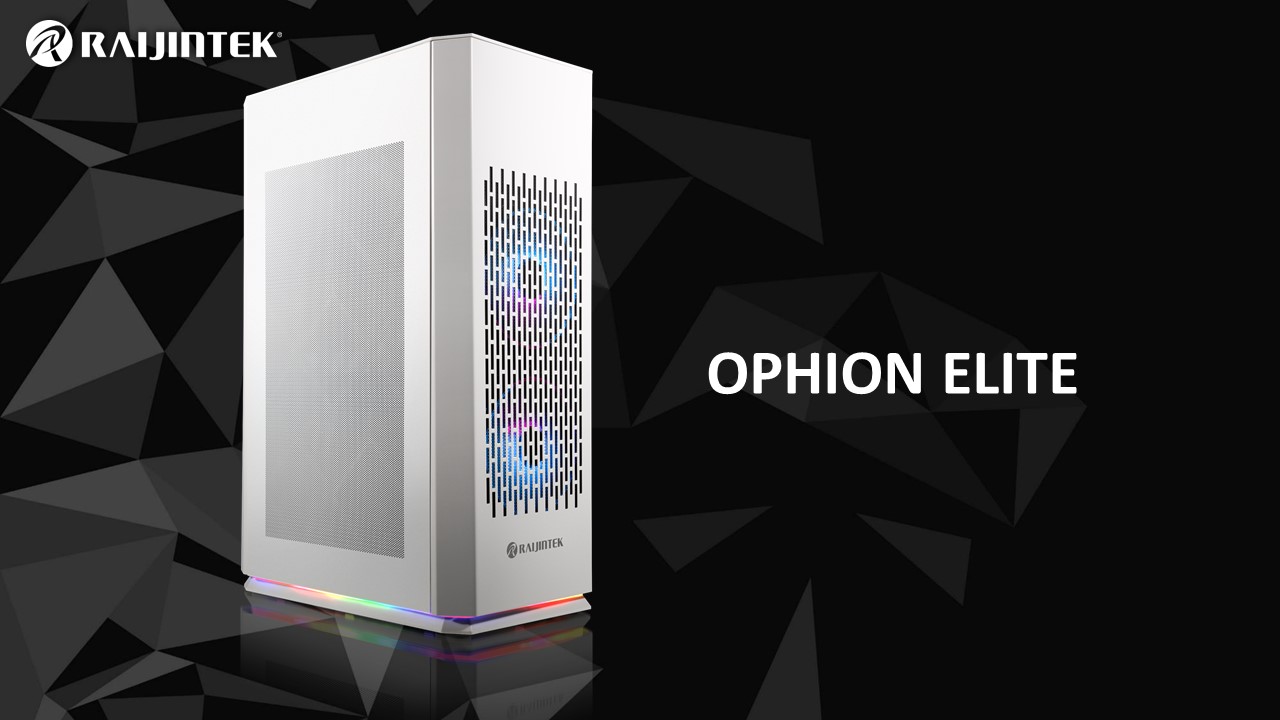

OPHION ELITE

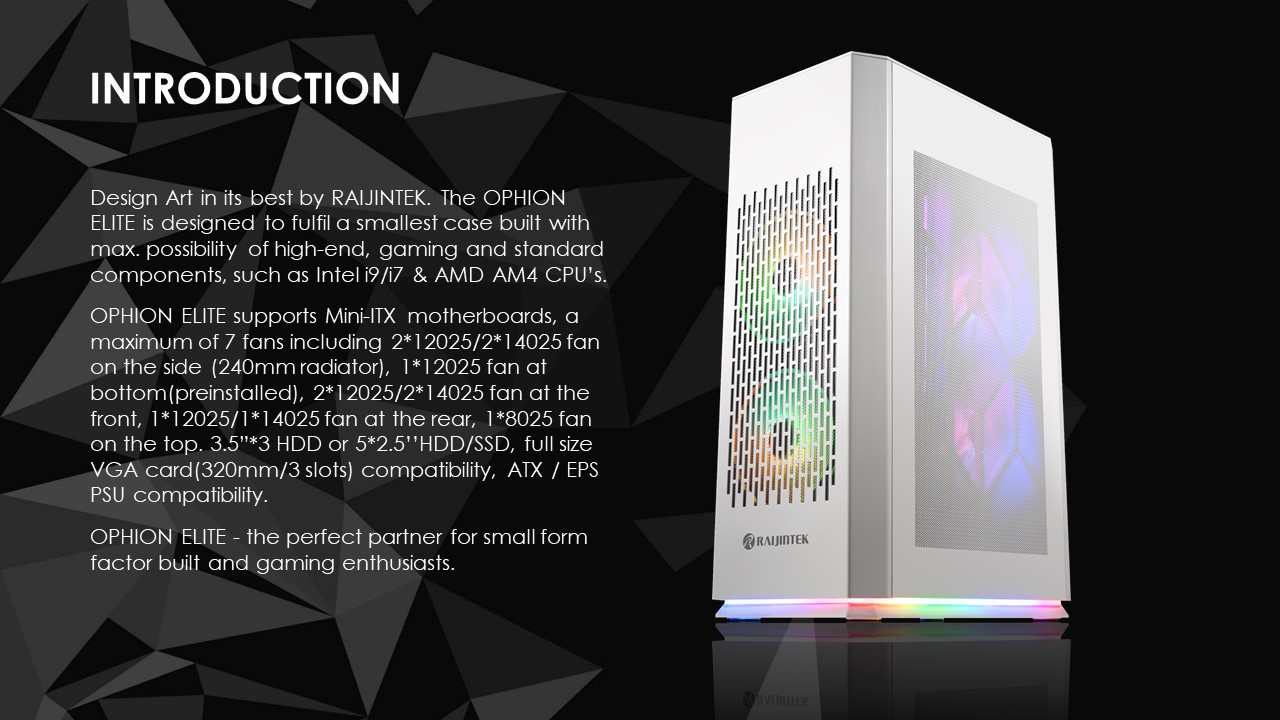

Design Art in its best by RAIJINTEK. The OPHION ELITE is designed to fulfil a smallest case built with max. possibility of high-end, gaming, and standard components, such as Intel i9/i7 & AMD AM4 CPUs. OPHION ELITE supports Mini-ITX motherboards, a maximum of 7 fans including 2×12025/2×14025 fan on the side (240mm radiator), 1×12025 fan at the bottom(preinstalled), 2×12025/2×14025 fan at the front, 1×12025/1×14025 fan at the rear, 1×8025 fan on the top. 3.5’’×3 HDD or 5×2.5’’HDD/SSD, full-size VGA cards (320mm/3 slots) compatibility, ATX / EPS PSU compatibility. OPHION ELITE - the perfect partner for small form factor built and gaming enthusiasts.

Feature
Specification
Support
Unboxed
Review
Gallery

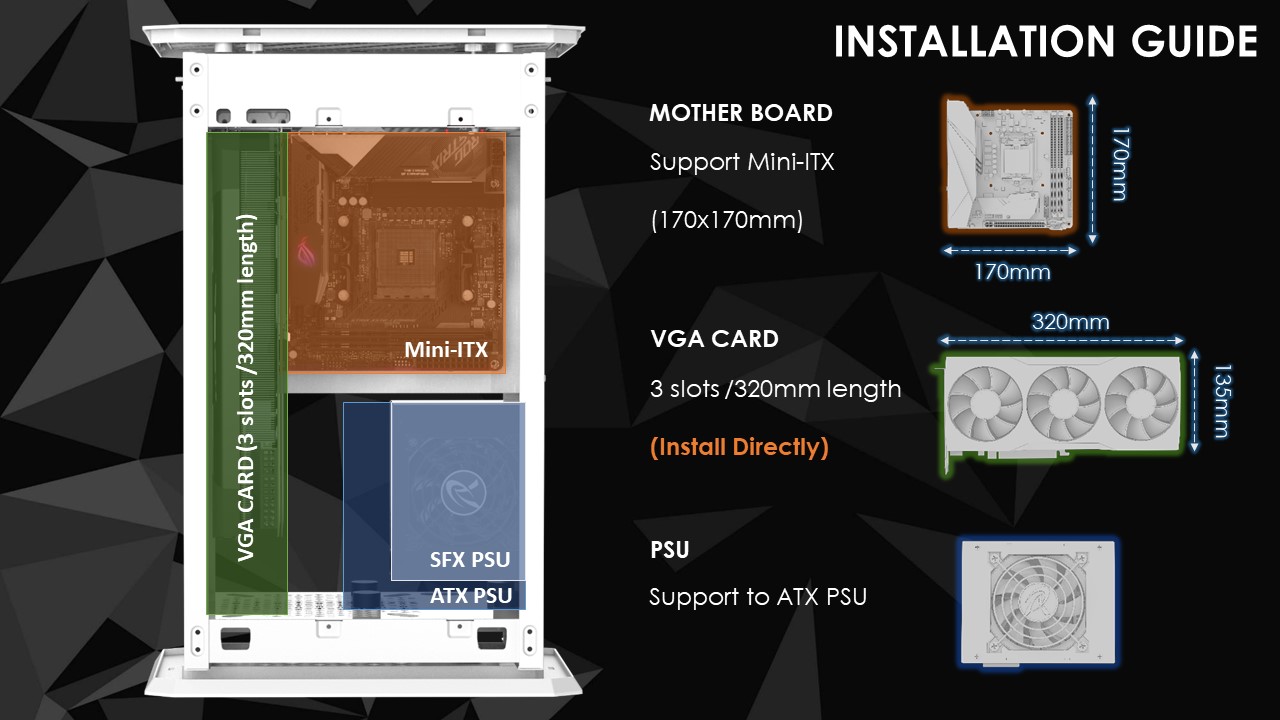

Support Mini-ITX (170×170mm)

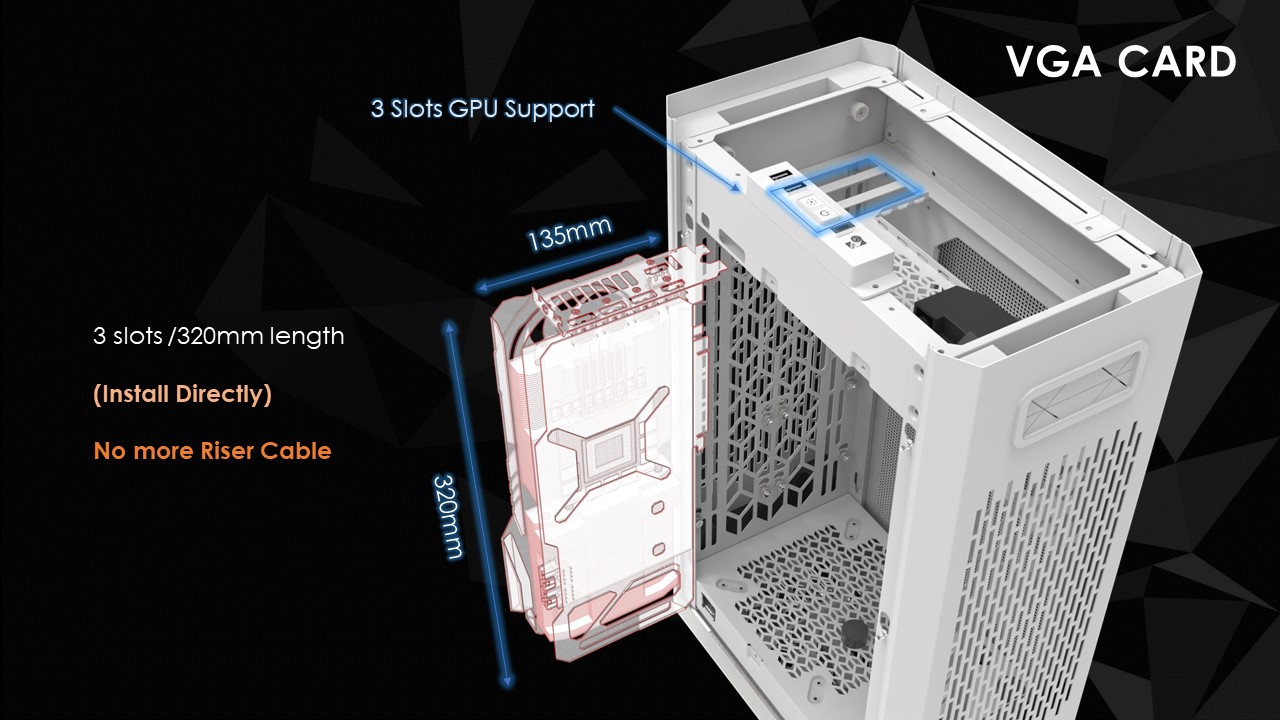

3 slots /320mm length
Support to ATX PSU

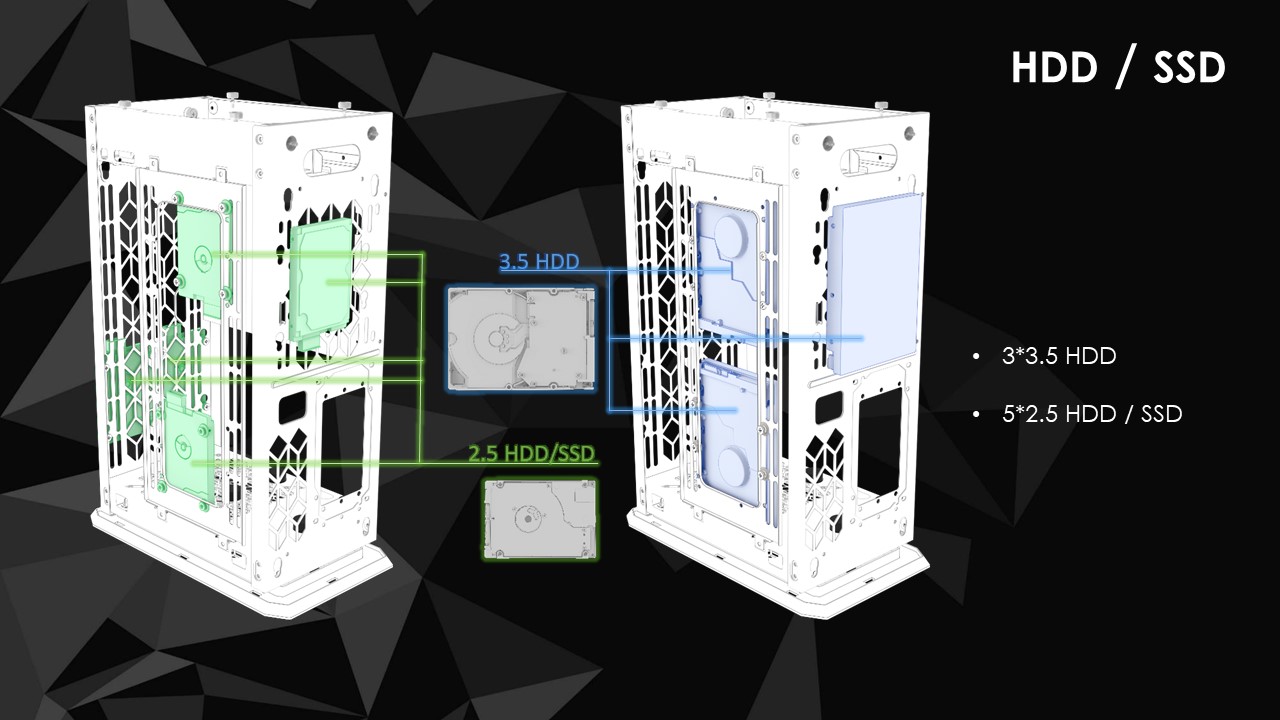

3.5”HDD×3 / 2.5”HDD/SSD×5

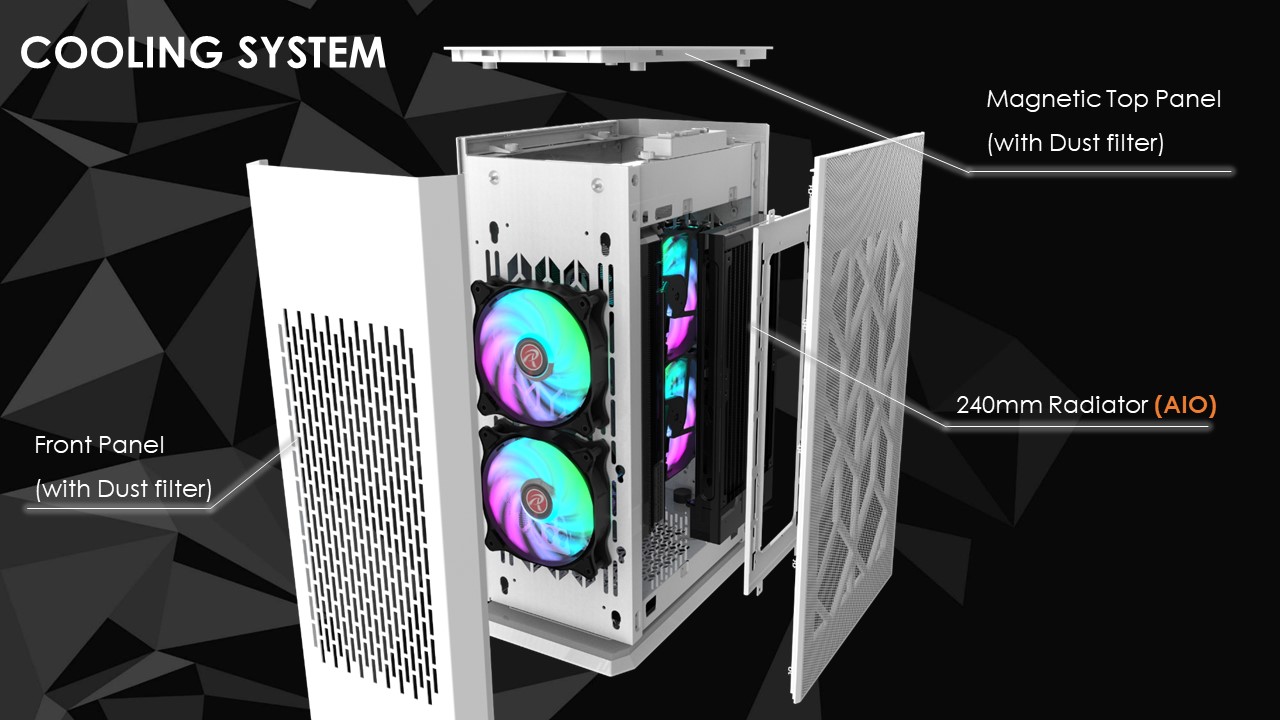

Magnetic Top/Side Panel (with Dust filter)

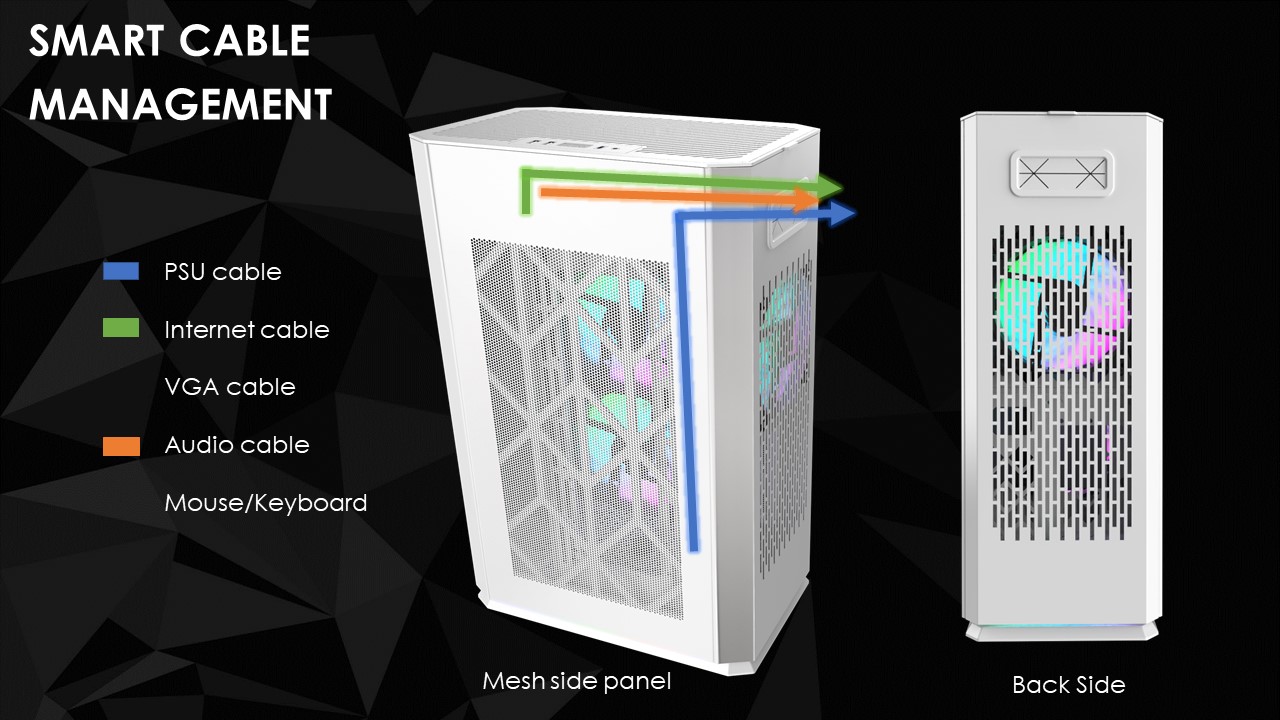

Smart cable management

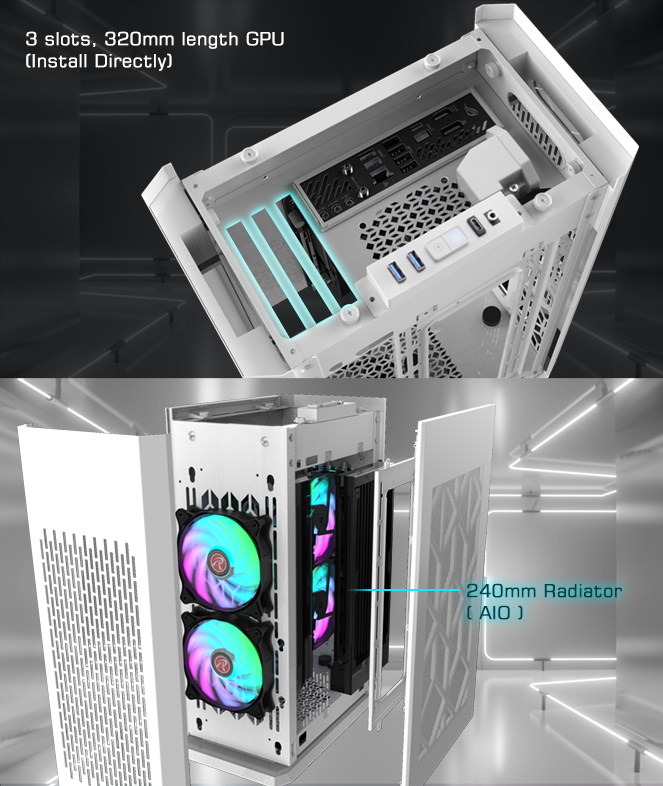

maximum of 7 fans(240 radiator)

SPECIFICATION
Product Name	OPHION ELITE TITAN	OPHION ELITE WHITE
Product Number	0R20B00220	0R20B00221
Dimension [W×D×H]	180×302×458 mm	180×302×458 mm
Weight	5.1 kg [N.W.] 6.0 kg [G.W.]	5.1 kg [N.W.] 6.0 kg [G.W.]
Material	SPCC 0.8mm	SPCC 0.8mm
Color	Titan	White
M/B Support	Mini-ITX	Mini-ITX
Drive Bay	3.5" × 3 or 2.5" × 5	3.5" × 3 or 2.5" × 5
Expansion Slot	PCI Slots ×3	PCI Slots ×3

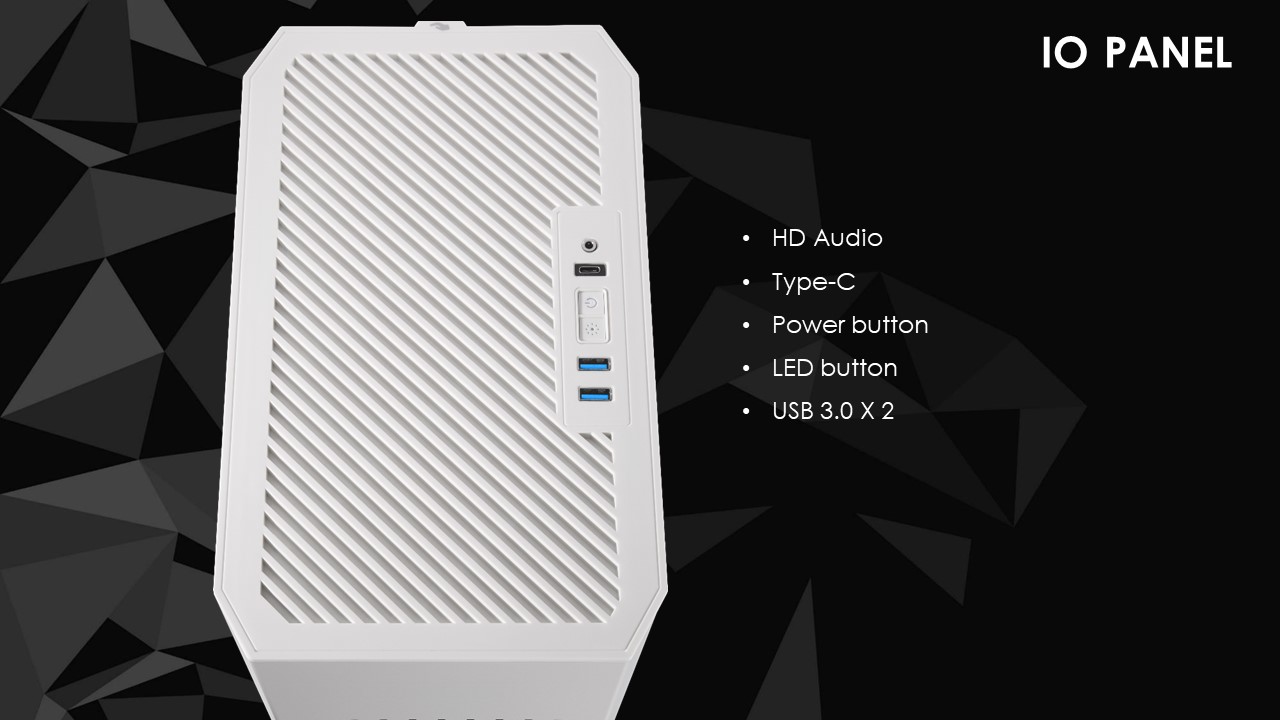

I/O Panel	USB3.0×2, Type C×1, HD Audio×1	USB3.0×2, Type C×1, HD Audio×1
Power Supply	PS/2, SFX	PS/2, SFX

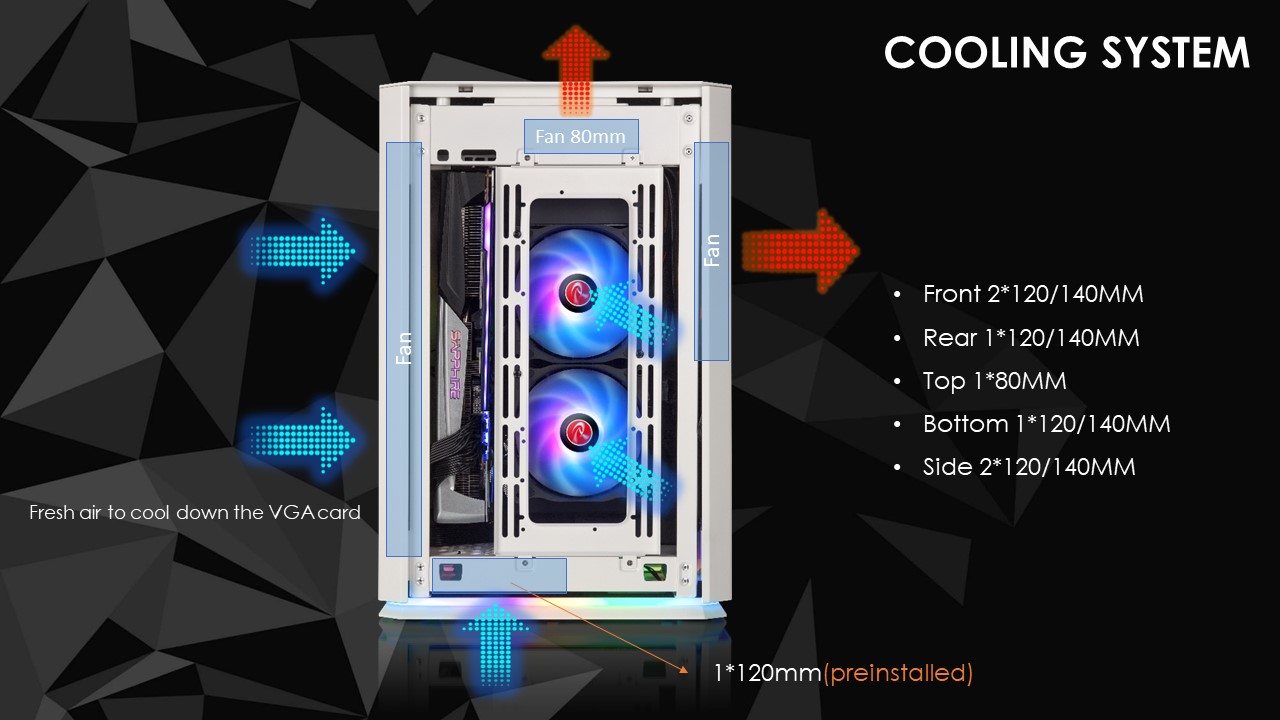

Cooling System	Top: 80mm×1 [option] Front: 140/120mm×2 [option] Rear: 140/120mm×1 [option] Bottom: 120mm×1 [Pre-installed] or 140mm×1 [option] Side: 140/120mm×2 [option]	Top: 80mm×1 [option] Front: 140/120mm×2 [option] Rear: 140/120mm×1 [option] Bottom: 120mm×1 [Pre-installed] or 140mm×1 [option] Side: 140/120mm×2 [option]
Radiator Q’ty	Side: 120/140/240mm [option]	Top: 120/140/240mm [option]
CPU Cooler Height	130mm [Max.]	130mm [Max.]
Graphic Card Length	320mm [Max.]	320mm [Max.]
Side Panel	Mesh	Mesh

12025 DC BRUSHLESS FAN
Dimension [W×H×D]	120×120×25 mm
Voltage Rating	12V
Starting Voltage	5V
Speed	1200 R.P.M.±10%
Bearing Type	Sleeve Bearing
Air Flow	36.46 CFM
Air Pressure	0.87 mmH2O [Max.]
Life Expectance	25,000 hrs
Noise Level	22.82 dBA [Max.]
Rated Input Power	1.68W
Fan Q'ty	1 pcs
