RAIJINTEK

AGERAS 12

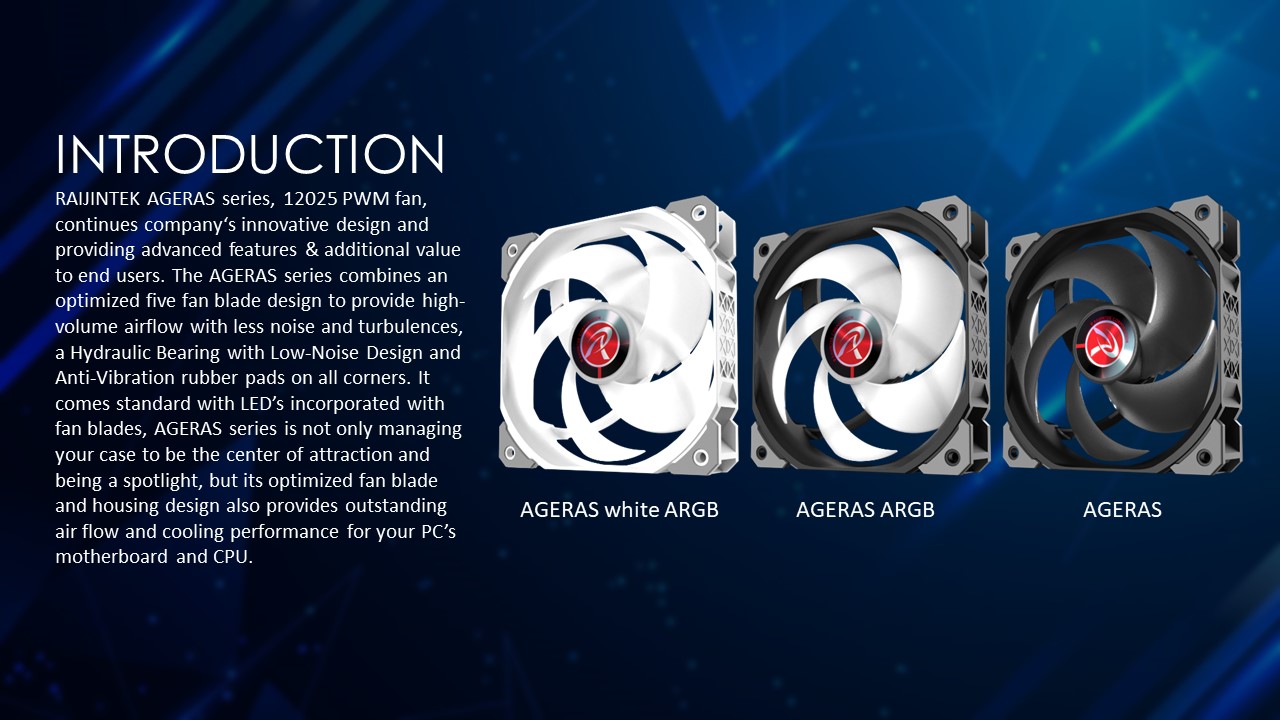

RAIJINTEK AGERAS series, 12025 PWM fan, continues company‘s innovative design and providing advanced features & additional value to end users. The AGERAS series combines an optimized five fan blade design to provide high-volume airflow with less noise and turbulences, a Hydraulic Bearing with Low-Noise Design and Anti-Vibration rubber pads on all corners. It comes standard with LED’s incorporated with fan blades, AGERAS series is not only managing your case to be the center of attraction and being a spotlight, but its optimized fan blade and housing design also provides outstanding air flow and cooling performance for your PC’s motherboard and CPU.

Feature
Specification
Support
Unboxed
Review
Gallery

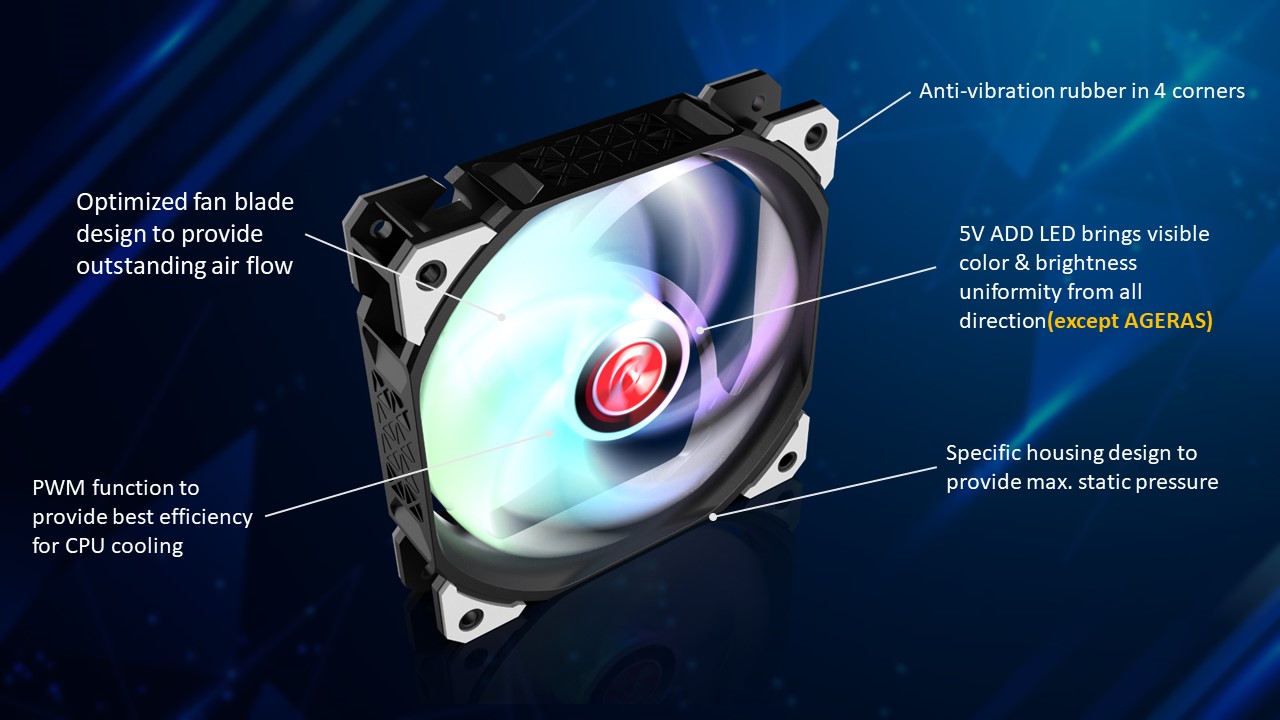

5V ADD LED brings visible color & brightness uniformity from all direction [ARGB Edition]
Anti-vibration rubber pads on all corners to minimize movement and noise
Spiral five fan blade design to provide high-volume air flow
Specific housing design to provide max. static pressure
PWM function to provide best efficiency for CPU cooling
Individually controlled ADD LED lighting [ARGB Edition]
Quiet performance, less turbulences and reliable operation
Easy installation

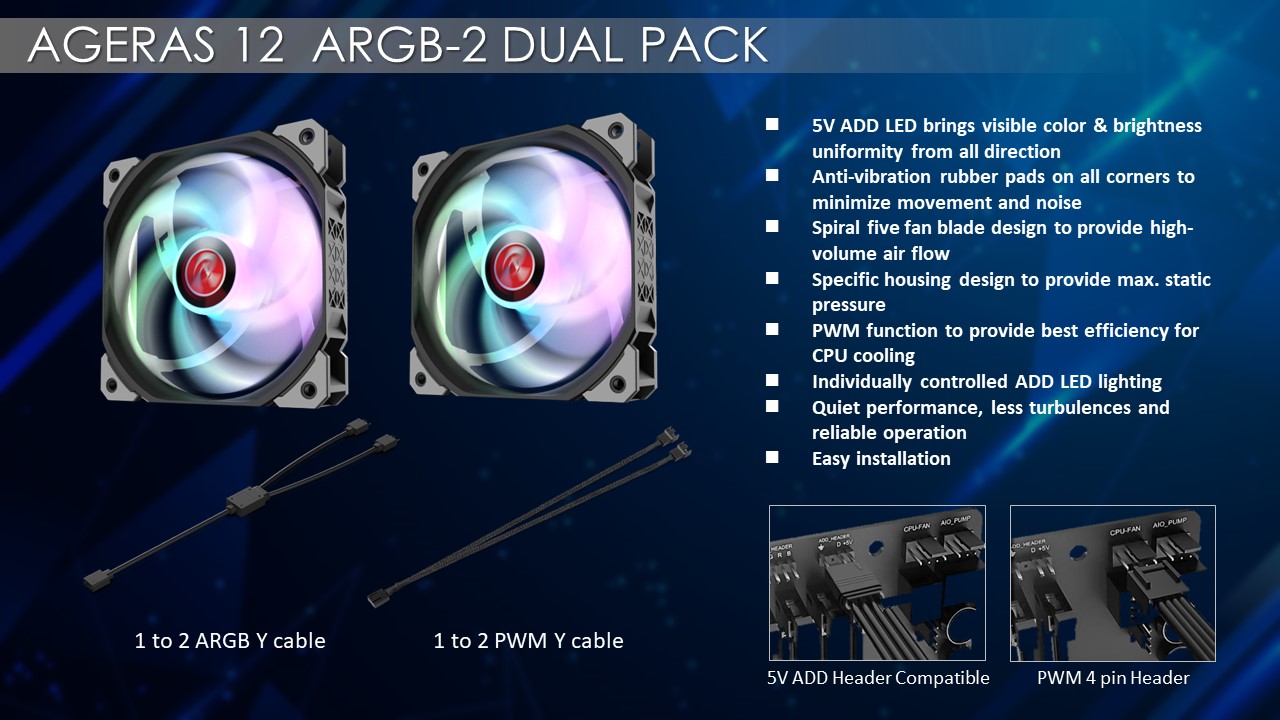

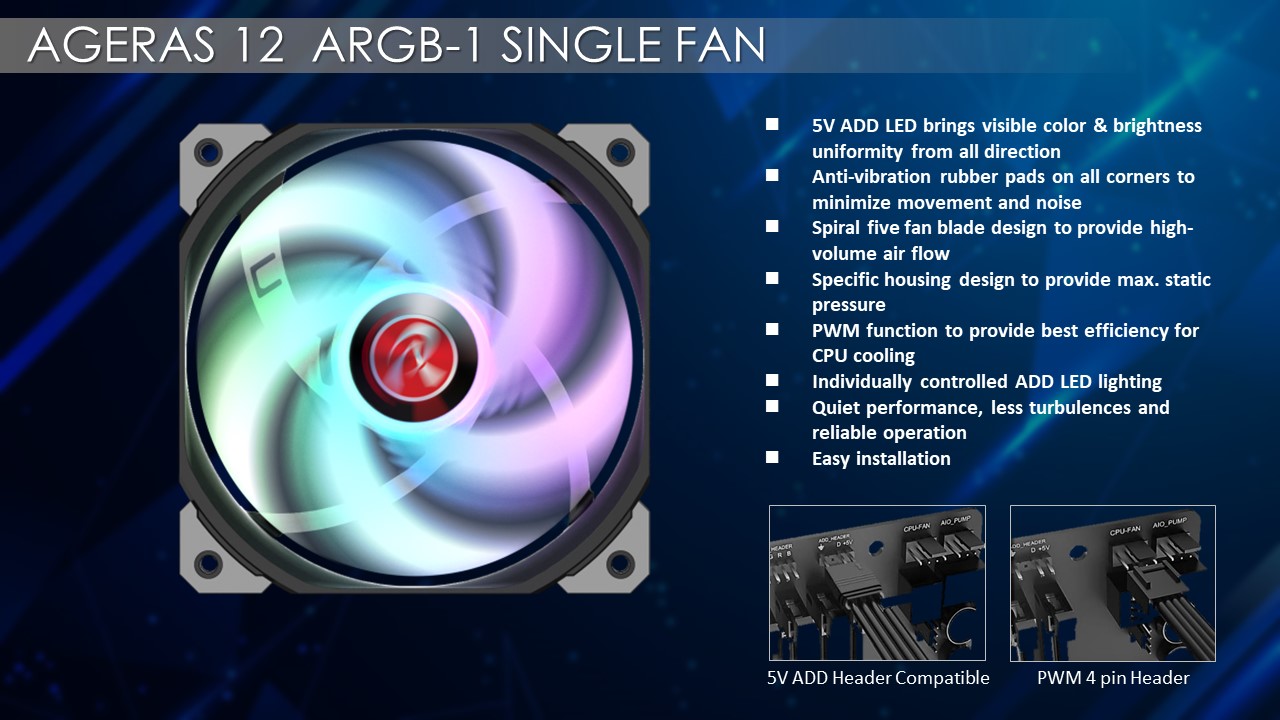

AGERAS 12 ARGB SPECIFICATION
Product Name	AGERAS 12 ARGB-1	AGERAS 12 ARGB-2	AGERAS 12 ARGB-3
Product Number	0R40B00256	0R40B00257	0R40B00258
Dimension [W×H×D]	120×120×25 mm	120×120×25 mm	120×120×25 mm
Voltage Rating	12V	12V	12V
Starting Voltage	7V	7V	7V

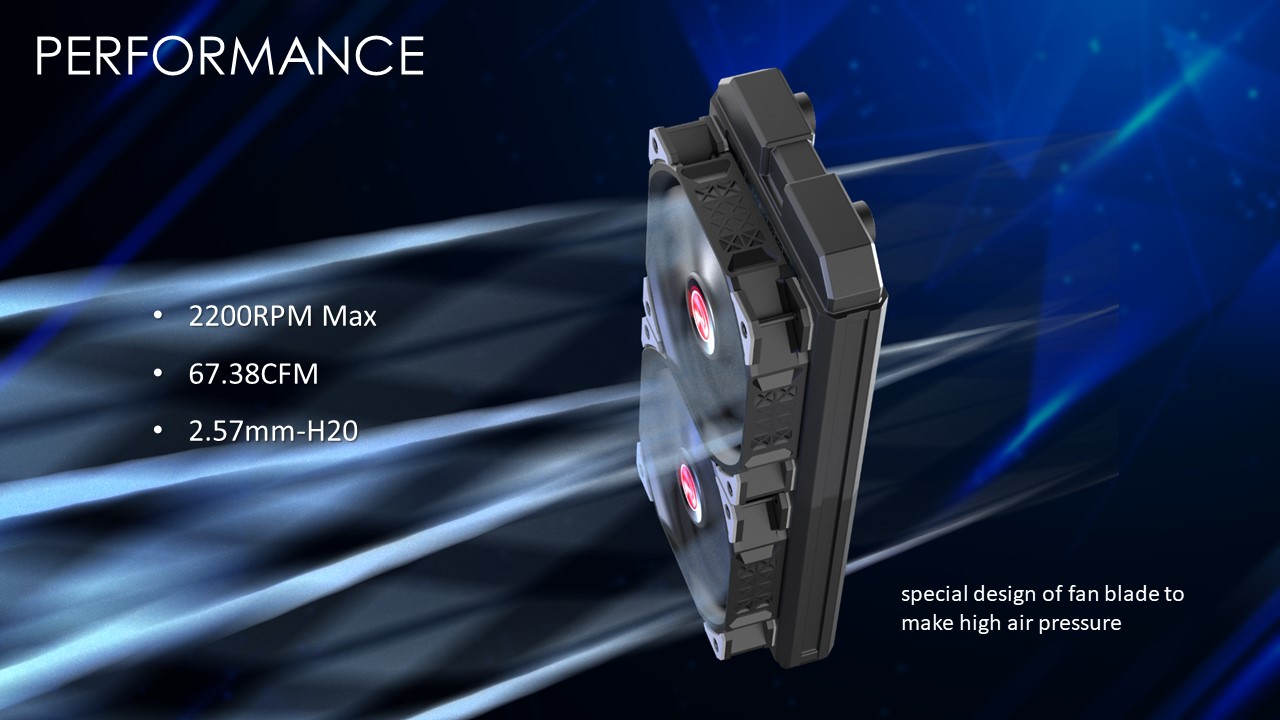

Speed	800~2200 R.P.M.	800~2200 R.P.M.	800~2200 R.P.M.
Bearing Type	Hydraulic Bearing	Hydraulic Bearing	Hydraulic Bearing
Air Flow	67.38 CFM [Max.]	67.38 CFM [Max.]	67.38 CFM [Max.]
Air Pressure	2.57 mmH2O [Max.]	2.57 mmH2O [Max.]	2.57 mmH2O [Max.]
Life Expectance	40,000 hrs	40,000 hrs	40,000 hrs
Noise Level	33 dBA [Max.]	33 dBA [Max.]	33 dBA [Max.]

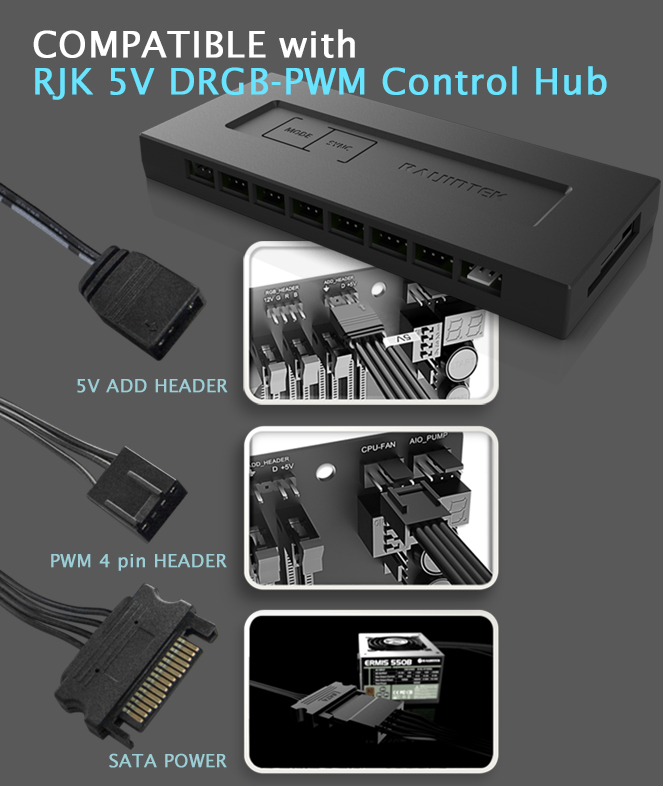

Connector	5V ADD 3pin Header, PWM 4pin Header	5V ADD 3pin Header, PWM 4pin Header	5V ADD 3pin Header, PWM 4pin Header
Rated Current	0.17A±20%	0.17A±20%	0.17A±20%
Power consumption	2.1W±20%	2.1W±20%	2.1W±20%
LED Rated Current	0.35A [Max.]	0.35A [Max.]	0.35A [Max.]
LED Power consumption	1.8W [Max.]	1.8W [Max.]	1.8W [Max.]
Fan Q'ty	1 pcs	2 pcs	3 pcs

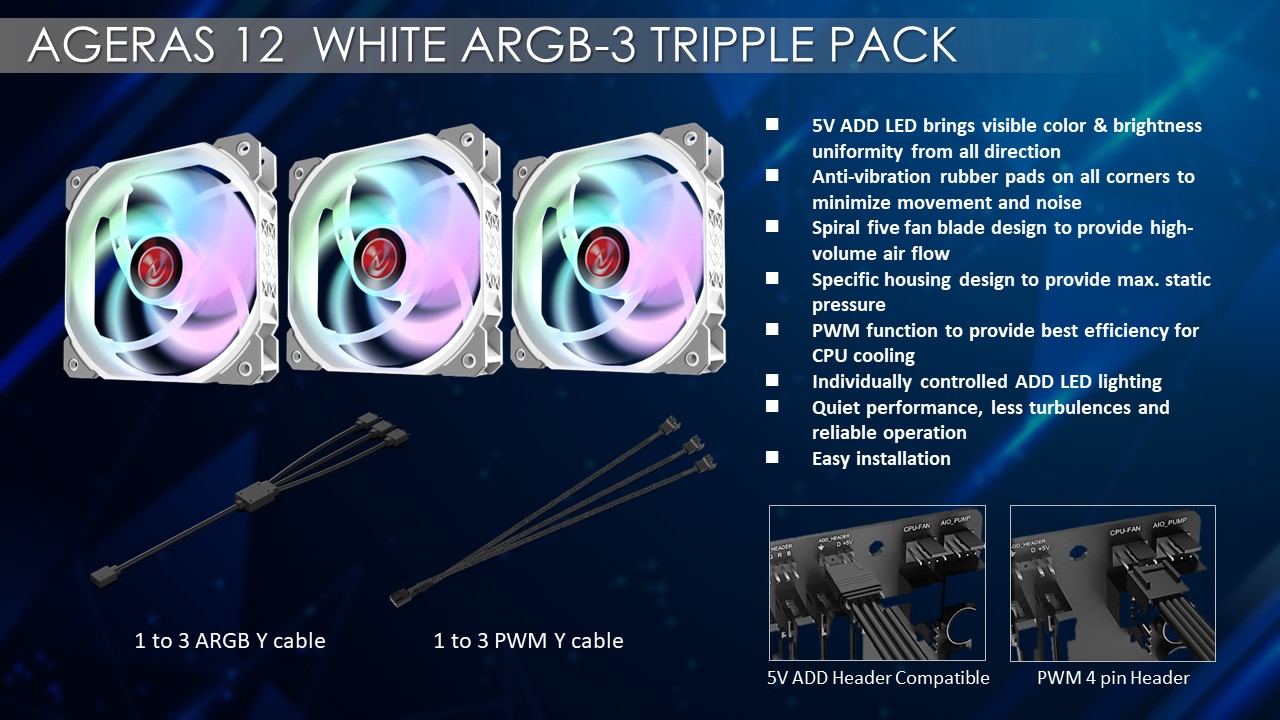

Accessories	Screw × 4	Screw × 8 1 to 2 ARGB Y Cable × 1 1 to 2 PWM Y Cable × 1	Screw × 12 1 to 3 ARGB Y Cable × 1 1 to 3 PWM Y Cable × 1
Warranty	3 years	3 years	3 years

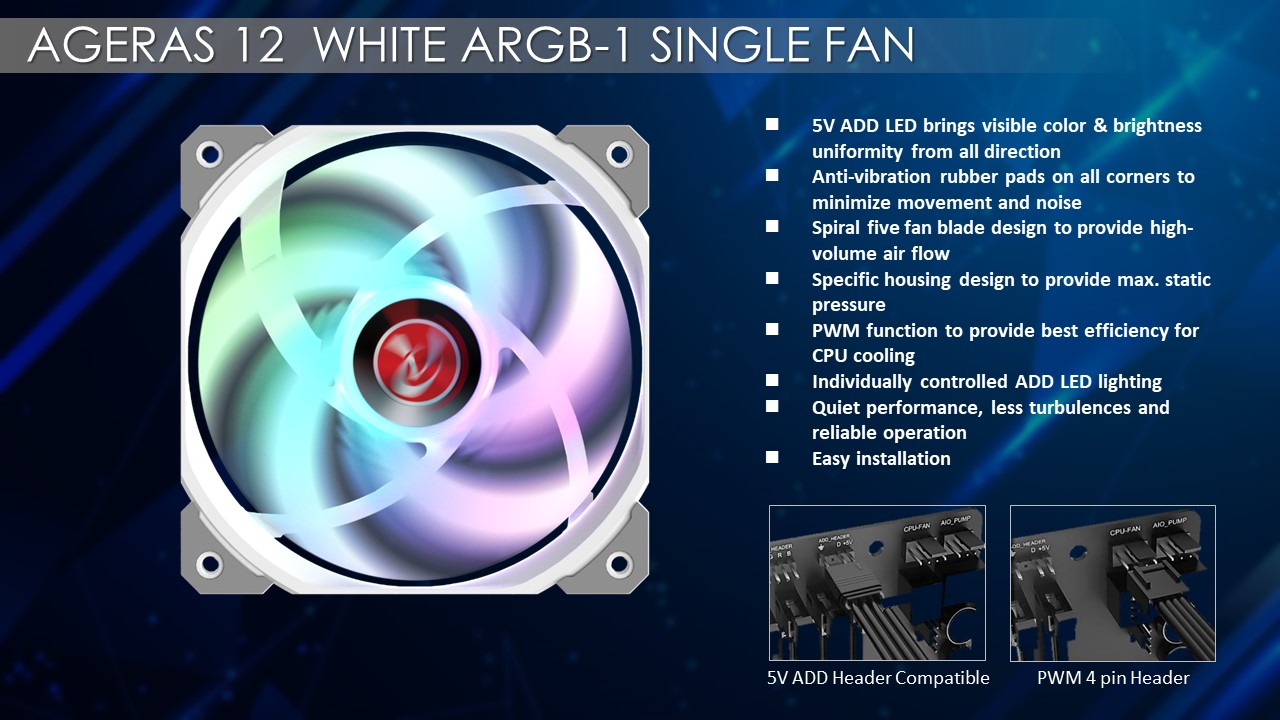

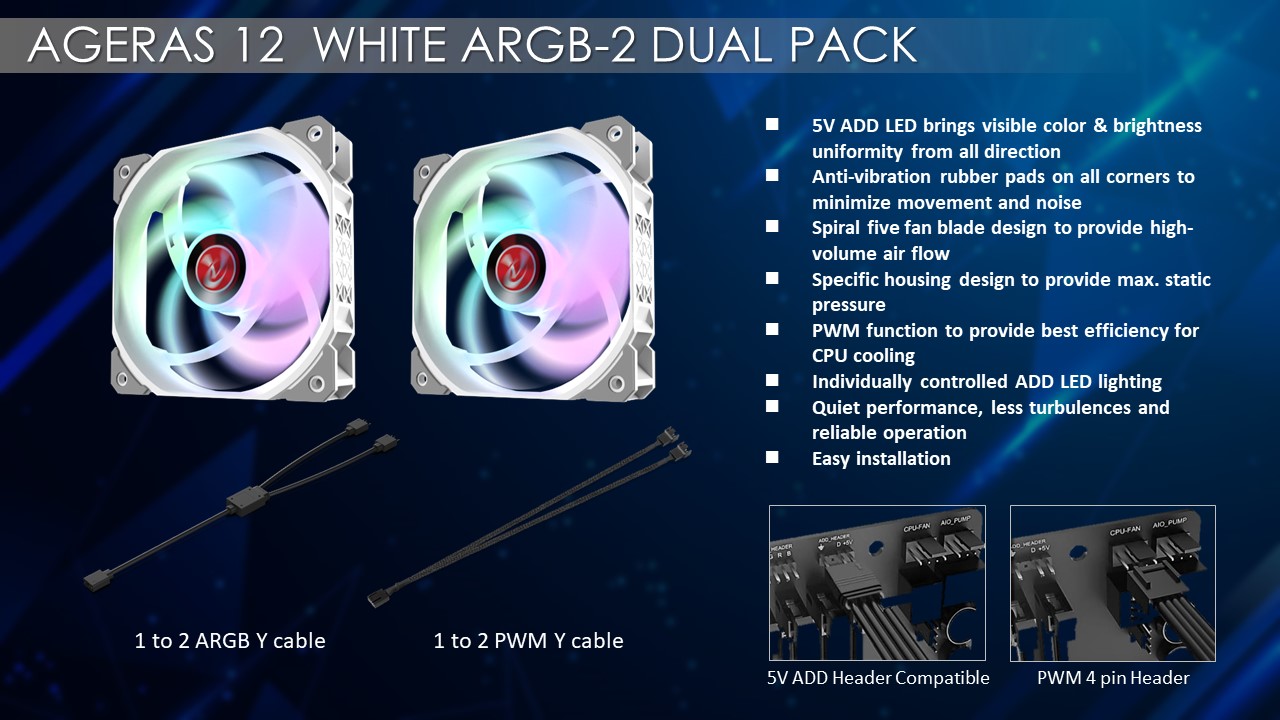

AGERAS 12 WHITE ARGB SPECIFICATION
Product Name	AGERAS 12 WHITE ARGB-1	AGERAS 12 WHITE ARGB-2	AGERAS 12 WHITE ARGB-3
Product Number	0R40B00259	0R40B00260	0R40B00261
Dimension [W×H×D]	120×120×25 mm	120×120×25 mm	120×120×25 mm
Voltage Rating	12V	12V	12V
Starting Voltage	7V	7V	7V
Speed	800~2200 R.P.M.	800~2200 R.P.M.	800~2200 R.P.M.
Bearing Type	Hydraulic Bearing	Hydraulic Bearing	Hydraulic Bearing
Air Flow	67.38 CFM [Max.]	67.38 CFM [Max.]	67.38 CFM [Max.]
Air Pressure	2.57 mmH2O [Max.]	2.57 mmH2O [Max.]	2.57 mmH2O [Max.]
Life Expectance	40,000 hrs	40,000 hrs	40,000 hrs
Noise Level	33 dBA [Max.]	33 dBA [Max.]	33 dBA [Max.]
Connector	5V ADD 3pin Header, PWM 4pin Header	5V ADD 3pin Header, PWM 4pin Header	5V ADD 3pin Header, PWM 4pin Header
Rated Current	0.17A±20%	0.17A±20%	0.17A±20%
Power consumption	2.1W±20%	2.1W±20%	2.1W±20%
LED Rated Current	0.35A [Max.]	0.35A [Max.]	0.35A [Max.]
LED Power consumption	1.8W [Max.]	1.8W [Max.]	1.8W [Max.]
Fan Q'ty	1 pcs	2 pcs	3 pcs
Accessories	Screw × 4	Screw × 8 1 to 2 ARGB Y Cable × 1 1 to 2 PWM Y Cable × 1	Screw × 12 1 to 3 ARGB Y Cable × 1 1 to 3 PWM Y Cable × 1
Warranty	3 years	3 years	3 years

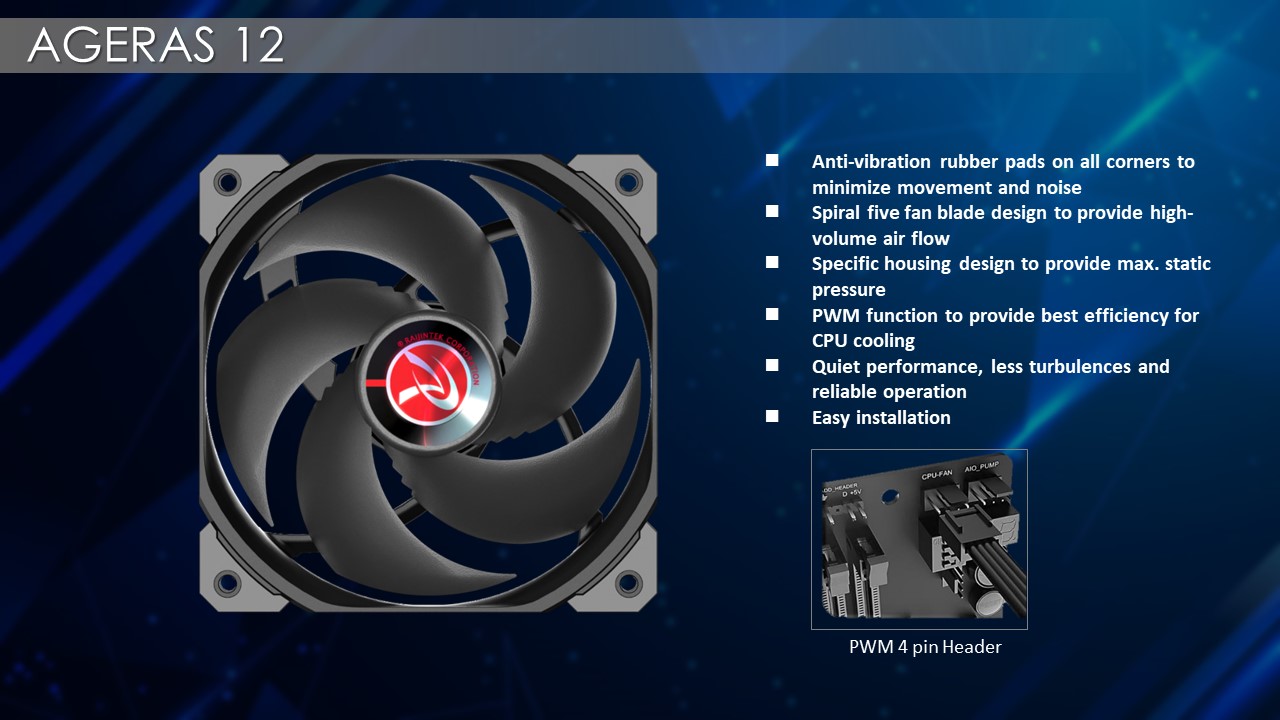

AGERAS 12 SPECIFICATION
Product Name	AGERAS 12
Product Number	0R40B00255
Dimension [W×H×D]	120×120×25 mm
Voltage Rating	12V
Starting Voltage	7V
Speed	800~2200 R.P.M.
Bearing Type	Hydraulic Bearing
Air Flow	67.38 CFM [Max.]
Air Pressure	2.57 mmH2O [Max.]
Life Expectance	40,000 hrs
Noise Level	33 dBA [Max.]
Connector	5V ADD 3pin Header, PWM 4pin Header
Rated Current	0.17A±20%
Power consumption	2.1W±20%
LED Rated Current	0.35A [Max.]
LED Power consumption	1.8W [Max.]
Fan Q'ty	1 pcs
Accessories	Screw × 4
Warranty	3 years

MODE Function
Mode 1: Rainbow
Mode 2-11: 2 tone Wave
Mode 12-17: Breathing single LED color, White/Green/Blue/Red/Purple/Bluegreen
Mode 18-24: 7 single colors switch by Wave effect
Mode 25: Dynamic 7 colors switch
Mode 26-32: White/Red/Green/Blue/Yellow/Bluegreen/Purple
