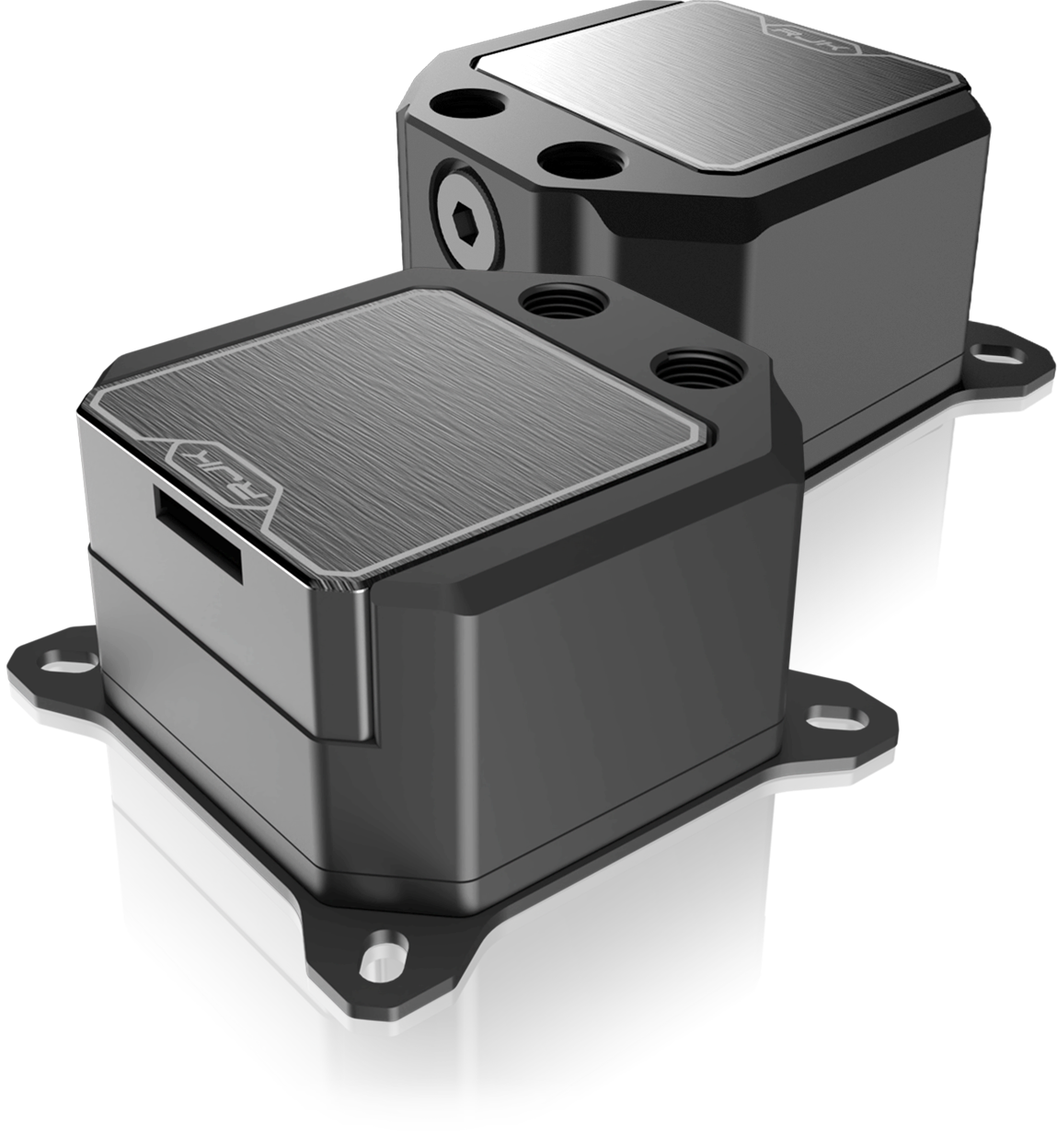

| FORKIS DDC ULTRA |
|
RAIJINTEK’S NEW Forkis DDC Ultra. The most advanced solution for PC enthusiasts and custom PC Modder’s to create a water cooling system. Forkis DDC Ultra - the best CPU Water Cooling PUMP Combo for any of your systems, especially in Mini ITX! |
          |
|
SPECIFICATION |
|
| Product Name | FORKIS DDC ULTRA |
| Product Number | 0R40B00265 |
| Q'ty | 1 pcs |
| Dimension [W×D×H] | 80×84×45 mm |
| Material | Aluminum + POM + nickel-plated |
| Weight | 680 g [w/o clip] |
| Screw Threads | G 1/4" |
PUMP |
|
| Bearing type | Ceramic Bearing |
| Maximum Head | 3.8 meter [Max.] |
| Maximum Discharge | 750 L/H |
| Maximum Pressure | 21.7 PSI |
| Life Expectance | 50,000 hrs |
| Noise Level | 45 dBA [Max.] |
| Speed | 1800~4,800 RPM |
| Voltage Rating | DC12V |
| Input Current | 1.5A ±10% |
| Connector | PWM 4-PIN header / SATA header |
APPLICATION |
|
| Intel® | All Socket LGA 17xx / 115x / 1200 / 1366 / 201x / 2066 CPU (Core™ i3 / i5 / i7 / i9 CPU) |
| AMD® | All AM5/AM4/AM3+/AM3 CPU |
FORKIS DDC ULTRA Installation Guide [ 6.27 MB ]
 |
)
)
)
)
)
)
)
)
)
3D micro-structure flow tunnel inside
