RAIJINTEK

80 PLUS PLATINUM

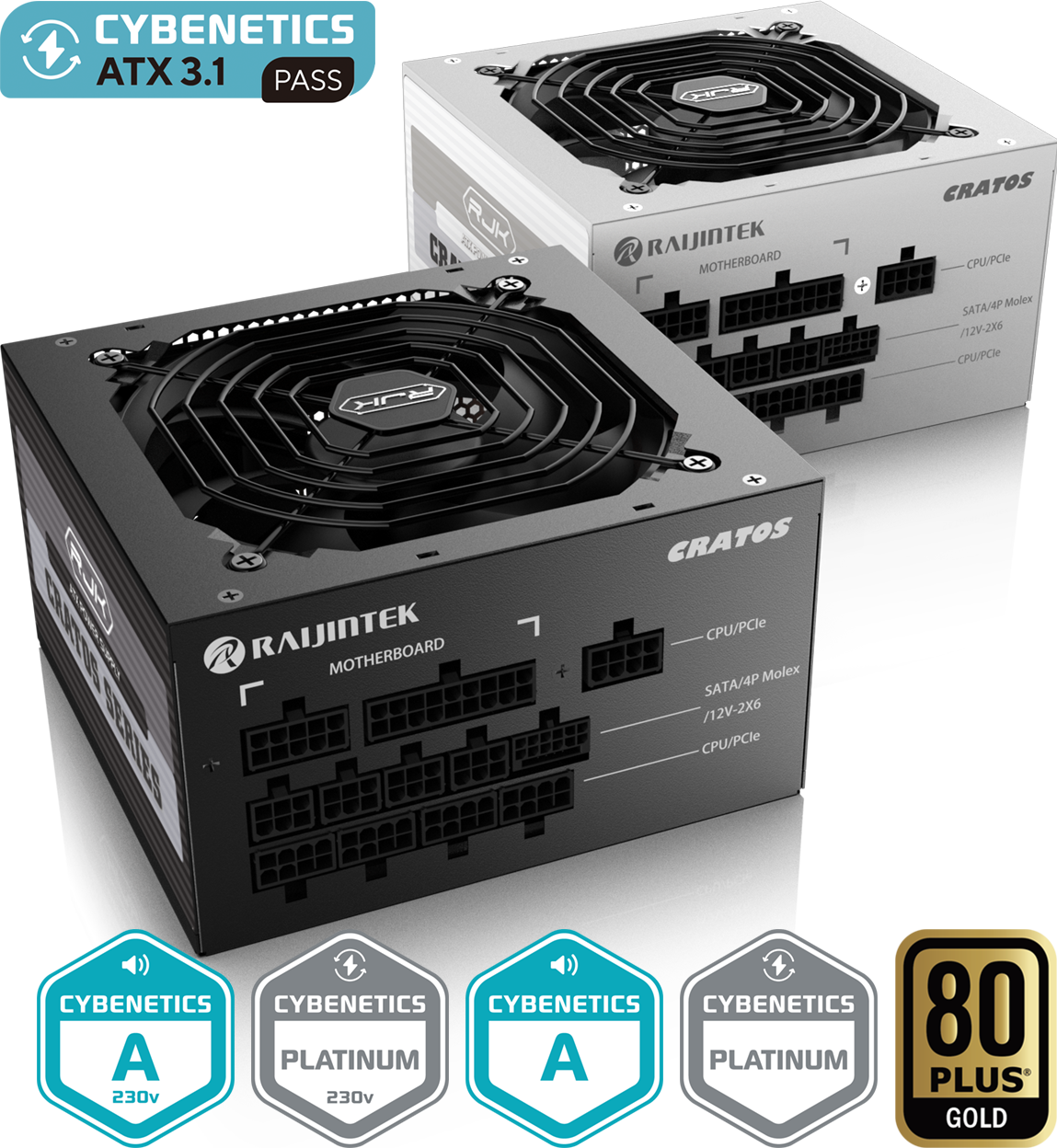

CRATOS SERIES

Upgrade your gaming rig with the RAIJINTEK CRATOS power supply unit! With stable and efficient power output that meets the latest Intel 3.0 and PCIe 5.0 specifications, you'll experience lightning-fast performance. The Japanese capacitors ensure stability even at high temperatures, while the smart fan stop feature keeps things whisper-quiet during low loads. With fully modular flat cables, cable management is easy and your system looks sharp. Choose from 850W, 1000W, or 1200W versions to suit your needs. Elevate your gaming performance to the next level with CRATOS!

Feature
Specification
Support
Unboxed
Review
Gallery

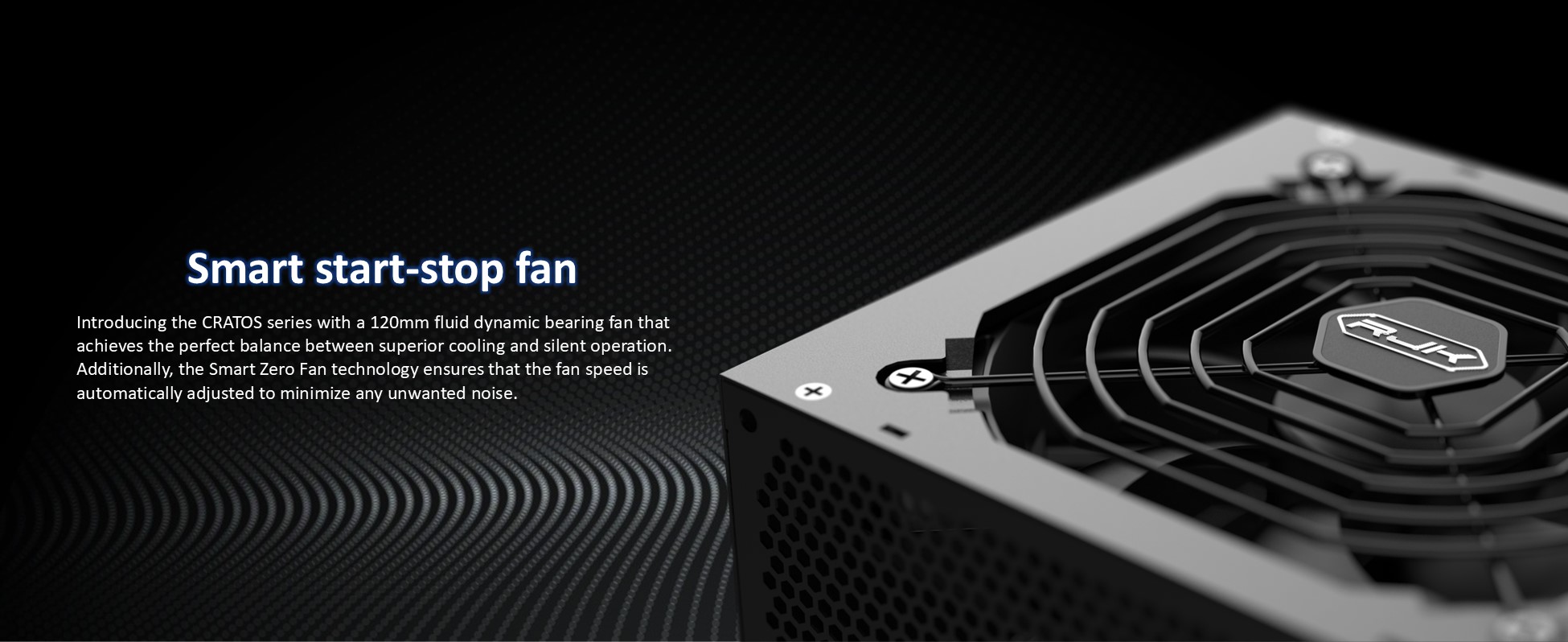

Smart start-stop fan

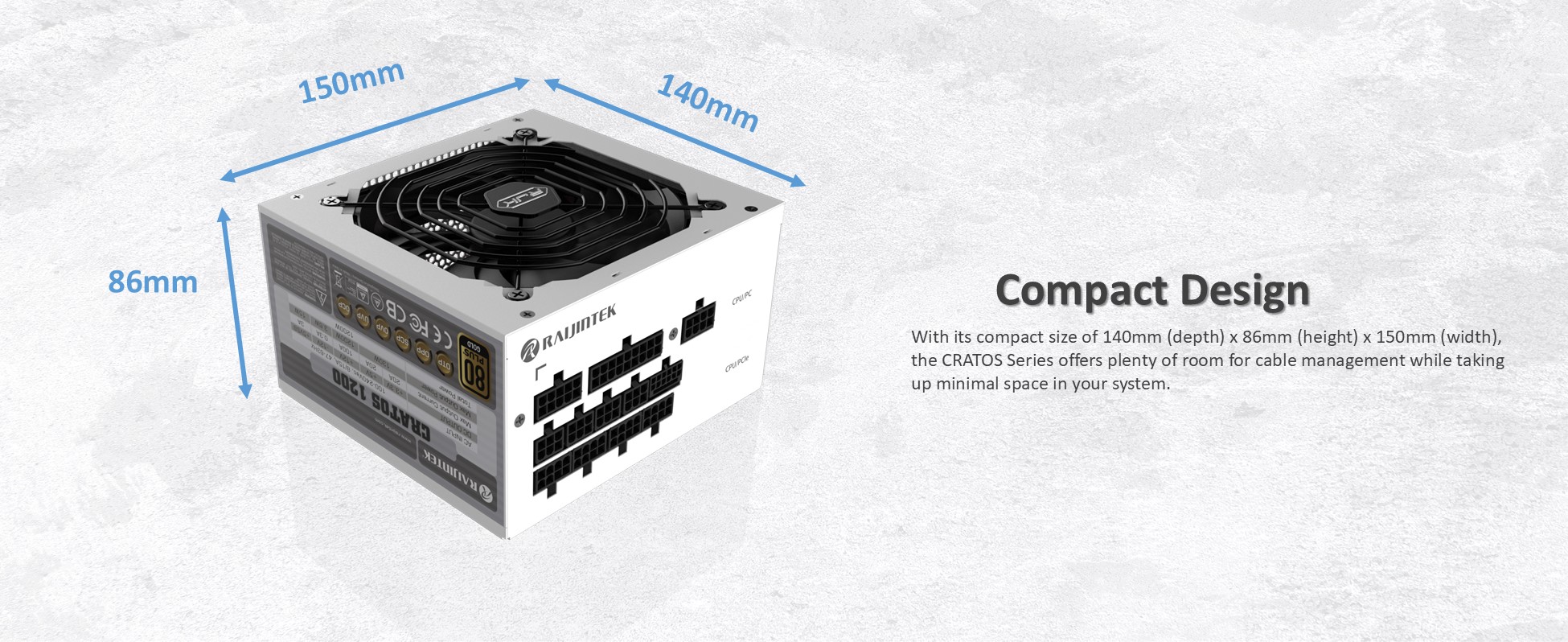

Compact Design 140mm (depth) x 86mm (height) x 150mm (width)

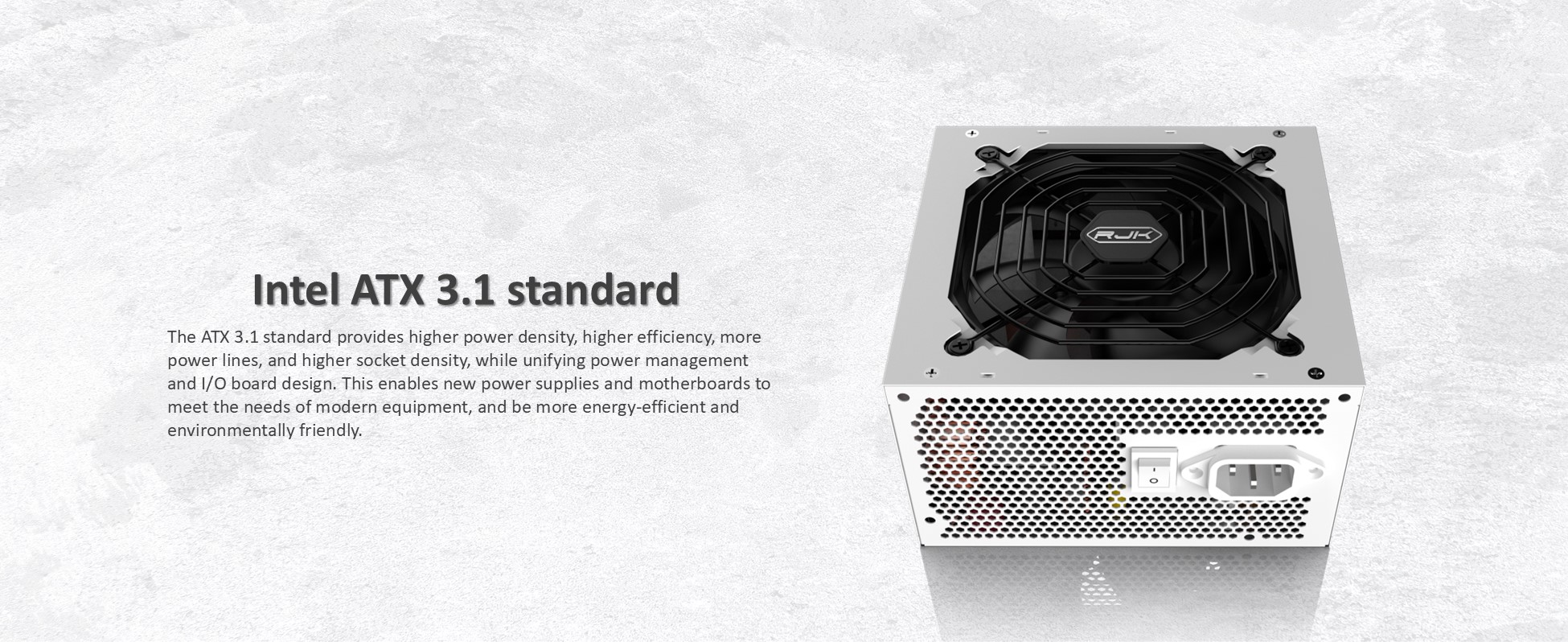

Intel ATX 3.0 standards

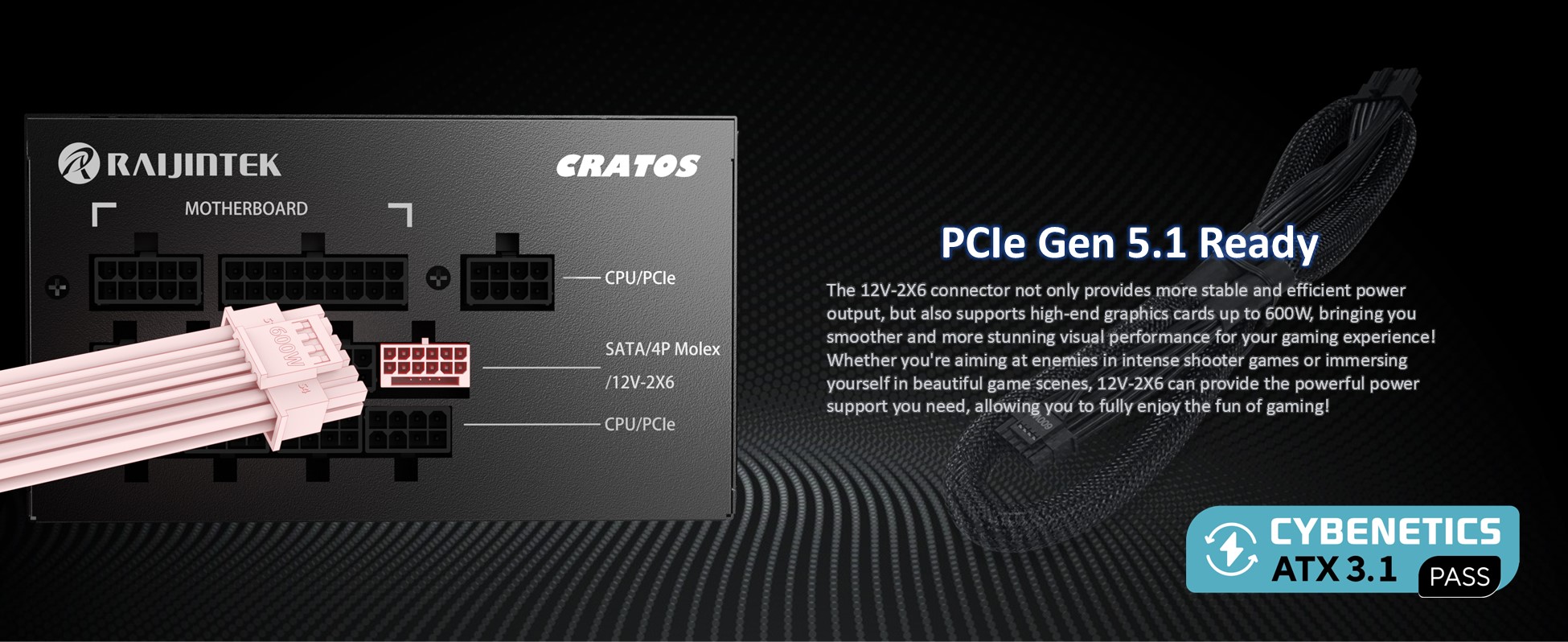

PCIe Gen 5.0 Ready (12VHPWR connector 600W)

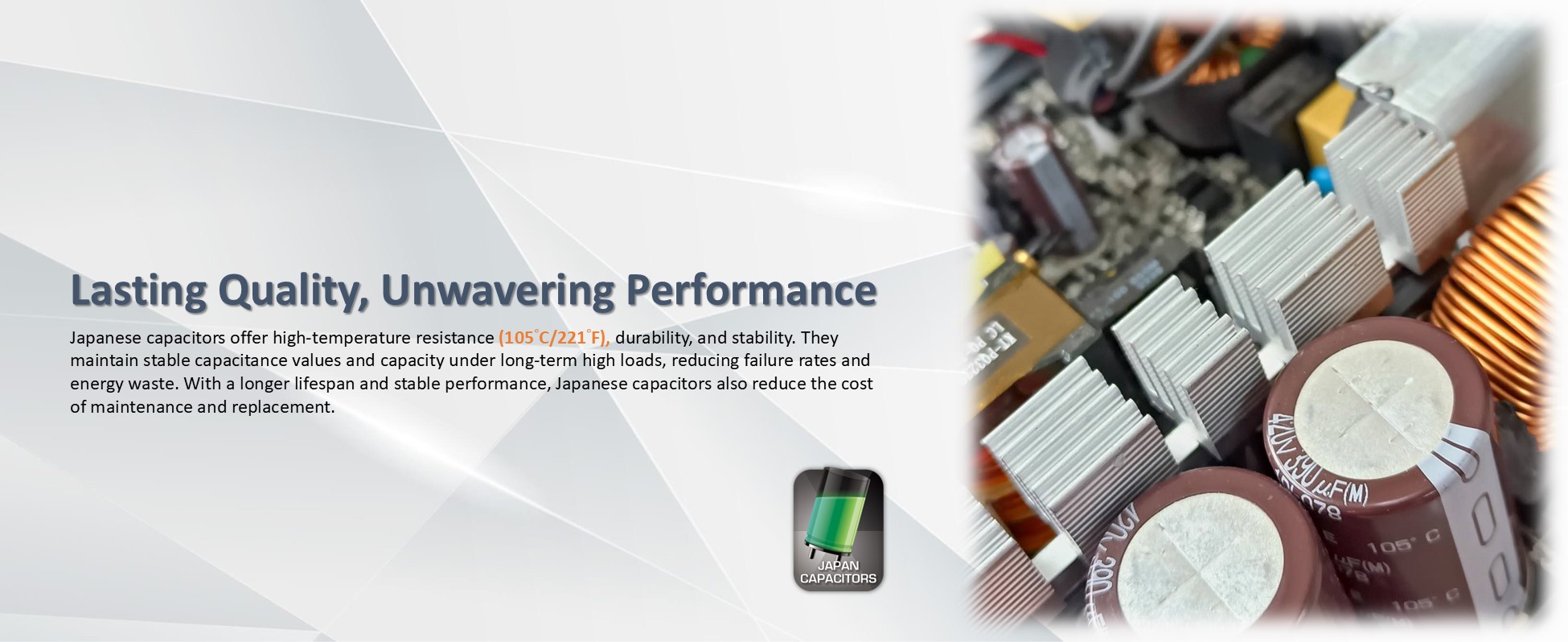

Japanese capacitors offer high-temperature resistance (105°C/221°F)

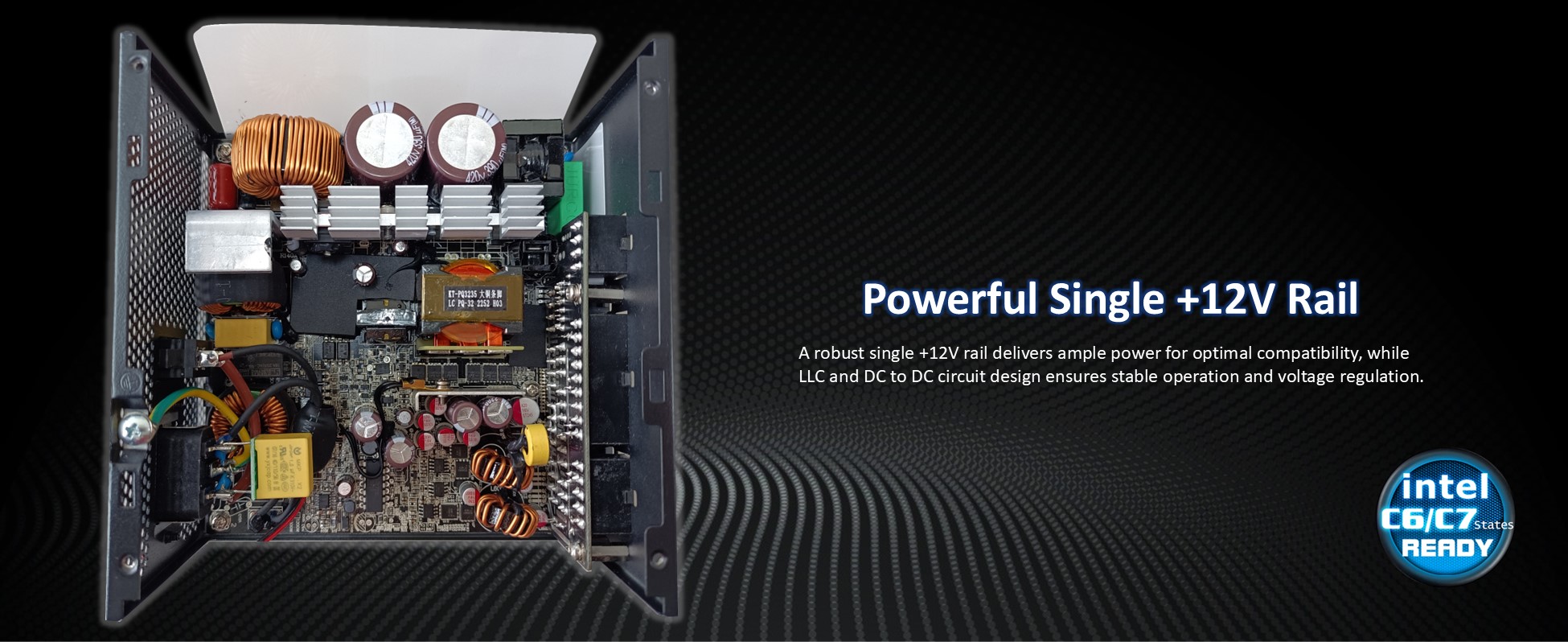

Powerful Single +12V Rail
PROTECTION (OCP, OVP, UVP, OPP, SCP, and OTP)

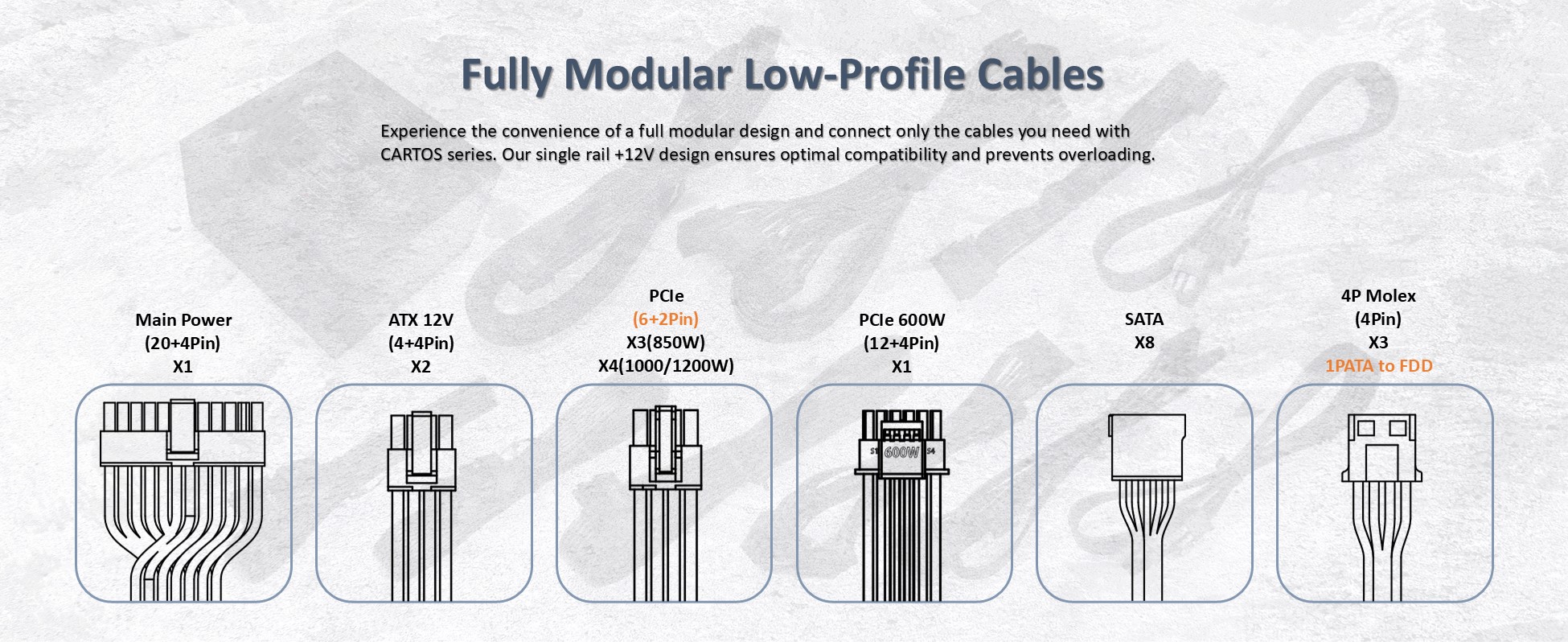

Fully Modular Low-Profile Cables

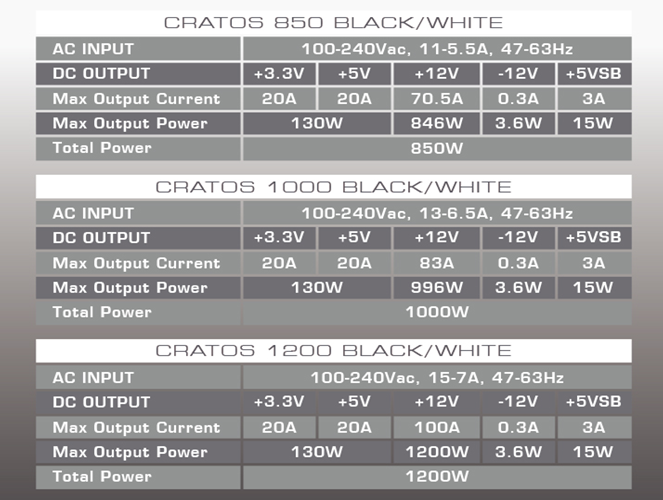

CRATOS 1200 SPECIFICATION
Product Name	CRATOS 1200 BLACK	CRATOS 1200 WHITE
Product Number	0R30B00003	0R30B00004
Type	ATX	ATX
Max. Output Capacity	1200W	1200W
Dimension [W×H×D]	150×140×86 mm	150×140×86 mm
Color	Black	WHITE
Input Current	8-15A	8-15A
Input Frequency Range	47-63Hz	47-63Hz
Input Voltage	100-240V	100-240V
Operating Temperature	5°C to +50°C	5°C to +50°C
Operating Humidity	20% to 85%, non-condensing	20% to 85%, non-condensing
Storage Temperature	-40 °C to +70 °C	-40 °C to +70 °C
Storage Humidity	10% to 95%, non-condensing	10% to 95%, non-condensing
Cooling System	12025mm Fan: 2300 R.P.M. ± 10%	12025mm Fan: 2300 R.P.M. ± 10%
Efficiency	Meet 80 PLUS® GOLD ; ref.# S-850MZ 1200A-J	Meet 80 PLUS® GOLD ; ref.# S-850MZ 1200A-J
MTBF	20,000 hrs minimum	20,000 hrs minimum
Protection	OCP, OVP, UVP, OPP, SCP, and OTP	OCP, OVP, UVP, OPP, SCP, and OTP
Safety Approval	cTUVus / TUV / CE / FCC / CB / BSMI	cTUVus / TUV / CE / FCC / CB / BSMI
Avg Noise Output	29.12 dBA [Max.]	29.12 dBA [Max.]

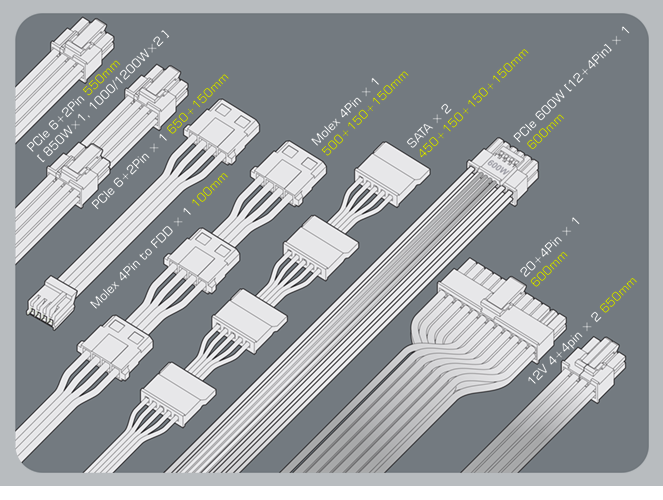

Cables	PCIe 600W × 1 (600mm) 20+4pin × 1 (600mm) 12V 4+4pin × 2 (650mm) PCIe 6+2pin + PCIe 6+2pin × 1 (650+150mm) PCIe 6+2pin × 2 (550mm) SATA + SATA + SATA + SATA × 2 (450+150+150+150mm) Molex 4pin + Molex 4pin + Molex 4pin × 1 (500+150+150mm) Molex 4pin to FDD × 1 (100mm)	PCIe 600W × 1 (600mm) 20+4pin × 1 (600mm) 12V 4+4pin × 2 (650mm) PCIe 6+2pin + PCIe 6+2pin × 1 (650+150mm) PCIe 6+2pin × 2 (550mm) SATA + SATA + SATA + SATA × 2 (450+150+150+150mm) Molex 4pin + Molex 4pin + Molex 4pin × 1 (500+150+150mm) Molex 4pin to FDD × 1 (100mm)
Certificates

CRATOS 1000 SPECIFICATION
Product Name	CRATOS 1000 BLACK	CRATOS 1000 WHITE
Product Number	0R30B00005	0R30B00006
Type	ATX	ATX
Max. Output Capacity	1000W	1000W
Dimension [W×H×D]	150×140×86 mm	150×140×86 mm
Color	Black	WHITE
Input Current	6.5-13A	6.5-13A
Input Frequency Range	47-63Hz	47-63Hz
Input Voltage	100-240V	100-240V
Operating Temperature	5°C to +50°C	5°C to +50°C
Operating Humidity	20% to 85%, non-condensing	20% to 85%, non-condensing
Storage Temperature	-40 °C to +70 °C	-40 °C to +70 °C
Storage Humidity	10% to 95%, non-condensing	10% to 95%, non-condensing
Cooling System	12025mm Fan: 1800 R.P.M. ± 10%	12025mm Fan: 1800 R.P.M. ± 10%
Efficiency	Meet 80 PLUS® GOLD ; ref.# S-850MZ 1000A-J	Meet 80 PLUS® GOLD ; ref.# S-850MZ 1000A-J
MTBF	20,000 hrs minimum	20,000 hrs minimum
Protection	OCP, OVP, UVP, OPP, SCP, and OTP	OCP, OVP, UVP, OPP, SCP, and OTP
Safety Approval	cTUVus / TUV / CE / FCC / CB / BSMI	cTUVus / TUV / CE / FCC / CB / BSMI
Avg Noise Output	20.94 dBA [Max.]	20.94 dBA [Max.]
Cables	PCIe 600W × 1 (600mm) 20+4pin × 1 (600mm) 12V 4+4pin × 2 (650mm) PCIe 6+2pin + PCIe 6+2pin × 1 (650+150mm) PCIe 6+2pin × 2 (550mm) SATA + SATA + SATA + SATA × 2 (450+150+150+150mm) Molex 4pin + Molex 4pin + Molex 4pin × 1 (500+150+150mm) Molex 4pin to FDD × 1 (100mm)	PCIe 600W × 1 (600mm) 20+4pin × 1 (600mm) 12V 4+4pin × 2 (650mm) PCIe 6+2pin + PCIe 6+2pin × 1 (650+150mm) PCIe 6+2pin × 2 (550mm) SATA + SATA + SATA + SATA × 2 (450+150+150+150mm) Molex 4pin + Molex 4pin + Molex 4pin × 1 (500+150+150mm) Molex 4pin to FDD × 1 (100mm)
Certificates

CRATOS 850 SPECIFICATION
Product Name	CRATOS 850 BLACK	CRATOS 850 WHITE
Product Number	0R30B00007	0R30B00008
Type	ATX	ATX
Max. Output Capacity	850W	850W
Dimension [W×H×D]	150×140×86 mm	150×140×86 mm
Color	Black	WHITE
Input Current	5.5-11A	5.5-11A
Input Frequency Range	47-63Hz	47-63Hz
Input Voltage	100-240V	100-240V
Operating Temperature	5°C to +50°C	5°C to +50°C
Operating Humidity	20% to 85%, non-condensing	20% to 85%, non-condensing
Storage Temperature	-40 °C to +70 °C	-40 °C to +70 °C
Storage Humidity	10% to 95%, non-condensing	10% to 95%, non-condensing
Cooling System	12025mm Fan: 1800 R.P.M. ± 10%	12025mm Fan: 1800 R.P.M. ± 10%
Efficiency	Meet 80 PLUS® GOLD ; ref.# S-850MZ 850A-J	Meet 80 PLUS® GOLD ; ref.# S-850MZ 850A-J
MTBF	20,000 hrs minimum	20,000 hrs minimum
Protection	OCP, OVP, UVP, OPP, SCP, and OTP	OCP, OVP, UVP, OPP, SCP, and OTP
Safety Approval	cTUVus / TUV / CE / FCC / CB / BSMI	cTUVus / TUV / CE / FCC / CB / BSMI
Avg Noise Output	20.94 dBA [Max.]	20.94 dBA [Max.]
Cables	PCIe 600W × 1 (600mm) 20+4pin × 1 (600mm) 12V 4+4pin × 2 (650mm) PCIe 6+2pin + PCIe 6+2pin × 1 (650+150mm) PCIe 6+2pin × 1 (550mm) SATA + SATA + SATA + SATA × 2 (450+150+150+150mm) Molex 4pin + Molex 4pin + Molex 4pin × 1 (500+150+150mm) Molex 4pin to FDD × 1 (100mm)	PCIe 600W × 1 (600mm) 20+4pin × 1 (600mm) 12V 4+4pin × 2 (650mm) PCIe 6+2pin + PCIe 6+2pin × 1 (650+150mm) PCIe 6+2pin × 1 (550mm) SATA + SATA + SATA + SATA × 2 (450+150+150+150mm) Molex 4pin + Molex 4pin + Molex 4pin × 1 (500+150+150mm) Molex 4pin to FDD × 1 (100mm)
Certificates
