AENEAS

AENEAS, Design Art in its best by Raijintek– Decent Cube Micro ATX Chassis, is developed for superb airflow (intake and exhaust) combined with an eye-catching LED bar. Clean and elegant design, AENEAS also provides a sturdy chassis body (0.8mm SGCC) and surprising functions and features. Gorgeous possible fan installation for the best cooling performing ever, AENEAS supports up to maximum eight fans including a 200mm fan optional at the front, and pre-installs 2*140mm & 2*120mm fans at the rear and front. Additionally, AENEAS supports 240mm radiator at the front or on the top also. Superior features include such as a removable M/B tray for the easy installation, a max CPU cooler height up to 180mm, on/off button for the LED lights, a max VGA length up to 310mm and regular ATX / EPS PSU compatibility. What an awesome enthusiast chassis – the AENEAS.

AENEAS
  • Elegant LED light bar design (on/off switch)
  • User Friendly design – removable M/B frame and tool-free screws
  • Classic design with efficient and mass airflow
  • Complete black coated interior
  • Dust-control filters for all mesh area
  • Sturdy and reliable chassis body (Chassis body: 0.8mm SGCC)
  • Accommodate an internal 240 mm radiator at front; an 280mm radiator at top (occupy ODD space)
  • Powerful fan systems pre-installed: two 140mm at rear; two 120mm at front
  • Supports up to eight fans installation; 200mm fan option at front
  • Supports to install four 3.5" HDD (or four 2.5" HDD) and five 2.5" HDD (optional cage)
  • Fully supports Tool-free for ODDs & HDDs
  • Two high speed USB3.0 and two USB2.0
  • Supports VGA card up to 310mm
  • Support CPU cooler height up to 180mm
SPECIFICATION
Product Name AENEAS
Product Number 0R200020 ~ 0R200023
Dimension [W×D×H] 288×380×430 mm
Weight 8 kg [N.W.] 9.5 kg [G.W.]
Material SGCC 0.8mm
Color Matt Black / White
M/B Support MicroATX / ITX
Drive Bay External [Tool-Free] 5.25" ×1
Internal 3.5" ×5 [Tool-Free, 1 Exposed + 4 Hidden]
2.5" ×5 [option/Removable]
Expansion Slot PCI Slots [Tool-Free] ×5
I/O Panel USB3.0×2, USB2.0×2, HD Audio×1
Power Supply PS/2 [Internal Bottom-mount]
CoolingSystem Water Pipe Holes×2
Front Fan: 120mm×4pcs [2pcs pre-installed] 200mm fan [option] or 240mm radiator [option]
Rear Fan: 140mm×2 [pre-installed]
Top Fan: 140mm×2 [option] or 240mm radiator [option]
Side Fan: 140mm×1 [option]
CPU Cooler Height 180mm [Max.]
Graphic Card Length 310mm [Max.]
Side Panel Style Window / Flat [Vent]
  • AENEAS Installation Guide  [ 4.4 MB ]
    This version includes English, German, French, Spanish, Italian, Japanese, Chinese, Russian, Turkish, Polish and Portuguese.

AENEAS × 1

12025 Fan × 2

14025 Fan × 2

Screw M3 – 5mm × 8
ODD/FDD

Screw M3 – 5mm × 16
2.5"HDD

Screw #6-32 L6 × 21
Motherboard/Power Supply

Alarm × 1
Motherboard Alarm

Cable Tie × 5
Settle Cable

Installation Guide × 1

AENEAS

AENEAS

AENEAS

AENEAS

AENEAS

AENEAS

AENEAS

AENEAS

AENEAS

AENEAS

AENEAS

AENEAS

AENEAS

AENEAS

AENEAS

AENEAS

AENEAS

AENEAS

AENEAS

AENEAS

AENEAS

2 120mm Fans at Front and 2 140mm Fans at Rear

Dust Filter


Front Panel Dust Filter


Removable M/B Plate

Tool-free HDD Tray

Tool-free HDD Tray

Cable Management

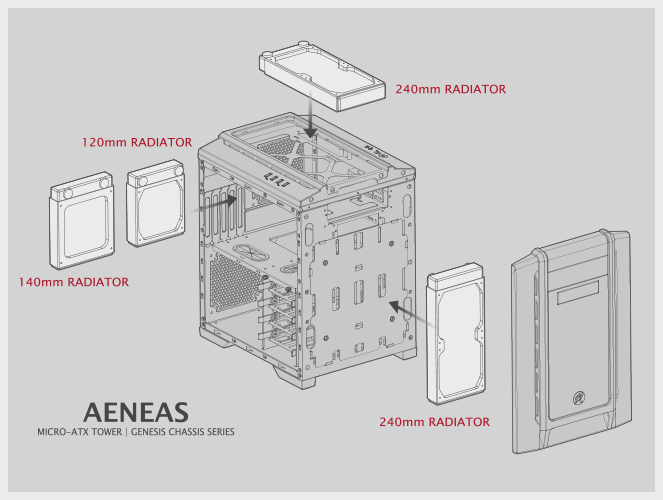

240mm Radiator Available

USB 3.0

I/O Ports

LED Light Bar
