RAIJINTEK

80 PLUS PLATINUM

AMPERE SERIES

Upgrade your gaming rig with the RAIJINTEK AMPERE power supply unit! With stable and efficient power output that meets the latest Intel 3.0 and PCIe 5.0 specifications, you'll experience lightning-fast performance. The Japanese capacitors ensure stability even at high temperatures, while the smart fan stop feature keeps things whisper-quiet during low loads. With full modular flat cables, cable management is easy and your system looks sharp. Elevate your gaming performance to the next level with AMPERE!

Feature
Specification
Support
Unboxed
Gallery

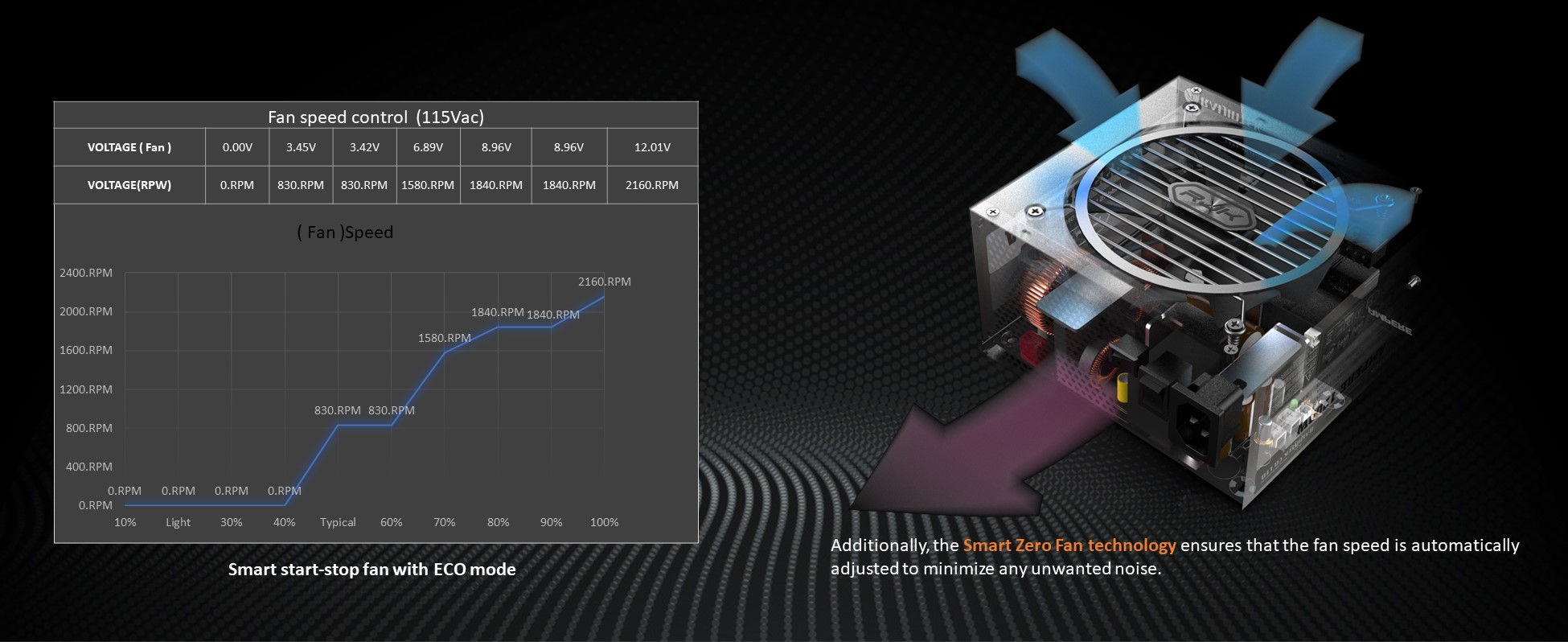

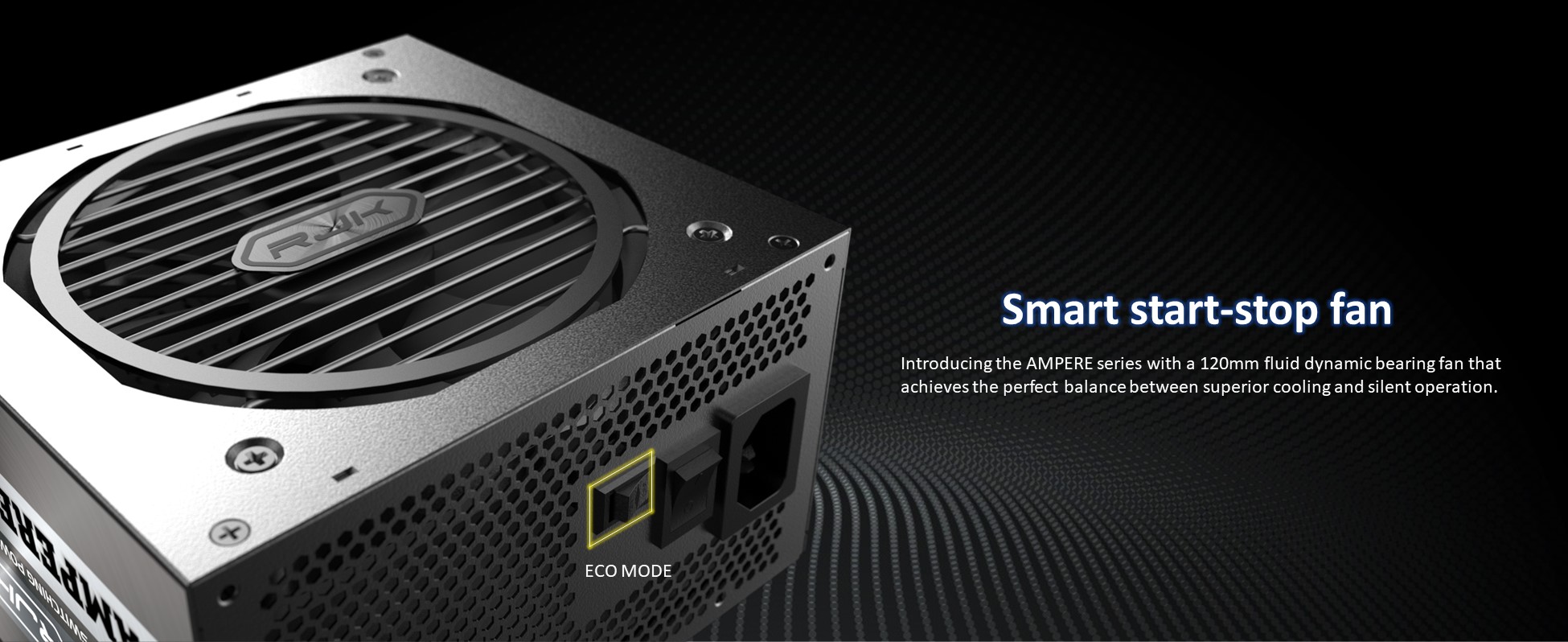

Smart start-stop fan

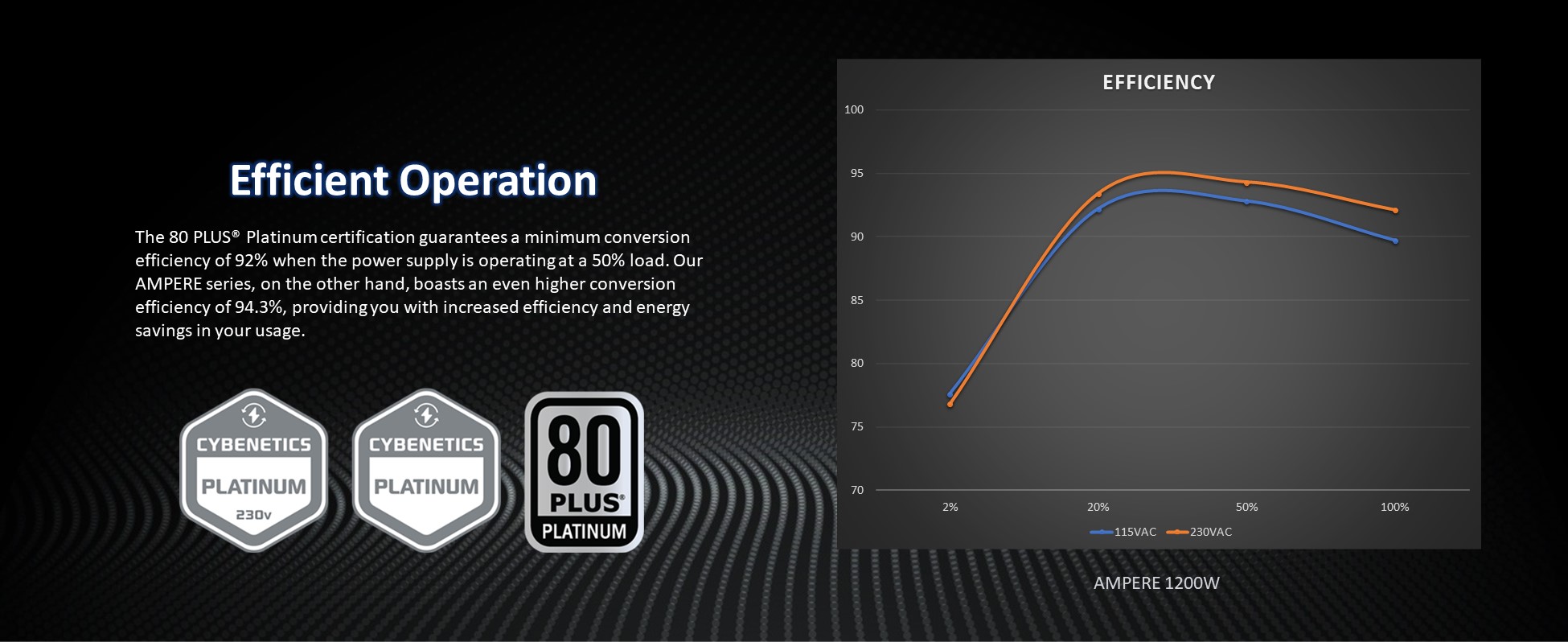

The 80 PLUS® Platinum certification guarantees

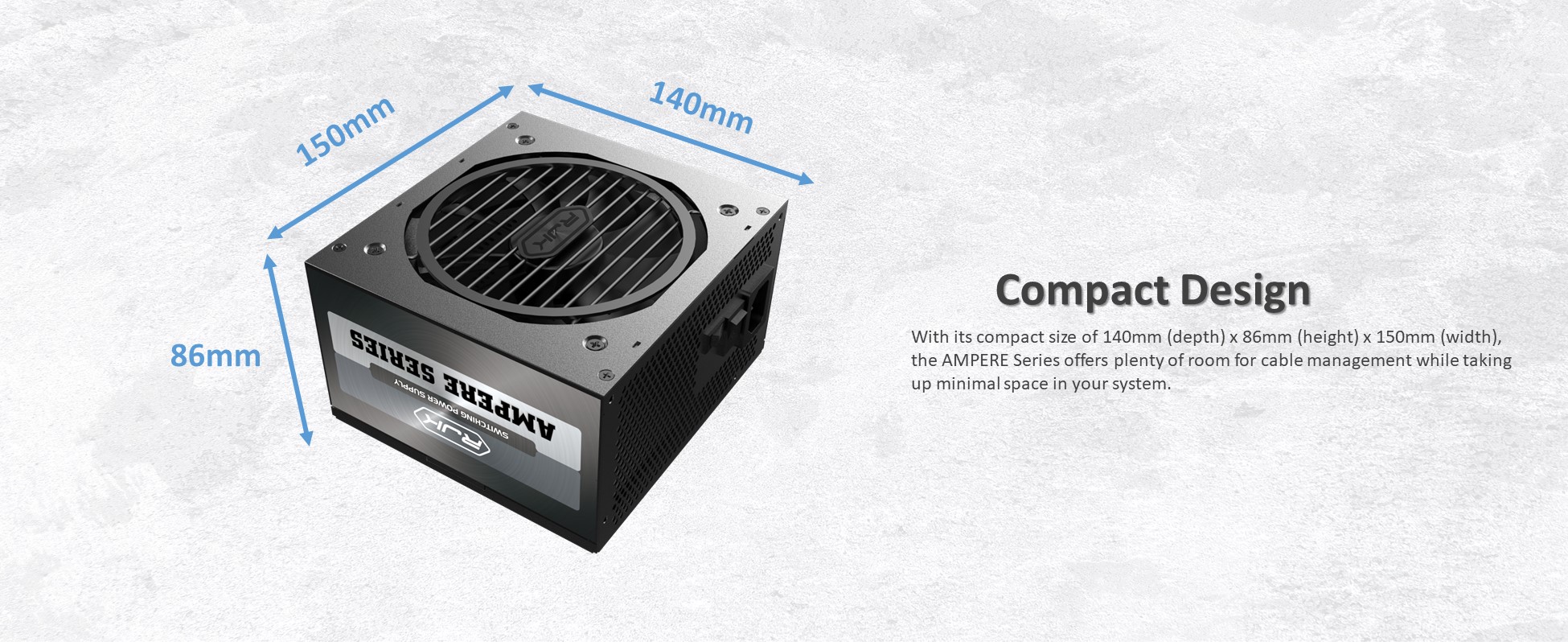

Compact size of 140mm (depth) × 86mm (height) × 150mm (width)
Intel ATX 3.0 standards
PCIe Gen 5.0 Ready

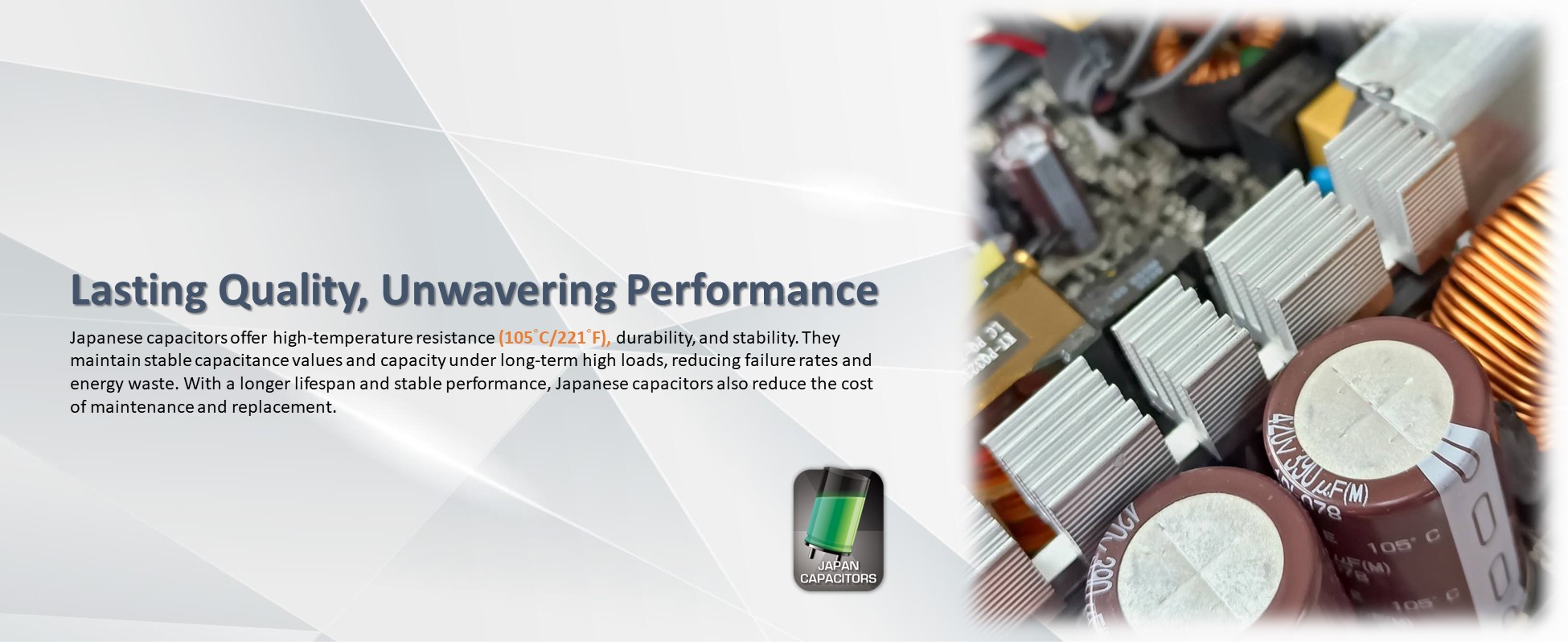

Japanese capacitors offer high-temperature resistance

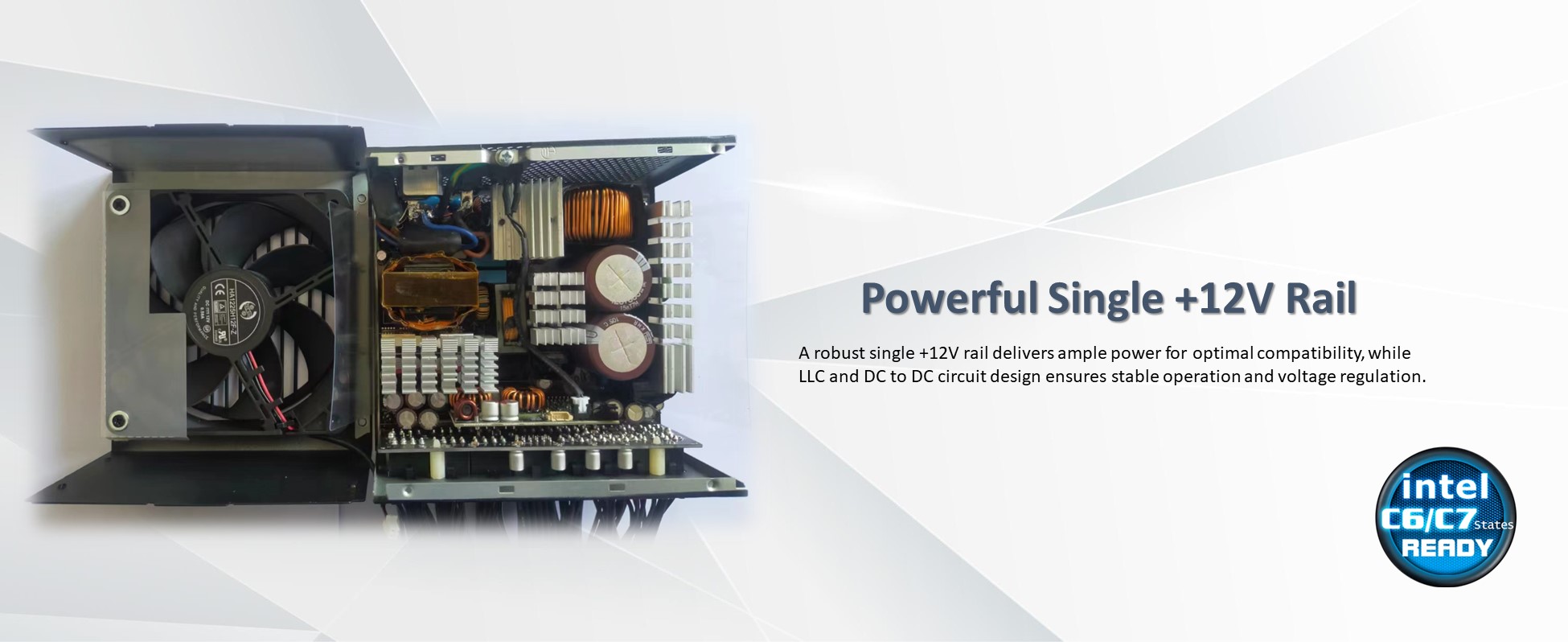

Powerful Single +12V Rail

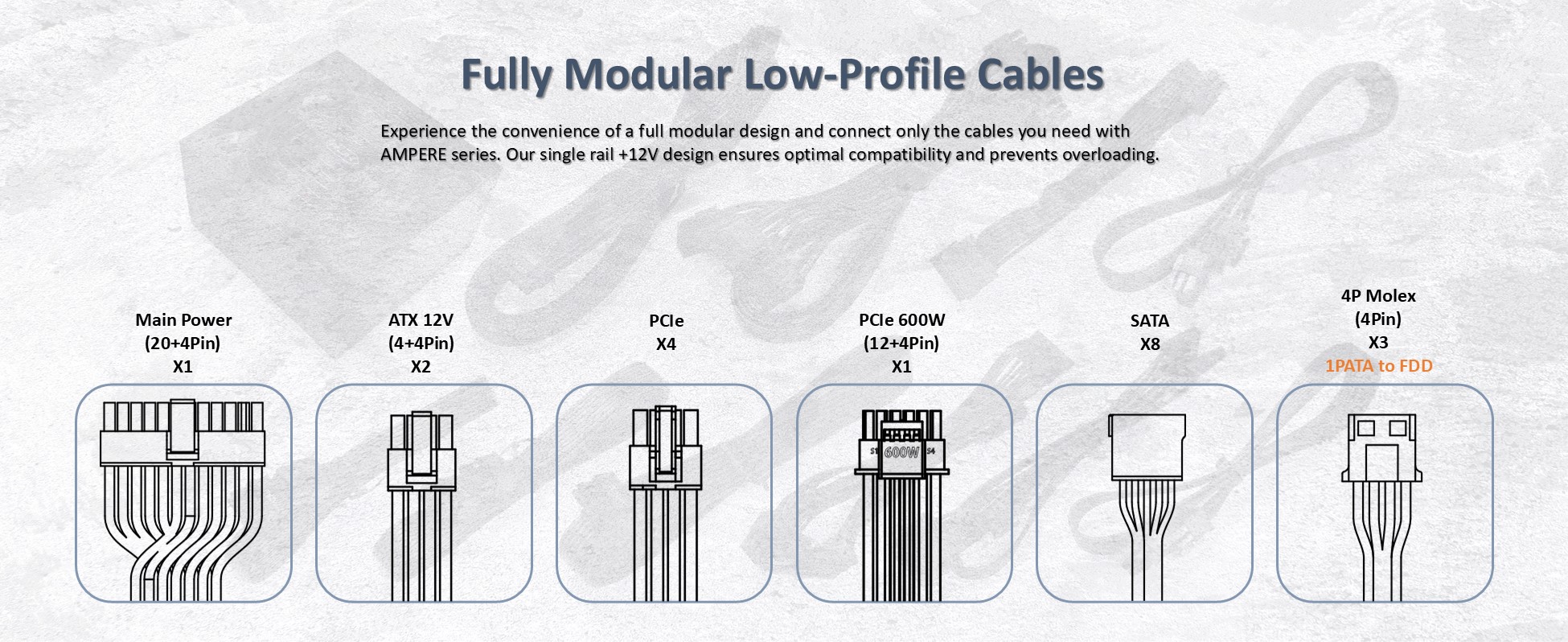

Fully Modular Low-Profile Cables
OCP, OVP, UVP, OPP, SCP, OTP.

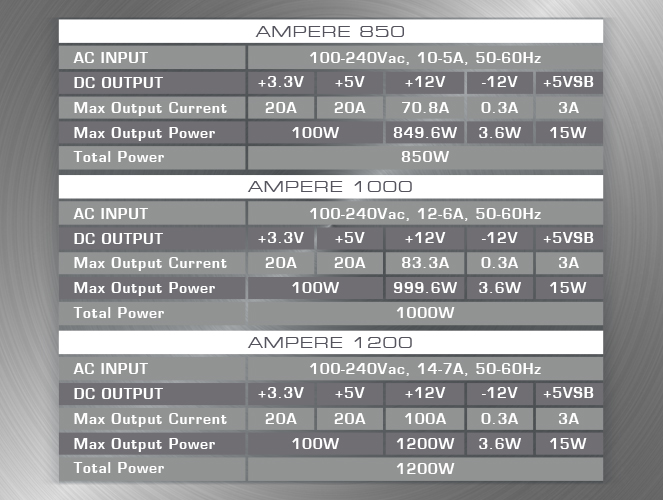

AMPERE 1200 SPECIFICATION
Product Name	AMPERE 1200 BLACK	AMPERE 1200 WHITE
Product Number	0R30B00012	0R30B00023
Type	ATX	ATX
Max. Output Capacity	1200W	1200W
Dimension [W×H×D]	150×140×86 mm	150×140×86 mm
Color	Black	WHITE
Input Current	14-7A	14-7A
Input Frequency Range	50-60Hz	50-60Hz
Input Voltage	100-240V	100-240V
Operating Temperature	0°C to +50°C	0°C to +50°C
Operating Humidity	20% to 85%, non-condensing	20% to 85%, non-condensing
Storage Temperature	-20 °C to +70 °C	-20 °C to +70 °C
Storage Humidity	10% to 95%, non-condensing	10% to 95%, non-condensing
Cooling System	12025mm Fan: 2200 R.P.M. ± 10%	12025mm Fan: 2200 R.P.M. ± 10%
Efficiency	Meet 80 PLUS® Platinum	Meet 80 PLUS® Platinum
MTBF	100,000 hrs minimum	100,000 hrs minimum
Protection	OCP, OVP, UVP, OPP, SCP, and OTP	OCP, OVP, UVP, OPP, SCP, and OTP
Safety Approval	cTUVus / TUV / CE / FCC / CB	cTUVus / TUV / CE / FCC / CB
Avg Noise Output	32.6 dBA	32.6 dBA
Cables	PCIe 600W × 1 (600mm) 20+4pin × 1 (600mm) 12V 4+4pin × 2 (700mm) PCIe 6+2pin + PCIe 6+2pin × 2 (550+150mm) SATA + SATA + SATA + SATA × 2 (500+150+150+150mm) Molex 4pin + Molex 4pin + Molex 4pin + FDD × 1 (500+150+150+150mm)	PCIe 600W × 1 (600mm) 20+4pin × 1 (600mm) 12V 4+4pin × 2 (700mm) PCIe 6+2pin + PCIe 6+2pin × 2 (550+150mm) SATA + SATA + SATA + SATA × 2 (500+150+150+150mm) Molex 4pin + Molex 4pin + Molex 4pin + FDD × 1 (500+150+150+150mm)
Certificates

AMPERE 1000 SPECIFICATION
Product Name	AMPERE 1000 BLACK	AMPERE 1000 WHITE
Product Number	0R30B00013	0R30B00024
Type	ATX	ATX
Max. Output Capacity	1000W	1000W
Dimension [W×H×D]	150×140×86 mm	150×140×86 mm
Color	Black	WHITE
Input Current	12-6A	12-6A
Input Frequency Range	50-60Hz	50-60Hz
Input Voltage	100-240V	100-240V
Operating Temperature	0°C to +50°C	0°C to +50°C
Operating Humidity	20% to 85%, non-condensing	20% to 85%, non-condensing
Storage Temperature	-20 °C to +70 °C	-20 °C to +70 °C
Storage Humidity	10% to 95%, non-condensing	10% to 95%, non-condensing
Cooling System	12025mm Fan: 2200 R.P.M. ± 10%	12025mm Fan: 2200 R.P.M. ± 10%
Efficiency	Meet 80 PLUS® Platinum	Meet 80 PLUS® Platinum
MTBF	100,000 hrs minimum	100,000 hrs minimum
Protection	OCP, OVP, UVP, OPP, SCP, and OTP	OCP, OVP, UVP, OPP, SCP, and OTP
Safety Approval	cTUVus / TUV / CE / FCC / CB	cTUVus / TUV / CE / FCC / CB
Avg Noise Output	32.6 dBA	32.6 dBA
Cables	PCIe 600W × 1 (600mm) 20+4pin × 1 (600mm) 12V 4+4pin × 2 (700mm) PCIe 6+2pin + PCIe 6+2pin × 2 (550+150mm) SATA + SATA + SATA + SATA × 2 (500+150+150+150mm) Molex 4pin + Molex 4pin + Molex 4pin + FDD × 1 (500+150+150+150mm)	PCIe 600W × 1 (600mm) 20+4pin × 1 (600mm) 12V 4+4pin × 2 (700mm) PCIe 6+2pin + PCIe 6+2pin × 2 (550+150mm) SATA + SATA + SATA + SATA × 2 (500+150+150+150mm) Molex 4pin + Molex 4pin + Molex 4pin + FDD × 1 (500+150+150+150mm)
Certificates

AMPERE 850 SPECIFICATION
Product Name	AMPERE 850 BLACK
Product Number	0R30B00014
Type	ATX
Max. Output Capacity	850W
Dimension [W×H×D]	150×140×86 mm
Color	Black
Input Current	10-5A
Input Frequency Range	50-60Hz
Input Voltage	100-240V
Operating Temperature	0°C to +50°C
Operating Humidity	20% to 85%, non-condensing
Storage Temperature	-20 °C to +70 °C
Storage Humidity	10% to 95%, non-condensing
Cooling System	12025mm Fan: 2200 R.P.M. ± 10%
Efficiency	Meet 80 PLUS® Platinum
MTBF	100,000 hrs minimum
Protection	OCP, OVP, UVP, OPP, SCP, and OTP
Safety Approval	cTUVus / TUV / CE / FCC / CB
Avg Noise Output	32.6 dBA
Cables	PCIe 600W × 1 (600mm) 20+4pin × 1 (600mm) 12V 4+4pin × 2 (700mm) PCIe 6+2pin + PCIe 6+2pin × 2 (550+150mm) SATA + SATA + SATA + SATA × 2 (500+150+150+150mm) Molex 4pin + Molex 4pin + Molex 4pin + FDD × 1 (500+150+150+150mm)
Certificates
