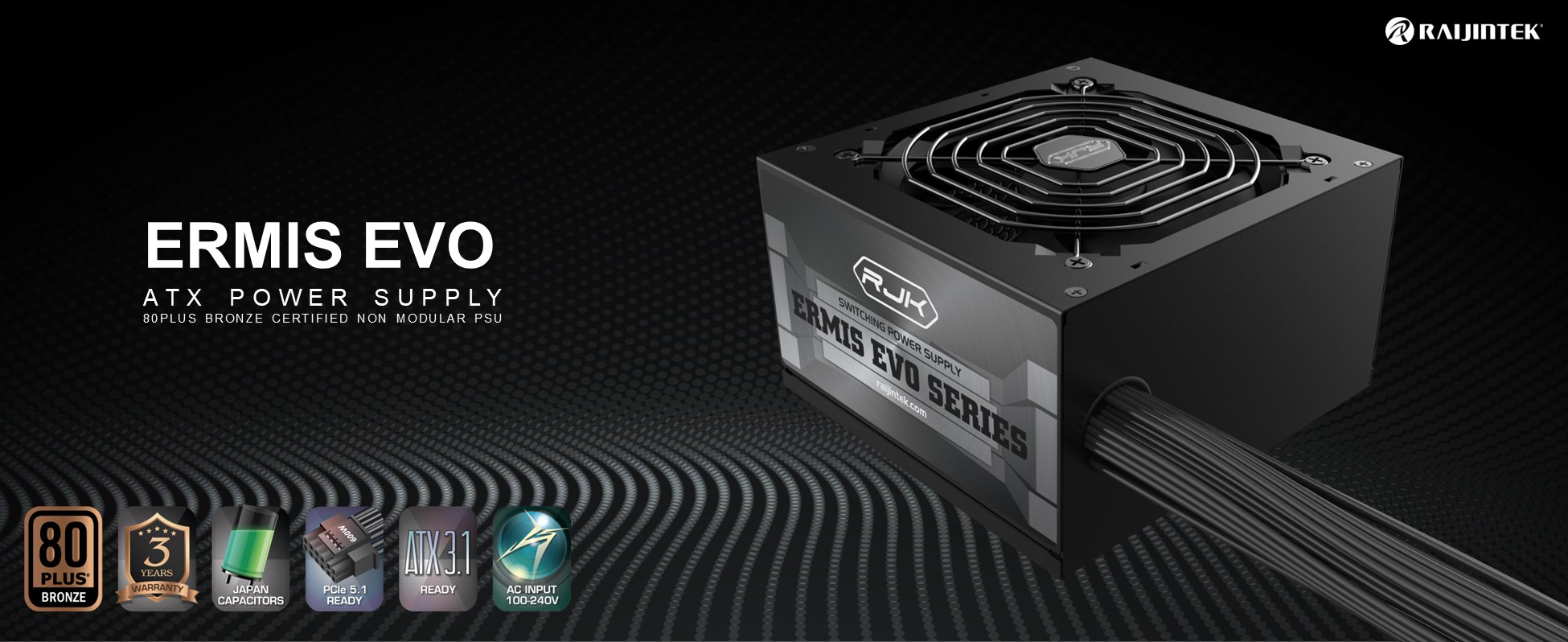

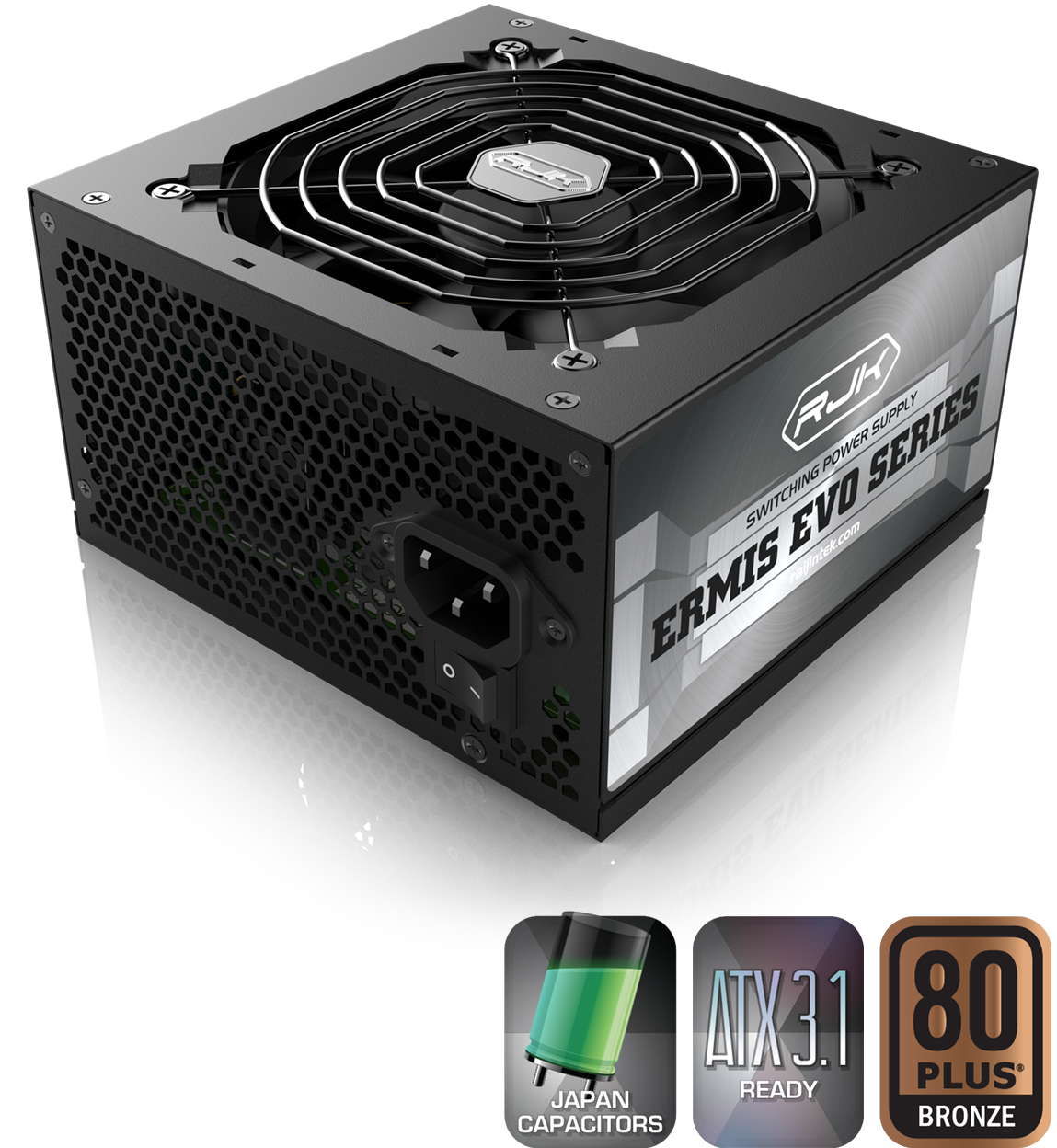

| ERMIS EVO |
|

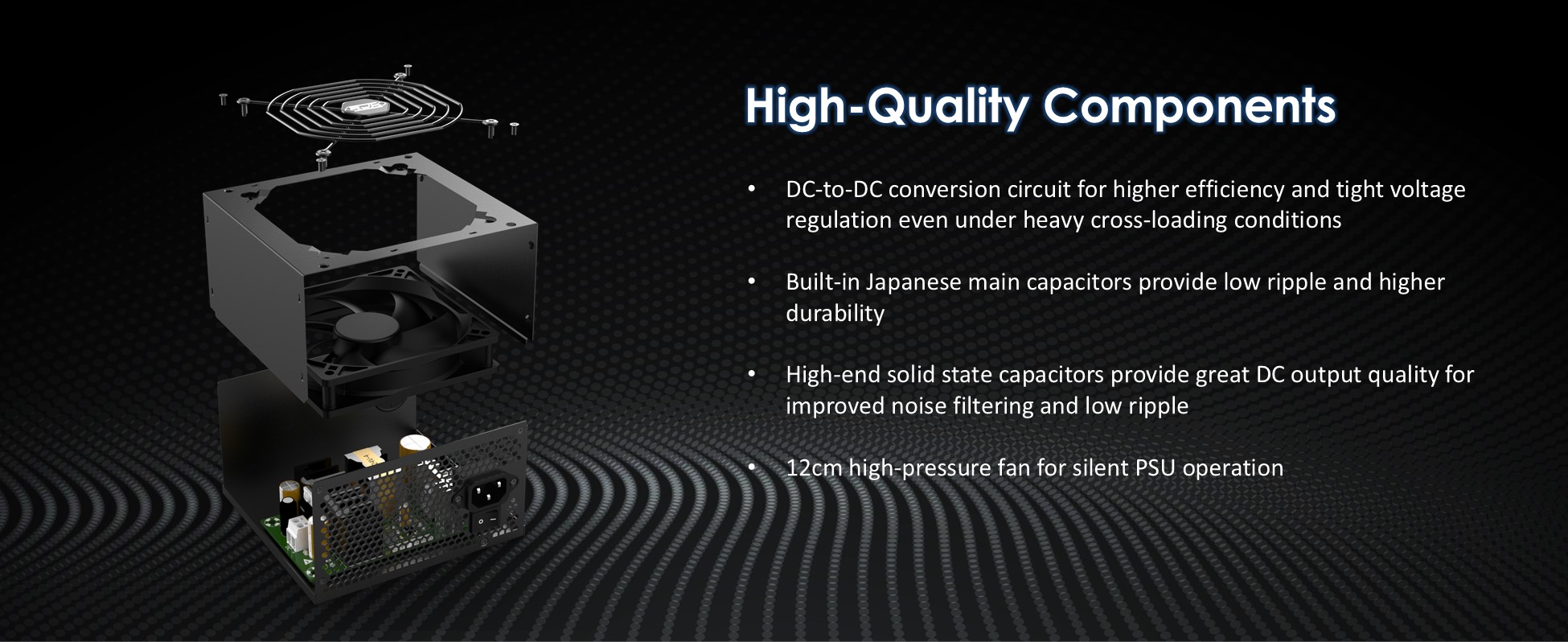

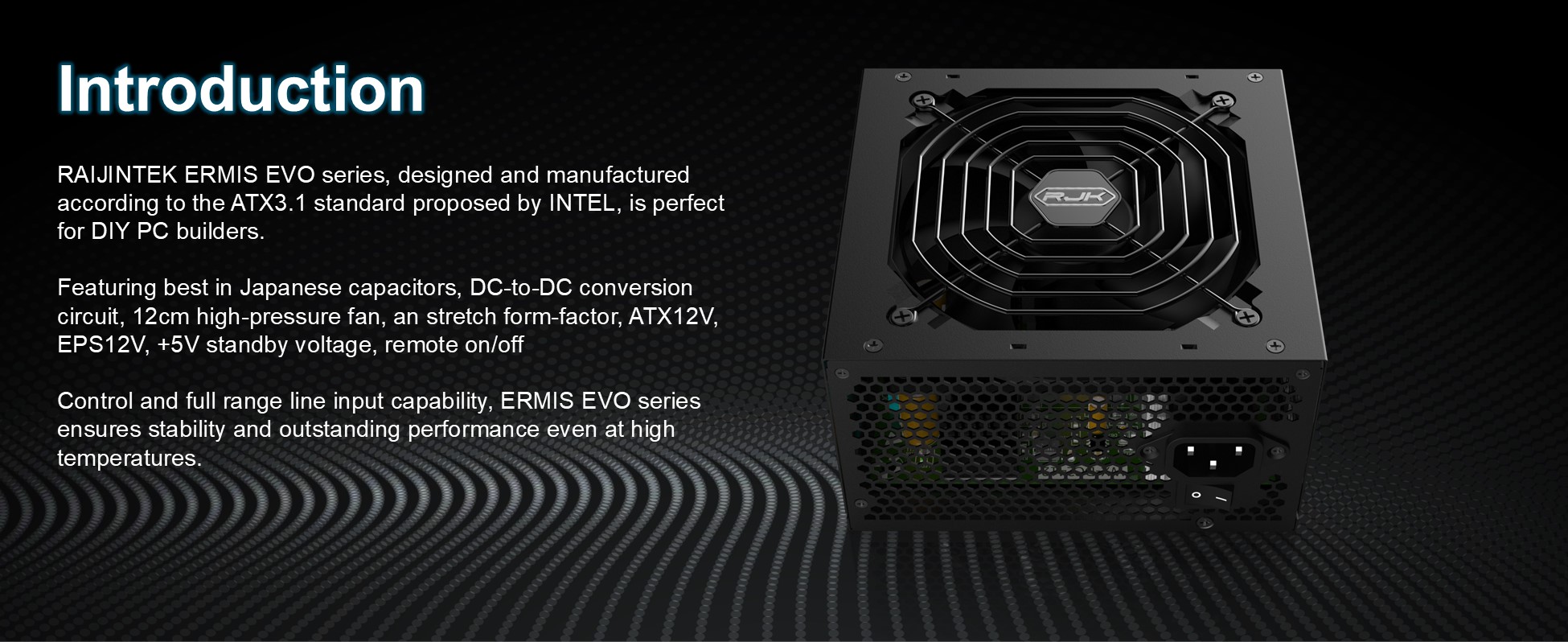

RAIJINTEK ERMIS EVO series, designed and manufactured according to the ATX3.1 standard proposed by INTEL, is perfect for DIY PC builders. Featuring best in Japanese capacitors, DC-to-DC conversion circuit, 12cm high-pressure fan, a stretch form factor, ATX12V, EPS12V, +5V standby voltage, remote on/off control and full range line input capability, the ERMIS EVO series ensures stability and outstanding performance even at high temperatures. |
         |
|

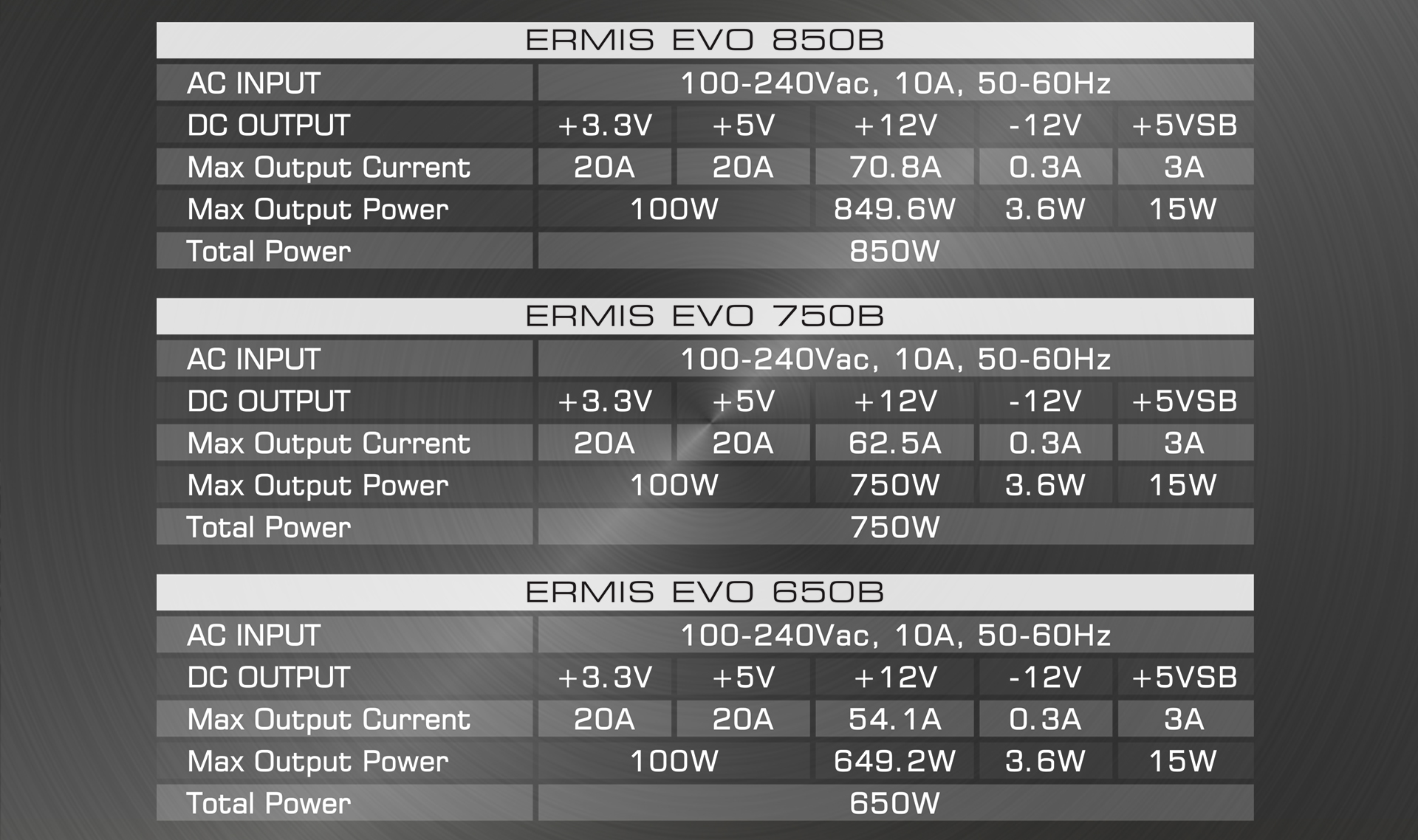

ERMIS EVO SPECIFICATION |
|||
| Product Name | ERMIS EVO 850B | ERMIS EVO 750B | ERMIS EVO 650B |
| Product Number | 0R30B00011 | 0R30B00010 | 0R30B00009 |
| Type | ATX | ATX | ATX |
| Max. Output Capacity | 850W | 750W | 650W |

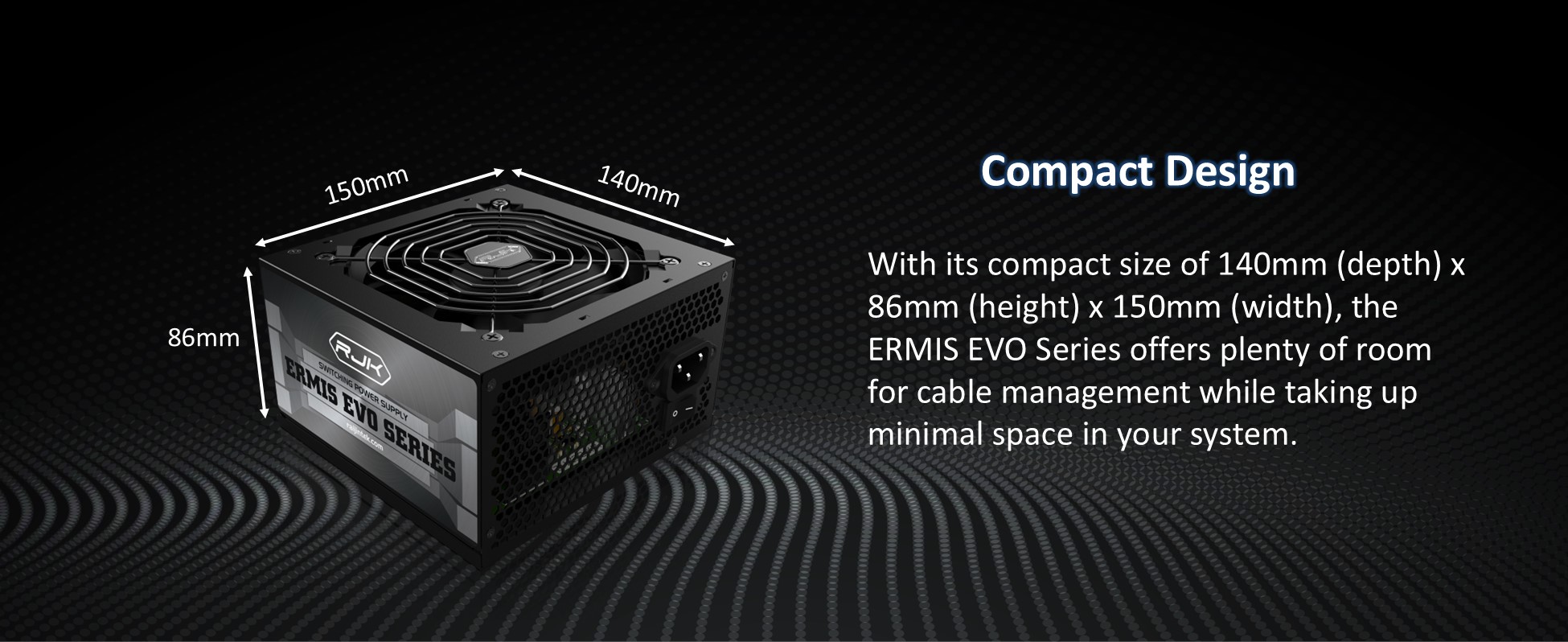

| Dimension [W×H×D] | 150×140×86 mm | 150×140×86 mm | 150×140×86 mm |
| Color | Black | Black | Black |
| Input Current | 10A | 10A | 10A |
| Input Frequency Range | 50-60Hz | 50-60Hz | 50-60Hz |
| Input Voltage | 100-240V | 100-240V | 100-240V |
| Operating Temperature | 0°C to +40°C | 0°C to +40°C | 0°C to +50°C |
| Operating Humidity | 10% to 85%, non-condensing | 10% to 85%, non-condensing | 10% to 85%, non-condensing |
| Storage Temperature | -20 °C to +70 °C | -20 °C to +70 °C | -20 °C to +70 °C |
| Storage Humidity | 5% to 95%, non-condensing | 5% to 95%, non-condensing | 5% to 95%, non-condensing |

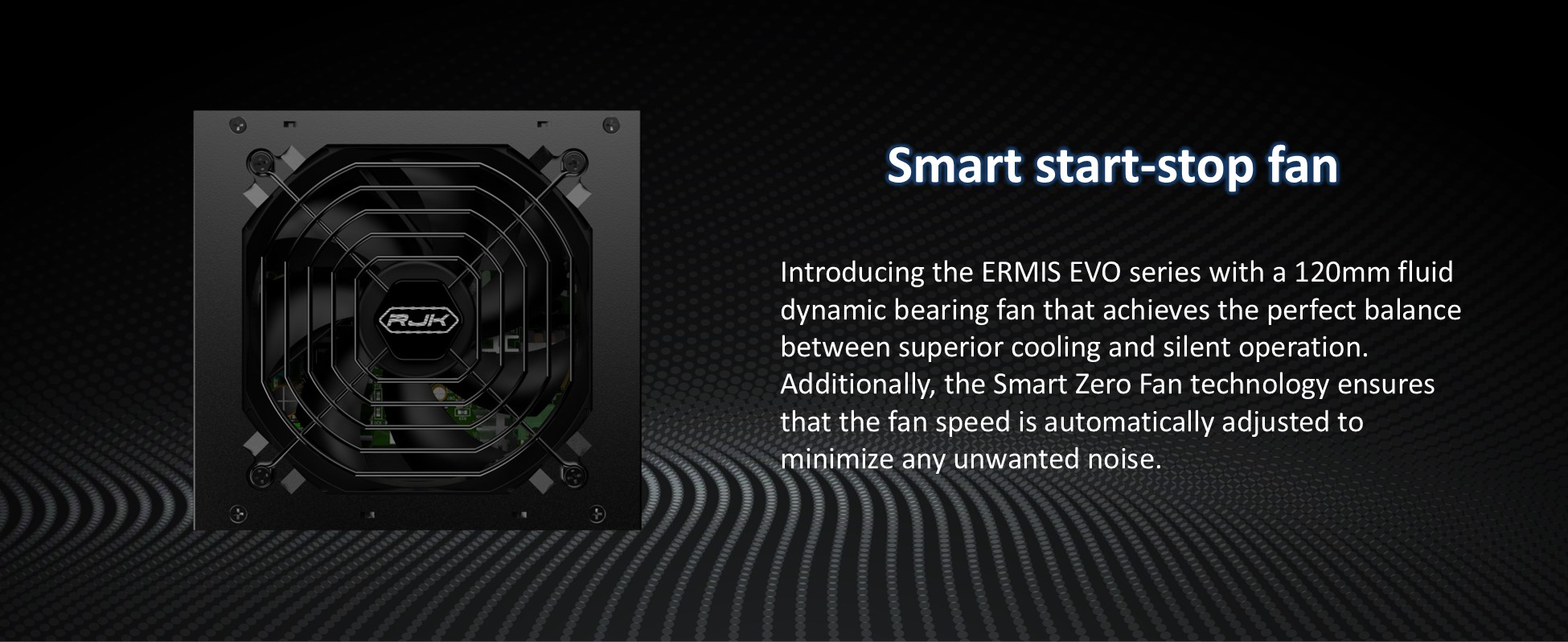

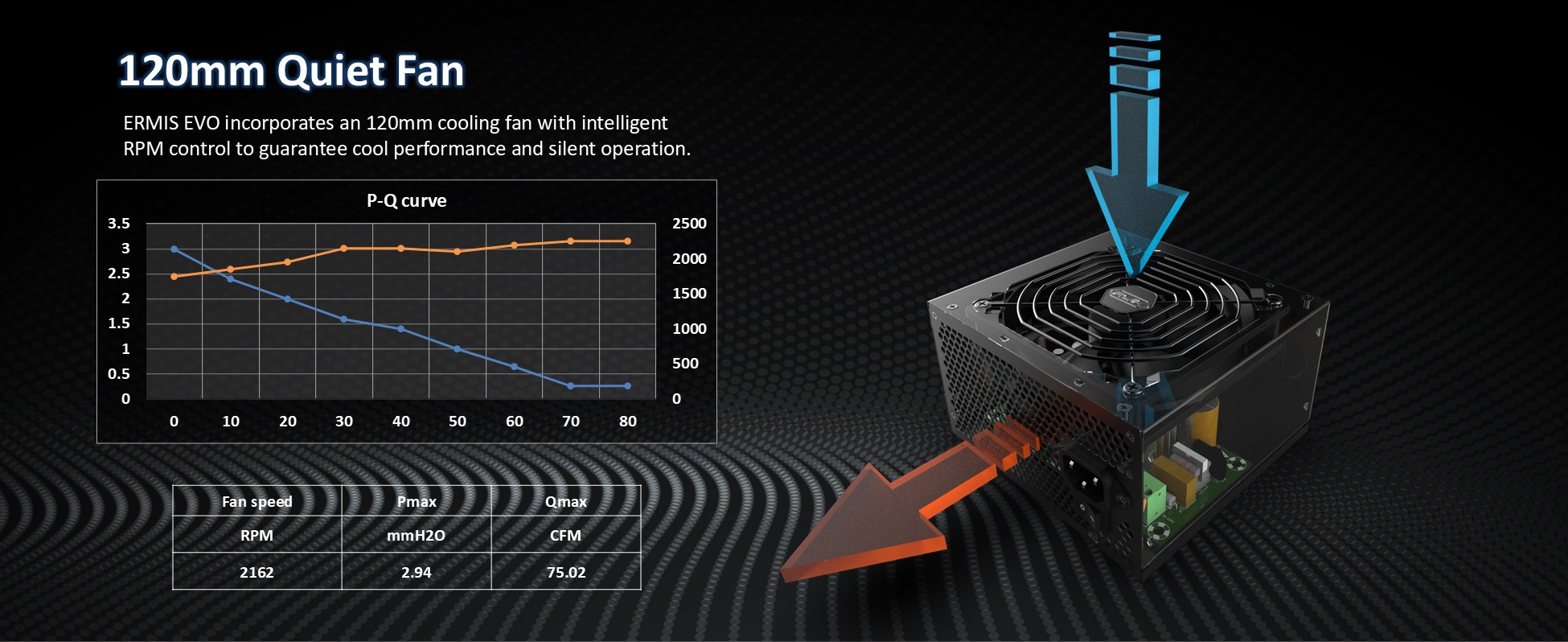

| Cooling System | 12025mm Fan: 2100 R.P.M. ± 10% | 12025mm Fan: 2100 R.P.M. ± 10% | 12025mm Fan: 2100 R.P.M. ± 10% |
| Efficiency | Meet 80 PLUS® Bronze | Meet 80 PLUS® Bronze | Meet 80 PLUS® Bronze |
| MTBF | 50,000 hrs minimum | 50,000 hrs minimum | 50,000 hrs minimum |

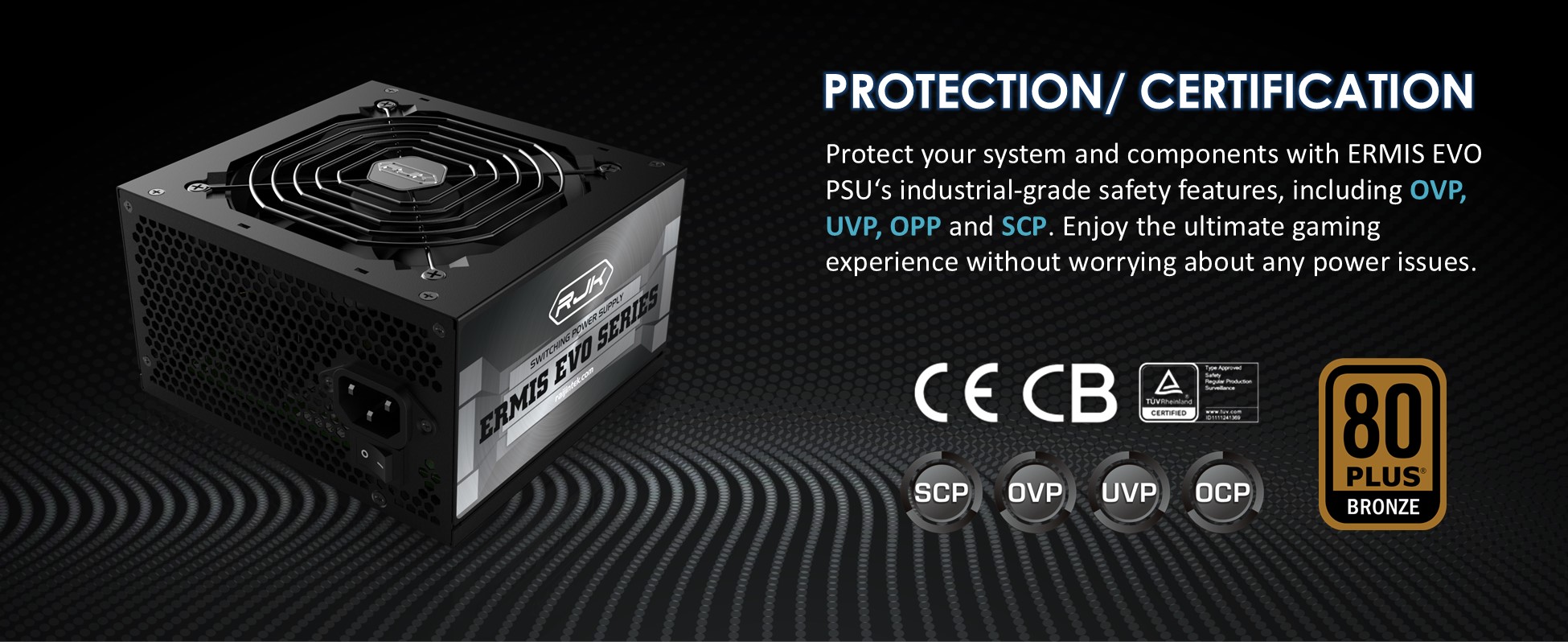

| Protection | OVP, UVP, OPP, and SCP | OVP, UVP, OPP, and SCP | OVP, UVP, OPP, and SCP |
| Safety Approval | CE, CB | CE, CB | CE, CB |
| Avg Noise Output | 29.12 dBA | 29.12 dBA | 29.12 dBA |

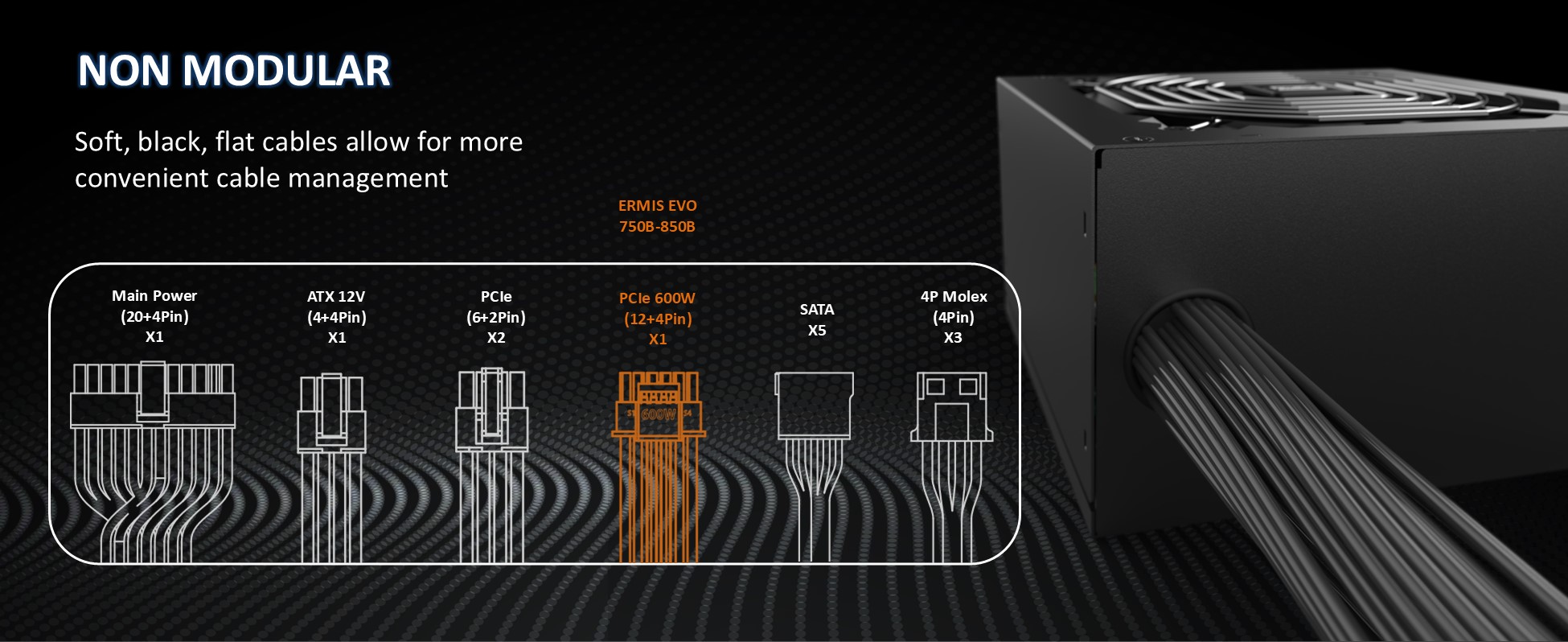

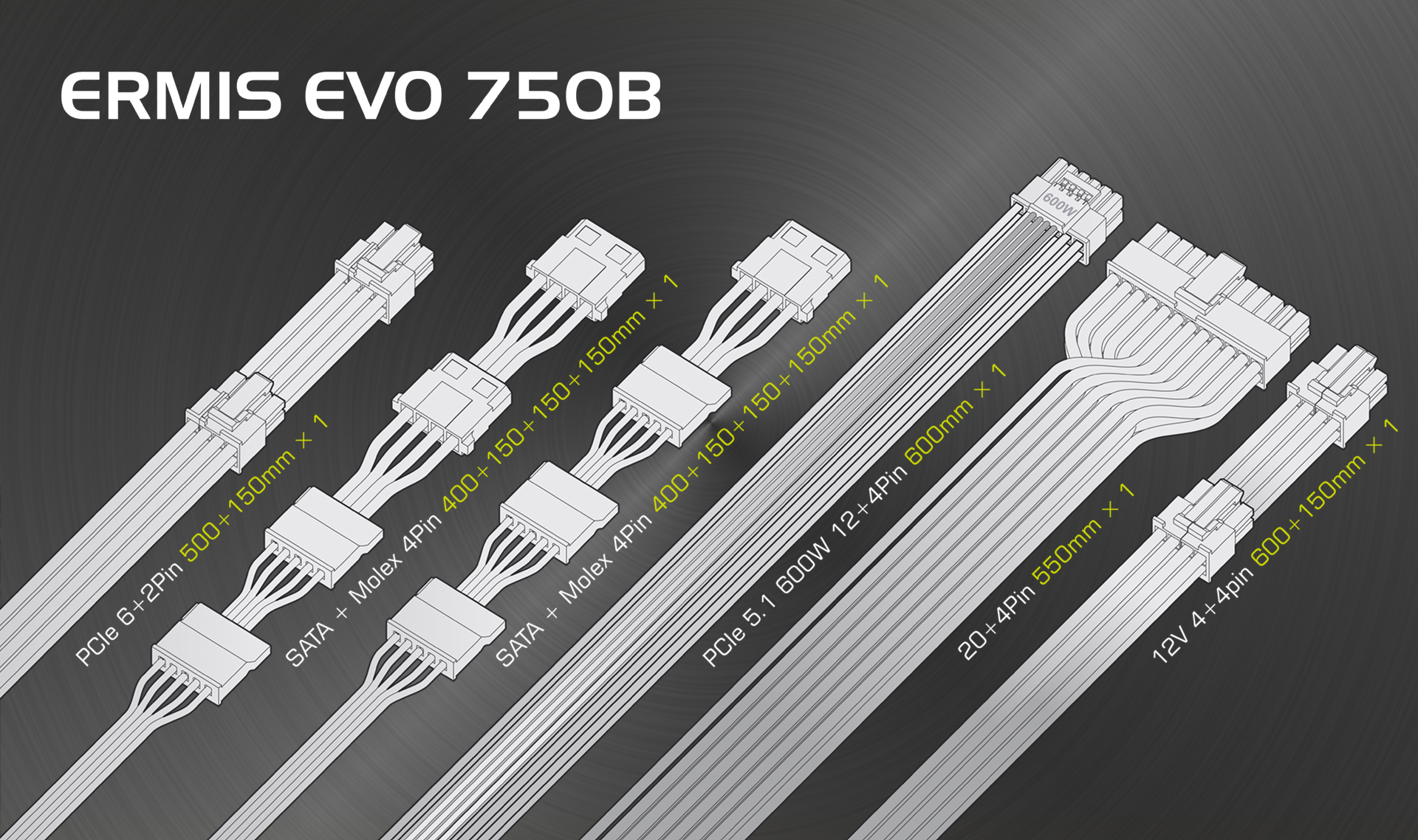

| Cables |
PCIe 5.1 600W 12+4Pin × 1 (600mm) 20+4pin × 1 (550mm) 12V 4+4pin + 12V 4+4pin × 1 (600+150mm) PCIe 6+2pin + PCIe 6+2pin × 1 (500+150mm) SATA + SATA + Molex 4pin + Molex 4pin × 1 (400+150+150+150mm) SATA + SATA + SATA + Molex 4pin × 1 (400+150+150+150mm) |
PCIe 5.1 600W 12+4Pin × 1 (600mm) 20+4pin × 1 (550mm) 12V 4+4pin + 12V 4+4pin × 1 (600+150mm) PCIe 6+2pin + PCIe 6+2pin × 1 (500+150mm) SATA + SATA + Molex 4pin + Molex 4pin × 1 (400+150+150+150mm) SATA + SATA + SATA + Molex 4pin × 1 (400+150+150+150mm) |

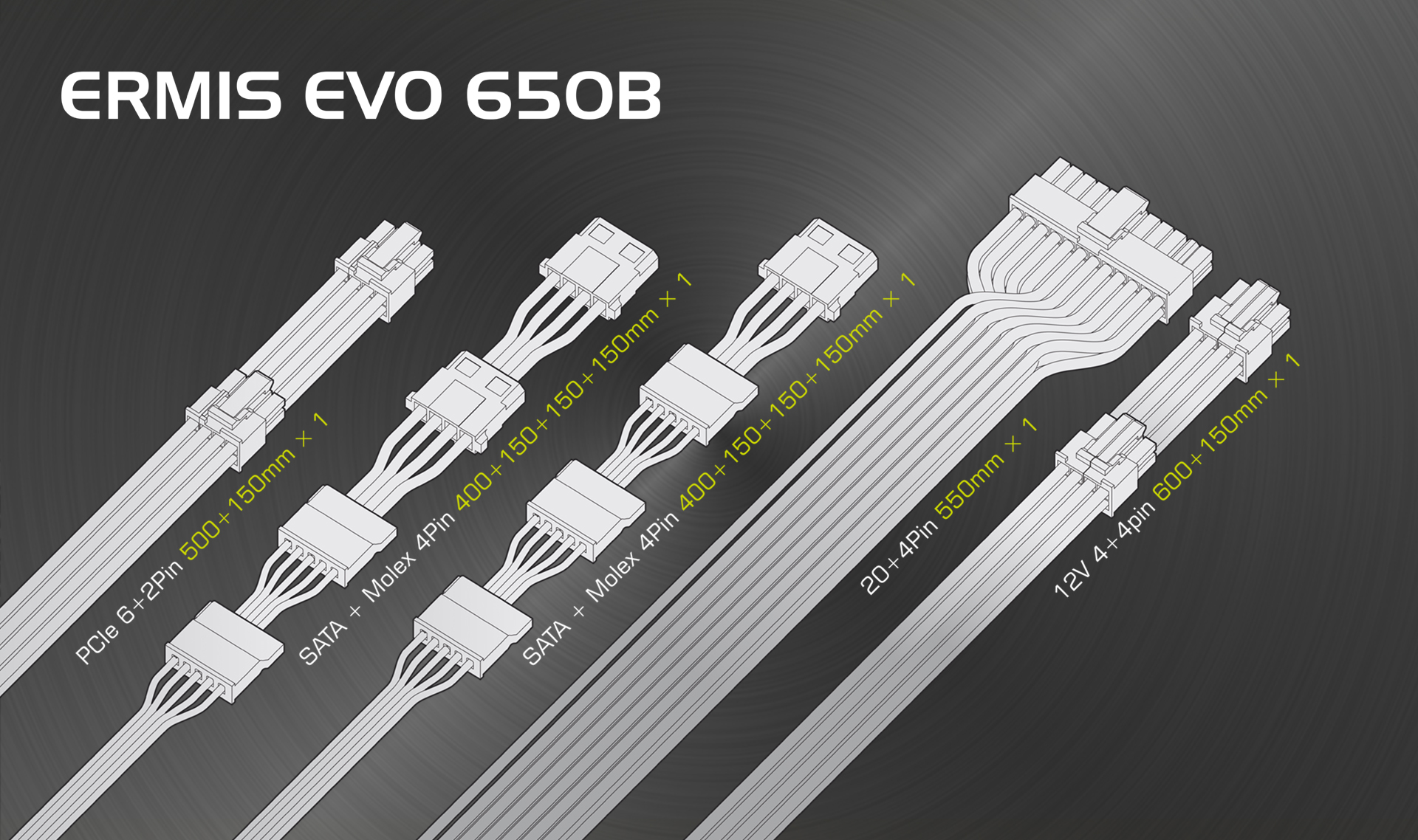

20+4pin × 1 (550mm) 12V 4+4pin + 12V 4+4pin × 1 (600+150mm) PCIe 6+2pin + PCIe 6+2pin × 1 (500+150mm) SATA + SATA + Molex 4pin + Molex 4pin × 1 (400+150+150+150mm) SATA + SATA + SATA + Molex 4pin × 1 (400+150+150+150mm) |
 |
)
)
)
)
)
)
)
)
)
Intel ATX 3.1 standards
