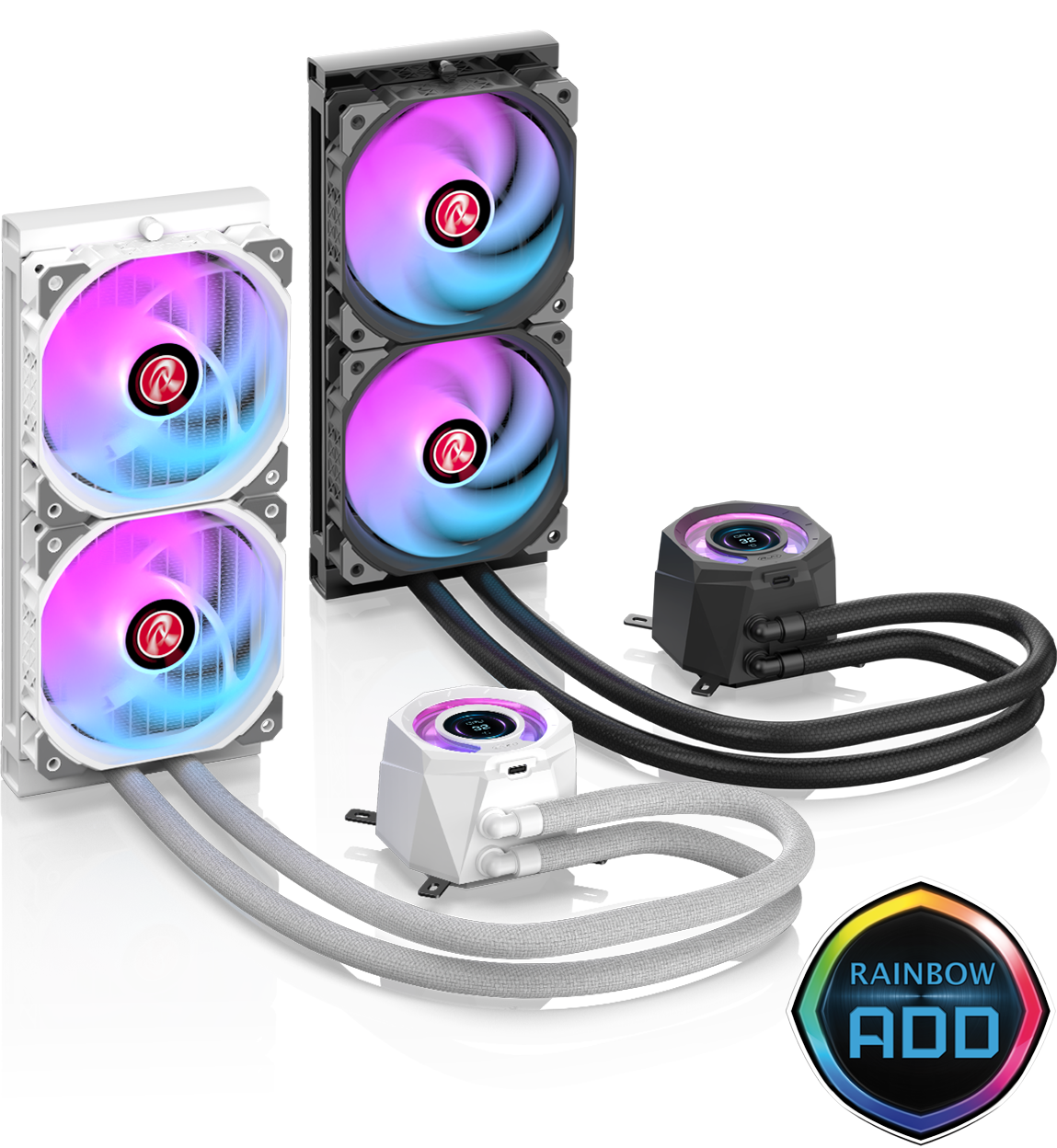

RAIJINTEK

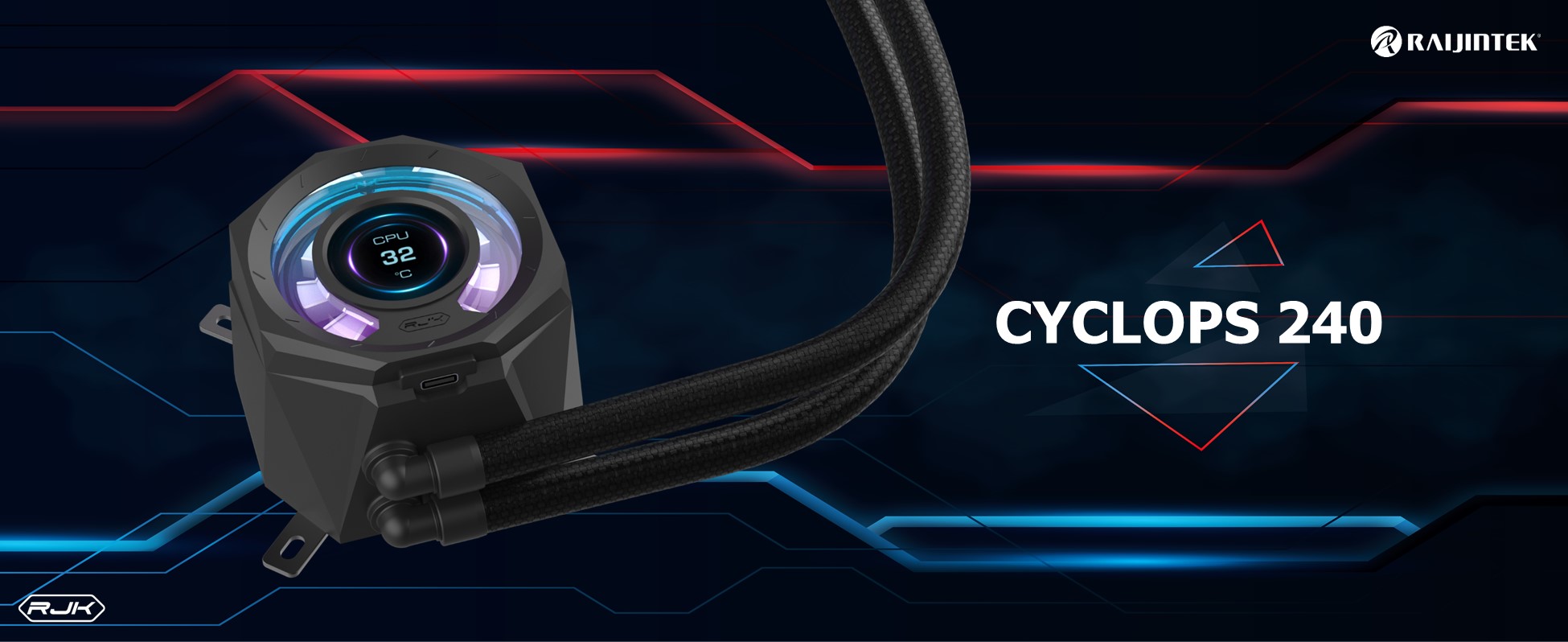

CYCLOPS 240

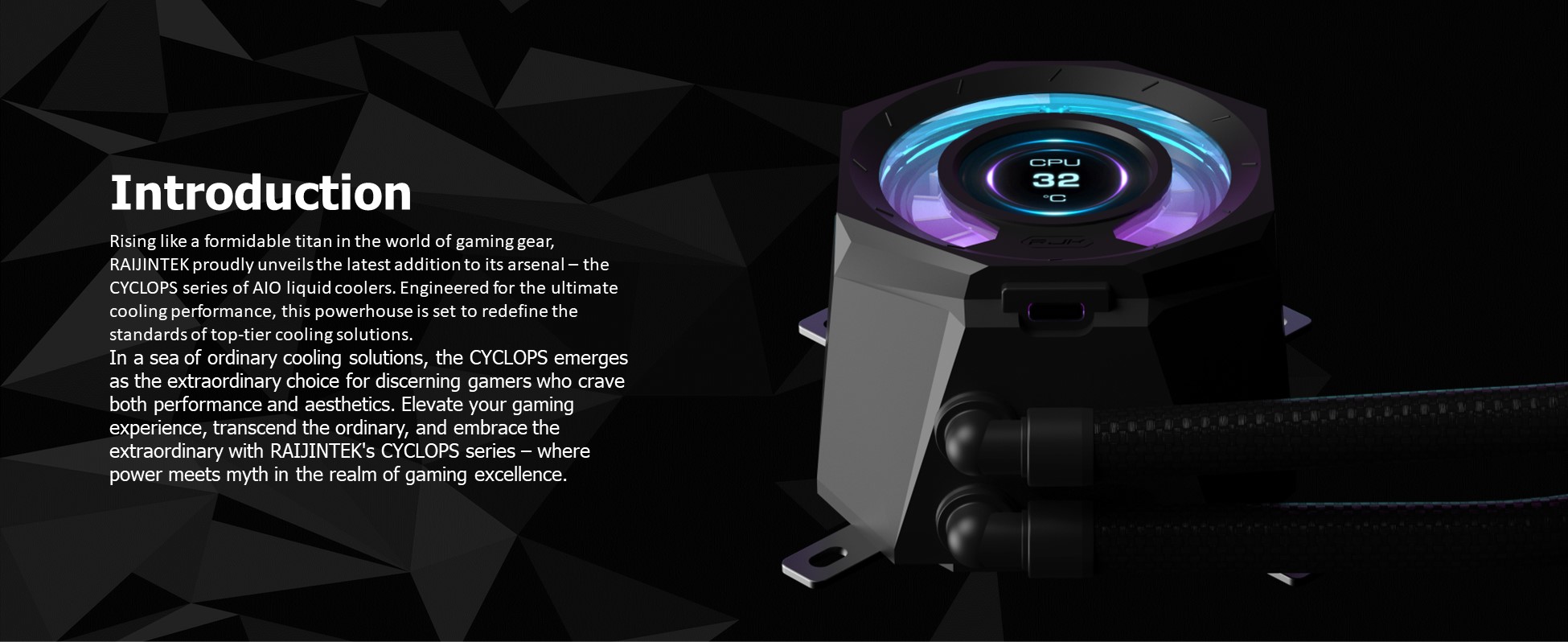

Rising like a formidable titan in the world of gaming gear, RAIJINTEK proudly unveils the latest addition to its arsenal – the CYCLOPS series of AIO liquid coolers. Engineered for the ultimate cooling performance, this powerhouse is set to redefine the standards of top-tier cooling solutions. In a sea of ordinary cooling solutions, the CYCLOPS emerges as the extraordinary choice for discerning gamers who crave both performance and aesthetics. Elevate your gaming experience, transcend the ordinary, and embrace the extraordinary with RAIJINTEK's CYCLOPS series – where power meets myth in the realm of gaming excellence.

Feature
Specification
Support
Unboxed
Gallery

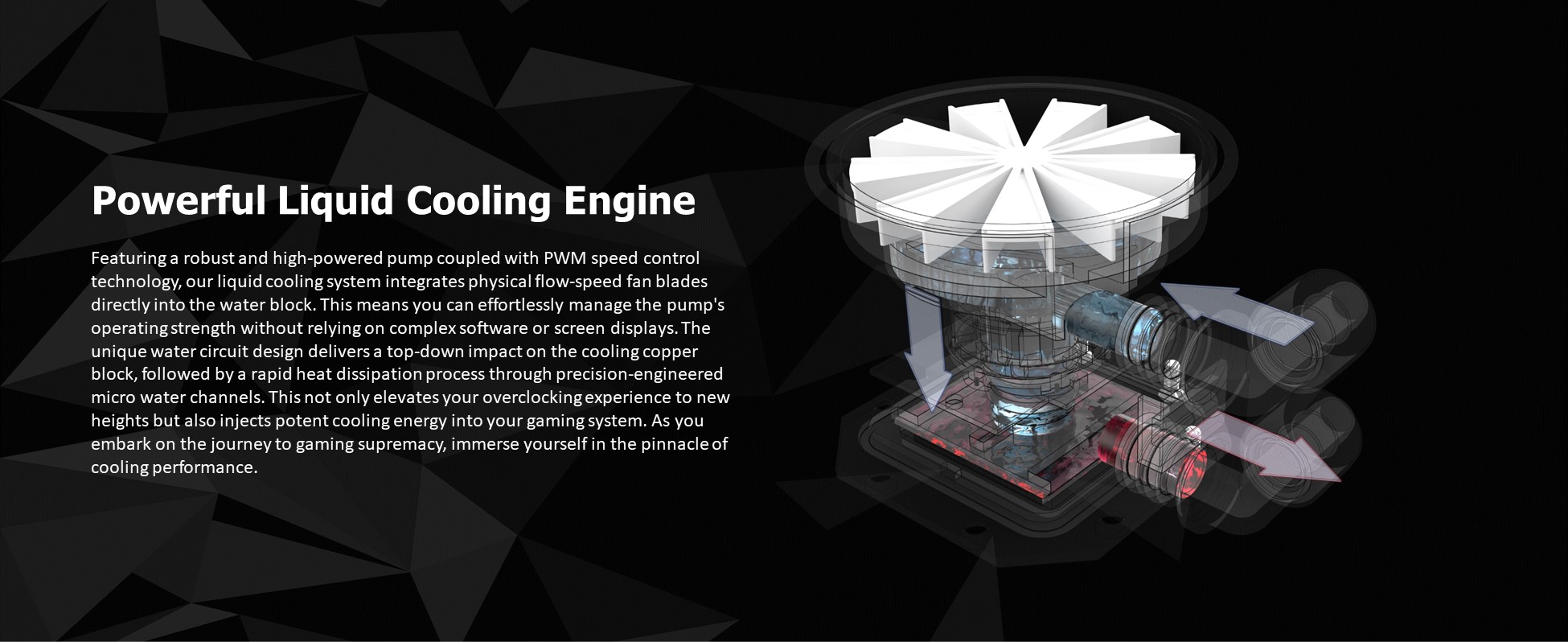

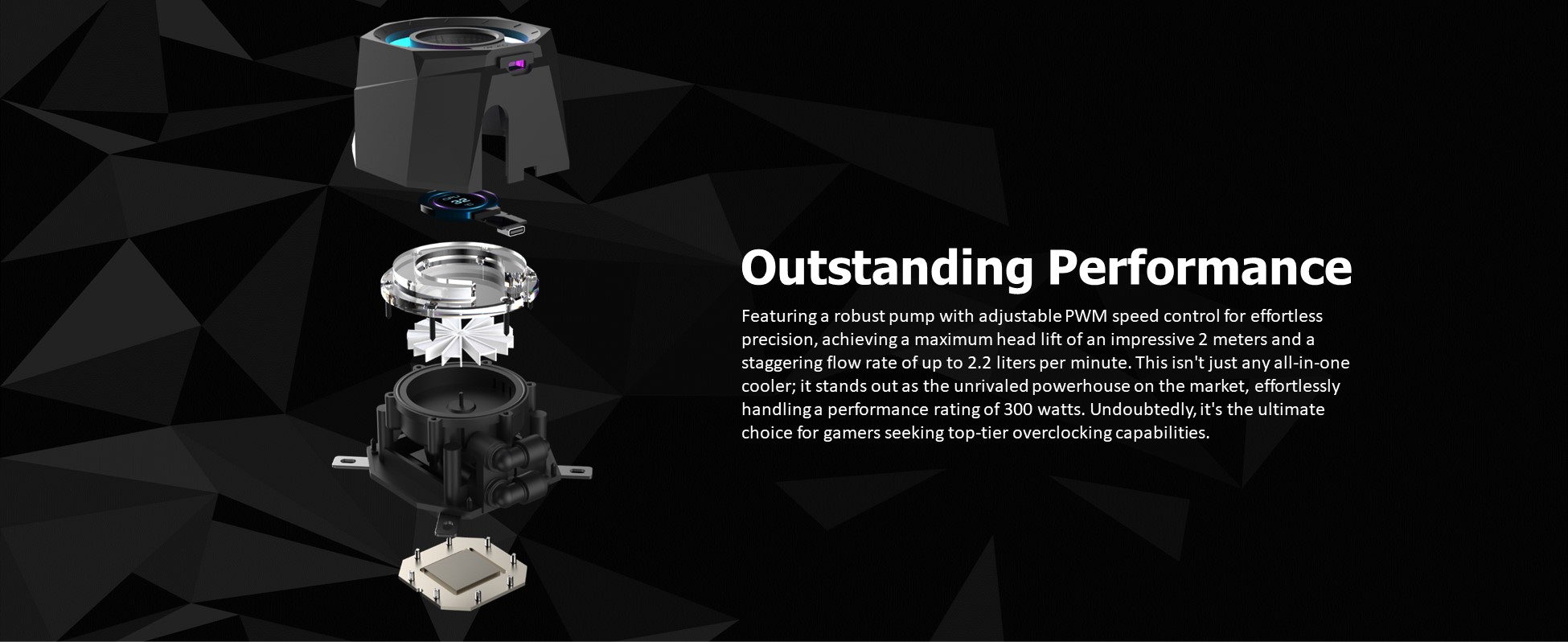

Featuring a robust pump with adjustable PWM speed control for effortless precision
Maximum head lift of 2 meters / staggering flow rate of up to 2.2 liters per minute
Physical flow-speed fan blades

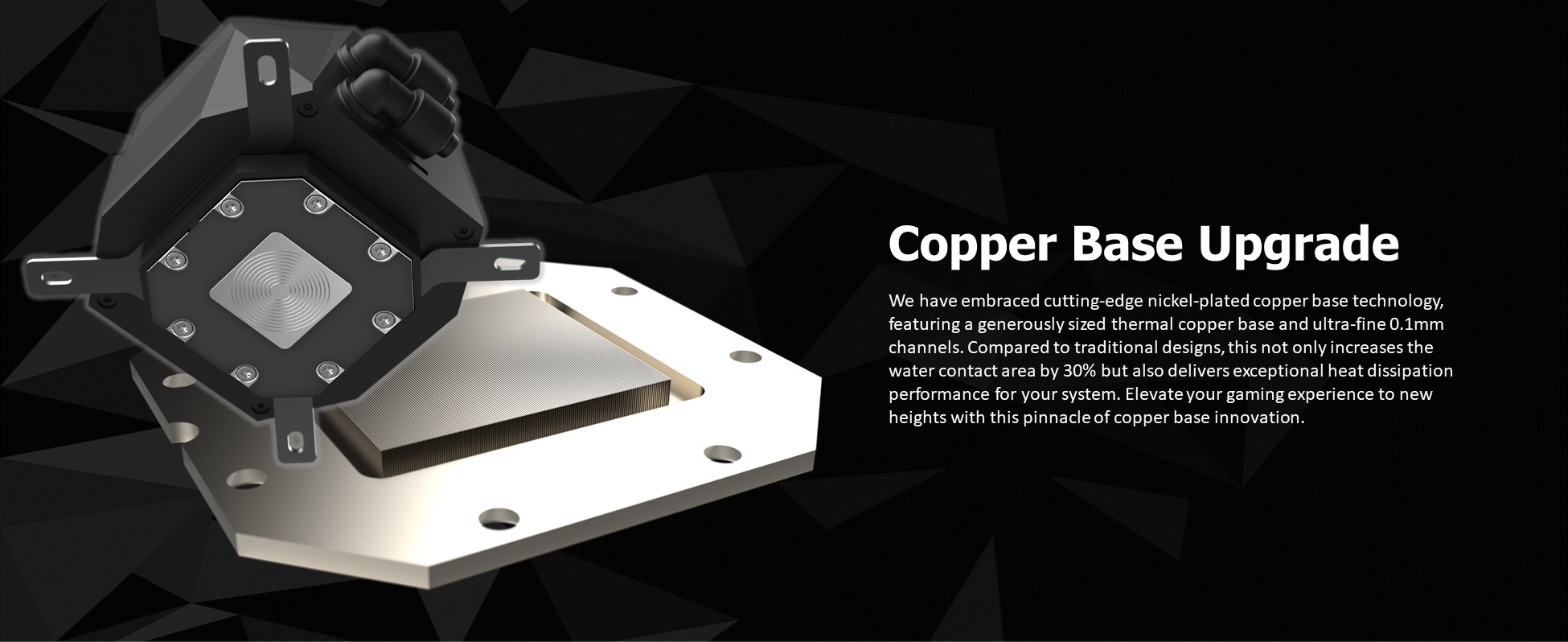

Ultra-fine 0.1mm channels

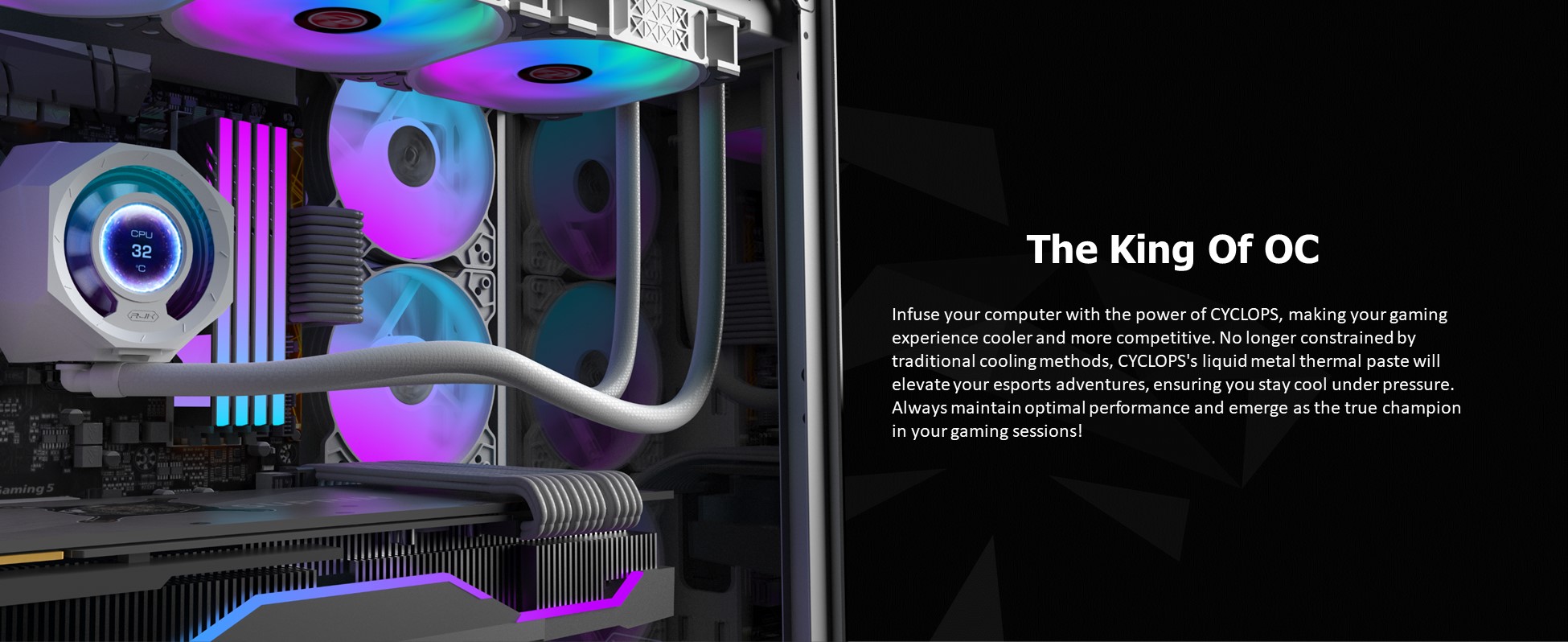

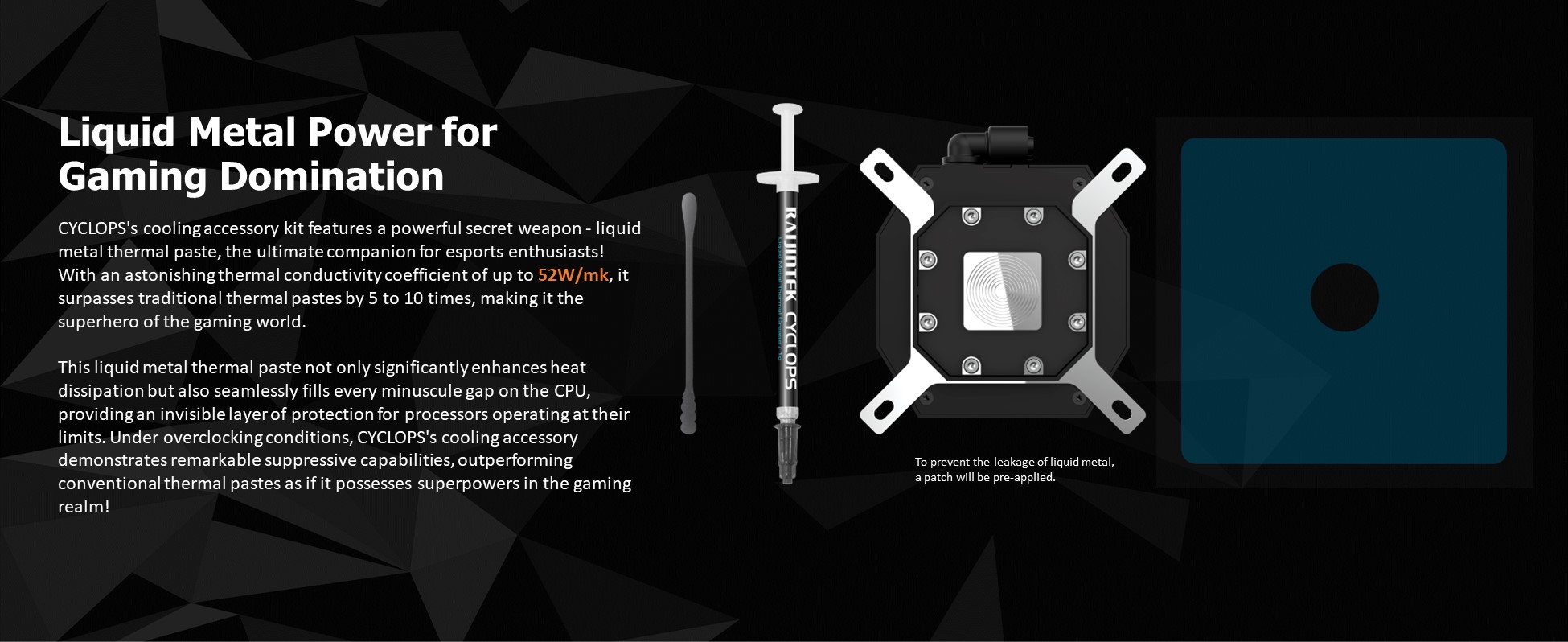

Liquid metal thermal paste(52W/mk)

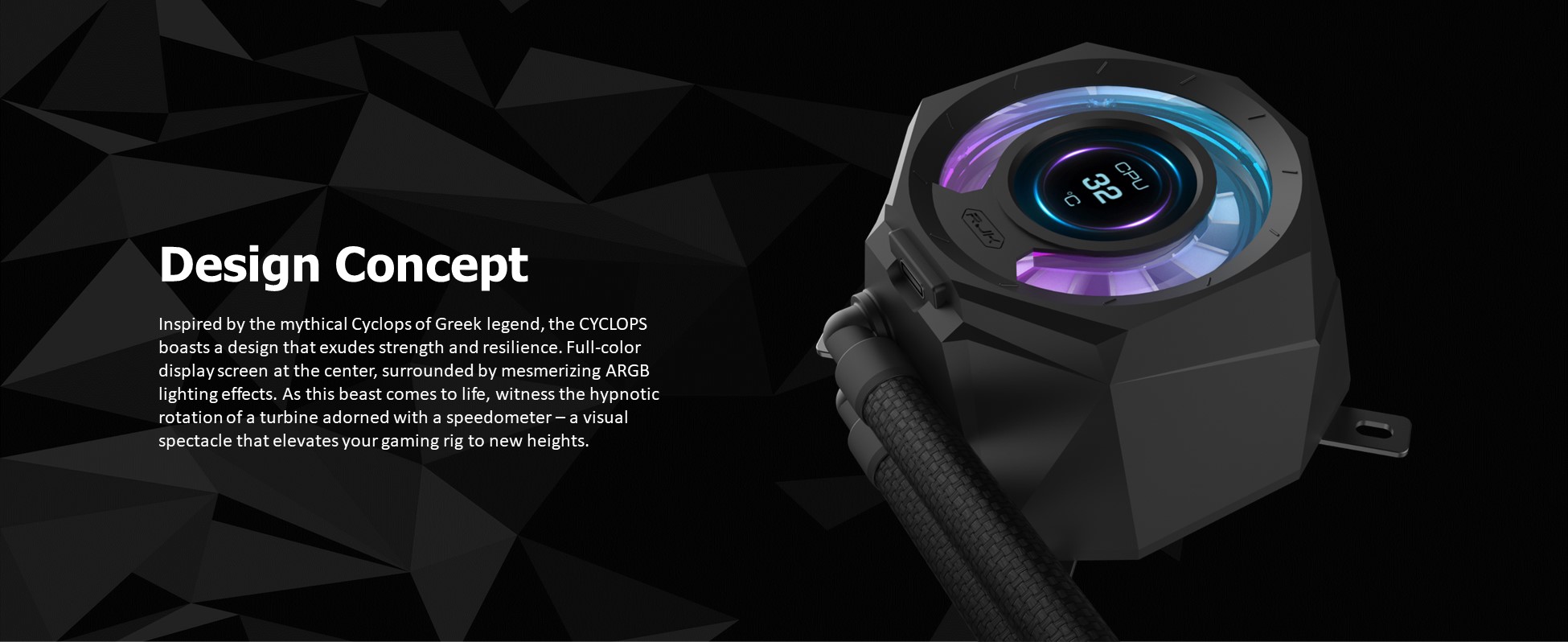

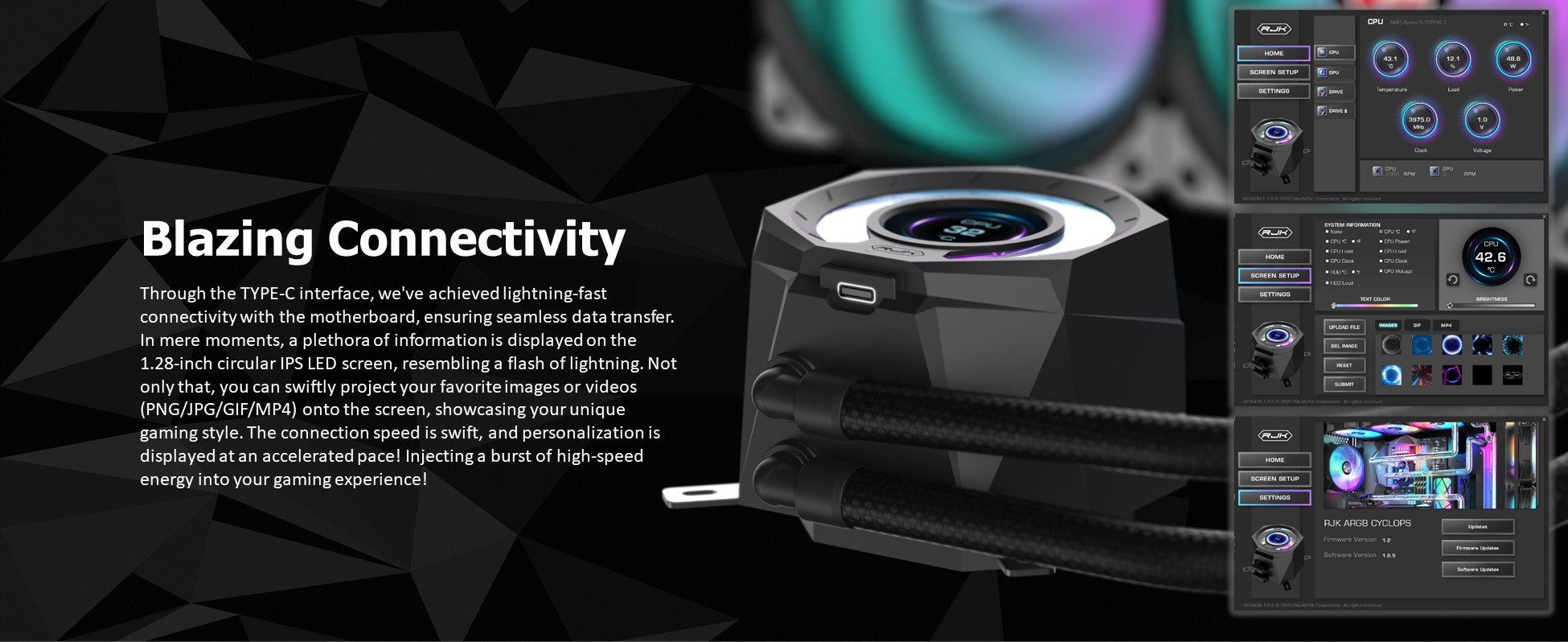

Through the TYPE-C to transfer your data to an LED screen(PNG / JPG / GIF / MP4)

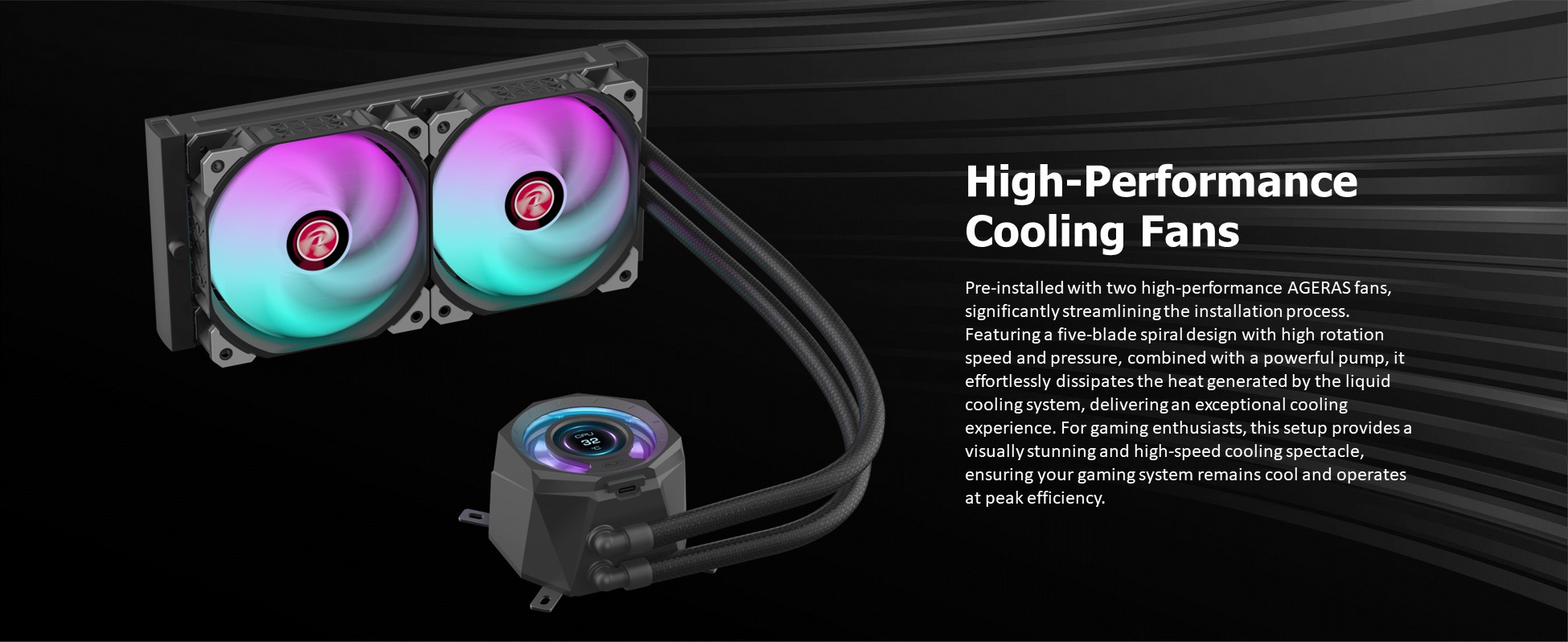

Pre-installed with two high-performance AGERAS fans

SPECIFICATION

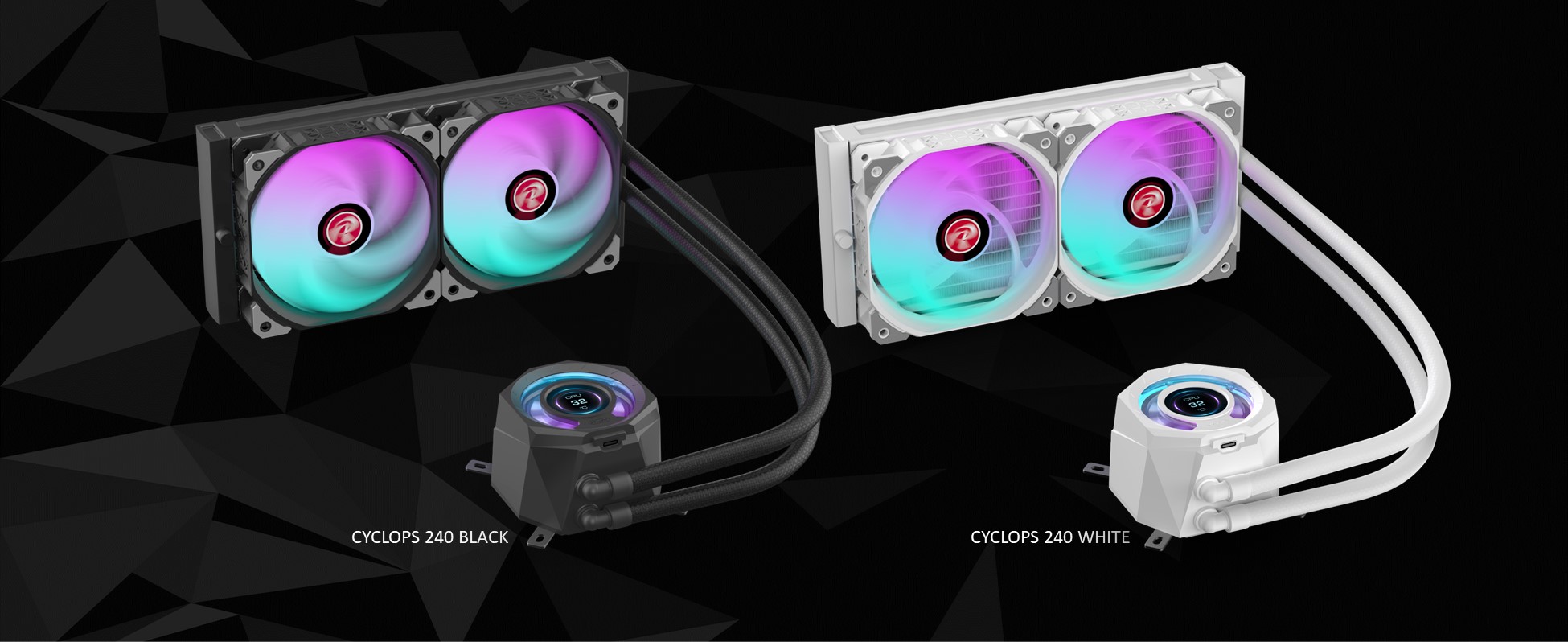

Product Name	CYCLOPS 240 BLACK	CYCLOPS 240 WHITE
Product Number	0R10B00230	0R10B00231

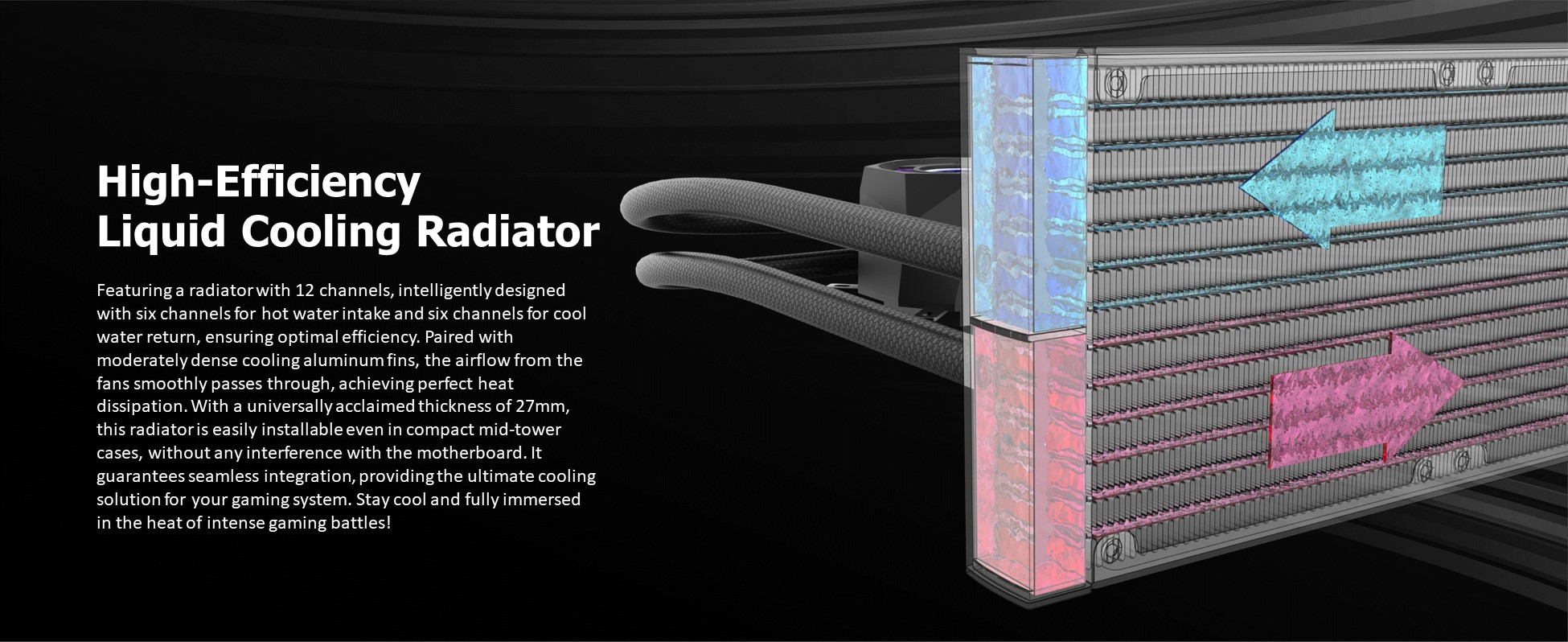

Radiator Dimension [W×H×D]	277×120×27 mm	277×120×27 mm
Weight [Block+Pump+Radiator]	1150g	1150g
Thermal Resistance	0.1 °C/W	0.1 °C/W
Liquid Capacity	145ml ±10%	145ml ±10%
Fan Q'ty	2 pcs	2 pcs

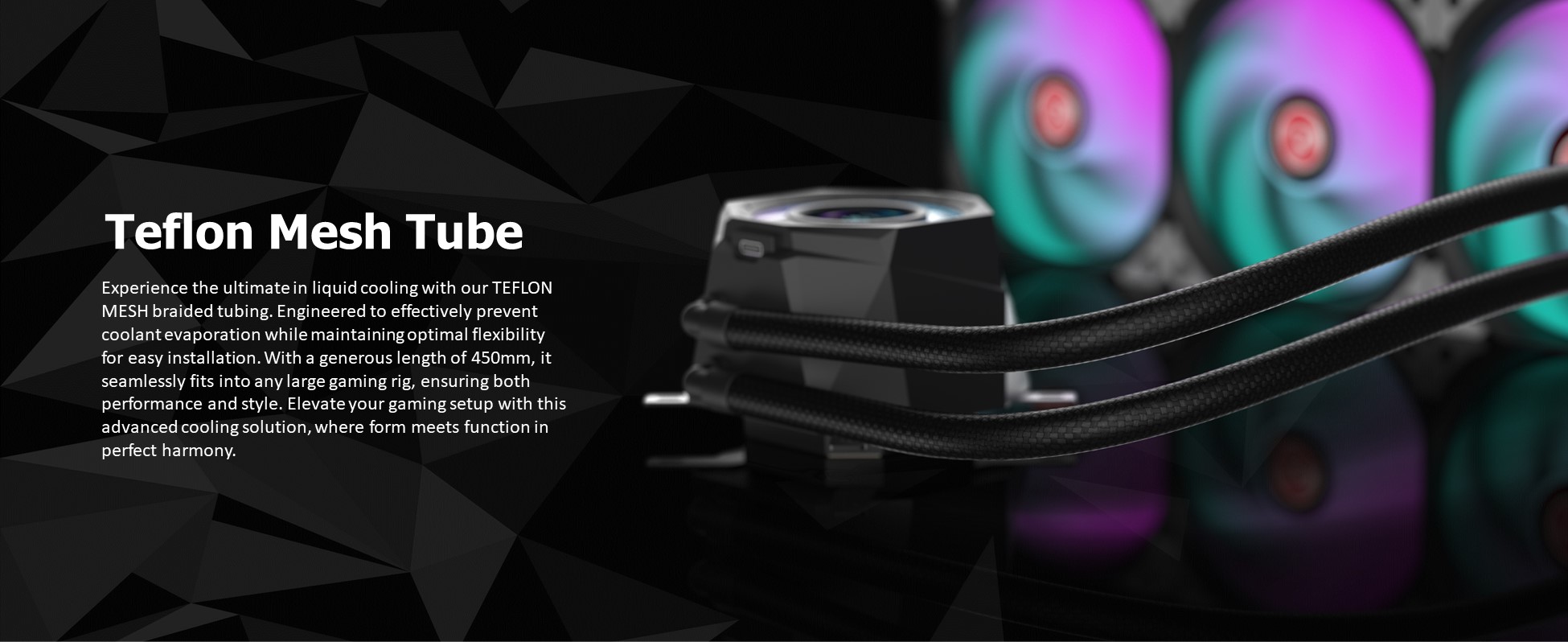

Tubing Dimension	ID 8mm / OD 16mm ; 450mm length	ID 8mm / OD 16mm ; 450mm length
Material	Aluminum	Aluminum
est. TDP	250W	250W

PUMP
Dimension [W×D×H]	120×32×32 mm
Bearing type	Ceramic Axis
Q-max	132 L/H
Pressure Head	2 Meters ±10%
Noise level	30 dBA [Max.]
Life Expectancy	50,000 hours
Speed	4000±10% R.P.M. at 12VDC
Rated Current	370mA
Voltage Rating	11.7~12.2 V
Power consumption	4.5 W
Power Cable & Length	4 pin PWM header, 500mm

FAN
Dimension [W×H×D]	120×120×25 mm
Voltage Rating	12V
Starting Voltage	7V
Speed	800~2200 R.P.M.
Bearing Type	Hydraulic Bearing
Air Flow	67.38 CFM [Max.]
Air Pressure	2.57 mmH2O [Max.]
Life Expectance	40,000 hrs
Noise Level	33 dBA [Max.]
Connector	5V ADD Male/Female Header, PWM 4pin Header
Rated Current	0.17A±20%
Power consumption	2.1W±20%
LED Rated Current	0.35A [Max.]
LED Power consumption	1.8W [Max.]

COLD PLATE & ARGB LED
Cold Plate Dimension	53.9×53.9×3.5 mm
Cold Plate Material	Copper
ARGB Cable/Header	5V ADD Male/Female Header
ARGB Cable Length	500mm
ARGB Voltage Rating	DC 5V

TFT-LCD
LCD Type	TFT Transmissvie
Module Size	1.4 inch
Dot Matrix / Resolution	240 × RGB × 240 dots
Active Area	32.4 × 32.4 mm
View Direction	All O'clock
Backlight Type	2 × White LED
Connector	Type-C Header
Supported image size	240 × 240 pixels
Supported Formats	jpg / png / gif / mp4

APPLICATION
Intel®	All Socket LGA 1851 / 17xx / 1200 / 115x CPU (Core™ i3 / i5 / i7 / i9 CPU)
AMD®	All AM5 CPU

CYCLOPS Installation Guide [ 8.98 MB ]



RJK CYCLOPS APP V1.3.6 DOWNLOAD HERE

Precautions
1.Keep and store the product away from the reach of children.
2.Check the component list and condition of the product before installation. If there is any problem, contact the shop where you purchased to get a replacement or refund.
3.RAIJINTEK Co., Ltd. is not responsible for any damages due to external causes, including but not limited to, improper use, problems with electrical power, accident, neglect, alteration, repair, improper installation, and improper testing.
4.CPU and motherboard are subject to damage if the product in incorrectly installed.
5.Breaking the tank seal on the product might cause warranty loss.
6.This product is an All-in-One Water Cooling Solution, once taken apart or any use of non RAIJINTEK's accessories, will lead to a warranty loss.
