RAIJINTEK

PAEAN ULTRA

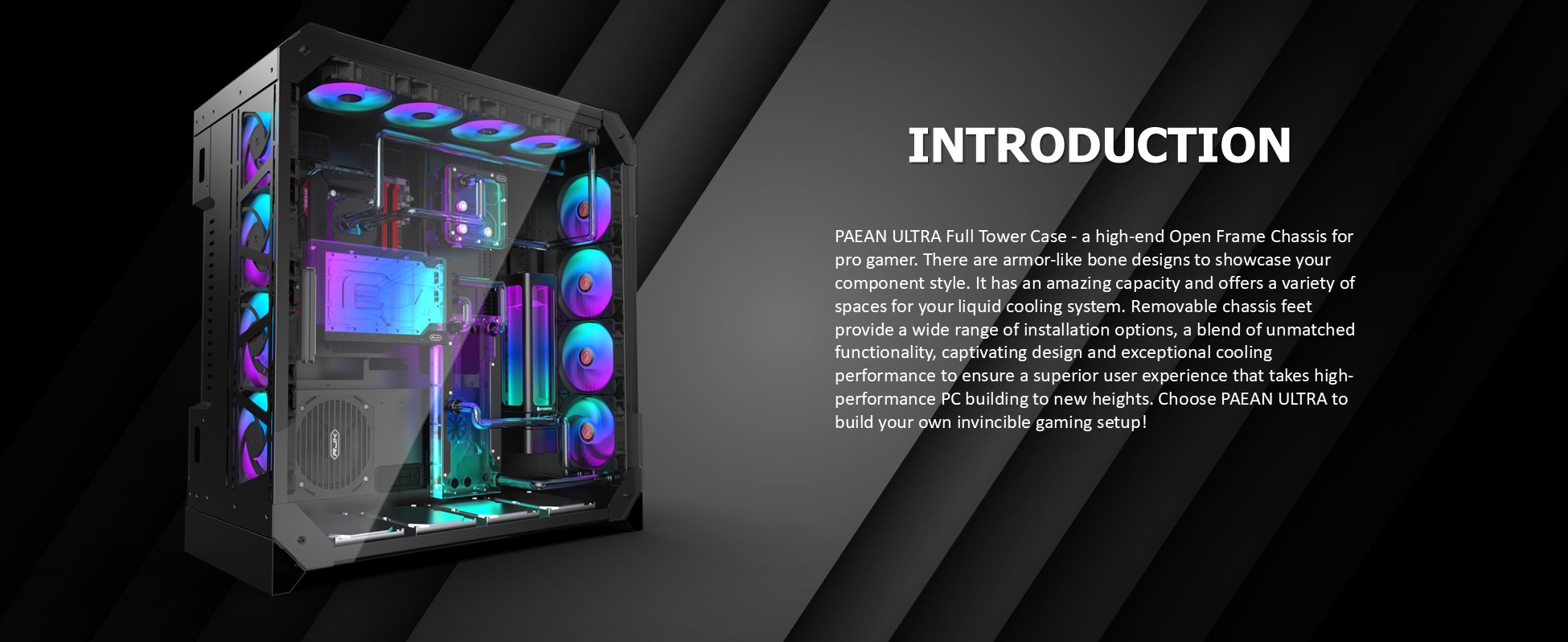

PAEAN ULTRA Full Tower Case - High-End Open Frame Chassis for Pro Gamers. Armor-like Bone design to showcase your components & Style. It has amazing capacity and offers a variety of spaces for your liquid cooling system. Removable chassis feet provide a wide range of installation options, a blend of unmatched functionality, captivating design, and exceptional cooling performance to ensure a superior user experience that takes high-performance PC building to the limit. Choose PAEAN ULTRA to build your invincible gaming setup!

Feature
Specification
Support
Unboxed
Gallery

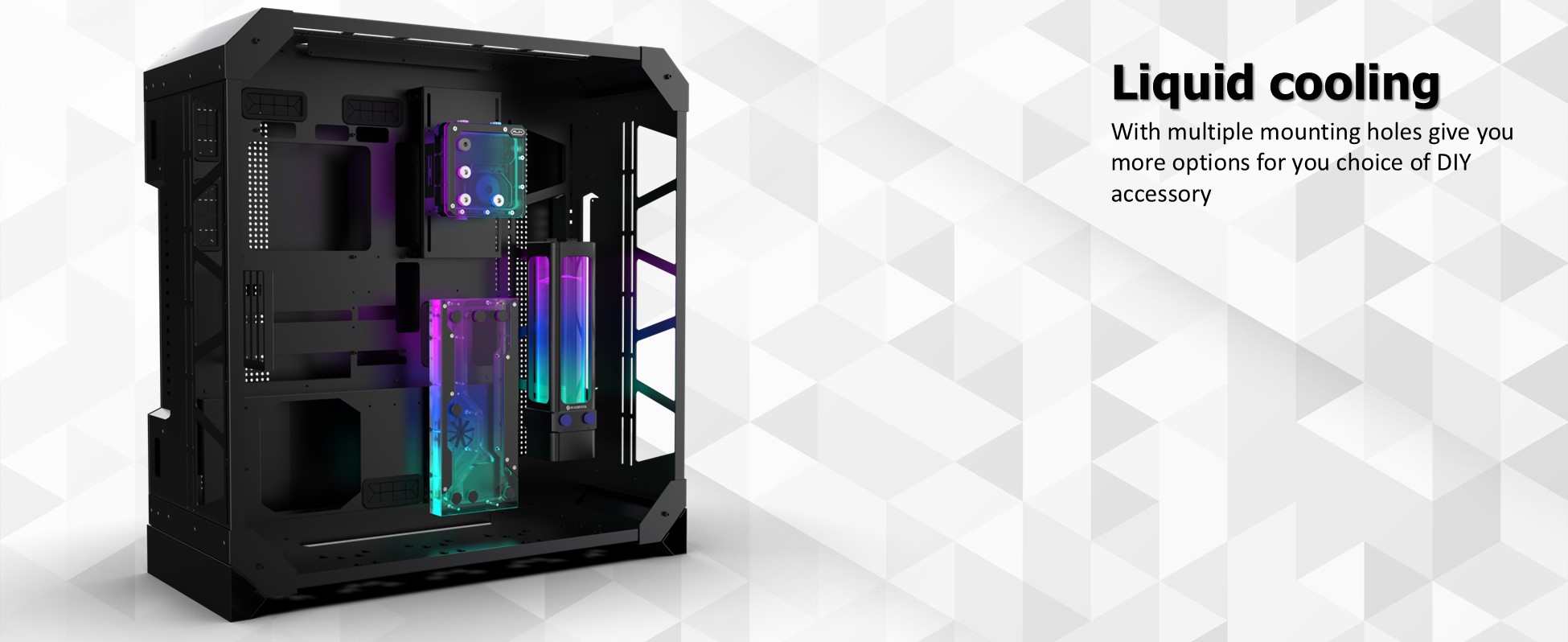

Multiple mounting holes give you more options for your choice of liquid cooling DIY accessory

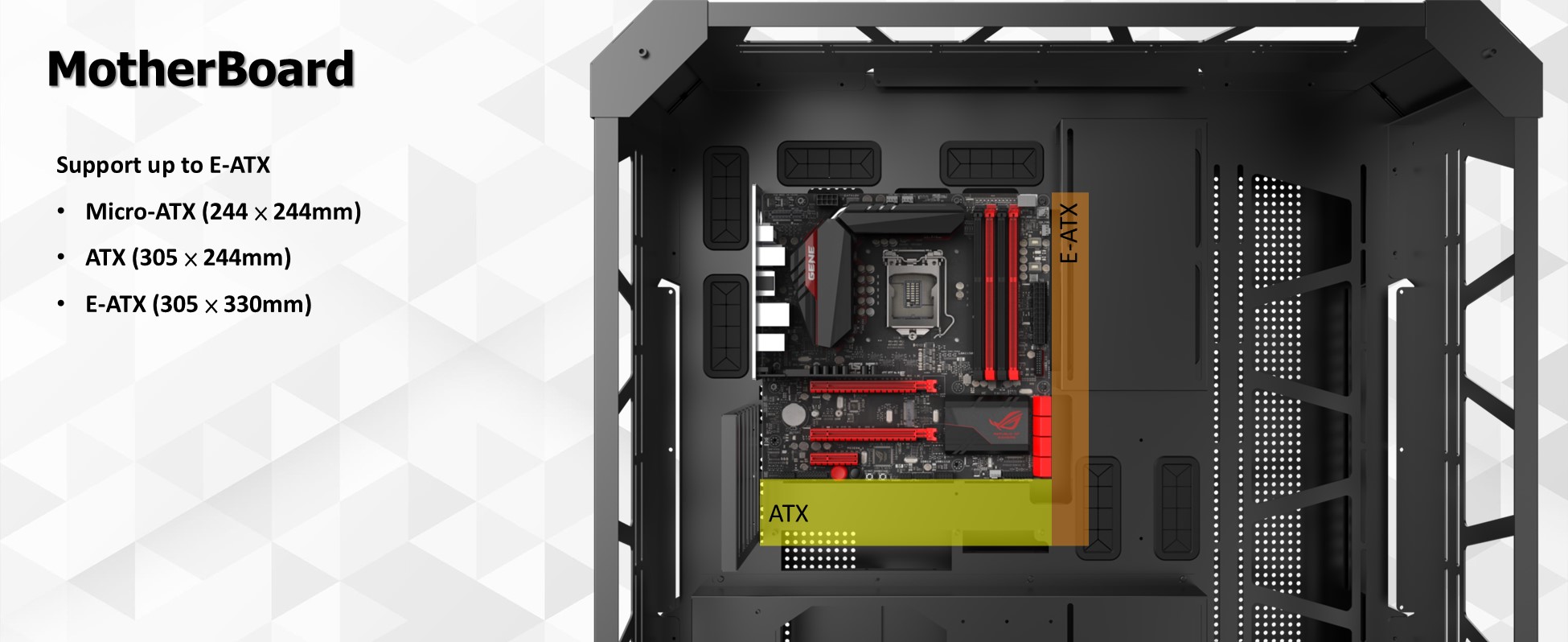

Motherboard Support: E-ATX, ATX, M-ATX
CPU Cooler Height: 200mm

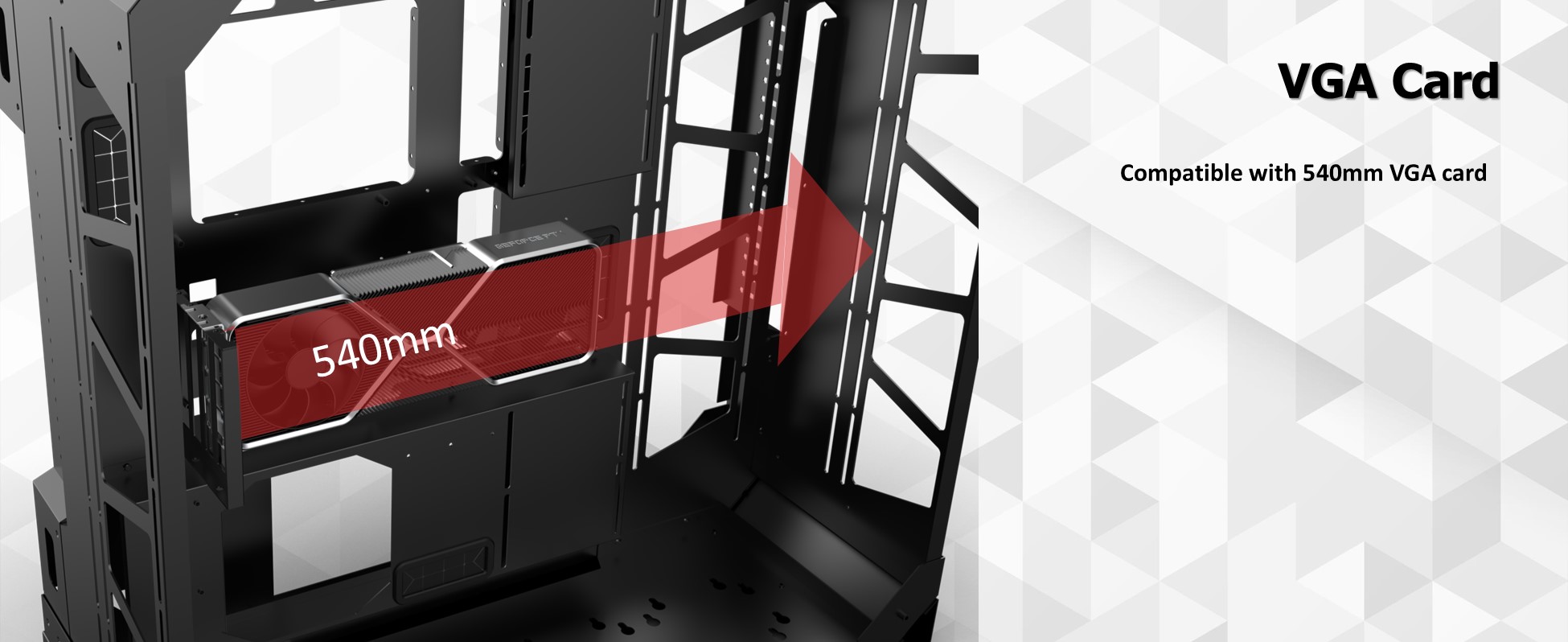

Video Card Max length: 540mm length

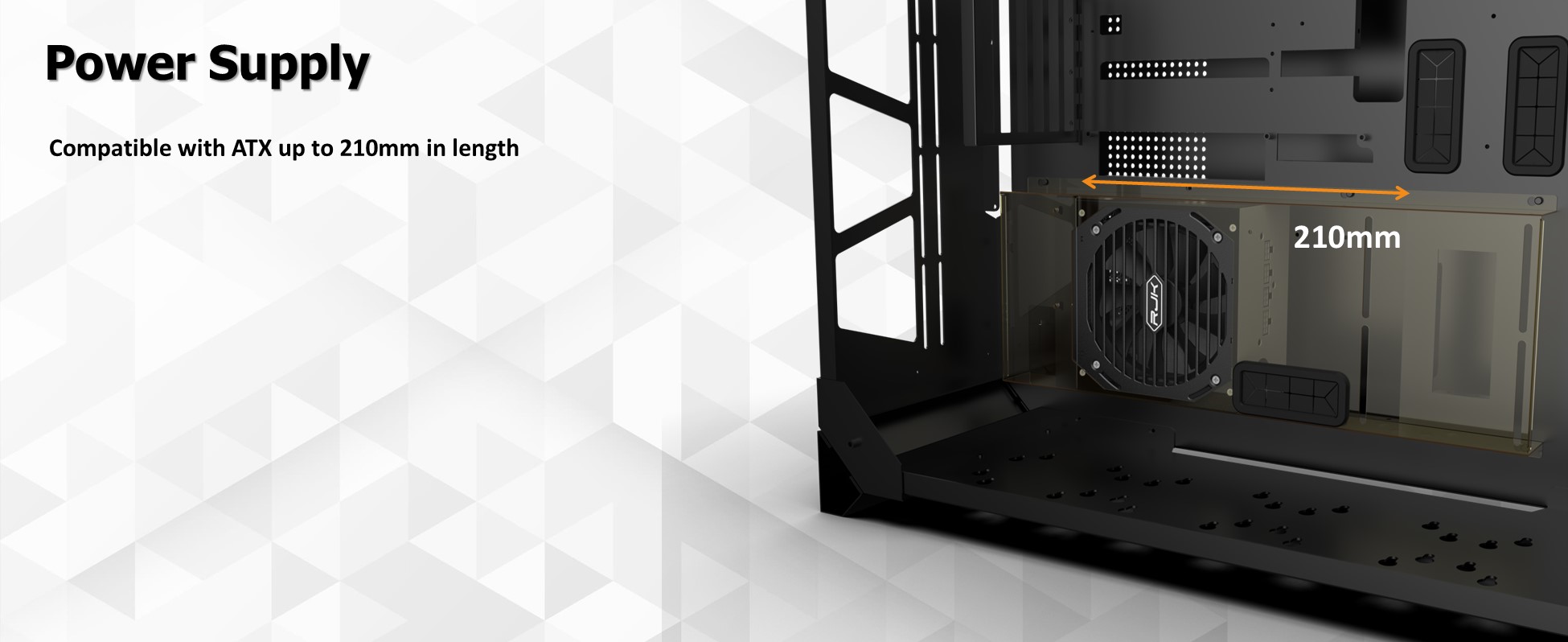

Power Supply: ATX up to 210mm in length
Capable of accommodating up to 16 120mm fans

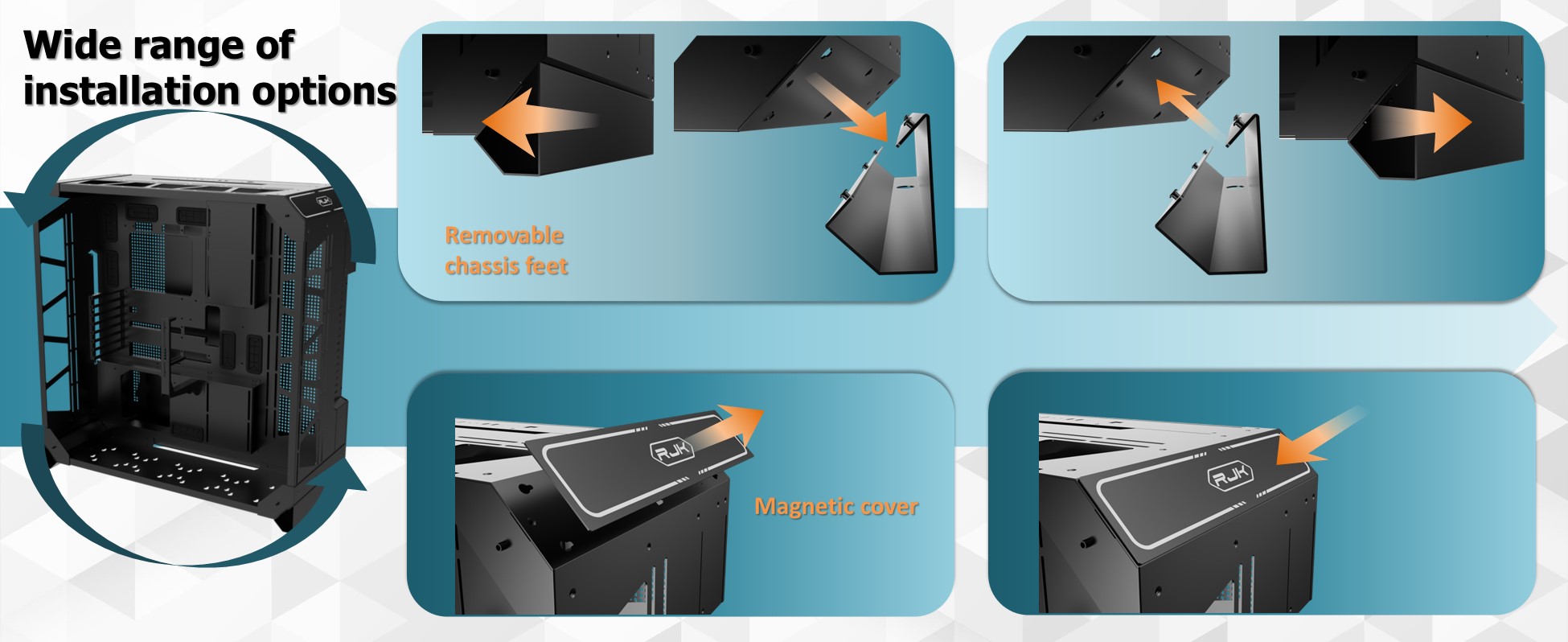

Removable Chassis Feet

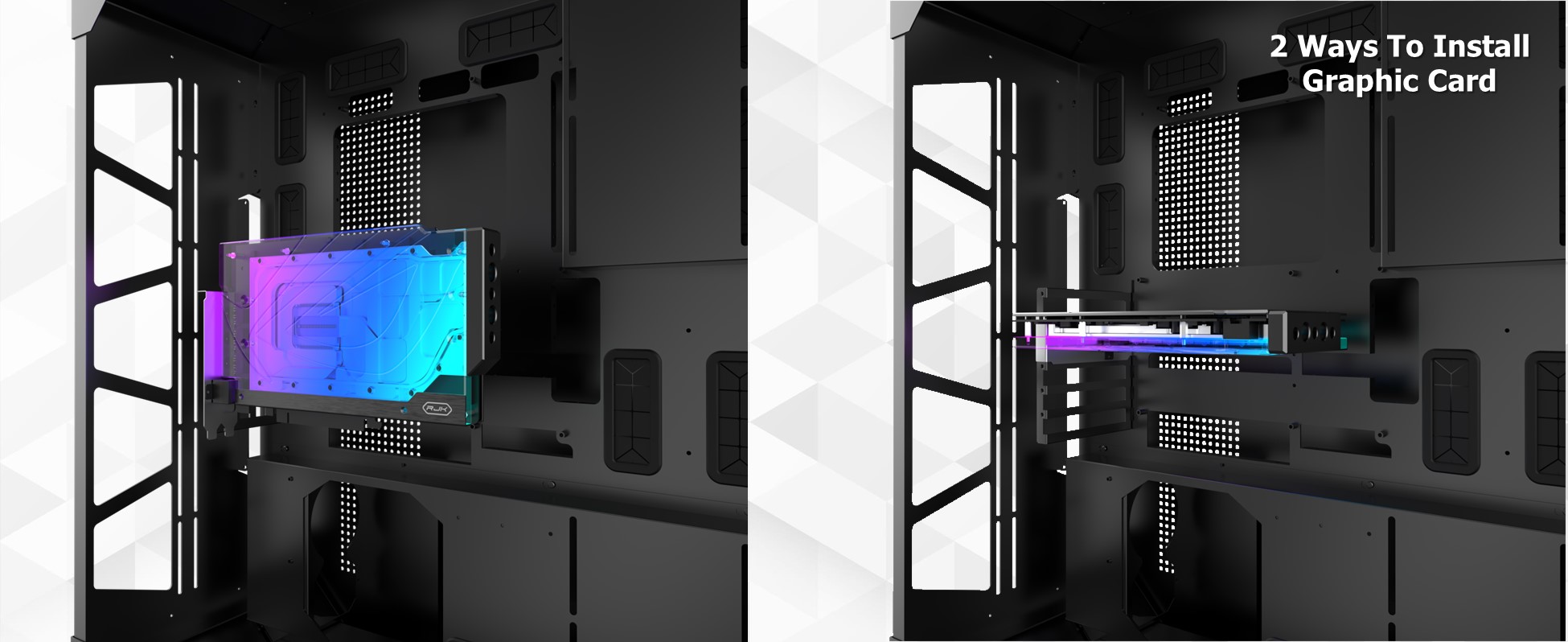

2 Ways To Install Graphic Cards
Five top USB (Type-C × 1, USB3.0 × 2, USB2.0 × 2)

PAEAN ULTRA SPECIFICATION
Product Name	PAEAN ULTRA BLACK	PAEAN ULTRA WHITE
Product Number	0R20B00252	0R20B00253

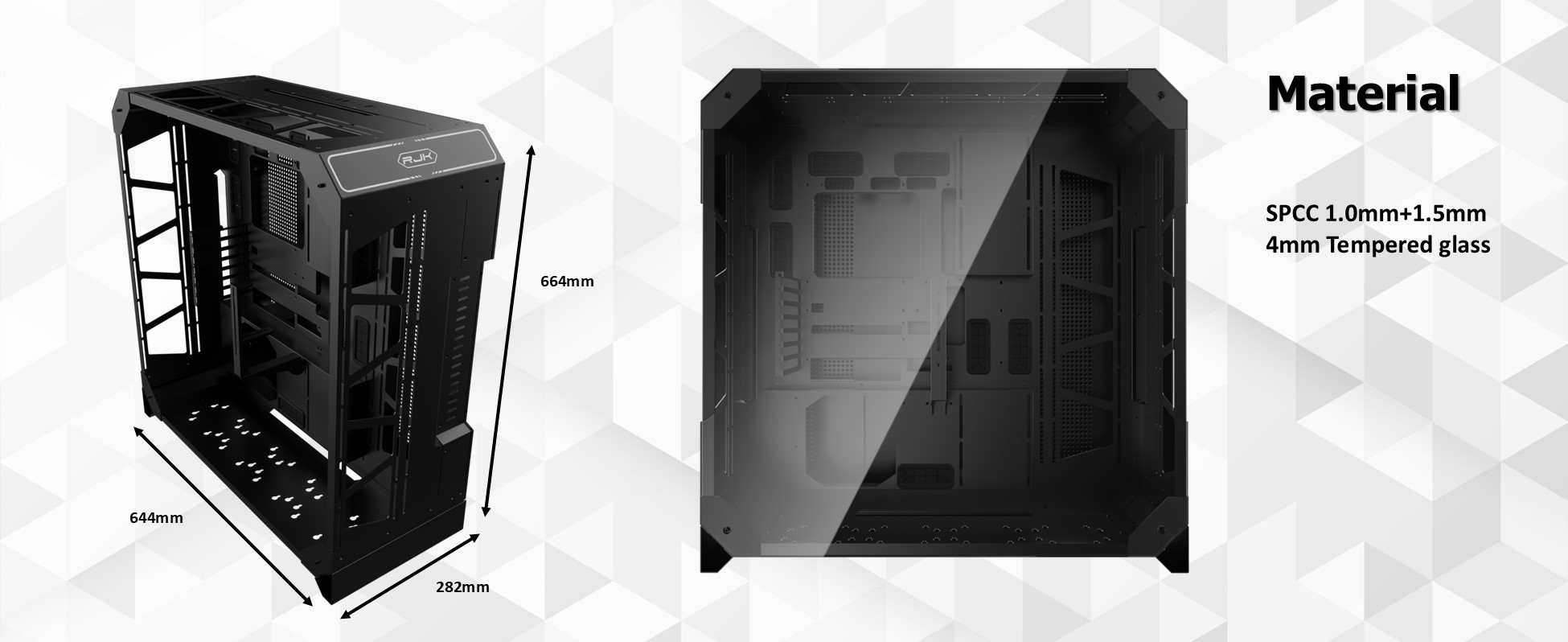

Dimension [D×W×H]	644×282×664 mm	644×282×664 mm
Weight	20.38 kg [N.W.] 25.27 kg [G.W.]	20.38 kg [N.W.] 25.27 kg [G.W.]
Material	SPCC 1.5 mm	SPCC 1.5 mm
Color	Coating Black	Coating White
M/B Support	E-ATX / ATX / MICRO ATX / MINI-ITX, Back connector M/B：ATX / M-ATX	E-ATX / ATX / MICRO ATX / MINI-ITX, Back connector M/B：ATX / M-ATX

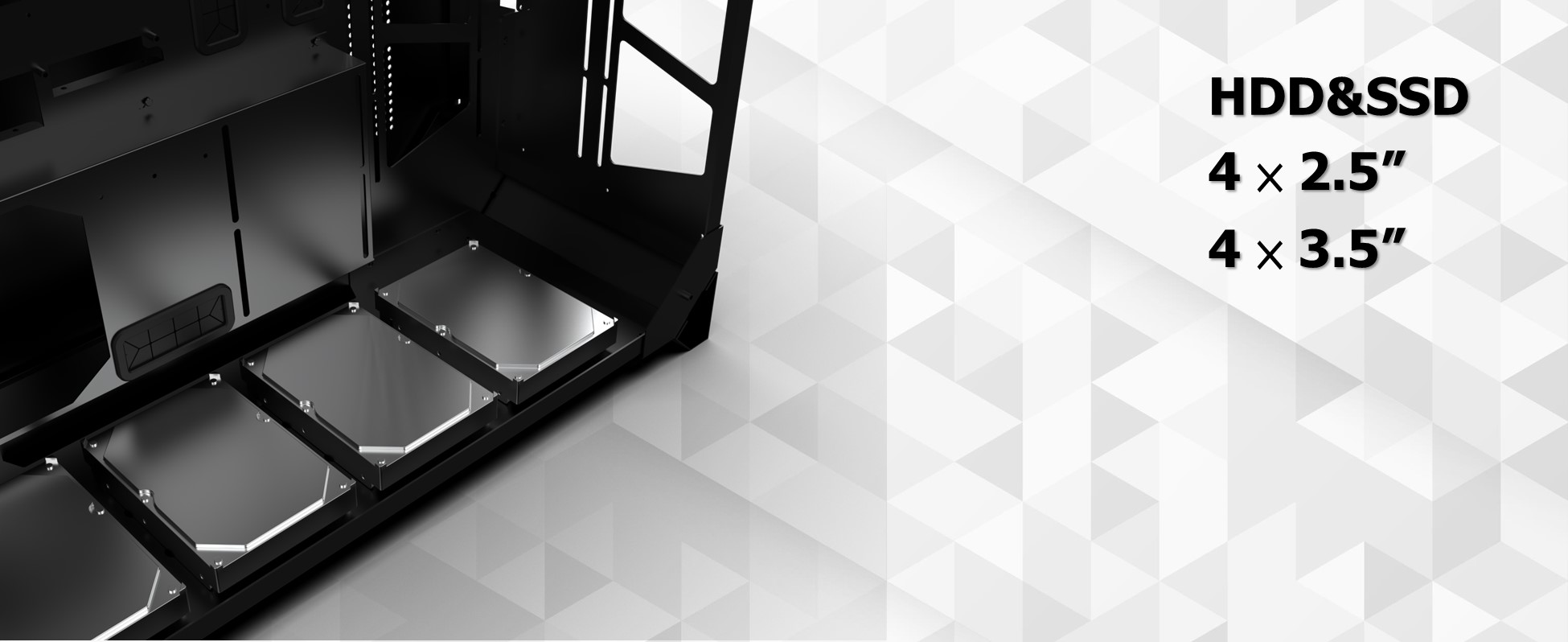

Drive Bay	3.5"×4 / 2.5"×4	3.5"×4 / 2.5"×4
Expansion Slot	PCI Slots ×6	PCI Slots ×6

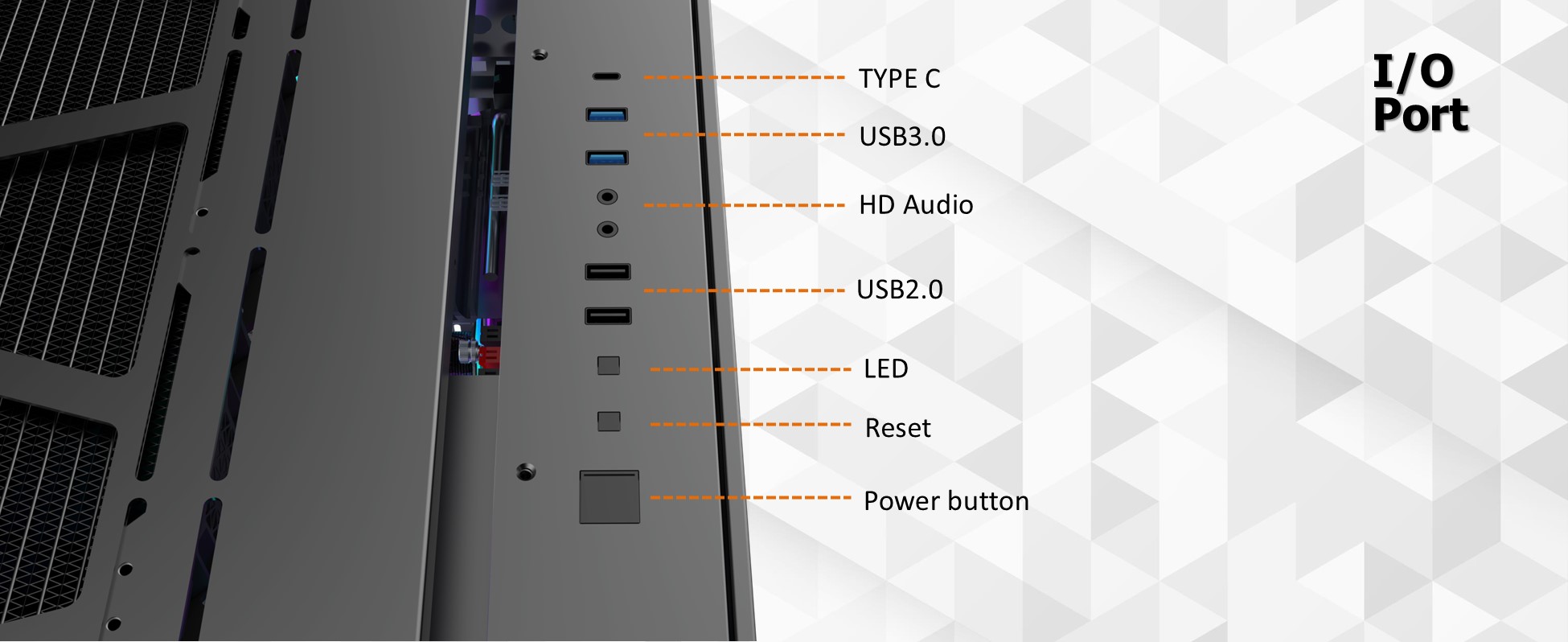

I/O Panel	TYPE-C×1 + USB3.0×2 + HD Audio×2 + USB2.0×2	TYPE-C×1 + USB3.0×2 + HD Audio×2 + USB2.0×2
Power Supply	ATX PSU [Length: 210mm]	ATX PSU [Length: 210mm]

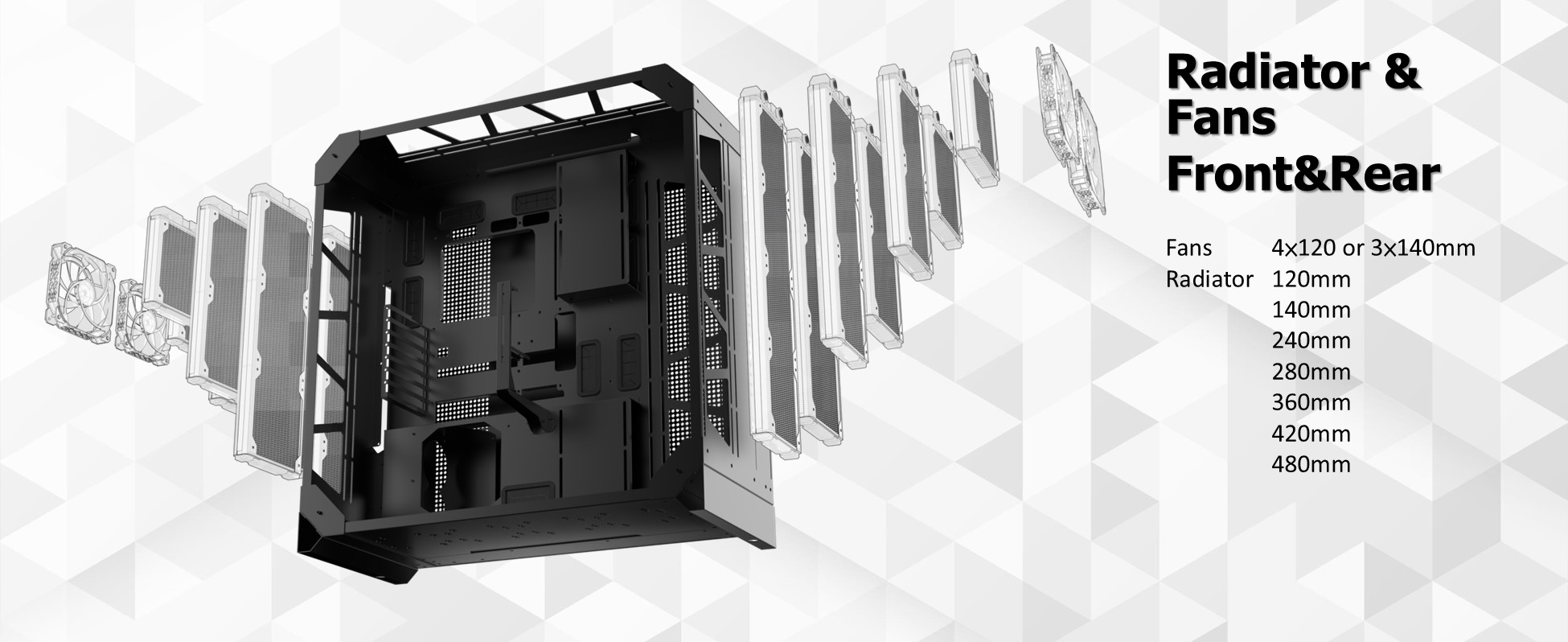

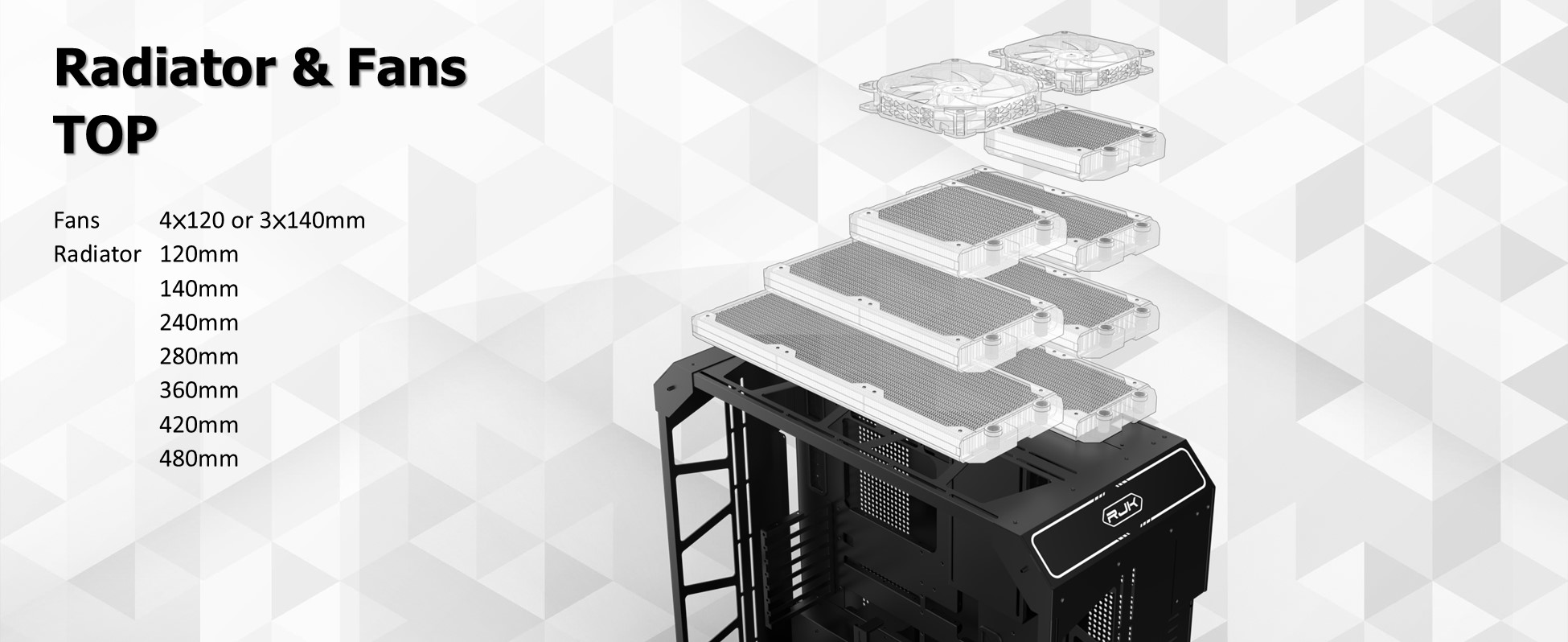

Fan Q'ty	Top: 120mm×4/140 mm×3 [option] Front: 120mm×4/140 mm×3 [option] Rear: 120mm×4/140 mm×3 [option] M/B: 120mm×1 + 120mm×4 or 140mm×3 [option]	Top: 120mm×4/140 mm×3 [option] Front: 120mm×4/140 mm×3 [option] Rear: 120mm×4/140 mm×3 [option] M/B: 120mm×1 + 120mm×4 or 140mm×3 [option]

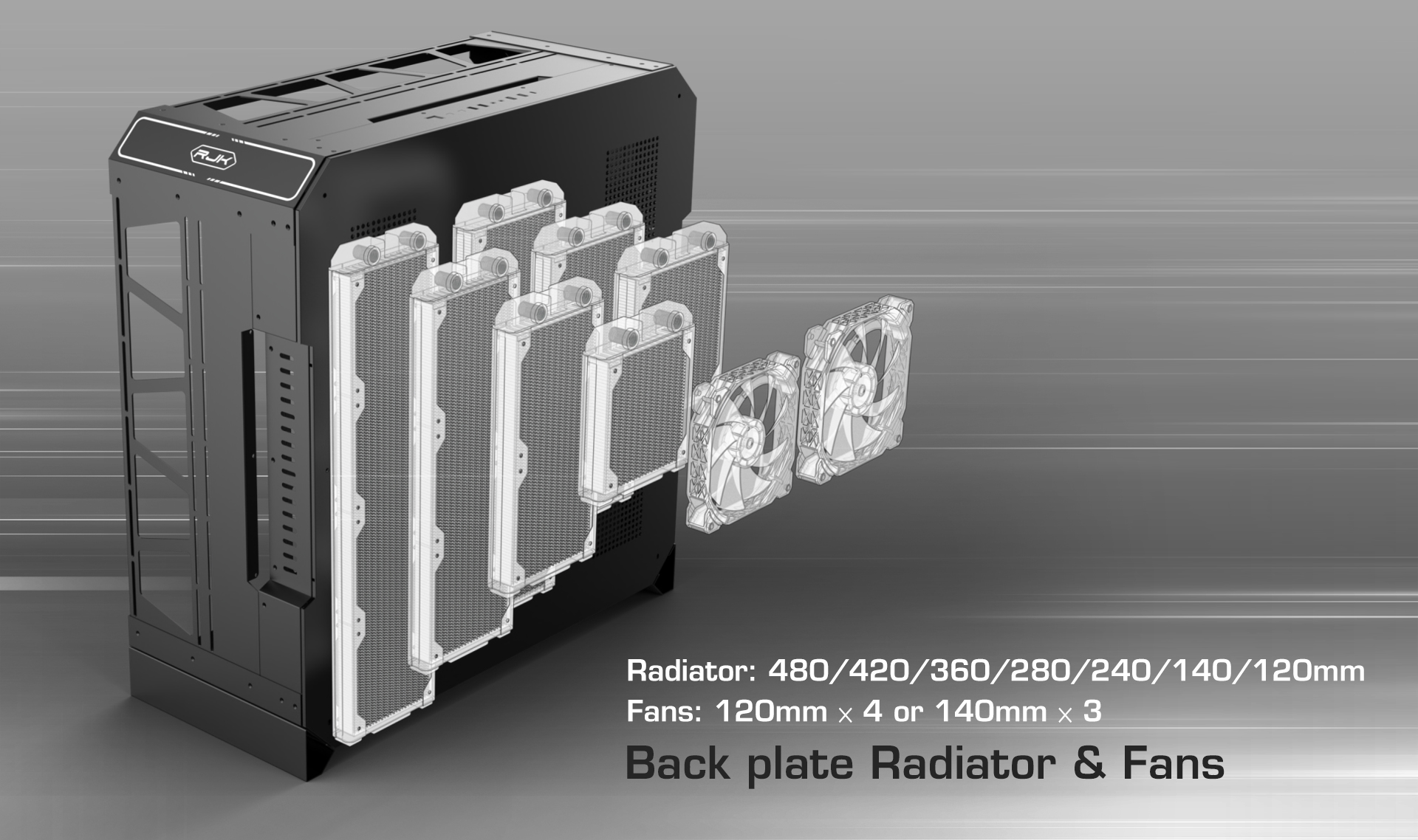

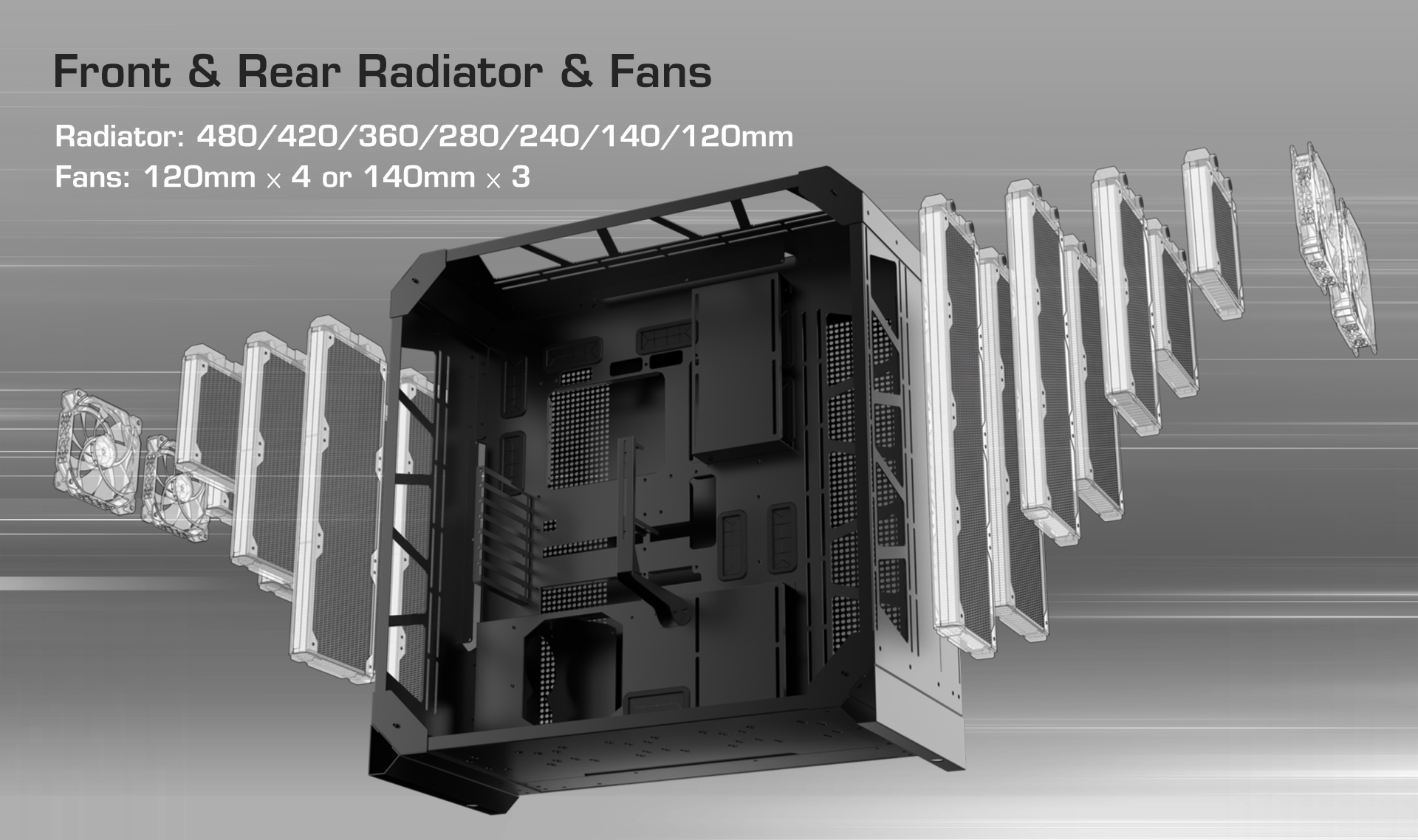

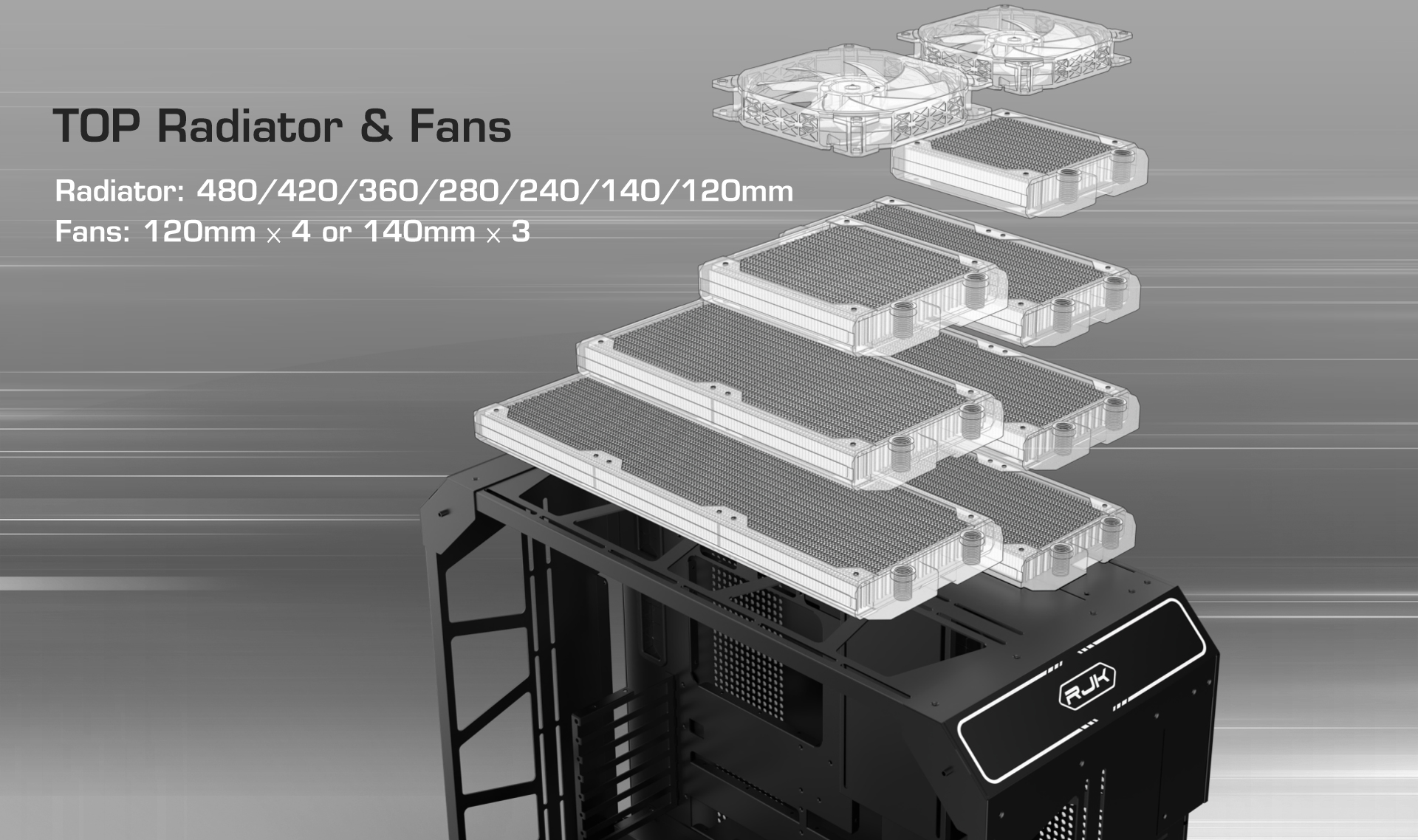

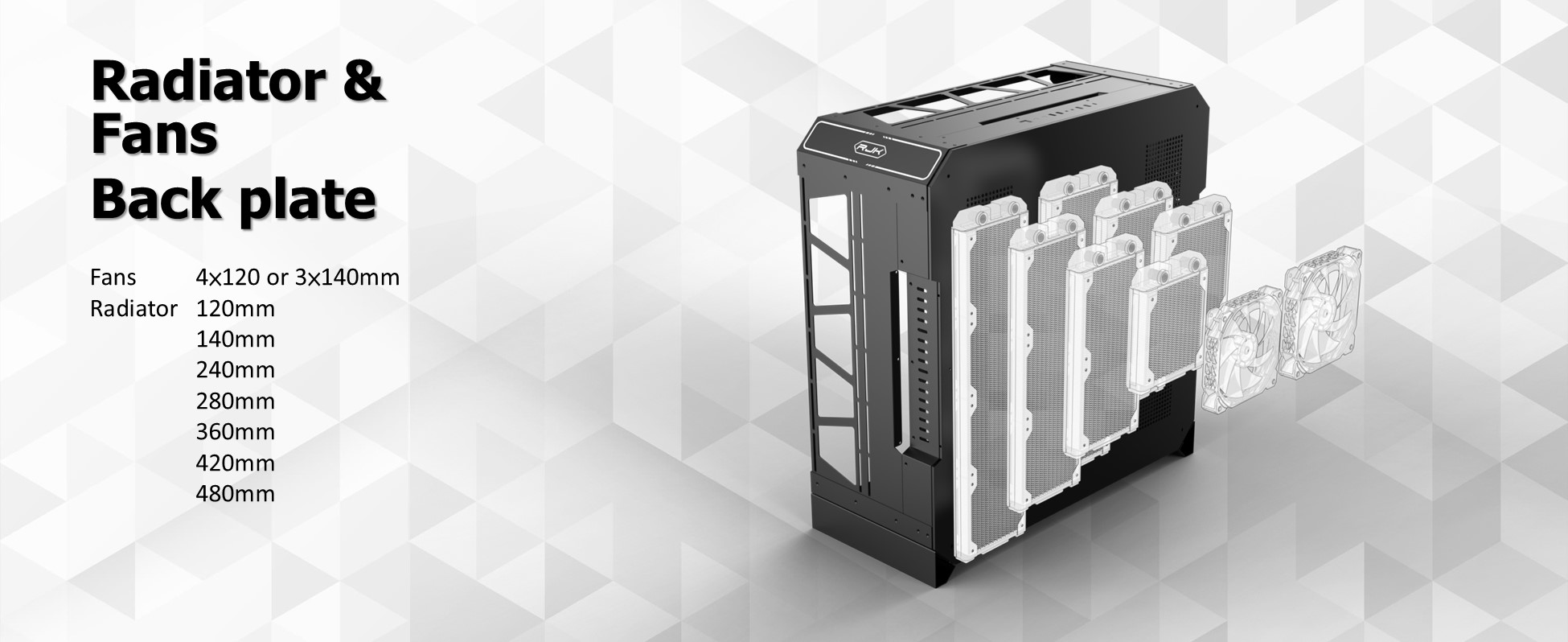

Radiator Q’ty	Top: 120/140/240/280/360/420/480mm 27mm thick Radiator [option] Front: 120/140/240/280/360/420/480mm 27mm thick Radiator [option] Rear: 120/140/240/280/360/420/480mm 27mm thick Radiator [option] M/B: 120/140/240/280/360/420/480mm 27mm thick Radiator [option]	Top: 280/360mm Radiator up to 30mm thick [option] Front: 280/360mm Radiator up to 30mm thick [option] MB plate: 120/240mm Radiator up to 30mm thick [option] Rear: 120mm Radiator up to 30mm thick [option]
CPU Cooler Height	200mm [Max.]	200mm [Max.]
Graphic Card Length	540mm [Max.]	540mm [Max.]
Side Panel Style	4mm Tempered Glass / 1mm SPCC	4mm Tempered Glass / 1mm SPCC
Dust Filter	Top / Front / Rear	Top / Front / Rear
