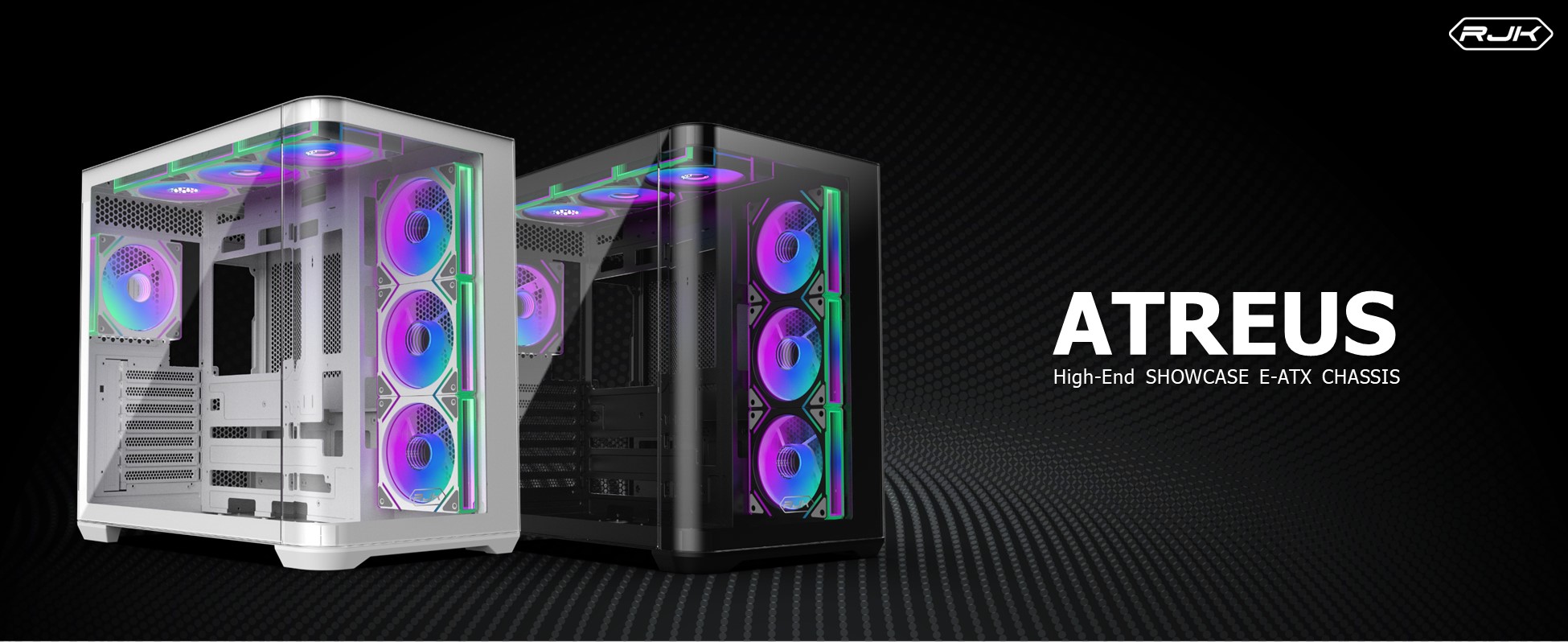

ATREUS

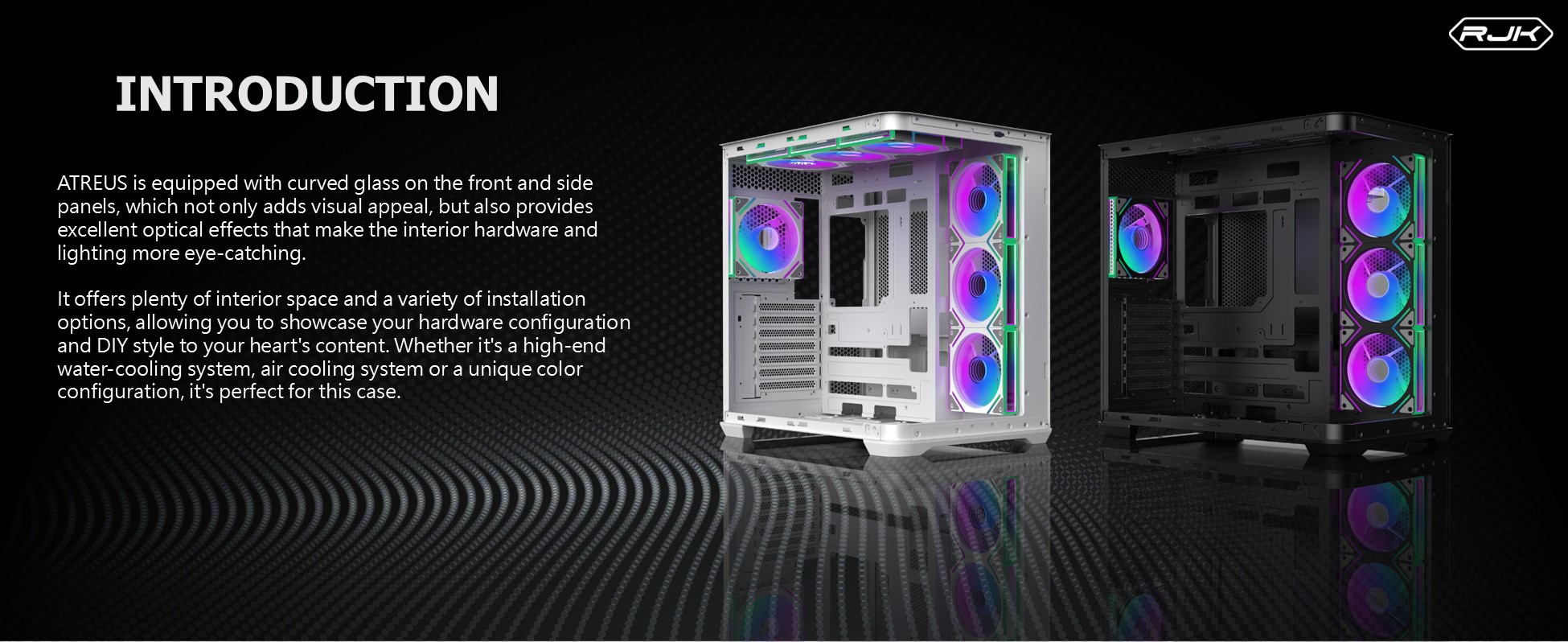

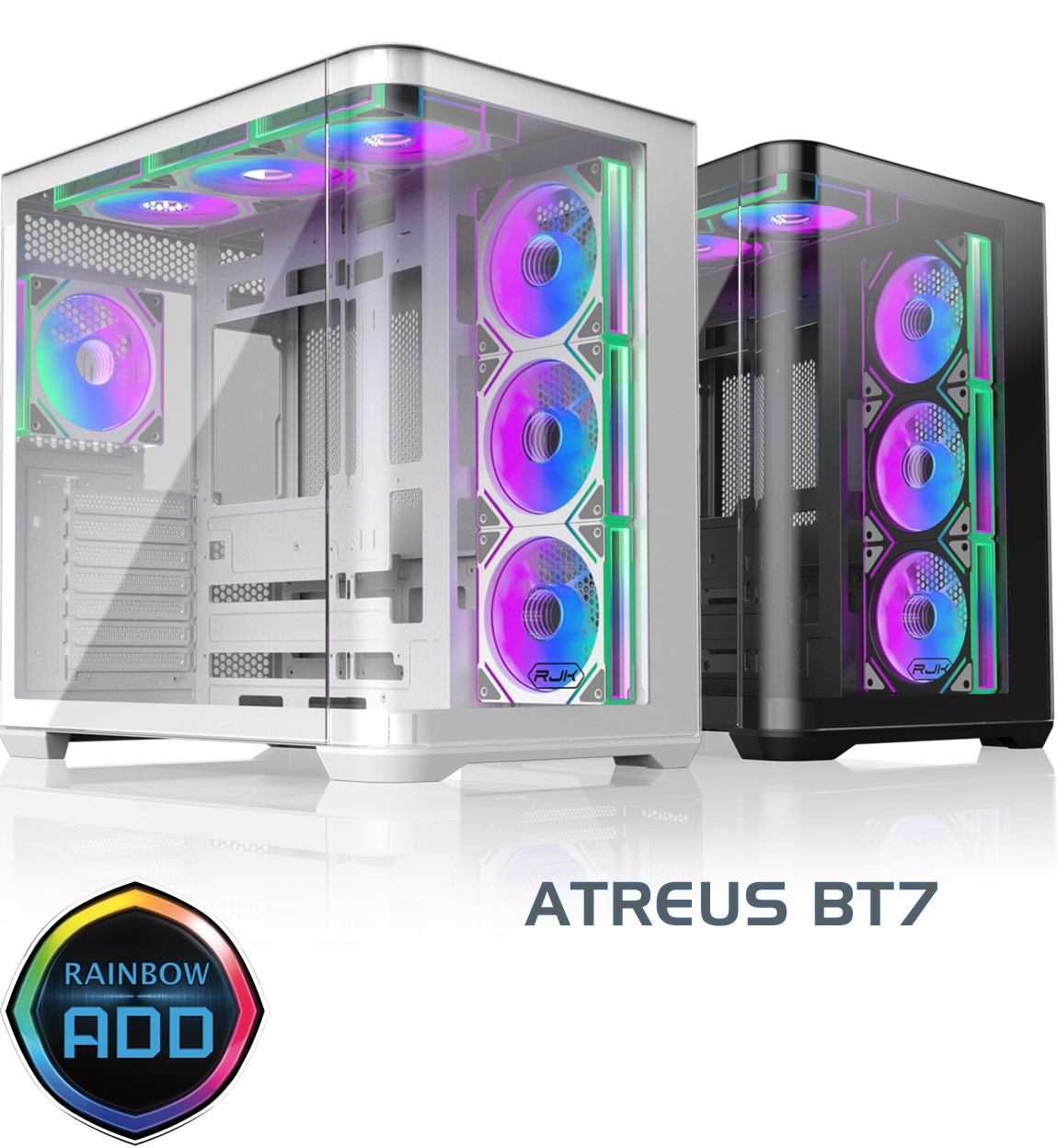

ATREUS is equipped with curved glass on the front and side panels, which not only adds visual appeal, but also provides excellent optical effects that make the interior hardware and lighting more eye-catching. It offers plenty of interior space and a variety of installation options, allowing you to showcase your hardware configuration and DIY style to your heart's content. Whether it's a high-end water-cooling system, air cooling system or a unique color configuration, it's perfect for this case.

ATREUS













  •

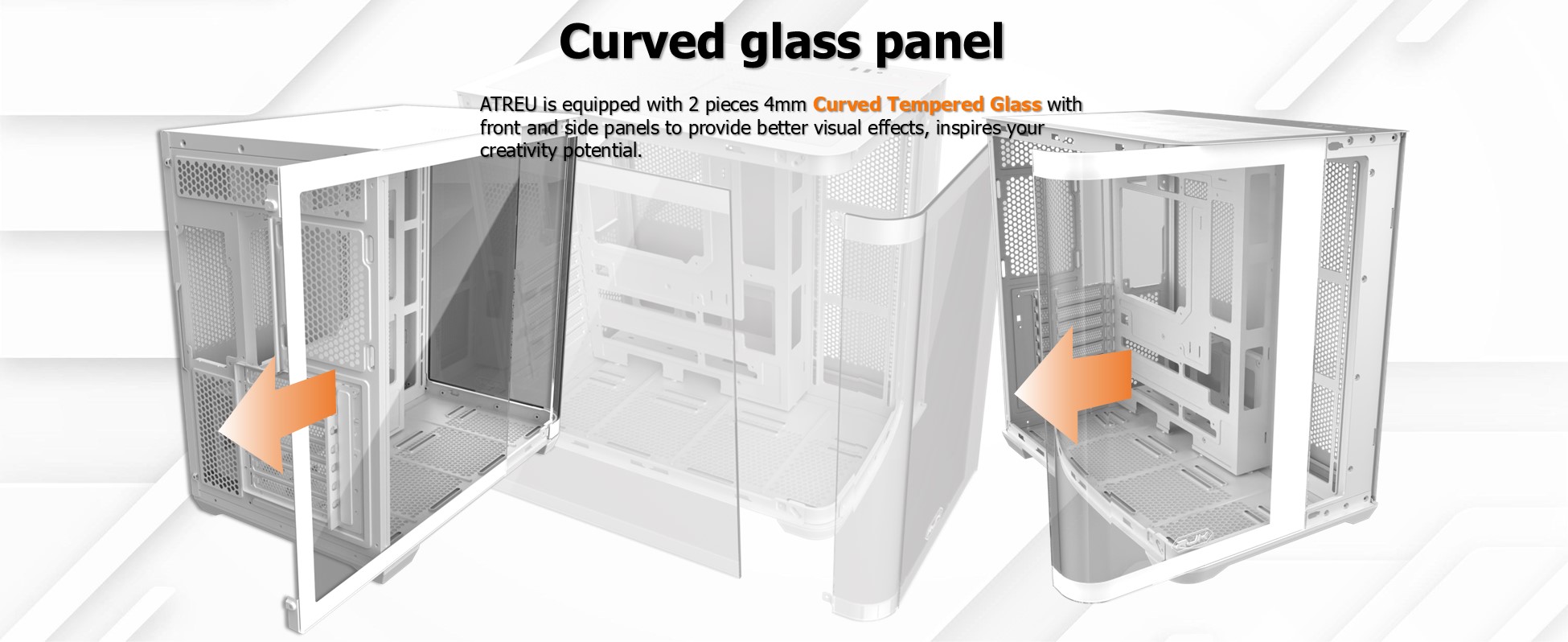

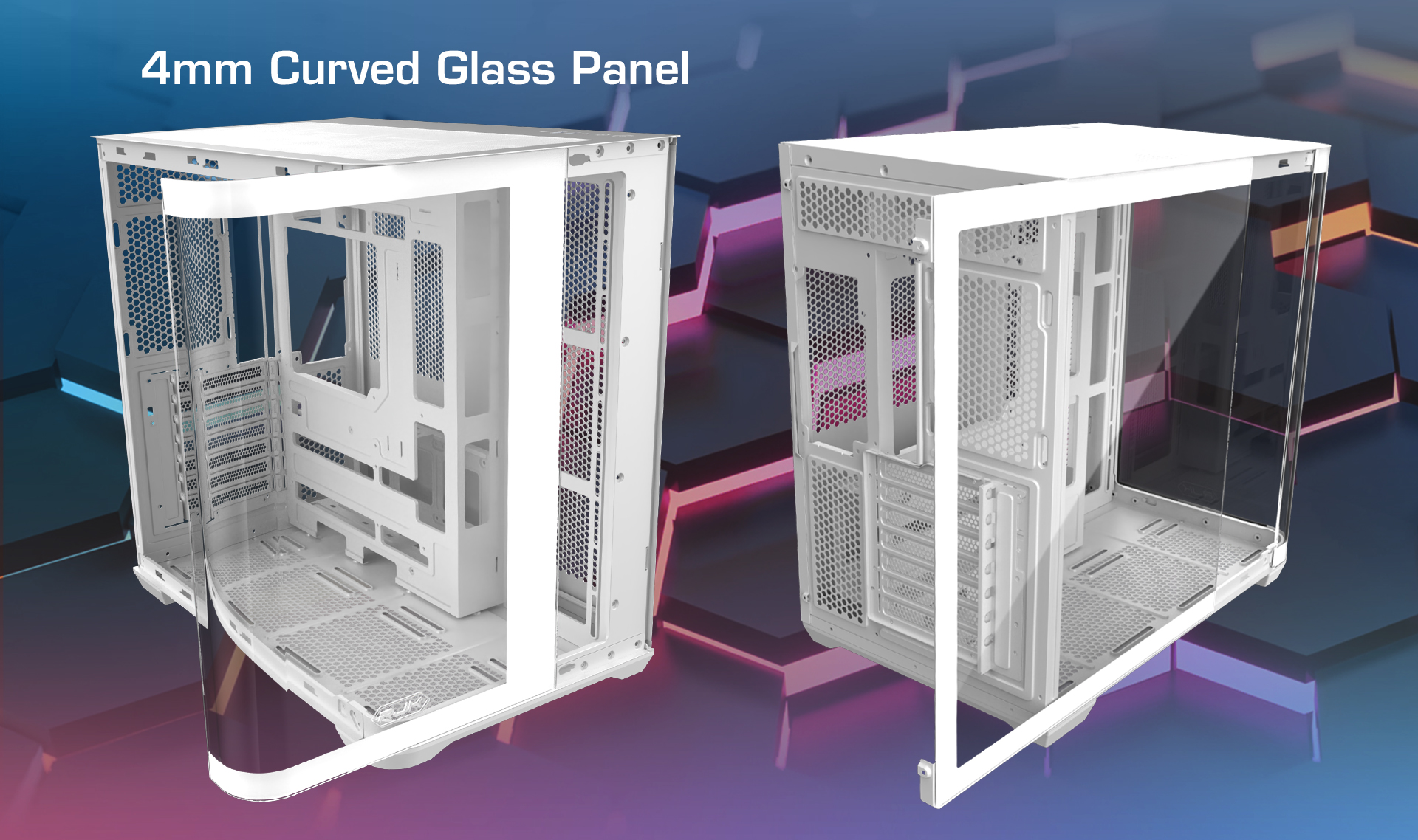

  • Curved glass panel displays better the light effects of components

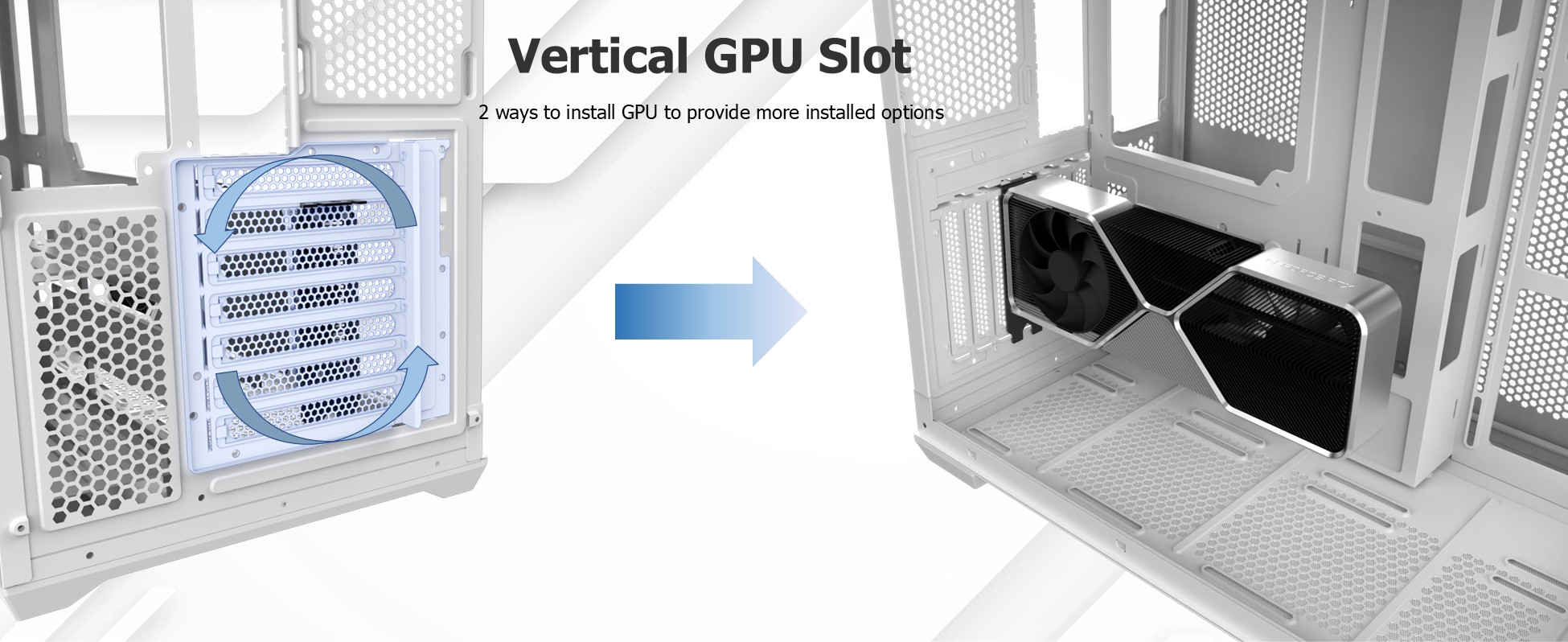

  • Rotatable PCI slot, two ways to install the graphics card vertically or horizontally

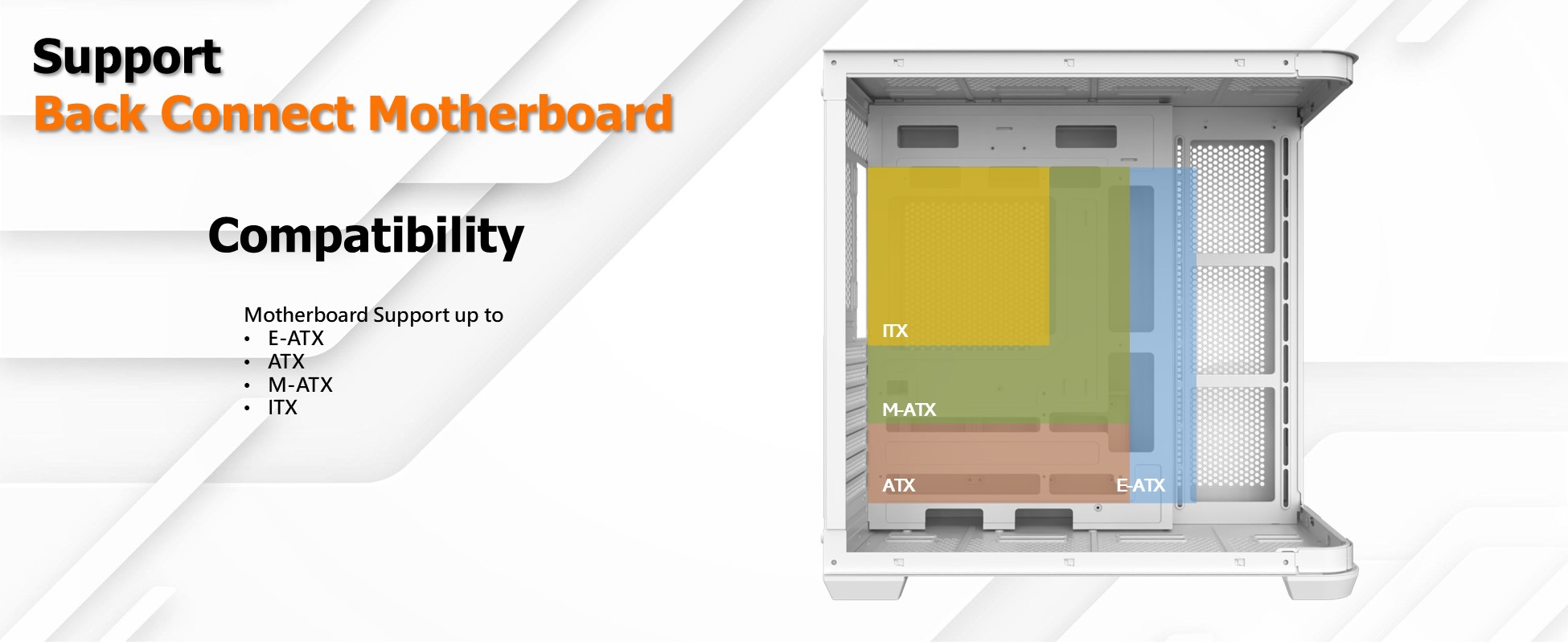

  • Motherboard Support: E-ATX, ATX, M-ATX, Mini-ITX

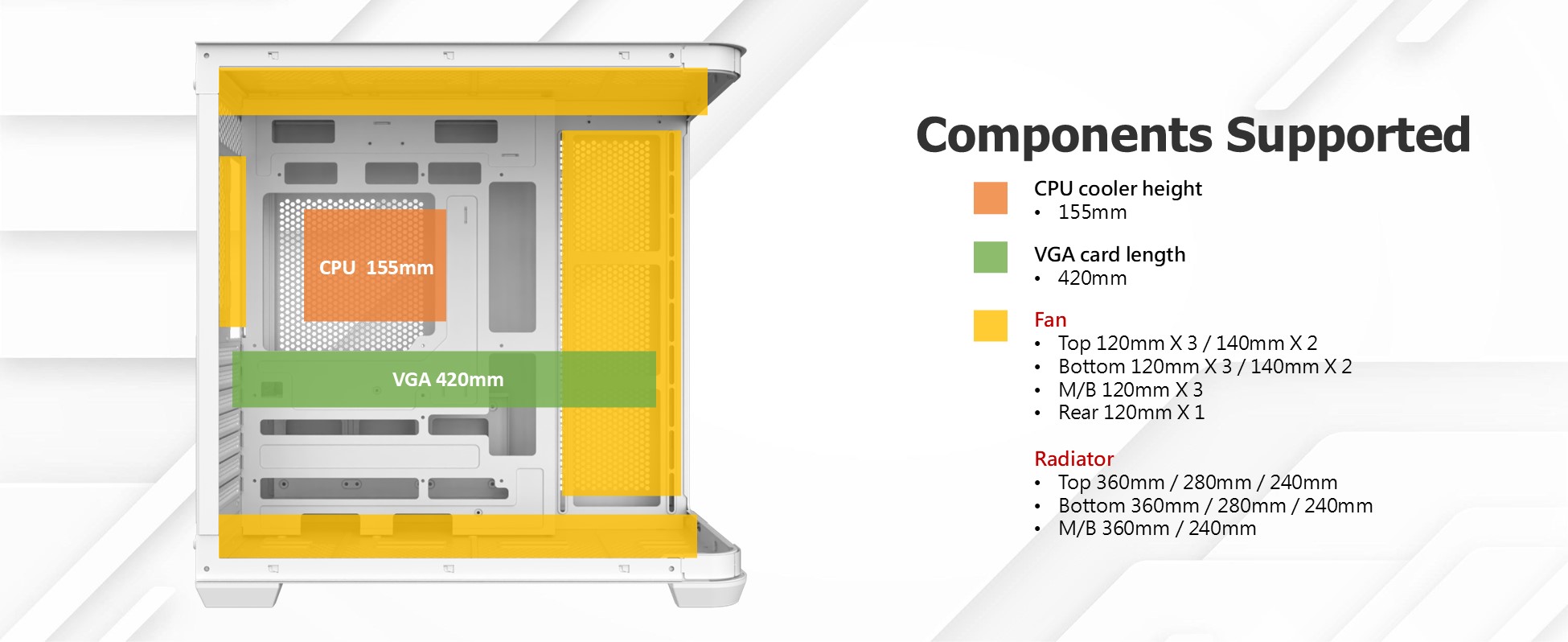

  • CPU Cooler Max Height: 155mm
  • VGA Card Max length: 420mm length

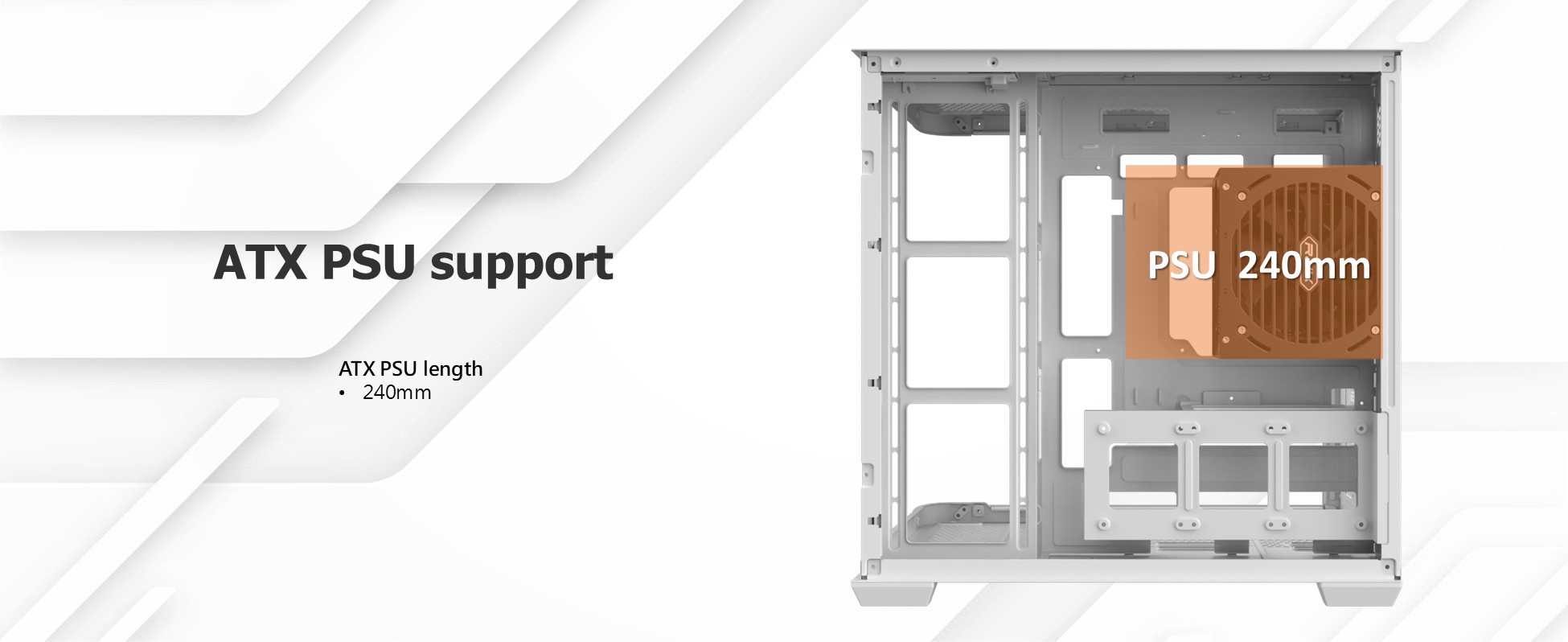

  • Power Supply: ATX up to 240mm in length

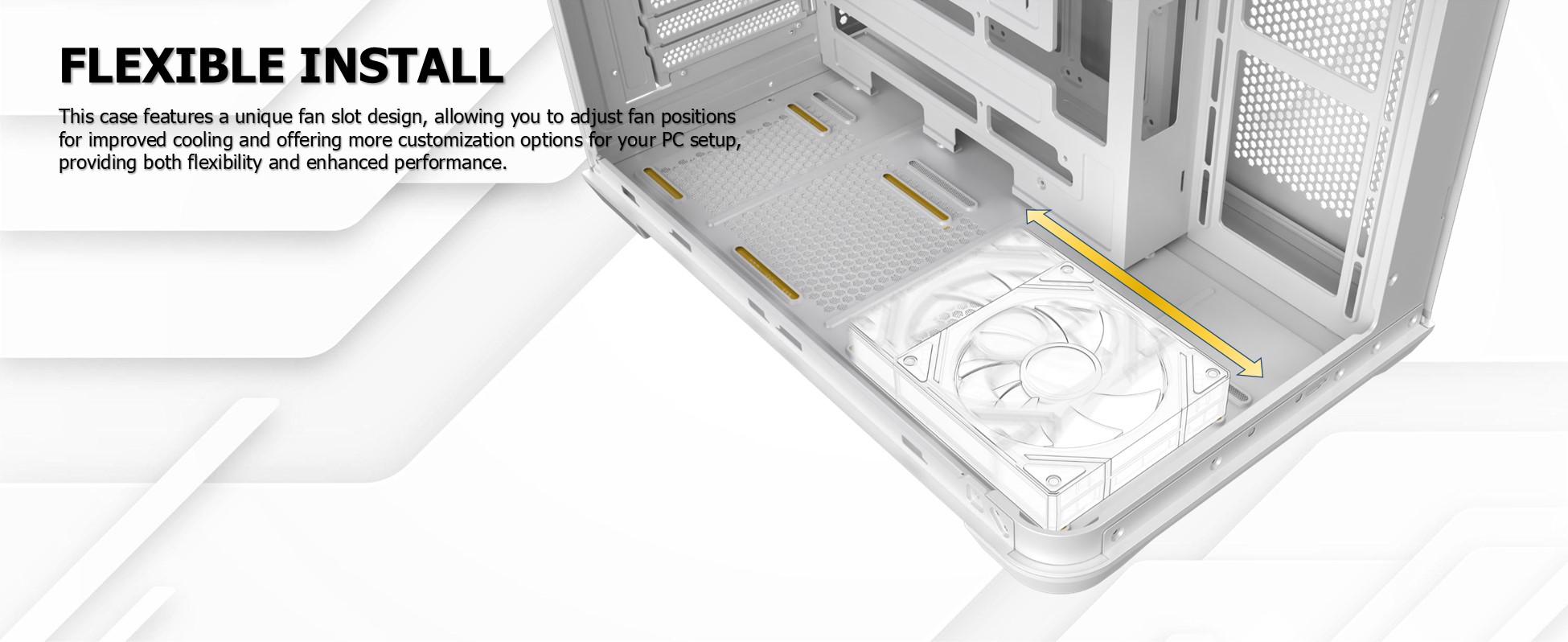

  • Capable of accommodating up to 10 120mm fans

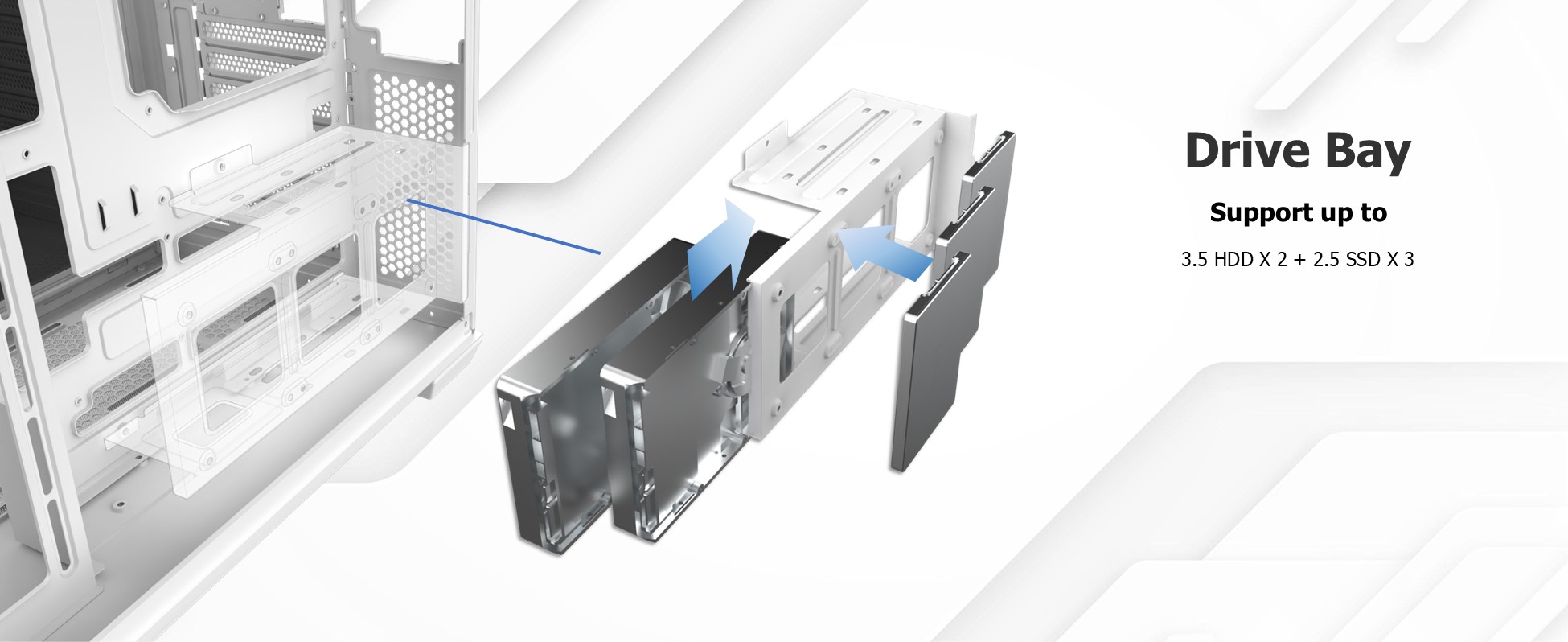

  • Support up to install 3.5 HDD × 2 + 2.5 SSD × 3

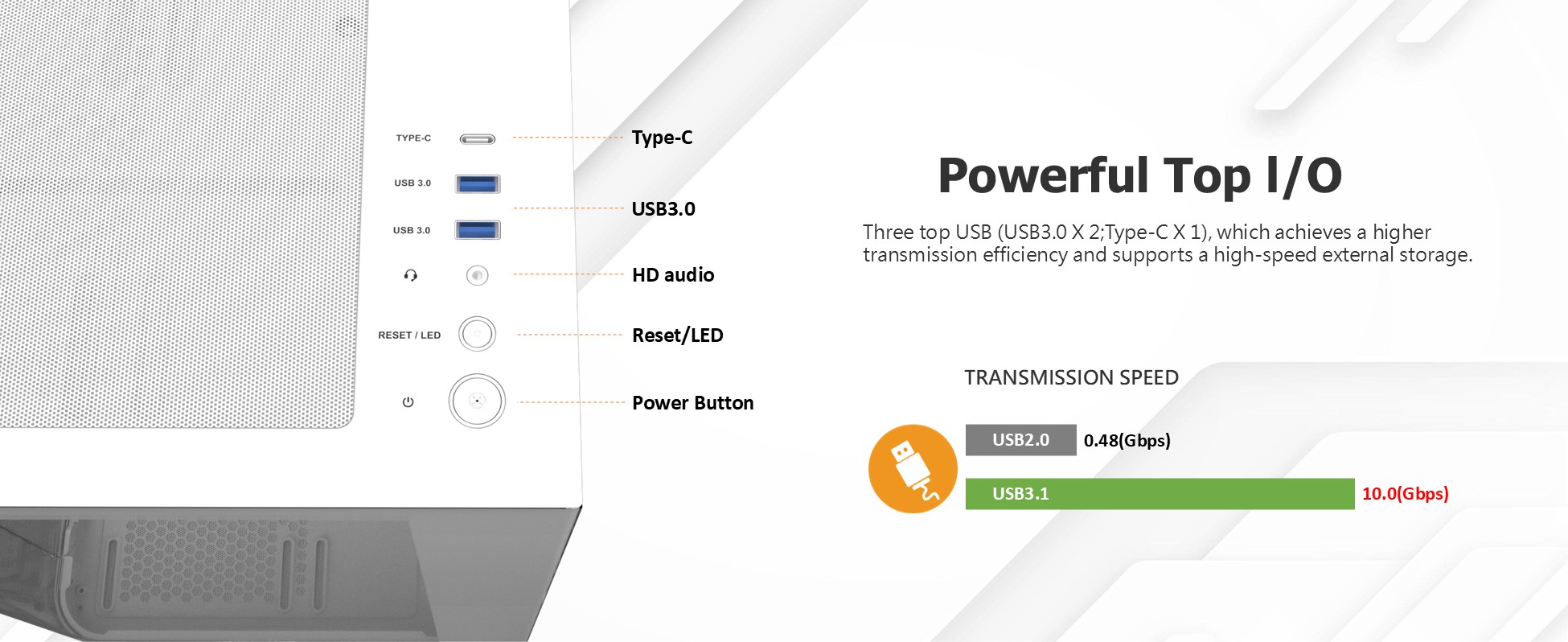

  • Top high-speed Type-C USB port
  • Space design supports installation of maximum number of radiators to optimize water cooling potential
ATREUS BT7 SPECIFICATION
Product Name ATREUS BT7 WHITE ATREUS BT7 BLACK
Product Number 0R20B00256 0R20B00258

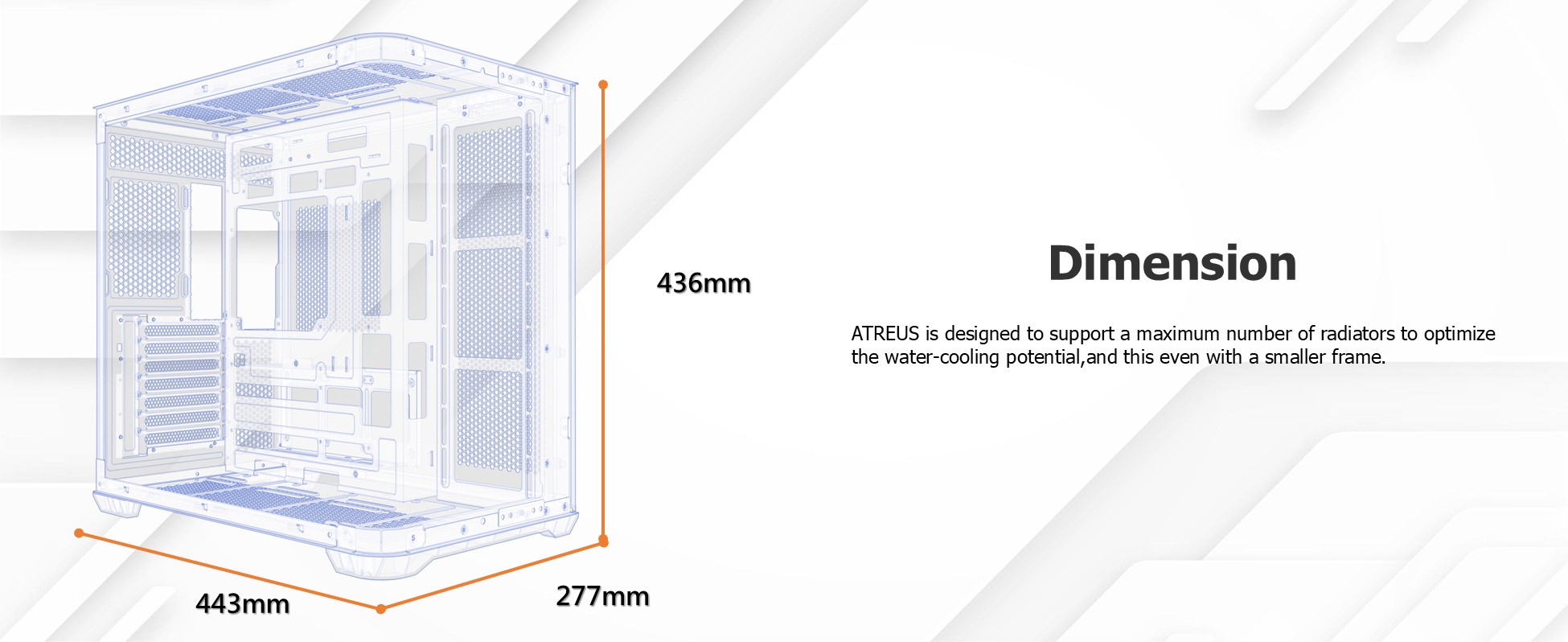

Dimension [D×W×H] 443×277×436 mm 443×277×436 mm
Weight 7.8 kg [N.W.] 8.5 kg [G.W.] 7.8 kg [N.W.] 8.5 kg [G.W.]
Material SPCC 0.6mm, 4mm Tempered Glass SPCC 0.6mm, 4mm Tempered Glass
Color Coating White Coating Black
M/B Support E-ATX / ATX / Micro-ATX / MINI-ITX E-ATX / ATX / Micro-ATX / MINI-ITX
Drive Bay 3.5" HDD×2 + 2.5" SSD×2 3.5" HDD×2 + 2.5" SSD×2
Expansion Slot PCI Slots ×7 (Vertical & Horizontal) PCI Slots ×7 (Vertical & Horizontal)
I/O Panel USB3.0×2, Type C×1, HD Audio USB3.0×2, Type C×1, HD Audio
Power Supply ATX PSU [Length: 240mm] ATX PSU [Length: 240mm]
Fan Q'ty Top: 3×12cm [Preinstalled] or 2×14cm
Bottom: 3×12cm or 2×14cm [option]
Side: 3×12cm [Preinstalled]
Rear: 1×12cm [Preinstalled]
Top: 3×12cm or 2×14cm [Preinstalled]
Bottom: 3×12cm or 2×14cm [option]
Side: 3×12cm [Preinstalled]
Rear: 1×12cm [Preinstalled]
Radiator Q’ty Top: 360 / 280 / 240 / 140 / 120mm [option]
Bottom: 360 / 280 / 240 / 140 / 120mm [option]
Side: 360 / 240 / 120mm [option]
Top: 360 / 280 / 240 / 140 / 120mm [option]
Bottom: 360 / 280 / 240 / 140 / 120mm [option]
Side: 360 / 240 / 120mm [option]
CPU Cooler Height 155mm [Max.] 155mm [Max.]
Graphic Card Length 420mm [Max.] 420mm [Max.]
Side Panel Style 4mm Tempered Glass 4mm Tempered Glass

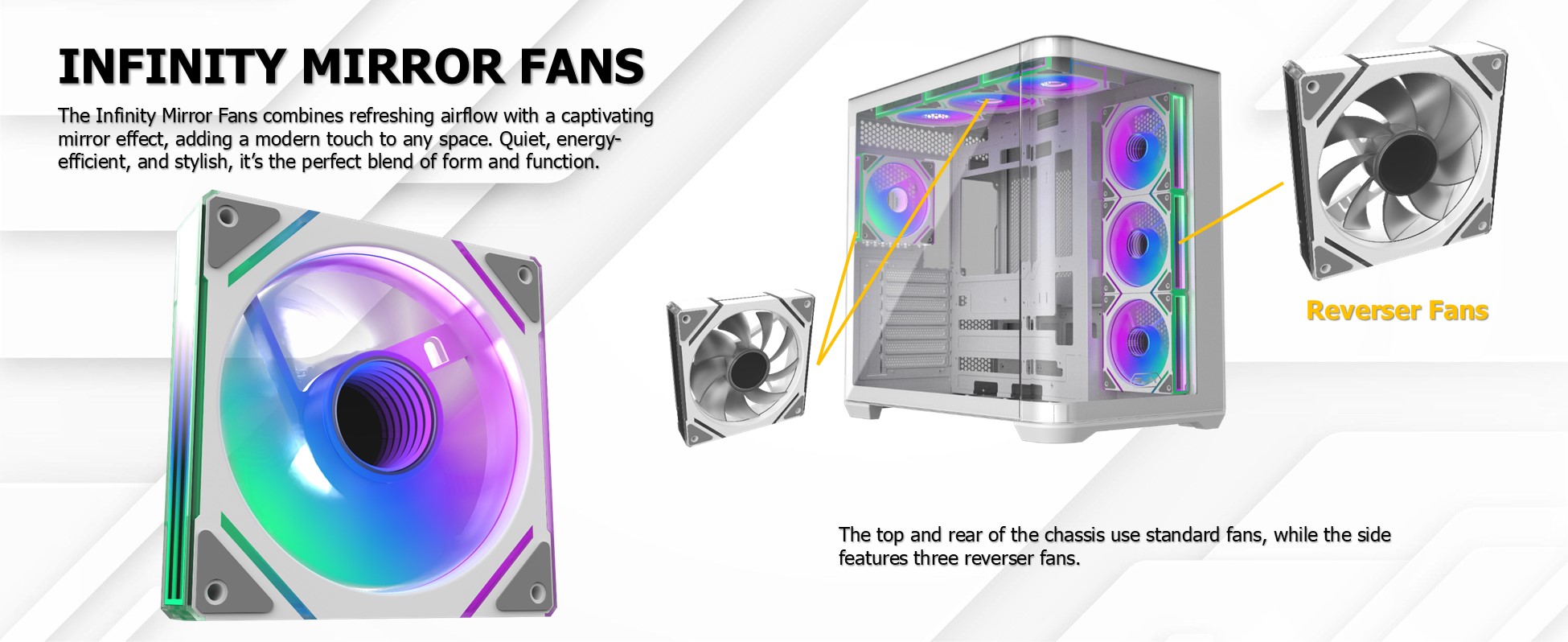

EMF ARGB FAN (BT7)
Dimension [W×H×D] 120×121×25 mm
Voltage Rating 12V
Starting Voltage 7V
Speed 600~1200 R.P.M.
Bearing Type Hydraulic Bearing
Air Flow 35.35 CFM [Max.]
Air Pressure 0.91 mmH2O [Max.]
Life Expectance 40,000 hrs
Noise Level 19.6 dBA [Max.]
Connector PWM 4 pin, 5V ADD 3 pin
LED Rated Current 0.077A±20%
Power Consumption 0.93W±20%
Fan Q'ty 7 pcs
Color White, Black
Fan Weight 135g
ATREUS BT4 SPECIFICATION
Product Name ATREUS BT4 WHITE ATREUS BT4 BLACK
Product Number 0R20B00254 0R20B00255
Dimension [D×W×H] 443×277×436 mm 443×277×436 mm
Weight 7.8 kg [N.W.] 8.5 kg [G.W.] 7.8 kg [N.W.] 8.5 kg [G.W.]
Material SPCC 0.6mm, 4mm Tempered Glass SPCC 0.6mm, 4mm Tempered Glass
Color Coating White Coating Black
M/B Support E-ATX / ATX / Micro-ATX / MINI-ITX E-ATX / ATX / Micro-ATX / MINI-ITX
Drive Bay 3.5" HDD×2 + 2.5" SSD×2 3.5" HDD×2 + 2.5" SSD×2
Expansion Slot PCI Slots ×7 (Vertical & Horizontal) PCI Slots ×7 (Vertical & Horizontal)
I/O Panel USB3.0×2, Type C×1, HD Audio USB3.0×2, Type C×1, HD Audio
Power Supply ATX PSU [Length: 240mm] ATX PSU [Length: 240mm]
Fan Q'ty Top: 3×12cm or 2×14cm [option]
Bottom: 3×12cm or 2×14cm [option]
Side: 3×12cm [Preinstalled]
Rear: 1×12cm [Preinstalled]
Top: 3×12cm or 2×14cm [option]
Bottom: 3×12cm or 2×14cm [option]
Side: 3×12cm [Preinstalled]
Rear: 1×12cm [Preinstalled]
Radiator Q’ty Top: 360 / 280 / 240 / 140 / 120mm [option]
Bottom: 360 / 280 / 240 / 140 / 120mm [option]
Side: 360 / 240 / 120mm [option]
Top: 360 / 280 / 240 / 140 / 120mm [option]
Bottom: 360 / 280 / 240 / 140 / 120mm [option]
Side: 360 / 240 / 120mm [option]
CPU Cooler Height 155mm [Max.] 155mm [Max.]
Graphic Card Length 420mm [Max.] 420mm [Max.]
Side Panel Style 4mm Tempered Glass 4mm Tempered Glass
EMF ARGB FAN (BT4)
Dimension [W×H×D] 120×121×25 mm
Voltage Rating 12V
Starting Voltage 7V
Speed 600~1200 R.P.M.
Bearing Type Hydraulic Bearing
Air Flow 35.35 CFM [Max.]
Air Pressure 0.91 mmH2O [Max.]
Life Expectance 40,000 hrs
Noise Level 19.6 dBA [Max.]
Connector PWM 4 pin, 5V ADD 3 pin
LED Rated Current 0.077A±20%
Power Consumption 0.93W±20%
Fan Q'ty 4 pcs
Color White, Black
Fan Weight 135g


ATREUS × 1

Mounting Tool × 1
MB Stand-off

Screw M3 L5 × 21
Motherboard/2.5"SSD

Screw #6-32 L6 × 6
PSU/GPU

Screw #6-32 L5 × 12
3.5"HDD

Stand-off × 3
MB

Cable Tie × 5


Cable Tie × 5


Installation Guide × 1
