STYX / STYX CLASSIC
STYX, RAIJINTEK’s new aluminum Micro ATX case, has a remarkable elegant appearance design and high compatibility with your PC system. STYX is compatible with regular/ standard ATX Power supply, max. 280mm VGA card, 180mm height CPU cooler. STYX provides best cooling solution, 120mm fan pre-installed at rear, optional 2*120mm fan on top /side, optional 120mm fan at bottom and max. 240mm radiator cooling on top/side. Moreover, STYX offer a drive bay for Slim DVD on side. Entirely black coated inside, aluminum color hair-silk anodized appearance, STYX satisfies not only your request of looking for elegant taste, but simultaneously satisfies the joy of installing a performing case.
STYX / STYX CLASSIC
  • Aluminum color hair-silk anodized appearance design (STYX WHITE: coating white)
  • Entire Coating black internally design
  • Compatible with ATX POWER SUPPLY
  • Compatible with max. 280mm VGA card
  • Supports to max. 180mm height CPU cooler
  • 2×USB3.0 ports
  • Anti-vibration rubber for HDD installation
  • Supports to install 3×3.5"HDD +2×2.5"HDD/ 1×3.5"HDD +4×2.5"HDD
  • 120 mm performing fan pre-installed at rear

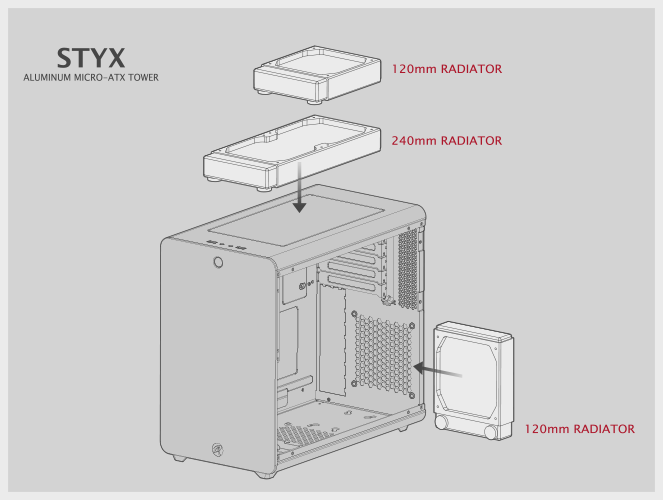

  • Optional to install 240mm radiator on the top/side and 120mm fan at bottom
SPECIFICATION
Product Name STYX / STYX CLASSIC
Product Number 0R200025~0R200030, 0R200031~0R200036, 0R200037~0R200038, 0R20B00159
Dimension [W×D×H] 210×360×335 mm
Weight 3.8 kg [N.W.] 5.2 kg [G.W.]
Material Aluminum 1.5mm [Surface]; SPCC 0.5mm [Interior]
Color Black / Red / Silver / Blue / Green / Gold / White / Pink
M/B Support Micro ATX / Mini-ITX
Drive Bay Internal 3.5"HDD×3 + 2.5"HDD×2 or 3.5"HDD×1 + 2.5"HDD×4
Slim DVD×1
Expansion Slot PCI Slots [Tool-Free]×5
I/O Panel USB3.0×2, HD Audio×1
Power Supply PS/2 [Internal Bottom-mount]
CoolingSystem Rear Fan: 120mm×1 [pre-installed]
Top Fan: 120mm×2 or 240mm Radiator [option]
Bottom Fan: 120mm×1 [option]
CPU Cooler Height 180mm [Max.]
Graphic Card Length 280mm [Max.]
Side Panel Style Window / Flat
  • STYX Installation Guide  [ 3.56 MB ]
    This version includes English, German, French, Spanish, Italian, Japanese, Chinese, Russian, Turkish, Polish and Portuguese.

STYX × 1

12025 Fan × 1

Anti-vibration Rubber × 4

Screw #6-32 L6 × 8
Motherboard

Screw #6-32 L6 × 4
Power Supply

Screw M3 L5 × 8
2.5"HDD

Screw M3 L8 × 8
2.5"HDD

Screw #6-32 L8 × 12
3.5"HDD

Screw M2 L3 × 4
DVD Device

Alarm × 1
Motherboard Alarm

Cable Tie × 2


Installation Guide × 1

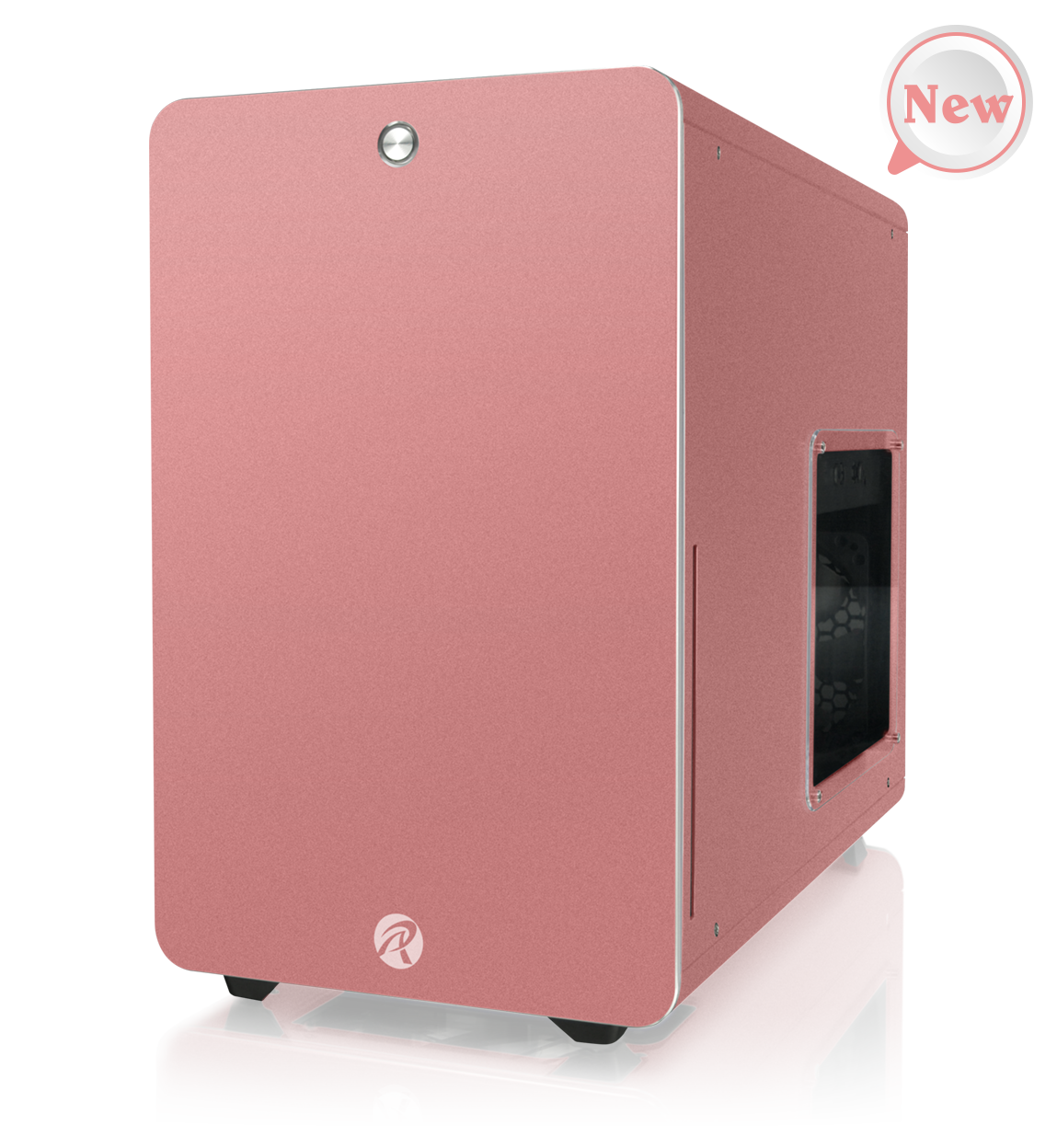

STYX PINK
