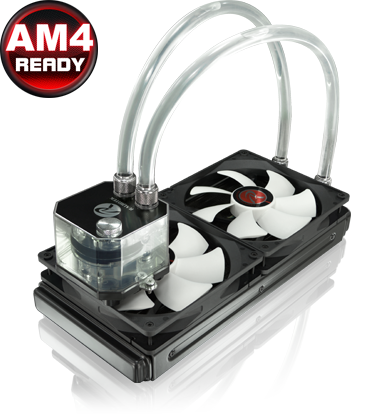

TRITON 280 / TRITON 280 CORE
TRITON 280 series, Liquid Cooling System in All-In-One concept, is designed in Germany and made in Taiwan. With several years of experience in Liquid cooling products and the cooperation with German Engineers, RAIJINTEK’s R&D team developed the new standard of most performing DIY liquid cooling components and spent years to develop one of the best performing and expandable All-In-One Liquid CPU cooler for enthusiasts. TRITON’s copper water block is with a new concept design of micro channels, extra large contact fin area with 2 flow channels for the best direct flow of liquid. More than this, TRITON’s Pump is also new and exclusive, designed for high Q-Max, low dBA, contains a reliable Bearing type. Using this features plus the radiator with high density fins, equips this All-In-One OPEN LOOP with extreme performance and super silent ambitions. TRITON series is not only one of the best performing All-In-One liquid cooler at the market but it is the most user friendly AIO cooler in the world by the pre-filled liquid, 3 different color for your scheme by your convenience, wide PWM performing of 14025 fan, a solid mounting kit, compatible with all modern sockets of Intel & AMD and an easy installation. TRITON series, already breaking the boundary line between DIY & All-In-One, brought to you for the joy of friendly design and the surprisingly efficient performance.
TRITON 280 / TRITON 280 CORE TRITON 280 / TRITON 280 CORE TRITON 280 / TRITON 280 CORE
  • Best performing, expandable and most user friendly AIO liquid cooling system at market
  • All-In-One liquid CPU cooler with new PUMP, Water block and Tank design
  • New design and exclusive PUMP with high Q-max (120L/H) and Low noise level (20 dBA)
  • Durable and reliable PUMP Bearing type - Graphite Pipe and Ceramic axis and 50000 hours life expectancy
  • New design of Copper water block by micro channel, extra large contact fin area with 2 flow channels to provide the best flow of liquid
  • 3 solo parts, but best combined together for one set: PUMP, Water block & Tank
  • High density fin radiator
  • 2pcs performing 14025 PWM fan (only for TRITON 280)
  • 375ml high capacity coolants pre-filled and re-fill design
  • 3 bottles of different color coolant attached for user choosing
  • 2pcs LED lights inside the tank
  • Solid mounting kits to provide sturdy installation
  • Multiple mounting kits for modern sockets of INTEL & AMD CPU

SPECIFICATION
Product Name TRITON 280 / TRITON 280 CORE
Product Number 0R100029 / 0R100030
Radiator Dimension [W×D×H] 310×140×32 mm
Tubing Dimension ID - 9.5 mm – / OD – 12.5mm
Thermal Resistance 0.09 °C/W
Weight 1550 g
Fan
Dimension [W×H×D] 140×140×25 mm
Speed 1000±200~2000±10% R.P.M.
Bearing Type Sleeve Bearing
Air Flow 41.8 ~ 79.933 CFM
Air Pressure 0.791 ~ 2.60 mm H2O
Rated Current 0.05 ~ 0.25 A
Power Consumption 0.60 ~ 3.00 W
Noise Level 20.2 ~ 35 dBA
Connector 4 pin
Q'ty 2 pcs
Liquid capacity 375ml ±5%
Material Alu. Radiator / Copper Cold Plate
PUMP
Dimension [W×H×D] 38×56×39 mm
Bearing Type Graphite Pipe and Ceramic Axis
Q-max 120 L/Hour
Noise Level 20 dBA
Life Expectancy 50,000 hrs
Speed 3200±10% R.P.M. at 12VDC
Voltage Rating 12 V
Power Consumption 4 W
APPLICATION
Intel® All Socket LGA 775/115x/1366/201x CPU (Core™ i3 / i5 / i7 CPU)
AMD® All AM4/AM3+/AM3/AM2+/AM2/FM2+/FM2/FM1 CPU
  • TRITON 280 Installation Guide  [ 4.56 MB ]
    This version includes English, German, French, Spanish, Italian, Japanese, Chinese, Russian, Turkish and Portuguese.
  • Precautions
  • 1.Keep and store the product away from the reach of children.
    2.Check the component list and condition of the product before installation. If there is any problem, contact the shop where you purchased to get a replacement or refund.
    3.RAIJINTEK Co., Ltd. is not responsible for any damages due to external causes, including but not limited to, improper use, problems with electrical power, accident, neglect, alteration, repair, improper installation, and improper testing.
    4.CPU and motherboard are subject to damage if the product in incorrectly installed.
    5.This product is an All-in-One Water Cooling Solution, once taken apart or any use of non RAIJINTEK’s accessories, will lead to a warranty loss.
    6.RAIJINTEK is not liable for the three bottles of tint in the accessory pack. Liquid contaminations of other objects are in no matter under warranty due to maintenance or possible misuse.
    7.Product warranty period is two years.

AIO device × 1

Fan × 2[Only for TRITON 280]

Back plate × 1

Bracket × 1
Intel Mounting Clips
Plastic myla × 4

Plastic brush × 1

M3x6mm Screw × 8

Color coolant × 3

M3x30mm Fan screw × 8

Thermal grease × 1

Metal nut × 4

M4x6mm Screw × 4

M4x13mm Screw × 4

Installation Guide × 1

Package × 1
