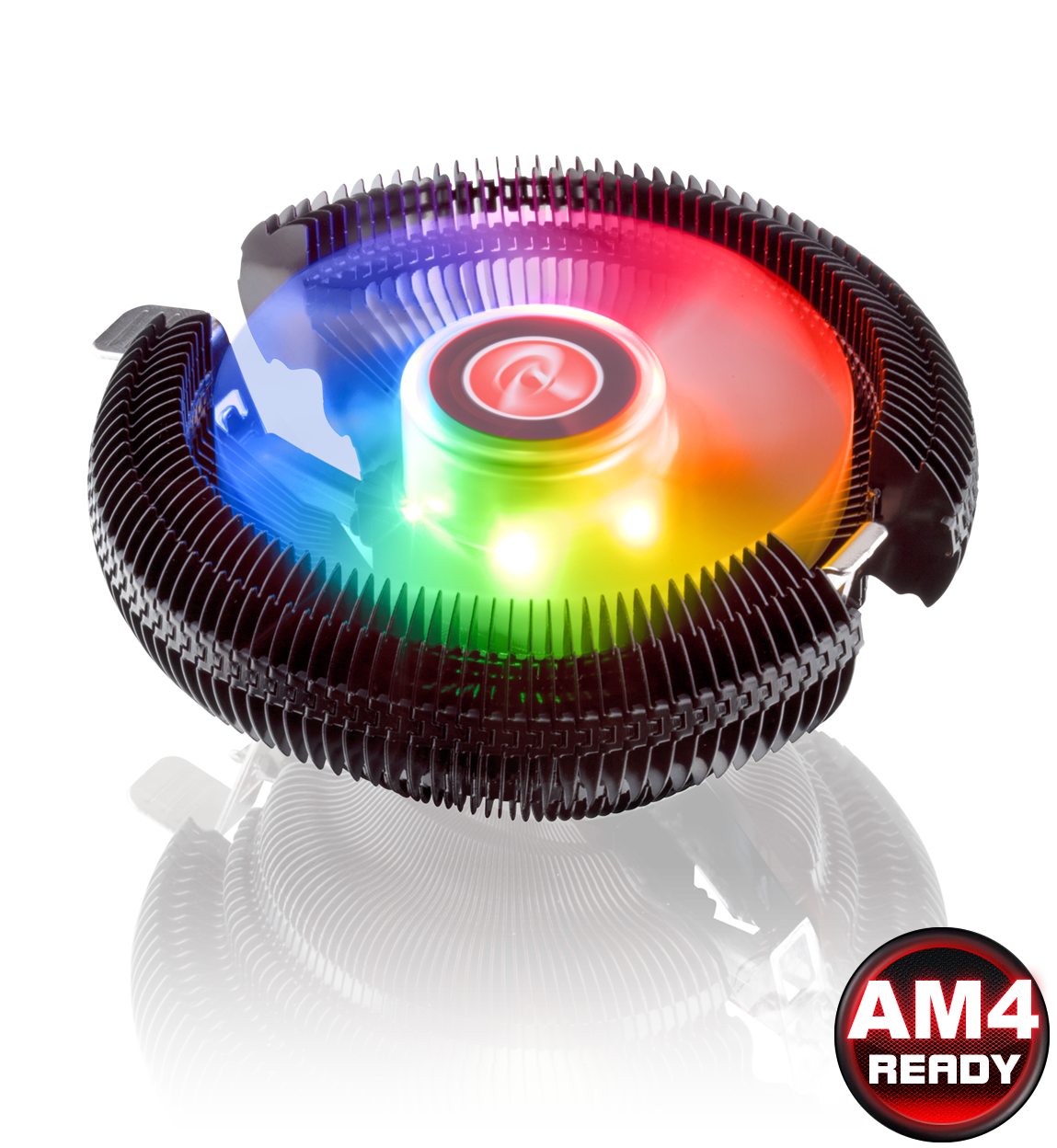

| JUNO X |
|
JUNO X series CPU cooler is designed incorporates a series of evolutionary changes to improve performance while maintaining the same low cost structure, which translates to even greater value. Targeted specifically as a stock INTEL/AMD cooler replacement, JUNO X series cooler delivers greatly improved performance over stock coolers while maintaining silent operation and a small form factor. |
Unique radial fin design increases the thermal dissipating area and improves airflow, all in a small footprint packagePowerful PWM controlled fan provides efficiency along with massive airflowDesigned for silent operationAttractive styling features transparent black bladed fanTDP >70WSPECIFICATION |
||
| Product Name | JUNO X RED / JUNO X GREEN / JUNO X BLUE / JUNO X | JUNO X RGB |
| Product Number | 0R100057 [0R10A00057] / 0R100058 [0R10A00058] / 0R100059 [0R10A00059] / 0R100060 [0R10A00060] | 0R100071 [0R10A00071] |
| Dimension [W×H×D] | 118×118×58 mm | 118×118×58 mm |
| est. TDP | 70 W | 70 W |
| Weight | 130 g [Heat Sink Only] | 150 g [Heat Sink Only] |
| Base Material | Aluminum Alloy | Aluminum Alloy |
| Fin Material | Aluminum Alloy | Aluminum Alloy |
| LED Color | RED / GREEN / BLUE [JUNO X without LED Lights] | RGB |
| Fan Dimension [W×H×D] | 92×92×25 mm | 92×92×25 mm |
| Voltage Rating | 12V | 12V |
| Starting Voltage | 7.5V [Max.] | 6V |
| Speed | 1200~2500 R.P.M. [PWM controlled] | 1000~2000 R.P.M. [PWM controlled] |
| Bearing Type | Hydraulic Bearing | Hydraulic Bearing |
| Air Flow | 52 CFM [Max.] | 45 CFM [Max.] |
| Air Pressure | 0.94 mmH2O [Max.] | 0.94 mmH2O [Max.] |
| Life Expectance | 30,000 hrs | 30,000 hrs |
| Noise Level | 26 dBA [Max.] | 28 dBA [Max.] |
| Connector | PWM 4pin | RGB 4pin, PWM 4pin |
APPLICATION |
|
| Intel® | All Socket LGA 775/115x/1200 CPU |
| AMD® | All AM4/AM3/AM2/754/939/940 CPU |

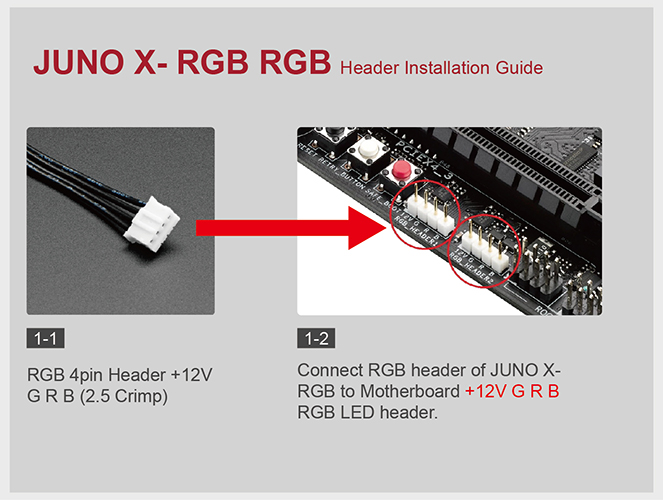

JUNO X Installation Guide [ 1.74 MB ]
 |
)
)
)
)
)
)
)
)
)
