COEUS EVO

Design Art in its best by RAIJINTEK – New Gaming chassis out of the tempered glass series. COEUS EVO supports up to E-ATX motherboard‘s, a maximum of eight fans including 3*120mm fans optional (3pcs pre-installed, TC version) at the front (240/280/360mm radiator of 60mm thickness), 2*120mm fan optional on the top (240/280mm radiator), and 1*120mm (140mm fan option) pre-installed at rear, and 2*120mm fan optional on the PSU cover. COEUS EVO also provides surprising functions and features. Specially, COEUS EVO is a detachable chassis in any parts and with Unique rubber foots tob e used as handle bars. Additionally, COEUS EVO also Superior features include such supports to install 4* 3.5”HDD or 4*2.5” HDD, Tempered glass side/ front /top panels, tool-free for the easy installation, a max CPU cooler height up to 175mm, a max VGA length up to 350mm and 200mm ATX / EPS PSU compatibility.

COEUS EVO






  •
  • Tempered glass appearance design

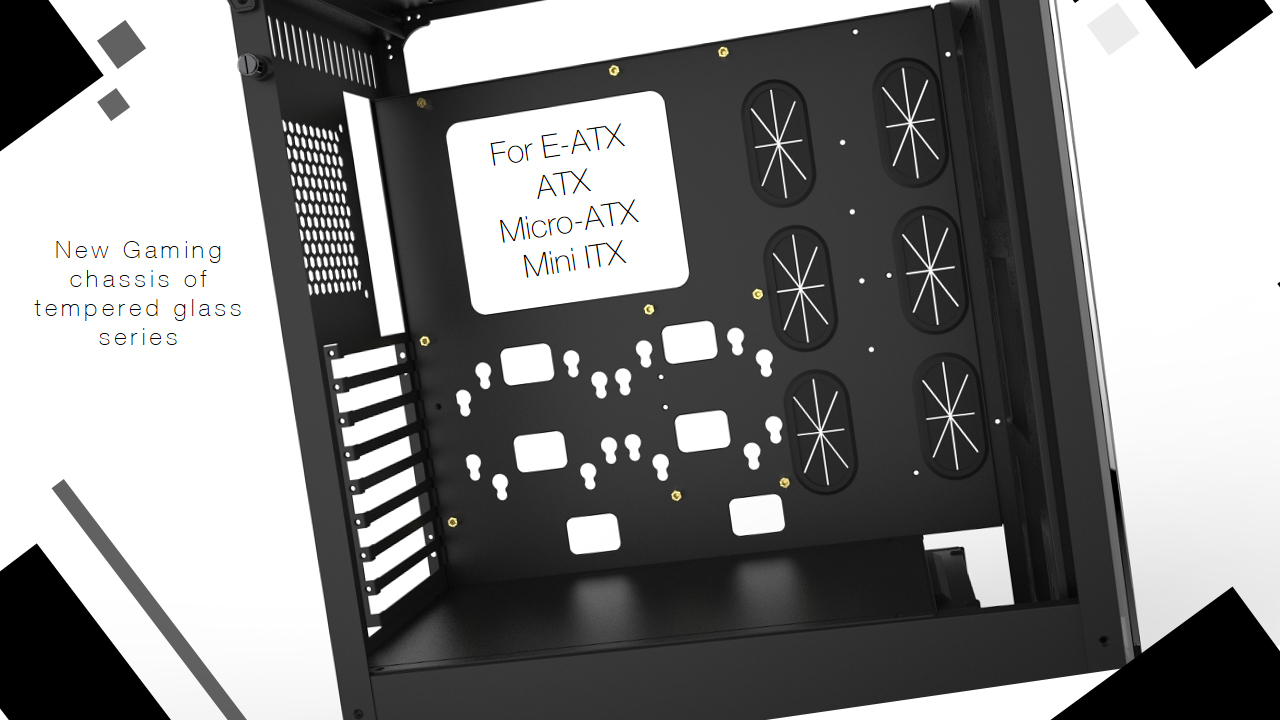

  • New Gaming chassis of tempered glass series for E-ATX / ATX / Micro-ATX / Mini ITX

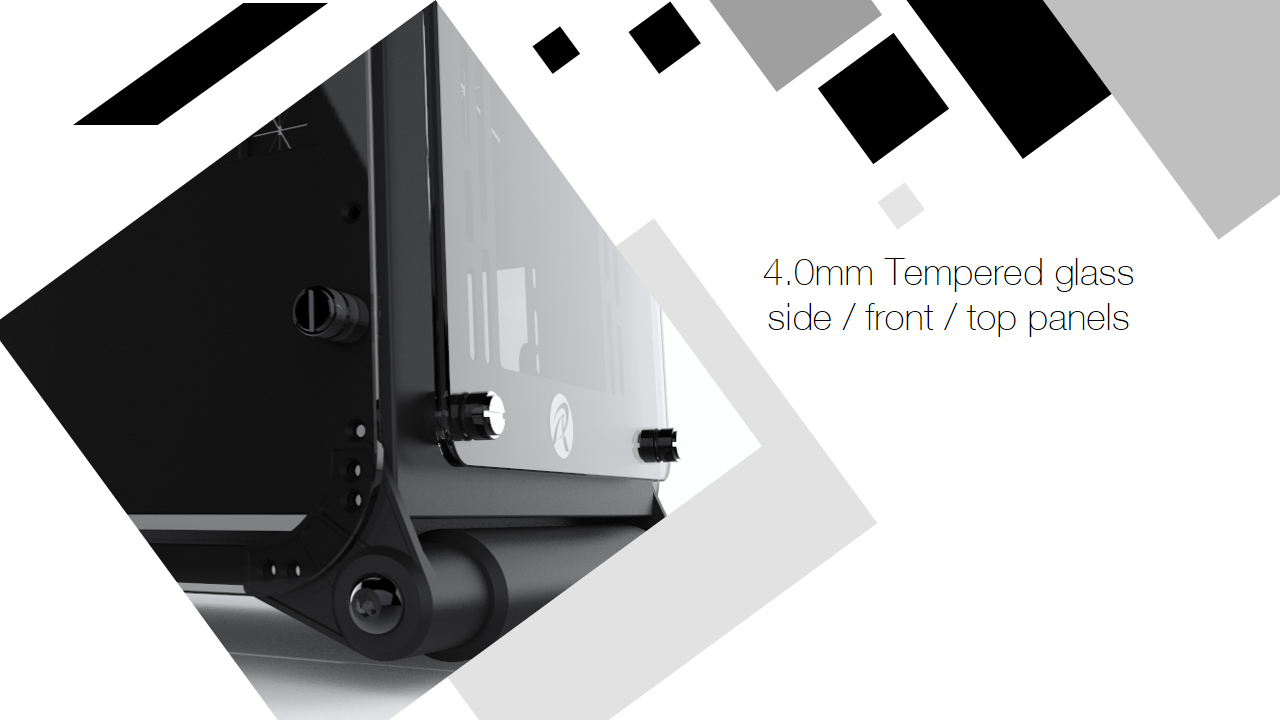

  • 4.0mm Tempered glass side / front / top panels

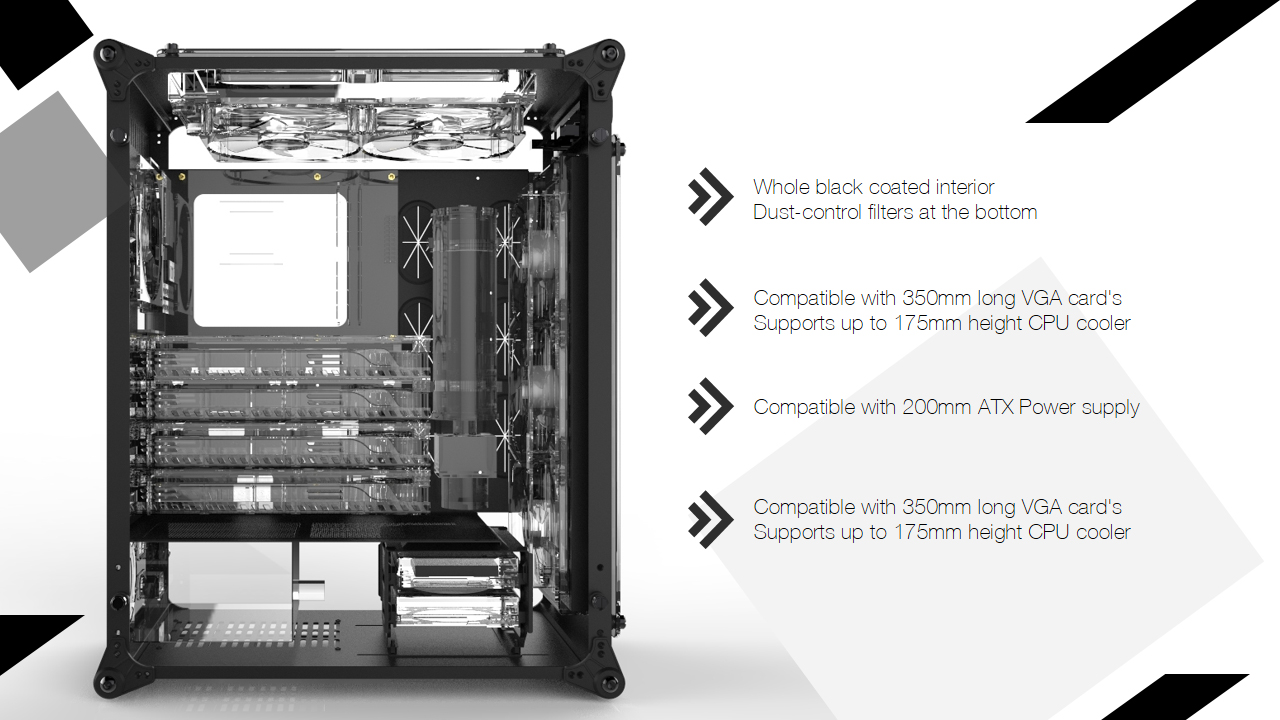

  • Whole black coated interior; Dust-control filters at the bottom
  • Accommodates an internal 240/280/360 mm radiator of 60mm thickness at the front and 240/280mm on the top
  • Rear tubing holes for water cooling
  • Tool-free system for PSU and HDD; Anti-vibration rubber for HDD / SSD installation
  • Compatible with 200mm ATX POWER SUPPLY
  • Compatible with 350mm long VGA card's; Supports up to 175mm height CPU cooler

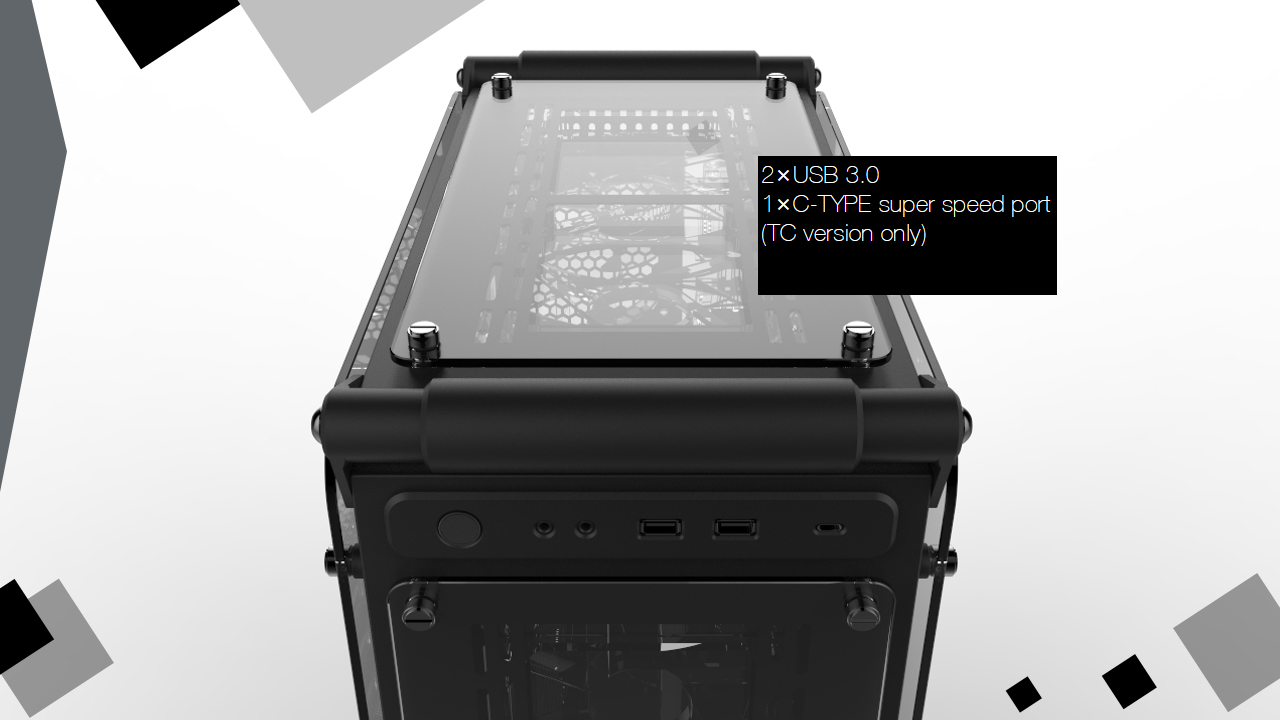

  • 2×USB 3.0 + 1×C-TYPE super speed port (TC version)
  • Supports up to 8 fans and 4 HDDs (3.5" + 2.5")
  • 3×12025 LED powerful performing fans pre-installed at front (TC version) and 1×12025 LED powerful performing fans pre-installed at rear (TC version)
  • Detachable chassis for all parts with unique rubber foot for handle
SPECIFICATION
Product Name COEUS EVO TC COEUS EVO
Product Number 0R200071 [0R20A00071] 0R200067 [0R20A00067]
Dimension [W×D×H] 235×444×544 mm 235×444×544 mm
Weight 12.2 kg [N.W.] 14.2 kg [G.W.] 11.6 kg [N.W.] 13.6 kg [G.W.]
Material Aluminum 4.0mm; SPCC 1.0mm Aluminum 4.0mm; SPCC 1.0mm
Color Matt Black Matt Black
M/B Support E-ATX/ATX/MICRO ATX/MINI ITX E-ATX/ATX/MICRO ATX/MINI ITX
Drive Bay Internal 3.5" ×4 or 2.5" ×4 [Tool-Free, Removable] Internal 3.5" ×4 or 2.5" ×4 [Tool-Free, Removable]
Expansion Slot PCI Slots ×8 PCI Slots ×8
I/O Panel USB3.0×2, C-TYPE×1, HD Audio×1 USB3.0×2, HD Audio×1
Power Supply PS/2 [Internal Bottom-mount] PS/2 [Internal Bottom-mount]
Cooling System Water Pipe Holes×4
Front Fan: 120mm×3 [Pre-installed] or 140mm×2 or 240/280/360mm Radiator of 60mm thickness [Option]
Rear Fan: 120mm×1 [Pre-installed]
Top Fan: 140mm×2 or 120mm×2 or 240/280mm Radiator [Option]
Water Pipe Holes×4
Front Fan: 120mm×3 or 140mm×2 or 240/280/360mm Radiator of 60mm thickness [Option]
Rear Fan: 120mm×1 [Pre-installed]
Top Fan: 140mm×2 or 120mm×2 or 240/280mm Radiator [Option]
CPU Cooler Height 175mm [Max.] 175mm [Max.]
Graphic Card Length 350mm [Max.] 350mm [Max.]
Side Panel Style 4.0mm Tempered Glass 4.0mm Tempered Glass
  • COEUS EVO Installation Guide  [ 8.86 MB ]
    This version includes English, German, French, Spanish, Italian, Japanese, Chinese, Russian, Turkish, Polish and Portuguese.

COEUS EVO TC

IRIS 12 White LED Fan × 4 [TC version]

Screw #6-32 L6 × 12
Motherboard

Screw #6-32 L6 × 4
Power Supply

Screw M3 L9 × 8
2.5"HDD

Screw #6-32 L9 × 8
3.5"HDD

Screw M3 L5 × 8
2.5"HDD

Screw #6-32 L17.5 × 8
3.5"HDD

Alarm × 1
Motherboard Alarm

Cable Tie × 5
Settle Cable

Installation Guide × 1
