RAIJINTEK

ZOFOS EVO

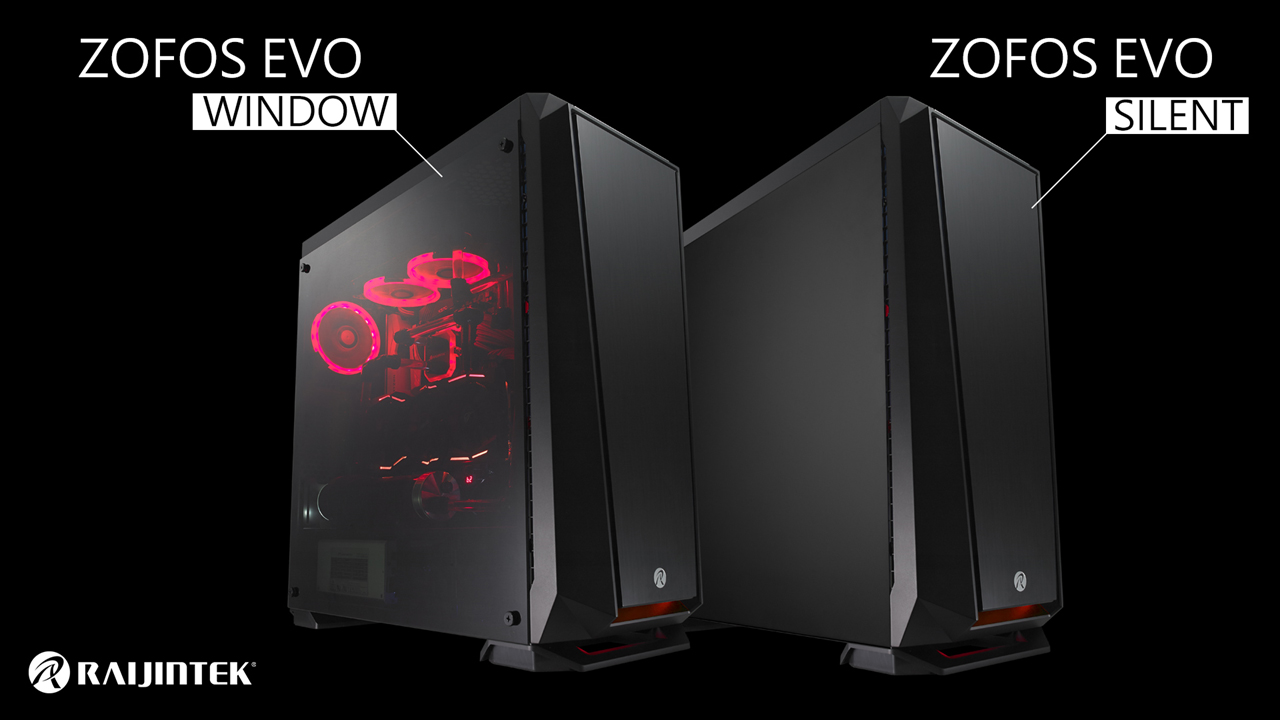

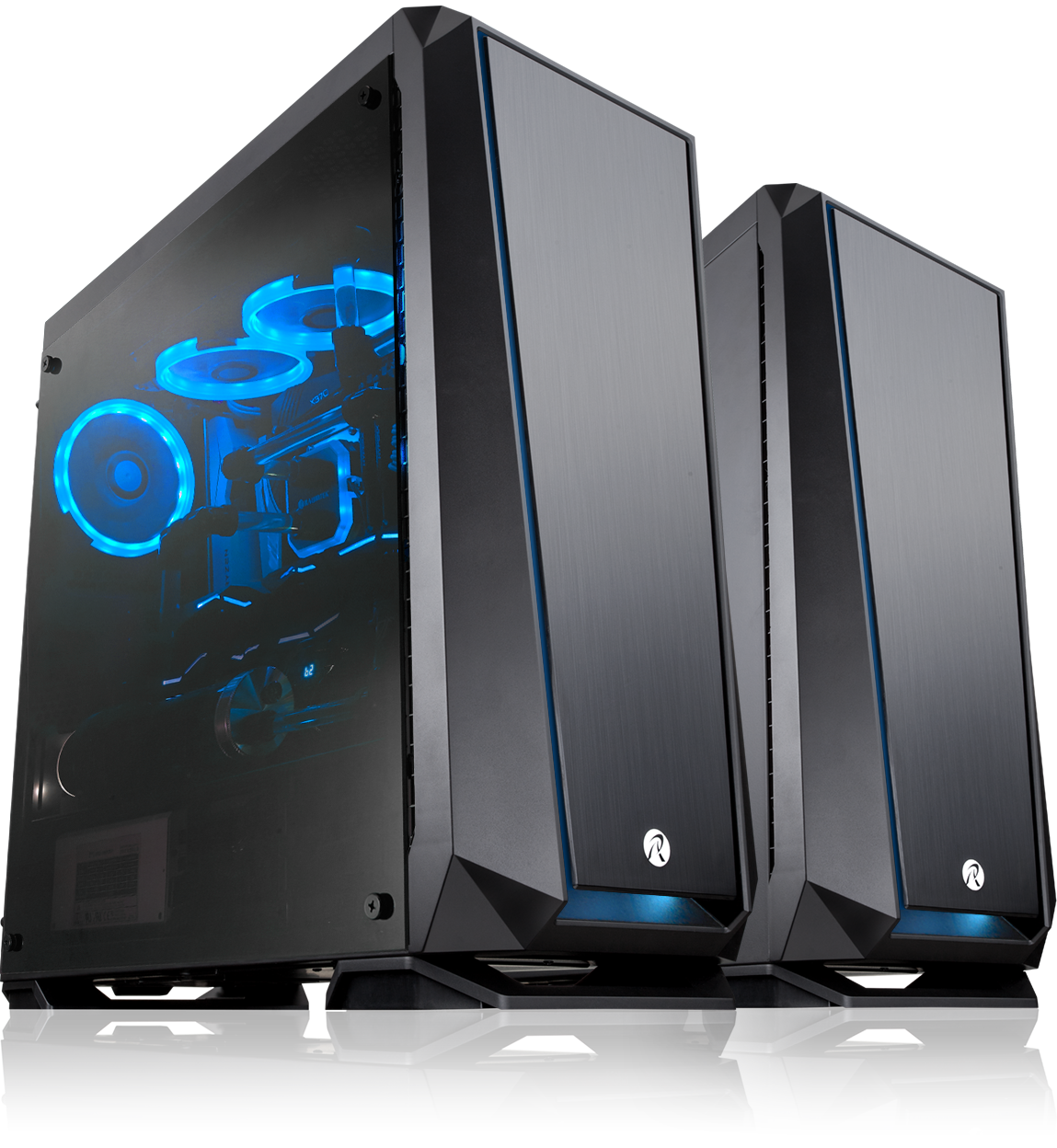

ZOFOS EVO – Design Art in its best by RAIJINTEK – New Gaming chassis , Silent Gaming. ZOFOS EVO series, an EE-ATX chassis, is the World’s first case for all RGB lights controlled synchronously by M/B, including 8port control hub and remote controller. ZOFOS EVO also Superior features include such supports to install 10×3.5”+3×2.5”HDD or 13×2.5” HDD, Sound insulation cotton on the side/ front /top panel (Silent version), tool-free for easy installation, a max CPU cooler height up to 190mm, a max VGA length up to 430mm and 300mm ATX / EPS PSU compatibility and extreme efficient cooling and Airflow. ZOFOS EVO supports maximum 7 fans including 3×120mm/140mm fan optional (2pcs 120mm pre-installed) at the front (240/280/360/420mm radiator of 60mm thickness), 3×120mm fan or 2×140mm fan optional on the top (240/280/360mm radiator of 60mm thickness), and 1×120mm (140mm fan option) pre-installed (RGB fan - Window version ; Black fan - Silent version) at the rear. ZOFOS EVO - a Timeless design case, and perfect for Enthusiasts, Modders and High-end Workstation machines.

Feature
Specification
Support
Unboxed
Review
Gallery

Full tower for EEB/E-ATX/ATX/Micro-ATX/Mini ITX

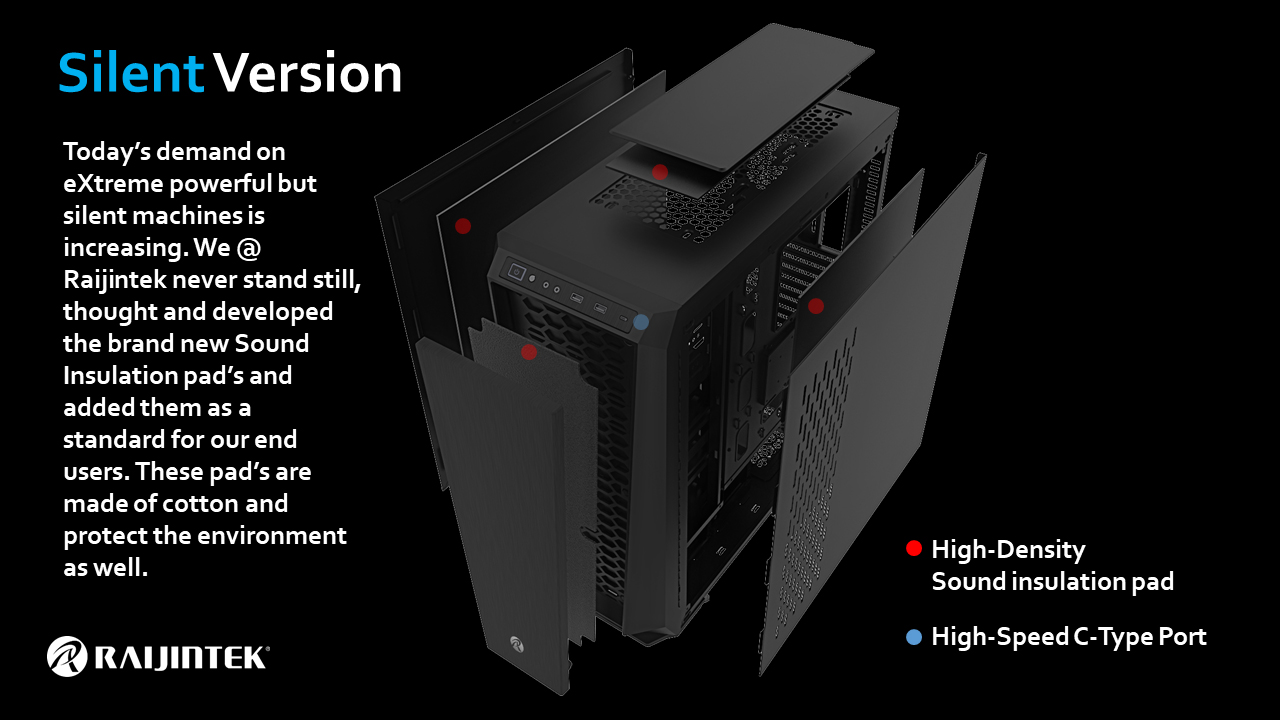

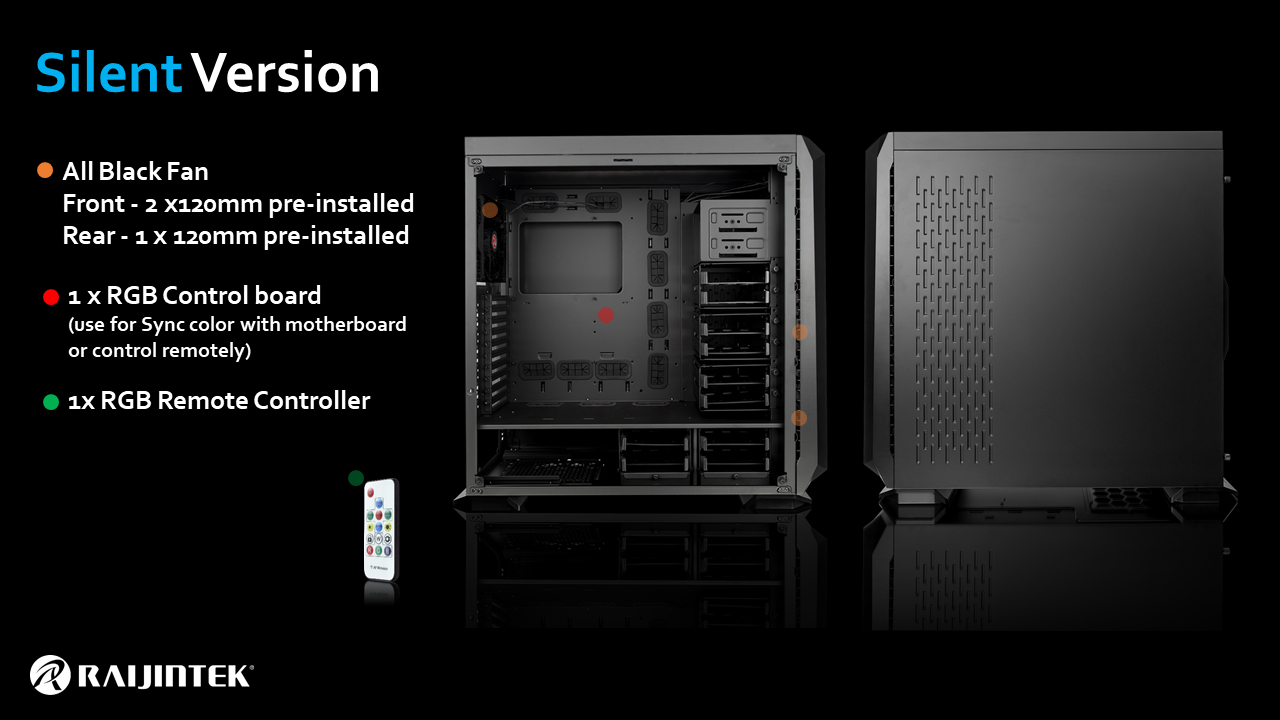

Sound insulation cotton on the side/ front /top panels (Silent version)
Whole black coated interior; Dust-control filters at the bottom
8 port RGB control hub and remote controller included

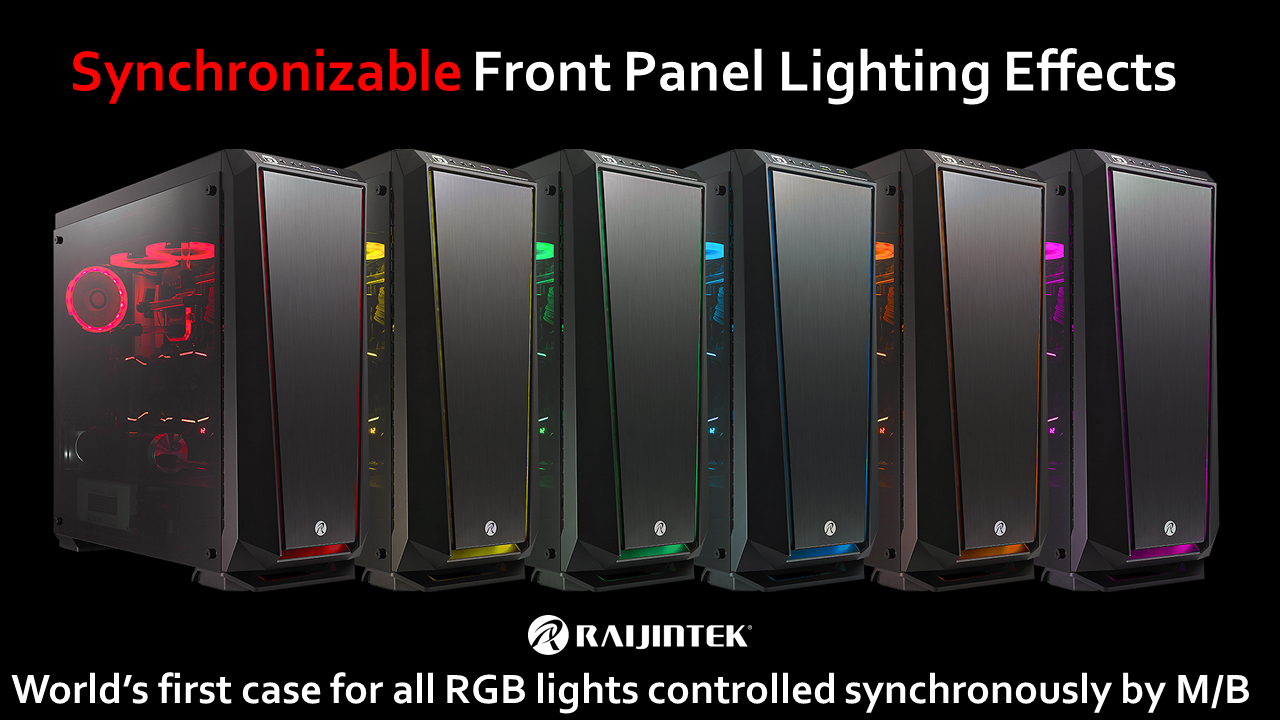

World's first case for all RGB lights controlled synchronously by M/B
20 RGB modes by Remote controller
C-TYPE super speed port (SILENT version)
1.0mm SCC Extreme Sturdy body

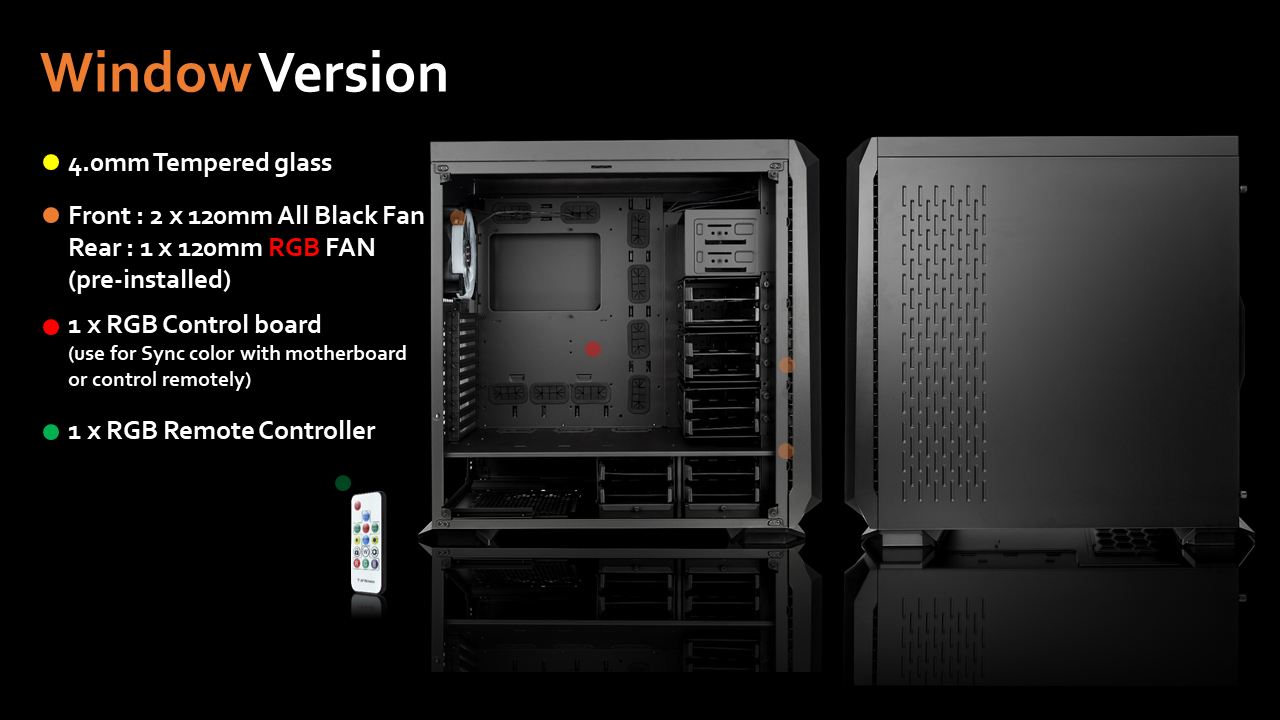

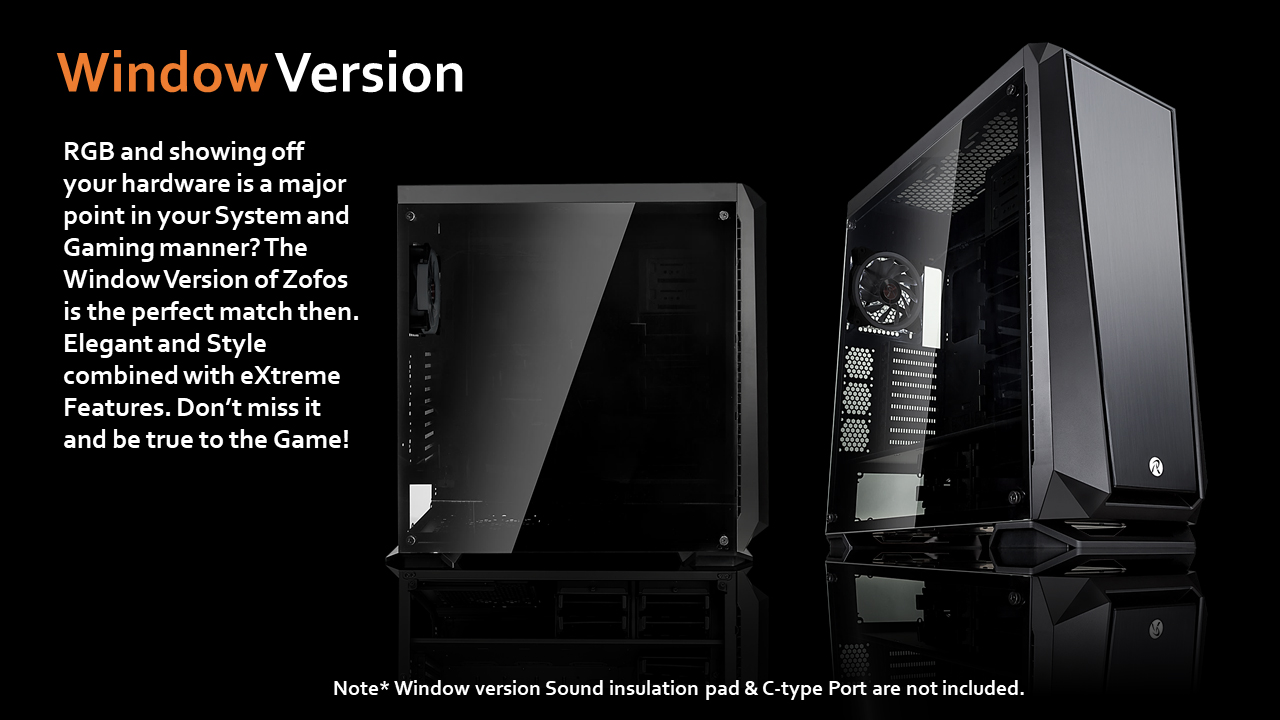

4.0mm Tempered glass side panel (Window version)

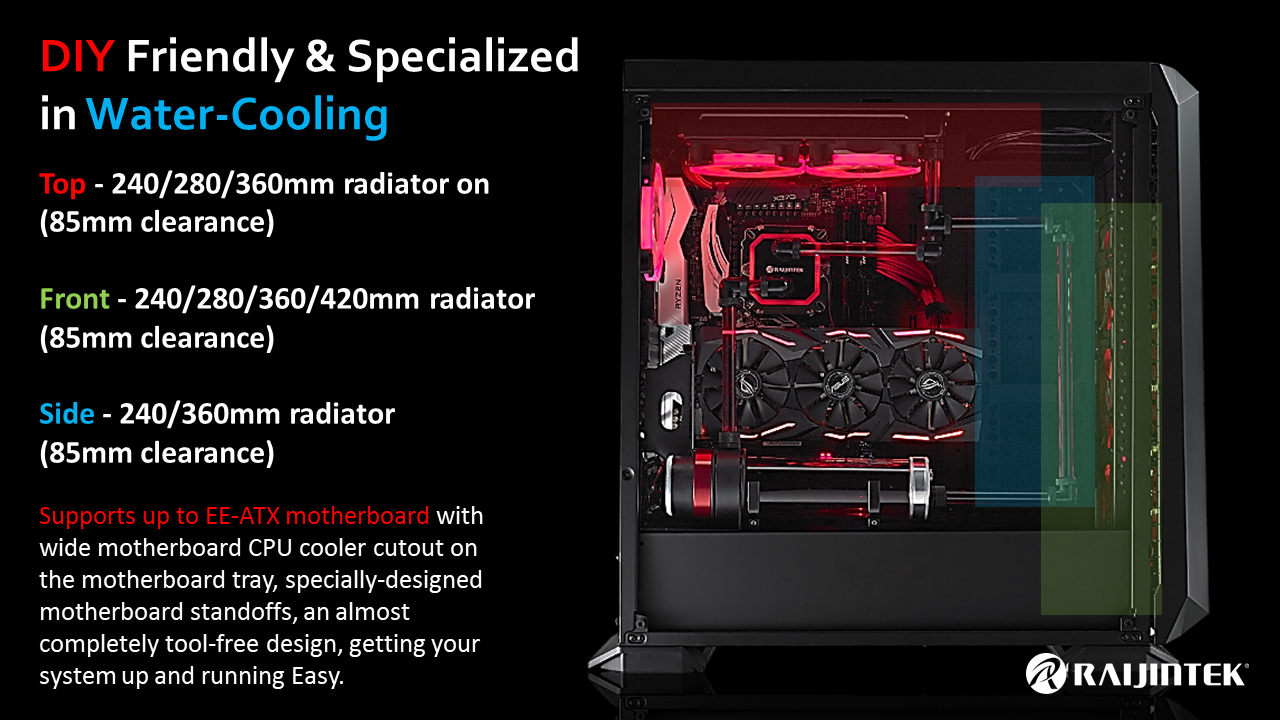

Accommodate an internal 240/280/360/420 mm radiator of 60mm thickness at front
Accommodate an internal 240/280/360mm of 60mm thickness on top
Compatible with 300mm ATX POWER SUPPLY
Compatible with 430mm VGA card's

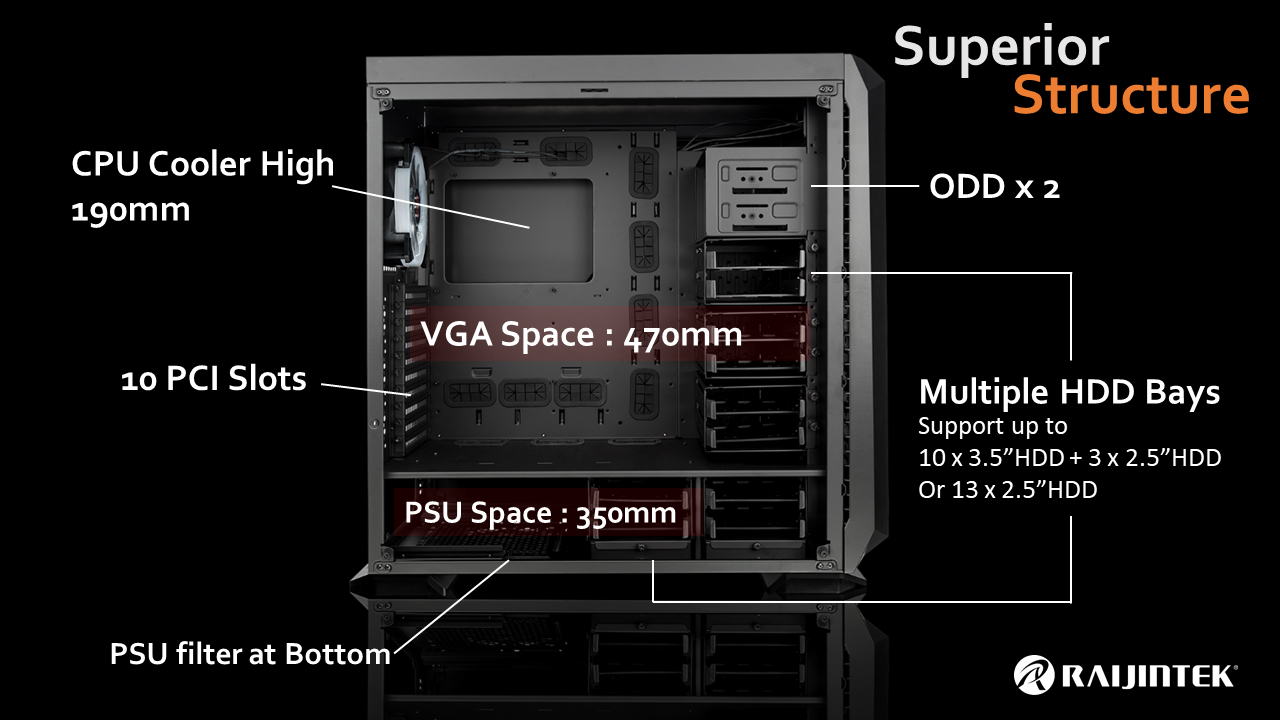

Supports up to 190mm height CPU cooler
Tool-free system for PSU and HDD
Supports up to 7 fans and 13 HDDs (3.5" + 2.5")
2×12025 silent performing fan pre-installed at front
1×12025 fan pre-installed at rear (RGB fan - Window version; Black fan - Silent version)

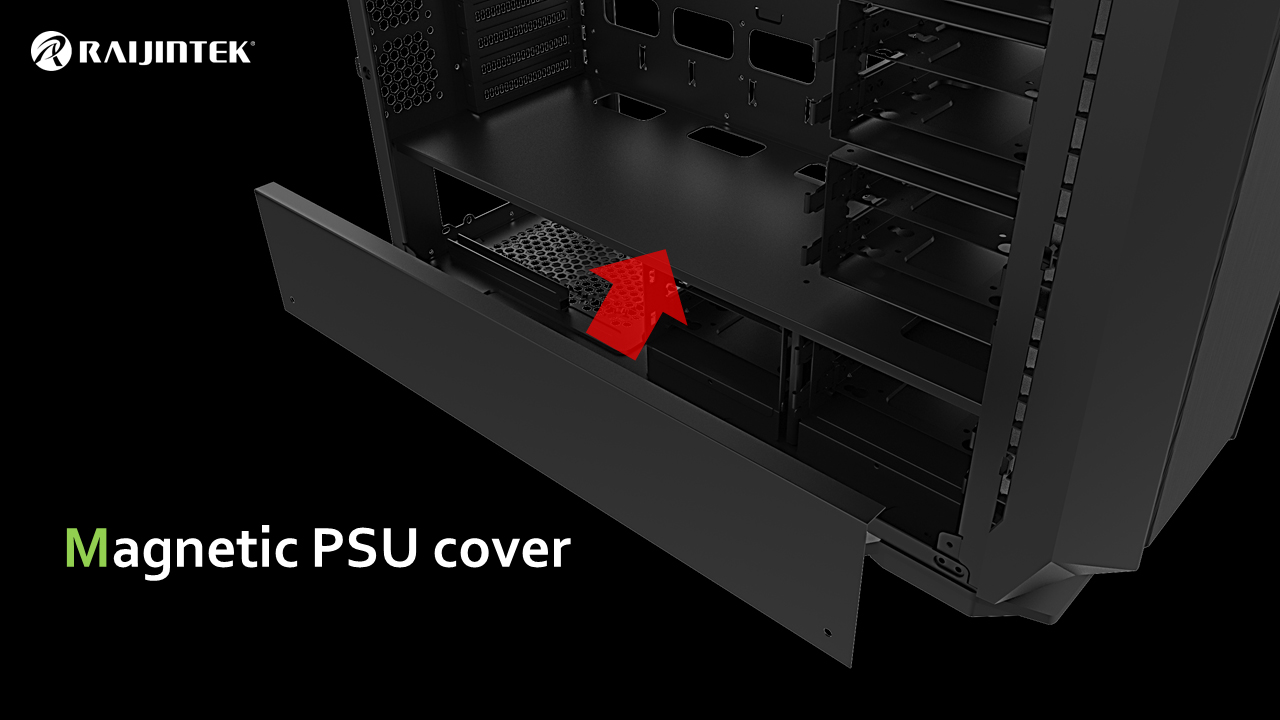

Removable Magnetic PSU Cover
Timeless design, Perfect for Enthusiasm users, Modders and high end Workstation machines

SPECIFICATION
Product Name	ZOFOS EVO SILENT	ZOFOS EVO WINDOW
Product Number	0R200072 [0R20A00072]	0R200073 [0R20A00073]
Dimension [W×D×H]	245×617×598 mm	245×617×598 mm
Weight	17.5 kg [N.W.] 20.35 kg [G.W.]	16.3 kg [N.W.] 19 kg [G.W.]
Material	SPCC 1.0mm; ABS	SPCC 1.0mm; ABS
Color	Matt Black	Matt Black
M/B Support	EEB/E-ATX/ATX/MICRO ATX/MINI-ITX	EEB/E-ATX/ATX/MICRO ATX/MINI-ITX
Drive Bay	Internal 5.25"×2 [Tool-Free], 3.5"×10 or 2.5"×10 [Tool-Free], 2.5"×3 [Tool-Free, Removeable]	Internal 5.25"×2 [Tool-Free], 3.5"×10 or 2.5"×10 [Tool-Free], 2.5"×3 [Tool-Free, Removeable]
Expansion Slot	PCI Slots×10 [Tool-Free]	PCI Slots×10 [Tool-Free]

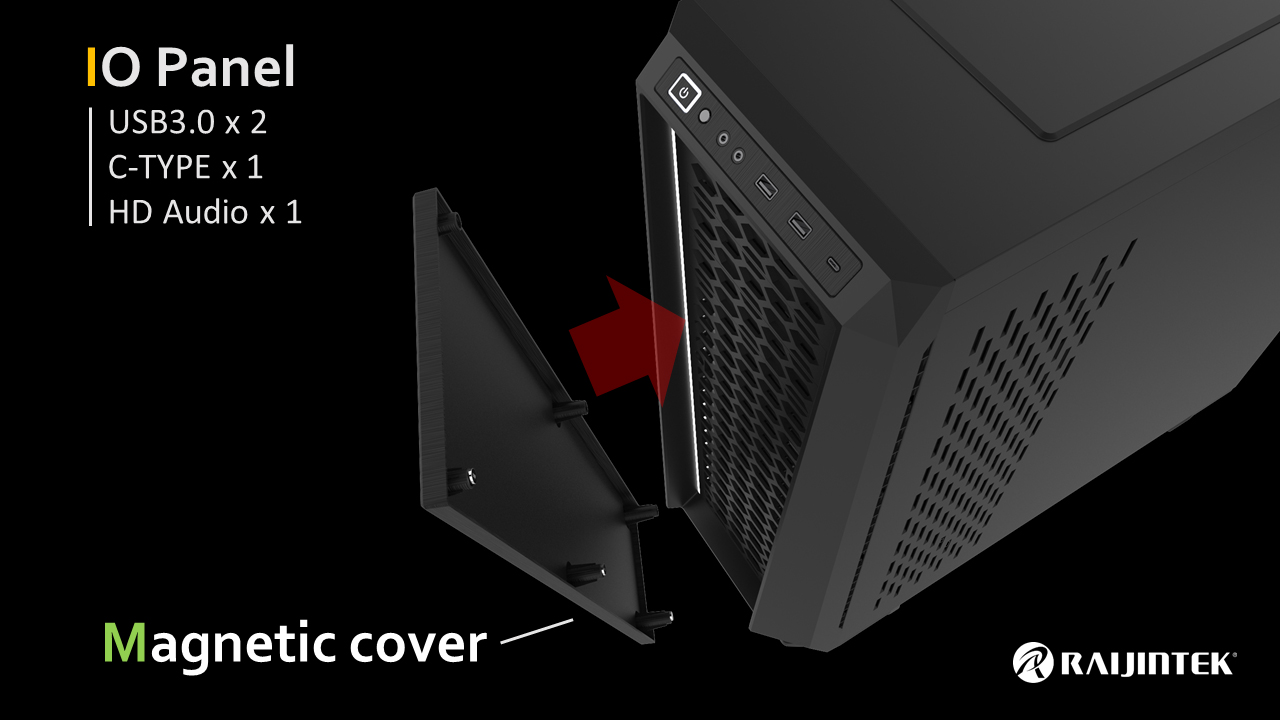

I/O Panel	USB3.0×2, C-TYPE×1, HD Audio×1	USB3.0×2, HD Audio×1
Power Supply	PS/2 [Internal Bottom-mount]	PS/2 [Internal Bottom-mount]

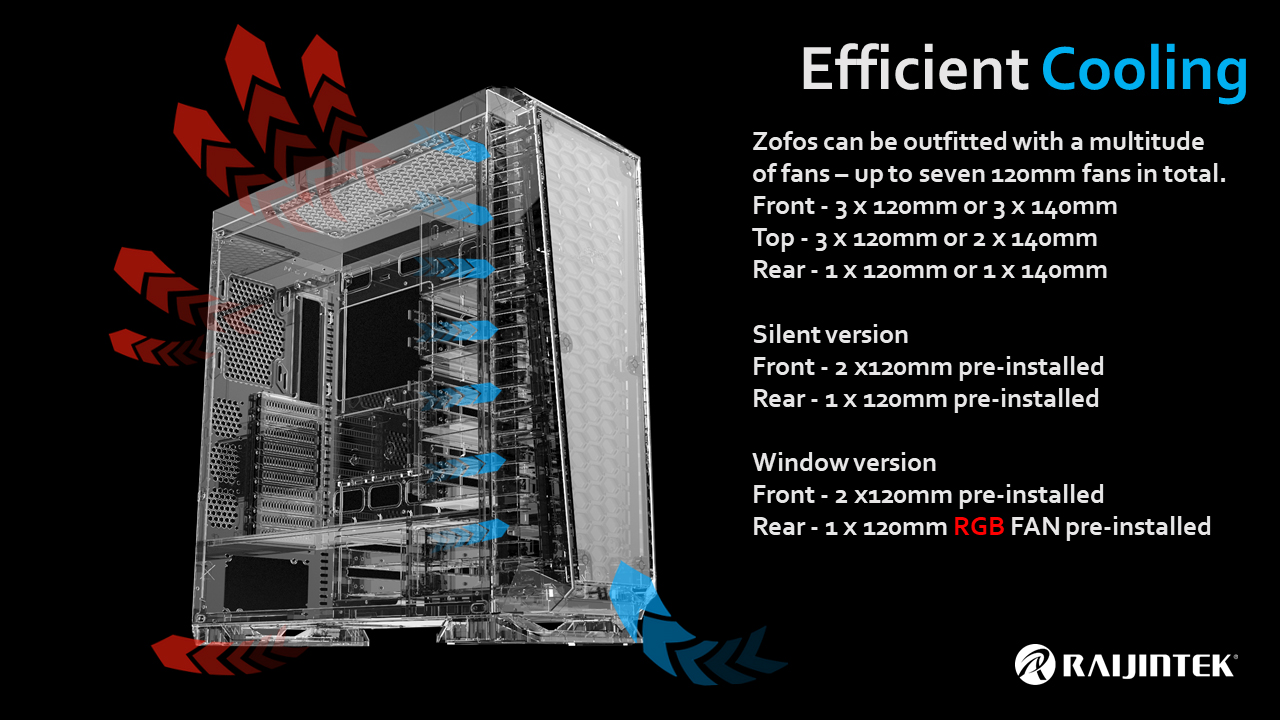

Cooling System	Front Fan: 120mm×2 [Pre-installed] 120mm×3 or 140mm×3 or 240/280/360/420mm radiator [85mm clearance] Rear Fan: 120mm Fan×1 [Pre-installed] or 140mm×1 Top Fan: 120mm×3 or 140mm×2 or 240/280/360mm radiator [60mm thickness]	Front Fan: 120mm×2 [Pre-installed] 120mm×3 or 140mm×3 or 240/280/360/420mm radiator [85mm clearance] Rear Fan: 120mm ARGB Fan×1 [Pre-installed] or 140mm×1 Top Fan: 120mm×3 or 140mm×2 or 240/280/360mm radiator [60mm thickness]
CPU Cooler Height	190mm [Max.]	190mm [Max.]
Graphic Card Length	470mm [Max.]	470mm [Max.]
Side Panel Style	Steel & High-Density Sound insulation pad	Steel & 4.0mm Tempered Glass

ZOFOS EVO Installation Guide [ 16 MB ]
This version includes English, German, French, Spanish, Italian, Japanese, Chinese, Russian, Turkish, Polish and Portuguese.

Remote controller function
1.On/off: Power on/off
2.SPEED (+): While Dynamic color mode, increase the speed of color change; Not for Static mode
3.SPEED (-): While Dynamic color mode, decrease the speed of color change; Not for Static mode
4.MODE (+): Forward to next mode
5.MODE (-): Backward to previous mode
6.AUTO: Automatically cycles all modes, 10 seconds for each mode
7.W: Single White LED
8.R: Single Red LED
9.G: Single Green LED
10.B: Single Blue LED

Color Modes
Mode 1-7: Static single LED color, Red/Green/Blue/Yellow/Purple/Bluegreen/White
Mode 8-14: Breathing single LED color, Red/Green/Blue/Yellow/Purple/Bluegreen/White
Mode 15: Dynamic 7 single colors switch by breathing effect
Mode 16: Dynamic 7 colors switch
Mode 17: Dynamic 7 colors switch at 1 second gap by shinning effect
Mode 18: Dynamic 7 colors switch by low to high brightness effect
Mode 19: Light off
