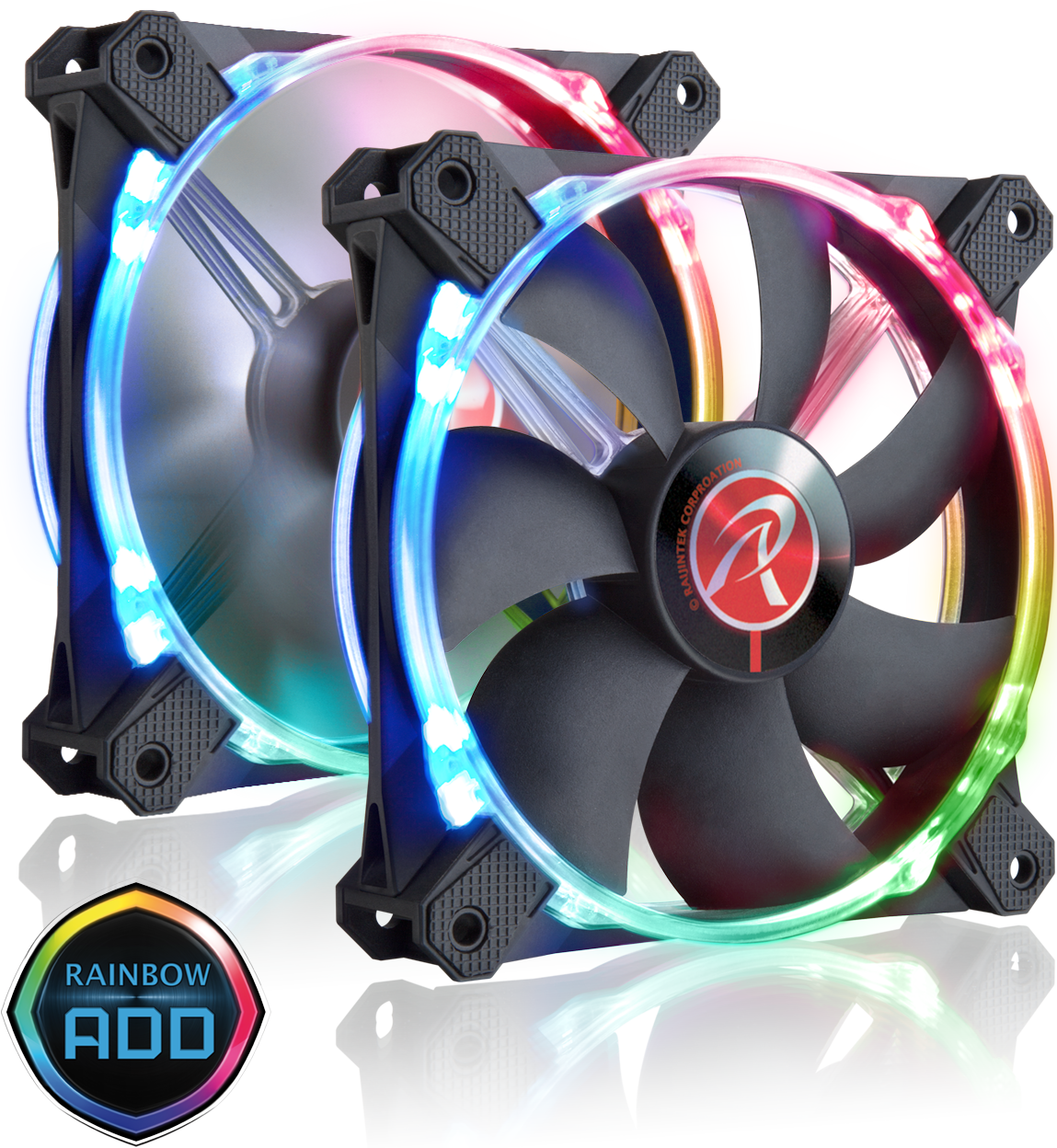

MACULA 12 RAINBOW RGB

RAIJINTEK MACULA 12 Rainbow RGB series, a performing 12025 RGB PWM fan, continues company's innovative design and providing advanced features & additional value to end users. With 6 port control hub and remote controller, you can set your MACULA 12 Rainbow RGB fans to stun with fading, breathing, blinking and single color and so on, total 300 modes. The MACULA 12 Rainbow RGB series combines optimized blade design to provide high-volume air delivery with less noise and turbulence, O-type LED ring and high brightness LEDs to brings visible color and brightness uniformity from all directions, Sleeve Bearing with Low-Noise Design, and Anti-Vibration rubber pads on all corners. MACULA 12 Rainbow RGB series is not only insuring your case to be the center of attraction and a spot light to chassis, but its optimized fan blade and housing design also provide outstanding air flow and cooling performance for your PC’s motherboard and CPU.

Feature
Specification
Support
Unboxed
Gallery

12025 Rainbow RGB PWM fan with 300 LED modes
6 port RGB LED hub and remote controller
O-type LED’s bring visible Color & brightness uniformity from all directions
Anti-vibration rubber pads on all corners to minimize movement and noise
Optimized fan blade design to provide high-volume air flow
Specific housing design to provide max. static pressure
PWM function to provide best efficiency for CPU cooling
Individually controlled RGB LED lighting
Choose a theme that matches your build & customization
High brightness LEDs to provide vivid Illumination
Quite performance, less turbulence and reliable operation
Easy installation

SPECIFICATION
Product Name	MACULA 12 RAINBOW RGB - 2	MACULA 12 RAINBOW RGB - 3
Product Number	0R400058 [0R40A00058]	0R400059 [0R40A00059]
Dimension [W×H×D]	120×120×25 mm	120×120×25 mm
Voltage Rating	12V	12V
Starting Voltage	7.5 V	7.5 V
FAN Rate Current	0.17A	0.17A
LED Rate Current	0.56A	0.56A
Power Consumption	8.76W	8.76W
Speed	800~1800 R.P.M.	800~1800 R.P.M.
Bearing Type	Sleeve Bearing	Sleeve Bearing
Air Flow	56 CFM [Max.]	56 CFM [Max.]
Air Pressure	1.89 mmH2O [Max.]	1.89 mmH2O [Max.]
Life Expectance	40,000 hrs	40,000 hrs
Noise Level	25 dBA [Max.]	25 dBA [Max.]
Connector	PWM 4 Pin, RGB 6 Pin	PWM 4 Pin, RGB 6 Pin
Weight	390g	525g
Fan Q'ty	2 pcs	3 pcs
Accessories	Screw × 8 6 port Control Hub × 1 Remote Controller × 1 4 Pin Cable × 1	Screw × 12 6 port Control Hub × 1 Remote Controller × 1 4 Pin Cable × 1

300 MODES
000	Auto Play mode (Mode 1 - 293 Auto play mode)
001	Rainbow flow to the right	146	Rainbow flow to the left
002	Spread mode to the right	147	Spread mode to the left
003	Cross spread to the right	148	Cross spread to the left
004	Segments stacked to the right in white	149	Segments stacked to the left in white
005	Reverse segments stacked to the right in white	150	Reverse segments stacked to the left in white
006	Multi-color flow to the right	151	Multi-color flow to the left
007	Multi-color single sided light cone to right	152	Multi-color single sided light cone to left
008	Multi-color both sided light cone to right	153	Multi-color both sided light cone to left
009	Multi-color single sided light cone to right in red BG	154	Multi-color single sided light cone to left in red BG
010	Multi-color single sided light cone to right in green BG	155	Multi-color single sided light cone to left in green BG
011	Multi-color single sided light cone to right in blue BG	156	Multi-color single sided light cone to left in blue BG
012	Multi-color both sided light cone to right in red BG	157	Multi-color both sided light cone to left in red BG
013	Multi-color both sided light cone to right in green BG	158	Multi-color both sided light cone to left in green BG
014	Multi-color both sided light cone to right in blue BG	159	Multi-color both sided light cone to left in blue BG
015	Red single sided light cone to right	160	Red single sided light cone to left
016	Green single sided light cone to right	161	Green single sided light cone to left
017	Blue single sided light cone to right	162	Blue single sided light cone to left
018	Yellow single sided light cone to right	163	Yellow single sided light cone to left
019	Cyan single sided light cone to right	164	Cyan single sided light cone to left
020	Purple single sided light cone to right	165	Purple single sided light cone to left
021	White single sided light cone to right	166	White single sided light cone to left
022	Red both sided light cone to right	167	Red both sided light cone to left
023	Green both sided light cone to right	168	Green both sided light cone to left
024	Blue both sided light cone to right	169	Blue both sided light cone to left
025	Yellow both sided light cone to right	170	Yellow both sided light cone to left
026	Cyan both sided light cone to right	171	Cyan both sided light cone to left
027	Purple both sided light cone to right	172	Purple both sided light cone to left
028	White both sided light cone to right	173	White both sided light cone to left
029	Green single sided light cone to right in red BG	174	Green single sided light cone to left in red BG
030	Blue single sided light cone to right in red BG	175	Blue single sided light cone to left in red BG
031	Yellow single sided light cone to right in red BG	176	Yellow single sided light cone to left in red BG
032	Cyan single sided light cone to right in red BG	177	Cyan single sided light cone to left in red BG
033	Purple single sided light cone to right in red BG	178	Purple single sided light cone to left in red BG
034	White single sided light cone to right in red BG	179	White single sided light cone to left in red BG
035	Red single sided light cone to right in green BG	180	Red single sided light cone to left in green BG
036	Blue single sided light cone to right in green BG	181	Blue single sided light cone to left in green BG
037	Yellow single sided light cone to right in green BG	182	Yellow single sided light cone to right in green BG
038	Cyan single sided light cone to right in green BG	183	Cyan single sided light cone to left in green BG
039	Purple single sided light cone to right in green BG	184	Purple single sided light cone to left in green BG
040	White single sided light cone to right in green BG	185	White single sided light cone to left in green BG
041	Red single sided light cone to right in blue BG	186	Red single sided light cone to left in blue BG
042	Green single sided light cone to right in blue BG	187	Green single sided light cone to left in blue BG
043	Yellow single sided light cone to right in blue BG	188	Yellow single sided light cone to left in blue BG
044	Cyan single sided light cone to right in blue BG	189	Cyan single sided light cone to left in blue BG
045	Purple single sided light cone to right in blue BG	190	Purple single sided light cone to left in blue BG
046	White single sided light cone to right in blue BG	191	White single sided light cone to left in blue BG
047	Green both sided light cone to right in red BG	192	Green both sided light cone to left in red BG
048	Blue both sided light cone to right in red BG	193	Blue both sided light cone to left in red BG
049	Yellow both sided light cone to right in red BG	194	Yellow both sided light cone to left in red BG
050	Cyan both sided light cone to right in red BG	195	Cyan both sided light cone to left in red BG
051	Purple both sided light cone to right in red BG	196	Cyan both sided light cone to left in red BG
052	White both sided light cone to right in red BG	197	White both sided light cone to left in red BG
053	Red both sided light cone to right in green BG	198	Red both sided light cone to left in green BG
054	Blue both sided light cone to right in green BG	199	Blue both sided light cone to left in green BG
055	Yellow both sided light cone to right in green BG	200	Yellow both sided light cone to left in green BG
056	Cyan both sided light cone to right in green BG	201	Cyan both sided light cone to left in green BG
057	Purple both sided light cone to right in green BG	202	Purple both sided light cone to left in green BG
058	White both sided light cone to right in green BG	203	White both sided light cone to left in green BG
059	Red both sided light cone to right in blue BG	204	Red both sided light cone to left in blue BG
060	Green both sided light cone to right in blue BG	205	Green both sided light cone to left in blue BG
061	Yellow both sided light cone to right in blue BG	206	Yellow both sided light cone to left in blue BG
062	Cyan both sided light cone to right in blue BG	207	Cyan both sided light cone to left in blue BG
063	Purple both sided light cone to right in blue BG	208	Purple both sided light cone to left in blue BG
064	White both sided light cone to right in blue BG	209	White both sided light cone to left in blue BG
065	Multi-color running to the right	210	Multi-color running to the left
066	Multi-color running to the right in red BG	211	Multi-color running to the left in red BG
067	Multi-color running to the right in green BG	212	Multi-color running to the left in green BG
068	Multi-color running to the right in blue BG	213	Multi-color running to the left in blue BG
069	Red running to the right	214	Red running to the left
070	Green running to the right	215	Green running to the left
071	Blue running to the right	216	Blue running to the left
072	Yellow running to the right	217	Yellow running to the left
073	Cyan running to the right	218	Cyan running to the left
074	Purple running to the right	219	Purple running to the left
075	White running to the right	220	White running to the left
076	Green running to the right in red BG	221	Green running to the left in red BG
077	Blue running to the right in red BG	222	Blue running to the left in red BG
078	Yellow running to the right in red BG	223	Yellow running to the left in red BG
079	Cyan running to the right in red BG	224	Cyan running to the left in red BG
080	Purple running to the right in red BG	225	Purple running to the left in red BG
081	White running to the right in red BG	226	White running to the left in red BG
082	Red running to the right in green BG	227	Red running to the left in green BG
083	Blue running to the right in green BG	228	Blue running to the left in green BG
084	Yellow running to the right in green BG	229	Yellow running to the left in green BG
085	Cyan running to the right in green BG	230	Cyan running to the left in green BG
086	Purple running to the right in green BG	231	Purple running to the left in green BG
087	White running to the right in green BG	232	White running to the left in green BG
088	Red running to the right in blue BG	233	Red running to the left in blue BG
089	Green running to the right in blue BG	234	Green running to the left in blue BG
090	Yellow running to the right in blue BG	235	Yellow running to the left in blue BG
091	Cyan running to the right in blue BG	236	Cyan running to the left in blue BG
092	Purple running to the right in blue BG	237	Purple running to the left in blue BG
093	White running to the right in blue BG	238	White running to the left in blue BG
094	Multi-color chase to right	239	Multi-color chase to left
095	Multi-color chase to right in red BG	240	Multi-color chase to left in red BG
096	Multi-color chase to right in green BG	241	Multi-color chase to left in green BG
097	Multi-color chase to right in blue BG	242	Multi-color chase to left in blue BG
098	Red chase to right	243	Red chase to left
099	Green chase to right	244	Green chase to left
100	Blue chase to right	245	Blue chase to left
101	Yellow chase to right	246	Yellow chase to left
102	Cyan chase to right	247	Cyan chase to left
103	Purple chase to right	248	Purple chase to left
104	White chase to right	249	White chase to left
105	Green chase to right in red BG	250	Green chase to left in red BG
106	Blue chase to right in red BG	251	Blue chase to left in red BG
107	Yellow chase to right in red BG	252	Yellow chase to left in red BG
108	Cyan chase to right in red BG	253	Cyan chase to left in red BG
109	Purple chase to right in red BG	254	Purple chase to left in red BG
110	White chase to right in red BG	255	White chase to left in red BG
111	Red chase to right in green BG	256	Red chase to left in green BG
112	Blue chase to right in green BG	257	Blue chase to left in green BG
113	Yellow chase to right in green BG	258	Yellow chase to left in green BG
114	Cyan chase to right in green BG	259	Cyan chase to left in green BG
115	Purple chase to right in green BG	260	Purple chase to left in green BG
116	White chase to right in green BG	261	White chase to left in green BG
117	Red chase to right in blue BG	262	Red chase to left in blue BG
118	Green chase to right in blue BG	263	Green chase to left in blue BG
119	Yellow chase to right in blue BG	264	Yellow chase to left in blue BG
120	Cyan chase to right in blue BG	265	Cyan chase to left in blue BG
121	Purple chase to right in blue BG	266	Purple chase to left in blue BG
122	White chase to right in blue BG	267	White chase to left in blue BG
123	Multi-color Segment Stacked to the right	268	Multi-color Segment Stacked to the left
124	Blue Segment Stacked to the right in red BG	269	Blue Segment Stacked to the left in red BG
125	Red Segment Stacked to the right in green BG	270	Red Segment Stacked to the left in green BG
126	Green Segment Stacked to the right in blue BG	271	Green Segment Stacked to the left in blue BG
127	Reverse Multi-Color Segment Stacked to the right	272	Reverse Multi-Color Segment Stacked to the left
128	Reverse cyan Segment Stacked to the right in red BG	273	Reverse cyan Segment Stacked to the left in red BG
129	Reverse purple Segment Stacked to the right in green BG	274	Reverse purple Segment Stacked to the left in green BG
130	Reverse yellow Segment Stacked to the right in blue BG	275	Reverse yellow Segment Stacked to the left in blue BG
131	Red Segment Stacked to the right	276	Red Segment Stacked to the left
132	Reverse red Segment Stacked to the right	277	Reverse red Segment Stacked to the left
133	Green Segment Stacked to the right	278	Green Segment Stacked to the left
134	Reverse green Segment Stacked to the right	279	Reverse green Segment Stacked to the left
135	Blue Segment Stacked to the right	280	Blue Segment Stacked to the left
136	Reverse green Segment Stacked to the right	281	Reverse blue Segment Stacked to the left
137	Yellow Segment Stacked to the right	282	Yellow Segment Stacked to the left
138	Reverse yellow Segment Stacked to the right	283	Reverse yellow Segment Stacked to the left
139	Cyan Segment Stacked to the right	284	Cyan Segment Stacked to the left
140	Reverse cyan Segment Stacked to the right	285	Reverse cyan Segment Stacked to the left
141	Purple Segment Stacked to the right	286	Purple Segment Stacked to the left
142	Reverse purple Segment Stacked to the right	287	Reverse purple Segment Stacked to the left
143	White Segment Stacked to the right in red BG	288	White Segment Stacked to the left in red BG
144	Reverse white Segment Stacked to the right in blue BG	289	Reverse white Segment Stacked to the left in blue BG
145	White Segment Stacked to the right in blue BG	290	White Segment Stacked to the left in blue BG
291	All color transition	292	All color gradient
293	RGB sequential gradient	294	Static red
295	Static green	296	Static blue
297	Static cyan	298	Static yellow
299	Static purple	300	Static white

MACULA 12 ×2 or ×3

6 port Control Hub ×1

Remote Controller ×1

4 Pin Cable ×1

Screw ×8 or ×12

Package ×1

MACULA 12
