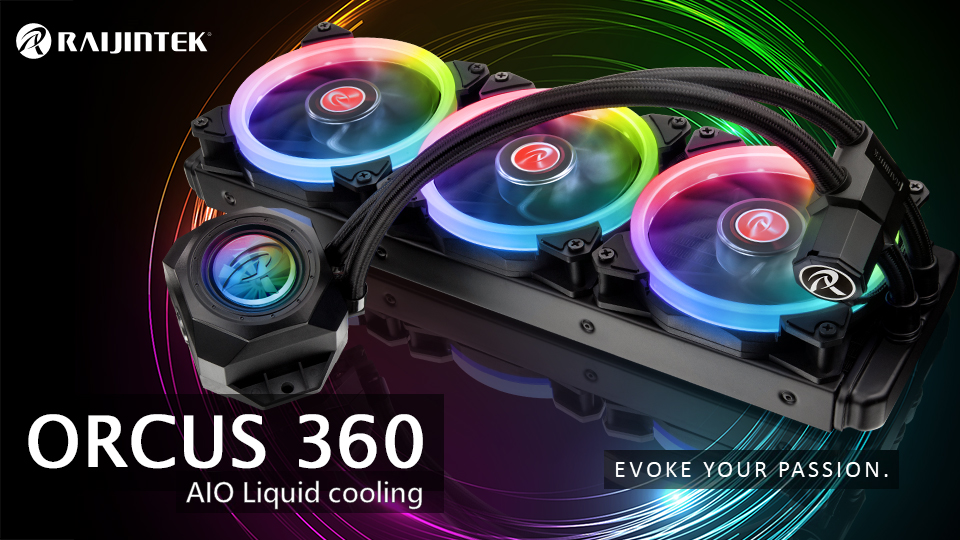

ORCUS 360

ORCUS, RAIJINTEK’s evolution All-In-One liquid cooling CPU cooler, designed in Germany and made in Taiwan. With several years of experience in liquid cooling products and cooperation with global engineers and manufactures, RAIJINTEK’s RD team developed the concepts of most performing AIO CPU liquid cooler and spent years to design one of most user friendly and spot light product for enthusiasts. ORCUS’s copper water block is a most advanced design of micro channels (0.1mm), extra large contact fin area with multiple channels for the best direct flow of liquid. More than this, ORCUS’s Pump is placed externally which will not incur vibration and stress on M/B and CPU. ORCUS external Pump is designed for high Q-Max, low dBA, and contains a reliable Bearing type. Not only a new design pump and water block are used, ORCUS’s radiator is also using high density design fin radiator. ORCUS has led the trend to designing a “Rotating Blade” with most popular RGB LED lighting inside tank, which able to show water flow and indicates the coolant level. More than rotating blade indicator, ORCUS is also designed to be refillable. Furthermore, ORCUS cooling fan system is with 12025 RGB PWM fans, 8port control hub, and remote controller. With switch function (M/B ; Remote) of controller Hub, either you can connect control hub to M/B RGB header (thus, all cooling system RGB lighting including M/B RGB will be controlled synchronously by M/B), or you can switch to “remote” of control hub if no RGB header on M/B, then all RGB lighting will be controlled by Remote controller. ORCUS is not only one of the best performing All-In-One liquid cooling at the market but it is the most user friendly AIO cooler in the world by the pre-filled liquid, providing extra 100ml coolant for your convenience for refill, which brought to you for the joy of friendly design and the surprisingly efficient performance.

ORCUS 360 ORCUS 360











  • Best performing, most user friendly and most spot light catch , an AIO liquid cooling system at market
  • All-In-One liquid CPU cooler with external PUMP, copper Water block and Rotating Blade with RGB light
  • New design and External Pump with high Q-max (66 L/H) and no vibration incurred on M/B and CPU
  • Durable and reliable PUMP Bearing type - Ceramic axis

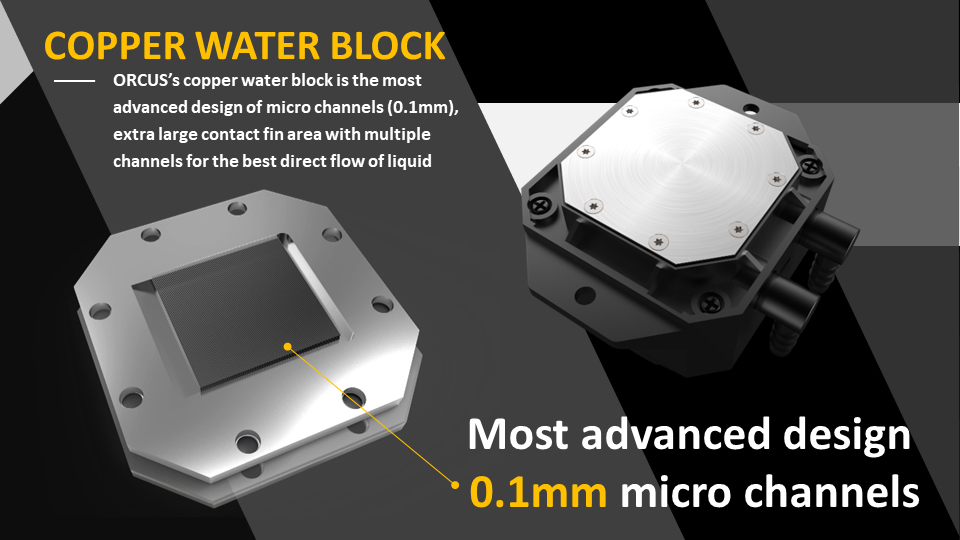

  • Copper water block by micro channel, extra large contact fin area with multiple channels to provide best flow of liquid
  • Cooling fan system with 12025 RGB PWM fans, 8 port control hub and remote controller

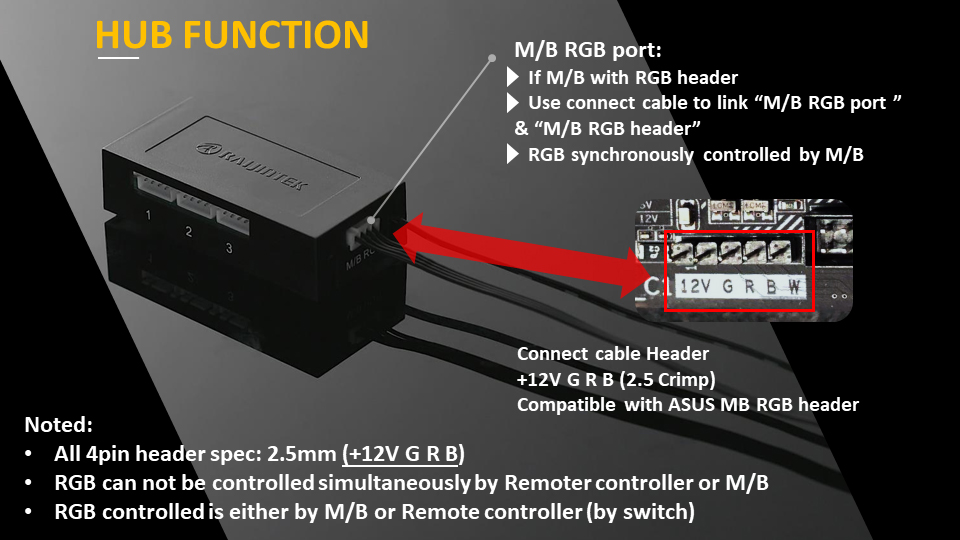

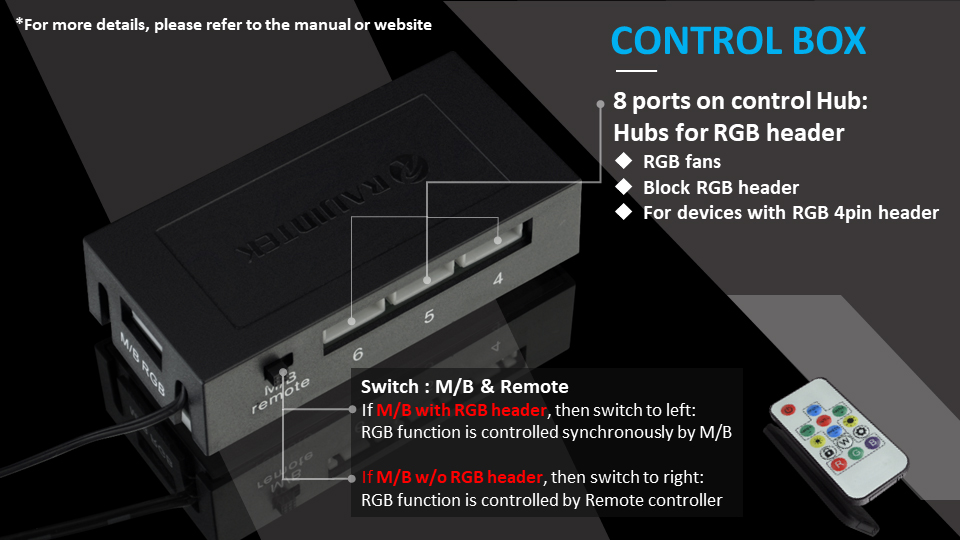

  • 8port Control hub with switch of "M/B ; Remote" to provide most usage of RGB lighting control

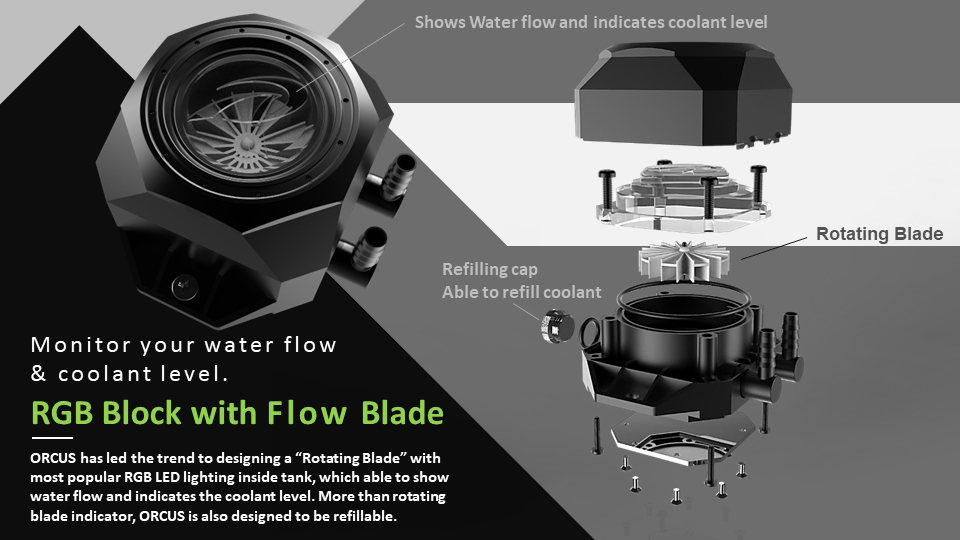

  • Rotating Blade design with RGB LED inside tank to show water flow and indicates the coolant level
  • 3pcs performing 12025 PWM fans with RGB lighting

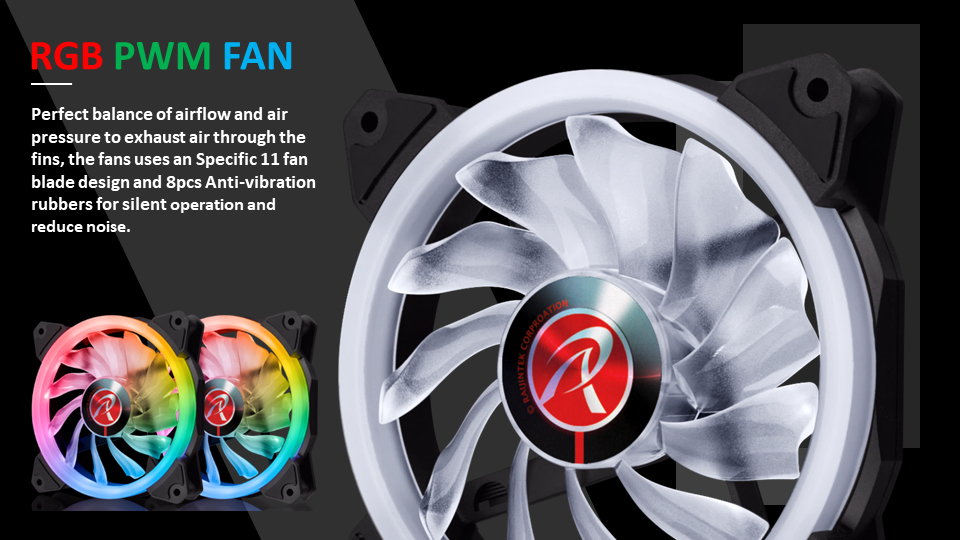

  • Specific 11 fan blade design and 8pcs Anti-vibration rubbers
  • Refillable and high capacity coolants pre-filled design

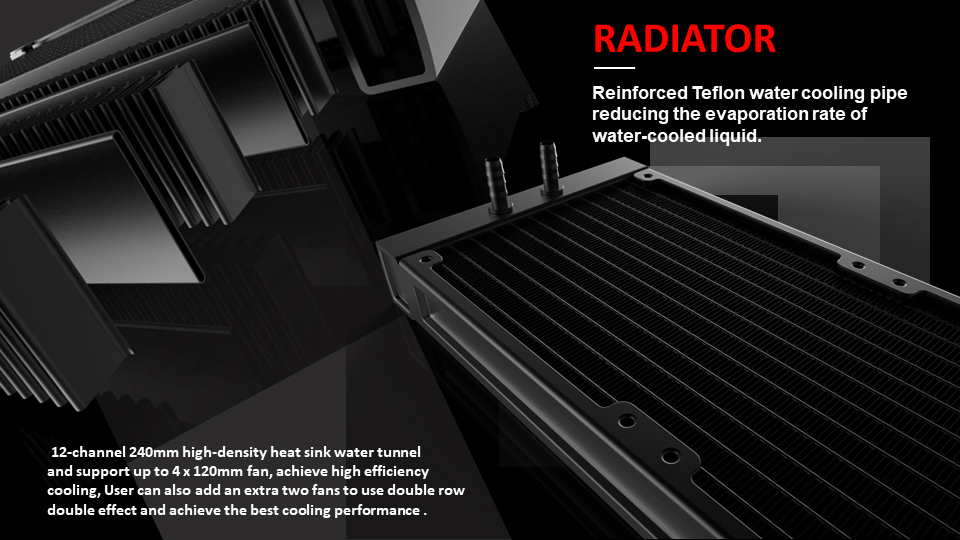

  • 360mm high density fin radiator with 12 channels
  • Solid mounting kits to provide sturdy installation

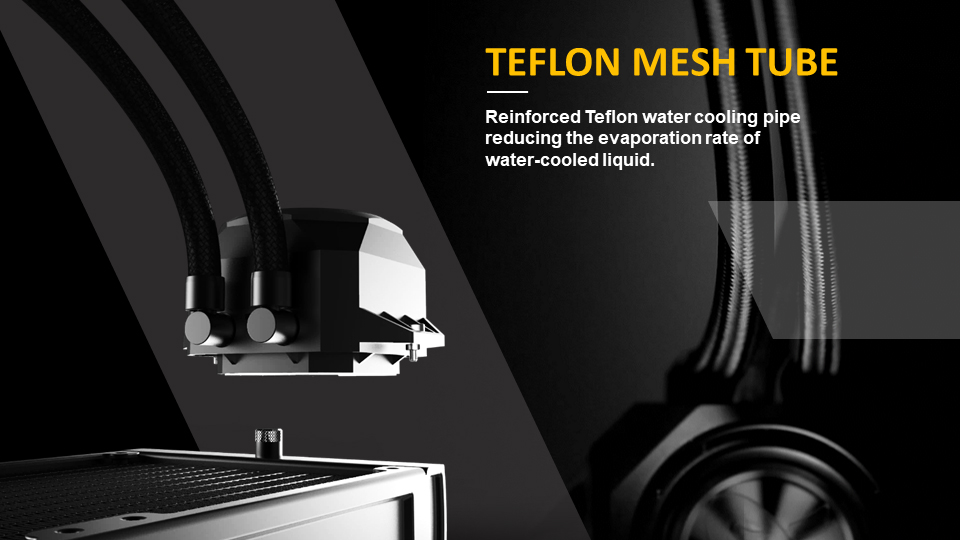

  • Mesh tube with low evaporation rate
  • Multiple mounting kits for modern sockets of INTEL & AMD CPU

SPECIFICATION
Product Name ORCUS 360 ORCUS 360 CORE
Product Number 0R100081 [0R10A00081] 0R100082 [0R10A00082]
Radiator Dimension [W×H×D] 395×120×28 mm 395×120×28 mm
Weight [Block+Pump+Radiator] 950g 950g
Thermal Resistance 0.08 °C/W 0.08 °C/W
Liquid Capacity 210ml ±10% 210ml ±10%
Fan Q'ty 3 pcs N/A
Tubing Dimension ID – 5mm / OD – 10.6mm
Material Copper Cold Plate / Alu. Radiator
est. TDP 300W

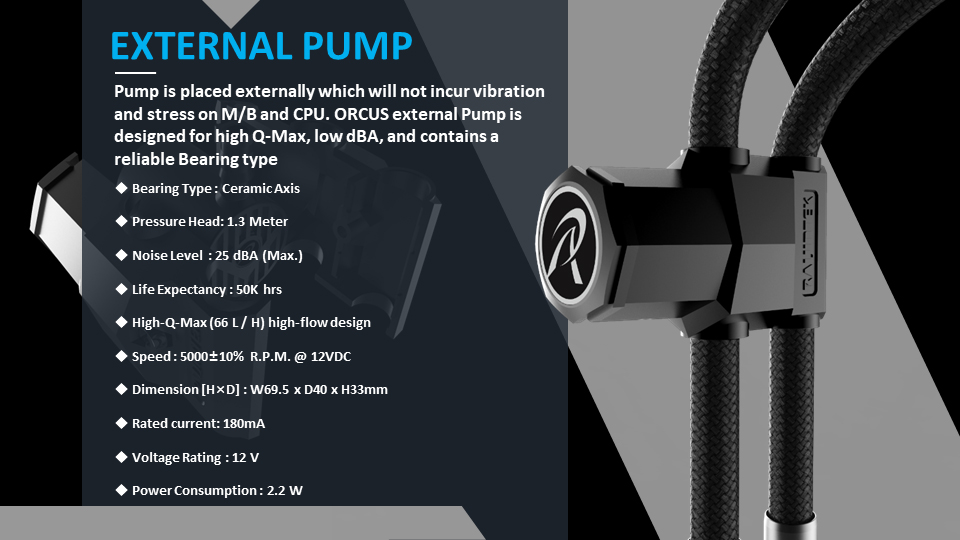

PUMP
Dimension [W×D×H] 69.5×40×33 mm
Bearing type Ceramic Axis
Q-max 66 L/H
Pressure Head 1.3 Meter
Noise level 25 dBA [Max.]
Life Expectancy 50,000 hours
Speed 5000±10% R.P.M. at 12VDC
Rated Current 180mA
Voltage Rating 12 V
Power consumption 2.2 W
FAN
Dimension [W×H×D] 120×120×25 mm
Voltage Rating 12V
Starting Voltage 5V
Speed 800~1800 R.P.M.
Bearing Type Hydraulic Bearing
Air Flow 42.17 CFM [Max.]
Air Pressure 1.7 mmH2O [Max.]
Life Expectance 40,000 hrs
Noise Level 23 dBA [Max.]
Connector RGB 4 pin, PWM 4 pin
Rated Current 0.14±10% A
Power consumption 1.68±10% W

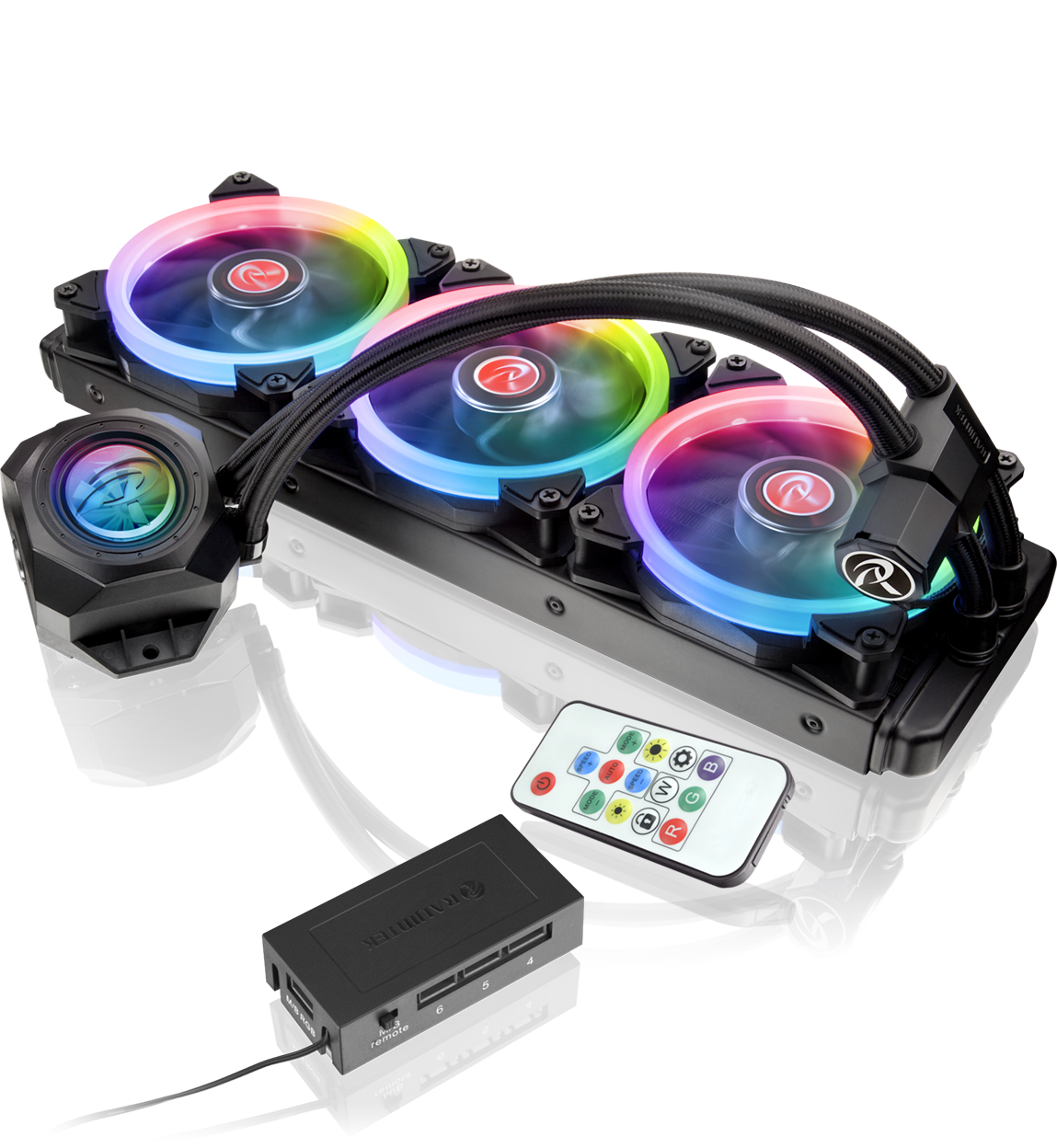

Accessories 8 port RGB LED Hub × 1 ; Remote Controller × 1 ; Connecting to M/B RGB Cable × 1
APPLICATION
Intel® All Socket LGA 1700 / 2066 / 201x / 1366 / 115x / 1200 / 775 CPU (Core™ i3 / i5 / i7 / i9 CPU)
AMD® All AM5 / AM4 / AM3+ / AM3 CPU
  • ORCUS 360 Installation Guide  [ 5.54 MB ]
    This version includes English, German, French, Spanish, Italian, Japanese, Chinese, Russian, Turkish and Portuguese.

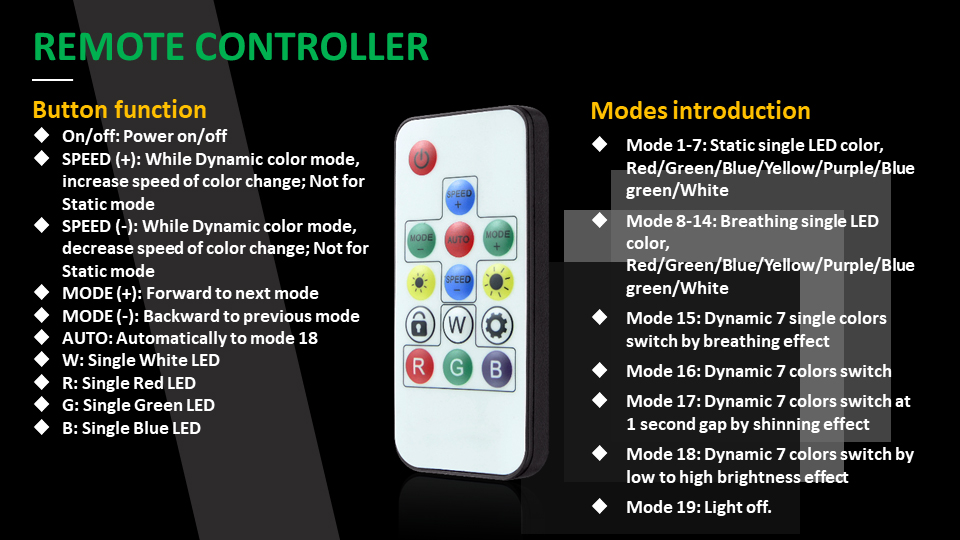

  • Remote controller function
  • 1.On/off: Power on/off
    2.SPEED (+): While Dynamic color mode, increase the speed of color change; Not for Static mode
    3.SPEED (-): While Dynamic color mode, decrease the speed of color change; Not for Static mode
    4.MODE (+): Forward to next mode
    5.MODE (-): Backward to previous mode
    6.AUTO: Automatically cycles all modes, 10 seconds for each mode
    7.W: Single White LED
    8.R: Single Red LED
    9.G: Single Green LED
    10.B: Single Blue LED
  • Color Modes
  • Mode 1-7: Static single LED color, Red/Green/Blue/Yellow/Purple/Bluegreen/White
    Mode 8-14: Breathing single LED color, Red/Green/Blue/Yellow/Purple/Bluegreen/White
    Mode 15: Dynamic 7 single colors switch by breathing effect
    Mode 16: Dynamic 7 colors switch
    Mode 17: Dynamic 7 colors switch at 1 second gap by shinning effect
    Mode 18: Dynamic 7 colors switch by low to high brightness effect
    Mode 19: Light off
  • Precautions
  • 1.Keep and store the product away from the reach of children.
    2.Check the component list and condition of the product before installation. If there is any problem, contact the shop where you purchased to get a replacement or refund.
    3.RAIJINTEK Co., Ltd. is not responsible for any damages due to external causes, including but not limited to, improper use, problems with electrical power, accident, neglect, alteration, repair, improper installation, and improper testing.
    4.CPU and motherboard are subject to damage if the product in incorrectly installed.
    5.Breaking the tank seal on the product might cause warranty loss.
    6.This product is an All-in-One Water Cooling Solution, once taken apart or any use of non RAIJINTEK's accessories, will lead to a warranty loss.

AIO device × 1

Fan×3 [Only for ORCUS 360]

Back plate × 1

Bracket × 1
Intel Mounting Clips
Plastic myla × 5

Plastic brush × 1

M3×6mm Screw × 12

M3×9mm Screw × 2

#6-32×30mm Fan screw × 12

Thermal grease × 1

Metal nut × 4

M4×6mm Screw × 4

M4×13mm Screw × 4

Installation Guide × 1

100ml Coolant × 1

Tray × 1

Package × 1

8 ports control hub × 1

Remote controller × 1

Connect cable × 1
