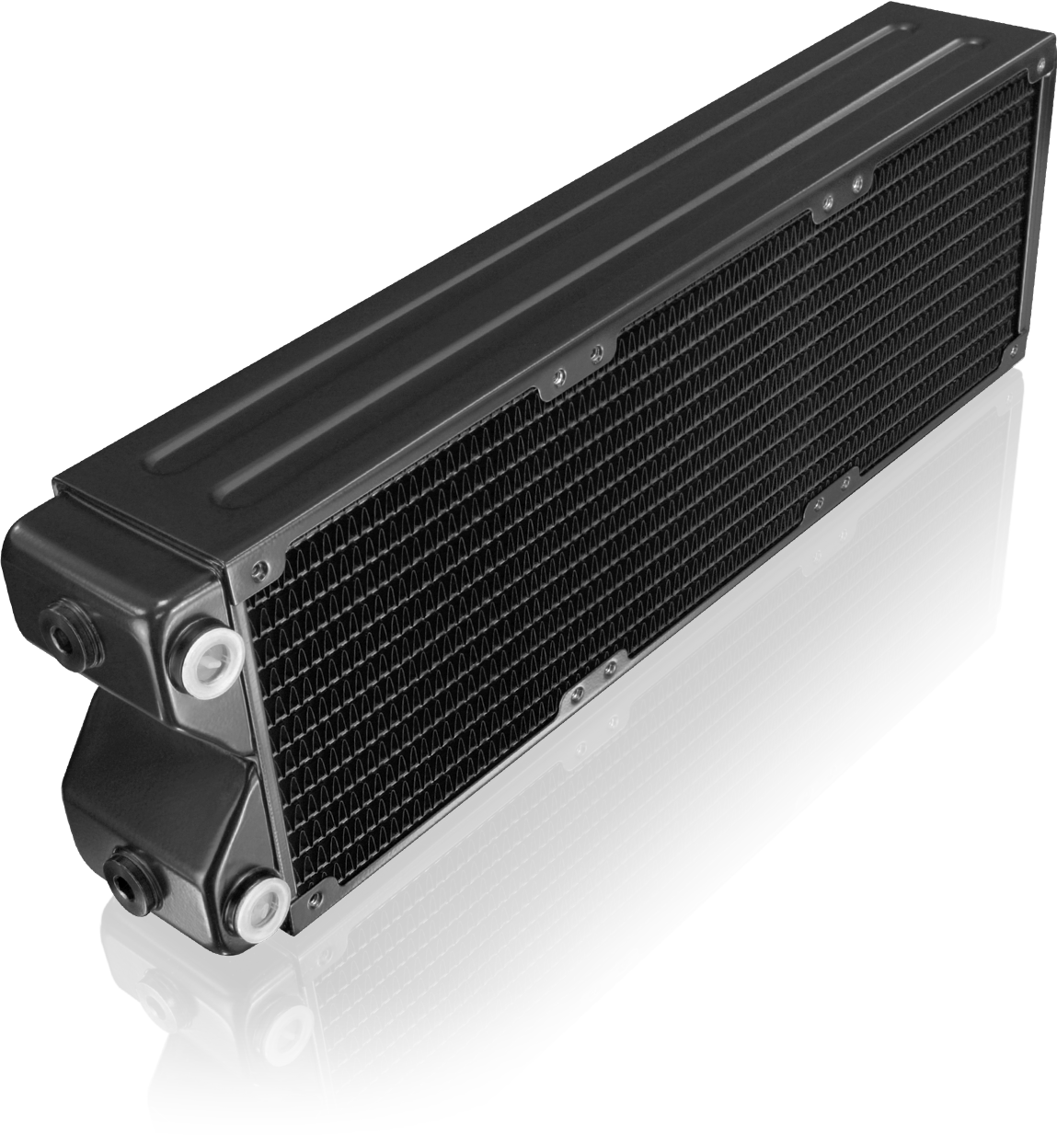

CALORE C360D

RAIJINTEK Copper radiator - 65mm thickness, CALORE C240D & C360D, is made of copper with high-density copper fin design and brass tank. CALORE radiator is engineered with an extremely thick 65mm radiator along with a triple-row 14-set flat tube design and brass tank. Fin design is optimized for efficiently pulling heat away from the power-dissipating components thus achieving maximum heat dissipation at both low and high airflow operation. With 2 or 3pcs 120mm high-static pressure fans, the radiator is manufactured from premium-quality materials that provide exceptional performance, unrivalled reliability. The unique stainless steel side panels guarantee the durability as well as reduce the weight of the radiator. Integrated G1/4" threads make it easy to install, while rigid connections ensure leak-resistant measures are in place. Square Fan anti-vibration rubber is provided to eliminate most vibration from fan.

CALORE C360D
  • Made of Copper and 65mm thickness radiator
  • Triple-Row & 14-set flat tube design
  • High-density copper fins
  • Copper chamber and housing
  • Optimal design for efficiently pulling heat away
  • Achieving maximum heat dissipation at both low and high airflow operation
  • High-Quality Manufacturing Process, Reflow soldering, to attain better heat evacuation
  • Square Fan anti-vibration rubber provided to eliminate most vibration from fan
SPECIFICATION
Product Name CALORE C360D
Product Number 0R400056 [0R40A00056]
Dimension [W×D×H] 403.5×119×65.5 mm
Flat Tube 14 set ; 360×13×2mm
FPI (Fin per inch) 14
Tube row 3
Screw Threads G 1/4"
Port 5
Material Copper
Weight 1653 g
Surface Black coated

CALORE C360D × 1

Anti-vibration Rubber × 3

M3 Screw × 12

M3 Screw × 12

Allen Key × 1

Package × 1
