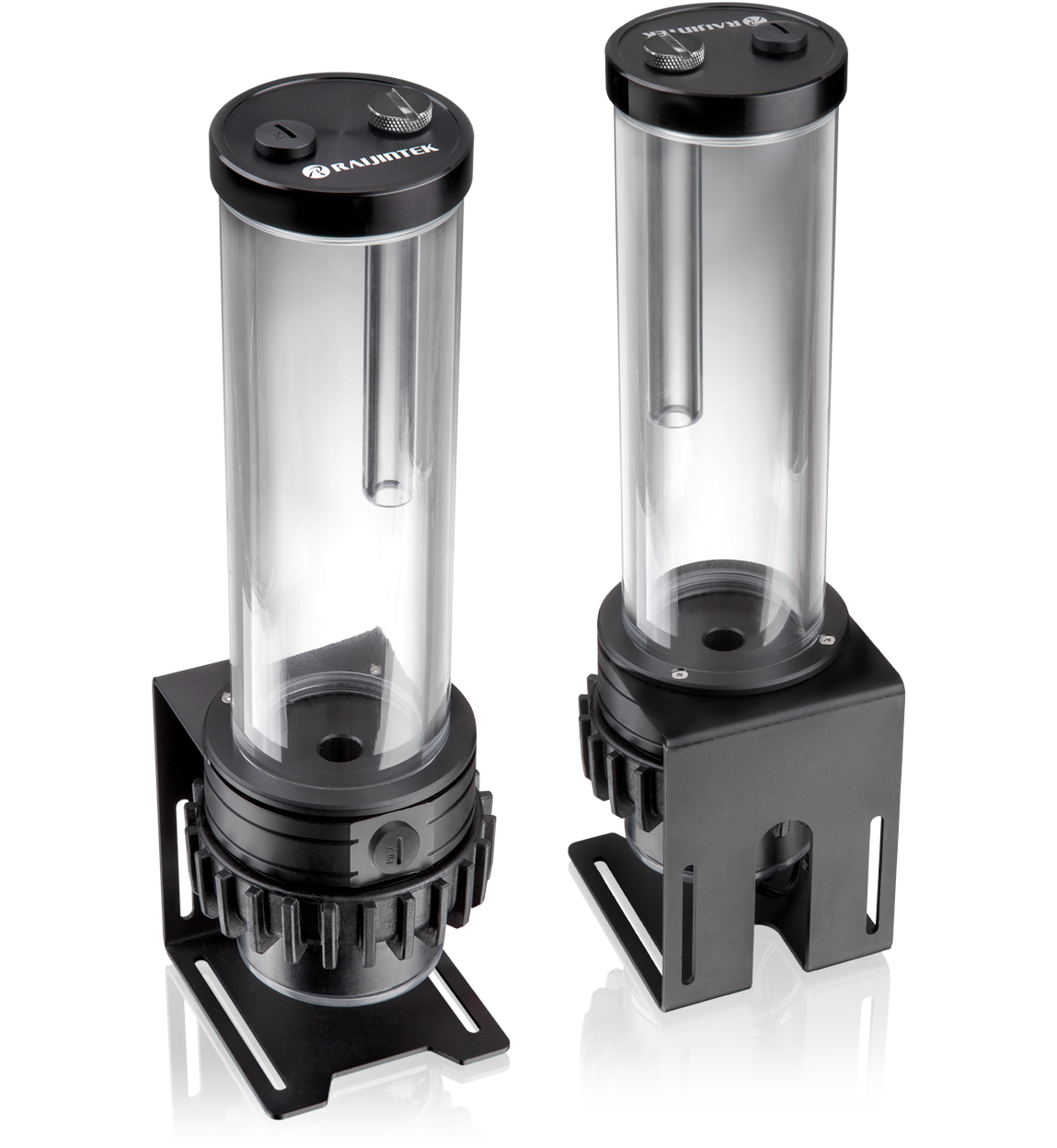

ANTILA D5

RAIJINTEK launches ATLANTIS series D5 level pump (with 200mm reservoir), ANTILA D5, is a highest level solution for PC enthusiasts and custom PC builder to create a super water cooling system. ANTILA D5, made in Taiwan, features a super flow discharge of 900 L/H and Head-lift of 4 meter (13 feet) at maximum speed, thus it is the best heart for your liquid cooling loop. Featuring outstanding performance and reliability, ANTILA D5 is manufactured from high quality POM and PMMA material to provide a crystal clear, steadily, silently, high performance, durable solution. ANTILA D5 allows PC enthusiasts not only to construct an remarkably superior liquid cooling system but also combine externally-modular upgrades for their chassis. Sturdy Bracket provides users a reliable, direction options and friendly installation.

ANTILA D5
  • Super flow discharge 900 L/H
  • Superior head-lift 13 feet [4 meter]
  • Reliable, light weighted POM construction
  • High quality acrylic (PMMA) Reservoir
  • Support bracket to provide sturdy, reliable and friendly installation
  • Easy mounting and connection in multiple locations
  • Operating steadily and silently
  • Advanced building liquid loop - CPU, GPU, radiator and more DIY components
  • Compatible with RAIJINTEK ALTLANTIS series, Radiator, Water Blocks, Tubes
SPECIFICATION
Product Name ANTILA D5
Product Number 0R400053 [0R40A00053]
Dimension [W×H×D] 87.4×280.6×91.2 mm (with bracket)
Reservoir Dimension Φ64×205[H] mm
Material POM + PMMA (Crystal clear)
Weight 790 g
Screw Threads G 1/4"
Bearing type Ceramic Bearing
Maximum Head 4.0 M
Maximum Discharge 900 L/H
Maximum Pressure 50 PSI
Life Expectance 50,000 hrs
Noise Level 30 dBA [Max.]
Speed 1,800~4,500 RPM [PWM controlled]
Voltage Rating DC12V
Input Current 1.8 A ± 10%
Connector 2606-H-03P [-12V/+12V] /
2510-4P [NA / NA / Fg / PWM]

ANTILA D5 × 1

Metal nut × 4

M4×13mm Screw × 4

Package × 1
