| ARCADIA Ⅱ |
|
ARCADIA II, Midi Tower chassis, pure Aluminum brush style with classic black design, with magnetic Dust filters on the top panel and water cooling support (on the top panel). Elegance in combination of special technical features, complete black coating, an unbelievable price and a rigid chassis quality. |
     |
|
SPECIFICATION |
|
| Product Name | ARCADIA II |
| Product Number | 0R20B00093 |
| Dimension [W×D×H] | 185×375×460 mm |
| Weight | 3.9 kg [N.W.] 4.8 kg [G.W.] |
| Material | SPCC 0.5mm |
| Color | Matt Black |
| M/B Support | ATX/MICRO ATX/ITX |
| Drive Bay | Internal 5.25"×1, 3.5"×2, 2.5"×2 |
| Expansion Slot | PCI Slots×7 |
| I/O Panel | USB3.0×1, USB2.0×2, HD Audio×1 |
| Power Supply | PS/2 [Internal Bottom-mount] |

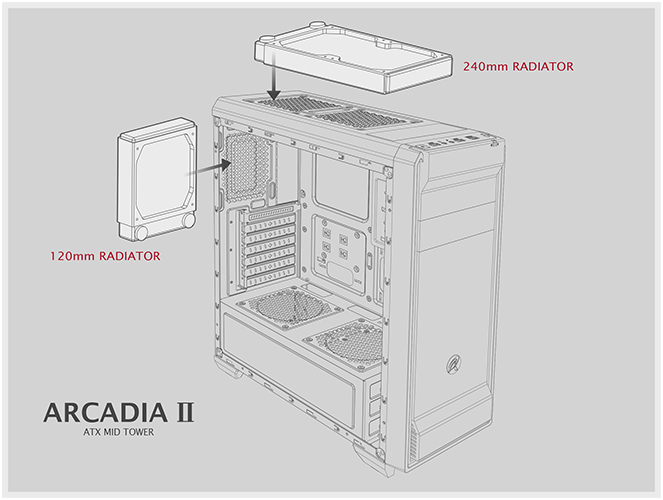

| Cooling System | Front Fan: 120mm×2 or 140mm×2 or 240mm
radiator×1 Rear Fan: 120mm×1 [Pre-installed] Top Fan: 120mm×2 |
| CPU Cooler Height | 160mm [Max.] |
| Graphic Card Length | 340mm [Max.] |
| Side Panel Style | Acrylic window |
ARCADIA II Installation Guide [ 11.3 MB ]
 |
)
)
)
)
)
)
)
)
Internal USB 3.0 super speed port
