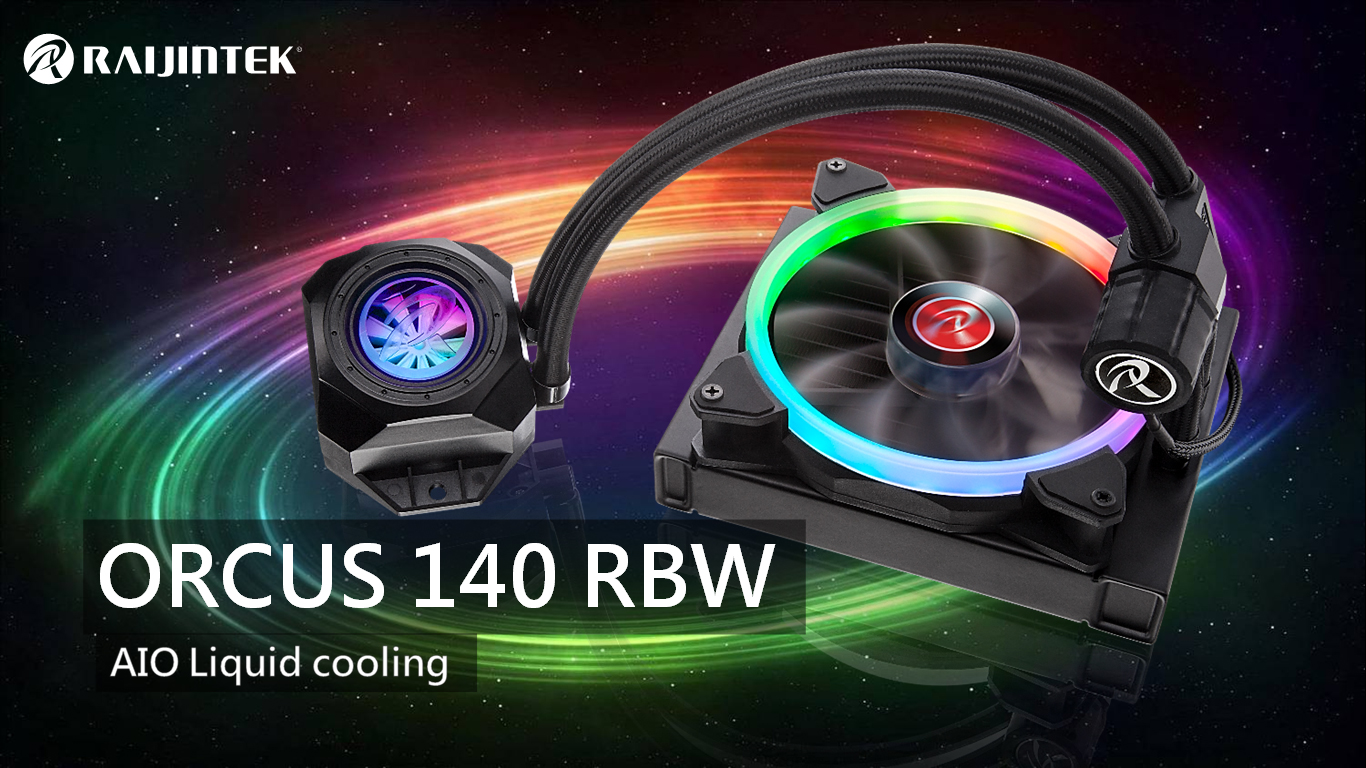

ORCUS 140 RBW

ORCUS RBW, RAIJINTEK’s evolution All-In-One liquid cooling CPU cooler, designed in Germany and made in Taiwan. With several years of experience in liquid cooling products and cooperation with global engineers and manufactures, RAIJINTEK’s RD team developed the concepts of most performing AIO CPU liquid cooler and spent years to design one of most user friendly and spot light product for enthusiasts. ORCUS RBW’s copper water block is a most advanced design of micro channels (0.1mm), extra large contact fin area with multiple channels for the best direct flow of liquid. More than this, ORCUS RBW’s Pump is placed externally which will not incur vibration and stress on M/B and CPU. ORCUS RBW external Pump is designed for high Q-Max, low dBA, and contains a reliable Bearing type. Not only a new design pump and water block are used, ORCUS RBW’s radiator is also using high density design fin radiator. ORCUS RBW has led the trend to designing a “Rotating Blade” with most popular ADD LED lighting inside tank, which able to show water flow and indicates the coolant level. More than rotating blade indicator, ORCUS RBW is also designed to be refillable. Furthermore, ORCUS RBW cooling fan system is with a 14025 ADD PWM fan, 8port control hub, and remote controller. With switch function (M/B ; Remote) of controller Hub, either you can connect control hub to M/B ADD header (thus, all cooling system ADD lighting including M/B ADD will be controlled synchronously by M/B), or you can switch to “remote” of control hub if no ADD header on M/B, then all ADD lighting will be controlled by Remote controller. ORCUS RBW is not only one of the best performing All-In-One liquid cooling at the market but it is the most user friendly AIO cooler in the world by the pre-filled liquid, providing extra 100ml coolant for your convenience for refill, which brought to you for the joy of friendly design and the surprisingly efficient performance.

ORCUS 140 RBW ORCUS 140 RBW












  • Best performing, most user friendly and most spot light catch , an AIO liquid cooling system at market

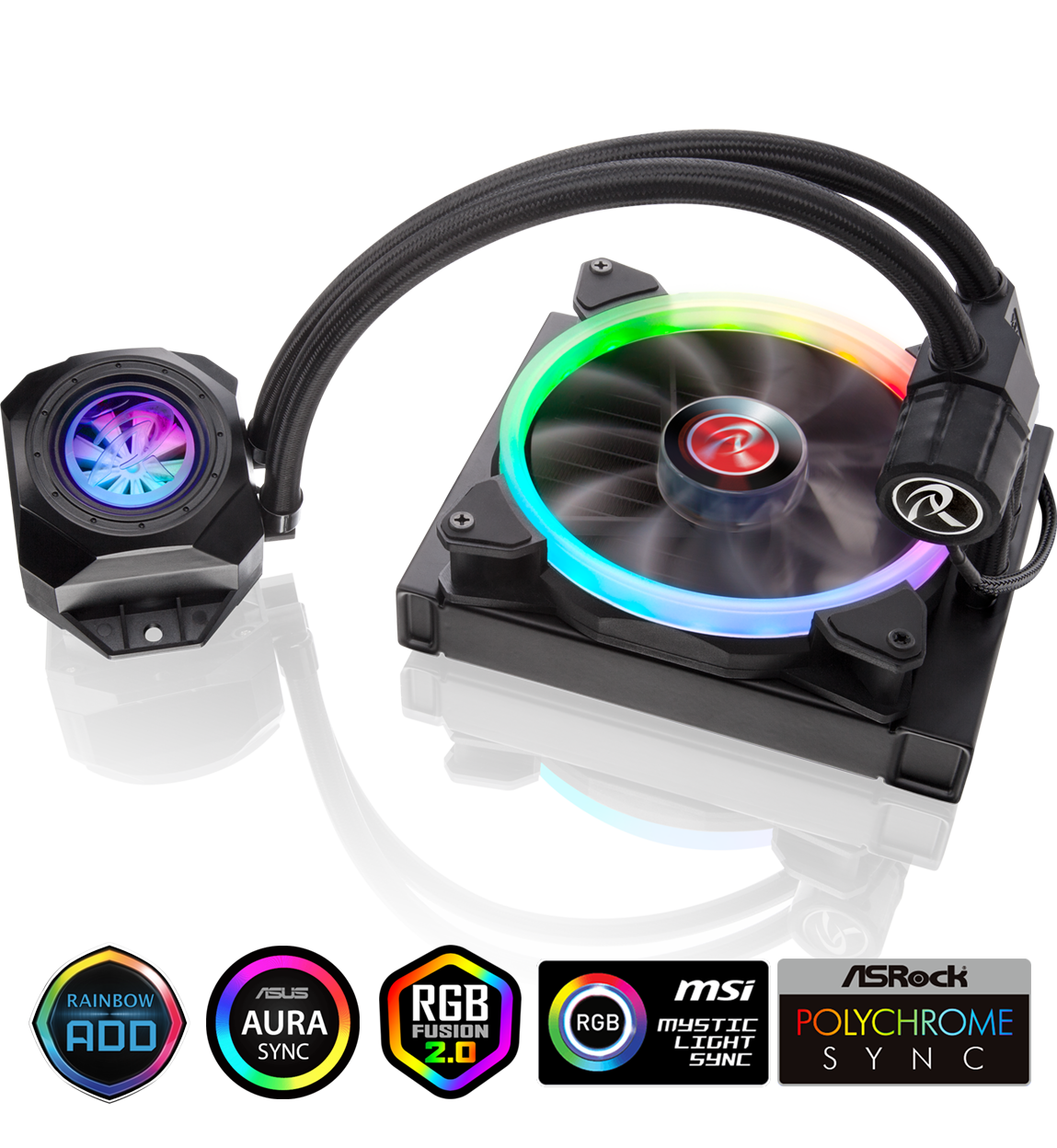

  • All-In-One liquid CPU cooler with external PUMP, copper Water block and Rotating Blade with Rainbow ADD light
  • New design and External Pump with high Q-max (86 L/H) and no vibration incurred on M/B and CPU
  • Durable and reliable PUMP Bearing type - Ceramic axis
  • Copper water block by micro channel, extra large contact fin area with multiple channels to provide best flow of liquid
  • Cooling fan system with a 14025 Rainbow ADD PWM fan, 8 port control hub and remote controller
  • 8port Control hub with switch of "M/B ; Remote" to provide most usage of Rainbow ADD lighting control
  • Rotating Blade design with Rainbow ADD LED inside tank to show water flow and indicates the coolant level

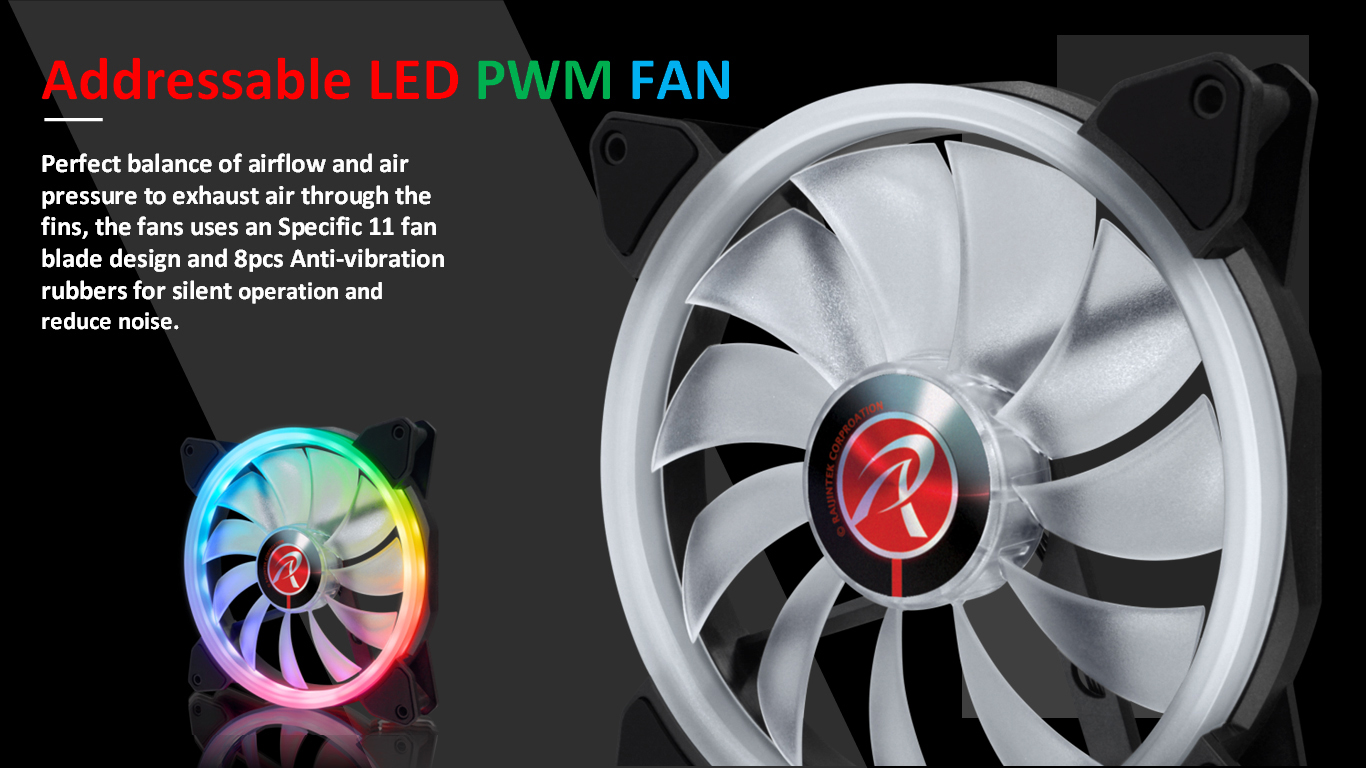

  • A performing 14025 PWM fan with Rainbow ADD lighting
  • Specific 11 fan blade design and 8pcs Anti-vibration rubbers
  • Refillable and high capacity coolants pre-filled design

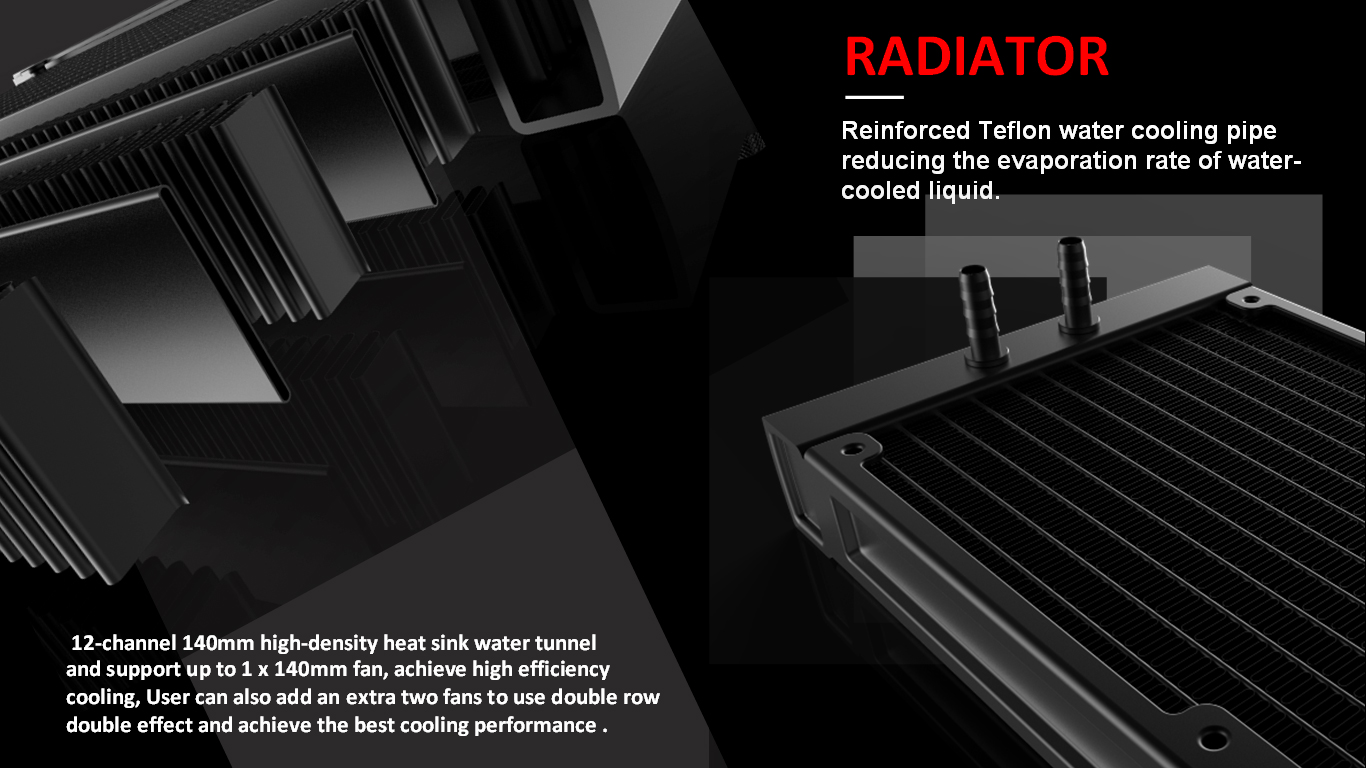

  • 140mm high density fin radiator with 12 channels
  • Solid mounting kits to provide sturdy installation
  • Mesh tube with low evaporation rate
  • Multiple mounting kits for modern sockets of INTEL & AMD CPU

SPECIFICATION
Product Name ORCUS 140 RBW
Product Number 0R10B00090
Radiator Dimension [W×H×D] 170×138×28 mm
Weight [Block+Pump+Radiator] 810g
Thermal Resistance 0.1 °C/W
Liquid Capacity 135ml ±10%
Fan Q'ty 1 pcs
Tubing Dimension ID – 5mm / OD – 10.6mm
Material Copper Cold Plate / Alu. Radiator
est. TDP 210W
PUMP
Dimension [W×D×H] 69.5×40×33 mm
Bearing type Ceramic Axis
Q-max 86 L/H
Pressure Head 1.4 Meter
Noise level 25 dBA [Max.]
Life Expectancy 50,000 hours
Speed 4500±10% R.P.M. at 12VDC
Rated Current 150mA
Voltage Rating 12 V
Power consumption 1.8 W
FAN
Dimension [W×H×D] 140×140×25 mm
Voltage Rating 12V
Starting Voltage 6V
Speed 400~1500 R.P.M.
Bearing Type Hydraulic Bearing
Air Flow 65.19 CFM [Max.]
Air Pressure 1.22 mmH2O [Max.]
Life Expectance 40,000 hrs
Noise Level 30 dBA [Max.]
Connector 5V ADD header, PWM 4 pin header
Rated Current 0.14A±10%
Power consumption 1.68W±10%
LED Rated Current 0.69A [Max.]
LED Power consumption 8.28W [Max.]
Accessories ARGB-PWM control hub × 1 ; Remote Controller × 1 ; Connect cable × 1
APPLICATION
Intel® All Socket LGA 1700 / 2066 / 201x / 1366 / 115x / 1200 / 775 CPU (Core™ i3 / i5 / i7 / i9 CPU)
AMD® All AM5 / AM4 / AM3+ / AM3 CPU
  • ORCUS 140 RBW Installation Guide  [ 5.54 MB ]
    This version includes English, German, French, Spanish, Italian, Japanese, Chinese, Russian, Turkish and Portuguese.
  • Remote controller function

  • 1.On/off: Power on/off
    2.SPEED (+): While Dynamic color mode, increase the speed of color change; Not for Static mode
    3.SPEED (-): While Dynamic color mode, decrease the speed of color change; Not for Static mode
    4.MODE (+): Forward to next mode
    5.MODE (-): Backward to previous mode
    6.AUTO: Automatically cycles all modes, 10 seconds for each mode
    7.W: Single White LED
    8.R: Single Red LED
    9.G: Single Green LED
    10.B: Single Blue LED
  • Rainbow RGB

  • 20 modes: 13 Dynamic color modes & 7 Static color modes
    Memory function: While power on, the mode and speed are at previous status
    Voltage rating: 12V
    Connecting 6 fans will get best effect for Dynamic modes
  • Color Modes

  • Mode 1: Dynamic 6 colors rotating with transition effect
    Mode 2: Dynamic lighting rotation to each other with transition effect
    Mode 3: Dynamic 6 colors rotating without transition effect
    Mode 4: Dynamic 7 colors switch by water-flow rotating with low brightness effect on background color
    Mode 5: Dynamic 7 single colors switch by water-flow effect
    Mode 6: Dynamic 7 shinning colors switch by water-flow effect
    Mode 7: Dynamic 7 colors switch by water-flow rotating with covering background color effect
    Mode 8-13: Dynamic 7 colors by water-flow rotating
    Mode 14-20: Static single LED color
  • Precautions
  • 1.Keep and store the product away from the reach of children.
    2.Check the component list and condition of the product before installation. If there is any problem, contact the shop where you purchased to get a replacement or refund.
    3.RAIJINTEK Co., Ltd. is not responsible for any damages due to external causes, including but not limited to, improper use, problems with electrical power, accident, neglect, alteration, repair, improper installation, and improper testing.
    4.CPU and motherboard are subject to damage if the product in incorrectly installed.
    5.Breaking the tank seal on the product might cause warranty loss.
    6.This product is an All-in-One Water Cooling Solution, once taken apart or any use of non RAIJINTEK's accessories, will lead to a warranty loss.

ORCUS 140 RBW × 1

Back plate × 1

Bracket × 1
Intel Mounting Clips
Plastic myla × 5

Plastic brush × 1

M3×6mm Screw × 4

M3×9mm Screw × 2

#6-32×30mm Fan screw × 4

Thermal grease × 1

Metal nut × 4

M4×6mm Screw × 4

M4×13mm Screw × 4

Installation Guide × 1

100ml Coolant × 1

Tray × 1

Package × 1

ARGB-PWM control hub × 1

Remote controller × 1

Connect cable × 1
