OPHION EVO

Design Art in its best by RAIJINTEK – New SFF chassis of OPHION series. The OPHION series case is designed to fulfil a smallest case built with max. possibility high-end, gaming and standard components, such as Intel i9/i7, AMD AM4/TR4 CPU, and especially powerful full –length VGA card, GTX1080Ti. OPHION series case supports up to Mini-ITX motherboard, maximum three fans including 2*12025 fan on top (EVO version : 240mm radiator and fans on top), 1*12015 fan optional at bottom. Not only cooling from fans, it’s air flow go thru sideway as well. OPHION series Superior features includes elegant Alu. hair-silk front panel, 3.5”*1 HDD or 2.5”*3 HDD/SSD (EVO version : 3.5”*1 HDD or 2.5”*4 HDD/SSD) , full-length VGA card compatibility, tool-free for the easy installation, ATX / EPS PSU compatibility. Looking for a best of best SFF case, OPHION series is the one for SFF and gaming enthusiasts.

OPHION EVO












  •
  • Aluminum hair-silk appearance design
  • Entire Coating black internally design
  • Compatible with ATX POWER SUPPLY

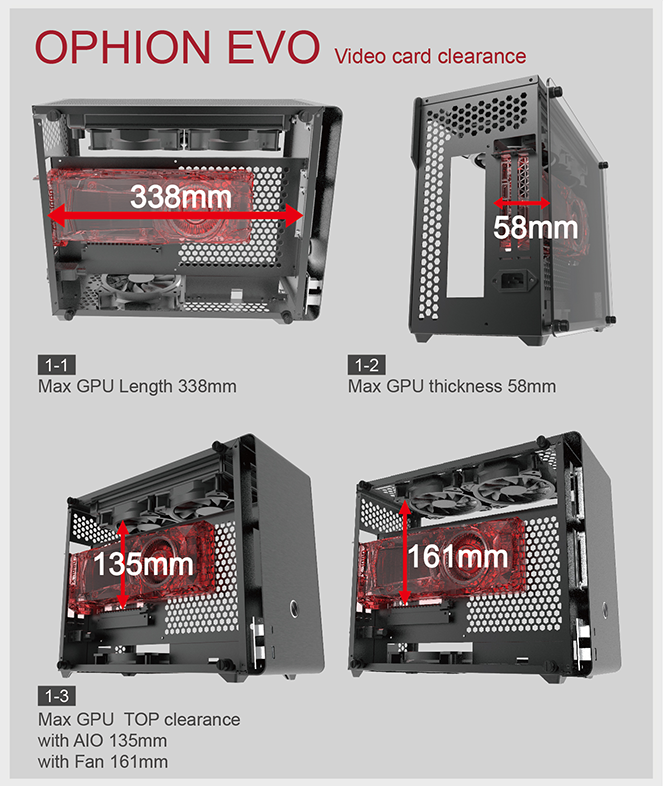

  • Compatible with 330mm VGA card
  • Comes with Riser cable (250mm length) - RJK PCIe 16x Gen3
  • Supports to max. 90mm height CPU cooler

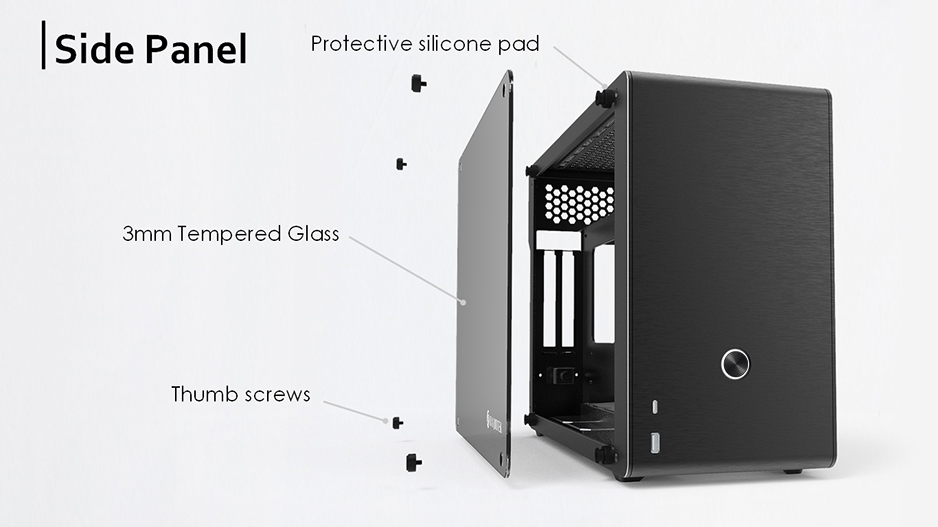

  • 3mm Tempered Glass

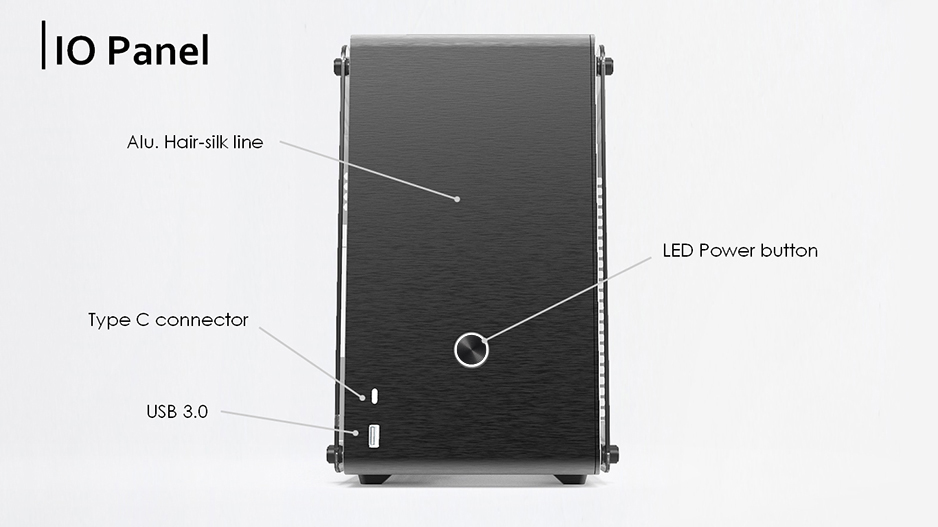

  • Type C×1 + USB3.0×1
  • All Magnetic dust filters

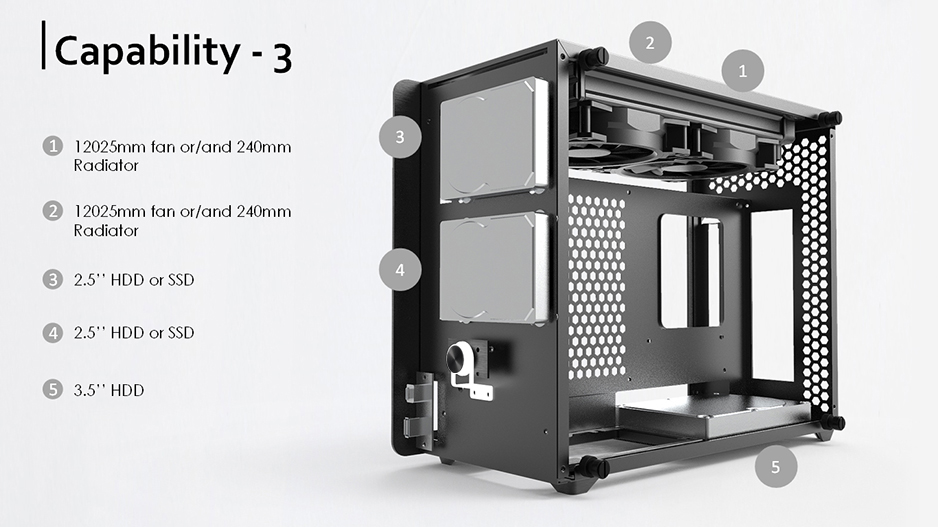

  • Supports to install 4×2.5"HDD or 2×2.5"HDD + 1×3.5"HDD
  • Option to install 240mm radiator & 12025 fan×2 on the top
  • Large zone of Ventilate holes for airflow on top
SPECIFICATION
Product Name OPHION EVO OPHION EVO WHITE OPHION EVO ALS
Product Number 0R20B00098 0R20B00151 0R20B00156
Dimension [W×D×H] 174×375×290 mm 174×375×290 mm 157×375×290 mm
Weight 3.56 kg [N.W.] 4.17 kg [G.W.] 3.56 kg [N.W.] 4.17 kg [G.W.] 2.91 kg [N.W.] 3.55 kg [G.W.]
Material Aluminum 2.0mm; SPCC 0.8mm Aluminum 2.0mm; SPCC 0.8mm Aluminum 2.0mm; SPCC 0.8mm
Color Coating Black Coating White Coating Black
M/B Support MINI ITX MINI-ITX MINI ITX
Drive Bay 3.5" × 1 + 2.5" × 2 or 2.5" × 4 3.5" × 1 + 2.5" × 2 or 2.5" × 4 3.5" × 1 + 2.5" × 2 or 2.5" × 4
Expansion Slot PCI Slots ×2 PCI Slots ×2 PCI Slots ×2
I/O Panel USB3.0×1, C-TYPE×1 USB3.0×1, C-TYPE×1 USB3.0×1, C-TYPE×1
Power Supply PS/2 [Internal Bottom-mount] PS/2 [Internal Bottom-mount] PS/2 [Internal Bottom-mount]

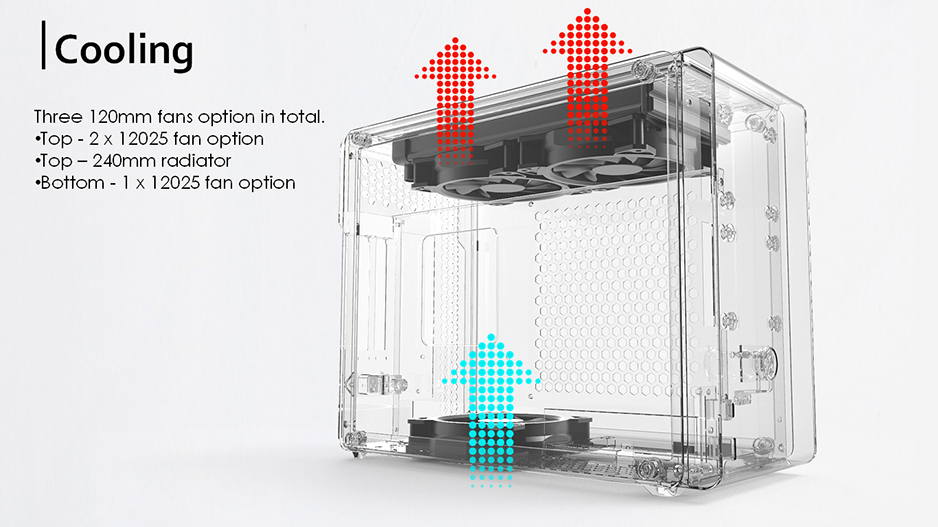

Cooling System Top Fan: 120mm×2 or/and 240mm Radiator [Option]
Bottom Fan: 120mm×1 [Option]
Top Fan: 120mm×2 or/and 240mm Radiator [Option]
Bottom Fan: 120mm×1 [Option]
Top Fan: 120mm×2 or/and 240mm Radiator [Option]
Bottom Fan: 120mm×1 [Option]
CPU Cooler Height 90mm [Max.] 90mm [Max.] 90mm [Max.]
Graphic Card Length 330mm [Max.] 330mm [Max.] 330mm [Max.]
Side Panel Style 3.0mm Tempered Glass 3.0mm Tempered Glass Aluminum
Riser Card Adapter PCI Express 16X Gen3.0 PCI Express 16X Gen3.0 PCI Express 16X Gen3.0

OPHION EVO × 1

PCI Express 16X Gen3 riser card adapter × 1

Screw #6-32 L6 × 24
Motherboard/PSU/PCI Card/3.5"HDD/Radiator

Screw M3 L9.5 × 10
2.5"SSD


Screw M3 L6 × 10
2.5"SSD

Screw 6-32 L6 × 2
VGA Card

Cable Tie × 10

Installation Guide × 1
