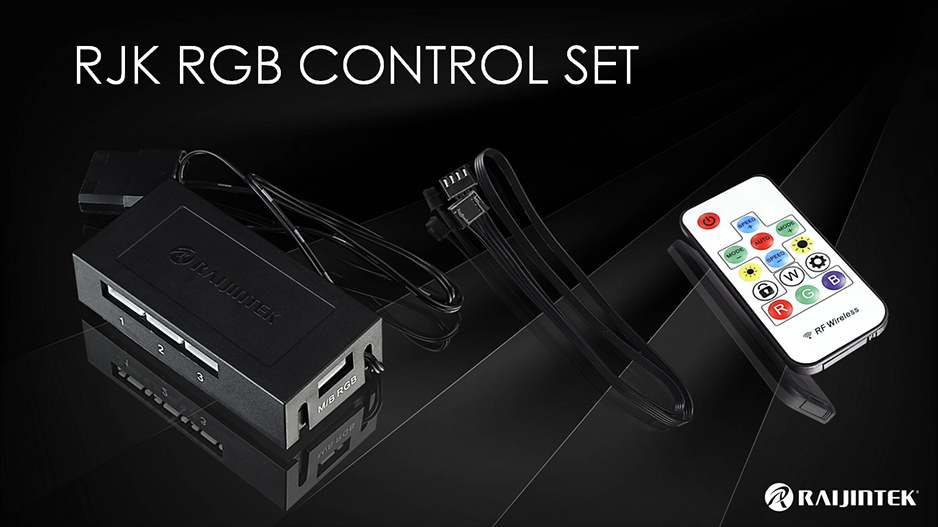

RJK RGB CONTROL SET

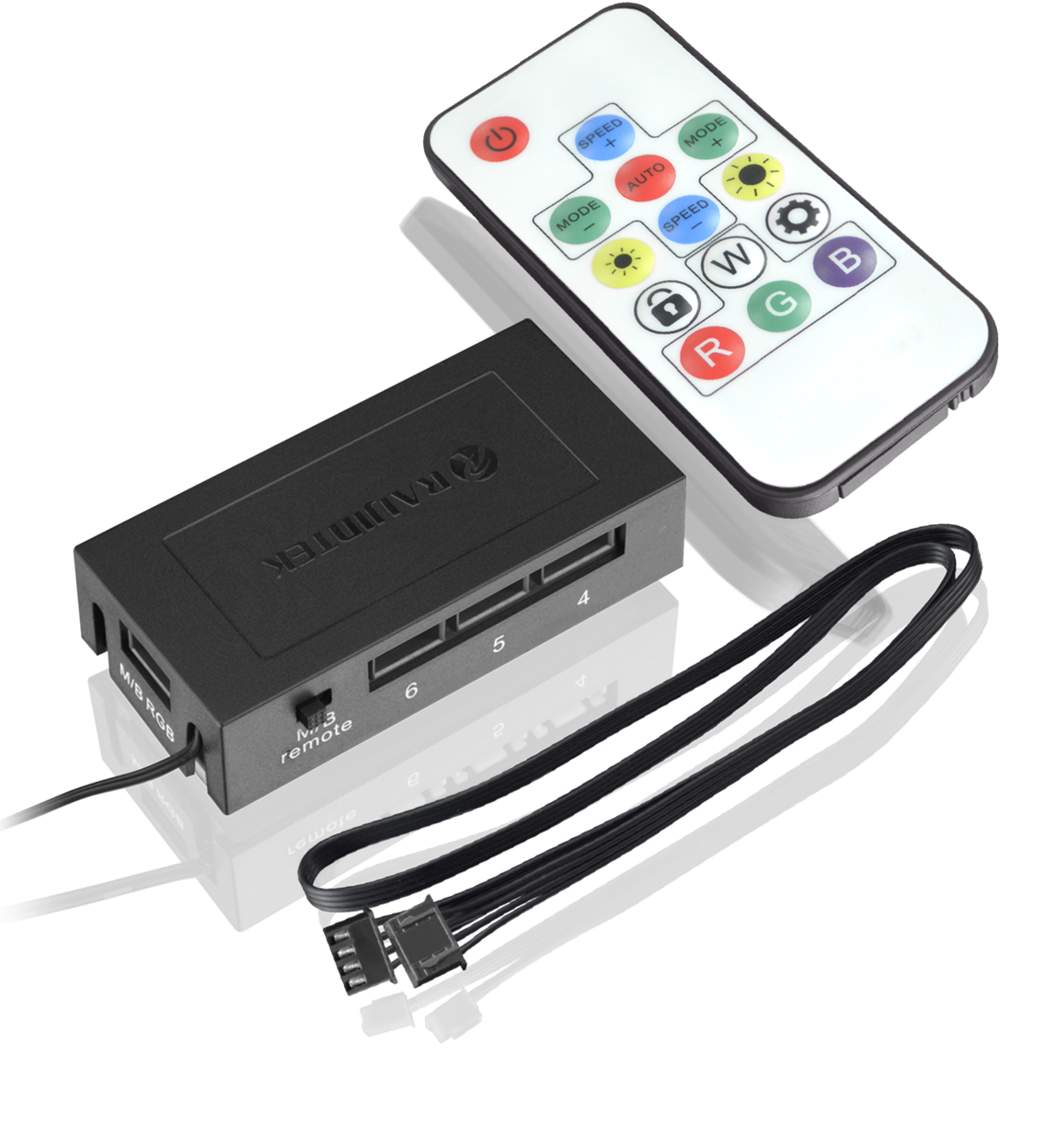

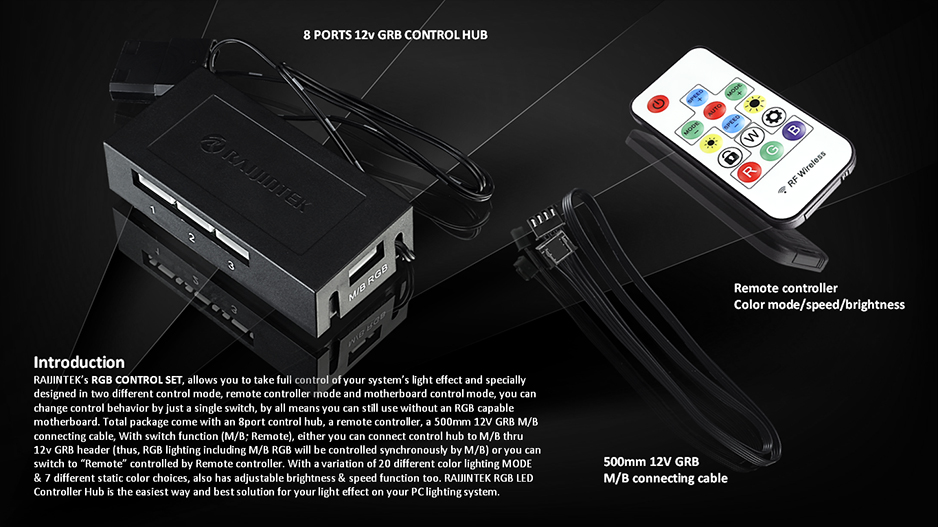

RAIJINTEK’s RGB CONTROL SET, allows you to take full control of your system’s light effect and specially designed in two different control mode, remote controller mode and motherboard control mode, you can change control behavior by just a single switch, by all means you can still use without an RGB capable motherboard. Total package come with an 8port control hub, a remote controller, a 500mm 12V GRB M/B connecting cable, With switch function (M/B; Remote), either you can connect control hub to M/B thru 12v GRB header (thus, RGB lighting including M/B RGB will be controlled synchronously by M/B) or you can switch to “Remote” controlled by Remote controller. With a variation of 20 different color lighting MODE & 7 different static color choices, also has adjustable brightness & speed function too. RAIJINTEK RGB LED Controller Hub is the easiest way and best solution for your light effect on your PC lighting system.








  •

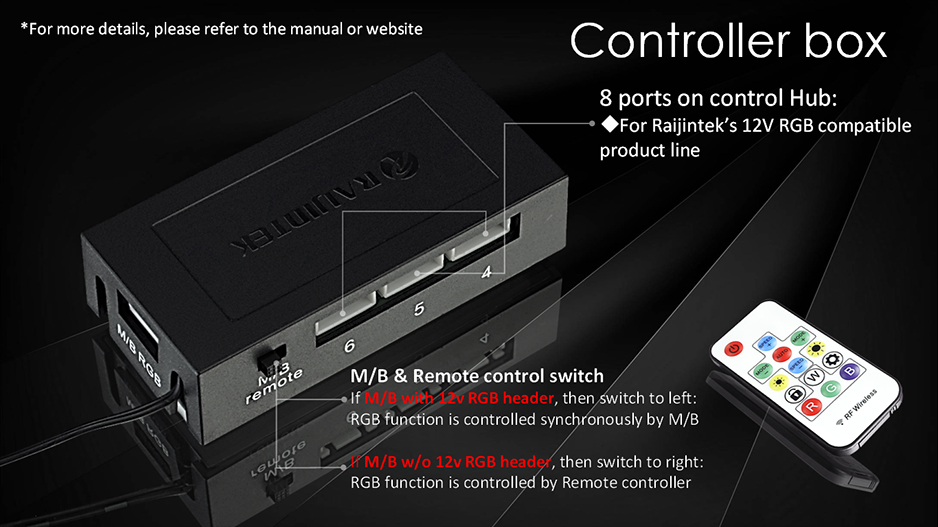

  • 8port Control hub with switch for "M/B or Remote" control of RGB lighting
  • 20 different Lighting MODE & 7 different static color choices
  • M/B connecting cable included
  • Compatible with Raijintek's RGB products line
  • Compact and Convenient
SPECIFICATION
Product Name RJK RGB CONTROL SET
Product Number 0R40B00092
Dimension [W×D×H] 72×39×20 mm
Weight 120 g
Material Plastic, PCB
Control Method Remote control / Motherboard control
Input Connector 4-PIN Molex
Voltage Rating 12V
Output Channels 8
Lighting Mode 20 Lighting MODE & 7 different static color choices
Accessories 500 mm M/B connecting Cable × 1
Remote controller × 1

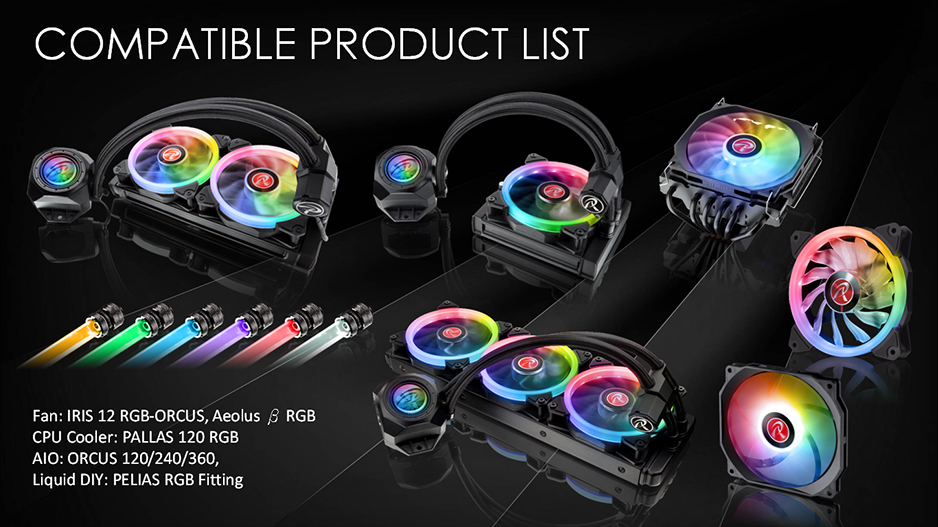

RAIJINTEK'S COMPATIBLE PRODUCT LIST
Fan IRIS 12 RGB-ORCUS, Aeolus β RGB
CPU Cooler PALLAS 120 RGB
AIO ORCUS 120/240/360
Liquid DIY Pelias RGB Fitting
  •

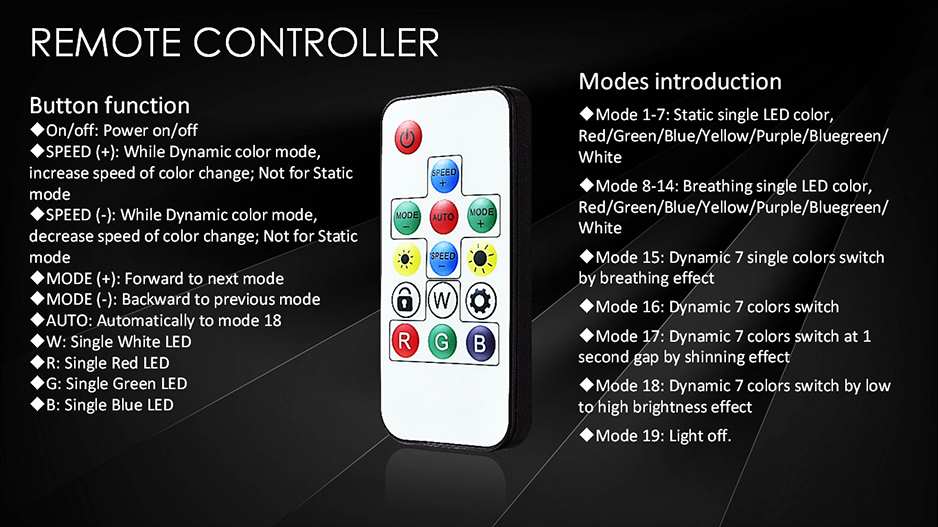

  • Remote controller function
  • 1.On/off: Power on/off
    2.SPEED (+): While Dynamic color mode, increase the speed of color change; Not for Static mode
    3.SPEED (-): While Dynamic color mode, decrease the speed of color change; Not for Static mode
    4.MODE (+): Forward to next mode
    5.MODE (-): Backward to previous mode
    6.AUTO: Automatically cycles all modes, 10 seconds for each mode
    7.W: Single White LED
    8.R: Single Red LED
    9.G: Single Green LED
    10.B: Single Blue LED
  • Color Modes
  • Mode 1-7: Static single LED color, Red/Green/Blue/Yellow/Purple/Bluegreen/White
    Mode 8-14: Breathing single LED color, Red/Green/Blue/Yellow/Purple/Bluegreen/White
    Mode 15: Dynamic 7 single colors switch by breathing effect
    Mode 16: Dynamic 7 colors switch
    Mode 17: Dynamic 7 colors switch at 1 second gap by shinning effect
    Mode 18: Dynamic 7 colors switch by low to high brightness effect
    Mode 19: Light off

8 ports control hub × 1

Remote controller × 1

Connect cable × 1

Package × 1
